Key Feature 1 Unique Ni Ti wire treatment

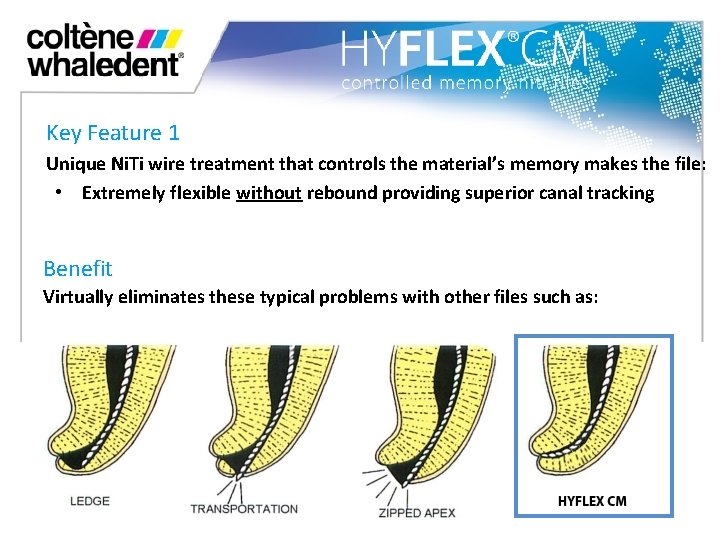

Key Feature 1 Unique Ni. Ti wire treatment that controls the material’s memory makes the file: • Extremely flexible without rebound providing superior canal tracking Benefit Virtually eliminates these typical problems with other files such as:

Superior Flexibility + No Rebound = Superior Tracking Standard Ni. Ti File Material Hyflex CM Ni. Ti file Material

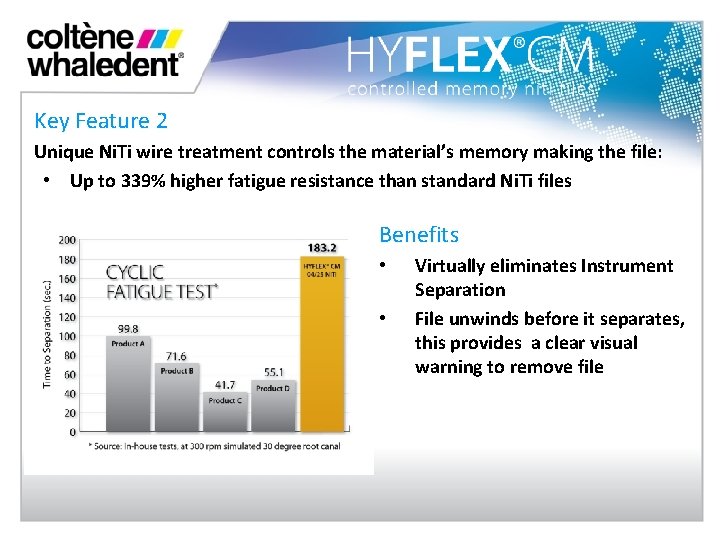

Key Feature 2 Unique Ni. Ti wire treatment controls the material’s memory making the file: • Up to 339% higher fatigue resistance than standard Ni. Ti files Benefits • • Virtually eliminates Instrument Separation File unwinds before it separates, this provides a clear visual warning to remove file

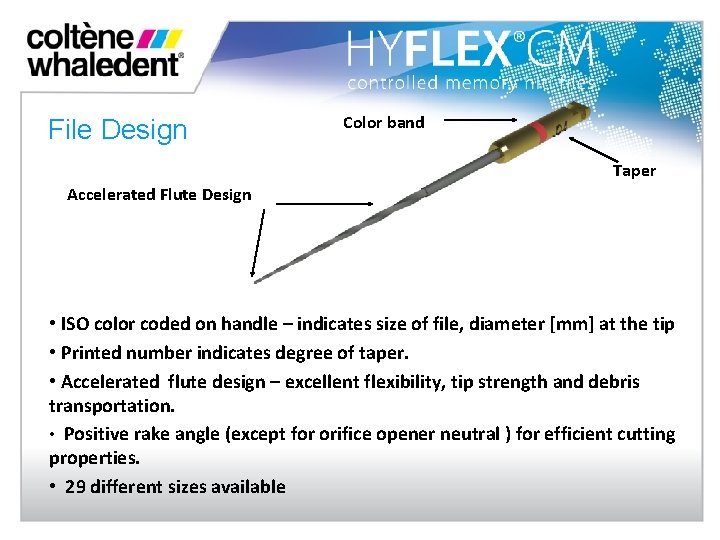

File Design Color band Taper Accelerated Flute Design • ISO color coded on handle – indicates size of file, diameter [mm] at the tip • Printed number indicates degree of taper. • Accelerated flute design – excellent flexibility, tip strength and debris transportation. • Positive rake angle (except for orifice opener neutral ) for efficient cutting properties. • 29 different sizes available

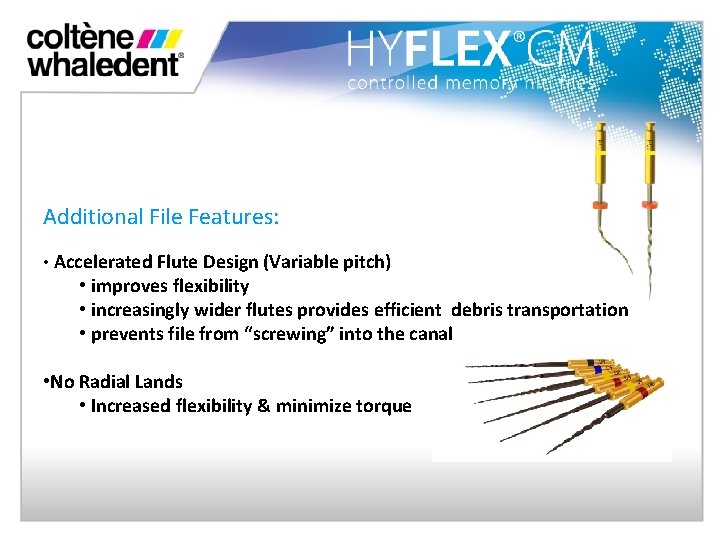

Additional File Features: • Accelerated Flute Design (Variable pitch) • improves flexibility • increasingly wider flutes provides efficient debris transportation • prevents file from “screwing” into the canal • No Radial Lands • Increased flexibility & minimize torque

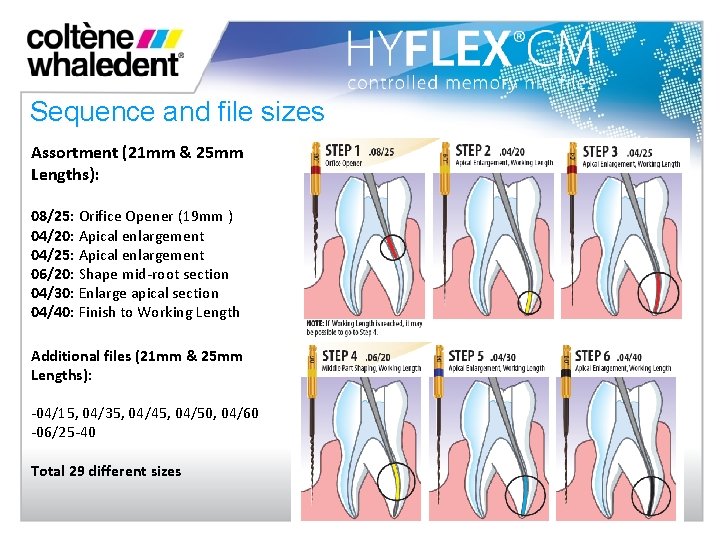

Sequence and file sizes Assortment (21 mm & 25 mm Lengths): 08/25: Orifice Opener (19 mm ) 04/20: Apical enlargement 04/25: Apical enlargement 06/20: Shape mid-root section 04/30: Enlarge apical section 04/40: Finish to Working Length Additional files (21 mm & 25 mm Lengths): -04/15, 04/35, 04/45, 04/50, 04/60 -06/25 -40 Total 29 different sizes

Sales Sheet

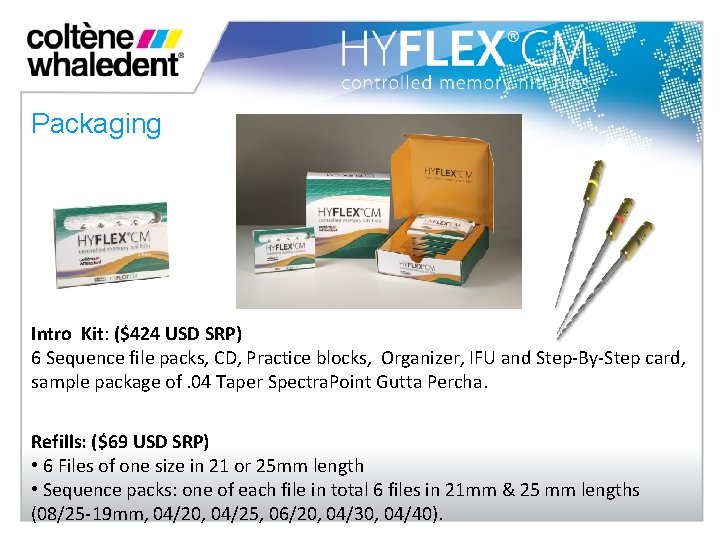

Packaging Intro Kit: ($424 USD SRP) 6 Sequence file packs, CD, Practice blocks, Organizer, IFU and Step-By-Step card, sample package of. 04 Taper Spectra. Point Gutta Percha. Refills: ($69 USD SRP) • 6 Files of one size in 21 or 25 mm length • Sequence packs: one of each file in total 6 files in 21 mm & 25 mm lengths (08/25 -19 mm, 04/20, 04/25, 06/20, 04/30, 04/40).

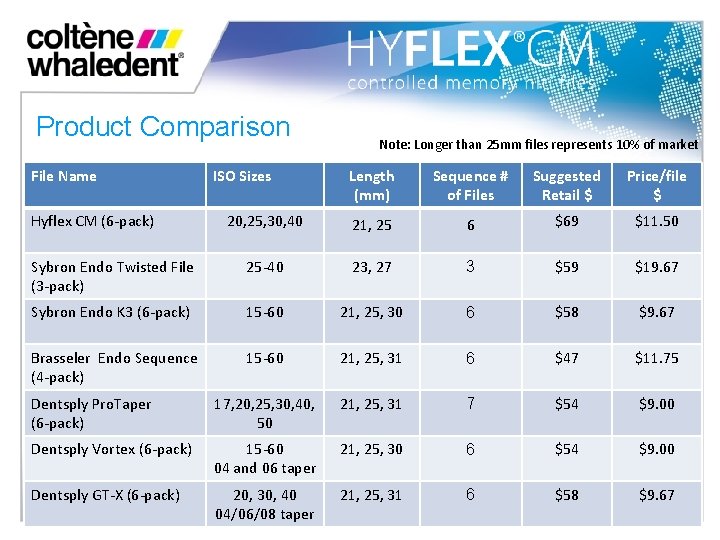

Product Comparison File Name Length (mm) Sequence # of Files Suggested Retail $ Price/file $ 20, 25, 30, 40 21, 25 6 $69 $11. 50 Sybron Endo Twisted File (3 -pack) 25 -40 23, 27 3 $59 $19. 67 Sybron Endo K 3 (6 -pack) 15 -60 21, 25, 30 6 $58 $9. 67 Brasseler Endo Sequence (4 -pack) 15 -60 21, 25, 31 6 $47 $11. 75 Dentsply Pro. Taper (6 -pack) 17, 20, 25, 30, 40, 50 21, 25, 31 7 $54 $9. 00 Dentsply Vortex (6 -pack) 15 -60 04 and 06 taper 21, 25, 30 6 $54 $9. 00 Dentsply GT-X (6 -pack) 20, 30, 40 04/06/08 taper 21, 25, 31 6 $58 $9. 67 Hyflex CM (6 -pack) ISO Sizes Note: Longer than 25 mm files represents 10% of market

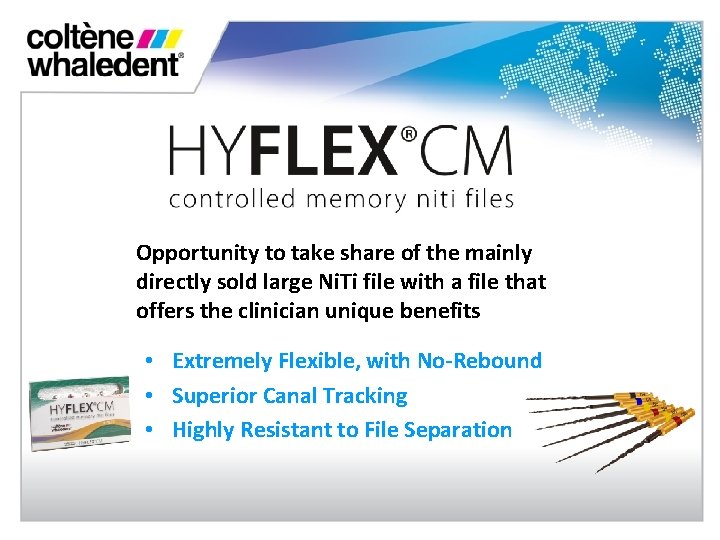

Opportunity to take share of the mainly directly sold large Ni. Ti file with a file that offers the clinician unique benefits • Extremely Flexible, with No-Rebound • Superior Canal Tracking • Highly Resistant to File Separation
