KCU 105 Instructions Hardware Setup 1 Connect USB
KCU 105 Instructions
Hardware Setup 1. Connect USB cable between PC and JTAG port
Hardware Setup 1. Connect USB cable between PC and JTAG port
Standard COM Port
Set Ethernet IP
Open Device manager and check for the COM ports. In this case, we have COM Port 8 (Enhanced) and COM Port 7 (Standard)

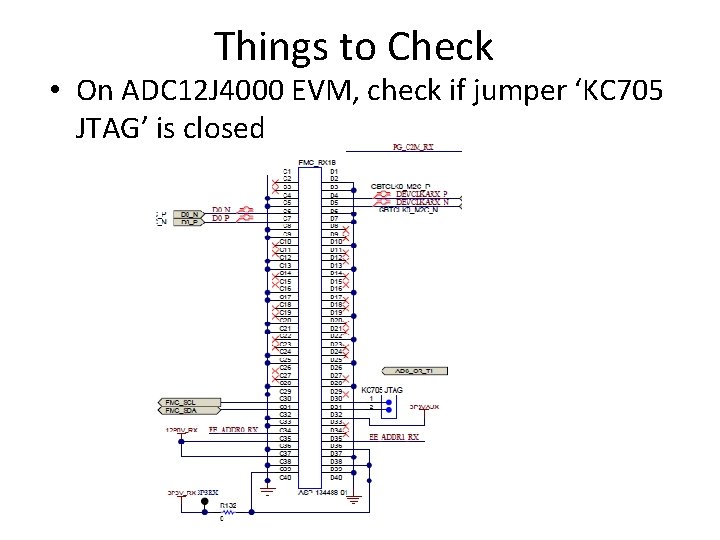

Things to Check • On ADC 12 J 4000 EVM, check if jumper ‘KC 705 JTAG’ is closed

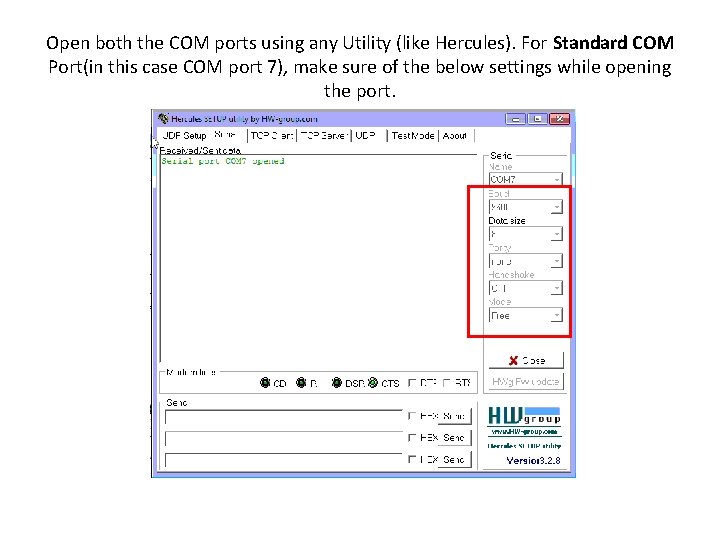

Open both the COM ports using any Utility (like Hercules). For Standard COM Port(in this case COM port 7), make sure of the below settings while opening the port.
For Enhanced COM Port(in this case COM Port 8), make sure of the below settings while opening the port.
For Enhanced COM Port(in this case COM Port 161), make sure of the below settings while opening the port.

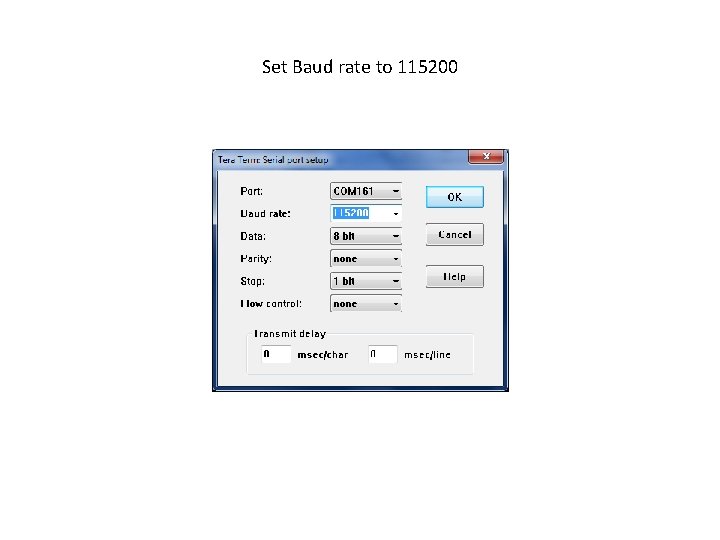

Set Baud rate to 115200
In the Tera Terminal window, select ”File” then “New connection” to open a second terminal.

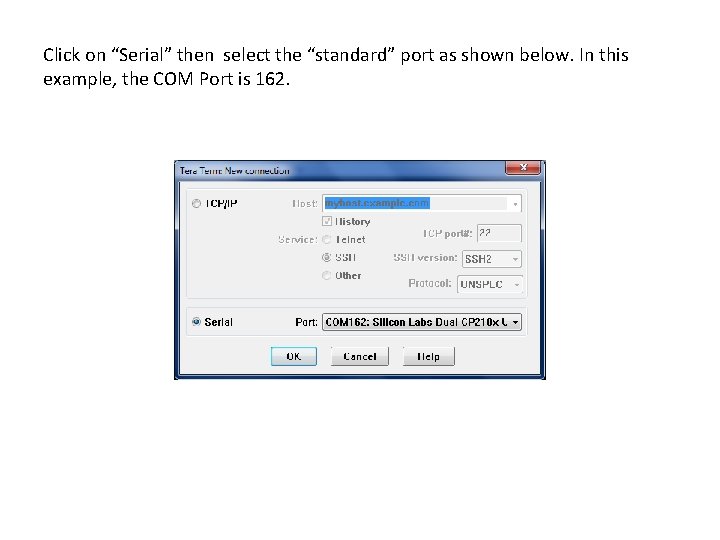

Click on “Serial” then select the “standard” port as shown below. In this example, the COM Port is 162.
Make sure the port settings are as shown below

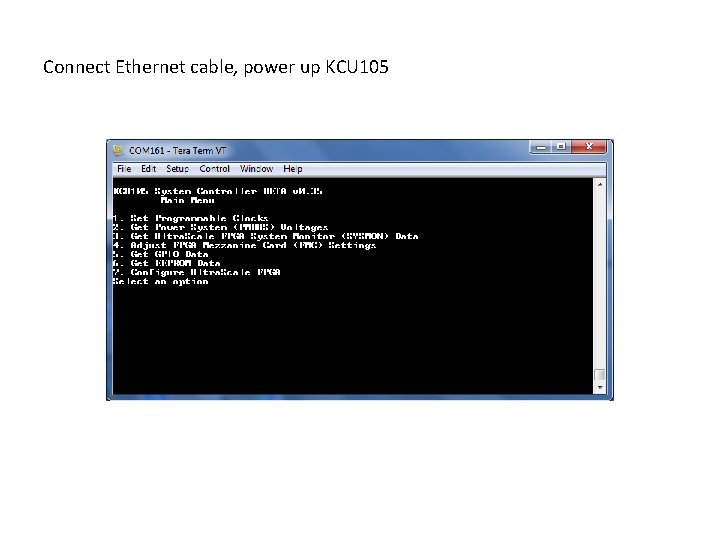

Connect Ethernet cable, power up KCU 105
Now download the firmware using Vivado v 15. 2 Open Hardware Manager
Once open select “Open Target” then “Open New Target” from the drop down list
Click Next twice and you should se the following. Click Next again then Finish.

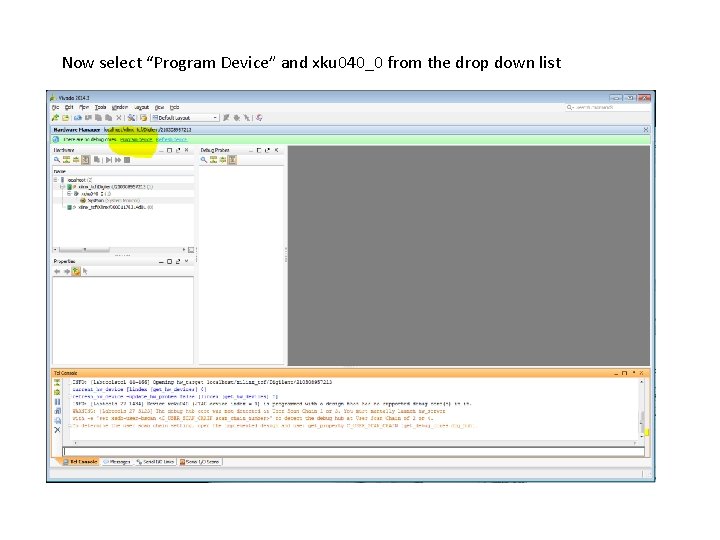

Now select “Program Device” and xku 040_0 from the drop down list
Now select the Bit file and click Program
Enhanced COM Port • Once firmware is downloaded, we need to set the FMC voltage to 1. 8 v in the enhanced port. • To do that, in the Hercules where we have opened the Enhanced COM port, enter 0 to go the Main menu • The main menu items will be displayed. Enter 4 to Adjust FPGA Mezzanini Card (FMC) settings • Again enter 4 to Set FMC VADJ to 1. 8 V. • To read the voltage value, go back to the main menu by entering 0. Then enter 2 to “Get the Power system Voltages” and enter 7 to “Get the VADJ 1 D 8 voltage”.
Do the following:
Standard COM Port
KCU 105 + DAC 38 J 84 Configuration

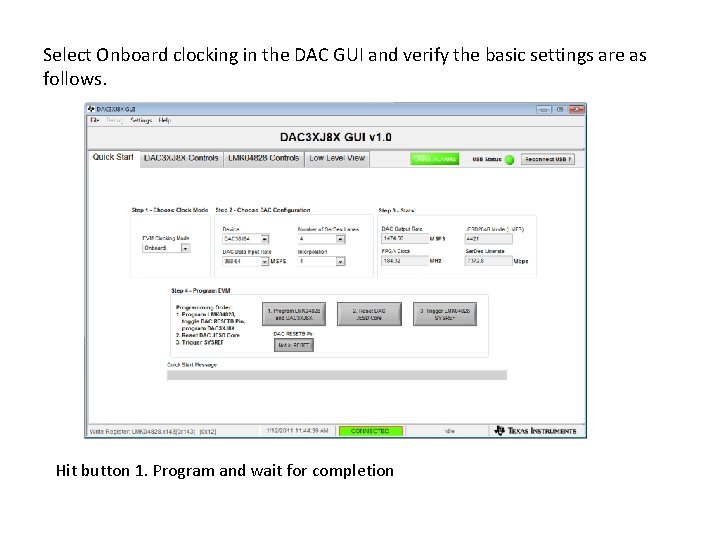

Select Onboard clocking in the DAC GUI and verify the basic settings are as follows. Hit button 1. Program and wait for completion

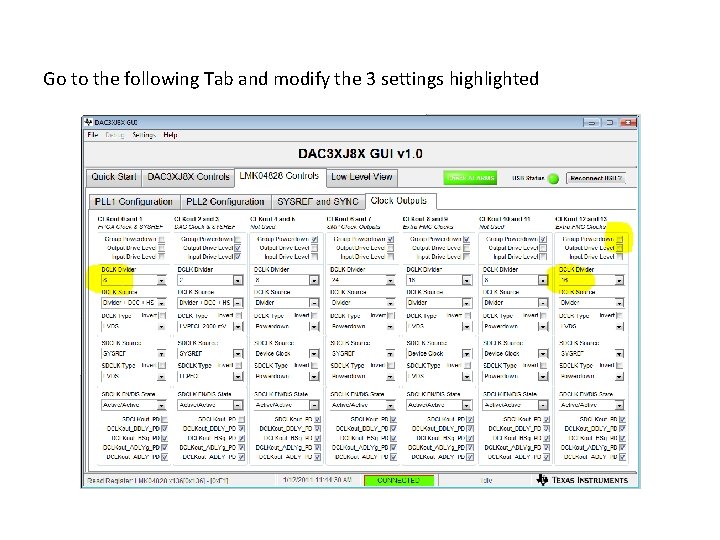

Go to the following Tab and modify the 3 settings highlighted
Go to the following Tab and modify the 1 setting highlighted.

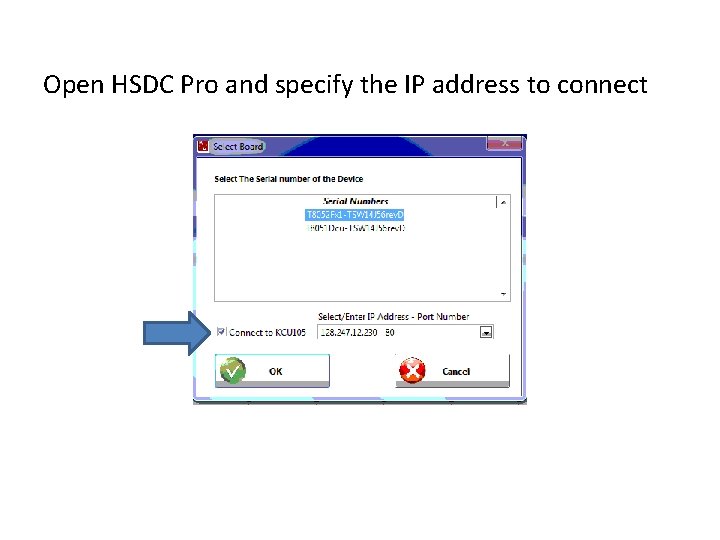

Open HSDC Pro and specify the IP address to connect
Select the INI from the dropdown and verify the HSDC Pro settings are as follows and then press Send. #samples can go up to maximum of 12288 in this case.
Now press Reset DAC JESD Core and Trigger button in DAC GUI ① ②
Check the DAC output. Sample snapshot from Spectrum Analyzer:
KCU 105 + ADC 12 J 4000 Configuration
If firmware is not downloaded, follow the steps from Slide 2 to 11 to download it.
• Select Fs=3100 Msps and hit Program Clocks and ADC

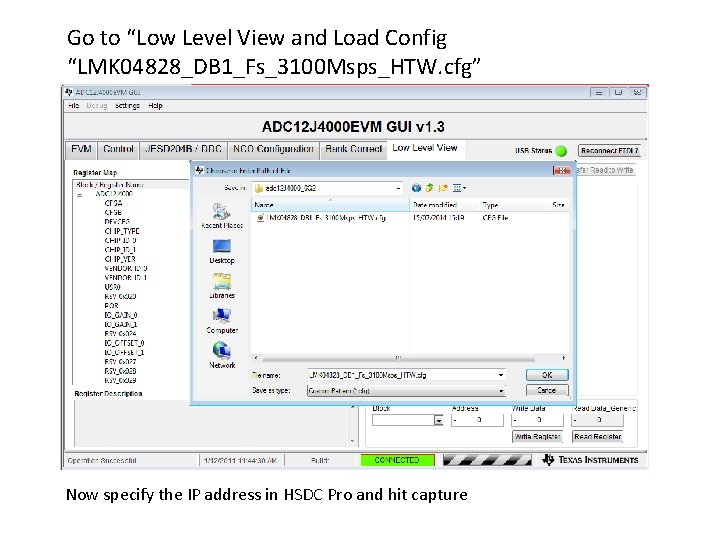

Go to “Low Level View and Load Config “LMK 04828_DB 1_Fs_3100 Msps_HTW. cfg” Now specify the IP address in HSDC Pro and hit capture

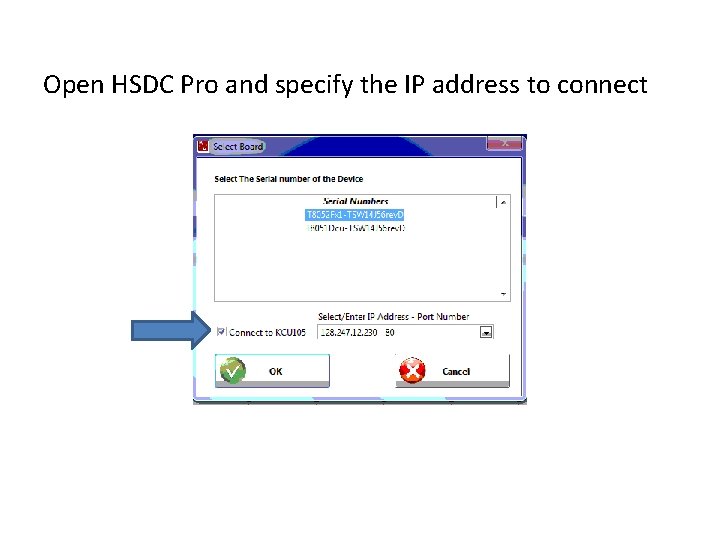

Open HSDC Pro and specify the IP address to connect

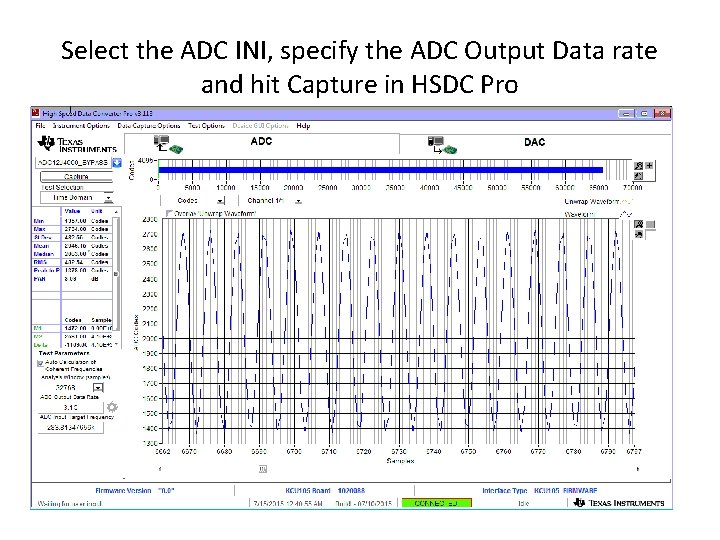

Select the ADC INI, specify the ADC Output Data rate and hit Capture in HSDC Pro
