KCE 3143 n n n n RESOLUCIN 420

KC-E 3143 n n n n RESOLUCIÓN: 420 LÍNEAS CCD 1/3 SHARP AGC Y BLC FOTOCÉLULA PARA ACTIVAR IR 18 PCS IR LED INFRARROJOS 20 METROS DE COBERTURA LENTE 6 MM

APLICACIONES INTERIOR n AMBIENTES ILUMINADOS O 0 LUX n MONTAJE DE TECHO n GABINETE PLASTICO n

n n n n n n n Scanning System NTSC: 525 lines 2: 1 interlace PAL: 625 lines 2: 1 interlace Scanning Frequency NTSC: 15, 734 Hz(H) , 60 Hz(V) PAL: 15, 625 Hz(H) , 50 Hz(V) Effective Pixels NTSC: 512(H) x 492(V) PAL: 512(H) x 582(V) Electronic Shutter NTSC: 1/60 -100, 000 sec. PAL: 1/50 -100, 000 sec Image Device 1/3" SHARP CCD Horizontal Resolution 420 TV lines Sensitivity 0 Lux IR on Signal to Noise More than 48 d. B Gain Control AGC White Balance Auto ATW 2500 -9500 ° K BLC Auto Gamma Correction 0. 45 SYNC System Internal Lens/Board 6 mm(Standard) Video Output 1. 0 Vp-p, 75 Ohm IR LED 18 units 850 nm infrared LED IR Distance 20 meters (Subject to IR reflection conditions ) IR Status IR on: Under 10 Lux, by PT auto control LED life More than 10, 000 Hours Power Requirement(± 10%) DC 12 V, 500 m. A Power Consumption(± 10%) IR on: 300 m. A, IR off: 120 m. A Operation Temp. Operating: -20~ + 55 , Storage: -30 ~ + 80 , Humidity: 0~95%RH Dimensions ( mm ) 108(ø) x 83 (H) Weight ( N. W) 200 g

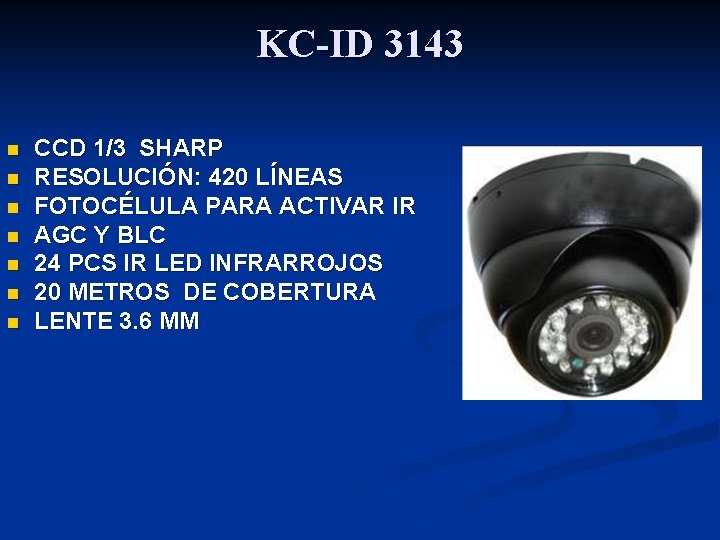

KC-ID 3143 n n n n CCD 1/3 SHARP RESOLUCIÓN: 420 LÍNEAS FOTOCÉLULA PARA ACTIVAR IR AGC Y BLC 24 PCS IR LED INFRARROJOS 20 METROS DE COBERTURA LENTE 3. 6 MM

APLICACIONES TECHO / PARED n GABINETE METALICO n AJUSTE DE PAN / TILT MANUAL n APLICACIÓN DE INTERIOR n

n n n n n n n Model Number KC-ID 3143 Scanning System NTSC: 525 lines 2: 1 interlace PAL: 625 lines 2: 1 interlace Scanning Frequency NTSC: 15, 734 Hz(H) , 60 Hz(V) PAL: 15, 625 Hz(H) , 50 Hz(V) Effective Pixels NTSC: 512(H) x 492(V) PAL: 512(H) x 582(V) Electronic Shutter NTSC: 1/60 -100, 000 sec. PAL: 1/50 -100, 000 sec Image Device 1/3" Sharp CCD Horizontal Resolution 420 TV lines Sensitivity 0 Lux IR on Signal to Noise More than 48 d. B Gain Control AGC White Balance Auto ATW 2500 -9500 ° K BLC Auto Gamma Correction 0. 45 SYNC System Internal Lens 3. 6 mm Video Output 1. 0 Vp-p, 75 Ohm IR LED 24 units 850 nm infrared LED IR Distance 20 meters (Subject to IR reflection conditions ) IR Status IR on: Under 10 Lux, by PT auto control LED life More than 10, 000 Hours Protection Class IP 57 Power Requirement (± 10%) DC 12 V, 500 m. A Power Consumption (± 10%) IR on: 300 m. A, IR off: 120 m. A Operation Temp. Operating: -20℃ ~ + 55℃, Storage: -30℃ ~ + 80℃ , Humidity: 0~95%RH Dimensions ( mm ) 94(ø) x 68(H) Weight ( N. W) 370 g

KC-DM 3143 n RESOLUCIÓN: 420 LÍNEAS CCD 1/3 SHARP AGC Y BLC MICRÓFONO PARA ESCUCHA DE AUDIO LENTE 3. 6 MM n SENSIBILIDAD 0. 2 LUX n n

APLICACIONES TECHO / PARED n GABINETE PLASTICO n AJUSTE DE PAN / TILT MANUAL n

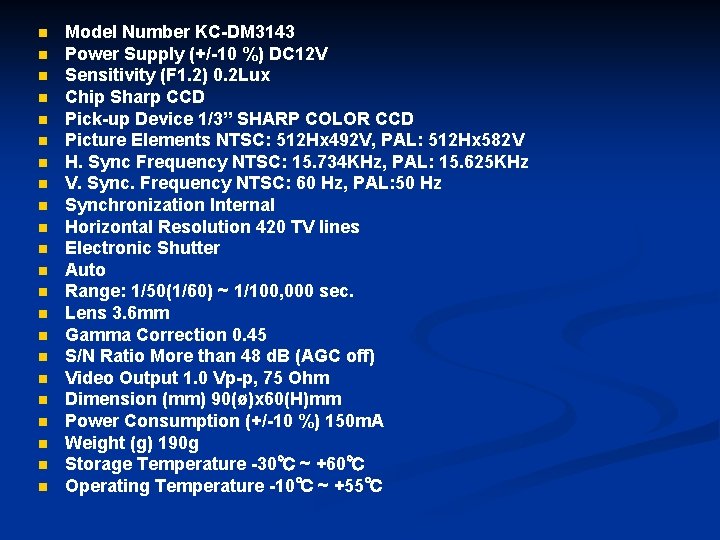

n n n n n n Model Number KC-DM 3143 Power Supply (+/-10 %) DC 12 V Sensitivity (F 1. 2) 0. 2 Lux Chip Sharp CCD Pick-up Device 1/3” SHARP COLOR CCD Picture Elements NTSC: 512 Hx 492 V, PAL: 512 Hx 582 V H. Sync Frequency NTSC: 15. 734 KHz, PAL: 15. 625 KHz V. Sync. Frequency NTSC: 60 Hz, PAL: 50 Hz Synchronization Internal Horizontal Resolution 420 TV lines Electronic Shutter Auto Range: 1/50(1/60) ~ 1/100, 000 sec. Lens 3. 6 mm Gamma Correction 0. 45 S/N Ratio More than 48 d. B (AGC off) Video Output 1. 0 Vp-p, 75 Ohm Dimension (mm) 90(ø)x 60(H)mm Power Consumption (+/-10 %) 150 m. A Weight (g) 190 g Storage Temperature -30℃ ~ +60℃ Operating Temperature -10℃ ~ +55℃

KC-202 S Pinhole Camera n RESOLUCIÓN: 420 LÍNEAS n CCD 1/3 SHARP n AGC Y BLC n LENTE 3. 6 MM STÁNDAR n SENSIBILIDAD 0. 2 LUX

n n n n n n Model Number KC-202 S Resolution Med-res. Sensitivity (F 1. 2) 0. 2 Lux Chip SHARP Pick-up Device 1/3” SHARP super color CCD Picture Elements NTSC: 512 Hx 492 V, PAL: 512 Hx 582 V H. Sync Frequency NTSC: 15. 734 KHz, PAL: 15. 625 KHz V. Sync. Frequency NTSC: 60 Hz, PAL: 50 Hz Sincronización Infernal Horizontal Resolution 420 TV lines Back Light Compensation Auto Lens 3. 6 mm(Standard) Gamma Correction 0. 45 S/N Ratio More than 48 d. B (AGC off) Video Output 1. 0 Vp-p, 75 Ohm Dimension (mm) 38(W) x 15(H) x 36(L)mm Power Supply (+/-10 %) DC 12 V Power Consumption (+/-10 %) 110 m. A Weight (g) 90 g Storage Temperature -30℃ ~ +60℃ Operating Temperature -10℃ ~ +55℃

KC-202 L Pinhole Camera n n n RESOLUCIÓN: 420 LÍNEAS CCD 1/3 SHARP AGC Y BLC LENTE 3. 7 MM pin-hole SENSIBILIDAD 0. 2 LUX

n n n n n n Model Number KC-202 L Resolution Med-res. Sensitivity (F 1. 2) 0. 2 Lux Chip SHARP Pick-up Device 1/3” SHARP super color CCD Picture Elements NTSC: 512 Hx 492 V, PAL: 512 Hx 582 V H. Sync Frequency NTSC: 15. 734 KHz, PAL: 15. 625 KHz V. Sync. Frequency NTSC: 60 Hz, PAL: 50 Hz Synchronization Internal Horizontal Resolution 420 TV lines Back Light Compensation Auto Lens 3. 7 mm pin-hole Gamma Correction 0. 45 S/N Ratio More than 48 d. B (AGC off) Video Output 1. 0 Vp-p, 75 Ohm Dimension (mm) 38(W) x 15(H) x 36(L)mm Power Supply (+/-10 %) DC 12 V Power Consumption (+/-10 %) 110 m. A Weight (g) 90 g Storage Temperature -30℃ ~ +60℃ Operating Temperature -10℃ ~ +55℃

KP-KP 3853 E n n n CCD 1/3 SONY SUPER HAD CCD RESOLUCIÓN: 540 LÍNEAS ACEPTA 2 TIPOS DE LENTE AUTO IRIS DD/VD MICRÓFONO PARA ESCUCHA DE AUDIO SENSIBILIDAD. 01 LUX

n n n n n Model Number KC-KP 3853 E Power Supply (+/-10 %) DC 12 V Resolution Hi-res. Sensitivity (F 1. 2) 0. 1 Lux Chip SONY HQ 1 Pick-up Device NEW 1/3” SONY CCD image sensor Picture Elements NTSC: 768 x 492, PAL: 752 x 582 H. Sync Frequency NTSC: 15. 734 KHz, PAL: 15. 625 KHz V. Sync. Frequency NTSC: 59. 94 Hz, PAL: 50 Hz Synchronization Internal Horizontal Resolution 540 TV lines Lens CS/C Mount Gamma Correction 0. 45 S/N Ratio More than 48 d. B (AGC off) Video Output 1. 0 Vp-p, 75 Ohm Dimension (mm) (L)112 x(W)64 x(H)55 mm Power Consumption (+/-10 %) 110 m. A Weight (g) 380 g Storage Temperature -30℃ ~ +60℃ Operating Temperature -10℃ ~ +55℃

KC- IP 3154 n n n 1/3 SONY SUPER HAD CCD RESOLUCIÓN: 540 LÍNEAS ACEPTA 2 TIPOS DE LENTE AUTO IRIS DD/VD MICRÓFONO PARA ESCUCHA DE AUDIO SENSIBILIDAD. 01 LUX

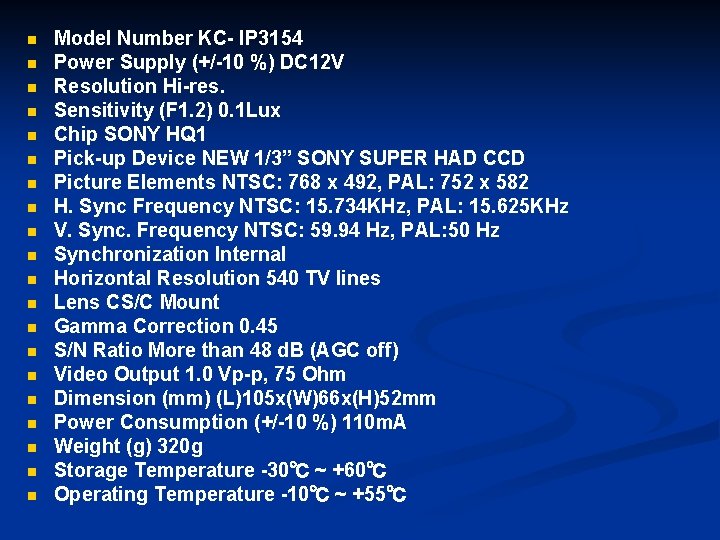

n n n n n Model Number KC- IP 3154 Power Supply (+/-10 %) DC 12 V Resolution Hi-res. Sensitivity (F 1. 2) 0. 1 Lux Chip SONY HQ 1 Pick-up Device NEW 1/3” SONY SUPER HAD CCD Picture Elements NTSC: 768 x 492, PAL: 752 x 582 H. Sync Frequency NTSC: 15. 734 KHz, PAL: 15. 625 KHz V. Sync. Frequency NTSC: 59. 94 Hz, PAL: 50 Hz Synchronization Internal Horizontal Resolution 540 TV lines Lens CS/C Mount Gamma Correction 0. 45 S/N Ratio More than 48 d. B (AGC off) Video Output 1. 0 Vp-p, 75 Ohm Dimension (mm) (L)105 x(W)66 x(H)52 mm Power Consumption (+/-10 %) 110 m. A Weight (g) 320 g Storage Temperature -30℃ ~ +60℃ Operating Temperature -10℃ ~ +55℃

CCD HAD Pérdida de luz sobre la zona Nuevos Micro- lente corregimos perdida de luz Sony Super HAD Color CCD

KC-JA 3142 n n n n RESOLUCIÓN: 420 LÍNEAS 1/3 CCD SONY SENSIBILIDAD 0. 5 LUX AGC Y BLC LENTE 4 mm INTERCAMBIABLE GABINETE METALICO TIPO DOMO MONTAJE PARED

APLICACIONES n n ANTIVANDALISMO DISEÑO EXTERIOR

n n n n Model KC-JA 3142 Image sensor 1/3"SONY CCD System. PAL NTSC Valid image 537(H)x 597(V) 537(H)x 505(V) Resolution horizontal 420 TV Line Video output 1. 0 V(p-p) (75 Ohm, negative) S/N Ratio>48 d. B Min Ilumination 0. 5 Lux/F 1. 2 Lens Mount. Fixed Lens(4 mm) Electronic shutter 1/50 -1/100. 000 sec 1/601/100. 000 sec Operating Temp-10ºC to 50ºC, RH 95% Max. Storege temp conditions-20ºC to 60ºC, RH 95% Max Imput Power 12 V DC (+/-10%) Dimension 185 x(W) 150 x(H)111(mm)

KC-RH 3143 n n n n RESOLUCIÓN: 420 LÍNEAS 1/3"Sharp CCD 30 PCS IR LED INFRARROJOS 25 METROS DE COBERTURA EXTERIOR FOTOCÉLULA PARA ACTIVAR IR LENTE 6 mm

APLICACIONES EXTERIOR n GABINETE METALICO n

n n n n n n n Model Number KC-RH 3143 Scanning System NTSC: 525 lines 2: 1 interlace PAL: 625 lines 2: 1 interlace Scanning Frequency NTSC: 15, 734 Hz(H) , 60 Hz(V) PAL: 15, 625 Hz(H) , 50 Hz(V) Effective Pixels NTSC: 512(H) x 492(V) PAL: 512(H) x 582(V) Electronic Shutter NTSC : 1/60 -100, 000 sec. PAL: 1/50 -100, 000 sec Image Device 1/3" SHARP CCD Horizontal Resolution 420 TV lines Sensitivity 0 Lux IR on Signal to Noise More than 48 d. B Gain Control AGC White Balance Auto ATW 2500 -9500 ° K BLC Auto Gamma Correction 0. 45 SYNC System Internal Lens/Fousc point 6 mm Video Output 1. 0 Vp-p, 75 Ohm IR LED 30 units 850 nm infrared LED IR Distance 25 meters (Subject to IR reflection conditions ) IR Status IR on: Under 10 Lux, by PT auto control LED life More than 10, 000 Hours Protection Class IP 57 Power Requirement (± 10%) DC 12 V, 500 m. A Power Consumption (± 10%) IR on: 300 m. A, IR off: 80 m. A Operation Temp. Operating: -20℃ ~ + 55℃ , Storage: -30℃ ~ + 80℃ , Humidity: 0~95%RH Dimensions ( mm ) φ138 x 75 (H) x 67(L) Weight ( N. W) 440 g

KC-L 3142 -6 n RESOLUCIÓN: 420 LÍNEAS 1/3" SONY SUPER HAD CCD A. G. C. & BLC 6 LEDs IR DE LARGO ALCANCE 60 METROS COBERTURA FOTOCÉLULA PARA ACTIVAR IR n SENSIBILIDAD 0. 3 LUX n LENTE 6 mm (OPCIONAL 6 mm, 8 mm. 12 mm. 16 mm ) n n n

APLICACIONES DISEÑO EXTERIOR n GABINETE METALICO n

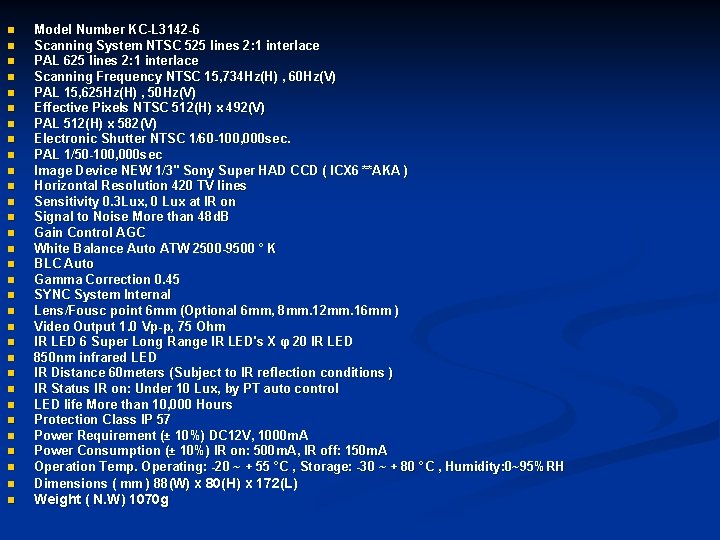

n Model Number KC-L 3142 -6 Scanning System NTSC 525 lines 2: 1 interlace PAL 625 lines 2: 1 interlace Scanning Frequency NTSC 15, 734 Hz(H) , 60 Hz(V) PAL 15, 625 Hz(H) , 50 Hz(V) Effective Pixels NTSC 512(H) x 492(V) PAL 512(H) x 582(V) Electronic Shutter NTSC 1/60 -100, 000 sec. PAL 1/50 -100, 000 sec Image Device NEW 1/3" Sony Super HAD CCD ( ICX 6 **AKA ) Horizontal Resolution 420 TV lines Sensitivity 0. 3 Lux, 0 Lux at IR on Signal to Noise More than 48 d. B Gain Control AGC White Balance Auto ATW 2500 -9500 ° K BLC Auto Gamma Correction 0. 45 SYNC System Internal Lens/Fousc point 6 mm (Optional 6 mm, 8 mm. 12 mm. 16 mm ) Video Output 1. 0 Vp-p, 75 Ohm IR LED 6 Super Long Range IR LED's X φ 20 IR LED 850 nm infrared LED IR Distance 60 meters ( Subject to IR reflection conditions ) IR Status IR on: Under 10 Lux, by PT auto control LED life More than 10, 000 Hours Protection Class IP 57 Power Requirement (± 10%) DC 12 V, 1000 m. A Power Consumption (± 10%) IR on: 500 m. A, IR off: 150 m. A Operation Temp. Operating: -20 ~ + 55 °C , Storage: -30 ~ + 80 °C , Humidity: 0~95%RH Dimensions ( mm ) 88(W) x 80(H) x 172(L) n Weight ( N. W) 1070 g n n n n n n n n

KC-BS 3142 n n n 1/3" SONY SUPER HAD CCD RESOLUCIÓN: 420 LÍNEAS MICRÓFONO PARA ESCUCHA DE AUDIO LENTE 3. 6 mm(Standard) /(6 mm, 8 mm) SENSIBILIDAD 0. 3 LUX

APLICACIONES n n n INSTALACIONES EN ASCENSORES PASILLOS LUGARES DE REDUCIDO TAMAÑO

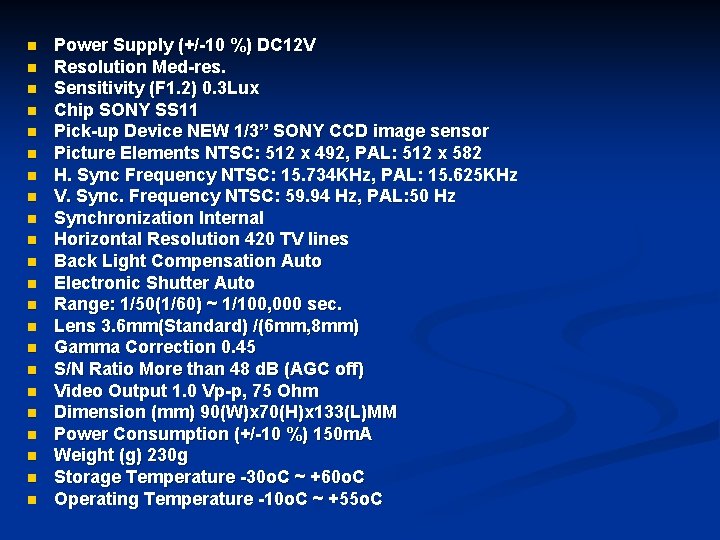

n n n n n n Power Supply (+/-10 %) DC 12 V Resolution Med-res. Sensitivity (F 1. 2) 0. 3 Lux Chip SONY SS 11 Pick-up Device NEW 1/3” SONY CCD image sensor Picture Elements NTSC: 512 x 492, PAL: 512 x 582 H. Sync Frequency NTSC: 15. 734 KHz, PAL: 15. 625 KHz V. Sync. Frequency NTSC: 59. 94 Hz, PAL: 50 Hz Synchronization Internal Horizontal Resolution 420 TV lines Back Light Compensation Auto Electronic Shutter Auto Range: 1/50(1/60) ~ 1/100, 000 sec. Lens 3. 6 mm(Standard) /(6 mm, 8 mm) Gamma Correction 0. 45 S/N Ratio More than 48 d. B (AGC off) Video Output 1. 0 Vp-p, 75 Ohm Dimension (mm) 90(W)x 70(H)x 133(L)MM Power Consumption (+/-10 %) 150 m. A Weight (g) 230 g Storage Temperature -30 o. C ~ +60 o. C Operating Temperature -10 o. C ~ +55 o. C

KC-BS 3142 -6 n n n n RESOLUCIÓN: 420 LÍNEAS 1/3" CCD SONY MICRÓFONO PARA ESCUCHA DE AUDIO LENTE 3. 6 mm(Standard) /(6 mm, 8 mm SENSIBILIDAD 0. 3 LUX DE INTERIOR 6 PCS IR LED INFRARROJOS 4 METROS DE COBERTURA

APLICACIONES n n APROPIADA PARA INSTALACIÓN DENTRO DE VEHÍCULOS LUGARES DE REDUCIDO TAMAÑO Y BAJA O 0 ILUMINACIÓN

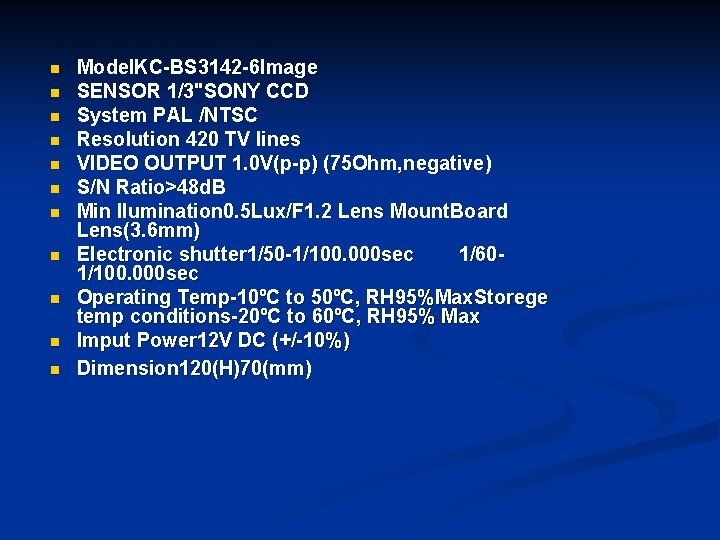

n n n Model. KC-BS 3142 -6 Image SENSOR 1/3"SONY CCD System PAL /NTSC Resolution 420 TV lines VIDEO OUTPUT 1. 0 V(p-p) (75 Ohm, negative) S/N Ratio>48 d. B Min Ilumination 0. 5 Lux/F 1. 2 Lens Mount. Board Lens(3. 6 mm) Electronic shutter 1/50 -1/100. 000 sec 1/601/100. 000 sec Operating Temp-10ºC to 50ºC, RH 95%Max. Storege temp conditions-20ºC to 60ºC, RH 95% Max Imput Power 12 V DC (+/-10%) Dimension 120(H)70(mm)

KC-EC 3142 n n n n RESOLUCIÓN: 420 LÍNEAS 1/3" Sony Super HAD Color CCD A. G. C. & BLC FOTOCÉLULA PARA ACTIVAR IR LENTE STÁNDAR 4. 3 MM OPCIONAL 6 MM/8 MM 12 PCS IR LED INFRARROJOS 12 METROS DE COBERTURA SENSIBILIDAD 0. 5 LUX

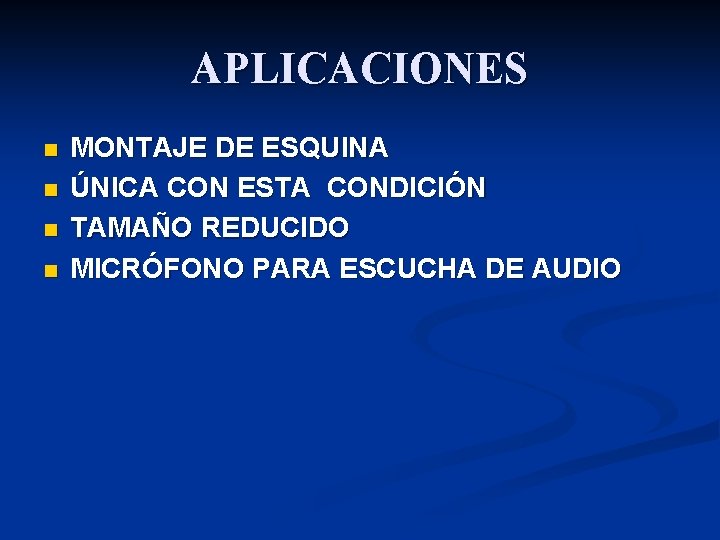

APLICACIONES n n MONTAJE DE ESQUINA ÚNICA CON ESTA CONDICIÓN TAMAÑO REDUCIDO MICRÓFONO PARA ESCUCHA DE AUDIO

n n n n n n n n Model Number KC-EC 3142 Scanning System NTSC 525 lines 2: 1 interlace PAL 625 lines 2: 1 interlace Scanning Frequency NTSC 15, 734 Hz(H) , 60 Hz(V) PAL 15, 625 Hz(H) , 50 Hz(V) Effective Pixels NTSC 512(H) x 492(V) PAL 512(H) x 582(V) Electronic Shutter NTSC 1/60 -100, 000 sec. PAL 1/50 -100, 000 sec Image Device 1/3" Sony Super HAD CCD Horizontal Resolution 420 TV lines Sensitivity 0. 5 Lux, 0 Lux at IR on Signal to Noise More than 48 d. B Gain Control AGC White Balance Auto ATW 2500 -9500 ° K BLC Auto Gamma Correction 0. 45 SYNC System Internal Lens/Fousc point 4. 3 mm (Optional 6 mm, 8 mm ) Video Output 1. 0 Vp-p, 75 Ohm IR LED 12 units 850 nm infrared LED IR Distance 12 meters (Subject to IR reflection conditions ) IR Status IR on: Under 10 Lux, by PT auto control LED life More than 10, 000 Hours Protection Class IP 57 Power Requirement (± 10%) DC 12 V, 500 m. A Power Consumption (± 10%) IR on: 300 m. A, IR off: 120 m. A Operation Temp. Operating: -20 ~ + 55 °C , Storage: -30 ~ + 80 °C , Humidity: 0~95%RH Dimensions ( mm ) 85(ø) x 85(H) x 55(L)

IR-18 n n n 18 PCS IR LED INFRARROJOS DISEÑO ADECUADO PARA INTERIOR /EXTERIOR 20 METROS DE COBERTURA

IR-6 n 6 PCS IR LED INFRARROJOS n ALTO BRILLO DISEÑO ADECUADO PARA INTERIOR /EXTERIOR n 50 METROS DE COBERTURA
