Caution! The Texas Instruments software used in this presentation can adjust the power supply outputs on the KC 705 If used improperly, it may seriously damage your KC 705 Before making any adjustments not specifically covered in this presentation: – Understand the power requirements for Kintex-7 Devices – Understand the consequences of the change you are making Page 3
Xilinx KC 705 Board Page 4
Hardware Requirements Texas Instruments USB Interface Adapter EVM – TI Part Number: USB-TO-GPIO Page 5
Software Requirements Texas Instruments Power Software – TI Part Number: FUSION_DIGITAL_POWER_DESIGNER – Download: Latest Release at http: //www. ti. com/fusion-gui Page 6
Software Setup Install the TI Fusion Digital Power Designer Software Page 7

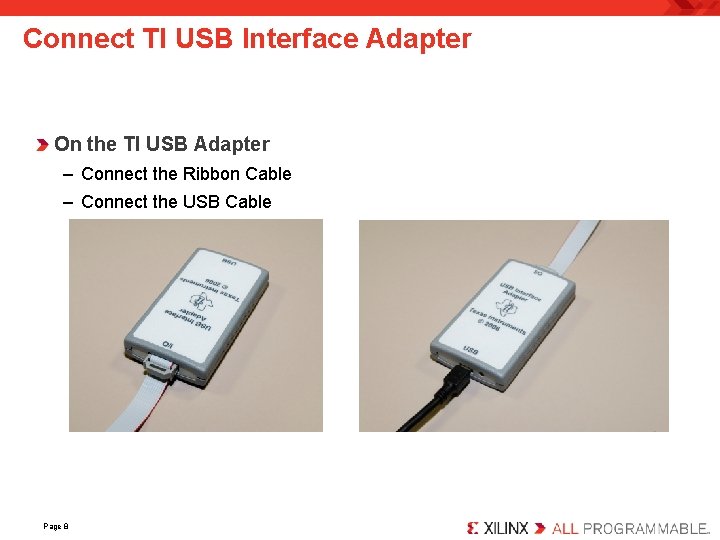

Connect TI USB Interface Adapter On the TI USB Adapter – Connect the Ribbon Cable – Connect the USB Cable Page 8
Connect TI USB Interface Adapter (2) Connect the Ribbon Cable to the KC 705 – Red Stripe towards pin 1 – Insert the “A” end of the USB cable into a PC USB port (do not use a docking station or USB hub port) – Turn on the KC 705 board Page 9

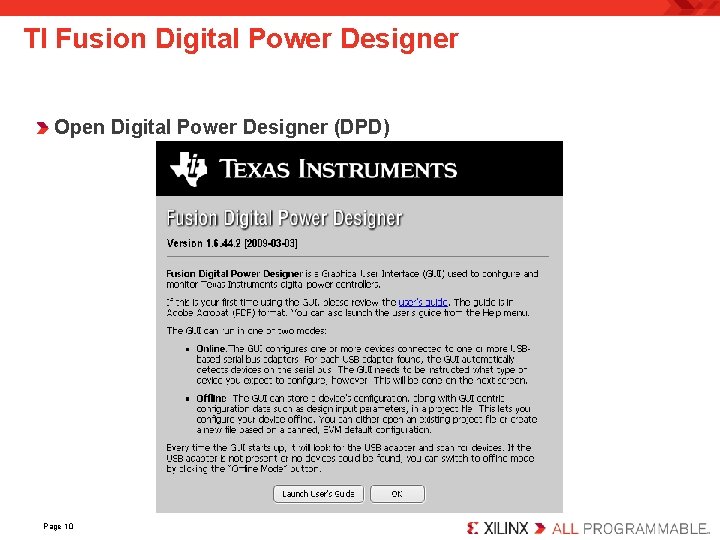

TI Fusion Digital Power Designer Open Digital Power Designer (DPD) Page 10

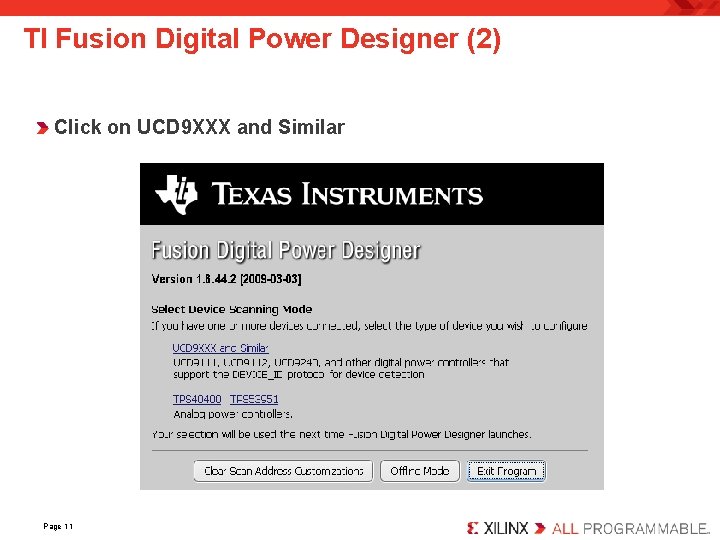

TI Fusion Digital Power Designer (2) Click on UCD 9 XXX and Similar Page 11

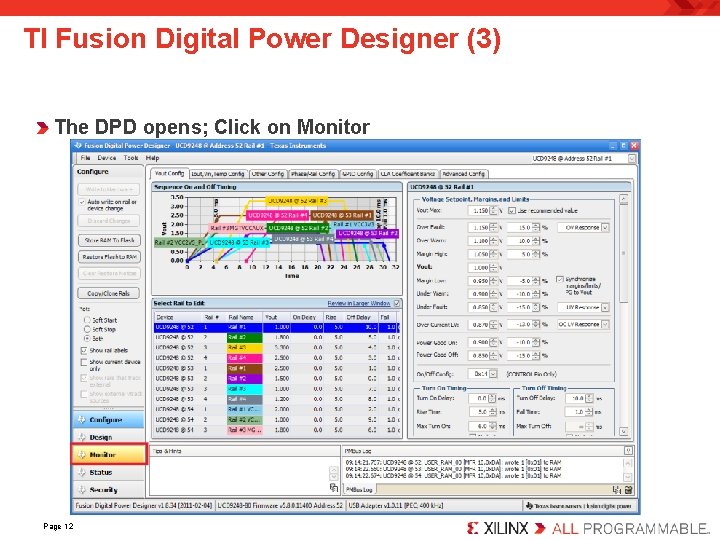

TI Fusion Digital Power Designer (3) The DPD opens; Click on Monitor Page 12
TI Fusion Digital Power Designer (4) Address automatically set to UCD 9248 @ Address 52 Rail #1 Select Vin and In – Input voltage and current from the Power Brick – 12 V Input Page 13

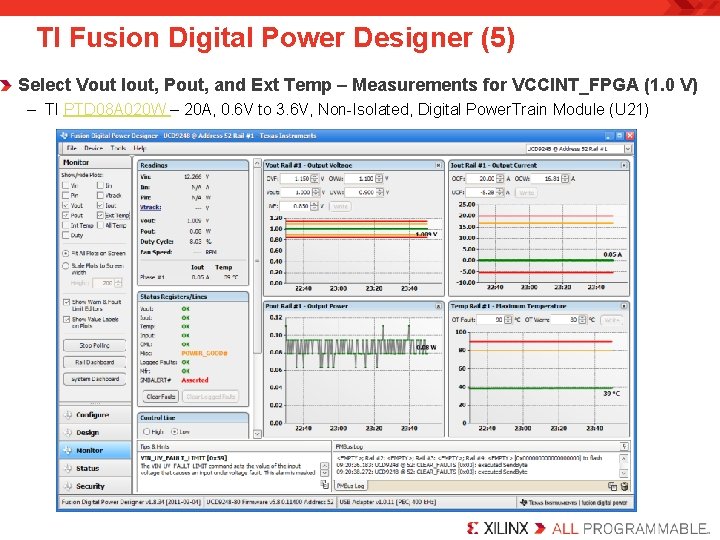

TI Fusion Digital Power Designer (5) Select Vout Iout, Pout, and Ext Temp – Measurements for VCCINT_FPGA (1. 0 V) – TI PTD 08 A 020 W – 20 A, 0. 6 V to 3. 6 V, Non-Isolated, Digital Power. Train Module (U 21)
TI Fusion Digital Power Designer (6) Select Address 52, Rail #2

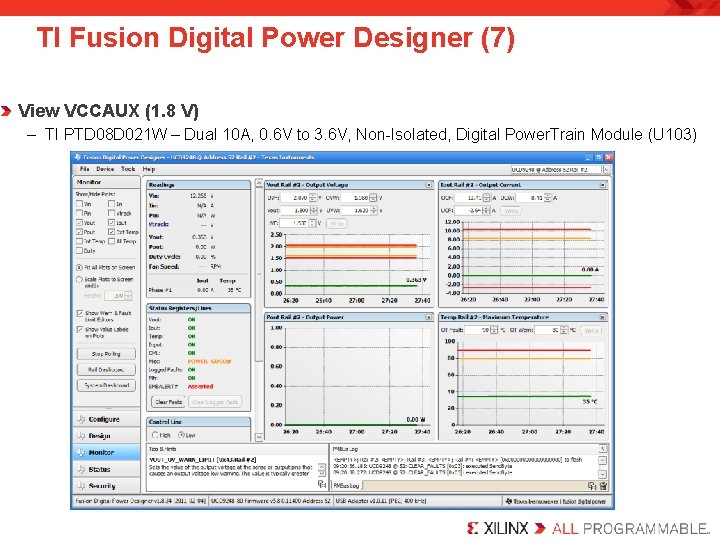

TI Fusion Digital Power Designer (7) View VCCAUX (1. 8 V) – TI PTD 08 D 021 W – Dual 10 A, 0. 6 V to 3. 6 V, Non-Isolated, Digital Power. Train Module (U 103)
TI Fusion Digital Power Designer (8) At Address 52, Rail #3, view VCC 3 V 3 (3. 3 V) – TI PTD 08 A 021 W – Dual 10 A, 0. 6 to 3. 6 V, Non-Isolated, Digital Power. Train Module (U 103)
TI Fusion Digital Power Designer (9) Monitoring process can be repeated for Address 53: Select Address 53, Rail #1 – Click Monitor

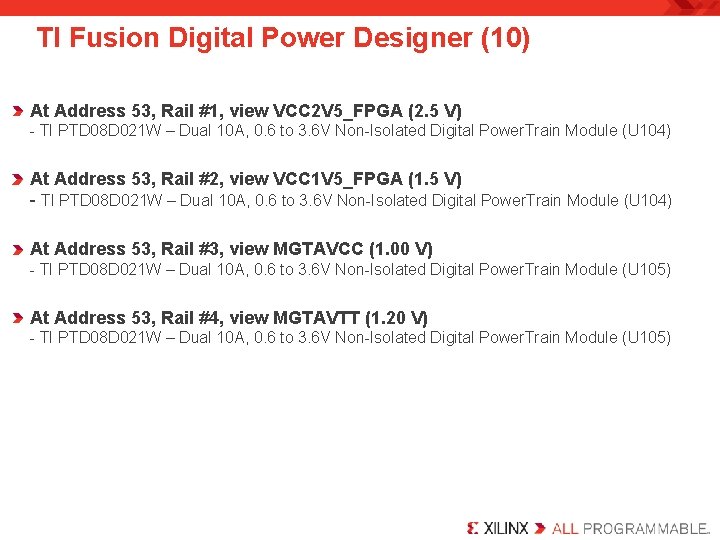

TI Fusion Digital Power Designer (10) At Address 53, Rail #1, view VCC 2 V 5_FPGA (2. 5 V) - TI PTD 08 D 021 W – Dual 10 A, 0. 6 to 3. 6 V Non-Isolated Digital Power. Train Module (U 104) At Address 53, Rail #2, view VCC 1 V 5_FPGA (1. 5 V) - TI PTD 08 D 021 W – Dual 10 A, 0. 6 to 3. 6 V Non-Isolated Digital Power. Train Module (U 104) At Address 53, Rail #3, view MGTAVCC (1. 00 V) - TI PTD 08 D 021 W – Dual 10 A, 0. 6 to 3. 6 V Non-Isolated Digital Power. Train Module (U 105) At Address 53, Rail #4, view MGTAVTT (1. 20 V) - TI PTD 08 D 021 W – Dual 10 A, 0. 6 to 3. 6 V Non-Isolated Digital Power. Train Module (U 105)

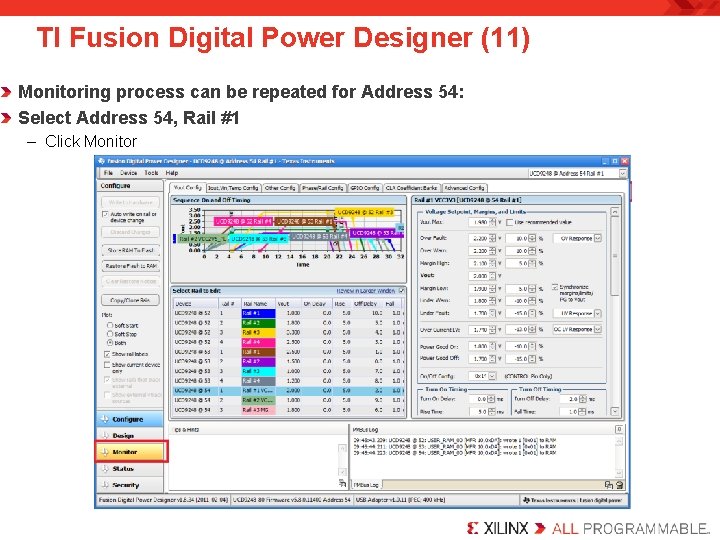

TI Fusion Digital Power Designer (11) Monitoring process can be repeated for Address 54: Select Address 54, Rail #1 – Click Monitor

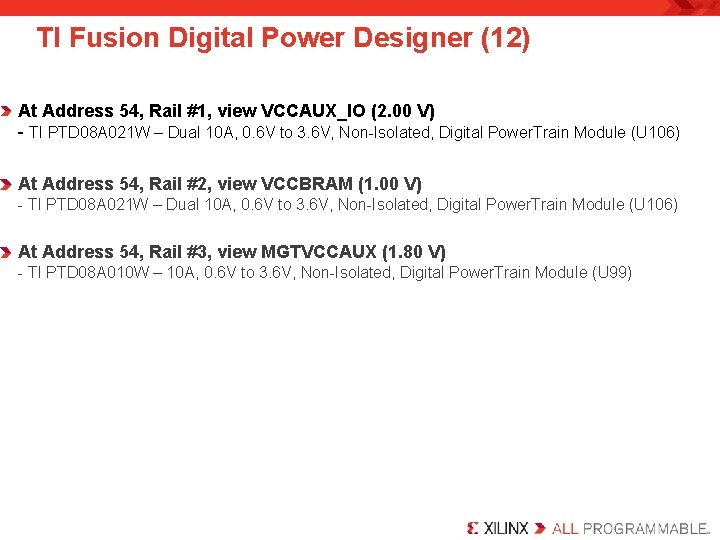

TI Fusion Digital Power Designer (12) At Address 54, Rail #1, view VCCAUX_IO (2. 00 V) - TI PTD 08 A 021 W – Dual 10 A, 0. 6 V to 3. 6 V, Non-Isolated, Digital Power. Train Module (U 106) At Address 54, Rail #2, view VCCBRAM (1. 00 V) - TI PTD 08 A 021 W – Dual 10 A, 0. 6 V to 3. 6 V, Non-Isolated, Digital Power. Train Module (U 106) At Address 54, Rail #3, view MGTVCCAUX (1. 80 V) - TI PTD 08 A 010 W – 10 A, 0. 6 V to 3. 6 V, Non-Isolated, Digital Power. Train Module (U 99)

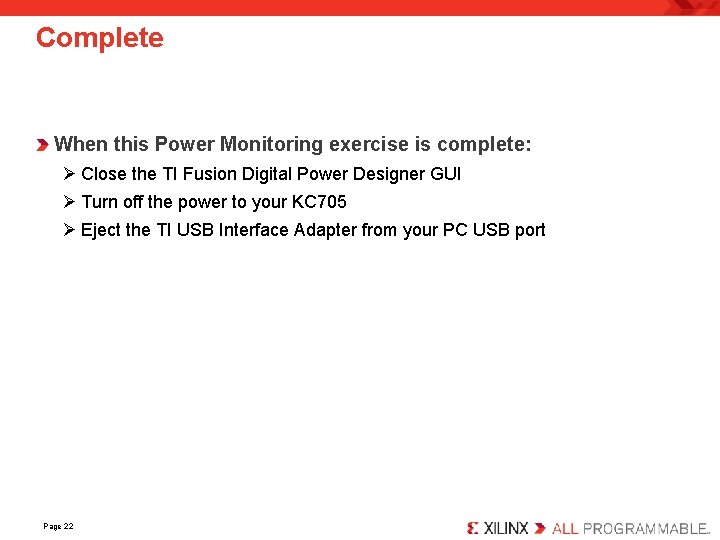

Complete When this Power Monitoring exercise is complete: Ø Close the TI Fusion Digital Power Designer GUI Ø Turn off the power to your KC 705 Ø Eject the TI USB Interface Adapter from your PC USB port Page 22
