KAZAN HELICOPTERS COMPANY About the company 17 % Mil helicopters Kazan Helicopters PJSC is the world famous manufacturer of medium class helicopters. According to statistics Mil helicopters today occupy 17 % of the turboshaft engines helicopter park. Helicopters with turboshaft engines

KAZAN HELICOPTERS COMPANY About the company The Company delivered more than 11000 helicopters Mi-4, Mi-8, Mi 8 MTV, Mi-17, Mi-14 to more than 85 countries.

KAZAN HELICOPTERS COMPANY About the company History Stages of development of the enterprise reflect stages of the native country history.

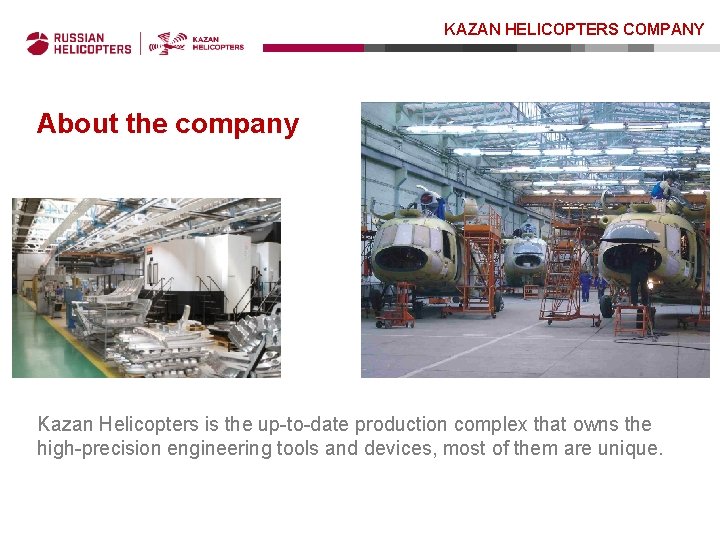

KAZAN HELICOPTERS COMPANY About the company Kazan Helicopters is the up-to-date production complex that owns the high-precision engineering tools and devices, most of them are unique.

KAZAN HELICOPTERS COMPANY About the company To improve the efficiency of the Russian helicopter industry “Russian Helicopters” holding company have been created. All helicopter activities of the country now is united. “Russian Helicopters” includes all components of the production and maintenance of helicopters.

KAZAN HELICOPTERS COMPANY About the company The share of Russian-made helicopters , about 14 % of the world helicopter park Civil helicopters Military helicopters

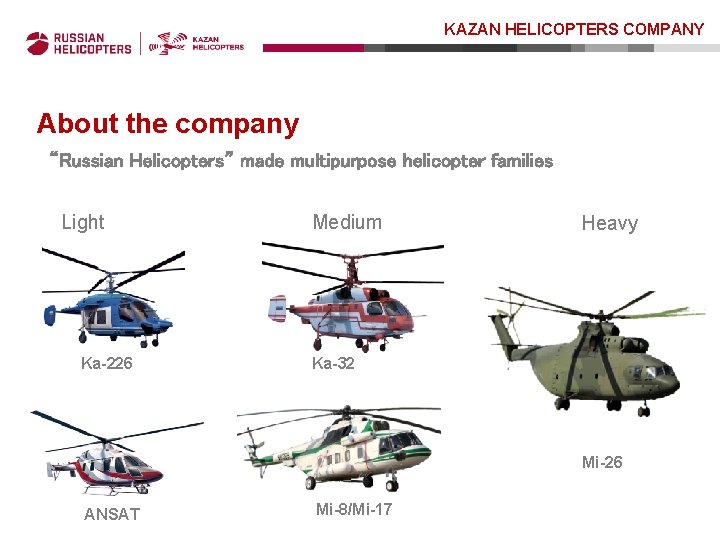

KAZAN HELICOPTERS COMPANY About the company “Russian Helicopters” made multipurpose helicopter families Light Ka-226 Medium Heavy Ka-32 Mi-26 ANSAT Mi-8/Mi-17

KAZAN HELICOPTERS COMPANY About the company “Russian Helicopters” made battle helicopter families Мi-28 Ка-27 Ка-52 Мi-24/Мi-35

KAZAN HELICOPTERS COMPANY About the company “Russian Helicopters” nearest future serial helicopters Ka-62 Mi-38

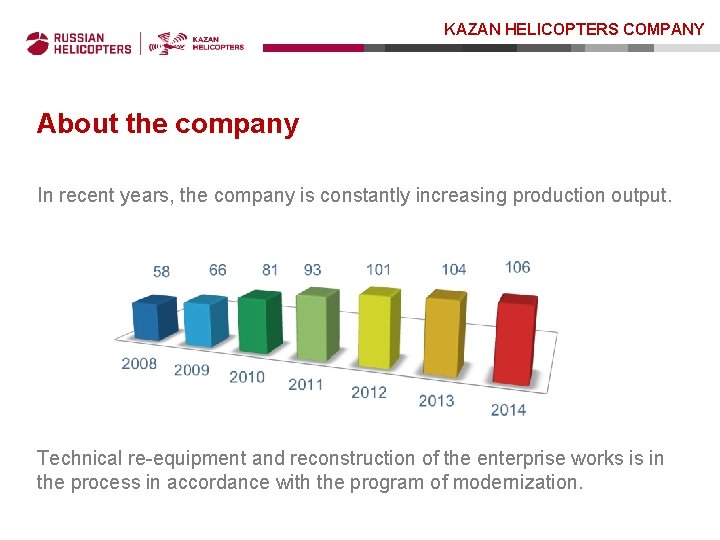

KAZAN HELICOPTERS COMPANY About the company In recent years, the company is constantly increasing production output. Technical re-equipment and reconstruction of the enterprise works is in the process in accordance with the program of modernization.

KAZAN HELICOPTERS COMPANY Mi-17 Thanks to its versatility and high performance the helicopter has the largest fleet in the world.

KAZAN HELICOPTERS COMPANY Mi-17 Performance Maximum take-off weight Maximum internal load Maximum indicated airspeed Cruising indicated airspeed 13, 000 kg 4, 000 kg 250 km/h 220 - 230 km/h Hover ceiling out of ground Service ceiling: normal take-off weight maximum take-off weight 3, 980 m 6, 000 m 4, 800 m Flight range at cruising airspeed and altitude 500 m normal take-off weight 715 km maximum take-off weight 670 km with two additional fuel tanks 1, 180 km with four additional fuel tanks 1, 490 km Helicopter length, without main and tail rotors: Helicopter height, without tail rotor: Main rotor diameter Cargo cabin dimension (L х W х H), m Cockpit dimension, m Sliding door step-down Fuselage aperture in the back part (H х W), mm Right sliding door aperture (H х W), mm Left sliding door aperture (H х W), mm Main landing gear wheel track Landing gear wheel base 18. 99 m 4. 87 m 21. 29 m 5, 34 х2, 34 х1, 80 2, 15 х2, 05 х1, 70 900 mm 1 560 х2 300 1 405 х1 215 1 405 х1 250 4 510 mm 4 281 mm

KAZAN HELICOPTERS COMPANY Mi-17 modifications Transport

KAZAN HELICOPTERS COMPANY Mi-17 modifications Military transport

KAZAN HELICOPTERS COMPANY Mi-17 modifications Search and rescue. Firefighting

KAZAN HELICOPTERS COMPANY Mi-17 modifications Passenger

KAZAN HELICOPTERS COMPANY Mi-17 modifications VIP Passenger Wide range of VIP options provide the desired level of comfort and meet the needs of the most demanding customers. In several countries Mi-17 helicopters are in use for transportation of Heads of States

KAZAN HELICOPTERS COMPANY Mi-17 modifications "Flying Hospital"

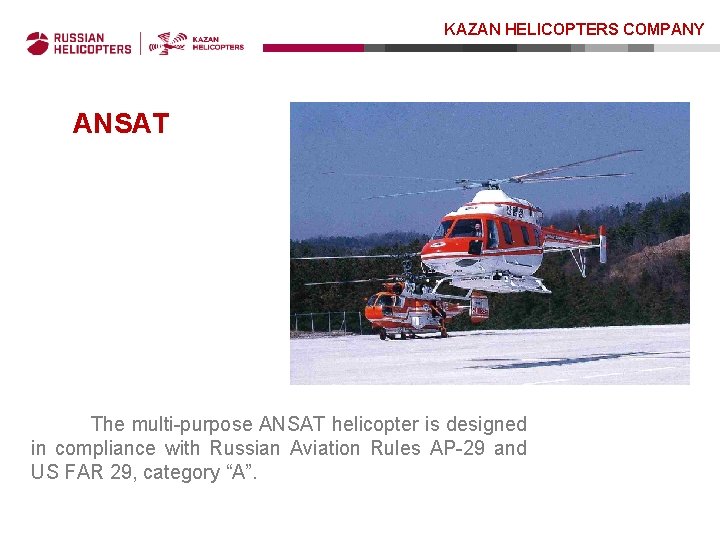

KAZAN HELICOPTERS COMPANY ANSAT The multi-purpose ANSAT helicopter is designed in compliance with Russian Aviation Rules AP-29 and US FAR 29, category “A”.

KAZAN HELICOPTERS COMPANY ANSAT Performance Takeoff weight, kg Maximum permissible speed (VNE), sea level, km/h Airspeed at maximum continuous power (VH), sea level, km/h Maximum rate of climb, m/s Hovering ceiling in ground effect, m Hovering ceiling out of ground effect, m Service ceiling, m Maximum range with no fuel reserve, km with 5% fuel reserve, km Endurance (without refueling), h with 5% fuel reserve, h 3300 3600 275 260 250 12. 5 3, 000 2, 500 4, 800 515 475 3. 00 2. 75 240 9. 5 2, 200 1, 800 4, 600 505 465 2. 75 2. 60 Helicopter length without main and tail rotors , m Helicopter height without tail rotor, m Helicopter width with landing gear, m Main rotor diameter, m Tail rotor diameter, m Height of skid landing gear, m Track, m Cockpit dimensions (Lх. Wх. H), m Cargo cabin dimensions (Lx. Wx. H), m Fuselage gross volume, cub. m 11. 50 3. 65 2. 58 11. 50 2. 10 0. 45 2. 500 2. 303 х1. 710 х1. 300 3. 246 х1. 639 х1. 300 9. 8 Overall dimensions of LH/RH door of cargo cabin (Hх. W), m Cargo hatch overall dimensions (Lх. W), m 1. 219 х1. 000 1. 050 х0. 610

KAZAN HELICOPTERS COMPANY ANSAT Multipurpose

KAZAN HELICOPTERS COMPANY ANSAT Search and rescue

KAZAN HELICOPTERS COMPANY ANSAT Passenger and VIP

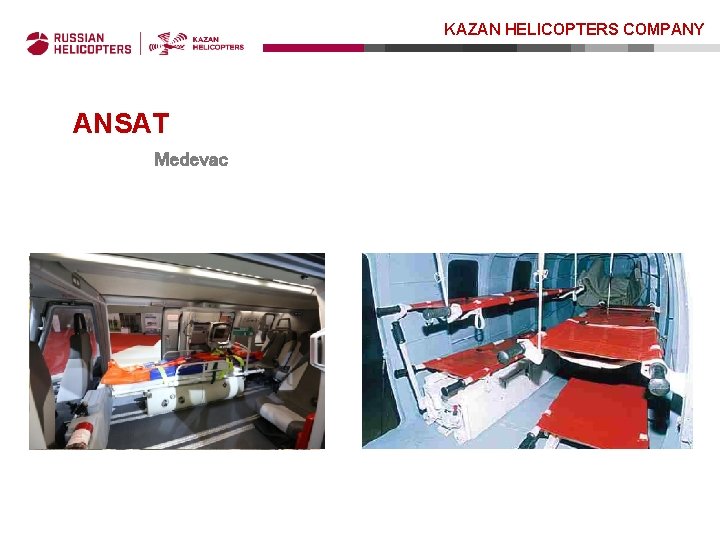

KAZAN HELICOPTERS COMPANY ANSAT Medevac

KAZAN HELICOPTERS COMPANY ANSAT-U Training

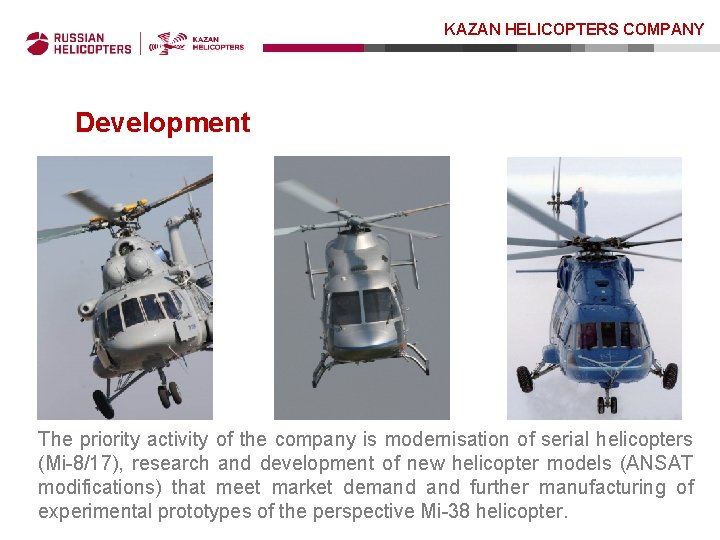

KAZAN HELICOPTERS COMPANY Development The priority activity of the company is modernisation of serial helicopters (Mi-8/17), research and development of new helicopter models (ANSAT modifications) that meet market demand further manufacturing of experimental prototypes of the perspective Mi-38 helicopter.

KAZAN HELICOPTERS COMPANY Mi-38 Project New standards embodiment

KAZAN HELICOPTERS COMPANY Мi-38 Performance Maximum take-off weight, kg. Normal take-off weight, kg. Maximum internal load, kg Maximum indicated airspeed, km/h: . Cruising indicated airspeed, km/h: Hovering ceiling out of ground effect, m Service ceiling: normal take-off weight, m maximum take-off weight, m 15, 600 14, 200 7, 000 320 290 3, 100 6, 320 5, 600 Maximum flight range: main fuel tanks, load 3, 655 kg (H=300, ISA), km with auxiliary fuel tanks, load 2, 500 kg, km Helicopter length: without main and tail rotors, mm. with rotating main and tail rotors, mm Helicopter height: without tail rotor, mm. 5, 657 with rotating tail rotor, mm 6, 992 Ground clearance, mm. 580 Main rotor diameter, mm. 21, 100 Tail rotor diameter, mm 3, 840 Cargo cabin dimensions (L х W х H), m. Cargo cabin capacity, m 3. . 29. 50 Fuselage aperture in the rear part (H х W), m Cargo cabin sliding door aperture, starboard (H х W), m 1. 66 х 1. 43 Entrance stairs/door aperture, portside (Hх. W), m 1. 59 х 0. 82 Main landing gear wheel track, m Landing gear wheel base, m 5. 41 990 1, 200 20, 282 25, 184 7. 00 х 2. 36 х 1. 84 х 2. 34 4. 48

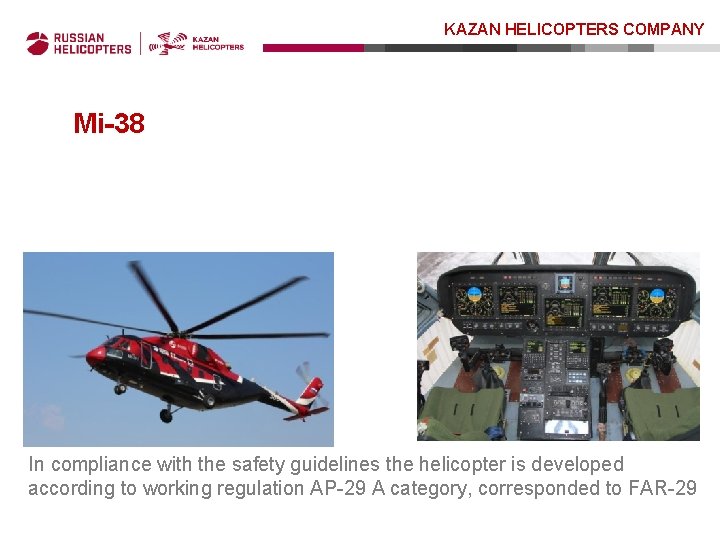

KAZAN HELICOPTERS COMPANY Мi-38 In compliance with the safety guidelines the helicopter is developed according to working regulation АP-29 A category, corresponded to FAR-29

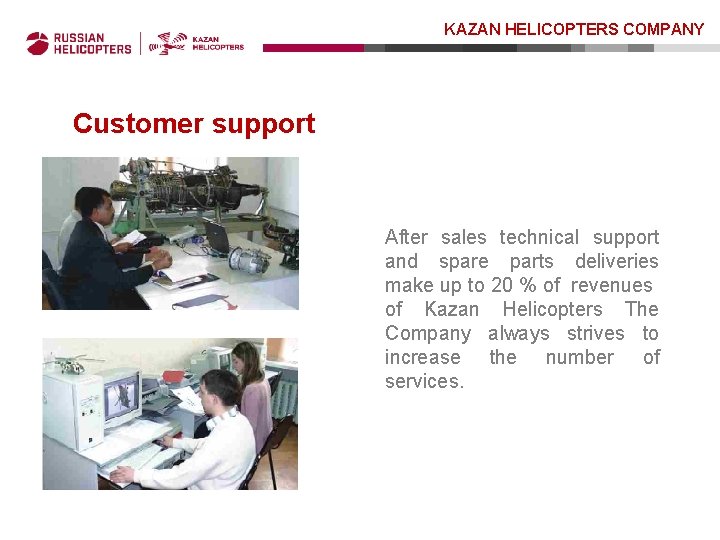

KAZAN HELICOPTERS COMPANY О компании Customer support After sales technical support and spare parts deliveries make up to 20 % of revenues of Kazan Helicopters The Company always strives to increase the number of services.

KAZAN HELICOPTERS COMPANY Partners Kazan Helicopters works in close collaboration with the leading Russian and foreign aviation enterprises. More than 1500 subcontractors are working with the Company.

KAZAN HELICOPTERS COMPANY Thank you for attention! This presentation is for advertising and informational purpose only and is not intended to use as technical, commercial or other documentation assuming any responsibility for the results of using the information contained in it. Kazan Helicopters, PJSC Phone: +7 843 550 -00 -00 Fax: +7 843 550 -00 -55 E-mail: market@kazanhelicopters. com
