Karst Definition by Jennings 1985 A terrain with

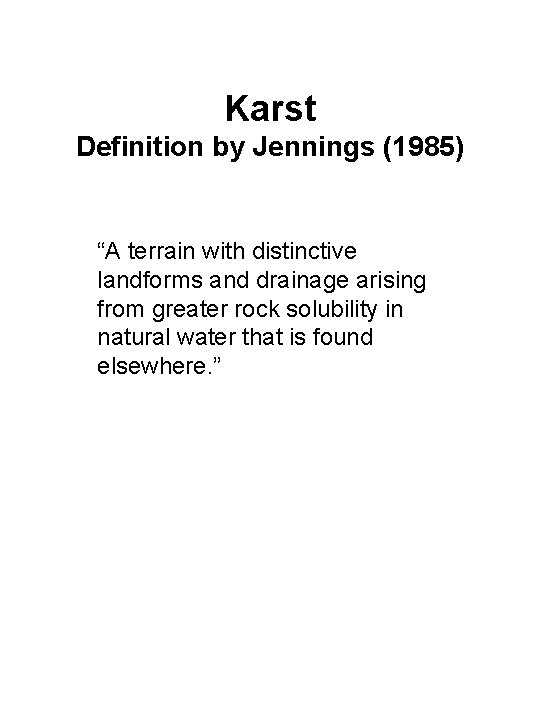

Karst Definition by Jennings (1985) “A terrain with distinctive landforms and drainage arising from greater rock solubility in natural water that is found elsewhere. ”

Important Components of Definition • A distinctive landform developed on highly soluble rocks. – Most often, limestone. • 60 % Ca. CO 3 before karst will start to form. • 90 % Ca. CO 3 before well developed karst will form – Evaporites (gypsum/halite) – Quartzite (humid, tropics)

Important Components of Definition • A unique drainage pattern resulting from the movement of most water into subsurface. – Holokarst - Precipitation moves directly underground; little, if any, channelized flow. – Fluviokarst - clear that karst landforms are superimposed on former fluvial landscape.

Calcite Dissolution From Ritter et al. (1995)

Dissolution Reactions for Calcite CO 2 + H 2 O H 2 CO 3 Equation 1 H 2 CO 3 H+ + HCO 3 - Equation 2 Ca. CO 3 Ca 2+ + CO 3 -2 Equation 3 HCO 3 - Equation 4 CO 3 -2 + H+ Summary Equation Ca. CO 3 + H 20 + CO 2 Ca 2+ + 2 HCO 3 -

Controls on Solution Rates • Degree of saturation: slow rates close to saturation. Change is non-linear. • Fracture width – 1 to. 1 mm: flow is laminar; dissolution rate based on discharge of water through fracture. – >5 mm: flow may be turbulent; dissolution rate based on rate of chemical reactions at surface of mineral grain. – 1 -5 mm: varies with site conditions; combination of two. • Other Factors: Pco 2; temperature of water

Solution Rates From Ritter et al. (1995)

Karst Landforms Humid, Temperature Climates • Dolines (sinkholes): small, shallow depression; commonly wider than they are deep. – Solution Sinkhole: related to subcutaneous zone – Collapse Sinkhole: material fails into subsurface cavity previously created by dissolution • Uvala: large closed depression formed by coalescence of one or more dolines. • Karst Plain: A plain composed of closed depressions and subterranean drainage in karst region. • Swallet (swallow hole): A place where water disappears underground in karst region. Swallet commonly used to describe loss of water in stream bed.

Solution Sinkhole Development From Ritter et al. (1995)

Collapse Sinkhole From Ritter et al. (1995)

Sinkhole Plain From Ritter et al. (1995)

Blind and Dry Valleys From Ritter et al. (1995)

Karst Landforms Humid, Temperature Climates • Blind Valley: A valley that end abruptly where stream vanishes underground. • Sinking Stream: stream that vanishes underground, usually at terminus of blind valley. • Resurgence: point where waters from sinking stream reemerges from underground. • Dry Valley: Valley that no longer exhibits channelized flow. • Cave: A natural underground room or series of rooms large enough to be entered by a person.

Karst Landforms Humid, Tropical Climates • Cockpit Karst: a conglomeration of closed depressions surrounded by conical hills similar to cone karst where depression are star -shaped. • Tower karst: Type of karst characterized by isolated, steep-walled hills separated by flat lying plain of alluvium.

Cave Shapes (Reach Scale) From Ritter et al. (1995)

Cave Patterns From Ritter et al. (1995)

Cave Characteristics • Vadose Caves • Phreatic Caves – Flow always moves downward along easiest route – Caves may descend well below water table and then rise to level of water table – Governed largely by rock structure – Tend to cut across rock structure – Dominated by canyons and shafts – Dominated by elliptical tubes – Caves tend not to converge unless forced to by rock structure – Caves tend to converge , developing along hydraulic efficient paths
