Karakteristik ArusTegangan 08032021 2012 Mervin T Hutabarat Simbol
Karakteristik Arus-Tegangan 08/03/2021 © 2012 Mervin T Hutabarat

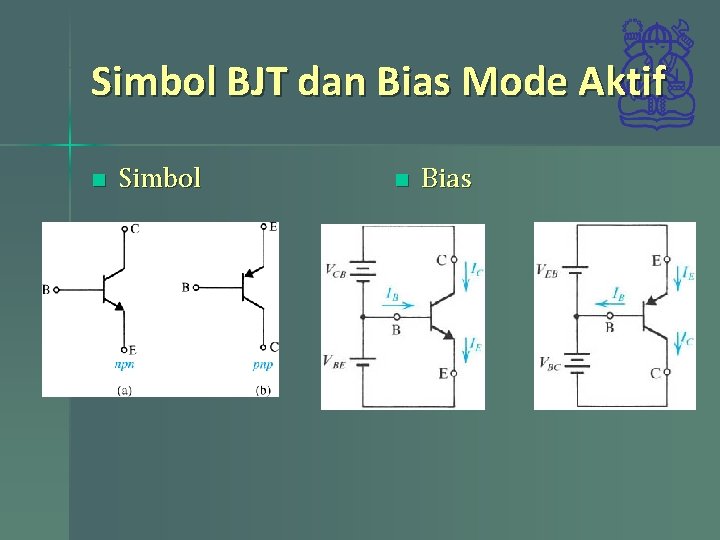

Simbol BJT dan Bias Mode Aktif n Simbol n Bias

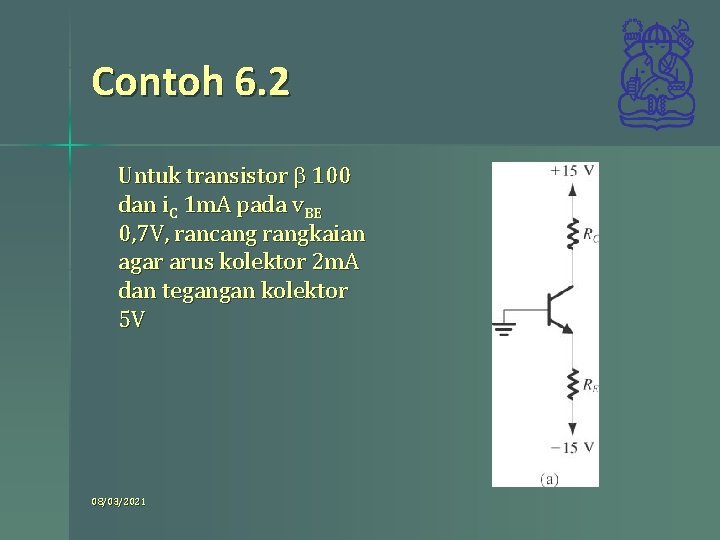

Contoh 6. 2 Untuk transistor b 100 dan i. C 1 m. A pada v. BE 0, 7 V, rancang rangkaian agar arus kolektor 2 m. A dan tegangan kolektor 5 V 08/03/2021

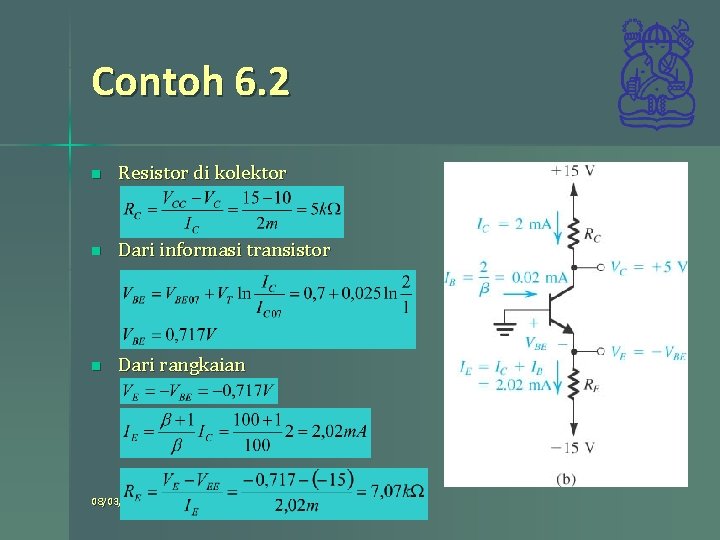

Contoh 6. 2 n Resistor di kolektor n Dari informasi transistor n Dari rangkaian 08/03/2021

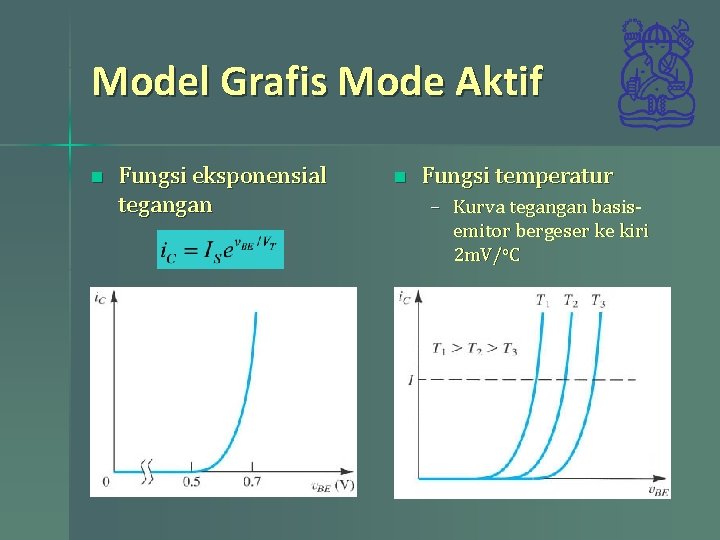

Model Grafis Mode Aktif n Fungsi eksponensial tegangan n Fungsi temperatur – Kurva tegangan basisemitor bergeser ke kiri 2 m. V/o. C

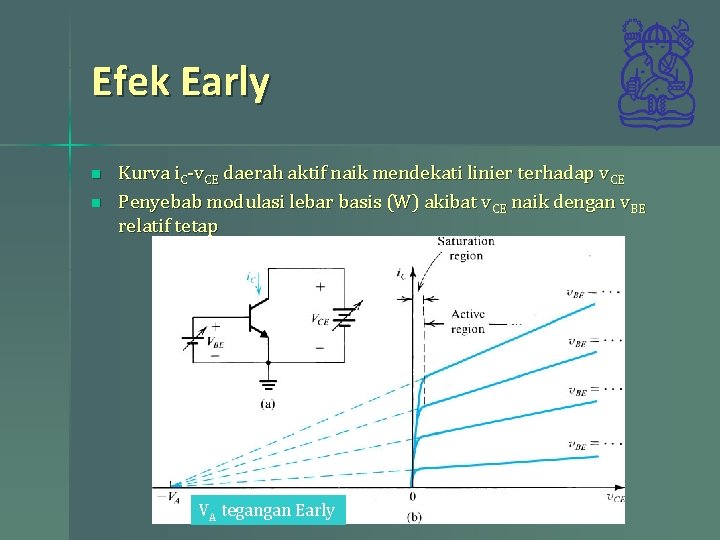

Efek Early n n Kurva i. C-v. CE daerah aktif naik mendekati linier terhadap v. CE Penyebab modulasi lebar basis (W) akibat v. CE naik dengan v. BE relatif tetap VA tegangan Early

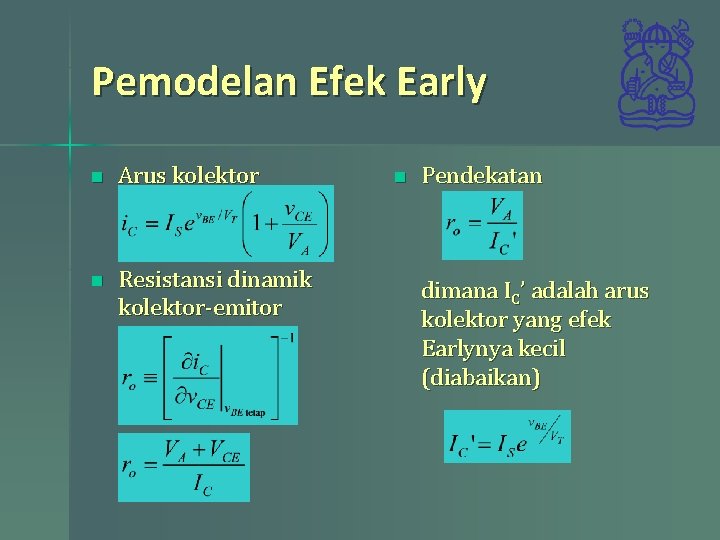

Pemodelan Efek Early n Arus kolektor n Resistansi dinamik kolektor-emitor n Pendekatan dimana IC’ adalah arus kolektor yang efek Earlynya kecil (diabaikan)

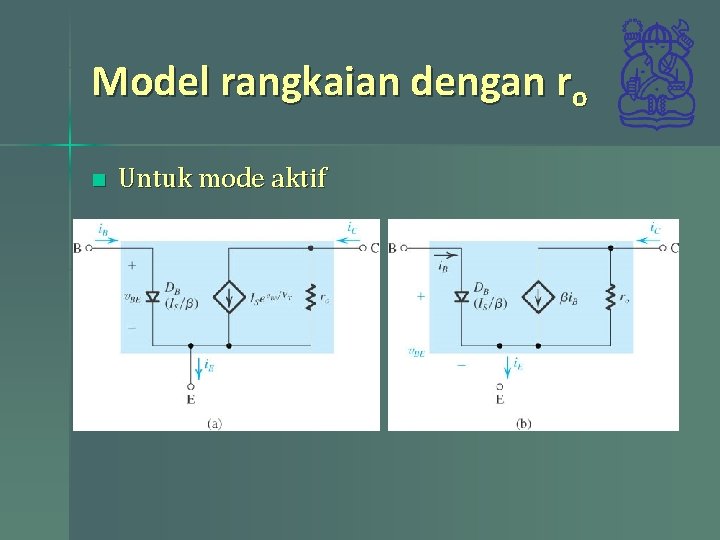

Model rangkaian dengan ro n Untuk mode aktif

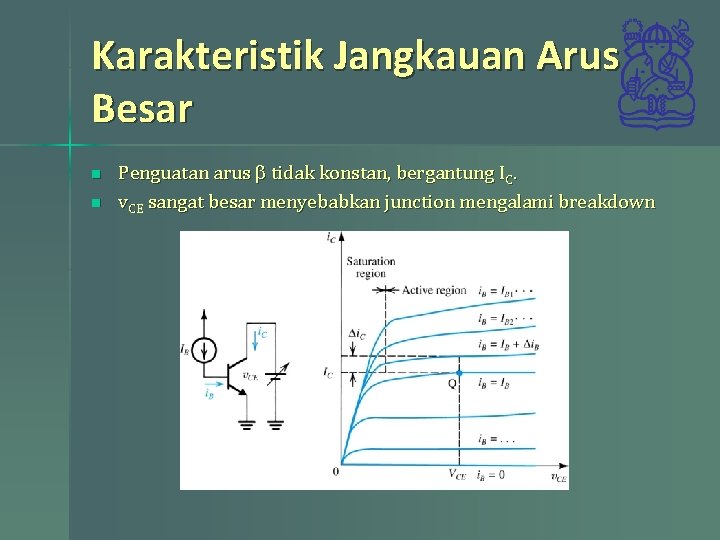

Karakteristik Jangkauan Arus Besar n n Penguatan arus b tidak konstan, bergantung IC. v. CE sangat besar menyebabkan junction mengalami breakdown

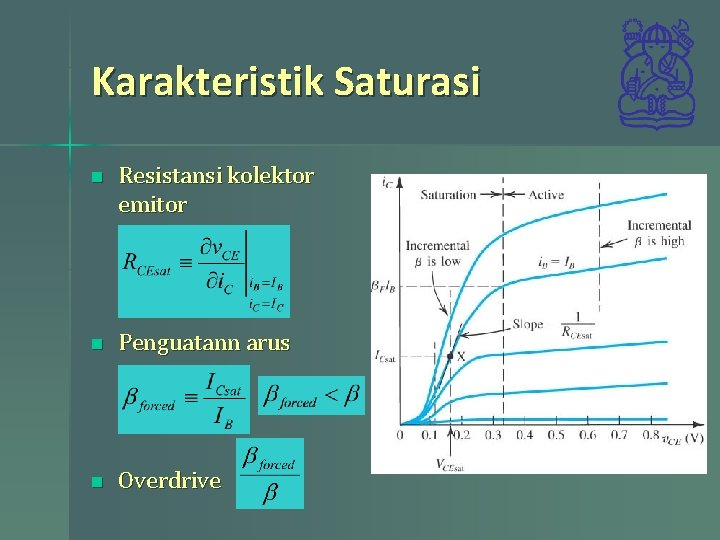

Karakteristik Saturasi n Resistansi kolektor emitor n Penguatann arus n Overdrive

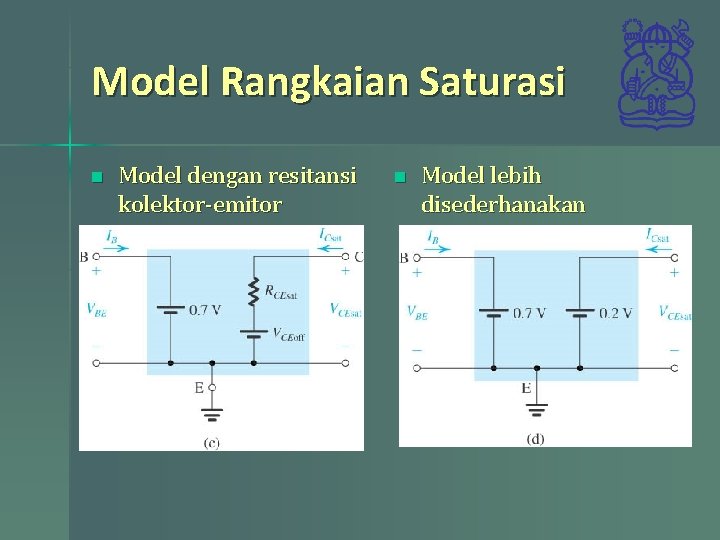

Model Rangkaian Saturasi n Model dengan resitansi kolektor-emitor n Model lebih disederhanakan

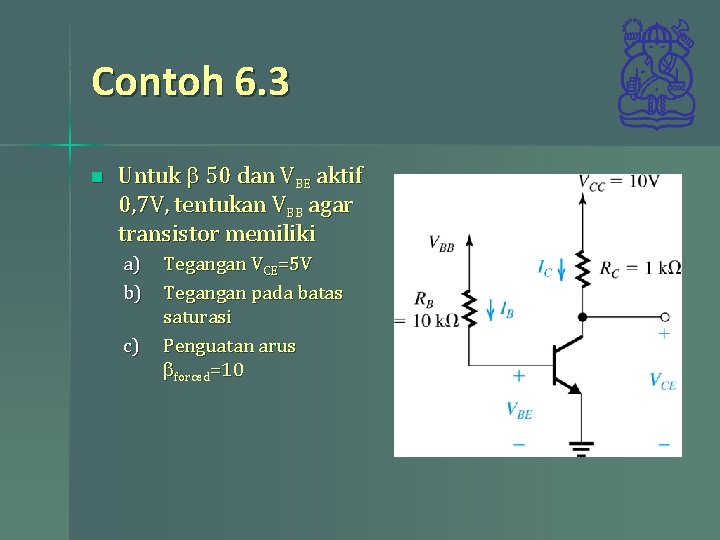

Contoh 6. 3 n Untuk b 50 dan VBE aktif 0, 7 V, tentukan VBB agar transistor memiliki a) b) c) Tegangan VCE=5 V Tegangan pada batas saturasi Penguatan arus bforced=10

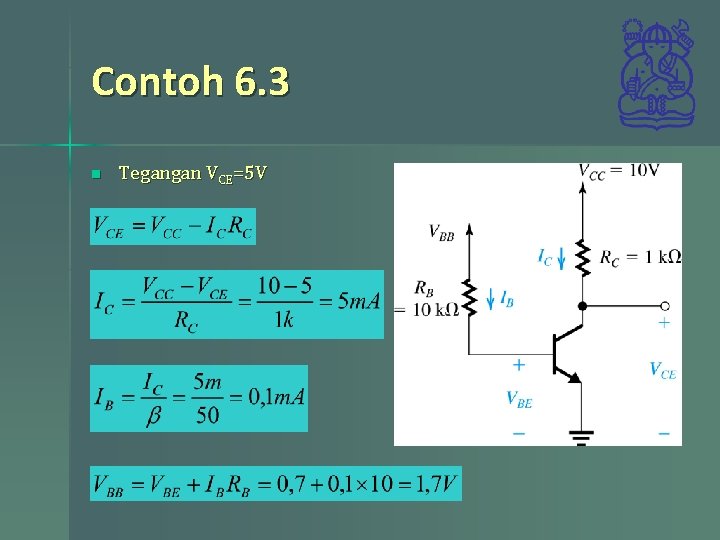

Contoh 6. 3 n Tegangan VCE=5 V

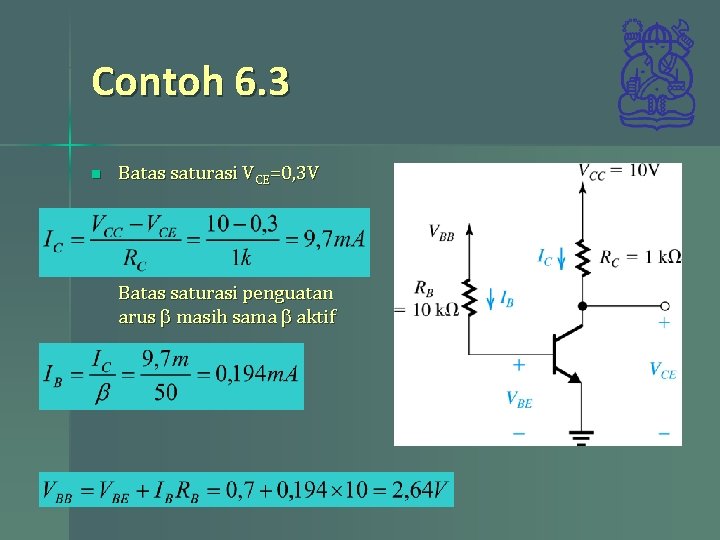

Contoh 6. 3 n Batas saturasi VCE=0, 3 V Batas saturasi penguatan arus b masih sama b aktif

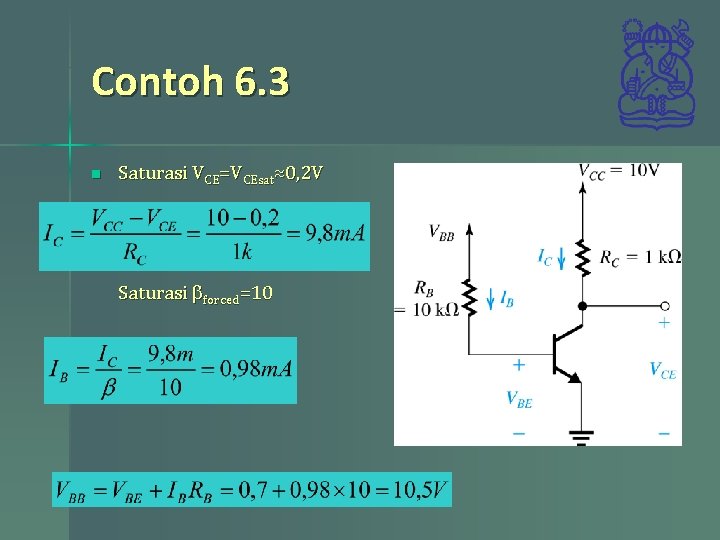

Contoh 6. 3 n Saturasi VCE=VCEsat≈0, 2 V Saturasi bforced=10
