K RAHEJA PLATINUM COMMERCIAL BUILDING DOUBLE HEIGHTED BASEMENT
K. RAHEJA PLATINUM COMMERCIAL BUILDING (DOUBLE HEIGHTED BASEMENT +GROUND + 8 FLOORS) SAG BAUG ROAD, BEHIND GLOBAL FUSSION RESTAURANT, OFF ANDHERI- KURLA ROAD, MAROL, ANDHERI (E), MUMBAI -400 059 Developers K. RAHEJA GROUP www. krahejagroup. com 1
Perception of K. Raheja Platinum 2
Perception of K. Raheja Platinum 3
A. WHAT DIFFERNTIATES K. Raheja Platinum FROM THE REST? 1. K. Raheja Platinum is a pure commercial building and not an IT park 2. The project is PLATINUM building as per LEED India Standards. We have received the precertification copy by IGBC (certificate attached in next slide) • Advantages of a PLATINUM building, • Substantial Savings in energy bills of approx 35% • minimum maintenance cost • lowest carbon foot prints thus leading to maximum efficiency and there by benefiting the end users. • healthy environment, thus leading to a healthy life because of which productivity, efficiency of employees working in a green platinum building is remarkably higher. 3. B. UNDER FLOOR AIR DISTRIBUTION SYSTEM- GAME CHANGER AS THE SAVINGS IN ENERGY COST WOULD BE APPROX 25% List of Amenities provided in K. Raheja Platinum 1. Double Glazed Unitized Façade for energy efficient internal cooling. Light comes in minus the heat load and no blinds required. In addition it also provides sound insulation. 2. The building has 5 SPACIOUS lifts of reputed brand, 4 lifts having capacity of 20 passengers each and one is a stretcher lift having capacity of 24 passengers each specially used in hospitals. 3. A LAP OZONE swimming pool on the terrace will be provided. 4. Spacious offices with wing ‘A’ having three columns and with wing ‘B’ having no columns in the office space area. 4 9.
5. International Fire Safety Standards adhered which includes provisions for Fire Fighting System having wet sprinkler, fire extinguisher, fire hydrant and also Fire Alarm system alongwith public address system. In addition to the above we would provide for two hour Fire Retardant staircase exit door. 6. For a complete 100% power back-up we shall be providing a DG Set ( for common areas as well as office space including HVAC). Currently TATA is our service provider for energy. 7. Building is designed to be user friendly for the differently abled. 8. Smartly designed lift lobbies with interiors. 9. Rejuvenating landscaping as per Leeds Platinum standards. 5
6
7
8

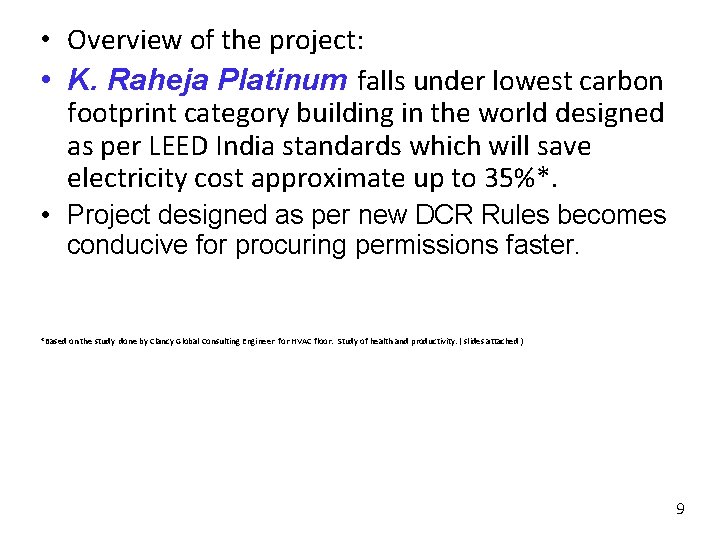

• Overview of the project: • K. Raheja Platinum falls under lowest carbon footprint category building in the world designed as per LEED India standards which will save electricity cost approximate up to 35%*. • Project designed as per new DCR Rules becomes conducive for procuring permissions faster. *Based on the study done by Clancy Global Consulting Engineer for HVAC floor. Study of health and productivity. ( slides attached ) 9
HOTEL RAMADA POWAI ANDHERI STATION 5. 6 KM POWAI LAKE I G H W A Y SEVEN HILLS HOSPITAL 1. 2 KM K. RAHEJA PLATINUM W E S T E R N E X P R E S S H MAROL NAKA METRO STATION 1 KM A N D H E R I L I N K R O THE LEELA A D SAKI NAKA METRO STATION ITC GRAND HYATT REGENCY HIRANANDANI COMPLEX GLOBAL FUSION / BARBEQUE NATION INTERNATIONAL AIRPORT 3. 8 KM DOMESTIC AIRPORT 6. 2 KM JW MARRIOTT 10
Proposed devlopment Proposed Gate K. Raheja Platinum Proposed Gate A N D H E R I L I N K R O A D 11
FACT FILE § PLOT AREA - 7, 650 SQ. MTS §CAR PARKS - Approx 250 CARS § AVERAGE PLOT LEVEL HIGHER THAN SURROUNDINGS TO AVOID FLOODING TH R NO SITE PLAN 12

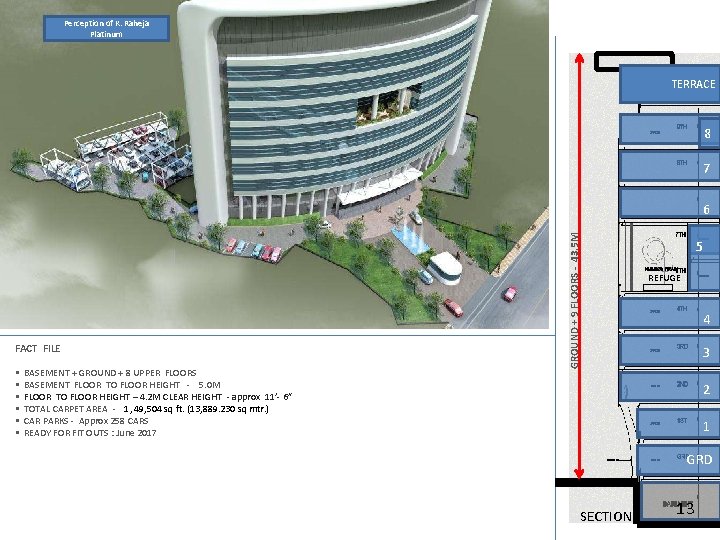

Perception of K. Raheja Platinum TERRACE 8 7 FACT FILE § BASEMENT + GROUND + 8 UPPER FLOORS § BASEMENT FLOOR TO FLOOR HEIGHT - 5. 0 M § FLOOR TO FLOOR HEIGHT – 4. 2 M CLEAR HEIGHT - approx 11’- 6” § TOTAL CARPET AREA - 1, 49, 504 sq ft. (13, 889. 230 sq mtr. ) § CAR PARKS - Approx 258 CARS § READY FOR FIT OUTS : June 2017 GROUND + 9 FLOORS - 43. 5 M 6 5 REFUGE 4 3 2 1 GRD SECTION 13
Perception of K. Raheja Platinum § WATER FEAURES ON ARRIVAL § SCULPTURES AND ARTWORK § GREEN PERIMETER WALL § STACK MECHANICAL CAR PAR SYSTEM § SECURITY AT MAIN ENTRY BOOM BARRIERS & CRASH BOLLARDS § ELEGANTLY DESIGNED SIGNAGES IN THE ENTIRE COMPLEX 14
CARPET AREA STATEMENT FLOOR GR. FLOOR 1 ST FLOOR 2 ND FLOOR 3 RD FLOOR 4 TH FLOOR 5 TH FLOOR 6 TH FLOOR 7 TH FLOOR 8 TH FLOOR 9 TH FLOOR OFFICE RESTAURANT-1 RESTAURANT 2 RESTAURANT 3 RESTAURANT 4 OFFICE OFFICE -1 OFFICE -2 OFFICE TOTAL CARPET AREA SQ. MT. CARPET AREA SQ. FT. 386. 28 301. 93 281. 58 294. 08 1, 339. 80 1, 640. 33 752. 36 596. 02 1, 640. 33 95. 20 13, 889. 230 4, 158 3, 250 3, 031 3, 165 14, 422 17, 657 8, 098 6, 416 17, 657 1, 025 1, 49, 504 15
§BOOM BARIERS FOR SECURITY SERVICES PROVISION § POLYURETHANE – INDUSTRIALGRADE DECK COATING WHICH IS OIL AND FEUL RESISTANT MEP Services _ 1 ) Water cooler Centrifugal Chiller - Cap. 450 TR X 2 nos 2) Fire storage Tank - 2, 50, 000 Ltr. 3) Raw water storage tank - 40, 000 Ltr. 4) Treated water storage Tank - 40, 000 Ltr. 5) Flushing Water Tank - 75, 000 Ltr. 6) A. C. make up storage Tank - 35, 000 Ltr. 7) Overhead water Tank - - Fire water tank - 30, 000 Ltr. each staircase ( 3 nos) - Total - 90, 000 Ltr. - Domestic water storage Tank - 5, 000 Ltr. each staircase ( 3 nos) Total - 15, 000 Ltrs. 8) D. G. Set - 2000 KVA TH R NO BASEMENT LEVEL PLAN 16
TH R NO GROUND FLOOR PLAN 17
LADIES TOILET GENTS TOILET A. H. U. LIFT LOBBY GENTS TOILET LADIES TOILET A. H. U. TH R NO GROUND FLOOR PLAN 18
Perception of Lobby 19
Perception of Lift Lobby 20
TH R NO FIRST FLOOR PLAN 21
§ FLOOR TO FLOOR HEIGHT - CLEAR HEIGHT - approx 11’- 6” TH R NO TYPICAL 2 ND, 3 RD, 4 TH , 6 TH , 7 TH & 8 TH FLOOR PLAN 22

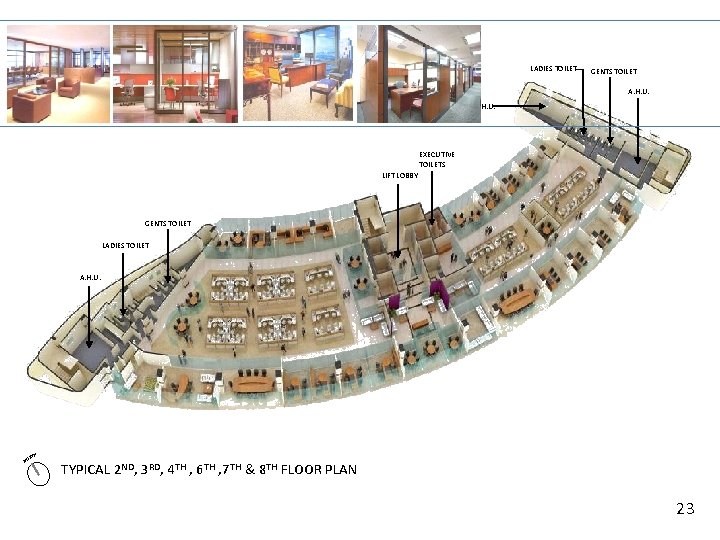

LADIES TOILET GENTS TOILET A. H. U. EXECUTIVE TOILETS LIFT LOBBY GENTS TOILET LADIES TOILET A. H. U. TH R NO TYPICAL 2 ND, 3 RD, 4 TH , 6 TH , 7 TH & 8 TH FLOOR PLAN 23
TH R NO REFUGE FLOOR PLAN – 5 th FLOOR 24
LADIES TOILET GENTS TOILET A. H. U. LIFT LOBBY GENTS TOILET LADIES TOILET A. H. U. TH R NO REFUGE FLOOR PLAN – 5 th FLOOR 25
REFUGE FLOOR PLAN Perception of refuge area Refuge area – 1, 500 sq. ft. 26

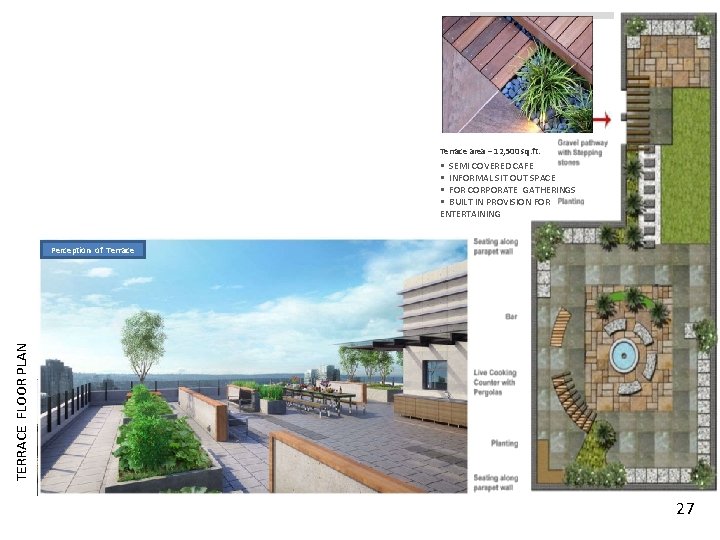

Terrace area – 12, 500 sq. ft. § SEMI COVERED CAFE § INFORMAL SIT OUT SPACE § FOR CORPORATE GATHERINGS § BUILT IN PROVISION FOR ENTERTAINING TERRACE FLOOR PLAN Perception of Terrace 27
PROPOSED LAPPOOL Perception of Lap pool on Terrace 28
Perception of K. Raheja Platinum § HIGH PERFORMANCE , ALGAE AND MOULD RESISTANT PAINT § DOUBLE GLAZED UNITIZED CURTAIN WALL SYSTEM WITH STAINLESS STEEL STRIPS WITH HIGH PERFORMANCE REFLECTIVE GLASS § STAINLESS STEEL TENSION ROD GLAZING SYSTEM WITH CLEAR GLASS FOR LOBBY § BUILDING CANOPY IN STAINLESS STEEL PATCH FITINGS AND FROSTED GLASS § INTEGRATED FAÇADE CLEAING § COLUMNS CLADDING FOR FIRST TWO FLOORS IN CORIAN SYSTEM PRE INSTALLED ON TERRACE LEVEL § METALLIC SILVER ALLUMINIUM CLADDING IN SPANDREL AREA 29
GREEN BUILDING – PLANTINUM RATED § GREEN WORKSPACE § WATER EFFICIENT FIXTURES SENSOR ENABLED § USE OF ECO FRIENDLY MATERIALS § USE OF LEAD FREE PAINTS TO REDUCE AIR POLLUTION § MOVE TOWARDS PAPER LESS OFFICE § USE OF ENERGY EFFICIENT LIGHT FIXTURES WITH MOTION DETECTORS § USE TO SOUND ABSORBANT MATERIALS TO REDUCE SOUND POLLUTION 30
INNOVATION IN DESIGN § WORKSPACE § MODULAR FURNITURE ERGONOMIC FOR FASTER EXECUTION § EMPHASIS ON GOOD § USE OF MATERIAL THAT ARTIFICIAL LIGHTING § FALSE FLOORING FOR EASY ACCESS AND MAINTAINANCE / UPGRADATION AREA EASE TO MAINTAIN AND RE-SOURCE § COMPACTUS MOVEABLE FILING UNITS FOR SPACE SAVING STORAGE NEEDS § OFFICE AUTOMATION & SECURITY CONTROLS § DESIGN TO ADOPT TO FUTURE EXPANSION OR CHANGE § BARRIER FREE SPACE 31
T H E S I T E COMPLETION TIME LINES § FULL BUILDING STRUCTURE - November 2016 § READY FOR INTERIOR FIT OUTS - June 2017 A N NORTH SITE UNDER CONSTRUCTION D H E R I L I N K R O A D 32
33
We would like to introduce ourselves as well known builders and developers K. Raheja Group which is well known group and is actively involved in and successfully running its Real Estate Development and Hotel Business under the Brand name and style of K. Raheja Group. It is successfully running Hotels, viz. , Ramada, Powai and The Residence Hotel & Convention Centre, Powai. These hotels are the only hotels in India serving “Zero trans fat food”, which is owned and maintained by one of our group company namely M/s. Saryu Properties and Hotels P. Ltd. The group was founded in the year 1956, a group with clear crystal vision, mission and dynamic promoters having 54 years career reflecting pioneering experience, exemplary skill, precision, expertise and achievement of record breaking in and among the most respected and trusted construction and hotel groups in the city. We are a group with a vision to enhance bar of excellence. With multiple prestigious projects standing tall on the horizon of the city, we have risen to become one of the most respected and trusted construction groups in the city. We bring an international hotel experience to town and our projects give citizen of Mumbai a reason to be proud of. The Stalwart of construction a role model for all with his exceptional vision he and his buildings stand tall. Presenting this inspiring founder Mr. Kishore L. Raheja, the Chairman and Managing Director who excelled in each sector with his unmatched enthusiasm and unequaled taste. The power of building relies on the strength of the foundation. Under his watchful guidance K. Raheja Group has instilled pride and delight in the citizens of Mumbai. Our success is the outcome of unmatched dedication of Mr. Kishore L. Raheja & his aggressive, dynamic son Mr. Nikhil K. Raheja. Our group policy is to keep our philosophy unchanged of service with warmth and understanding because a great relationship is only the foundation of every great partnership. Our outstanding success in building and maintaining cordial relationship with key corporate associates is what keeps us abreast and exceptionally well organized with a track record that demonstrates self motivated, creativity and initiative to achieve high goals. We would further be delighted to introduce our promoters: 1. Mr. Kishore L Raheja Mr. Kishore Raheja heads the entire team with his vast experience in the field. Mr. Raheja graduated from Kansas State University with Master of Science in Structural Engineering (1962) Between 1963 -1967, he worked for Skilling, Helle, Christiansen & Robertson, the structural engineering firm for the World Trade Center in New York City. Mr. Raheja is one of the 30 architects and structural engineers who worked on the design of the World Trade Center. Since his return to India, Mr. Raheja has personally supervised over 100 commercial and residential building projects. He is a successful hotel operator. Mr. Raheja has an extensive team of lawyers, architects and engineers to assist him with a project. 2. Mr. Nikhil Raheja is a graduate from Mumbai University. For the past 15 years he is in the field of construction of commercial and residential projects. He has deep knowledge in the field of Construction & running of Hotels and has personally supervised various projects. 34
• THANK YOU • Disclaimer: The presentation is purely conceptual and not a legal offering. All building layouts, amenities, pictures, specifications , etc as seen in this presentation • are only indicative and tentative. All images and pictures shown herewith are for the purpose of representation only. They may be subject to variations and modifications by the developer without any notice. Under no circumstances , shall the developer be liable for any direct, indirect, punitive, incidental, special or consequential damage resulting from, or arising out of the information provided therein.
