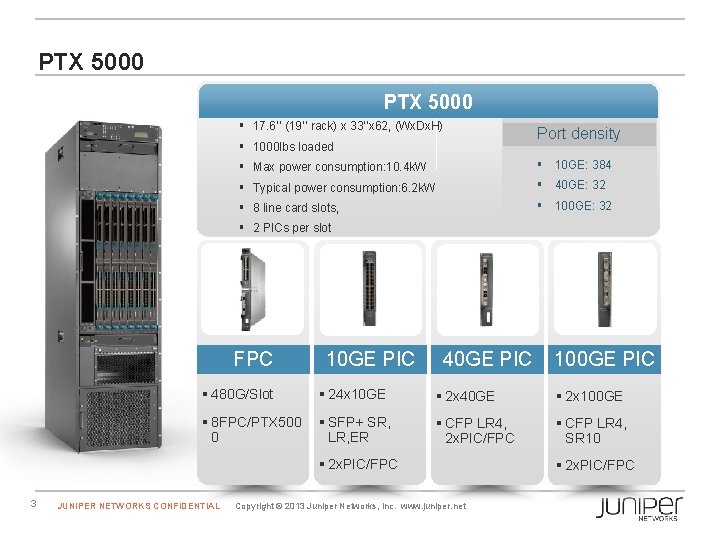

PTX 5000 § 17. 6’’ (19’’ rack) x 33’’x 62, (Wx. Dx. H) § 1000 lbs loaded Port density § 10 GE: 384 § Max power consumption: 10. 4 k. W § 40 GE: 32 Note: 100 GE SR 10 timeline depends on 3 rd party availability § Typical power consumption: 6. 2 k. W § 100 GE: 32 § 8 line card slots, § 2 PICs per slot FPC 10 GE PIC 40 GE PIC § 480 G/Slot § 24 x 10 GE § 2 x 40 GE § 2 x 100 GE § 8 FPC/PTX 500 0 § SFP+ SR, LR, ER § CFP LR 4, 2 x. PIC/FPC § CFP LR 4, SR 10 § 2 x. PIC/FPC 3 100 GE PIC JUNIPER NETWORKS CONFIDENTIAL Copyright © 2013 Juniper Networks, Inc. www. juniper. net § 2 x. PIC/FPC

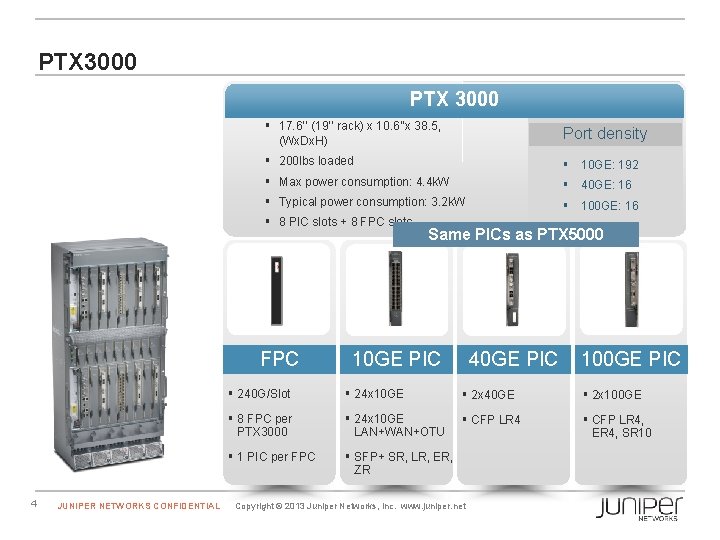

PTX 3000 § 17. 6’’ (19’’ rack) x 10. 6’’x 38. 5, (Wx. Dx. H) Port density § 200 lbs loaded § 10 GE: 192 § Max power consumption: 4. 4 k. W § 40 GE: 16 § Typical power consumption: 3. 2 k. W § 100 GE: 16 Note: 100 GE SR 10 timeline depends on 3 rd party availability § 8 PIC slots + 8 FPC slots FPC 4 JUNIPER NETWORKS CONFIDENTIAL Same PICs as PTX 5000 10 GE PIC 40 GE PIC 100 GE PIC § 240 G/Slot § 24 x 10 GE § 2 x 40 GE § 2 x 100 GE § 8 FPC per PTX 3000 § 24 x 10 GE LAN+WAN+OTU § CFP LR 4, ER 4, SR 10 § 1 PIC per FPC § SFP+ SR, LR, ER, ZR Copyright © 2013 Juniper Networks, Inc. www. juniper. net

MX SERIES 5 JUNIPER NETWORKS CONFIDENTIAL Copyright © 2013 Juniper Networks, Inc. www. juniper.

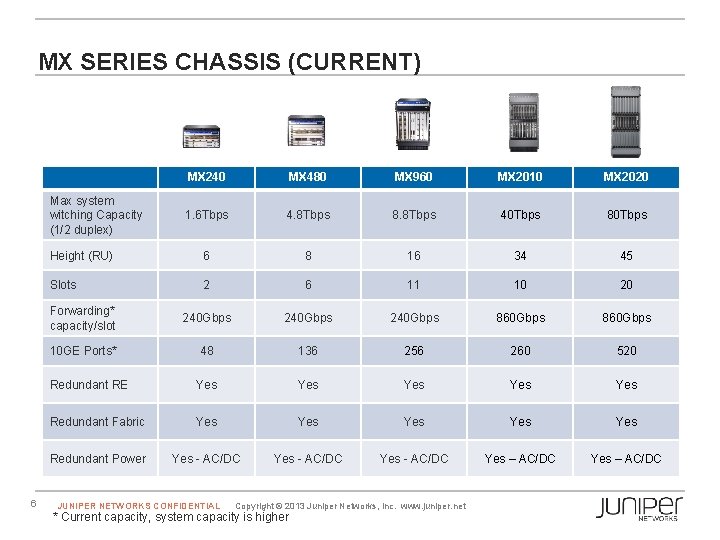

MX SERIES CHASSIS (CURRENT) MX 240 MX 480 MX 960 MX 2010 MX 2020 1. 6 Tbps 4. 8 Tbps 8. 8 Tbps 40 Tbps 80 Tbps Height (RU) 6 8 16 34 45 Slots 2 6 11 10 20 Forwarding* capacity/slot 240 Gbps 860 Gbps 10 GE Ports* 48 136 256 260 520 Redundant RE Yes Yes Yes Redundant Fabric Yes Yes Yes Redundant Power Yes - AC/DC Yes – AC/DC Max system witching Capacity (1/2 duplex) 6 JUNIPER NETWORKS CONFIDENTIAL Copyright © 2013 Juniper Networks, Inc. www. juniper. net * Current capacity, system capacity is higher

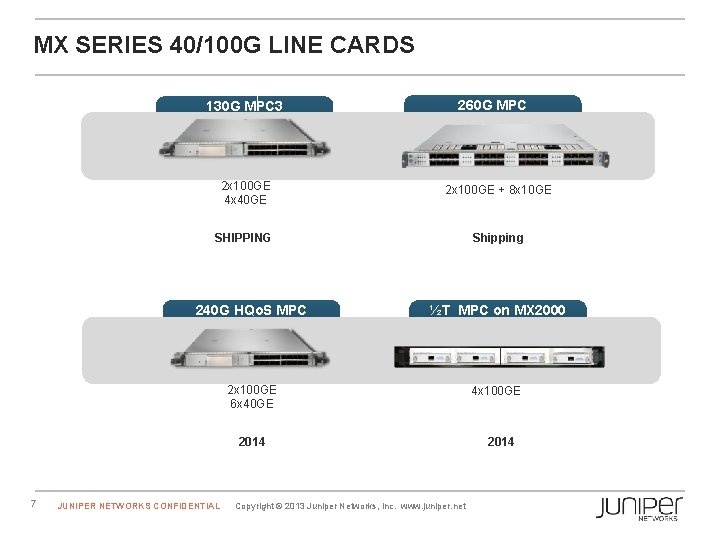

MX SERIES 40/100 G LINE CARDS 130 G MPC 3 260 G MPC 2 x 100 GE 4 x 40 GE 2 x 100 GE + 8 x 10 GE SHIPPING Shipping 240 G HQo. S MPC ½T MPC on MX 2000 10 GE 2 x 100 GE 6 x 40 GE 2014 7 JUNIPER NETWORKS CONFIDENTIAL Copyright © 2013 Juniper Networks, Inc. www. juniper. net 4 x 100 GE 2014

EX SERIES 8 JUNIPER NETWORKS CONFIDENTIAL Copyright © 2013 Juniper Networks, Inc. www. juniper.

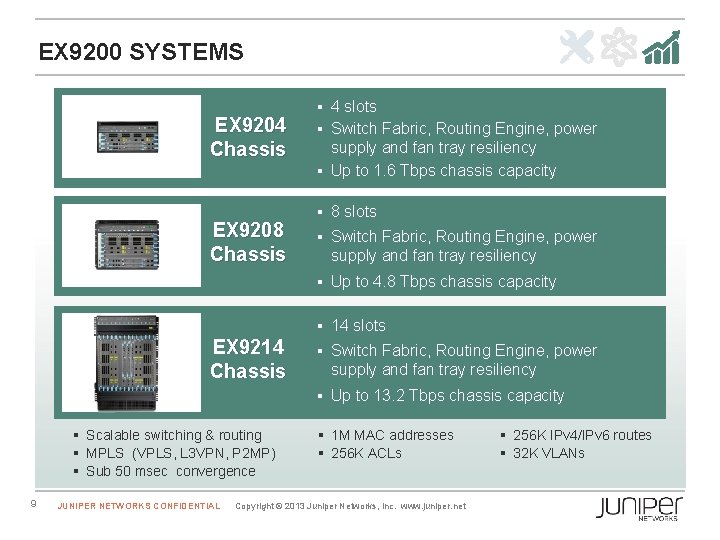

EX 9200 SYSTEMS EX 9204 Chassis EX 9208 Chassis EX 9214 Chassis § Scalable switching & routing § MPLS (VPLS, L 3 VPN, P 2 MP) § Sub 50 msec convergence 9 JUNIPER NETWORKS CONFIDENTIAL § 4 slots § 40 x 10/1000 BASE-T § Switch Fabric, Routing Engine, § 40 x 100 FX/1000 BASE-X SFP supply and fan tray resiliency power § Up to 1. 6 Tbps chassis capacity § 8 slots § Switch Fabric, Routing Engine, power supply and fan tray resiliency § Up to 4. 8 Tbps chassis capacity § 14 slots § Switch Fabric, Routing Engine, power supply and fan tray resiliency § Up to 13. 2 Tbps chassis capacity § 1 M MAC addresses § 256 K ACLs Copyright © 2013 Juniper Networks, Inc. www. juniper. net § 256 K IPv 4/IPv 6 routes § 32 K VLANs

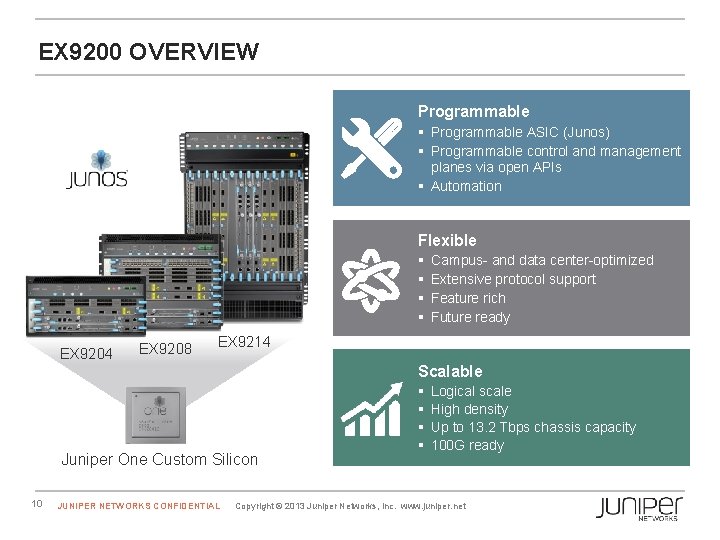

EX 9200 OVERVIEW Programmable § Programmable ASIC (Junos) § Programmable control and management planes via open APIs § Automation Flexible § § EX 9204 EX 9208 Campus- and data center-optimized Extensive protocol support Feature rich Future ready EX 9214 Scalable Juniper One Custom Silicon 10 JUNIPER NETWORKS CONFIDENTIAL § § Logical scale High density Up to 13. 2 Tbps chassis capacity 100 G ready Copyright © 2013 Juniper Networks, Inc. www. juniper. net

EX 9200 PROGRAMMABILITY Silicon § Custom Juniper ASIC § Programmable packet forwarding engine VXLAN NVGRE System § Junos Automation § Junos SDK § Native interfaces SDN MPLS over IP 11 JUNIPER NETWORKS CONFIDENTIAL Copyright © 2013 Juniper Networks, Inc. www. juniper. net Network § Integration with leading orchestration applications

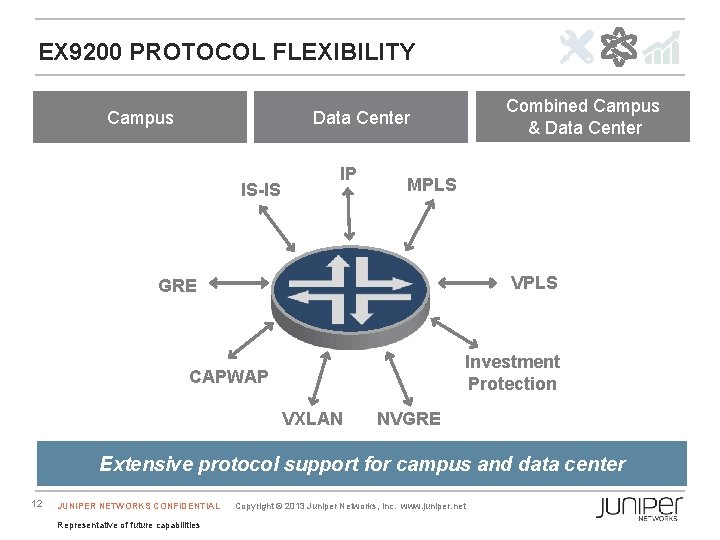

EX 9200 PROTOCOL FLEXIBILITY Campus Data Center IS-IS IP Combined Campus & Data Center MPLS VPLS GRE Investment Protection CAPWAP VXLAN NVGRE Extensive protocol support for campus and data center 12 JUNIPER NETWORKS CONFIDENTIAL Representative of future capabilities Copyright © 2013 Juniper Networks, Inc. www. juniper. net

EX 9200 LINE CARDS 15 JUNIPER NETWORKS CONFIDENTIAL Copyright © 2013 Juniper Networks, Inc.

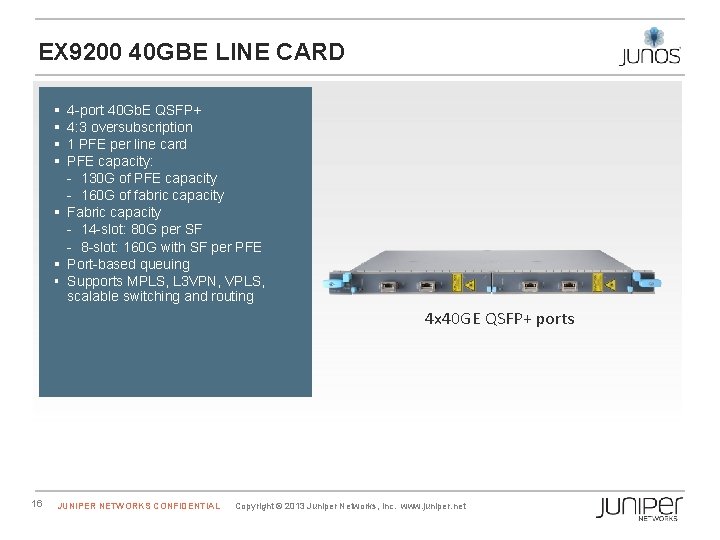

EX 9200 40 GBE LINE CARD § § 4 -port 40 Gb. E QSFP+ 4: 3 oversubscription 1 PFE per line card PFE capacity: - 130 G of PFE capacity - 160 G of fabric capacity § Fabric capacity - 14 -slot: 80 G per SF - 8 -slot: 160 G with SF per PFE § Port-based queuing § Supports MPLS, L 3 VPN, VPLS, scalable switching and routing 4 x 40 GE QSFP+ ports 16 JUNIPER NETWORKS CONFIDENTIAL Copyright © 2013 Juniper Networks, Inc. www. juniper. net

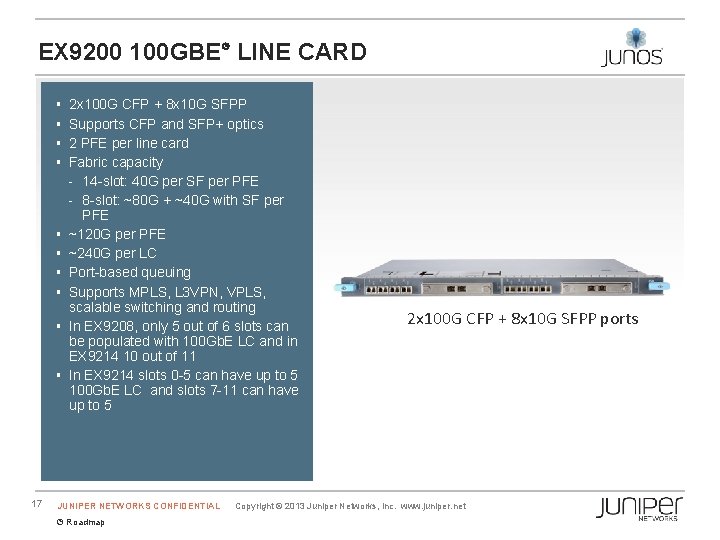

EX 9200 100 GBE LINE CARD § 2 x 100 G CFP + 8 x 10 G SFPP § Supports CFP and SFP+ optics § 2 PFE per line card § Fabric capacity - 14 -slot: 40 G per SF per PFE - 8 -slot: ~80 G + ~40 G with SF per § § § 17 PFE ~120 G per PFE ~240 G per LC Port-based queuing Supports MPLS, L 3 VPN, VPLS, scalable switching and routing In EX 9208, only 5 out of 6 slots can be populated with 100 Gb. E LC and in EX 9214 10 out of 11 In EX 9214 slots 0 -5 can have up to 5 100 Gb. E LC and slots 7 -11 can have up to 5 JUNIPER NETWORKS CONFIDENTIAL Roadmap 2 x 100 G CFP + 8 x 10 G SFPP ports Copyright © 2013 Juniper Networks, Inc. www. juniper. net

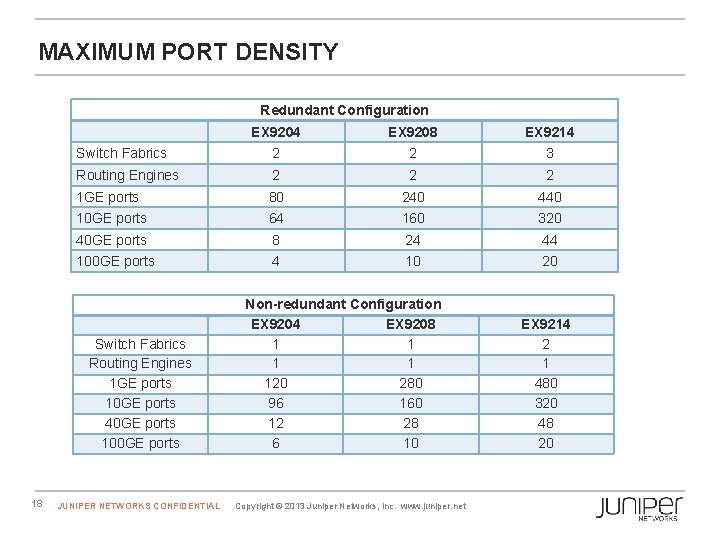

MAXIMUM PORT DENSITY Redundant Configuration EX 9204 EX 9208 EX 9214 Switch Fabrics 2 2 3 Routing Engines 2 2 2 1 GE ports 80 240 440 10 GE ports 64 160 320 40 GE ports 8 24 44 100 GE ports 4 10 20 Switch Fabrics Routing Engines 1 GE ports 10 GE ports 40 GE ports 100 GE ports 18 JUNIPER NETWORKS CONFIDENTIAL Non-redundant Configuration EX 9204 EX 9208 1 1 120 280 96 160 12 28 6 10 Copyright © 2013 Juniper Networks, Inc. www. juniper. net EX 9214 2 1 480 320 48 20
