論文寫作重點整理 June 13, 2005 May 29, 2005 Feb 21, 2005 1
Thesis/Report/Paper n Thesis Chapters: « Introduction: • • « Motivation Literature Survey of Related Researches Contribution of the Thesis/Report/Paper Organization/Outline of the Thesis/Report/Paper Mathematical Preliminary, Background, or Fundamental – Discuss the background or fundamental information/materials related the research topics discussed in the Thesis/Report/Paper « Problem Formulation – Formulate the problem discussed in the Thesis/Report/Paper mathematically, theoretically, academically, etc. Analysis Results « Design Results « Simulation Study & Experimental Study « Conclusions/Summary and Future Works « Bibliography/References « By Feng-Li Lian, 5/29/05 2
章節 Chapter/Section n Every chapter should start with a brief introduction to this chapter u n n about one or two paragraphs Every chapter should end with a brief summary about what have been discussed in the chapter and what will be discussed in next chapter 文章的結構 u u u 先講理論上的創見,新的東西或想法 再說明分析用的新的方法,所得的新的結果 討論模擬或實驗的環境,以及模擬或實驗的結果 By Feng-Li Lian, 5/29/05 4

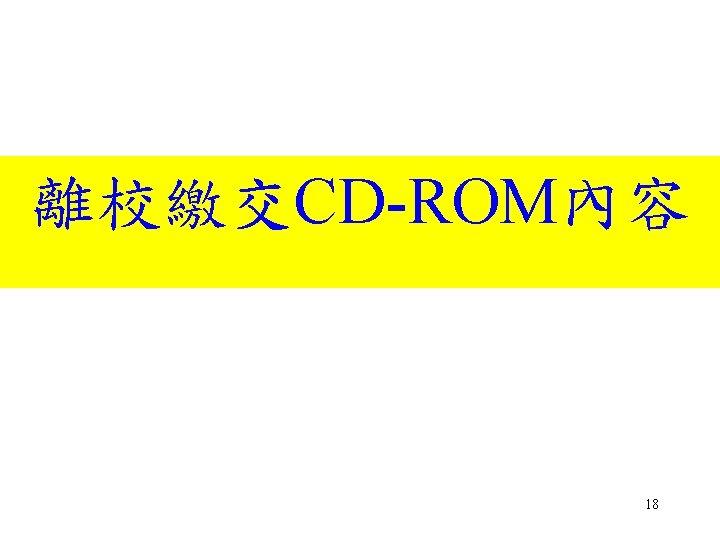

繳給老師的CD-ROM內容 1. Personal Information 2. Course 3. Research 1. Weekly reports 2. Programs, etc. 3. Paper list with abstract 4. Thesis 1. Documents, Presentation slides, 2. Program, Figures, Animations etc. 5. Readme. txt 19
Directory and File • /R 92921001/Lecture/ • *. pdf, *. html, *. doc, *. m, etc. • /R 92921001/Lecture/Referecne/ • *. pdf, *. html, *. doc, *. m, etc. • /R 92921001/Homework/HW 1/ *. doc, *. m, *. pdf, etc. – /R 92921001/Homework/HW 2/, …/HW 3/, …/HW 4/, etc. • /R 92921001/Project/ • • • 0225 Prelim. doc 0414 Proposal. doc 0519 Slide. Miterm. ppt 0616 Slide. Final. ppt 0623 Final. Report. doc • /R 92921001/Project/Reference/ • 01 Shin. Chou 94 Real. Tiime. pdf, • 02 Sastry 95 Time. Delay. pdf, etc. • /R 92921001/Network/ • 0512 Slide. ppt • *. pdf, *. html, *. doc, etc. 20
By 碩二 5/30/05 Figure • Figure內的圖要用不同形狀去區分不要用不同顏色去區分。 • Figure的座標軸單位字型要加大,圖形線條要加粗。 • 每一個Figure都要有一段話清楚的解釋,解釋必須要清楚 到讓讀者不看Figure也可以了解,就算性質非常類似的 Figure也要每一個都寫,最基本要做到複製貼上。 • 在展示Figure之前要先解釋這個Figure的用意。 • Figure複製時不要用bmp檔。 – When “copy” from plot in MATLAB – From the figure menu, select “Edit”, “Copy options”, – Select “preserve information”, and “force white background” or “transparent background” – Modify size if necessary by selecting “Match figure screen size” 25 By Feng-Li 6/12/05
By 碩二 5/30/05 Reference • 文末reference完整的格式: 1. 2. 3. 4. Authors (所有的author名字均要列出), “title, ” Journal title, Vol. #, No. #, pp. #-#, month, year Authors, “title, ” in Proceeding of conference name, Vol. #, No. #, pp. #-#, location, month, year 書名亦要加雙引號 若作者名先寫first name再寫last name, 則全部都要統一 要用and, 不可用& Ex: S. Floyd and V. Jacobson, “Random Early Detection Gateways for Congestion Avoidance, ” IEEE/ACM Transactions on Networking, Vol. 1, No. 4, pp. 397 -413, Aug. 1993 – Vol. 24, No. 3, pp. 191 -205 or 24(3): 191 -205 均可 27
By 碩二 5/30/05 Reference • 文中citation的用法: • One author [2: Lian 2004] • Two authors [3: Lian & Chang 2004] • More than three authors [4: Lian et al. 2004] ( not [4: Lian et. al 2004] ) • citation時不要直接加在section名稱後面, 因為在做 目錄時會一併把citation連結進去 Ex: 2. 2 TCP-Reno [10: xxx 1988] (將citation放在內文中) xxx…. . 28
By 志豪 6/9/05 • Reference格式 – Paper • 作者, 標題, 發表的期刊或會議, vol. X, No. X, pp. X-X, 地區, 月, 年. • 例如 K. Anjyo, Y. Usami, and T. Kurihara, “A Simple Method for Extracting the Natural Beauty of Hair, ” Proceedings of the 19 th annual conference on Computer graphics and interactive techniques, Vol. 26, No. 2, pp. 111 -120, Chicago, IL, USA, July, 1992. • 全部統一為 No. X 或是 全部統一為 Issue X • 如果是journal不用寫地區 – 書 • 作者, 書名, 出版社, 年份 • 例如 D. G. Zill and M. R. Cullen, “Differential Equations with Boundary-Value Problems, ” Fifth Edition, Brooks/Cole, 2001. 34
論文修改注意事項 • 1. 與 figure 及 table 相關的的編號要以藍色做記 號 –Ex: Figure 1. 1: Graphical representation or –Figures 2. 1 and 3. 5, –Table 3. 1, Tab. 3. 1 –Fig. 1. 1 or –Figs. 2. 1 and 3. 5 – 內文裡面也要大寫, 不是 figure 及 table • 2. 與 citation 相關的編號要以紅色做記號 – Ex: [19: Tanenbaum 2003] – 不要亂加逗點 40
論文修改注意事項 • 3. 最後references的編排方式如下: – [1: Aweya et al. 2002] J. Aweya, M. Ouellette, and D. Y. Montuno, “Inter-working of switched Ethernet and ATM flow control mechanisms, ” International Journal of Network Management, Vol. 12, No. 6, pp. 357 -366, May 2002. – [2: Bello and Mirabella 2000] L. Lo Bello and O. Mirabella, "Analysis and comparison of different interconnection solutions for switched Ethernet networks, " Proceedings of IEEE International Workshop on Factory Communication Systems, pp. 221 -230, Sept. 2000. • Note: 就是紅色以下 要內縮至數字以後的位置 41
論文修改注意事項 n 1. 與 figure 及 table 相關的的編號要以藍色做記號 u Ex: Figures 1. 1, Table 3. 1 u n 內文裡面也要大寫, 不是 figure 及 table 2. 與 citation 相關的編號要以紅色做記號 u u Ex: In [19: Tanenbaum 2003], the authors discussed the algorithm… shown in Figure 1. 1 and Table 3. 1 不要亂加逗點 Figure 1. 1: Two boxed 43
論文修改注意事項 n 3. 最後references的編排方式如下: u [1: Stankovic 2002] S. S. Stankovic, ''Decentralized overlapping control of a platoon of vehicles, '' IEEE Transaction on Control Systems Technology, Vol. 8, No. 5, pp. 816 -832, Sep. 2002 u [2: Bello & Mirabella 2000] L. L. Bello and O. Mirabella, "Analysis and comparison of different interconnection solutions for switched Ethernet networks, " Proceedings of IEEE International Workshop on Factory Communication Systems, pp. 221 -230, Sep. 2000 u [3: Aweya et al. 2002] « J. Aweya, M. Ouellette, J. M. Korsakas, and D. Y. Montuno, “Interworking of switched Ethernet and ATM flow control mechanisms, ” International Journal of Network Management, Vol. 12, No. 6, pp. 357 -366, May 2002 Note: 就是紅色以下 要內縮至數字以後的位置 44
Paper Format: 05/01/04 -05/07/04 黃雋博 n Citation: u u n [4: Lian et al. 2001] [3: Lian and Chang, 2004] u u These Format u u u Content Abstract Figure Content Table Content Ch 1: Introduction Ch 2: Background Ch 3: Preliminary Ch 4: Main Content Ch 5: Result Ch 6: Simulation Reference (一致性) « « « u u n PPT Content: u u u Auther, “Title, ” Journal, Title, vol, num, page, location, month, year. Vol. 24, No. 3, pp. 191 -205. 24(3): 191 -205 u u 45 演算法部分須以圖或是表來表示 圖與表在文中要解釋 圖有定量與定性的的區別 圖的四週需預留適當之空白 可拿課本來參考 圖文並茂 2/3敘述,1/3圖 不說明的不要放 字體大小一致(圖與文相同規格) 座標軸 圖的表示法:continue and discrete Don’t use Green color 條列式要有對等的觀念
Thesis Writing Skills 馮天俊 n Power. Point file (for presentation) u Page Information: « u u « name、institute、date、and page are required to be listed in every page « Content: « « « Citation: « 圖文並茂 (2/3文,1/3圖) 對於列出的東西均要說明,不然 就不要列 Run simulation一定要有座標軸, 且單位要一樣 Simulation的圖形,若為discrete 就不要把點連起來,應展現離散 結果 Power. Point 不用完整的句子 顏色盡量不要用綠色 條列式的結構要對稱 ex: 1. To arrange… 2. To maximize 3. To …. 49 One author [2: Lian 2004] Two authors [3: Lian & Chang 2004] More than three authors [4: Lian et al. 2004]
Thesis Writing Skills (cont’d) 馮天俊 n Word file (for thesis) u 系上有固定格式 Second Page--- Page List Figure 1. 1:xxxxxxx Abstract 1. abcdefg………. . page number 2. hijklm…………. . page number : : u Figure Title Page: « u « 至少為片語,字體大小要清楚, 且與內文能對應 « Content: « « Format Chapter 1 <空一行> Introduction 1. 1 « « Formula notation 2 x+3 y=5 (1. 1) 50 Table 文字在表上面 Table 1. 1:xxxxxx 在引入主題前,先要有motivation 在第一章內要說明之後每章分別 將探討什麼
Thesis Writing Skills (cont’d) 馮天俊 « « « u 文中若有引用的文章或圖, reference 用紅色表示 每一個圖或表,都要花一個段落 來解釋 演算法要獨立成一個表格,不要 放在內文中 u 1. Introduction (6) 2. Background (5) 3. 基本 具 (用到哪些) 4. 問題 5. 提出的解決之道 6. Simulation Result 7. Conclusion References: 1. Authors, “title, ” Journal title, volume, number, page, month, year 2. Authors, “title, ” Proceeding of conference name, volume, number, page, location, month, year « « « 論文撰寫順序: (x) :x表寫作順序 Vol. 24, No. 3, pp. 191 -205 or 24(3): 191 -205 均可 Reference寫法可參考非線課本 pp. 725,實驗室統一用第一作者 的姓做排列 網頁要註明網頁名稱 51 (4) (1) (2) (3) (7)
- Slides: 53
