Jump. Start: Server Virtualization with Windows Server Hyper-V and System Center Corey Hynes Symon Perriman Lead Architect & President Senior Technical Evangelist hol. Systems | @hol. Systems Microsoft | @Symon. Perriman

Course Topics – Day 1 Windows Server 2012 R 2 01 | Evaluating the Environment for Virtualization 02 | Installing and Configuring the Hyper-V Server Role 03 | Creating and Managing Virtual Hard Disks, Virtual Machines, and Checkpoints 04 | Creating and Configuring Virtual Machine Networks 05 | Virtual Machine Movement and Hyper-V Replica 06 | Implementing Failover Clustering with Hyper-V

Course Topics – Day 2 System Center 2012 R 2 07 | Installing and Configuring System Center 2012 R 2 Virtual Machine Manager 08 | Managing Network and Storage Infrastructure in VMM 09 | Configuring and Managing the VMM Library 10 | Creating and Managing VMs Using VMM 11 | Managing Clouds in VMM 12 | Managing Services in VMM and App Controller 13 | Protecting and Monitoring Virtualization Infrastructure

Meet the Presenters Corey Hynes Lead Architect & President, HOLSystems Background Corey has been a core infrastructure architect and consultant in the field for over 15 years. His primary focus is operating system virtualization, management and deployment. Corey has been working with Hyper-V, Xen. Desktop and VMware extensively since they were introduced and he is currently a member of the Windows 8 TAP program. He is the author of over 100 labs across multiple product lines, and is the lead author of the Windows Server 2012 hands-on labs currently available on Tech. Net. Corey is also the owner and lead technical architect for hol. Systems, an online VM hosting engine for training and demo providers which hosts thousands of VM instances in a custom, thinprovisioning engine, and is the platform used for hands-on labs, instructor-led labs, and on-demand virtual labs worldwide. Contact • @holsystems

Meet the Presenters Symon Perriman Senior Technical Evangelist, Microsoft Background As Microsoft’s corporate Senior Technical Evangelist covering Private Cloud, Virtualization & System Center, Symon is a recognized industry expert in datacenter management, cloud, virtualization, high-availability, and others. Previously he spent four years as a Program Manager on the Server Clustering & High-Availability engineering team and has been working in the technology industry since 2002. Symon holds several patents and industry certifications, including Microsoft Certified Trainer (MCT), MCSE Private Cloud, and VMware Certified Professional (VCP). In 2013 he co-authored the book, “Introduction to System Center 2012 R 2 for IT Professionals” (O’Reilly) and is a graduate from Duke University with degrees in Computer Science, Economics and Film & Digital Studies. Contact • @Symon. Perriman

Course Expectations • Target Audience • This course is intended for IT professionals who are responsible for designing, implementing, managing, and maintaining a virtualization infrastructure or are interested in learning about current Microsoft Virtualization technologies. The secondary audience for this course includes IT decision makers who will determine which virtualization product to implement in their data centers. • Suggested Prerequisites/Supporting Material • 5 -day Course: 20409 A: Server Virtualization with Windows Server Hyper-V and System Center • Exam: 74 -409: Server Virtualization with Windows Server Hyper-V and System Center

Microsoft Virtual Academy Module 1 Evaluating the Environment for Virtualization

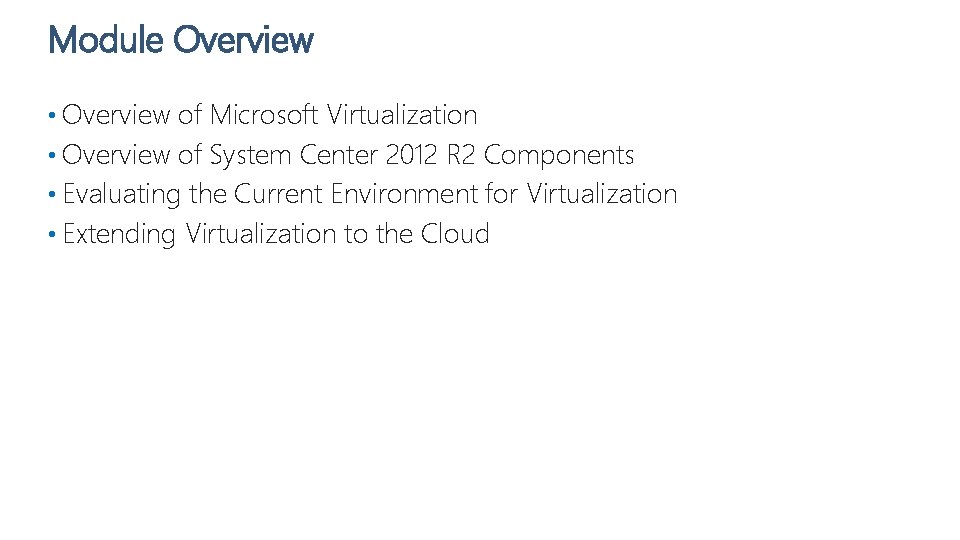

Module Overview • Overview of Microsoft Virtualization • Overview of System Center 2012 R 2 Components • Evaluating the Current Environment for Virtualization • Extending Virtualization to the Cloud

Lesson 1: Overview of Microsoft Virtualization • Challenges of Traditional Computing Environments • What Is Server Virtualization? • What Is Network Virtualization? • Key Technologies

Challenges of Traditional Computing Environments • Traditional challenges: Space - Housing business equipment • Power - Providing affordable power to run the server, storage and network equipment • Cooling- Maintaining safe operating temperatures for equipment • Resilience - Building robust and highly available solutions and offering a means to recover data • Flexibility – Providing the time to deliver or upgrade infrastructure and or applications • Resources – Maintaining staff-to-system ratios and meeting training challenges •

What Is Server Virtualization? • Server virtualization: You can create and run multiple computer operating systems on a single physical computer • Host servers share resources with all the virtual machines • • Virtualization challenges: • Limited number of compute resources • Server virtualization features: • Hyper-V server virtualization feature allow full utilization of physical resource and provide advanced technology to make a more robust, available and dynamic server computing environment.

What Is Server Virtualization? Type I Hypervisor Windows virtual machine Linux virtual machine Paravirtualization drivers and tools Hypervisor (VMware v. Sphere, Citrix Xen. Server, Microsoft Hyper-V Host – Physical hardware

What Is Server Virtualization? Type II Hypervisor Windows virtual machine Linux virtual machine Paravirtualization drivers and tools Hypervisor (Microsoft Virtual Server, VMware workstation) Host – Operating system Host – Physical hardware

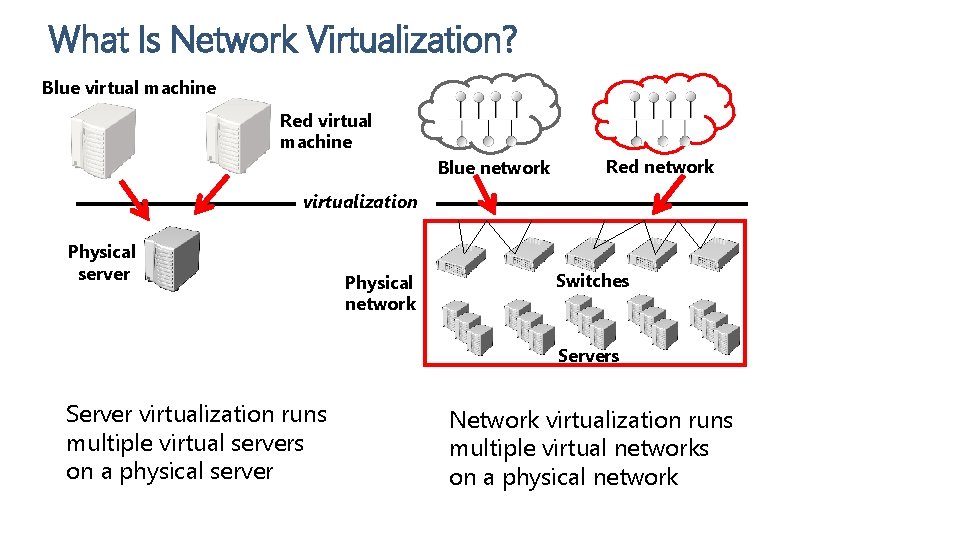

What Is Network Virtualization? Blue virtual machine Red virtual machine Blue network Red network virtualization Physical server Physical network Switches Server virtualization runs multiple virtual servers on a physical server Network virtualization runs multiple virtual networks on a physical network

Key Technologies Automation Orchestrator v. Center Orchestrator Service Mgmt. Service Manager v. Cloud Automation Center Protection Monitoring Data Protection Manager System Center 2012 R 2 Operations Manager v. Sphere Data Protection v. Cloud Suite v. Center&Ops Mgmt. Suite v. Center Self-Service App Controller v. Cloud Director VM Management Virtual Machine Manager v. Center Server Hypervisor Hyper-V v. Sphere Hypervisor

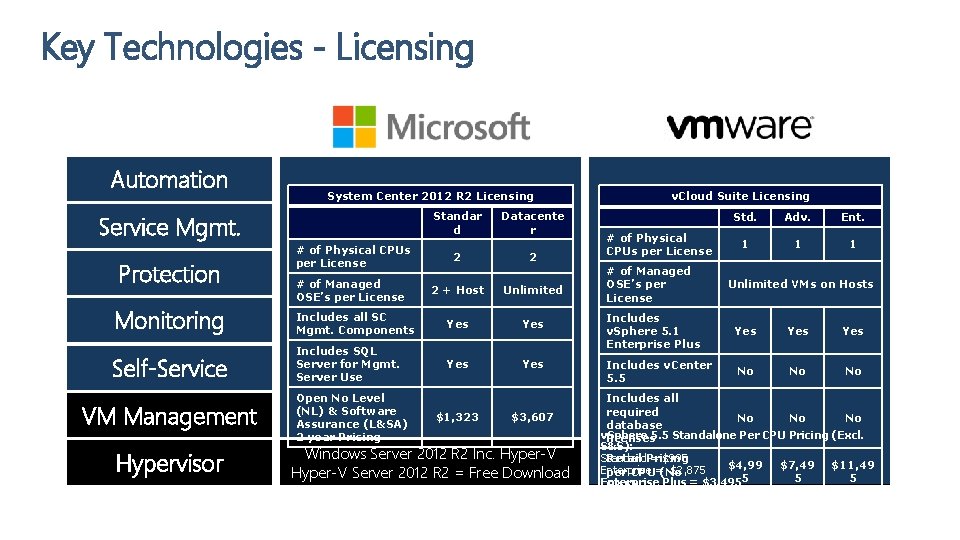

Key Technologies - Licensing Automation Service Mgmt. Protection Monitoring Self-Service VM Management Hypervisor Orchestrator System Center 2012 R 2 Licensing Standar Datacente r 2 2 d Service Manager # of Physical CPUs per License Data Protection Manager 2 + Host Unlimited # of Managed OSE’s per License Yes Operations Manager Includes all SC Mgmt. Components Includes SQL Server for Mgmt. Server Use Yes App Controller Open No Level (NL) & Software Assurance (L&SA) 2 year Pricing Yes $1, 323 $3, 607 Virtual Machine Manager Windows Server 2012 R 2 Inc. Hyper-V Server 2012 R 2 = Free Download v. Center Orchestrator v. Cloud Suite Licensing v. Cloud Automation Center # of Physical CPUs per License Std. Adv. Ent. 1 1 1 v. Sphere Data Protection Unlimited VMs on Hosts # of Managed OSE’s per License v. Center Ops. Yes. Mgmt. Suite Yes Includes v. Sphere 5. 1 Enterprise Plus No v. Cloud No Director Includes v. Center 5. 5 No Includes all required No No No database v. Sphere licenses 5. 5 Standalone Per CPU Pricing (Excl. S&S): Retail Pricing Standard = $995 $4, 99 $7, 49 $11, 49 Enterprise $2, 875 per CPU=(No 5 5 5 Enterprise Plus = $3, 495 S&S) v. Center Server v. Sphere Hypervisor

Lesson 2: Overview of System Center 2012 R 2 • Using Microsoft System Center 2012 R 2 to Manage a Data Center • Overview of VMM • Overview of App Controller

Using System Center to Manage a Data Center Manage virtual environment (VMM, App Controller) Enable business Continuity (Data Protection Manager) Manage physical and virtual components (VMM) Data center Monitor and report (Operations Manager) Automation (Orchestrator, Service Manager) Delegate administration and self service (App Controller, Data Protection Manager)

Overview of VMM features include: Bare-metal deployment of hosts • Host and cluster creation • Host groups • Cross-platform management • Storage configuration/network configuration • Intelligent placement/dynamic optimization • Power optimization • PRO • P 2 V •

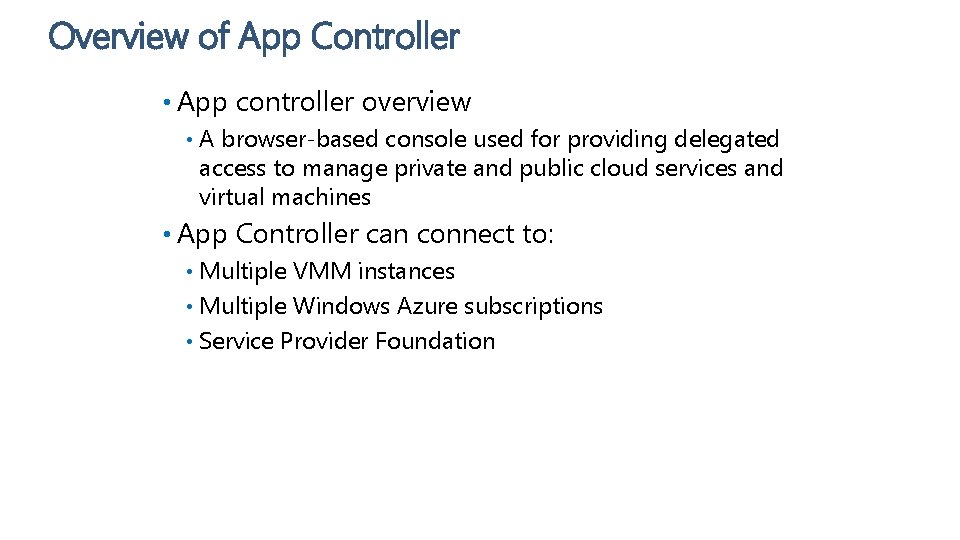

Overview of App Controller • App controller overview • A browser-based console used for providing delegated access to manage private and public cloud services and virtual machines • App Controller can connect to: Multiple VMM instances • Multiple Windows Azure subscriptions • Service Provider Foundation •

Lesson 3: Evaluating the Current Environment for Virtualization • Evaluation Factors • Overview of Virtualization Solution Accelerators • Assessment Features of MAP

Evaluation Factors • When evaluating server virtualization, consider the following: Project Scope • Hardware requirements • Compatibility • Applications and services • Supportability • Licensing • Availability requirements •

Overview of Virtualization Solution Accelerators • Microsoft Assessment and Planning Toolkit (MAP) • Third-party tools (import maps output) • Infrastructure planning and design guides (IPD)

Assessment Features of the MAP Toolkit 50 • Discovery • Hardware configuration Servers • Infrastructure (Shared storage and network) • • Virtual Server Consolidation Wizard • Private cloud fast track • MAP will scan v. Sphere hosts, and VMs and produce spreadsheet & report on conversion candidates Ready to Migrate 40 Virtual Machines • Inventory 45 35 30 Ready to migrate after recommended changes 25 20 15 Cannot Migrate 10 5 0 Microsoft Virtual Machine Converter

Lesson 4: Extending Virtualization to the Cloud • What is Windows Azure? • Windows Azure Services • Virtual Machines in Windows Azure • Extending Your Data Center

What is Windows Azure? Windows Azure is the public cloud offering from Microsoft Windows Azure delivers the following service models: Paa. S • Iaa. S • Saa. S •

Windows Azure Services • Windows Azure Services: • Compute • • Data Services • • Data management, HDInsight, business analytics, backup, recovery manager. App Service • • Websites, virtual machines, mobile, and cloud services Media services, messaging, Biz. Talk services, identity, caching Network • Virtual network, Traffic manager

Virtual Machines in Windows Azure • Virtual machines in Windows Azure are: Built from scratch • Deployed from templates including Windows, Ubintu, Cent. OS • Have preinstalled applications such as SQL, Share. Point, Biz. Talk, Visual Studio • Can be customized and built from user templates • Built on premises VHDs and then imported •

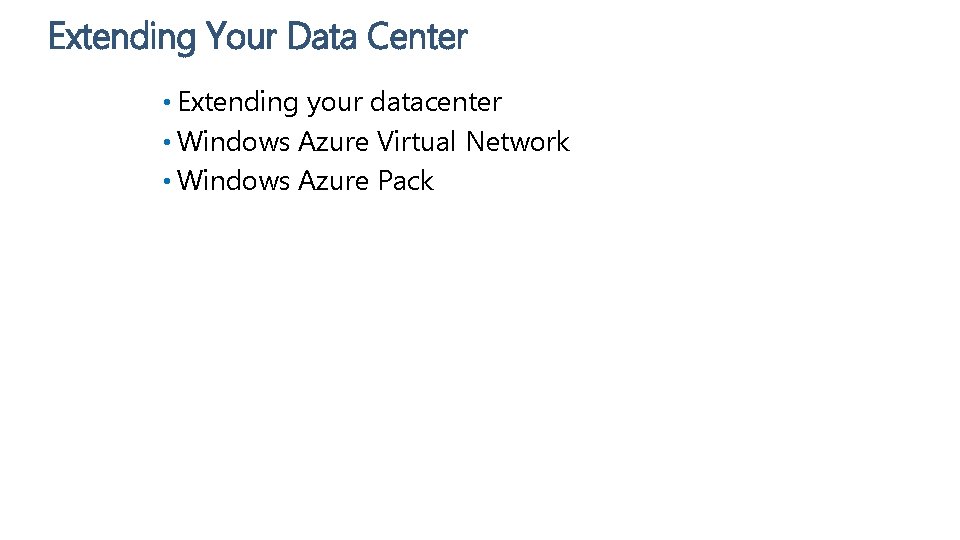

Extending Your Data Center • Extending your datacenter • Windows Azure Virtual Network • Windows Azure Pack
