<July 2011> doc. : IEEE 802. 15 -<doc#> Requirements • Data rate – 40 kbit/s per channel • Band – 900 MHz ISM band used – Many channels that can support more than 1000 endpoints • Sensitivity – Propagation path loss of at least 120 d. B – Coordinator should support antenna diversity to increase channel capacity and reduce interference from adjacent channels • Transmit power – Up to 10 m. W Submission Slide 4 <hsoolee, jdhuh, kskwak>, <ETRI, Inha Univ. >

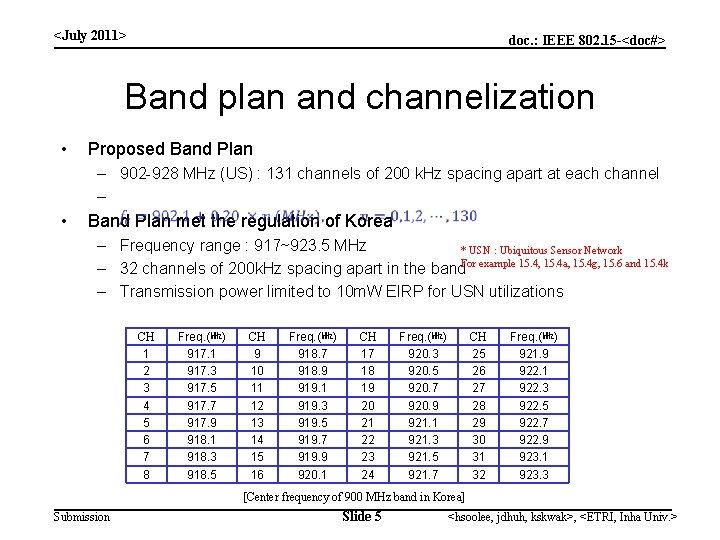

<July 2011> doc. : IEEE 802. 15 -<doc#> Band plan and channelization • Proposed Band Plan – 902 -928 MHz (US) : 131 channels of 200 k. Hz spacing apart at each channel – • Band Plan met the regulation of Korea – Frequency range : 917~923. 5 MHz * USN : Ubiquitous Sensor Network – 32 channels of 200 k. Hz spacing apart in the band. For example 15. 4, 15. 4 a, 15. 4 g, 15. 6 and 15. 4 k – Transmission power limited to 10 m. W EIRP for USN utilizations CH 1 2 3 4 5 6 7 8 Freq. (㎒) 917. 1 917. 3 917. 5 917. 7 917. 9 918. 1 918. 3 918. 5 CH 9 10 11 12 13 14 15 16 Freq. (㎒) 918. 7 918. 9 919. 1 919. 3 919. 5 919. 7 919. 9 920. 1 CH 17 18 19 20 21 22 23 24 Freq. (㎒) 920. 3 920. 5 920. 7 920. 9 921. 1 921. 3 921. 5 921. 7 CH 25 26 27 28 29 30 31 32 Freq. (㎒) 921. 9 922. 1 922. 3 922. 5 922. 7 922. 9 923. 1 923. 3 [Center frequency of 900 MHz band in Korea] Submission Slide 5 <hsoolee, jdhuh, kskwak>, <ETRI, Inha Univ. >

<July 2011> doc. : IEEE 802. 15 -<doc#> Transmitter Architecture [Transmitter structure] • • • HCS : CRC-4 ITU header check sequence CRC-16 CCITT standard Preamble – 4 octets “ 0101”(0 x 55) Multiple strings • SFD : Start Frame Delimiter – 8 bits , for example “ 01101111”(0 x 6 F) Submission Slide 6 <hsoolee, jdhuh, kskwak>, <ETRI, Inha Univ. >

<July 2011> doc. : IEEE 802. 15 -<doc#> Modulation(1) • Gaussian Mean Shift Keying (GMSK) – BT=0. 3, modulation depth(h) =0. 5 – Simple low Complexity – Low Power consumption for constant envelop characteristic – Data can be differentially encoded – Band limited Gaussian pulse shaping • Rx Options – Full coherent detection for high performance – Semi-coherent detection is also possible [GMSK power spectral density] Submission Slide 7 <hsoolee, jdhuh, kskwak>, <ETRI, Inha Univ. >

<July 2011> doc. : IEEE 802. 15 -<doc#> Modulation(2) • BER performance of MSK is about 3 d. B better than that of FSK • Non-coherent demodulation of MSK is similar to that of FSK Submission Slide 8 <hsoolee, jdhuh, kskwak>, <ETRI, Inha Univ. >

<July 2011> doc. : IEEE 802. 15 -<doc#> System Parameters(1) • Frame Structure [Frame Format] – – Preamble : Time Synchronization SFD : Marking the end of the preamble Header : Information about PHY and MAC parameters PSDU : MAC header, payload (256 bytes), FCS • 16 -bit CCITT CRC – • Data Rate Parameters – CR(chip rate) = SR(symbol rate) / CR (code rate) * SF(spreading) – CR = 40 kbps / (51/63) * 4 = 197. 6 kbps Submission Slide 9 <hsoolee, jdhuh, kskwak>, <ETRI, Inha Univ. >

<July 2011> doc. : IEEE 802. 15 -<doc#> System Parameters(2) • FEC – BCH[63, 51] code – Generator polynomial : – Simple, low-complexity binary BCH code • Scrambling – • Spreading and interleaving – Spreading is implemented by repeating the bits 4 times Submission Slide 10 <hsoolee, jdhuh, kskwak>, <ETRI, Inha Univ. >

<July 2011> doc. : IEEE 802. 15 -<doc#> Link Analysis GMSK Link Budget Analysis No 1) 2) 3) 4) 5) 6) 7) 8) 9) 10) 11) 12) 13) 14) 15) 16) 17) 18) 19) 20) 21) Submission Parameters Bit rate [R] Symbol Period [Tb] Spreading Factor [SF] Code Rate [CR]* Chip rate [Rc] Channel Bandwidth [BW] Peak TX Power [Pt] TX antenna gain [Gt] Path Loss [PL] RX antenna gain [Gr] RX power [Pr=Pt+Gt+Gr-PL] Receiver AWGN noise floor [N=-174+10 log(BW)] RF noise figure [Nf] Average noise power [Pn=N+Nf] Processing gain [PG=10 log(Nc)] Minimum Eb. No [EN] Minimum SNR [S=Eb. No+10 log 10(R/BW)] Coding gain (CG) Implementation loss [I] Link Margin [LM=Pr-Pn-S-I+PG+CG] Proposed Min. Rx Sensitivity Level [Pmin] Slide 11 Unit kbps u. S. . kbps k. Hz d. Bm d. Bi d. Bm d. B d. Bm Value 40 25 4 0. 81 197. 6 200 10. 0 120. 0 10. 0 -100. 0 -121. 0 5. 0 -116. 0 10. 0 9. 9 3. 0 12. 1 -112. 1 * FEC : BCH(63, 51) <hsoolee, jdhuh, kskwak>, <ETRI, Inha Univ. >

<July 2011> doc. : IEEE 802. 15 -<doc#> Conclusion • We propose a PHY technical requirements for TG 4 k. • We analyzed one of band plan with channelization, sensitivity and Tx power. • We will extend the proposal and hopefully present in next meeting. Submission <hsoolee, jdhuh, kskwak>, <ETRI, Inha Univ. >
