JTLS 5. 0 Status • Unfortunately There Is Only One Word July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 2

JTLS 5. 0 Status • We Always Knew – It Was An Aggressive Schedule – Cost Was Bare Bones Minimum • Still – We Decided To Do It Correctly • Implemented New Logic • Attempted To Remove Model Inconsistencies July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 3

Plan Of Way Forward • Beta Copies – JTLS 5. 0. 0. R • Friday 11 July 2015 – JTLS 5. 0. 0. S • Friday 25 July 2015 – Updates Approximately Every Two Weeks July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 4

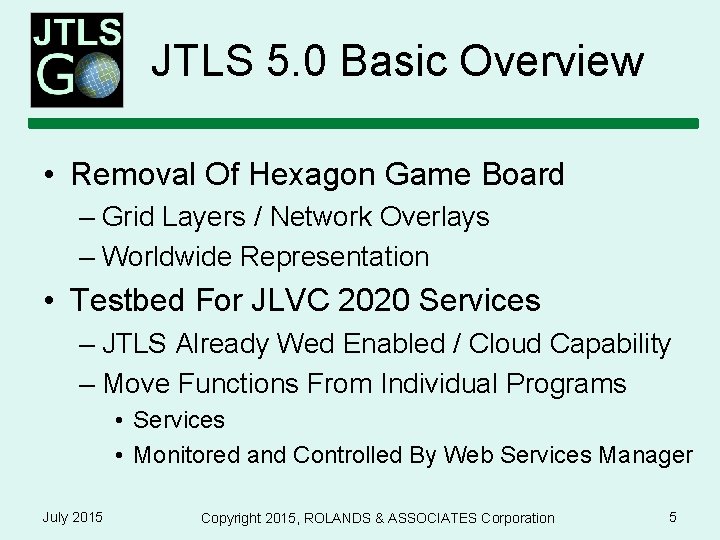

JTLS 5. 0 Basic Overview • Removal Of Hexagon Game Board – Grid Layers / Network Overlays – Worldwide Representation • Testbed For JLVC 2020 Services – JTLS Already Wed Enabled / Cloud Capability – Move Functions From Individual Programs • Services • Monitored and Controlled By Web Services Manager July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 5

JTLS-2012 -11184 Model Road Network • Committed To Network Overlay – Multiple Networks • Road, River • Must Leave One, Travel Off Network, Get On Next – Multiple Independent Networks • Rail, Pipeline • No Need To Go From One Network To Next – Single Worldwide Network • Air Corridor, Sea Lanes July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 6

JTLS 2013 -11744 Air Corridors Recognize National Boundaries • Basic Design – All Networks – When The Model Starts • Compute Which Arcs Cross Which Boundaries – Once Data Is Established • Implementation Is Easy • Won’t Leave Node Unless Arc Is Legal – Boundaries Are No Longer “Hex” / “Grid” Edges • Implement Cross Lines Algorithm July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 7

JTLS-2011 -10933 Maritime Supply Routes • Part Of Network Movement Plan – Sea Lanes Work Much Like Air Corridors – Each Sea Lane Have A Width • Unlike Aircraft, They Stay Close To Sea Lane – Once Off Network • Naval Units Travel Great Circle Path • Won’t Enter Grid – Too Shallow – Not Ocean, Small Island, or Dual Capable • Won’t Cross Barrier July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 8

JTLS-2006 -1659 River Networks • Biggest Issue - River Data – Nodes Do Not Connect In Raw Data – No Good Depth Information • Seasonal Depth An Unreachable Goal For Now • Once Data Exists – Travel On Rivers – Straight Forward – Crossing Rivers When Off Road • Crossing Line Algorithm July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 9

JTLS-2006 -1706 Large Map Road Networks • All Networks Will Be Displayable • Road Networks – Bridges and Tunnels Are Arcs – Road Interdiction Points Nodes • Current Plan July 2015 River Sea Lanes NB Roads Air Pipelines Copyright 2015, ROLANDS & ASSOCIATES Corporation 10

JTLS-2010 -10514 Air, Sea, Space Smooth Movement • Air – Already Done – Air Corridors • Sea – Covered By JTLS 2011 -10933 • Satellite – JTLS 4. 1 Hex-By-Hex – Game Board Only – Worldwide Coverage – Satellite Service July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 11

JTLS 2013 -11440 Terrain Movement Function Of Combat Systems • Problem – Very Few Truly Impassable Barriers • Trucks May Not Cross • HRUs On Foot Can – Introduced Concept Of Barriers • Used To Be Fixed Types – Along Hex Edges • New Data – Barrier Types (BT) – Ex: Impassable, Tank Ditch, Shore – Agility Types (AGT) – Ex: Tracked, Wheeled, Foot – Ability To Cross – MCP BT AGT July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 12

JTLS 2013 -11440 Terrain Movement Function Of Combat Systems Road Arc Road Node With Target Barrier July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 13

JTLS-0151 Constant Sunrise / Sunset Time • Request – Remove Constant Light On Entire Game Board • Sunrise / Sunset Data Removed • Model Will Compute Light Condition – Latitude / Longitude – Date Time Group • WHIP Shows – Terminator As Terrain Layer July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 14

JTLS-0151 Constant Sunrise / Sunset Time Determination - Location - Date/Time July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 15

JTLS-0017 Ground Directive Egress Route • Concept Of Execution Plans – Existed For • Naval, Formations, HRUs – Expanded For • Ground Units, Convoys, and Air Missions • All Ground Directives Are Redesigned – Ingress Path, Task Location, Egress Path – Task Execution Time July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 16

JTLS-0017 Ground Directive Egress Route • Changed All Execution Plans – Good Reasons • Centralize Code • Capability Consistency – Issues • Made Job Larger – More Time Needed – Objects • Ground Units, Ships, Formations, HRU, Convoys, Air Missions July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 17

JTLS-0017 Ground Directive Egress Route • Pending Task Display – Each Route Point Is A Task – Each Unit Status Change Is A Task – Temporary Entities • Air Mission and Convoy – Mission Complete Task July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 18

JTLS 2013 -11679 Ground Execution Plans And Viewer • Ground Units On IMT – Pending Task Quick Retrieval Button – View Pending Tasks • Ground Unit Can Have Multiple Pending Tasks July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 19

JTLS-2008 -1829 Ground Move Arrival Time • All Orders Changed To Include – Start Time – Arrive Time • Complicated Computation – On Road Network / Off Road Network – Sequential • Task Sequence Number – Now • Changed – No Longer Deletes All Tasks July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 20

JTLS 2011 -10936 IMT Future Unit Order Display • Previous ECP Addresses All Issues July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 21

JTLS-0536 Ground Withdraw Route Points • Previous ECP Addresses All Issues • Withdraw Route Has Points – Each Point Becomes A Task July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 22

JTLS-2010 -10702 Ground Route Wait Times • Ground Route – Location – Optional Leave Time • Absolute – 300447 MAR 15 • Relative Time – 2 HR • Technically Easy – Relative To Arrive Time Issues July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 23

JTLS-0147 Display Current Engineering Task • Previous ECP Addresses All Issues July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 24

JTLS 2014 -12231 Cancel Multiple Air Missions • WHIP Improvement – IMT Context Sensitive Orders • • • July 2015 Bring Up Air Mission IMT Panel Highlight Desired Air Missions Right Click – Select Cancel Air Missions Placed In Spreadsheet Panel Fields Can Be Edit Send Button Copyright 2015, ROLANDS & ASSOCIATES Corporation 25

JTLS-2006 -1764 IMT Panel Modify/Delete Refuel Chits • Same WHIP Improvement – Bring Up Refuel Chit IMT Panel • Numerous Spreadsheets Implemented – Easy To • Add • Delete – Indicate Any Changes July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 26

JTLS-2006 -1630 Multiple Mission Air Orders • Basic Concept – Air Mission Execution Plans Like Navy / HRU • Initial Order – Alert – Initial Mission Type With Required Data – Multiple Task Option • No Longer Strictly Tied To Mission Type – Can Change At Any Time – Can Be Scheduled To Change – All Future Orders Viewable On IMT July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 27

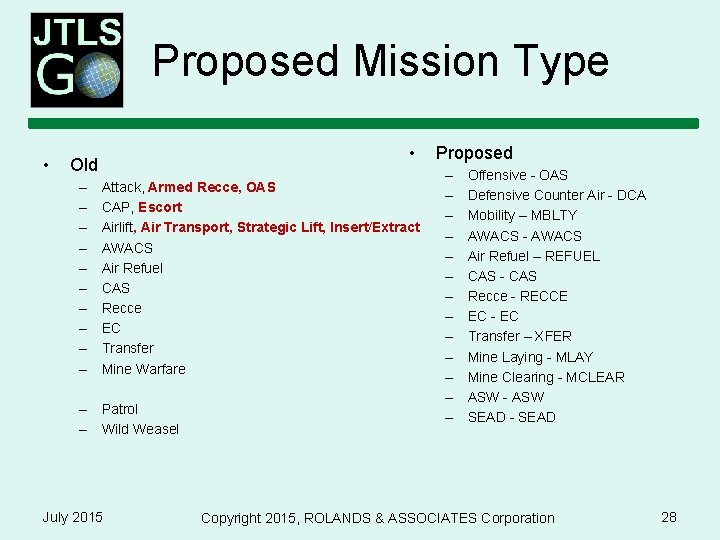

Proposed Mission Type • • Old – – – – – Attack, Armed Recce, OAS CAP, Escort Airlift, Air Transport, Strategic Lift, Insert/Extract AWACS Air Refuel CAS Recce EC Transfer Mine Warfare – Patrol – Wild Weasel July 2015 Proposed – – – – Offensive - OAS Defensive Counter Air - DCA Mobility – MBLTY AWACS - AWACS Air Refuel – REFUEL CAS - CAS Recce - RECCE EC - EC Transfer – XFER Mine Laying - MLAY Mine Clearing - MCLEAR ASW - ASW SEAD - SEAD Copyright 2015, ROLANDS & ASSOCIATES Corporation 28

Load Assignment Array • Old – TTG – Air-to-Air – Lift – AEW – Tanker – CAS – Recce – Jammer – General – Mine Laying – Mine Clearing – ASW – Cruise July 2015 • Proposed – TTG – Air-to-Air – Lift – AEW – Tanker – CAS – Recce – Jammer – General – Mine Laying – Mine Clearing – USW – SEAD Copyright 2015, ROLANDS & ASSOCIATES Corporation 29

Civilian Air Mission Order • Completely Different Order Panel – Has Not Changed • Either – Name Of Squadron – Launching ICAO – Squadron Created If Required – Becomes Transfer Mission – As With Any Mission • Mission Type Can Change July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 30

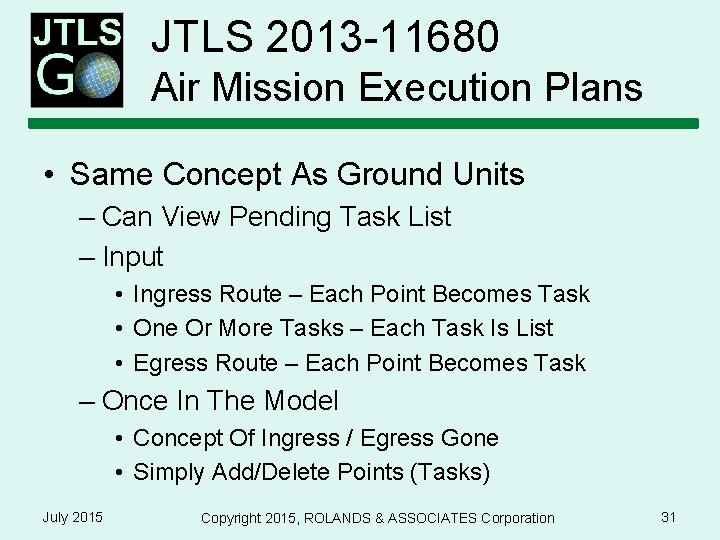

JTLS 2013 -11680 Air Mission Execution Plans • Same Concept As Ground Units – Can View Pending Task List – Input • Ingress Route – Each Point Becomes Task • One Or More Tasks – Each Task Is List • Egress Route – Each Point Becomes Task – Once In The Model • Concept Of Ingress / Egress Gone • Simply Add/Delete Points (Tasks) July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 31

JTLS-0321 Display Current Operations • ECP Addresses Air Missions • Pending Task Display July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 32

JTLS-2009 -10396 Full Mission Type Alert Capability • Currently Cannot Represent – Logistics Alert Missions – Alert Air Mission Packages • Every Air Mission Can Be Placed On Alert – Automatic Assignment – CAP And OAS/CAS – No Automatic Assignment – All Other Missions • When Player Wants It To Go – Specify Desired Task July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 33

JTLS-2009 -10396 Full Mission Type Alert Capability • Alert Packages – Air Mission Package - Timing Options • Time On Target – Same As Existing Capability • Alert • Airborne Alert – When Forming Package Mission - Three Choices • Define New Mission • Use Alert Mission • Use Current Flying Mission – Each Mission In Package Has Its Own Choice July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 34

JTLS-2009 -10335 Alert Missions Off Game Board • Since There Is No Game Board – Automatically Implemented July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 35

JTLS-2010 -10543 Robust Use Of Alert Missions • Problem – Allow Orbiting Missions Go Back On Alert • Solved By Execution Plans – Add an Alert Task • As Part Of Initial Order • As Part Of Modify Mission Task Order – Can Be Done As Often As Needed July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 36

JTLS-0202 Reserve Air Assets • Previous ECP Addresses All Issues July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 37

JTLS-0197 Enhance CAS Current Operations • Problem – Stop CAS Mission – Have It Go Back To • Orbiting OAS • Alert • Different CAS Support • Previous ECP Addresses All Issues – All A Part Of Modify Mission Tasks July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 38

JTLS 2013 -11750 Change Attack To OAS • Previous ECP Addresses All Issues – All A Part Of Modify Mission Tasks July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 39

JTLS-2008 -10101 Multiple Orbit Points • Previous ECP Addresses All Issues – As Part Of Initial Air Order • ATOT – Part Of Modify Mission Tasks July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 40

JTLS-2006 -1619 Improve Airlift/Airdrop Order • Problem – Allow Mission To Do Multiple Tasks • • Airlift Supplies Airlift Portion Of Units Airlift HRUs Change At Any Time • Combined – Airlift, Air Transport, Insert / Extract – Mobility Mission July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 41

JTLS 2013 -11723 More Control Over Airlift Missions • Previous ECP Addresses All Issues July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 42

JTLS-0076 Airlift Supply Alternative Landing Location • Previous ECP Addresses All Issues – Part Of Modify Mission Tasks • ECP Only Says Airlift Supply – Supply Pickup / Delivery Locations Can Be Changed – Insert / Extract HRU Locations Can Be Changed – Airlift Unit » Before First Load Picked Up » Pickup Location Can Be Changed » Before First Load Dropped Off » Dropoff Location Can Be Changed July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 43

JTLS-2010 -10481 Air Transport Plans On IMT • Previous ECP Addresses All Issues – Pending Task IMT Panel – Cannot See • Exactly Supplies To Be Picked Up Or Dropped Off – Air Movement Report Contains This Information • Exactly Supplies Current Held By Mission Available July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 44

JTLS-2009 -10392 View Transport Instructions • Previous ECP Addresses All Issues July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 45

JTLS-2009 -10278 Robust Transit Landing Points • Landing Point As Part Of Plan – Land Task - Location or Unit Name – Refuel Task • Optional – Specified As Part Of Order – Rearm Task • Optional – Specified As Part Of Order – Takeoff Task • Relative Time – 2 Hours • Absolute Time – 292135 MAR 15 July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 46

JTLS-2009 -10275 Air Mission Relative Wait Points • Previous ECP Addresses All Issues – Applies To • Wait – Ground Based Delay • Hold – Airborne Based Delay – Modify Mission Task • Can Change Time – Longer Or Shorter • Can Delete Task • Consistently Apply To All Object Tasks July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 47

JTLS-2008 -10091 Change Or Remove Route Wait Times • Previous ECP Addresses All Issues – Use Modify Mission Task Order • Change Wait Time • Delete Wait Task – Applies To • Wait – Ground Based Delay • Hold – Airborne Based Delay July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 48

JTLS-2006 -1711 Change Holding Aircraft Departure Time • Previous ECP Addresses All Issues July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 49

JTLS-0435 Optionally Refuel At Mission Stop • Problem – Operational Plan - Bring Fuel Into Theater – Air Transport Missions • Would Bring In Fuel • Refuel – Taking Fuel Back Out Of Theater • Previous ECP Addresses All Issues July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 50

JTLS-2010 -10465 Mission Base Fuel Cancellation Option • Previous ECP Addresses All Issues – Use Modify Mission Task Order • Delete Refuel Task – If Canceled While Executing • No Fuel Transferred July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 51

JTLS-0502 Changing Heading, Speed, Altitude • Execution Plan Available On IMT – Speed And Altitude For Any Leg • IMT Context Sensitive Orders Addresses The Issue – Change Heading – Will NOT Be Implemented • Travel Bearing 0330 – 10 Mile – 15 Minutes July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 52

JTLS-2009 -10108 Alter Air Mission TOT • Background – Each Air Mission Order Has Ability To Enter • Single Task – This Is “Primary” Task • Multiple Tasks – First Task In List Is “Primary Task” – Time On Task / Time On Target (TOT) • Time For “Primary Task” • Several Options July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 53

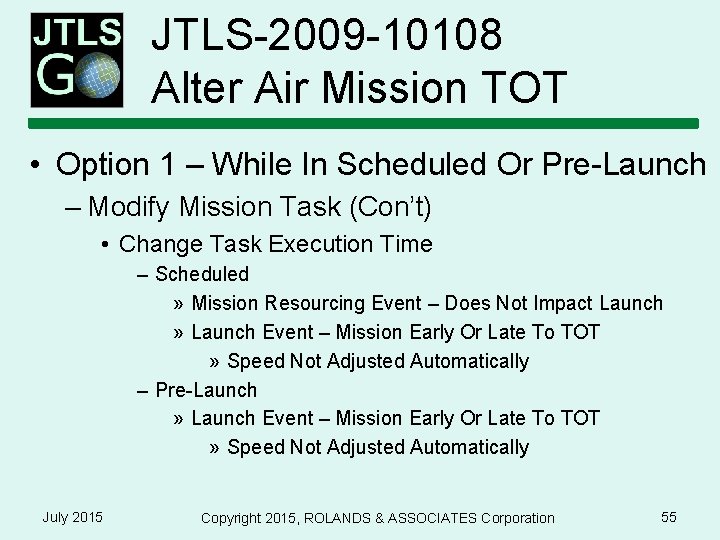

JTLS-2009 -10108 Alter Air Mission TOT • Option 1 – While In Scheduled Or Pre-Launch – Modify Mission Task • New TOT – Scheduled » Recompute Mission Resourcing Event and Launch Event – Pre-Launch » Recompute Mission Launch Event July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 54

JTLS-2009 -10108 Alter Air Mission TOT • Option 1 – While In Scheduled Or Pre-Launch – Modify Mission Task (Con’t) • Change Task Execution Time – Scheduled » Mission Resourcing Event – Does Not Impact Launch » Launch Event – Mission Early Or Late To TOT » Speed Not Adjusted Automatically – Pre-Launch » Launch Event – Mission Early Or Late To TOT » Speed Not Adjusted Automatically July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 55

JTLS-2009 -10108 Alter Air Mission TOT • Option 2 - After Mission Has Started – Add Mission Task • Add Hold Point • Add Landing Point – Change Speed Of Mission July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 56

JTLS-0561 Delay Pre-Launch Mission • Previous ECP Addresses All Issues – What We Do Not Currently Have • Delay Relative – 3 Hours – Only Allow • Absolute Delay – 292015 MAR 15 July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 57

JTLS-2008 -10094 Cancel Route Instead Of Replace Route • Concept Of Routes Removed From Model – Exist In The Order – Once It Reaches The Model • Simply Becomes Series Of Tasks • Currently Delete Point-by-Point • Use Spreadsheet Capability – Highlight Points – Right Click – Delete Task Spreadsheet July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 58

JTLS-2006 -1766 Cancel Egress Route Option • Previous ECP Addresses All Issues July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 59

JTLS-0203 Packages Without Air-Ground Missions • Not Implementing As Packages – Air Mission Package Will Not Change • Timing – Rendezvous Point – Time On Target Period (NET / NLT) • Missions – Attack – Escort, SEAD, Post-Strike Recce July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 60

JTLS-0203 Packages Without Air-Ground Missions • Implementing Shadow Task – Give Mission Shadow Task – New Order • Primary Task – Allowed: » OAS, DCA, AWACS, REFUEL, RECCE, EC, SEAD – Not Allowed » Mobility, CAS, Transfer, Mine Laying, Mine Clearing, ASW • Mission To Shadow • Task Start Time - Mandatory July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 61

JTLS-0203 Packages Without Air-Ground Missions • Implementing Shadow Task – Give Mission Shadow Task – New Order (Con’t) • Rendezvous Point – Optional – If Not Specified – Intercept Path • Land Flag – Yes – Lands When Shadow Mission Lands – No – Holds Above Landing Location July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 62

JTLS-0203 Packages Without Air-Ground Missions • Implementing Shadow Task (Con’t) – Give Mission Shadow Task – New Order (Con’t) • Task Completed – Absolute Time – Relative Time – Shadowed Mission » Killed » Completes – Task Canceled By Player Order July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 63

JTLS-0120 Change Emergency Refuel Location • Vietnam Era Mission Profile – Concept • • • Take Off From Carrier Head To Inbound Tanker Hit Target Head To Outbound Tanker Head Home To Carrier – If You Miss Inbound Tanker • Abort To Emergency Refuel Location July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 64

JTLS-0120 Change Emergency Refuel Location • Problem – Cannot Change – Emergency Refuel Location • Solution – Remove The Concept Of Emergency Refuel July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 65

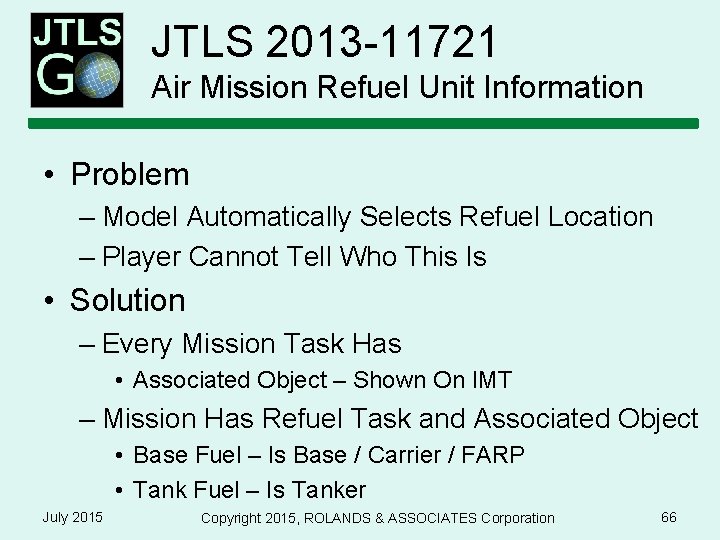

JTLS 2013 -11721 Air Mission Refuel Unit Information • Problem – Model Automatically Selects Refuel Location – Player Cannot Tell Who This Is • Solution – Every Mission Task Has • Associated Object – Shown On IMT – Mission Has Refuel Task and Associated Object • Base Fuel – Is Base / Carrier / FARP • Tank Fuel – Is Tanker July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 66

JTLS 2013 -11721 Air Mission Refuel Unit Information • Side Note – Using Modify Mission Task Order • Associated Object Can Be Change • This Means User Can – Change Selected Refuel Base Or Tanker July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 67

JTLS-0170 IMT Destination 2 Location Improvement • Problem – A Mission Showed Destination 2 On IMT – Confusing Because Meaning Different • Mission Type • Different Mission Postures • Solution – Removed Entire Concept Of Destination 2 – Mission Pending Task List Shows All Information July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 68

JTLS-0170 IMT Destination 2 Location Improvement • Example - Orbiting Mission – Old Method • Destination 1 – Start Orbit • Destination 2 – End Orbit – New Method • • • July 2015 Task Launch Task Orbit – Start Lat/Long Task Orbit – Transit Point 1 Lat/Long Task Orbit – Transit Point 2 Lat/Long Task Orbit – End Lat/Long Copyright 2015, ROLANDS & ASSOCIATES Corporation 69

JTLS-2009 -10284 TTL Change To Flying Mission • Problem – Air Mission Has Target Type List – What To Hit – On Initial Order – Cannot Be Changed • Solution – Two Current Operations Order For Air Missions • Change Mission Parameter – Mission TTL Added To This Order • Modify Mission Task July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 70

JTLS 2012 -11366 Amphib Operation Specify Formation Location • No Hex Edges – Shore Lines Are Polylines Line As Described – Player Must Input • • Formation Location Assault / Pickup Location Barrier That Will Be Crossed (Optional) Assets To Be Used – Port, LOTS, Small Boats, Helicopters • All Model Decisions Will Be Removed July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 71

Amphibious Example Shore LCAC Shore Formation Assault Point Landing Point July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 72

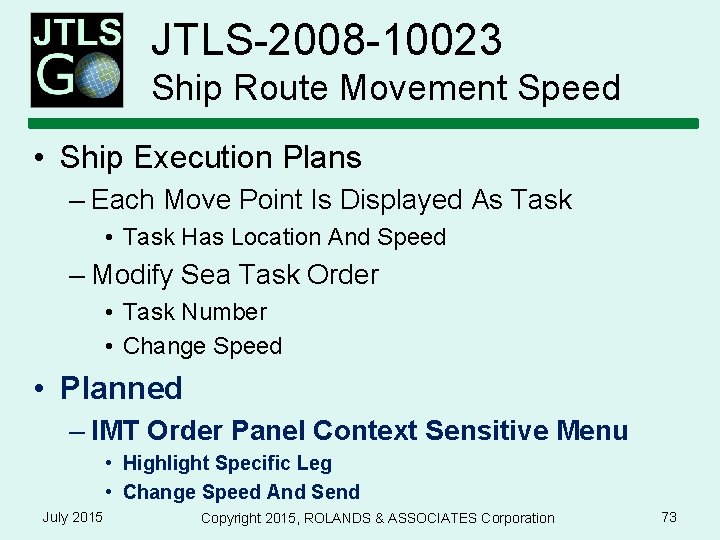

JTLS-2008 -10023 Ship Route Movement Speed • Ship Execution Plans – Each Move Point Is Displayed As Task • Task Has Location And Speed – Modify Sea Task Order • Task Number • Change Speed • Planned – IMT Order Panel Context Sensitive Menu • Highlight Specific Leg • Change Speed And Send July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 73

JTLS-2006 -1763 Display Formations On WHIP Map • New Symbol – Represents Formation Center – Formation Center Is Displayed – Ability To • Highlight All Ships – In The Formation Whether Ob Station Or Not • Filter – Not Detectable • Side Knows Formation If One Ship In Formation July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 74

JTLS-2006 -1762 Formation Context Sensitive Menus • Right Click On – Formation Center Symbol – Formation Name On IMT • Order List Appears – Select Desired Order July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 75

JTLS 2011 -10935 Create Convoy At Future Time • Convoys Will Work Like Air Missions – Support Unit – Number Assets – Leave Time – Route – Supplies • Model Will Still Generate Automatically July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 76

JTLS 2011 -10935 Create Convoy At Future Time • Convoys – Have Pending Task List Like All Objects • Task Resource – Currently Happens At » Leave Time Prior – Load Time – No Concept Of Early Resource Time Like Air Missions July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 77

JTLS 2013 -11755 Give Convoys Specific Routes • Convoy Order – Combined • Directed Resupply Order • Mandatory Resupply Order – Directed Resupply Order • Single Task • Multiple Tasks • Mandatory Becomes A Field For Entire Order July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 78

JTLS-0467 Multiple Destination Convoy ELF Usage • Centralize Code For Loading / Offloading – MHE – Specific Assets Available – ELF – Unit Loading Or Offloading – Convoy By Itself • One ELF Assumed July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 79

JTLS-0185 Distinguish Between Destroyed and Returned Convoys • Currently All Convoys Show As Destroyed – Destroyed Says Removed From Game – Model Distinguishes Between • Destroyed, Completed, Canceled – When Convoy Is No Longer • Removed From Game • Stays On IMT Until It Is Refreshed • Last Posture Will Show Reason Convoy Is No Longer July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 80

JTLS 2014 -12225 Remove Impossible Unit Posture Data • Unit Posture Data – UP. LANCHESTER. DATA. SET – CCP. CS. UP. DENSITY. MODIFIER – CCP. SC. UP. TT. DENSITY • Inactive Unit Posture – ATTACHED – OUT_OF_GAME – WIPED_OUT July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 81

JTLS 2014 -12225 Remove Impossible Unit Posture Data • Problem – Unit Posture Data • UP. LANCHESTER. DATA. SET • CCP. CS. UP. DENSITY. MODIFIER • CCP. SC. UP. TT. DENSITY – Inactive Unit Posture • ATTACHED, OUT_OF_GAME, WIPED_OUT • Solution – Remove Data From Database July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 82

JTLS 2013 -11470 Contaminate / Decontaminate Multiple Hexes • Problem – Contamination For Only One Hex – Inappropriate For Hexes – Even More Inappropriate - Grids Different Sizes • Solution – Circular Pattern – TW RADIUS OF EFFECTS July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 83

JTLS 2013 -11470 Contaminate / Decontaminate Multiple Hexes July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 84

JTLS 2013 -11470 Contaminate / Decontaminate Multiple Hexes • Each Covered Grid – Tagged – When Unit Enters Grid • Check For Tag • Then Check Distance July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 85

JTLS-2010 -10470 JOI, TOI As Services • JOI Component In Controller WHIP – Access • To Command Hierarchy • To Map • Limit WHIP Access • TOI Postponed As Web-Controlled Service – Due To NATO Testing July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 86

JTLS-2007 -2012 WHIP ATO-Generator • One Of The New Services – JTLS Used For Test Bed – No Matter What Happens To Service • The ATOG As Delivered Will Remain In JTLS • Separate Briefing July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 87

JLVC-2020 WHIP ATO-Translator Service • Translator Becomes Service – Same Concept As Generator – Requirement To Work With • Theater Battle Management Core System (TBMCS) – US • Integrated Command Control System (ICC) – NATO • Northern European Command – Command Control Information System (NEC-CCIS) – Norway July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 88

JLVC-2020 WHIP ATO-Translator Service TBMCS ICC NEC-CCIS ATO/ ACO ATO-Parser XML Mission File Apache Spreadsheet Component WHIP July 2015 ATO-T Synapse ATOT Component Parsed XML File XML Linking File Web Access Copyright 2015, ROLANDS & ASSOCIATES Corporation 89

JTLS-0405 JTLS Air Symbology • Request – JTLS symbology must be upgraded to comply with Military Standard 2525 B and match other simulation models, as well as current C 2 systems. – JTLS is non-standard in virtually all air symbols, which are not meaningful to a training audience that uses the Common Operational Picture. July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 90

JTLS-0405 JTLS Air Symbology • Developing New 2525 Symbol Set – Each Symbol Will Have Three Looks • Friendly, Neutral, Enemy • Sequentially Numbered – Database Hold Friendly Number • Symbol Is Perceived Attribute – If Friendly - Database Value + 0 – If Neutral – Database Value + 1 – If Enemy – Database Value + 2 • Non 2525 Support Capability – Color-Coding and Percent Capable Thermometer July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 91

JTLS-2006 -1648 Model Naval Improved Port Capacity • Naval Unit Has A Home Port – Marks Unit As A Naval Port • New Naval Task – Enter Port Vice Move To Area Of Port – When In Port • Automatically Attempt Entry Into Shelter • Follow Within Unit Radius Of Port – When In Unit Radius Of Port • Follow SSM, Aircraft, AD Firing Restrictions July 2015 Copyright 2015, ROLANDS & ASSOCIATES Corporation 92
