JTLS 5 1 Current Status Ellen Roland ROLANDS

JTLS 5. 1 Current Status Ellen Roland ROLANDS & ASSOCIATES Corporation

JTLS 5. 1 ECPs

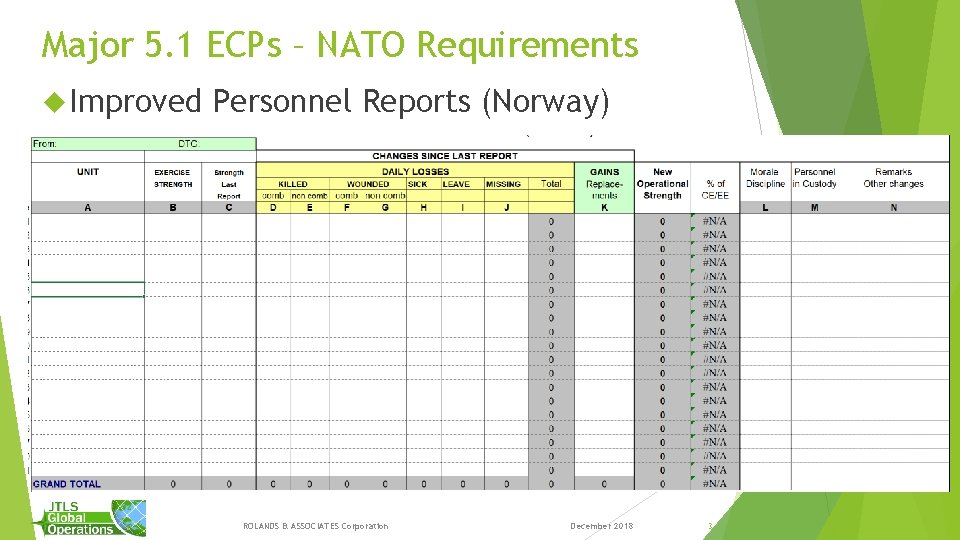

Major 5. 1 ECPs – NATO Requirements Improved Personnel Reports (Norway) ROLANDS & ASSOCIATES Corporation December 2018 3

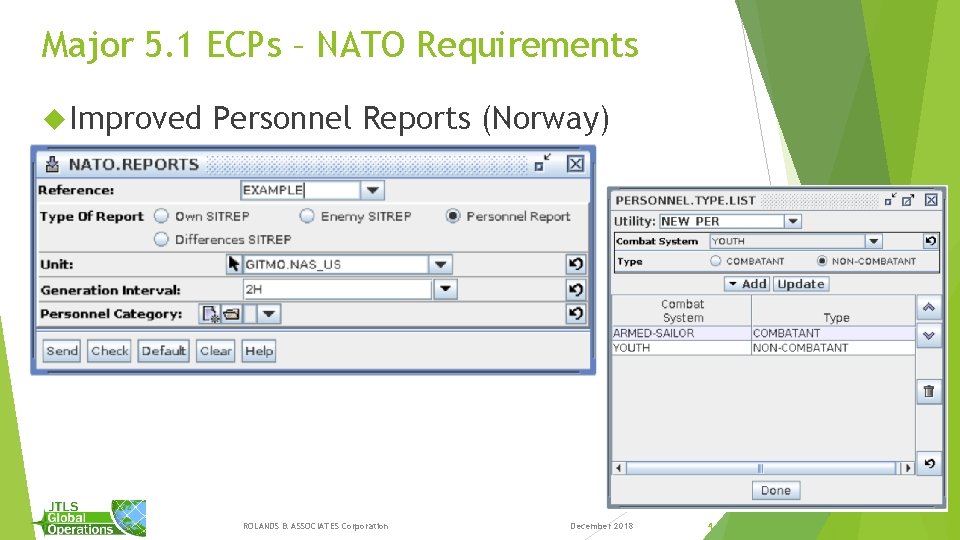

Major 5. 1 ECPs – NATO Requirements Improved Personnel Reports (Norway) ROLANDS & ASSOCIATES Corporation December 2018 4

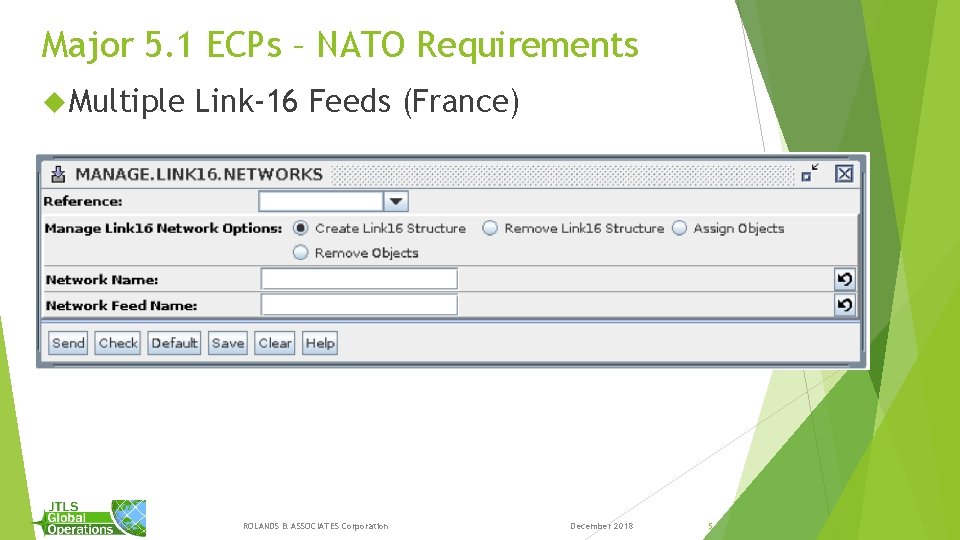

Major 5. 1 ECPs – NATO Requirements Multiple Link-16 Feeds (France) ROLANDS & ASSOCIATES Corporation December 2018 5

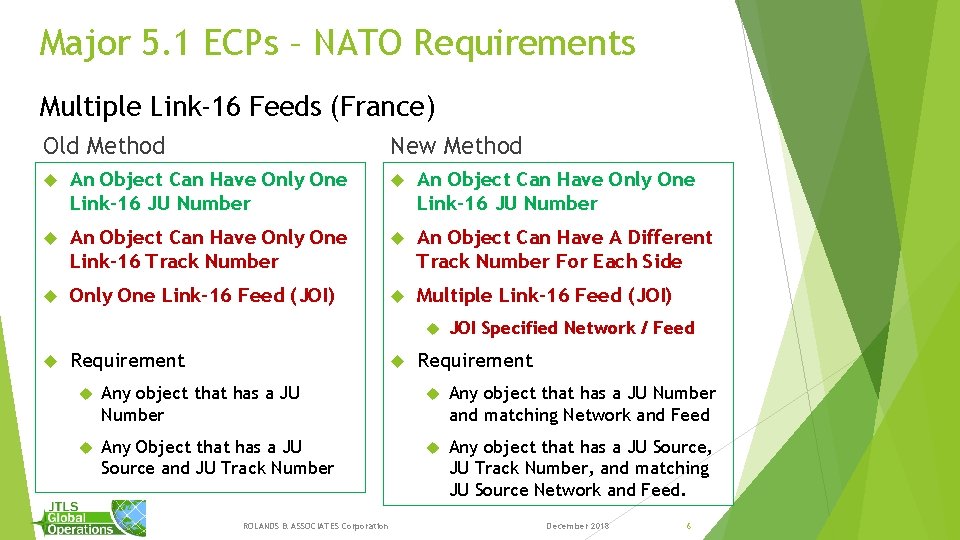

Major 5. 1 ECPs – NATO Requirements Multiple Link-16 Feeds (France) Old Method New Method An Object Can Have Only One Link-16 JU Number An Object Can Have Only One Link-16 Track Number An Object Can Have A Different Track Number For Each Side Only One Link-16 Feed (JOI) Multiple Link-16 Feed (JOI) Requirement JOI Specified Network / Feed Requirement Any object that has a JU Number and matching Network and Feed Any Object that has a JU Source and JU Track Number Any object that has a JU Source, JU Track Number, and matching JU Source Network and Feed. ROLANDS & ASSOCIATES Corporation December 2018 6

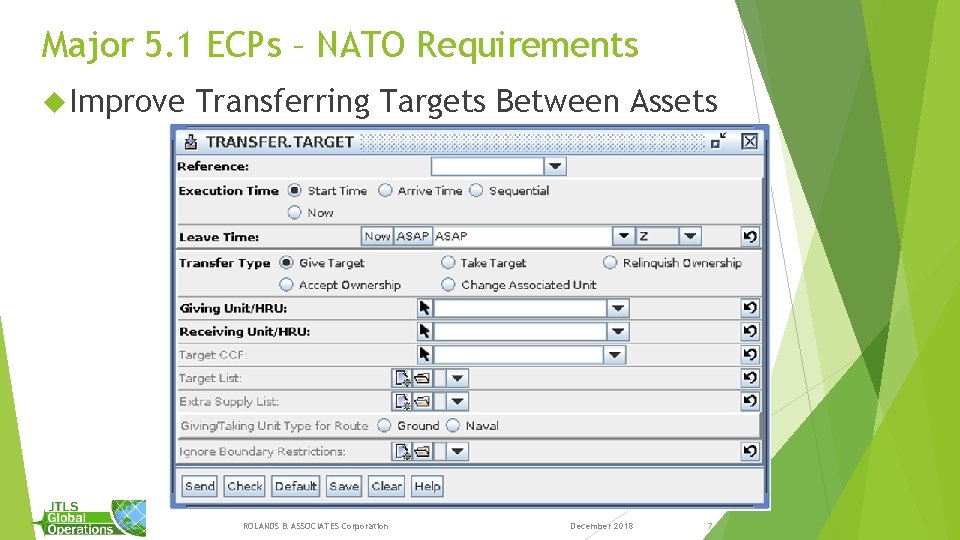

Major 5. 1 ECPs – NATO Requirements Improve Transferring Targets Between Assets ROLANDS & ASSOCIATES Corporation December 2018 7

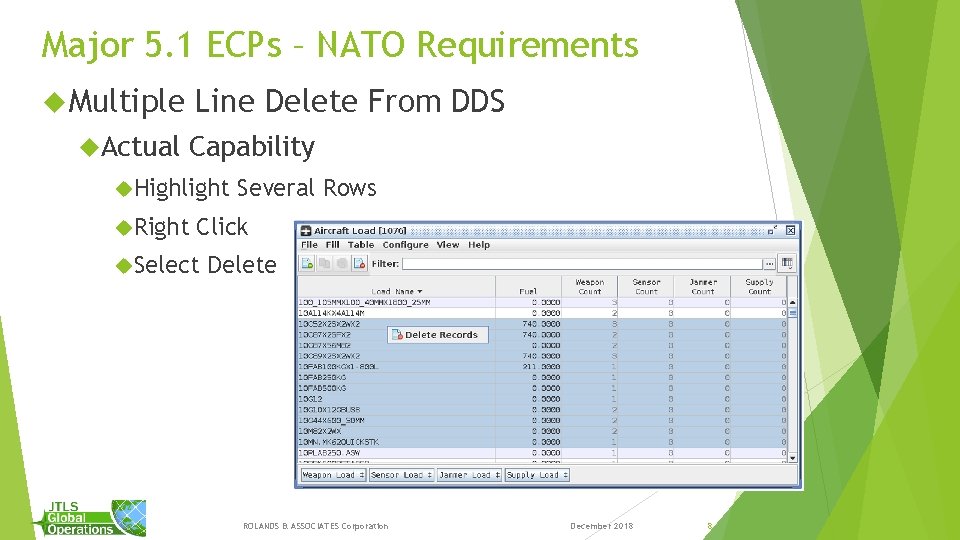

Major 5. 1 ECPs – NATO Requirements Multiple Actual Line Delete From DDS Capability Highlight Right Several Rows Click Select Delete ROLANDS & ASSOCIATES Corporation December 2018 8

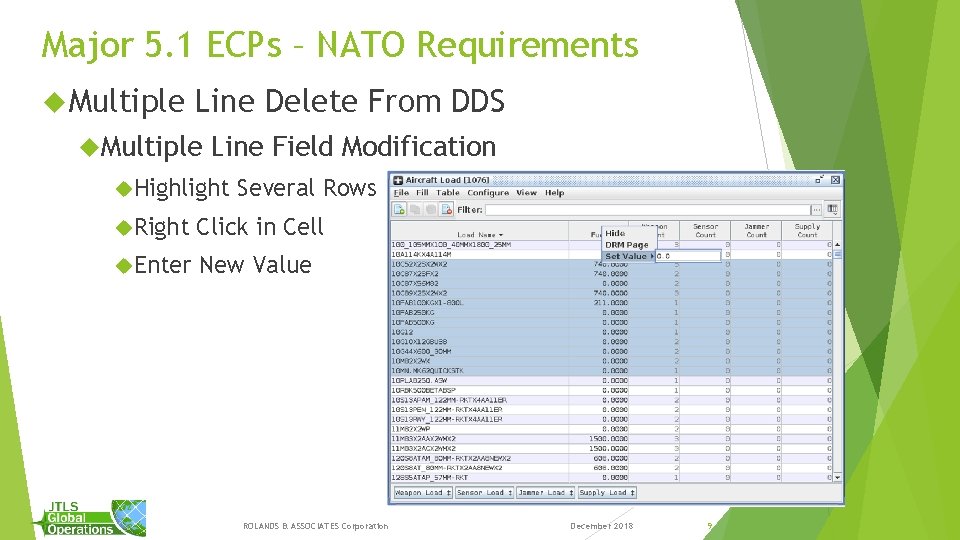

Major 5. 1 ECPs – NATO Requirements Multiple Line Delete From DDS Multiple Line Field Modification Highlight Several Rows Right Click in Cell Enter New Value ROLANDS & ASSOCIATES Corporation December 2018 9

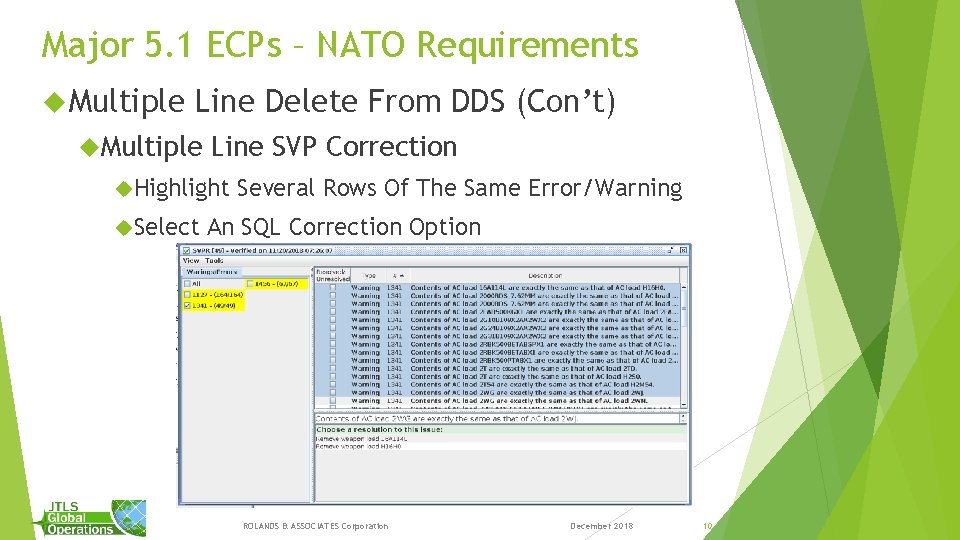

Major 5. 1 ECPs – NATO Requirements Multiple Line Delete From DDS (Con’t) Multiple Line SVP Correction Highlight Select Several Rows Of The Same Error/Warning An SQL Correction Option ROLANDS & ASSOCIATES Corporation December 2018 10

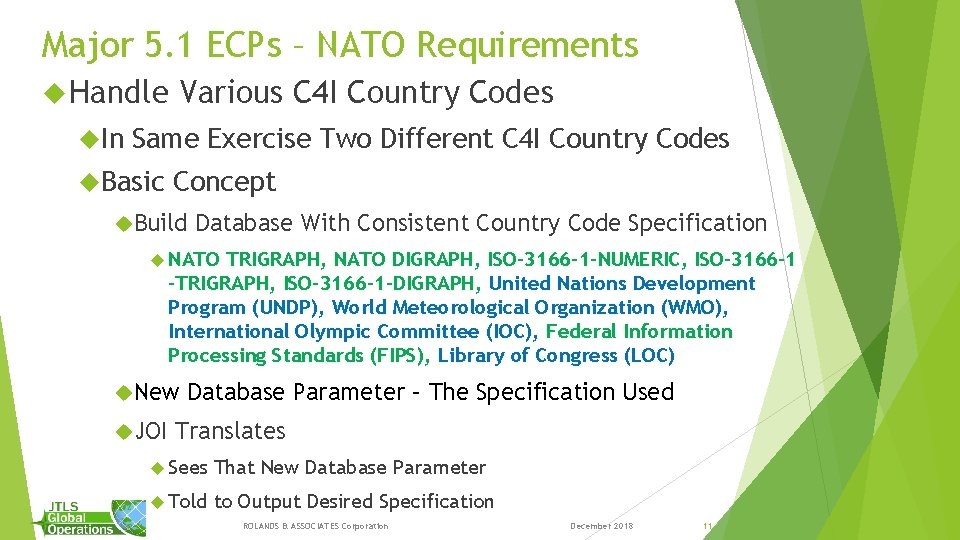

Major 5. 1 ECPs – NATO Requirements Handle In Various C 4 I Country Codes Same Exercise Two Different C 4 I Country Codes Basic Concept Build Database With Consistent Country Code Specification NATO TRIGRAPH, NATO DIGRAPH, ISO-3166 -1 -NUMERIC, ISO-3166 -1 -TRIGRAPH, ISO-3166 -1 -DIGRAPH, United Nations Development Program (UNDP), World Meteorological Organization (WMO), International Olympic Committee (IOC), Federal Information Processing Standards (FIPS), Library of Congress (LOC) New JOI Database Parameter – The Specification Used Translates Sees That New Database Parameter Told to Output Desired Specification ROLANDS & ASSOCIATES Corporation December 2018 11

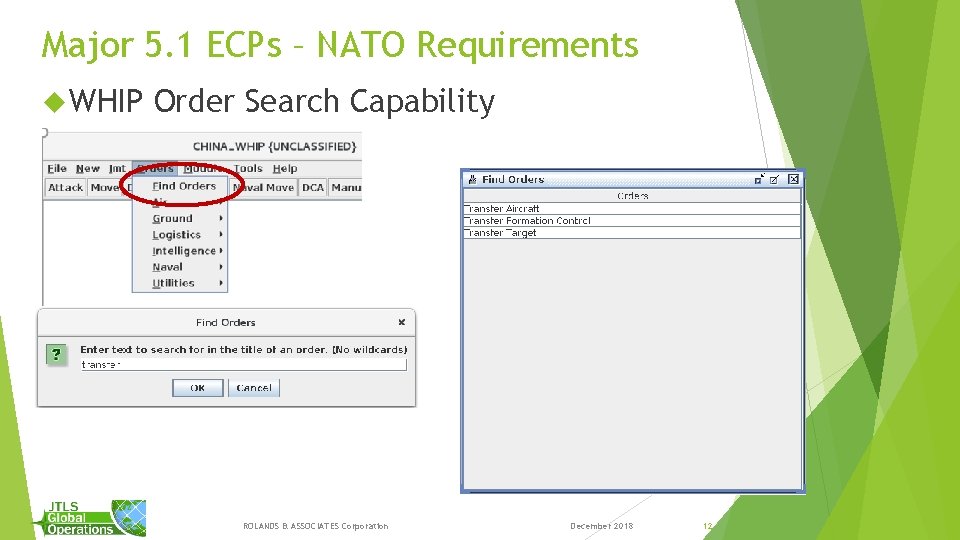

Major 5. 1 ECPs – NATO Requirements WHIP Order Search Capability ROLANDS & ASSOCIATES Corporation December 2018 12

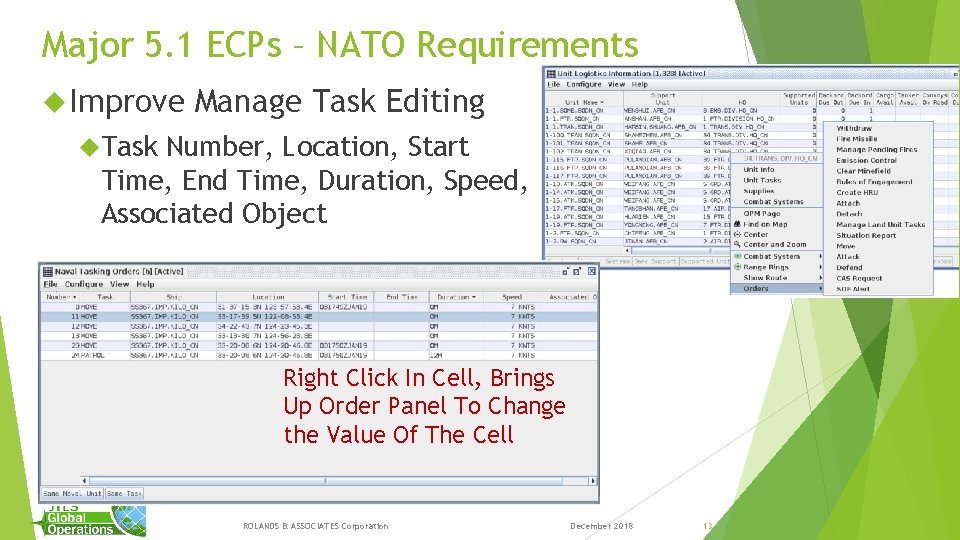

Major 5. 1 ECPs – NATO Requirements Improve Manage Task Editing Task Number, Location, Start Time, End Time, Duration, Speed, Associated Object Right Click In Cell, Brings Up Order Panel To Change the Value Of The Cell ROLANDS & ASSOCIATES Corporation December 2018 13

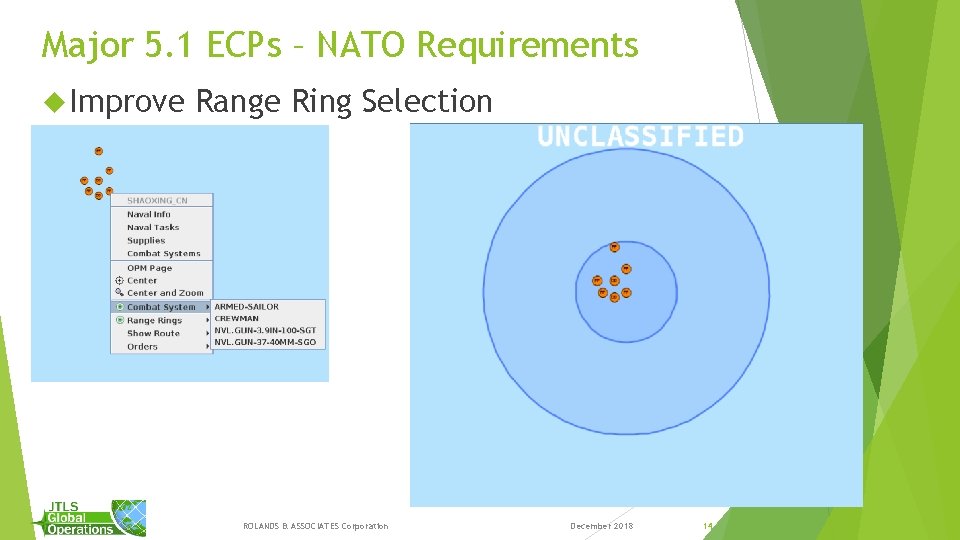

Major 5. 1 ECPs – NATO Requirements Improve Range Ring Selection ROLANDS & ASSOCIATES Corporation December 2018 14

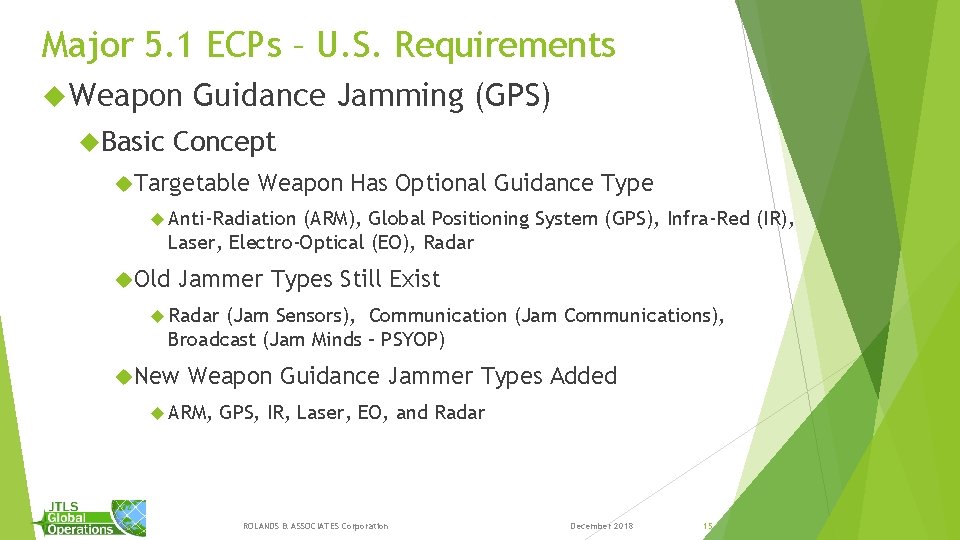

Major 5. 1 ECPs – U. S. Requirements Weapon Basic Guidance Jamming (GPS) Concept Targetable Weapon Has Optional Guidance Type Anti-Radiation (ARM), Global Positioning System (GPS), Infra-Red (IR), Laser, Electro-Optical (EO), Radar Old Jammer Types Still Exist Radar (Jam Sensors), Communication (Jam Communications), Broadcast (Jam Minds – PSYOP) New Weapon Guidance Jammer Types Added ARM, GPS, IR, Laser, EO, and Radar ROLANDS & ASSOCIATES Corporation December 2018 15

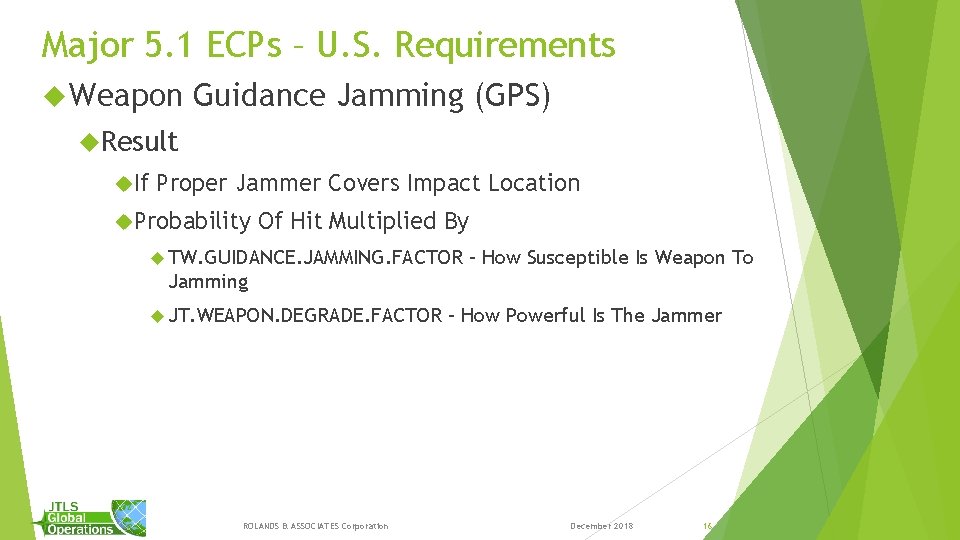

Major 5. 1 ECPs – U. S. Requirements Weapon Guidance Jamming (GPS) Result If Proper Jammer Covers Impact Location Probability Of Hit Multiplied By TW. GUIDANCE. JAMMING. FACTOR – How Susceptible Is Weapon To Jamming JT. WEAPON. DEGRADE. FACTOR ROLANDS & ASSOCIATES Corporation – How Powerful Is The Jammer December 2018 16

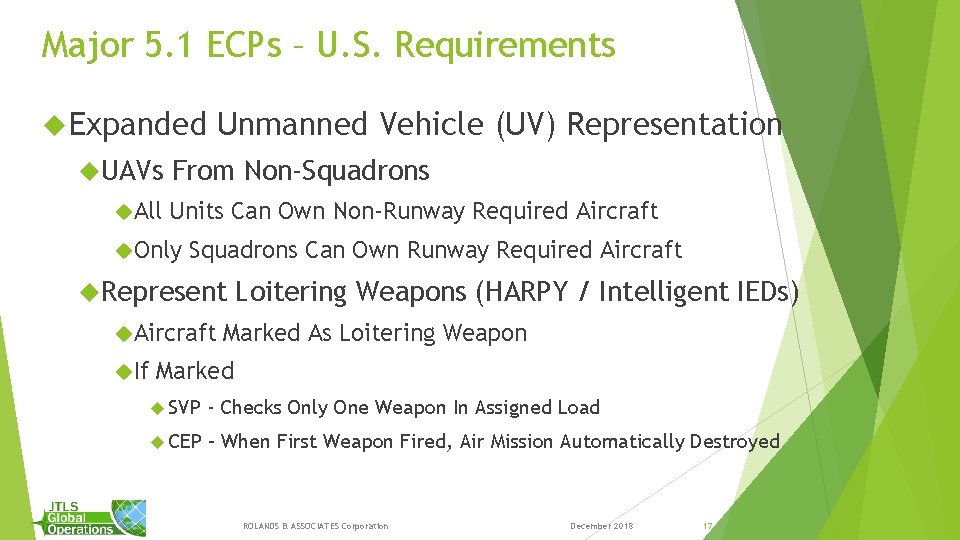

Major 5. 1 ECPs – U. S. Requirements Expanded UAVs All Unmanned Vehicle (UV) Representation From Non-Squadrons Units Can Own Non-Runway Required Aircraft Only Squadrons Can Own Runway Required Aircraft Represent Aircraft If Loitering Weapons (HARPY / Intelligent IEDs) Marked As Loitering Weapon Marked SVP - Checks Only One Weapon In Assigned Load CEP – When First Weapon Fired, Air Mission Automatically Destroyed ROLANDS & ASSOCIATES Corporation December 2018 17

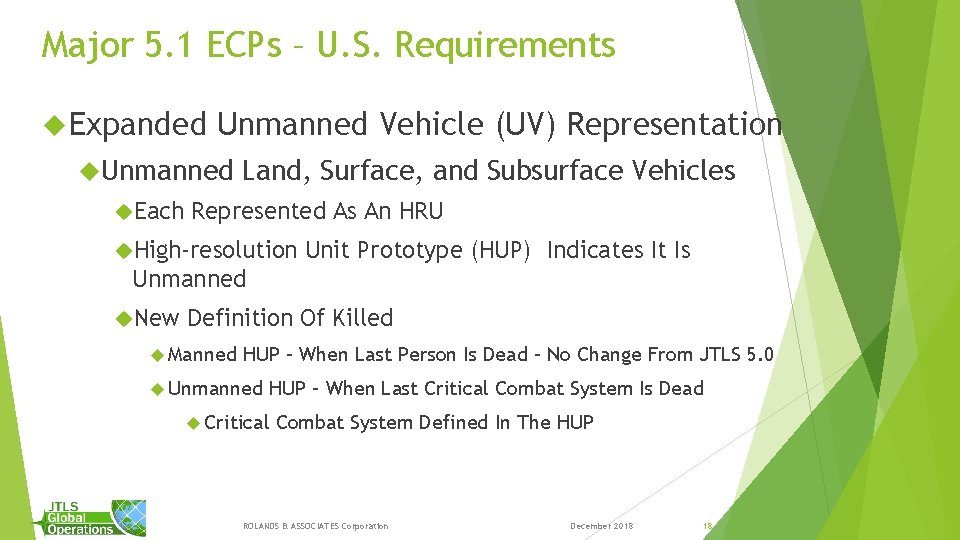

Major 5. 1 ECPs – U. S. Requirements Expanded Unmanned Vehicle (UV) Representation Unmanned Each Land, Surface, and Subsurface Vehicles Represented As An HRU High-resolution Unit Prototype (HUP) Indicates It Is Unmanned New Definition Of Killed Manned HUP – When Last Person Is Dead – No Change From JTLS 5. 0 Unmanned HUP – When Last Critical Combat System Is Dead Critical Combat System Defined In The HUP ROLANDS & ASSOCIATES Corporation December 2018 18

Major 5. 1 ECPs – U. S. Requirements Expanded Unmanned Vehicle (UV) Representation Represent UV Control Limits (Distance) Unmanned Less Air Mission - AC MAX CONTROL DISTANCE Than Zero – Stay Above Radar Horizon Increase Zero Altitude As Needed – Means No Limit Greater Than Zero – Must Stay Within This Distance Of Home Stop If Move Takes You Further Away Continue If Move Takes You Closer ROLANDS & ASSOCIATES Corporation December 2018 19

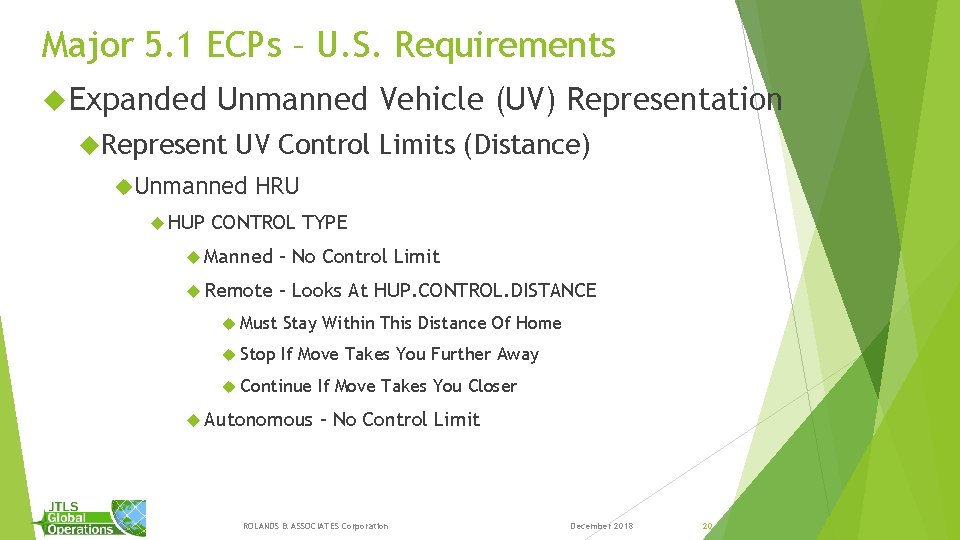

Major 5. 1 ECPs – U. S. Requirements Expanded Unmanned Vehicle (UV) Representation Represent UV Control Limits (Distance) Unmanned HUP HRU CONTROL TYPE Manned – No Control Limit Remote – Looks At HUP. CONTROL. DISTANCE Must Stay Within This Distance Of Home Stop If Move Takes You Further Away Continue Autonomous If Move Takes You Closer – No Control Limit ROLANDS & ASSOCIATES Corporation December 2018 20

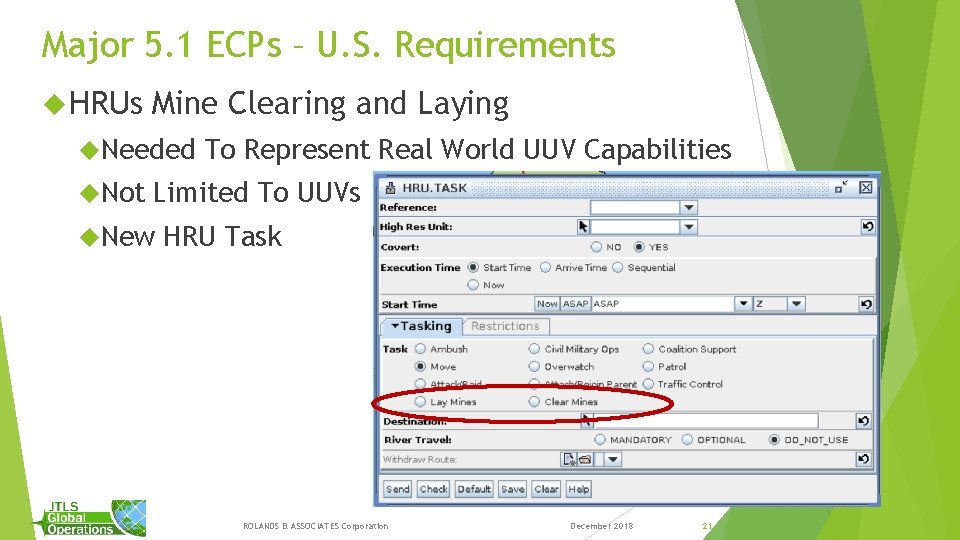

Major 5. 1 ECPs – U. S. Requirements HRUs Mine Clearing and Laying Needed Not To Represent Real World UUV Capabilities Limited To UUVs New HRU Task ROLANDS & ASSOCIATES Corporation December 2018 21

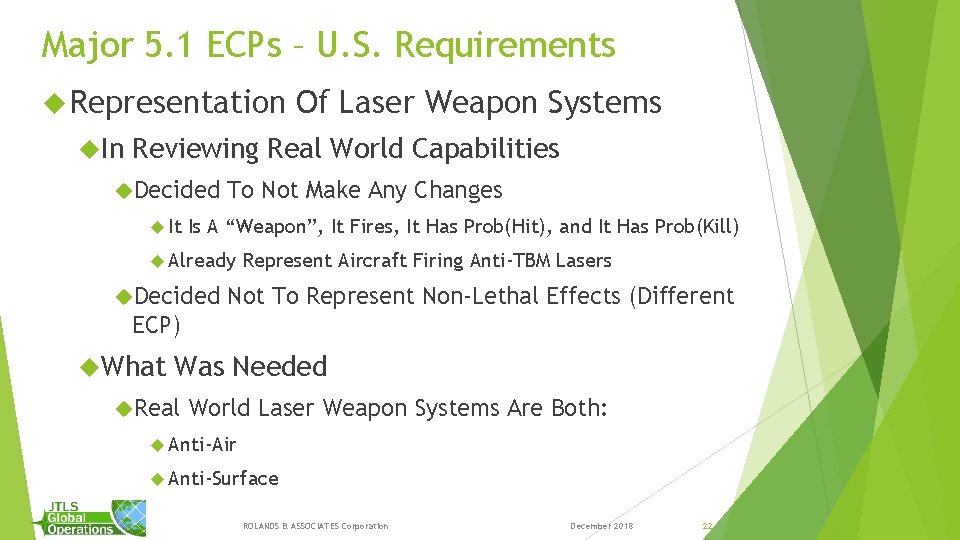

Major 5. 1 ECPs – U. S. Requirements Representation In Of Laser Weapon Systems Reviewing Real World Capabilities Decided It To Not Make Any Changes Is A “Weapon”, It Fires, It Has Prob(Hit), and It Has Prob(Kill) Already Decided Represent Aircraft Firing Anti-TBM Lasers Not To Represent Non-Lethal Effects (Different ECP) What Was Needed Real World Laser Weapon Systems Are Both: Anti-Air Anti-Surface ROLANDS & ASSOCIATES Corporation December 2018 22

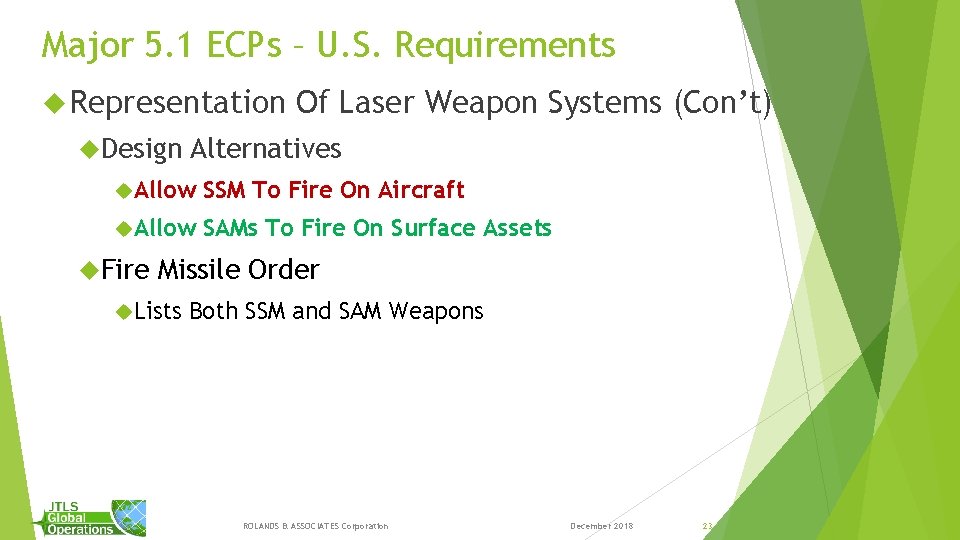

Major 5. 1 ECPs – U. S. Requirements Representation Design Of Laser Weapon Systems (Con’t) Alternatives Allow SSM To Fire On Aircraft Allow SAMs To Fire On Surface Assets Fire Missile Order Lists Both SSM and SAM Weapons ROLANDS & ASSOCIATES Corporation December 2018 23

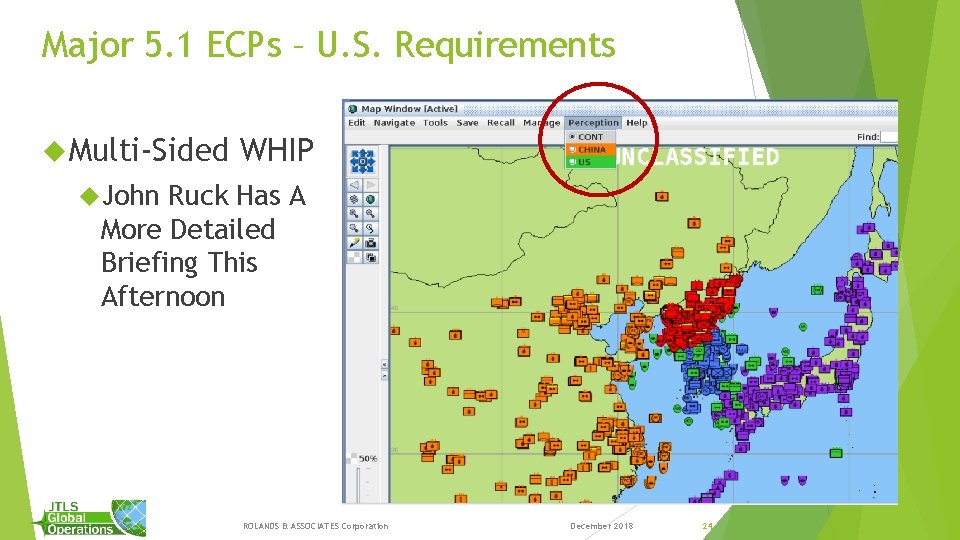

Major 5. 1 ECPs – U. S. Requirements Multi-Sided WHIP John Ruck Has A More Detailed Briefing This Afternoon ROLANDS & ASSOCIATES Corporation December 2018 24

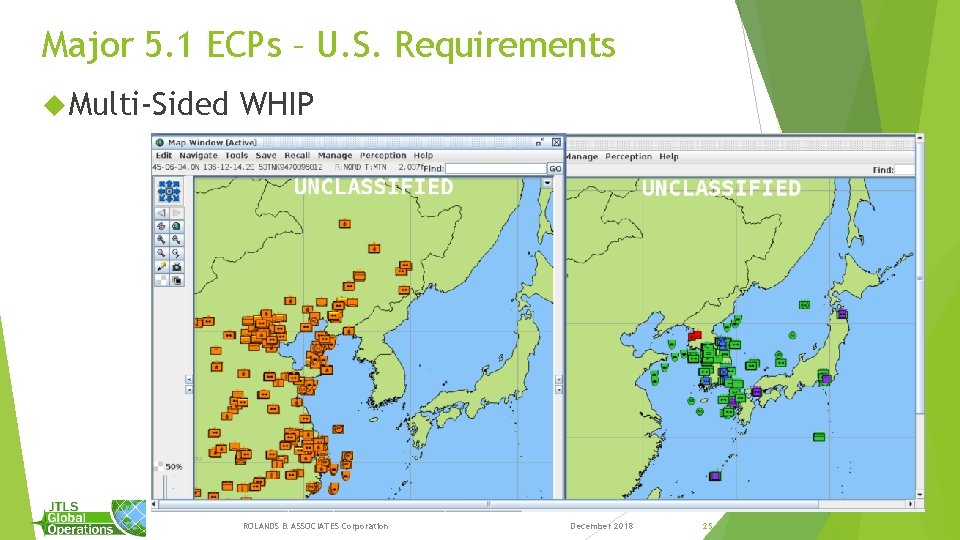

Major 5. 1 ECPs – U. S. Requirements Multi-Sided WHIP ROLANDS & ASSOCIATES Corporation December 2018 25

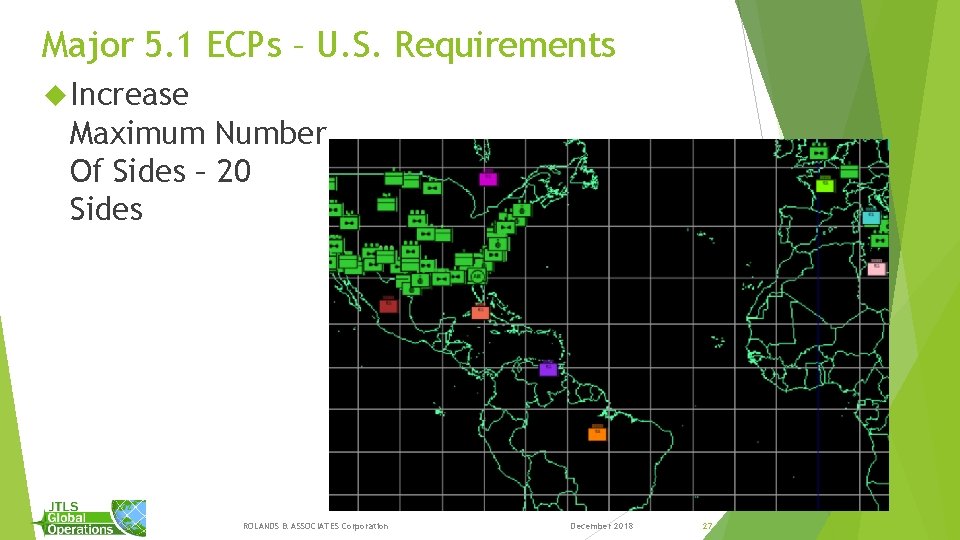

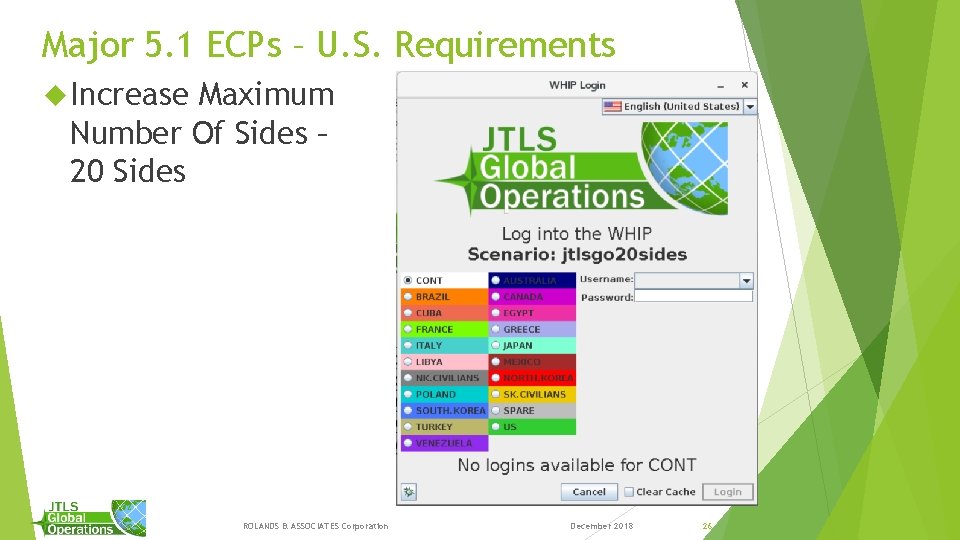

Major 5. 1 ECPs – U. S. Requirements Increase Maximum Number Of Sides – 20 Sides ROLANDS & ASSOCIATES Corporation December 2018 26

Major 5. 1 ECPs – U. S. Requirements Increase Maximum Number Of Sides – 20 Sides ROLANDS & ASSOCIATES Corporation December 2018 27

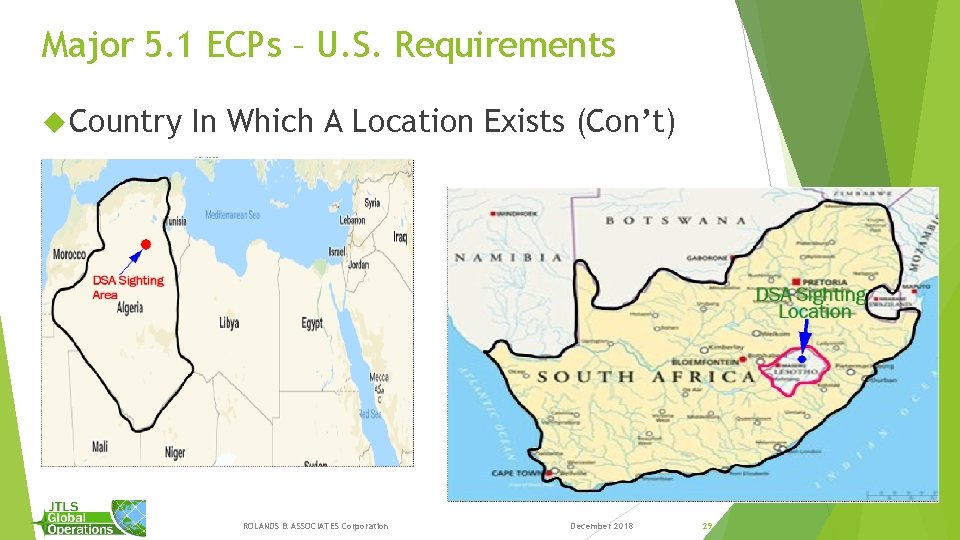

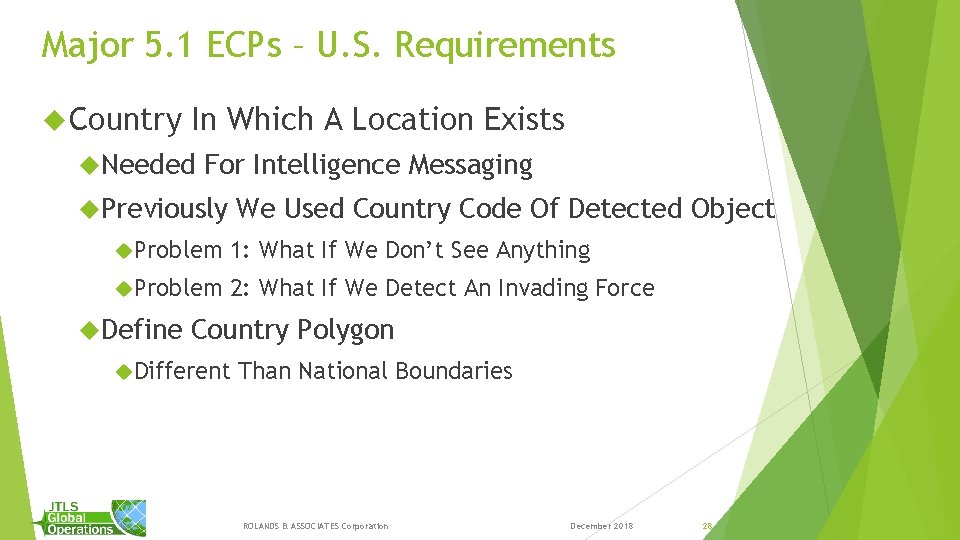

Major 5. 1 ECPs – U. S. Requirements Country In Which A Location Exists Needed For Intelligence Messaging Previously We Used Country Code Of Detected Object Problem 1: What If We Don’t See Anything Problem 2: What If We Detect An Invading Force Define Country Polygon Different Than National Boundaries ROLANDS & ASSOCIATES Corporation December 2018 28

Major 5. 1 ECPs – U. S. Requirements Country In Which A Location Exists (Con’t) ROLANDS & ASSOCIATES Corporation December 2018 29

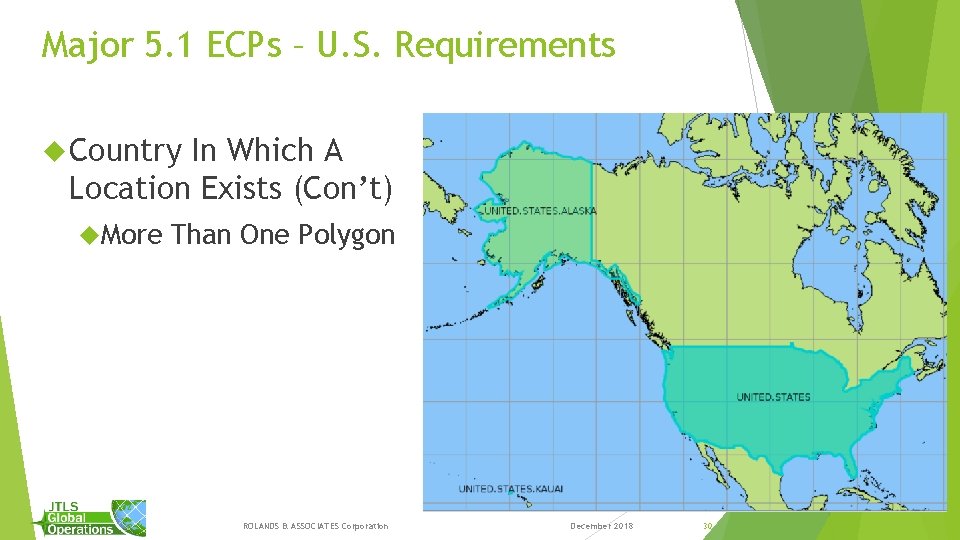

Major 5. 1 ECPs – U. S. Requirements Country In Which A Location Exists (Con’t) More Than One Polygon ROLANDS & ASSOCIATES Corporation December 2018 30

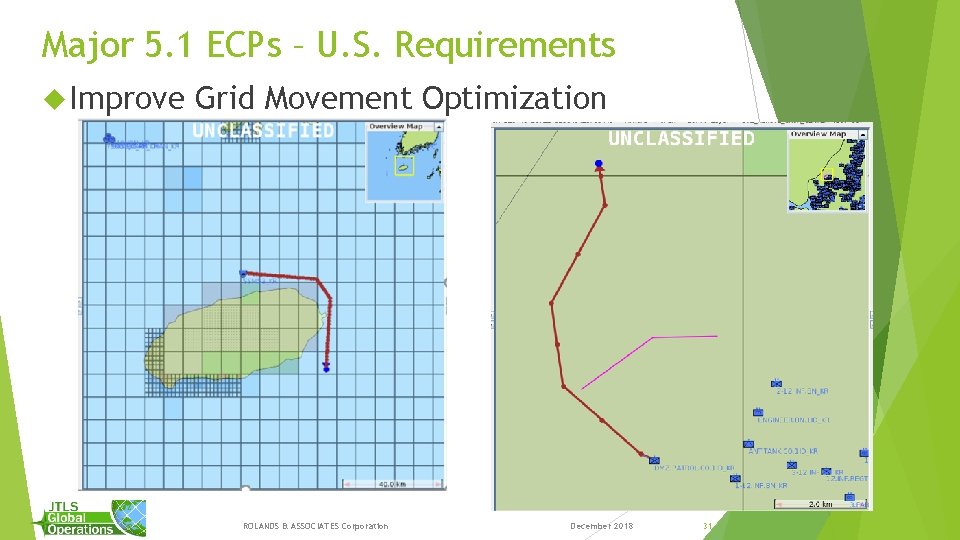

Major 5. 1 ECPs – U. S. Requirements Improve Grid Movement Optimization ROLANDS & ASSOCIATES Corporation December 2018 31

Major 5. 1 ECPs – U. S. Requirements Upgrade Various To Link 16 -E Newer And Expanded Type Codes Probably Support One Of The Worst Decisions For 5. 1 For Link 16 Sub-Surface PPLIs and Tracks ROLANDS & ASSOCIATES Corporation December 2018 32

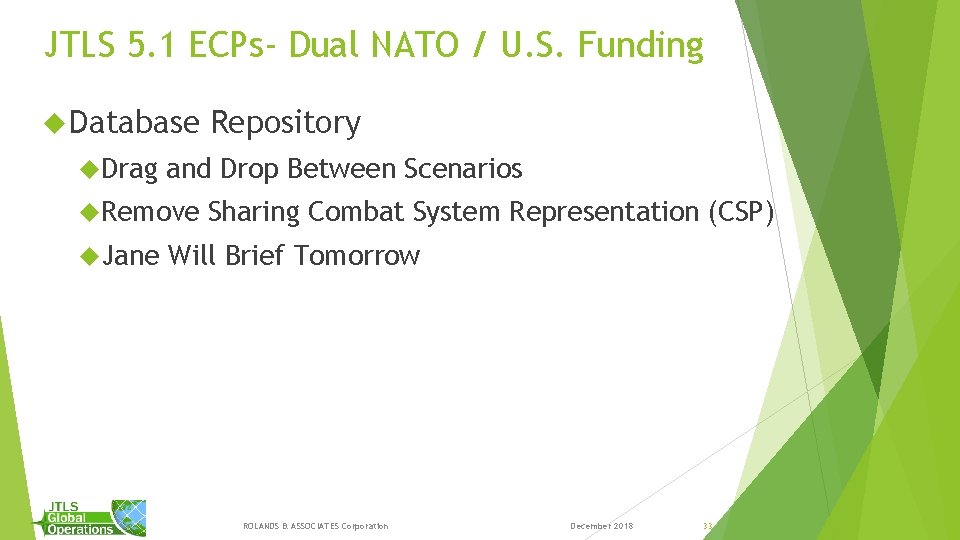

JTLS 5. 1 ECPs- Dual NATO / U. S. Funding Database Drag and Drop Between Scenarios Remove Jane Repository Sharing Combat System Representation (CSP) Will Brief Tomorrow ROLANDS & ASSOCIATES Corporation December 2018 33

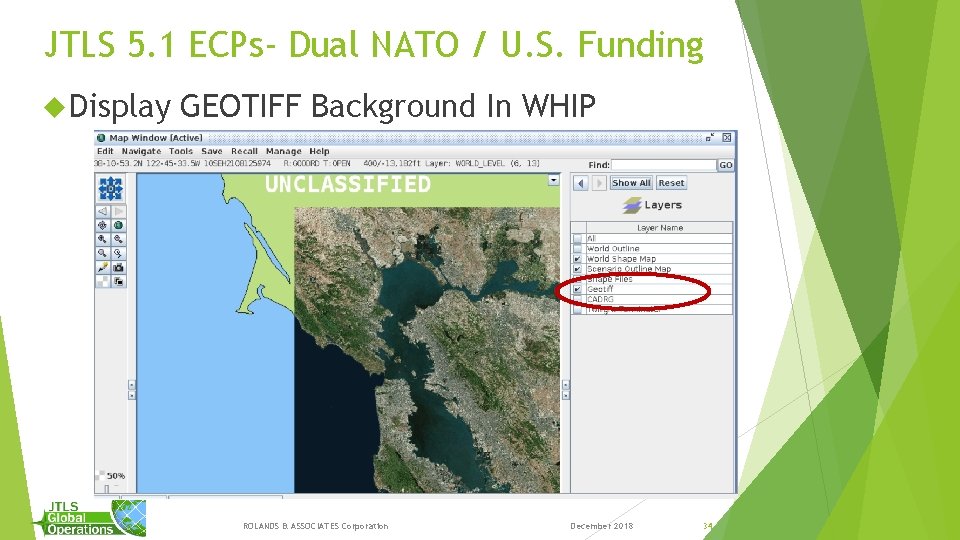

JTLS 5. 1 ECPs- Dual NATO / U. S. Funding Display GEOTIFF Background In WHIP ROLANDS & ASSOCIATES Corporation December 2018 34

JTLS 5. 1 Release ROLANDS & ASSOCIATES Corporation December 2018

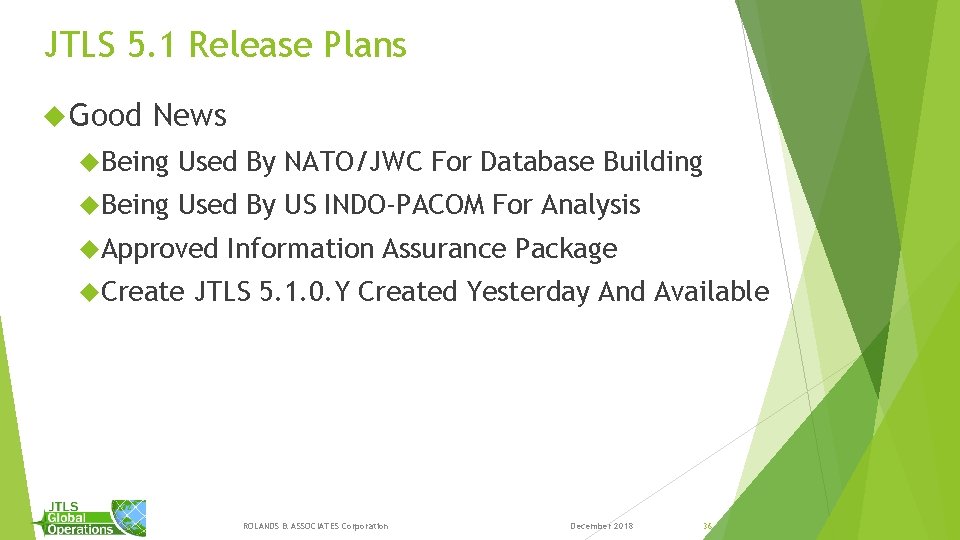

JTLS 5. 1 Release Plans Good News Being Used By NATO/JWC For Database Building Being Used By US INDO-PACOM For Analysis Approved Create Information Assurance Package JTLS 5. 1. 0. Y Created Yesterday And Available ROLANDS & ASSOCIATES Corporation December 2018 36

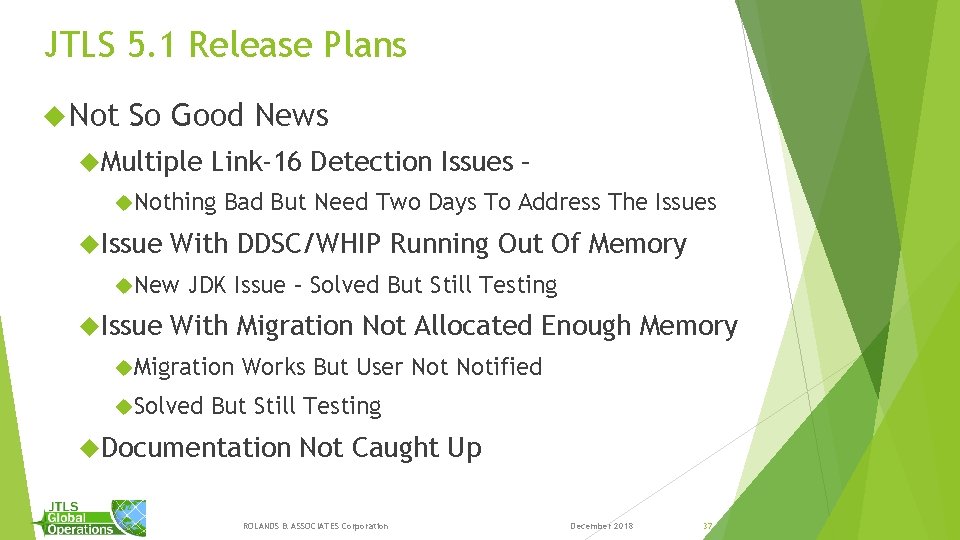

JTLS 5. 1 Release Plans Not So Good News Multiple Link-16 Detection Issues – Nothing Issue With DDSC/WHIP Running Out Of Memory New Issue Bad But Need Two Days To Address The Issues JDK Issue – Solved But Still Testing With Migration Not Allocated Enough Memory Migration Solved Works But User Notified But Still Testing Documentation Not Caught Up ROLANDS & ASSOCIATES Corporation December 2018 37

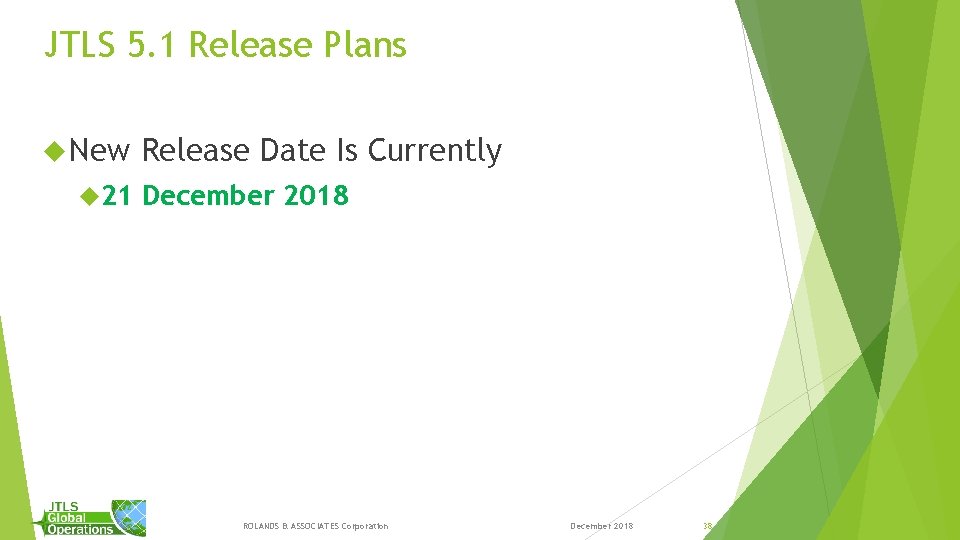

JTLS 5. 1 Release Plans New 21 Release Date Is Currently December 2018 ROLANDS & ASSOCIATES Corporation December 2018 38

Questions ROLANDS & ASSOCIATES Corporation December 2018 39
