JSM Hammer Cant Touch This Jun Wei Chuah

JSM Hammer Can’t. Touch. This Jun Wei Chuah Shihong Ng Ming Yang Koh

Project Concept/Motivation • Concept: • This project will act as deterrence against laptop thefts, providing the owner a greater degree of security. • The prototype integrates off-the-shelf embedded components, such as motion-sensing accelerometer, buzzer, RFID reader and tags for passive activation of the device and the Tmote Sensor. • Motivation: • A laptop owner today is unable to leave his/her laptop unattended without risk of the laptop being stolen. • Using our prototype system, an alarm will be activated if the laptop is being handled by unauthorized personnel.

Competitive Analysis: Caveo Anti-Theft PC Card: http: //caveo. com/products/anti-theft. htm • The product works by sensing motion and emitting an alarm when its moved. • Our product will automatically activate the lock when it does not sense the user’s presence Kensingston Cable Lock: http: //us. kensington. com/html/11179. html • The product works by physically locking the laptop to a secure object. • Our product requires less user input and is a smaller and lighter solution.

Requirements: • Functional Requirements: • Detects the presence of the user when in range and disarms the device. • Arms the device when user is out of range. • Allows software arming and disarming of device. • Detects movement of laptop when armed and sounds alarm accordingly. • Non-functional Requirements: • Reliability: When armed, the device will detect significant movement and sound the alarm. • Usability: The device will require minimal user input after installation. • Threshold: Non-extended small movements will be tolerated by the system. • Timing: The alarm will trigger within 5 seconds of detection of motion.

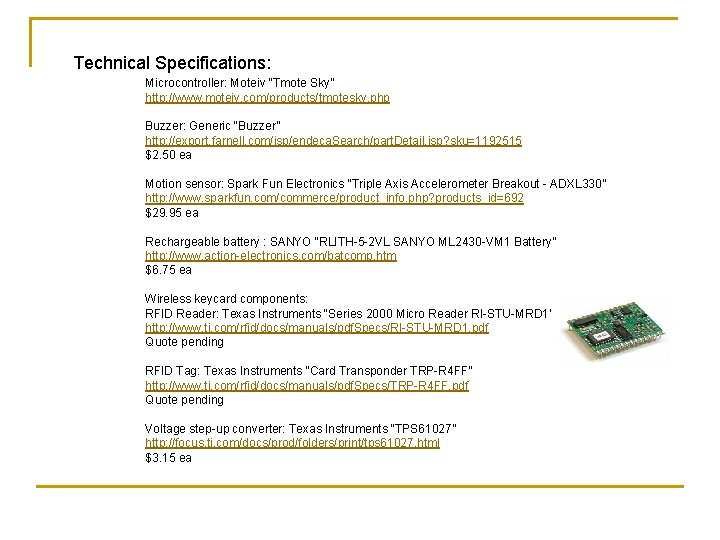

Technical Specifications: Microcontroller: Moteiv “Tmote Sky” http: //www. moteiv. com/products/tmotesky. php Buzzer: Generic “Buzzer” http: //export. farnell. com/jsp/endeca. Search/part. Detail. jsp? sku=1192515 $2. 50 ea Motion sensor: Spark Fun Electronics “Triple Axis Accelerometer Breakout - ADXL 330” http: //www. sparkfun. com/commerce/product_info. php? products_id=692 $29. 95 ea Rechargeable battery : SANYO “RLITH-5 -2 VL SANYO ML 2430 -VM 1 Battery” http: //www. action-electronics. com/batcomp. htm $6. 75 ea Wireless keycard components: RFID Reader: Texas Instruments “Series 2000 Micro Reader RI-STU-MRD 1” http: //www. ti. com/rfid/docs/manuals/pdf. Specs/RI-STU-MRD 1. pdf Quote pending RFID Tag: Texas Instruments “Card Transponder TRP-R 4 FF” http: //www. ti. com/rfid/docs/manuals/pdf. Specs/TRP-R 4 FF. pdf Quote pending Voltage step-up converter: Texas Instruments “TPS 61027” http: //focus. ti. com/docs/prod/folders/print/tps 61027. html $3. 15 ea
