Jsb SPC Korea Automotive Manufacturing Education Center Jsb
Jsb SPC 소개 (주)한국자동차산업교육원 Korea Automotive Manufacturing Education Center

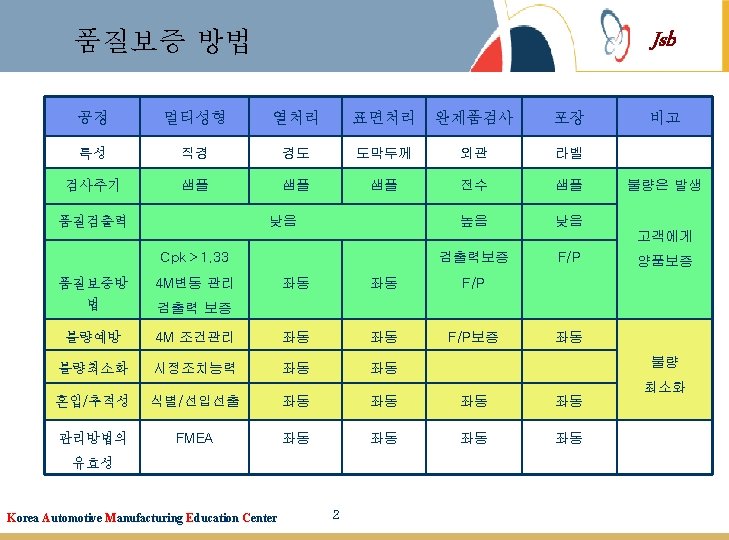

Jsb Ⅰ. SPC의 역사 Korea Automotive Manufacturing Education Center 3

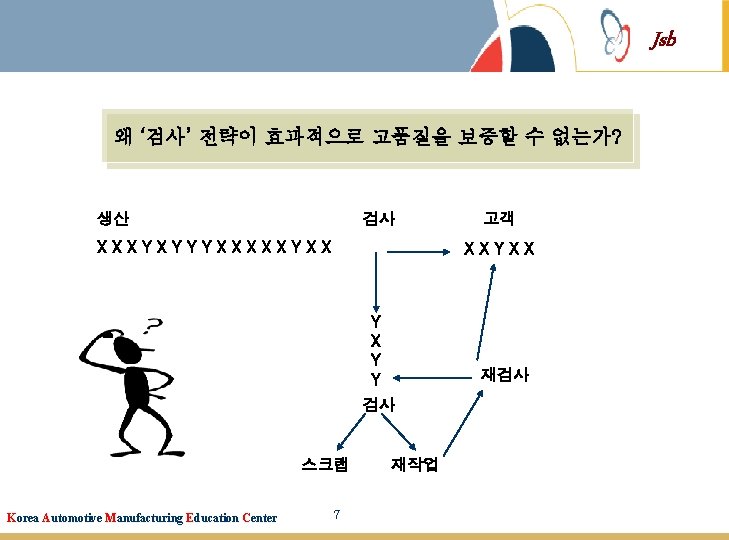

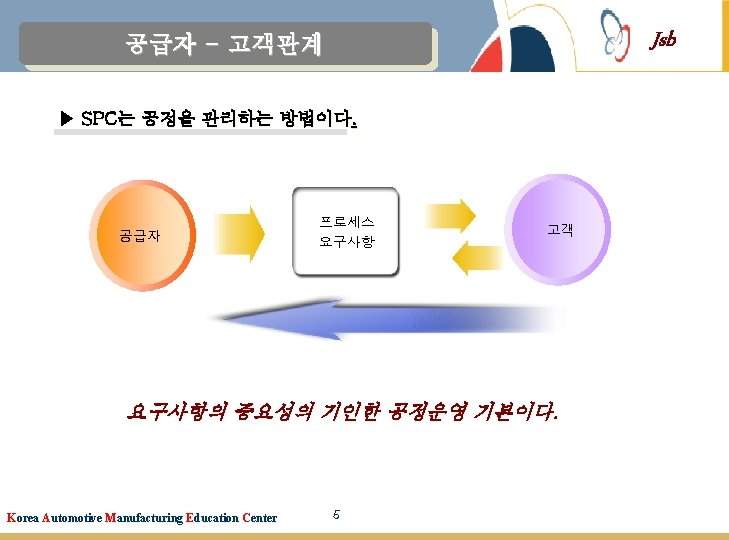

전통적인 검사방법으로는 공정을 효과적으로 관리 할 수 없다 Jsb The recent time clock incident in korea city, in which a malfunction kept the clock From starting for 15 seconds after a time out, has caused much controversy and Conciderable interest in changing the whole process of timekeeping. Cries of cheating and charges of poor officiating have obscured the fact that the Michigan state university-university of kansas basketball scrimmage was one of The most exciting contests in the current year’s NCAA tournament. Scott skiles, Vernon Carr, Larry Polec and crew gave Cliff Dreiling. Shoud Kansas successfully Complete its NCAA championship challenge, M. S. U. recruiters certainly can claim That jud heathcote’s charges could be considered the second-best court fivesome In the country. Korea Automotive Manufacturing Education Center 6

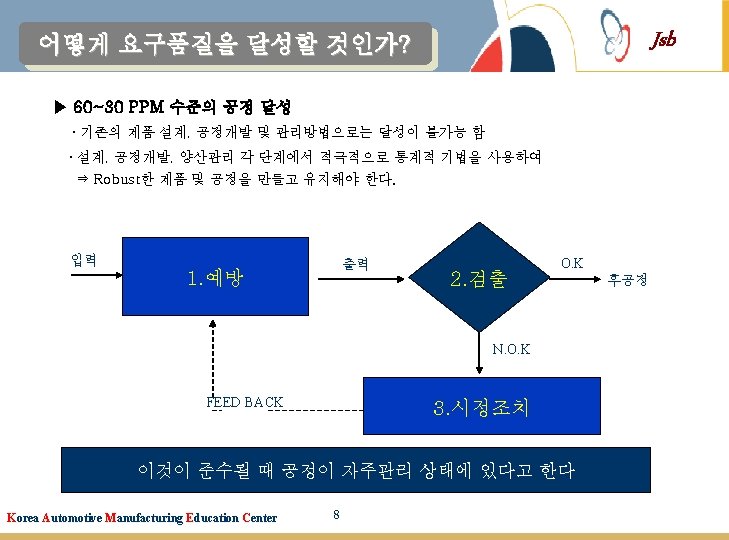

Jsb 어떻게 요구품질을 달성할 것인가? Product Design Process Design 산포에 둔감한 설계 요구품질을 충족하는 공정개발 1. Capable Design -Robust Design -DFMEA, PFMEA, KPC -DFX 2. Design Review 3. Design Validation -DVP/PVP 4. 단계별 sign-off 1. Cable Process Control 안정된 공정의 유지 1. 무결점 2. Reduce Process Risk(RPN) 2. In-Process Control -제품품질표준 3. Process Validation -표준작업 -D. O. E -SPC -Tooling Sign-off -Process Audit -설비 및 공정능력 -Q. S. M 4. 관리방법 3. 문제해결 -SPC -CFT 5. 양산준비 검토 -통계적 지식 및 방법론 Korea Automotive Manufacturing Education Center 9

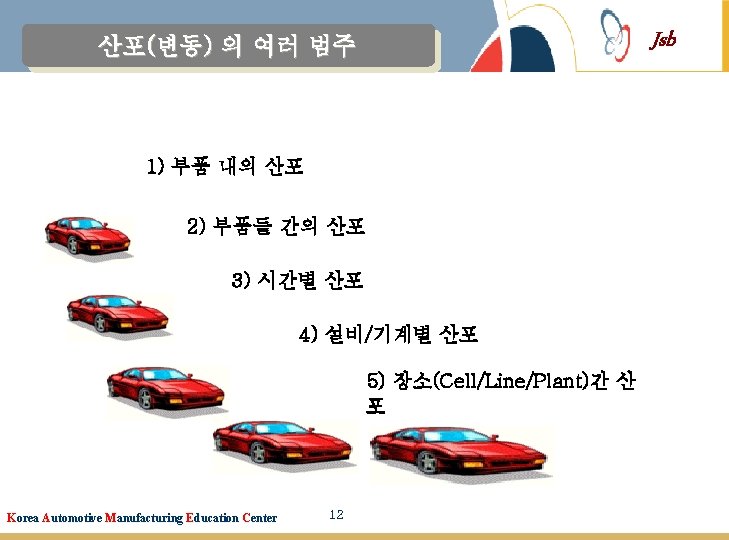

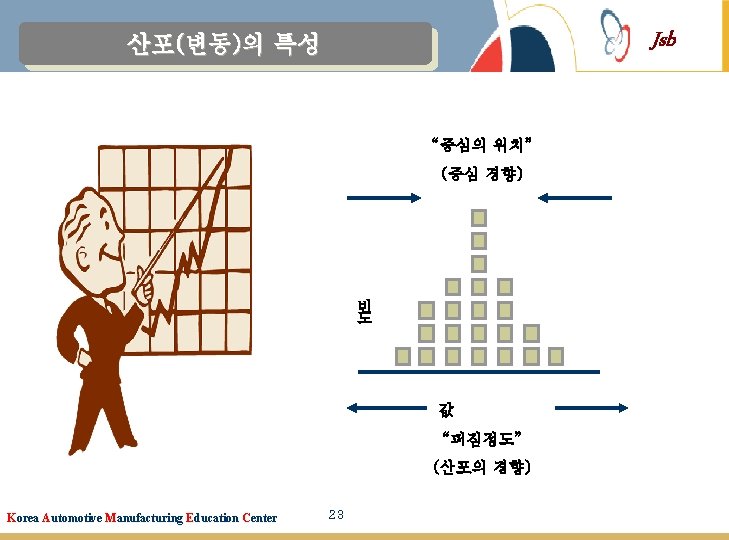

Jsb SPC Statistical Process Control Ⅱ. 산포(변동)의 개념 Korea Automotive Manufacturing Education Center 10
Jsb 산포 의 예 ' 어느 총이 더 좋은가? Korea Automotive Manufacturing Education Center 13

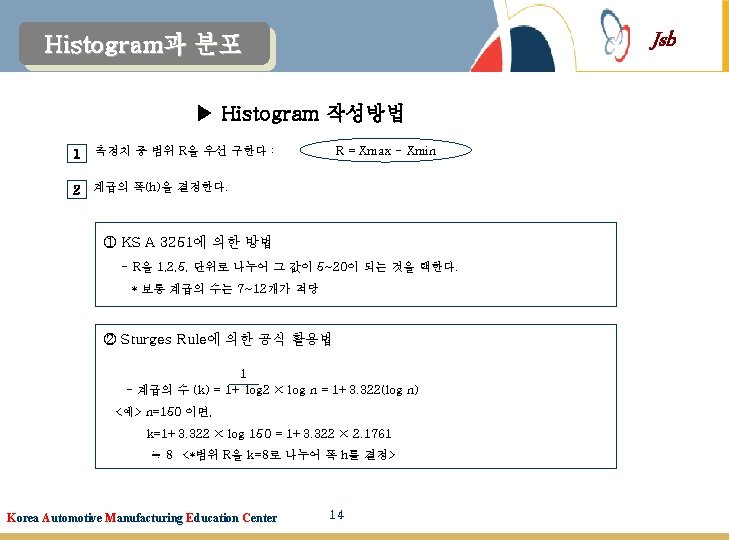

Jsb ▶ Histogram 작성연습 <작성 순서> ① 범위 R = L – S = 64 – 23 = 41 <예> 어떤 제품의 중량의 규격치는 (* L = Xmax, S = Xmin) 37. 5± 12. 5(g)이다. (n=100) 랜덤으로 취해진 샘플을 측정하여 ② R ÷ 1, 2, 5단위 = 41 ÷ 5 = 8. 2 다음의 중량 Data를 얻었다. → “ 9” = k(계급의 수) 54 37 54 31 45 38 47 27 47 45 43 37 41 33 42 43 28 43 29 54 54 36 48 41 32 39 49 23 37 44 42 36 30 43 34 39 47 30 26 41 47 43 34 41 47 31 31 41 38 26 47 25 58 59 48 54 33 48 52 64 34 38 52 37 45 24 47 35 60 43 42 27 47 35 48 41 37 35 45 53 42 36 33 49 39 24 35 47 44 49 37 47 44 36 52 37 32 43 53 37 * 그러므로 계급의 푹(h) = 5로 정한다. ③ S = 23 과 L = 64가 제 1계급과 맨 끝 계급에 포함되도록 * 제 1계급 출발 : 20~25로 하면 되나 측정단위와 같으므로 소수점 하나 더 내려가 ½로 하여 19. 5~24. 5로 한다. * 다음 장에 완성해 놓음 Korea Automotive Manufacturing Education Center 15
Jsb [실습] ▶ 아래 데이터는 A부품회사의 샤프트 외경값이다. 히스토그램을 그리고 분포를 분석하세 요 단, 규격은 80± 4 77 80 82 81 79 82 77 84 80 81 77 81 79 78 78 79 81 81 82 77 79 77 82 82 82 81 77 80 80 81 79 79 80 83 78 80 80 78 81 79 81 82 82 78 80 79 80 77 81 81 82 78 77 80 79 81 79 82 81 78 79 77 78 79 82 80 80 81 82 81 84 81 82 78 78 82 79 79 80 82 81 81 79 78 80 81 79 82 80 77 80 81 78 Korea Automotive Manufacturing Education Center 16

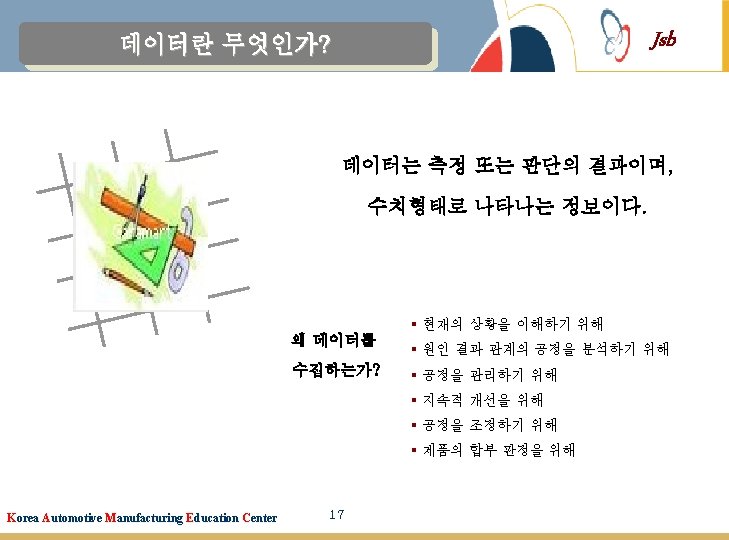

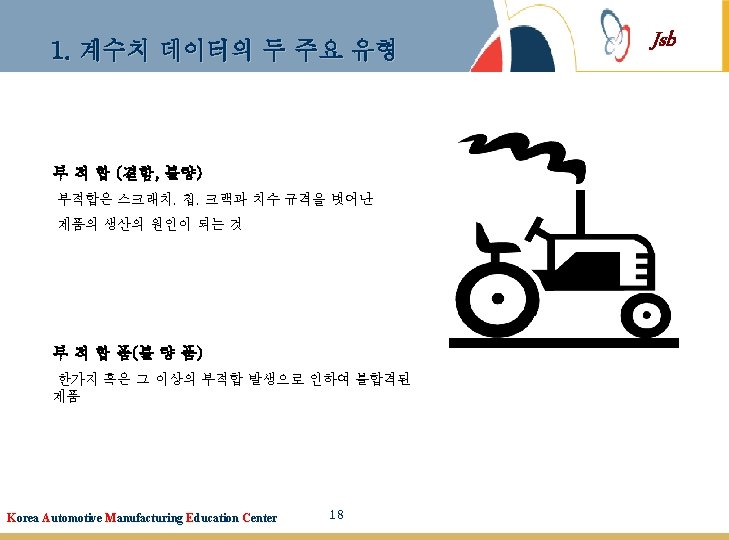

Jsb 계량치 및 계수치 데이터의 장점 Korea Automotive Manufacturing Education Center 19

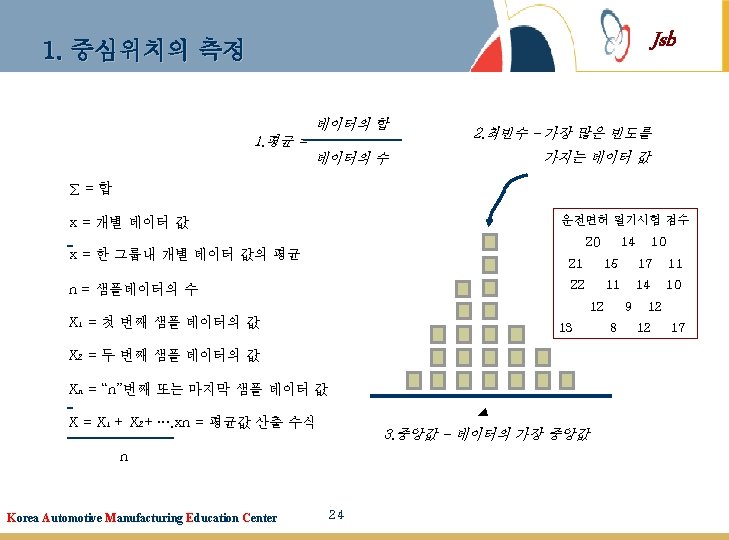

Jsb Korea Automotive Manufacturing Education Center 20

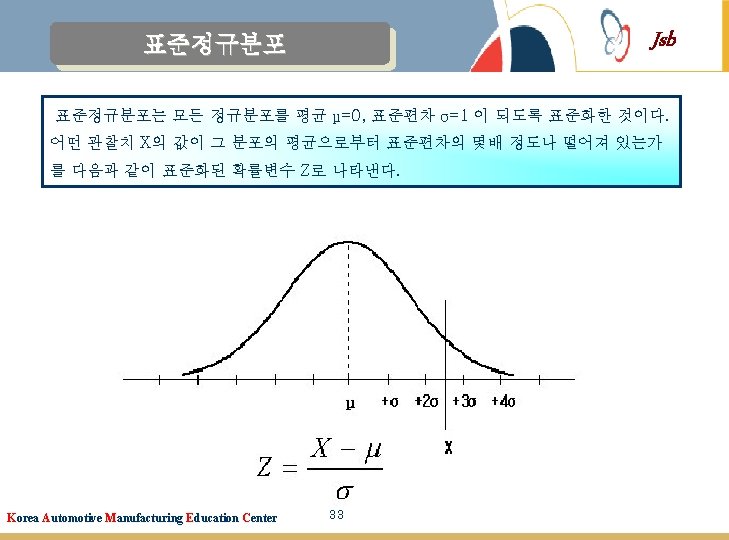

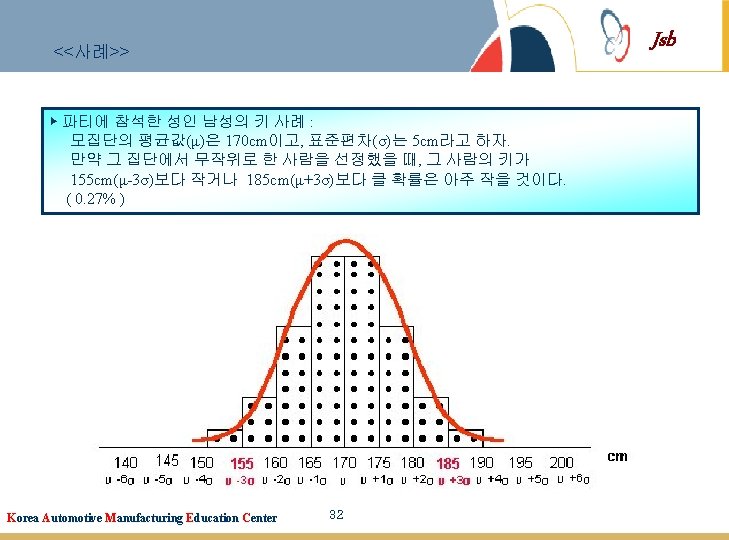

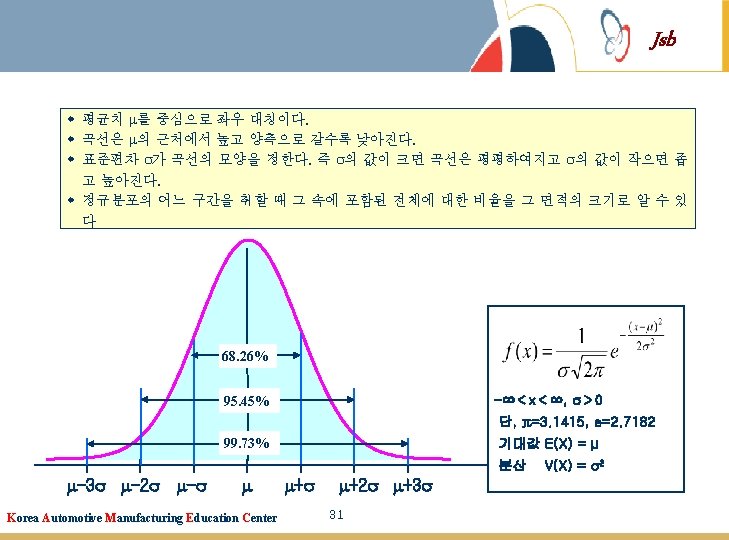

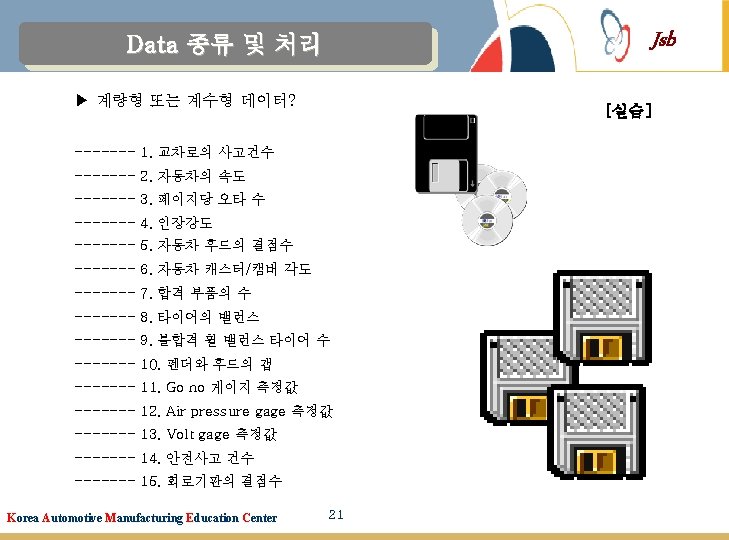

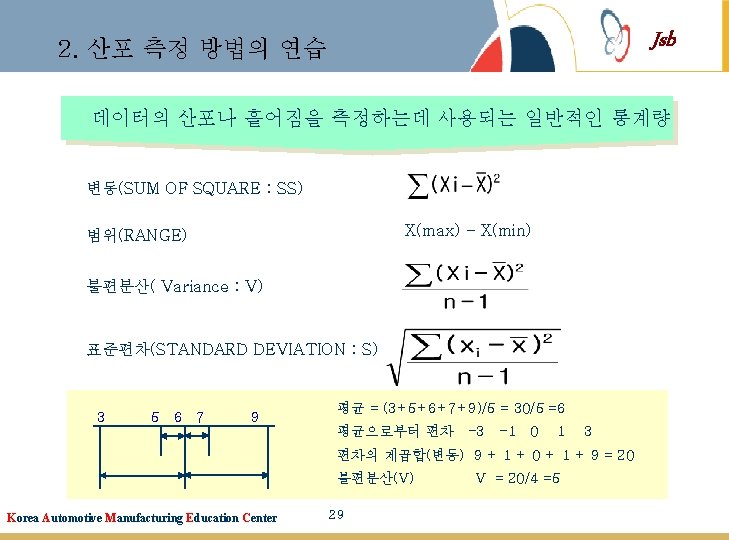

Jsb N(0, 1) 표 준 정규 분포표 ε(p, α) 0 Kε (Kε에서 ε를 求하는 表) Kε *=0 0. 0* 0. 1* 0. 2* 0. 3* 0. 4* 0. 5* · 5000 · 4602 · 4207 · 3821 · 3446 · 3085 · 4960 · 4562 · 4168 · 3783 · 3409 · 3050 · 4920 · 4522 · 4129 · 3745 · 3372 · 3015 · 4880 · 4483 · 4090 · 3707 · 3336 · 2981 0. 6* 0. 7* 0. 8* 0. 9* 1. 0* · 2743 · 2420 · 2119 · 1841 · 1587 · 2709 · 2389 · 2090 · 1814 · 1562 · 2676 · 2358 · 2061 · 1788 · 1539 1. 1* 1. 2* 1. 3* 1. 4* 1. 5* · 1357 · 1151 · 0968 · 0808 · 0668 · 1335 · 1131 · 0951 · 0793 · 0655 · 1314 · 1112 · 0934 · 0778 · 0643 1 2 Korea Automotive Manufacturing Education Center 3 4 5 6 7 8 9 · 4840 · 4443 · 4052 · 3669 · 3300 · 2946 · 4801 · 4404 · 4013 · 3632 · 3264 · 2912 · 4761 · 4364 · 3974 · 3594 · 3228 · 2877 · 4721 · 4325 · 3936 · 3557 · 3192 · 2843 · 4681 · 4286 · 3897 · 3520 · 3156 · 2810 · 4641 · 4247 · 3859 · 3483 · 3121 · 2776 · 2643 · 2327 · 2033 · 1762 · 1515 · 2611 · 2296 · 2005 · 1736 · 1492 · 2578 · 2266 · 1977 · 1711 · 1469 · 2546 · 2236 · 1949 · 1685 · 1446 · 2514 · 2206 · 1922 · 1660 · 1423 · 2483 · 2177 · 1894 · 1635 · 1401 · 2415 · 2148 · 1967 · 1611 · 1379 · 1292 · 1093 · 0918 · 0764 · 0630 · 1271 · 1075 · 0901 · 0749 · 0618 · 1251 · 1056 · 0885 · 0735 · 0606 · 1230 · 1038 · 0869 · 0721 · 0594 · 1210 · 1020 · 0853 · 0708 · 0582 · 1190 · 1003 · 0838 · 0694 · 0571 · 1170 · 0985 · 0823 · 0681 · 0559 36
Jsb N(0, 1) ε(p, α) (Kε에서 ε를 求하는 表) Kε *=0 1 2 3 4 5 6 7 8 0 Kε 9 1. 6* 1. 7* 1. 8* 1. 9* 2. 0* · 0548 · 0446 · 0359 · 0287 · 0228 · 0537 · 0436 · 0351 · 0281 · 0222 · 0526 · 0427 · 0344 · 0274 · 0217 · 0516 · 0418 · 0336 · 0268 · 0212 · 0505 · 0409 · 0329 · 0262 · 0207 · 0495 · 0401 · 0322 · 0256 · 0202 · 0485 · 0392 · 0314 · 0250 · 0197 · 0475 · 0384 · 0307 · 0244 · 0192 · 0465 · 0375 · 0301 · 0239 · 0188 · 0455 · 0367 · 0294 · 0233 · 0183 2. 1* 2. 2* 2. 3* 2. 4* 2. 5* · 0179 · 0139 · 0107 · 0082 · 0062 · 0174 · 0136 · 0104 · 0080 · 0060 · 0170 · 0132 · 0102 · 0078 · 0059 · 0166 · 0129 · 0099 · 0075 · 0057 · 0162 · 0125 · 0096 · 0073 · 0055 · 0153 · 0122 · 0094 · 0071 · 0054 · 0119 · 0091 · 0069 · 0052 · 0150 · 0116 · 0089 · 0068 · 0051 · 0146 · 0113 · 0087 · 0066 · 0049 · 0143 · 0110 · 0084 · 0064 · 0048 2. 6* 2. 7* 2. 8* 2. 9* 3. 0* · 0047 · 0035 · 0026 · 0019 · 0013 · 0045 · 0034 · 0025 · 0018 · 0013 · 0044 · 0033 · 0024 · 0018 · 0013 · 0043 · 0032 · 0023 · 0017 · 0012 · 0041 · 0031 · 0023 · 0016 · 0012 · 0040 · 0030 · 0022 · 0016 · 0011 · 0039 · 0021 · 0015 · 0011 · 0038 · 0021 · 0015 · 0011 · 0037 · 0020 · 0014 · 0010 · 0036 · 0026 · 0019 · 0014 · 0010 Korea Automotive Manufacturing Education Center 37
