Jörn Kruse / STO-G / Mai 2009 ABB STOTZ-KONTAKT Gmb. H ABB i-bus® KNX The „smaller“ Room Controller RC/A 4. 2 © STO/G - Slide 1

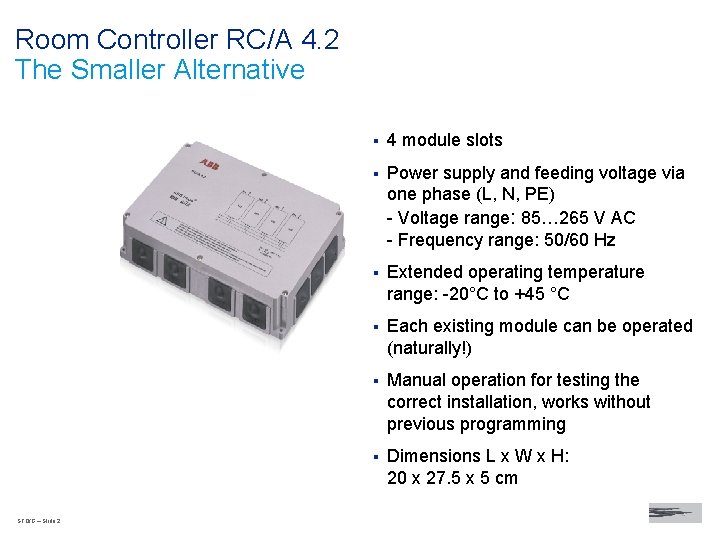

Room Controller RC/A 4. 2 The Smaller Alternative STO/G – Slide 2 § 4 module slots § Power supply and feeding voltage via one phase (L, N, PE) - Voltage range: 85… 265 V AC - Frequency range: 50/60 Hz § Extended operating temperature range: -20°C to +45 °C § Each existing module can be operated (naturally!) § Manual operation for testing the correct installation, works without previous programming § Dimensions L x W x H: 20 x 27. 5 x 5 cm

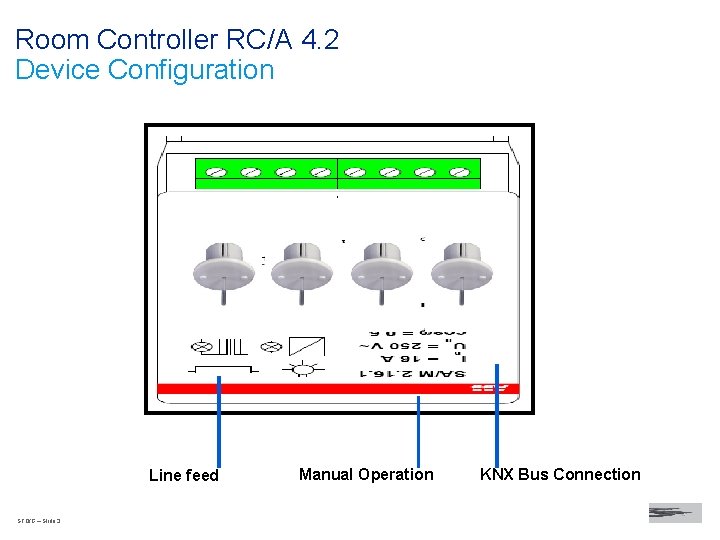

Room Controller RC/A 4. 2 Device Configuration Line feed STO/G – Slide 3 Manual Operation KNX Bus Connection
Room Controller RC/A 4. 2 Mounting in False Floors § STO/G – Slide 4 For easy underfloor installation, the RC/A 4. 2 fits into the common floor boxes and outlets.

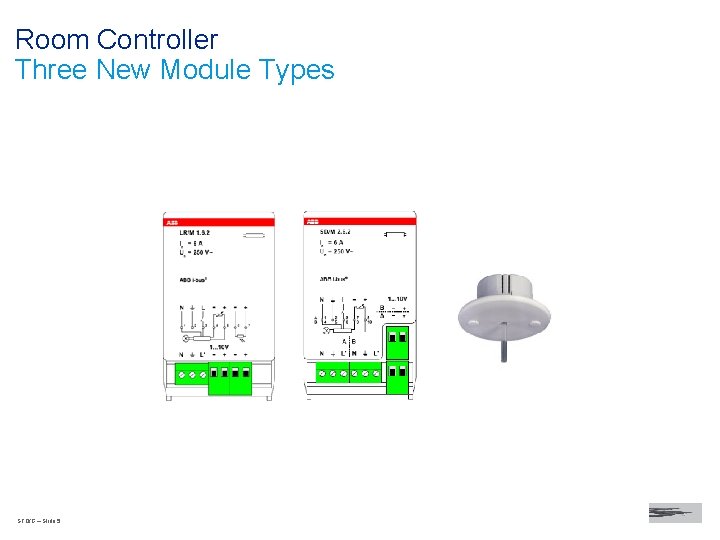

Room Controller Three New Module Types STO/G – Slide 5

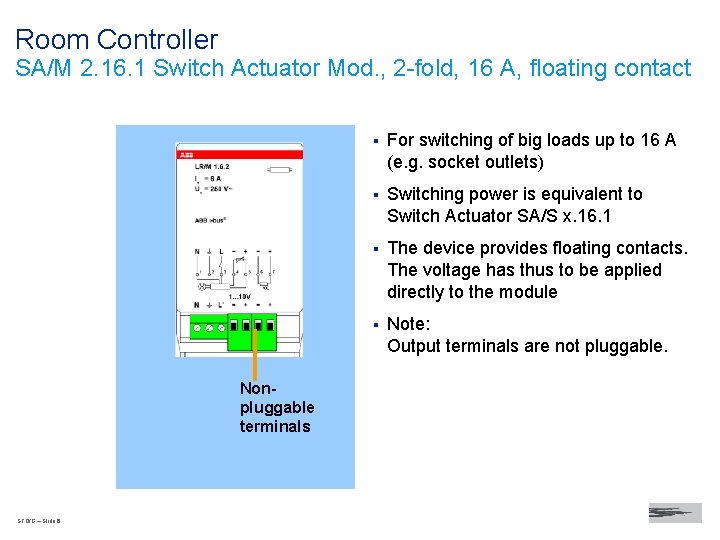

Room Controller SA/M 2. 16. 1 Switch Actuator Mod. , 2 -fold, 16 A, floating contact Nonpluggable terminals STO/G – Slide 6 § For switching of big loads up to 16 A (e. g. socket outlets) § Switching power is equivalent to Switch Actuator SA/S x. 16. 1 § The device provides floating contacts. The voltage has thus to be applied directly to the module § Note: Output terminals are not pluggable.
Room Controller SD/M 2. 6. 2 Switch/Dim Actuator Module, 2 -fold, 6 AX STO/G – Slide 7 § Substitudes Switch/Dim Actuator Module SD/M 2. 6. 1 § Higher relay switching capacity (see Switch Actuator Module SA/M 2. 6. 1) § Max. continuous current: 6 A

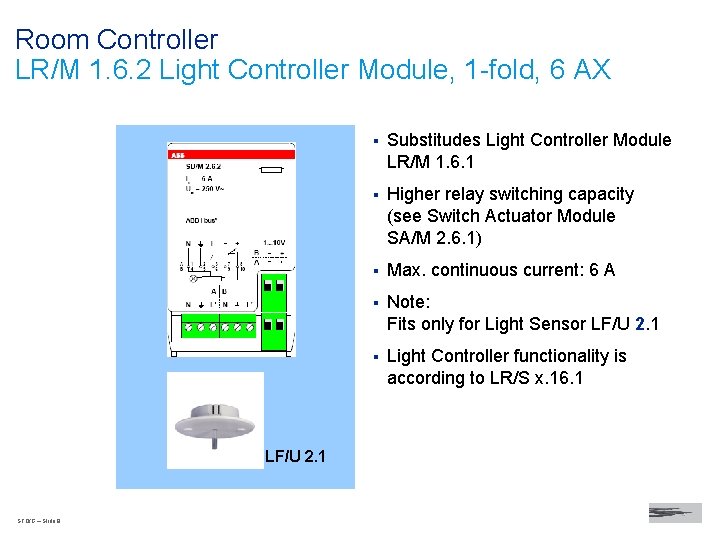

Room Controller LR/M 1. 6. 2 Light Controller Module, 1 -fold, 6 AX LF/U 2. 1 STO/G – Slide 8 § Substitudes Light Controller Module LR/M 1. 6. 1 § Higher relay switching capacity (see Switch Actuator Module SA/M 2. 6. 1) § Max. continuous current: 6 A § Note: Fits only for Light Sensor LF/U 2. 1 § Light Controller functionality is according to LR/S x. 16. 1
STO/G – Slide 9
