Jointer General Safety n Wear your safety glasses

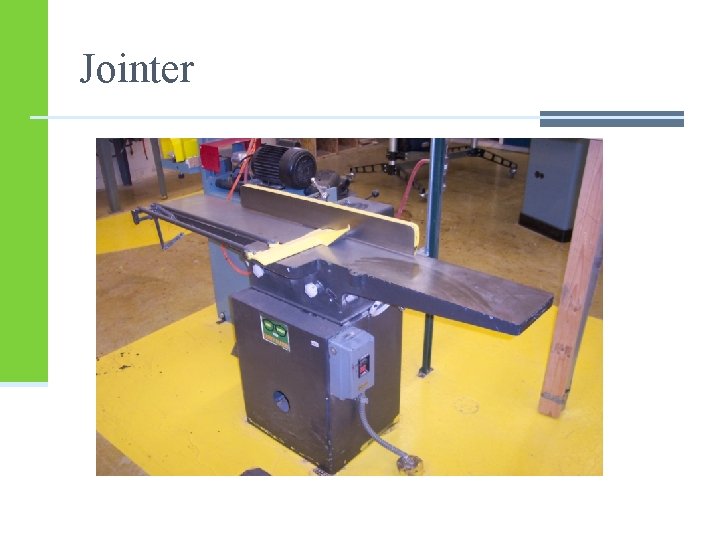

Jointer

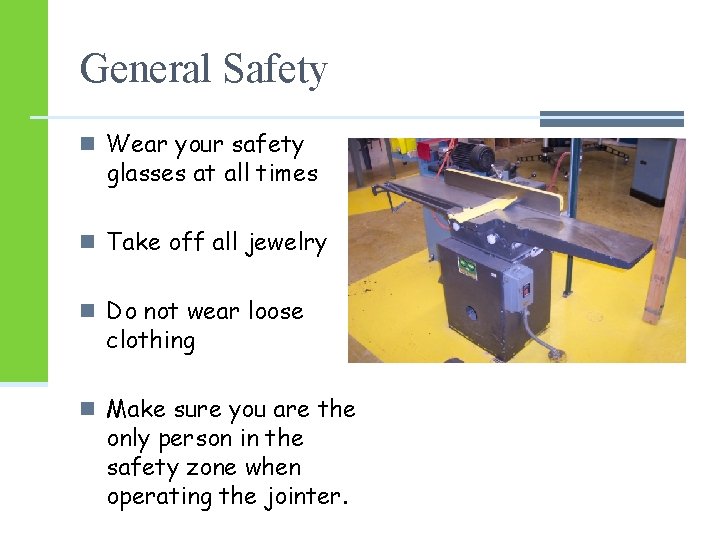

General Safety n Wear your safety glasses at all times n Take off all jewelry n Do not wear loose clothing n Make sure you are the only person in the safety zone when operating the jointer.

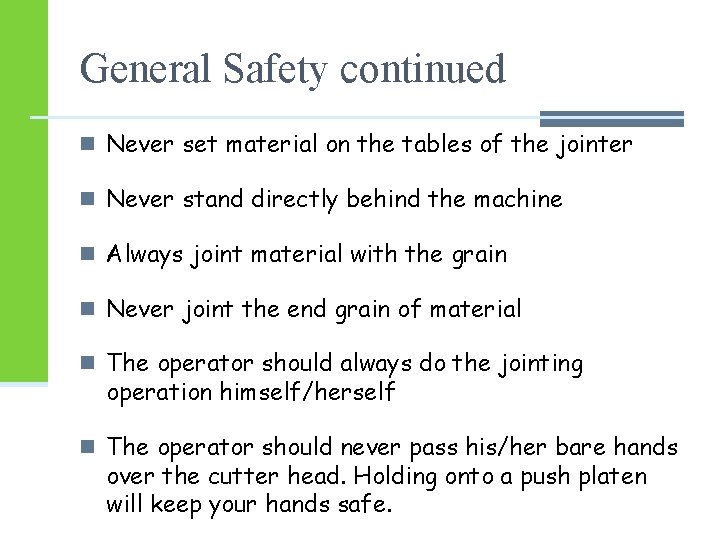

General Safety continued n Never set material on the tables of the jointer n Never stand directly behind the machine n Always joint material with the grain n Never joint the end grain of material n The operator should always do the jointing operation himself/herself n The operator should never pass his/her bare hands over the cutter head. Holding onto a push platen will keep your hands safe.

Components of the Jointer n Fence Tilt Control n Fence Width Control n Guard n In-feed Table n Out-feed Table

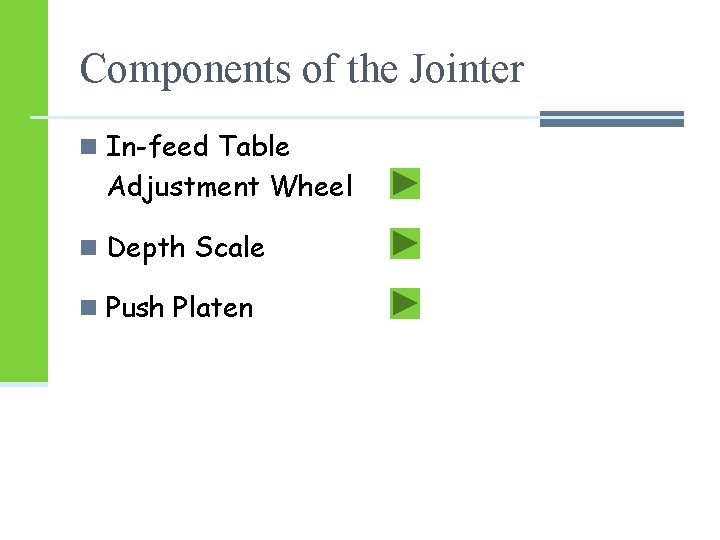

Components of the Jointer n In-feed Table Adjustment Wheel n Depth Scale n Push Platen

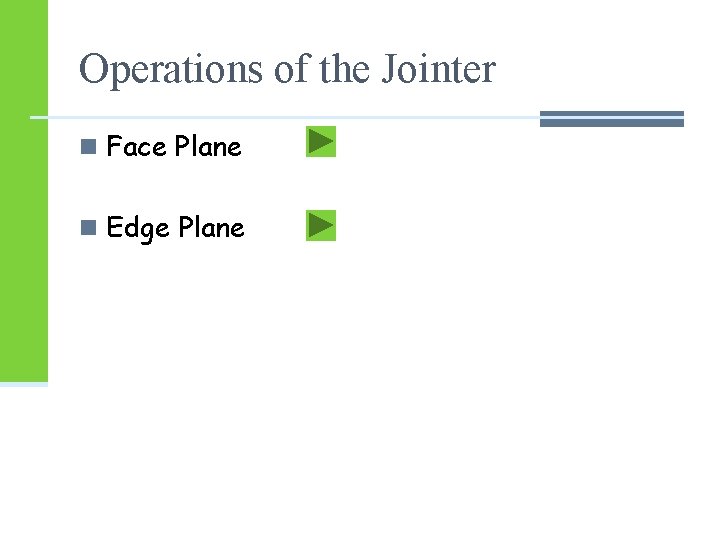

Operations of the Jointer n Face Plane n Edge Plane

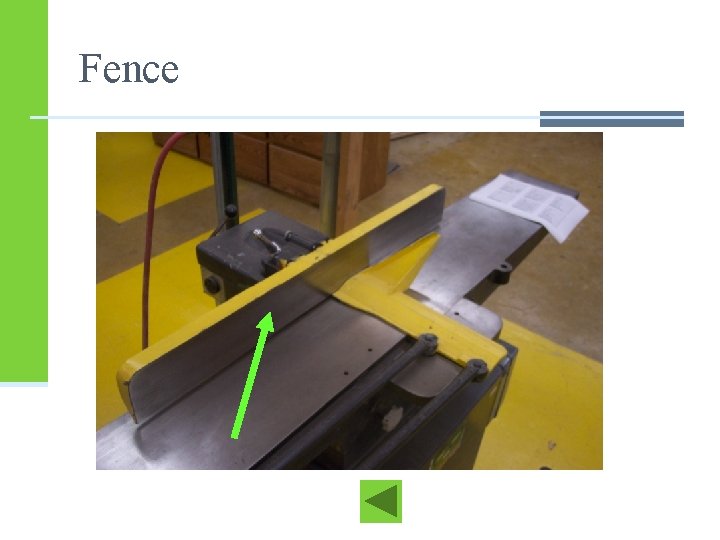

Fence

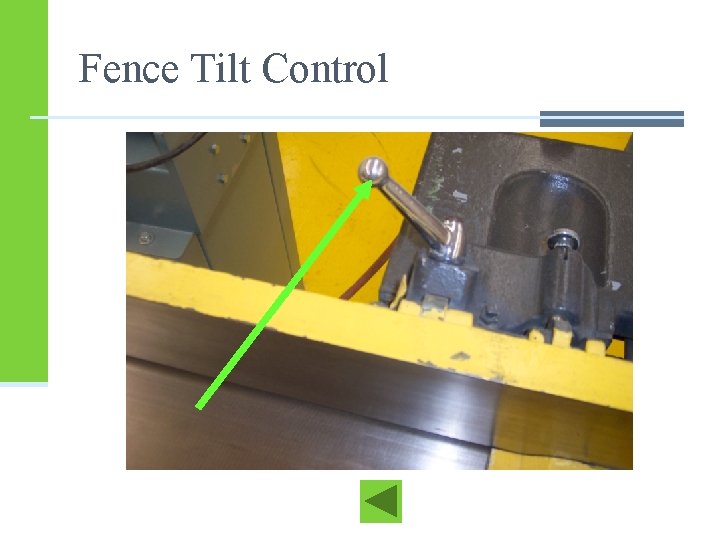

Fence Tilt Control

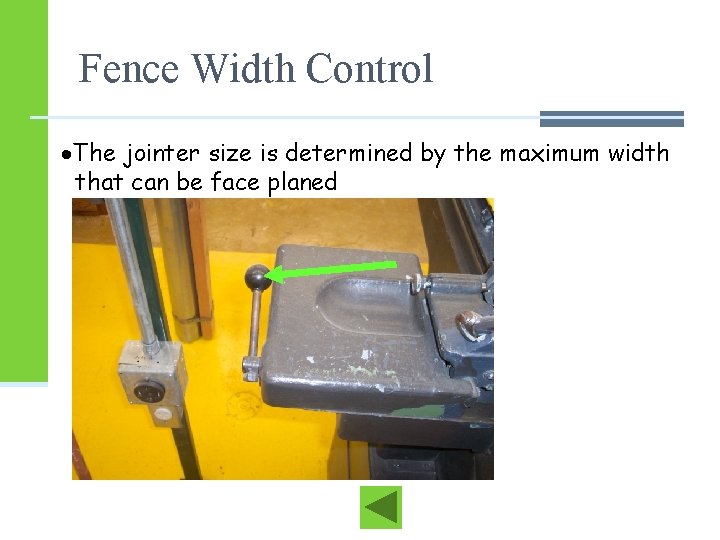

Fence Width Control The jointer size is determined by the maximum width that can be face planed

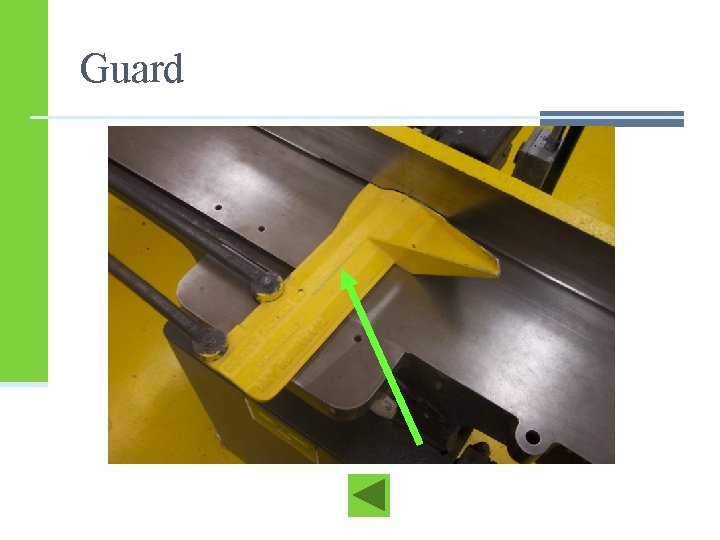

Guard

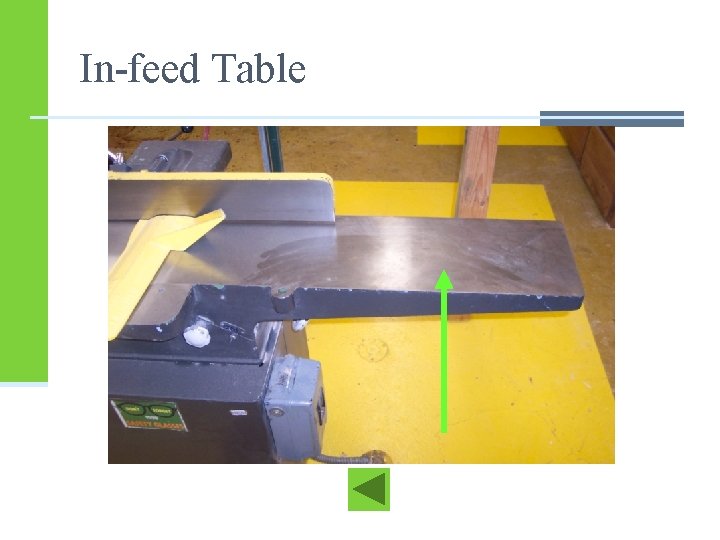

In-feed Table

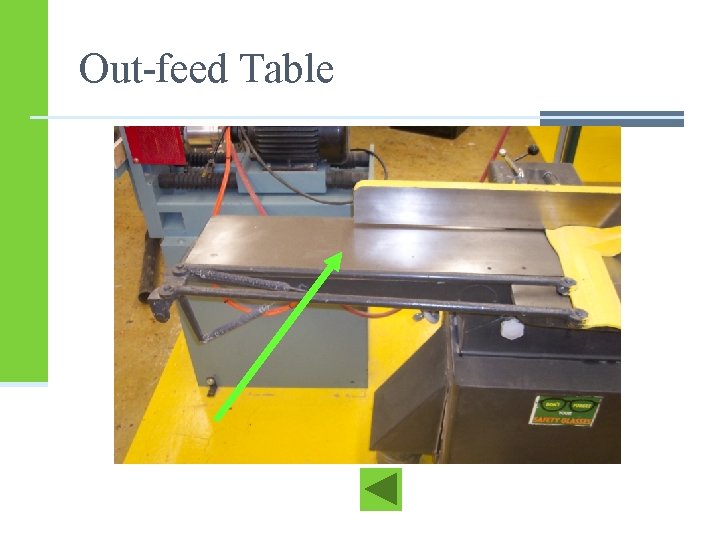

Out-feed Table

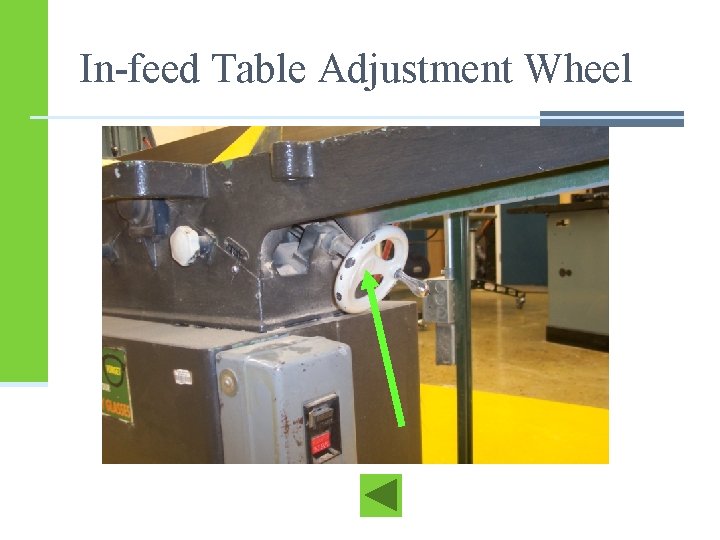

In-feed Table Adjustment Wheel

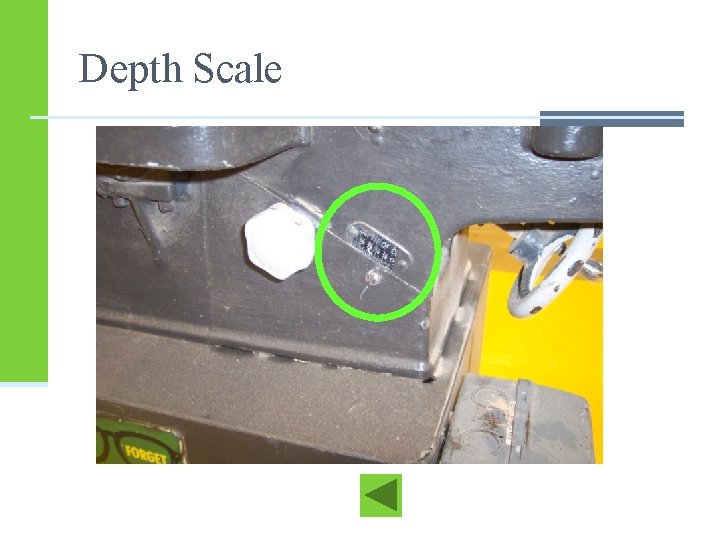

Depth Scale

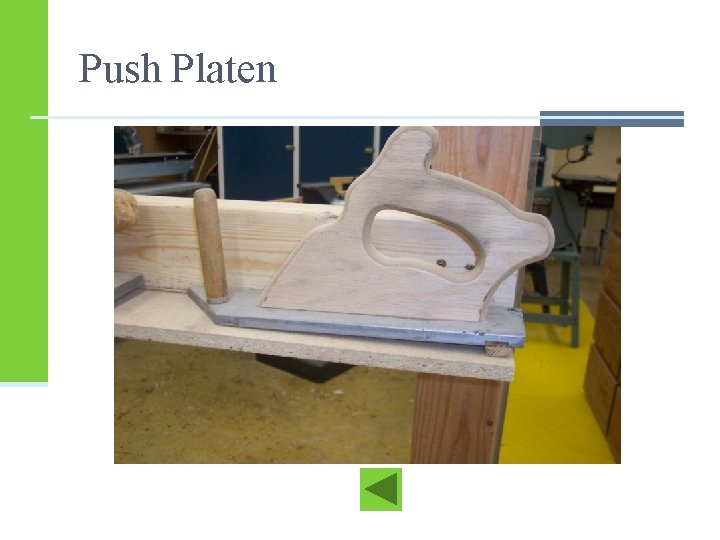

Push Platen

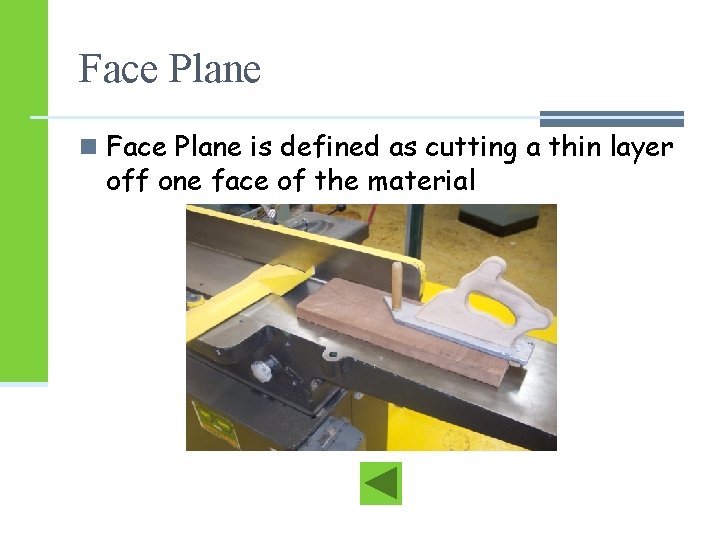

Face Plane n Face Plane is defined as cutting a thin layer off one face of the material

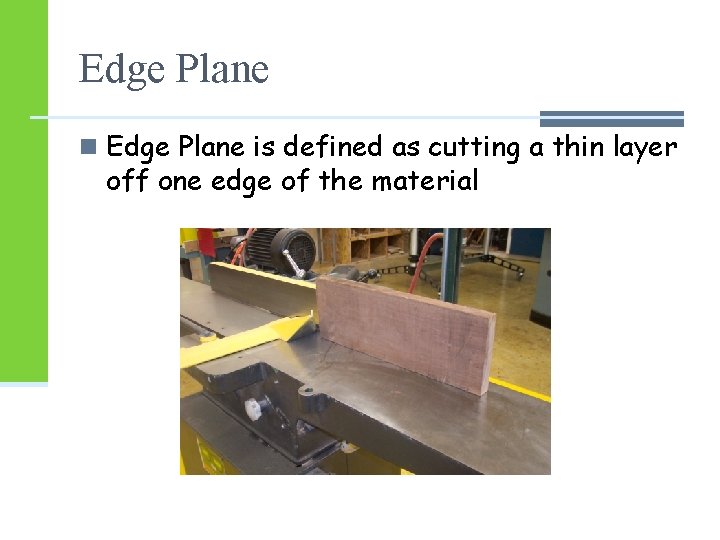

Edge Plane n Edge Plane is defined as cutting a thin layer off one edge of the material

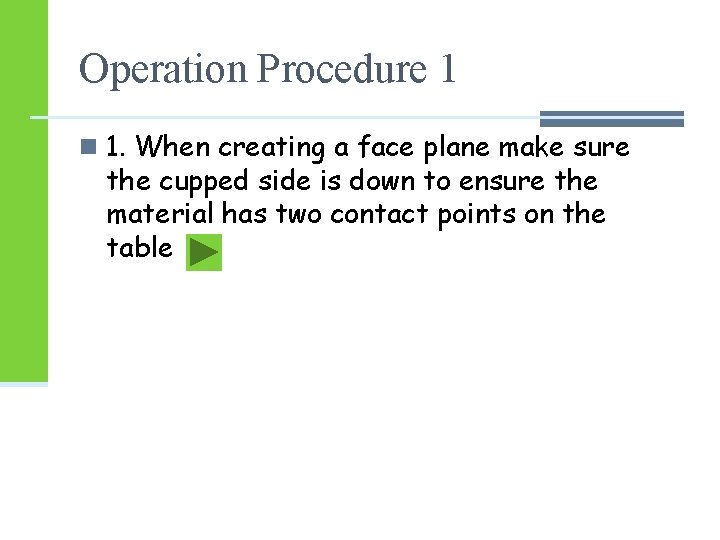

Operation Procedure 1 n 1. When creating a face plane make sure the cupped side is down to ensure the material has two contact points on the table

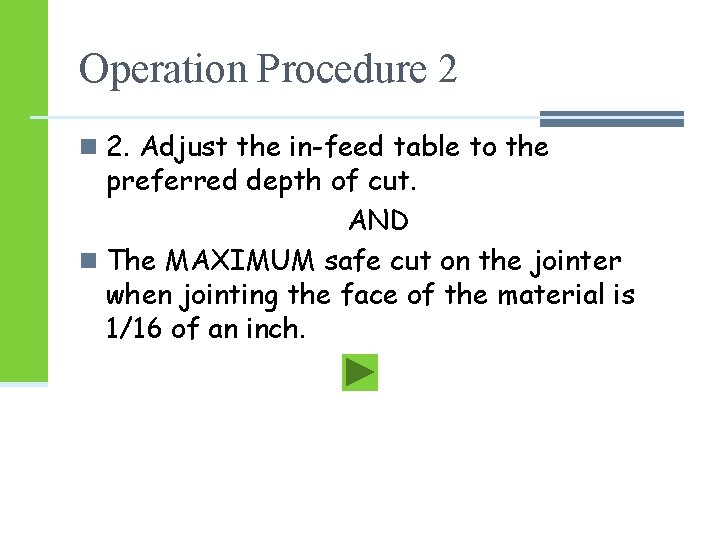

Operation Procedure 2 n 2. Adjust the in-feed table to the preferred depth of cut. AND n The MAXIMUM safe cut on the jointer when jointing the face of the material is 1/16 of an inch.

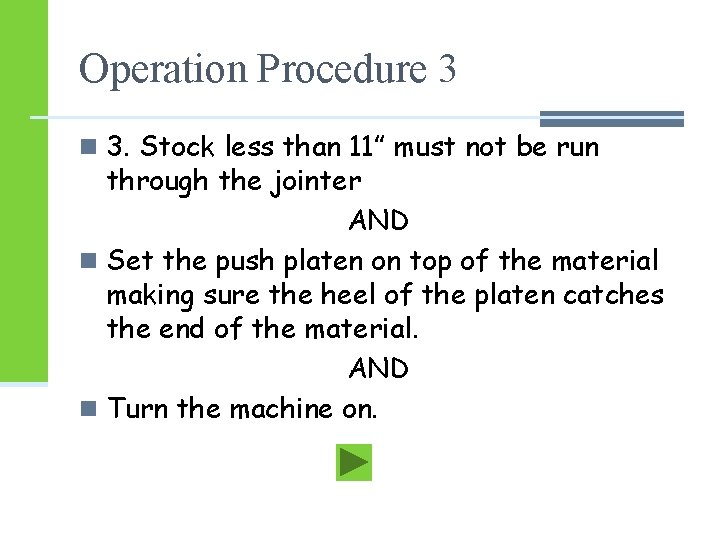

Operation Procedure 3 n 3. Stock less than 11” must not be run through the jointer AND n Set the push platen on top of the material making sure the heel of the platen catches the end of the material. AND n Turn the machine on.

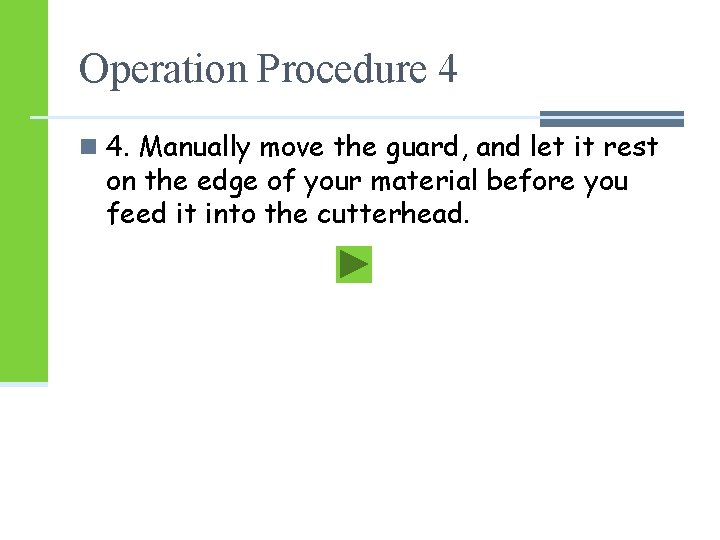

Operation Procedure 4 n 4. Manually move the guard, and let it rest on the edge of your material before you feed it into the cutterhead.

Operation Procedure 5 n 5. Keep both hands on the push platen as you slowly slide the material through the cutterhead. n Slide the material across the table until the guard retracts against the fence.

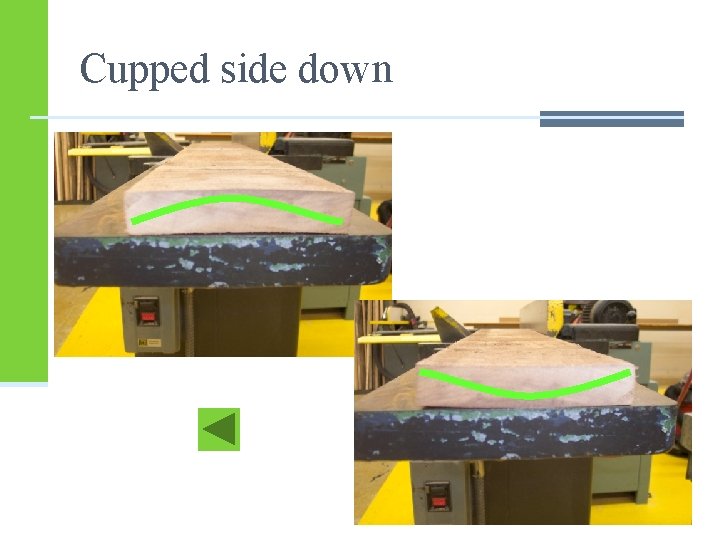

Cupped side down

Depth Adjustment 1. 2. 3.

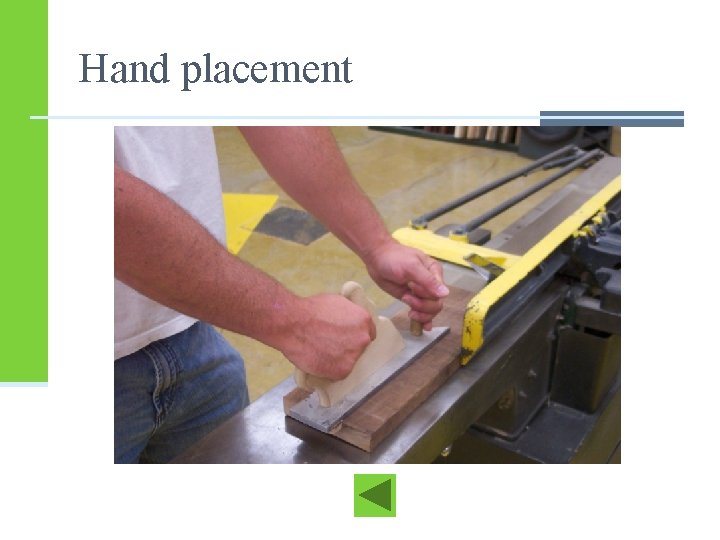

Hand placement

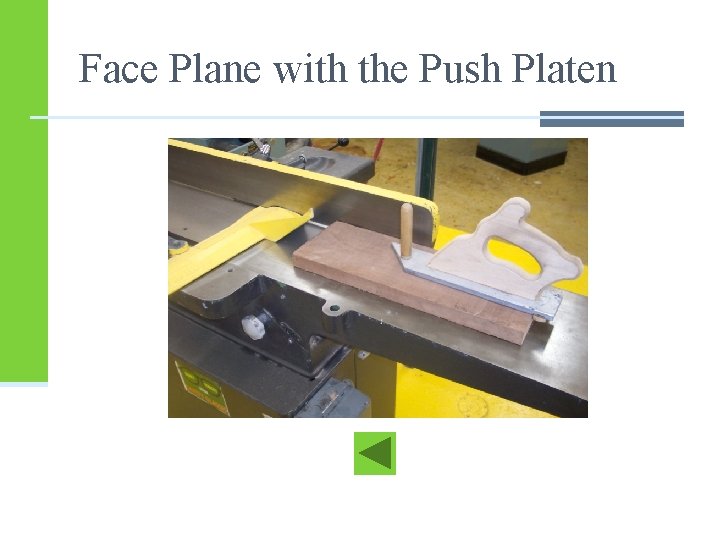

Face Plane with the Push Platen

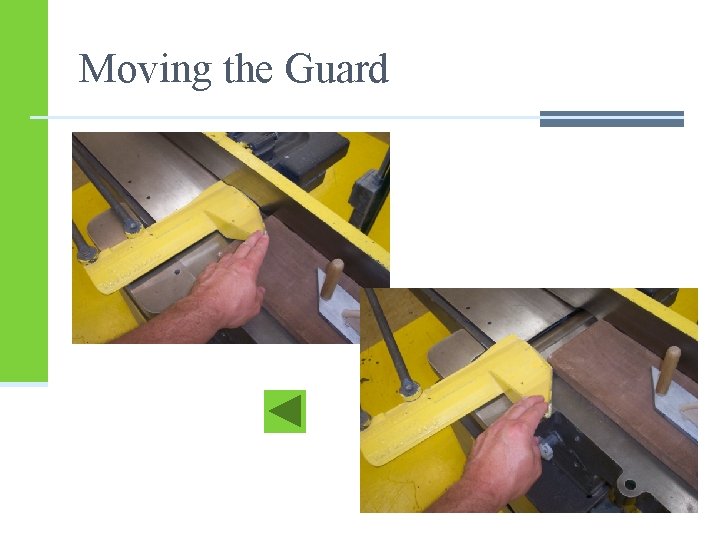

Moving the Guard

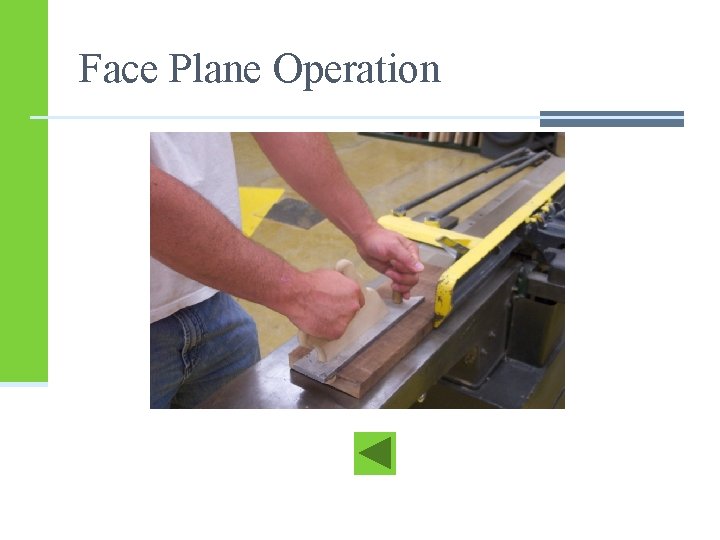

Face Plane Operation

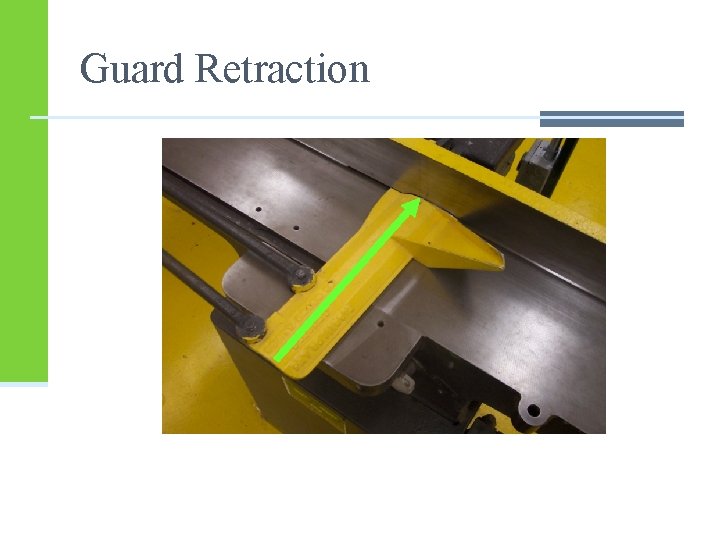

Guard Retraction

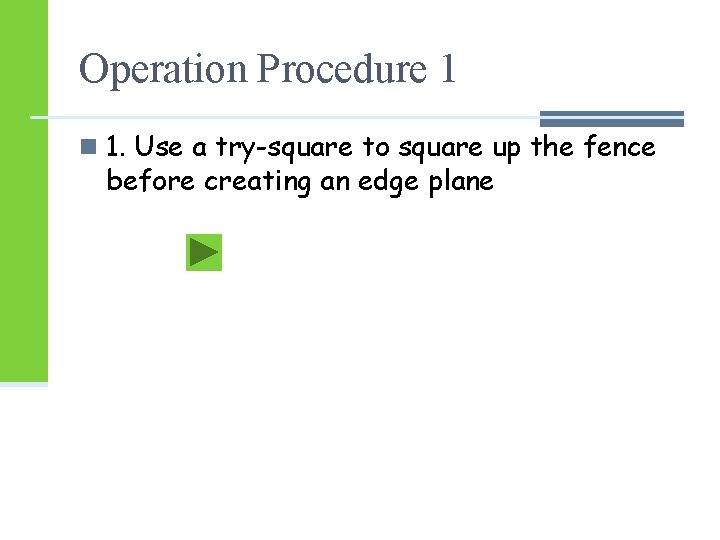

Operation Procedure 1 n 1. Use a try-square to square up the fence before creating an edge plane

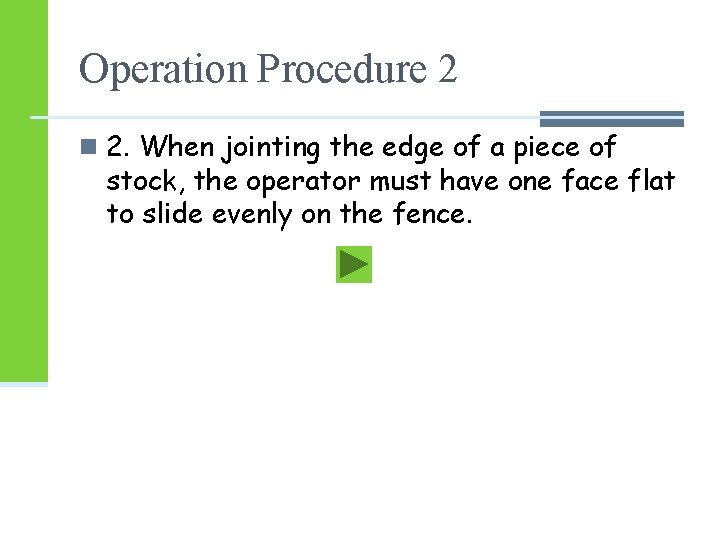

Operation Procedure 2 n 2. When jointing the edge of a piece of stock, the operator must have one face flat to slide evenly on the fence.

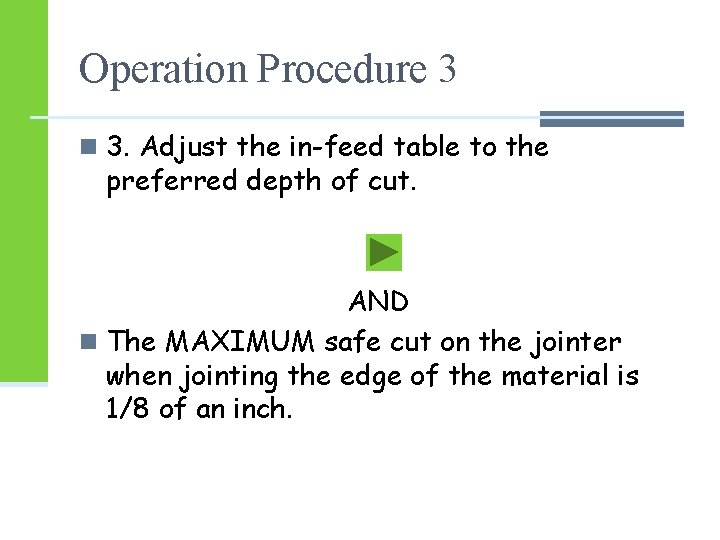

Operation Procedure 3 n 3. Adjust the in-feed table to the preferred depth of cut. AND n The MAXIMUM safe cut on the jointer when jointing the edge of the material is 1/8 of an inch.

Operation Procedure 4 n 4. Turn the machine on n Keep the material tight against the fence, feeding the material through with both hands on the material. n When your hands become close to the cutterhead, jump your hands over one by one.

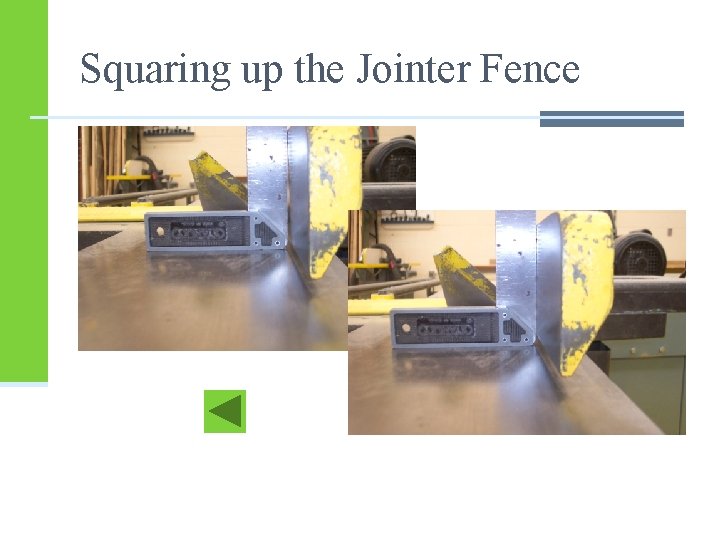

Squaring up the Jointer Fence

One Face Flat

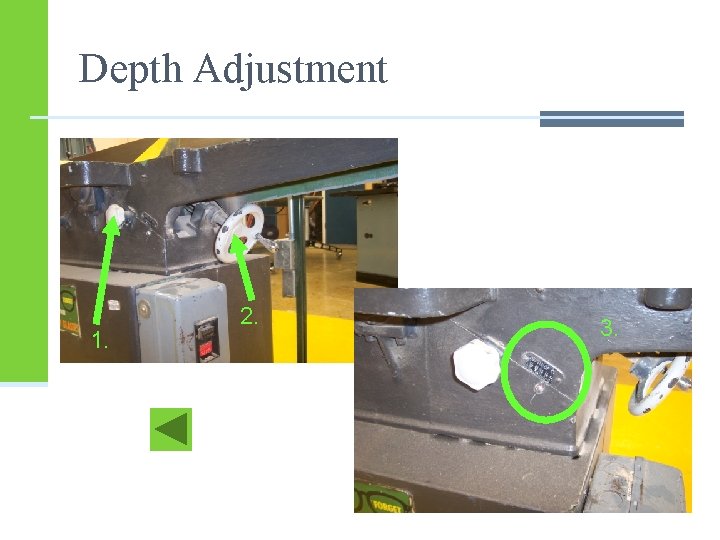

Depth Adjustment 1. 2. 3.

Edge Plane Operation
