John Grotzinger Thomas H Jordan Frank Press Raymond
- Slides: 32
John Grotzinger, Thomas H. Jordan, Frank Press, Raymond Siever, Understanding Earth Fifth Edition Chapter 6: Metamorphic Rocks Copyright © 2007 by W. H. Freeman & Company

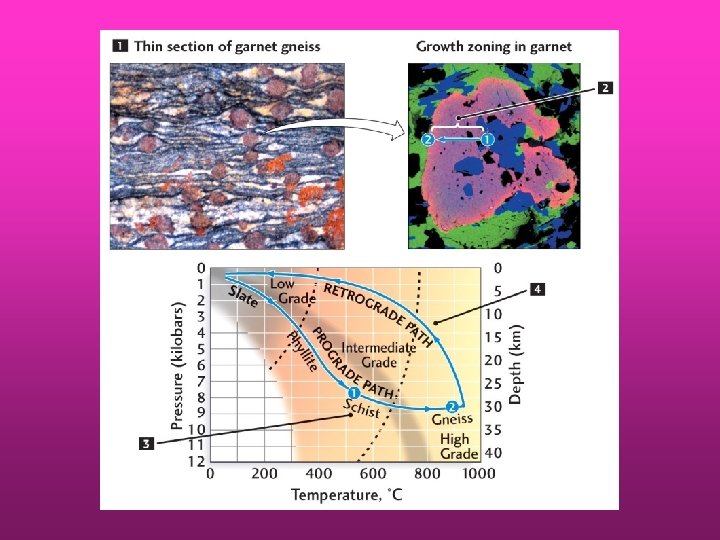

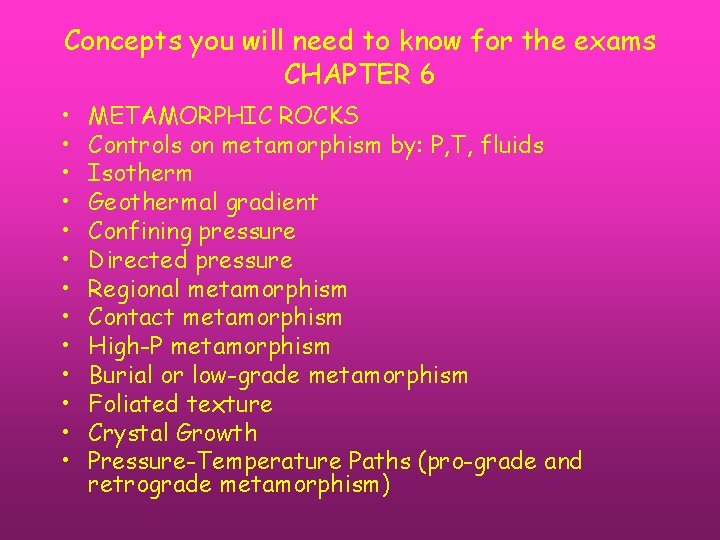

Concepts you will need to know for the exams CHAPTER 6 • • • • METAMORPHIC ROCKS Controls on metamorphism by: P, T, fluids Isotherm Geothermal gradient Confining pressure Directed pressure Regional metamorphism Contact metamorphism High-P metamorphism Burial or low-grade metamorphism Foliated texture Crystal Growth Pressure-Temperature Paths (pro-grade and retrograde metamorphism)

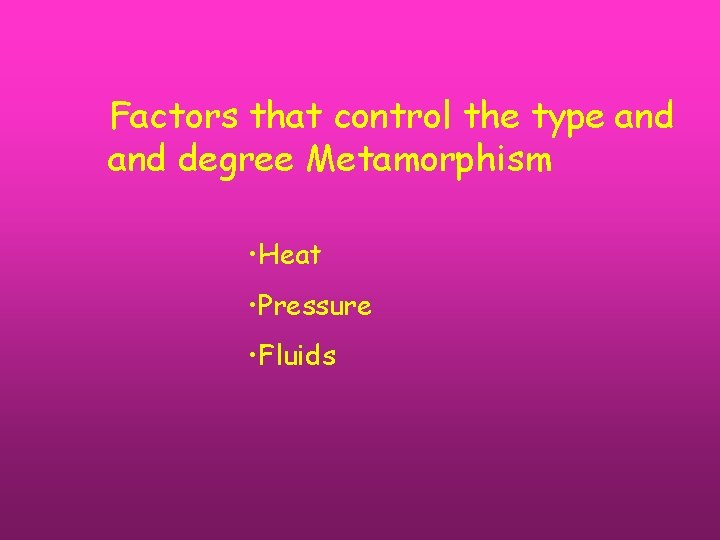

Factors that control the type and degree Metamorphism • Heat • Pressure • Fluids

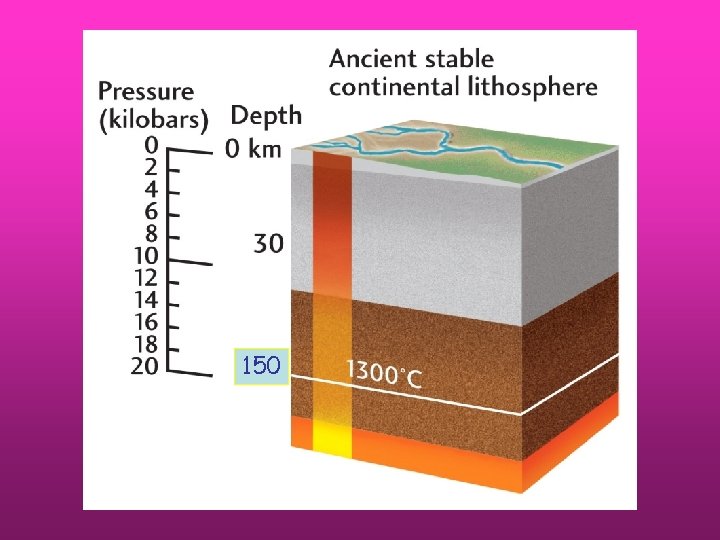

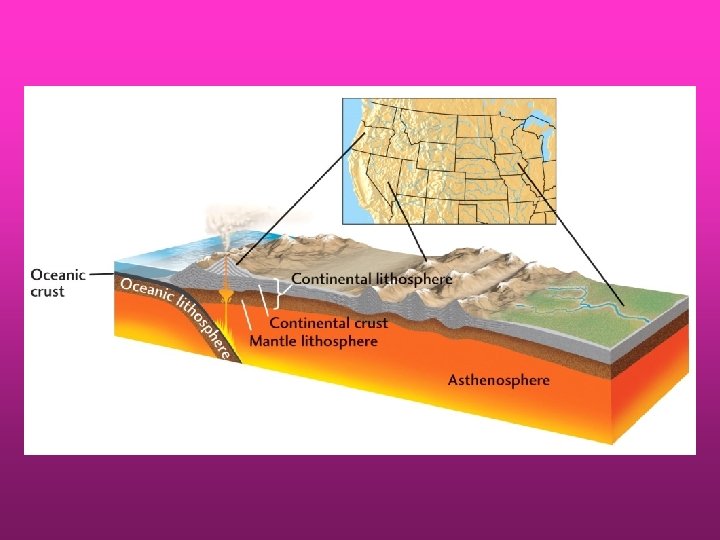

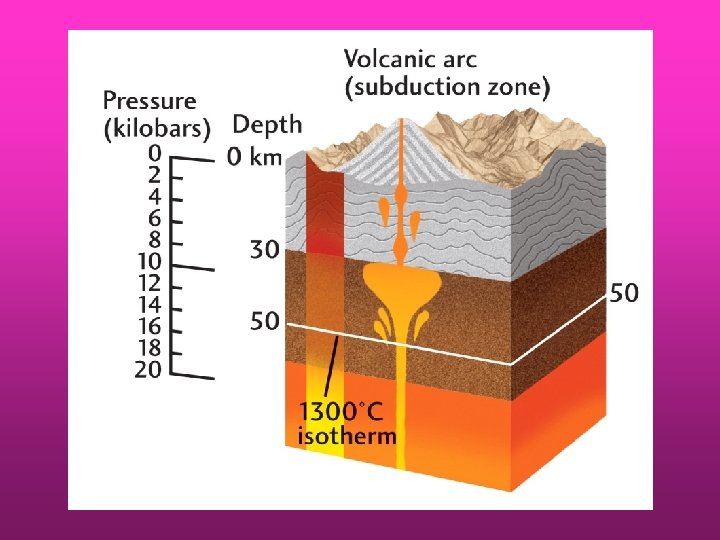

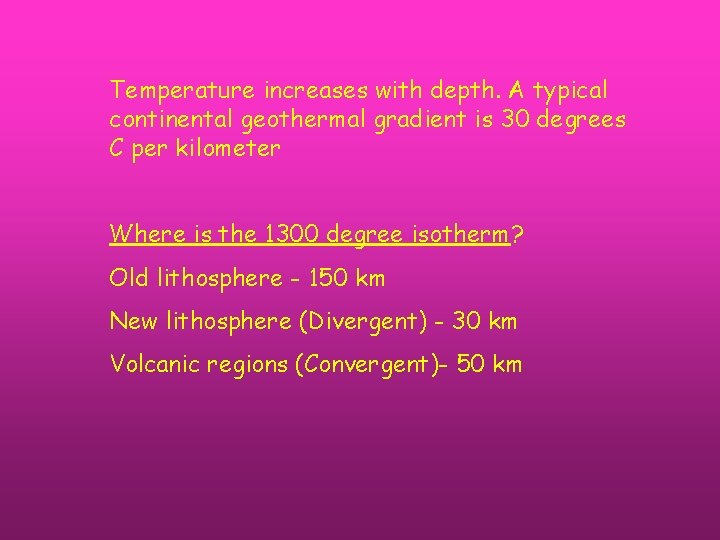

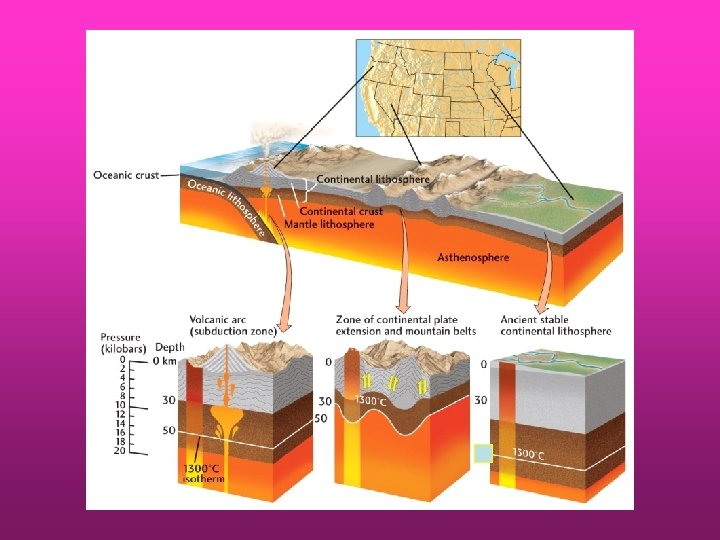

Temperature increases with depth. A typical continental geothermal gradient is 30 degrees C per kilometer Where is the 1300 degree isotherm? Old lithosphere - 150 km New lithosphere (Divergent) - 30 km Volcanic regions (Convergent)- 50 km
150
An isotherm is … 1. The melting temperature of granite 2. A line or surface that joins points of equal temperature 3. The temperature at which rain precipitates as microscopic ice crystals in the atmosphere
Confining Pressure Confining pressure is the same in all directions (incl. 3 rd dimension) In water, that is one ton per m 2 each meter of depth 10 m ~ 1 atm or 10 tons of pressure Confining pressure implies that there is little more in one direction that in the other directions.

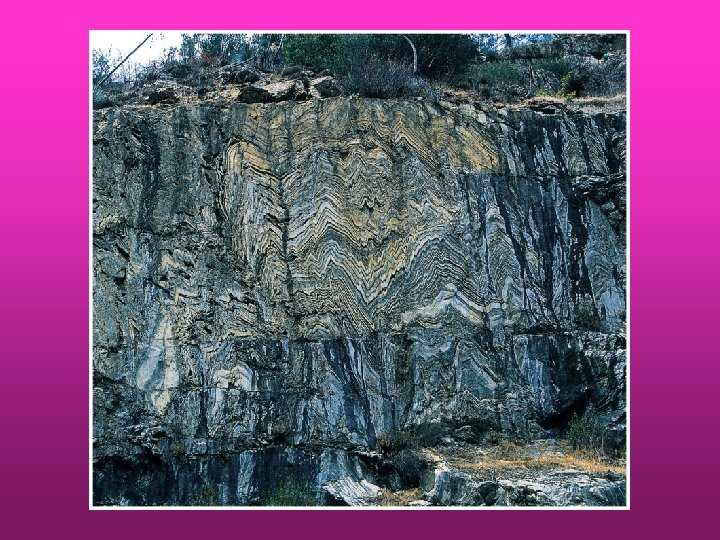

Directed Pressure When one pressure is greater than the other three (incl. 3 rd dimension) If directed pressure is great enough rocks can break and/or fold
Fluids • Accelerate chemical reactions • Dissolve ions and move them from one mineral to another • (A change in rock composition by fluid transport is metasomatism) metasomatism

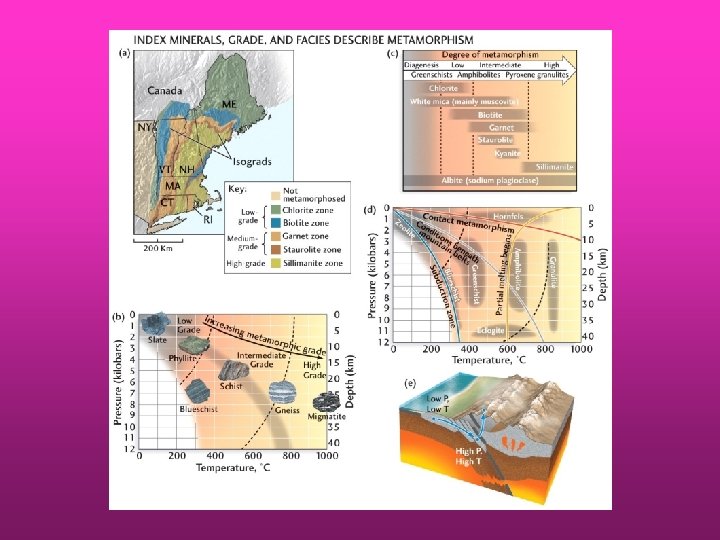

TYPES OF METAMORPHISM Pressure (Impacts) Subduction Zones e Regional Metamorphism d ra Burial e r c g g in s a In Mountain belts (low-P, low-T), low-grade Fluids metasomatism) Contact Temperature

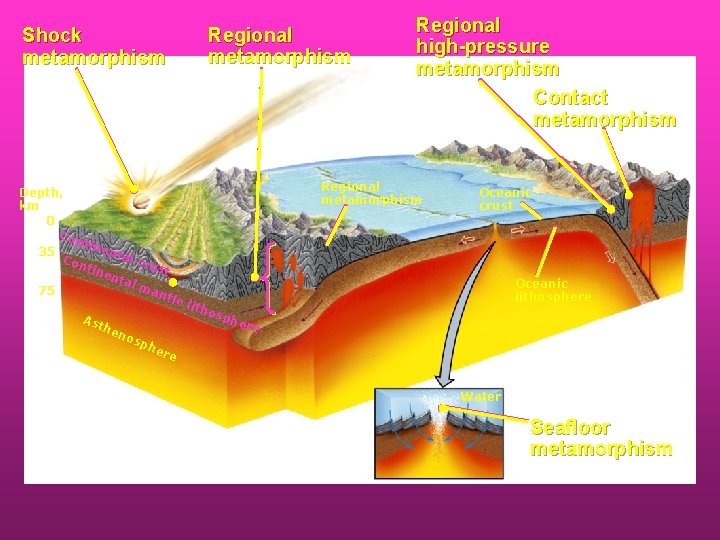

Types of metamorphism shock, contact, regional, and burial

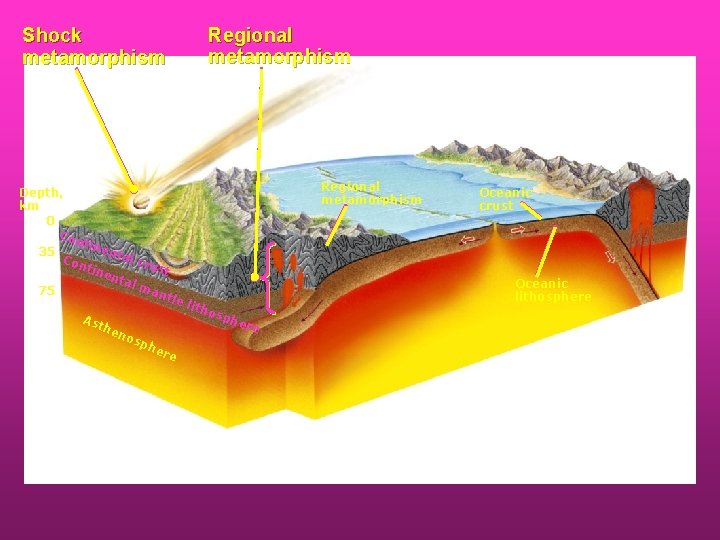

Shock metamorphism Depth, km 0 Con tine nta 35 l cr Con ust tin ent al m 75 ant le l ith osp As her the e no sp he re Regional metamorphism Oceanic crust Oceanic lithosphere
Shock metamorphism Regional metamorphism Depth, km 0 Con tine nta 35 l cr Con ust tin ent al m 75 ant le l ith osp As her the e no sp he re Regional metamorphism Oceanic crust Oceanic lithosphere
Shock metamorphism Regional metamorphism Depth, km 0 Con tine nta 35 l cr Con ust tin ent al m 75 ant le l ith osp As her the e no sp he re Regional high-pressure metamorphism Regional metamorphism Oceanic crust Oceanic lithosphere
Shock metamorphism Regional metamorphism Depth, km 0 Con tine nta 35 l cr Con ust tin ent al m 75 ant le l ith osp As her the e no sp he re Regional high-pressure metamorphism Contact metamorphism Regional metamorphism Oceanic crust Oceanic lithosphere
Shock metamorphism Regional metamorphism Depth, km 0 Con tine nta 35 l cr Con ust tin ent al m 75 ant le l ith osp As her the e no sp he re Burial metamorphism Regional high-pressure metamorphism Contact metamorphism Regional metamorphism Oceanic crust Oceanic lithosphere
Shock metamorphism Regional metamorphism Depth, km 0 Con tine nta 35 l cr Con ust tin ent al m 75 ant le l ith osp As her the e no sp he re Regional high-pressure metamorphism Contact metamorphism Regional metamorphism Oceanic crust Oceanic lithosphere Water Seafloor metamorphism

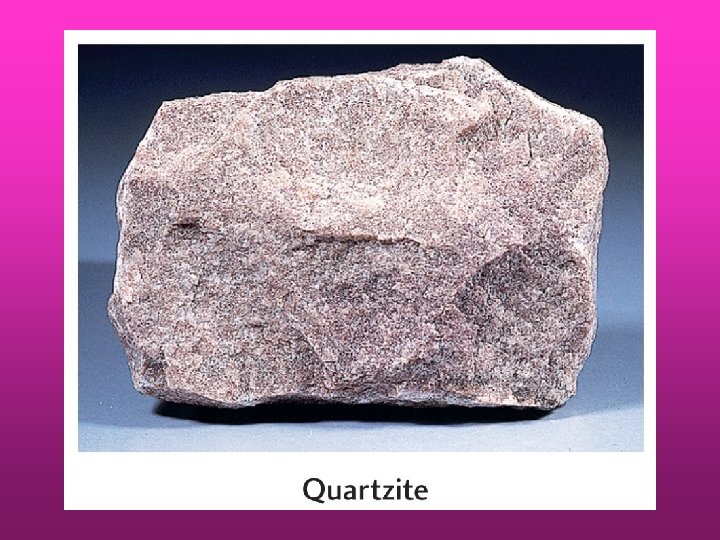

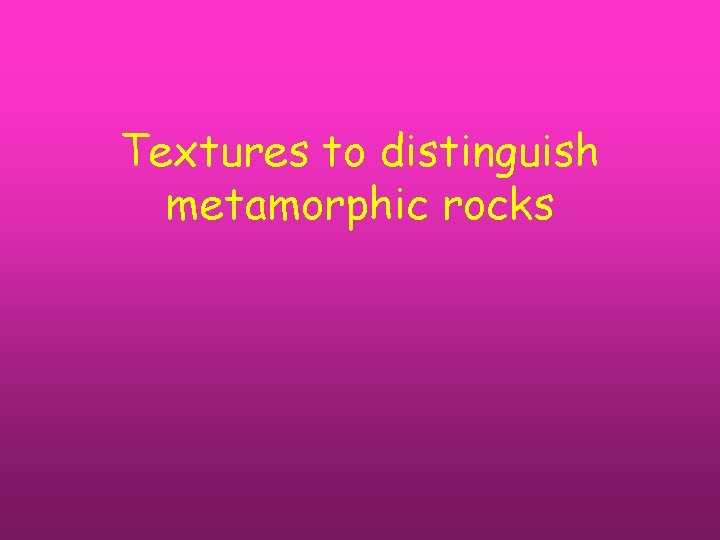

Textures to distinguish metamorphic rocks

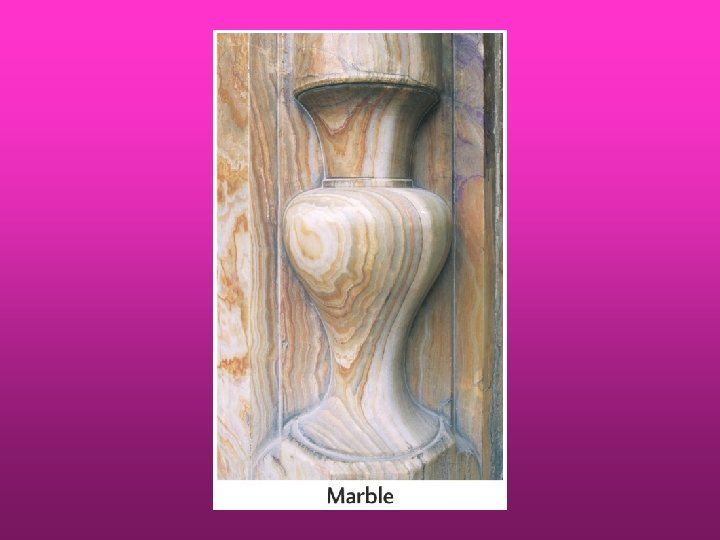

The non-metamorphic equivalent to marble is limestone? 1. True 2. False
