John Grotzinger, Thomas H. Jordan Frank Press and Raymond Siever Understanding Earth Fifth Edition Chapter 8: The Rock Record and the Geologic Time Scale Copyright © 2007 by W. H. Freeman & Company

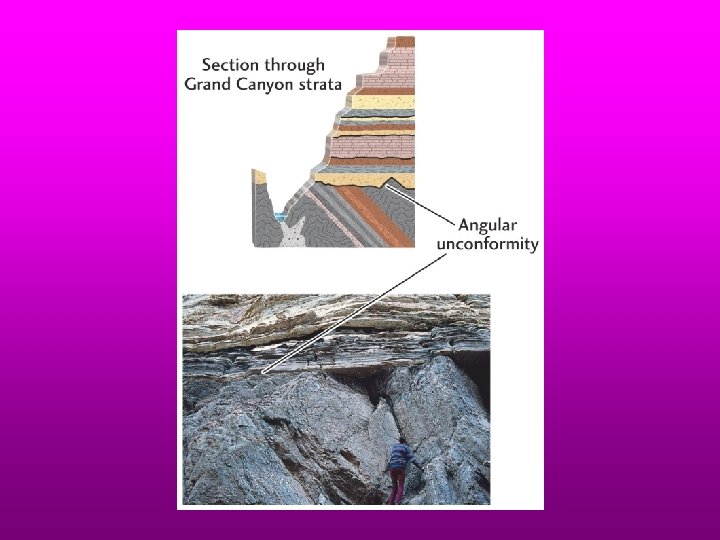

Concepts you will need to know for the exams CHAPTER 8 Geologic Time Scale Relative age Absolute age Principle of original horizontality Principle of superposition Principle of cross-cutting relationahips Unconformity Angular unconformity Disconformity Half-life Geologic Time Scale

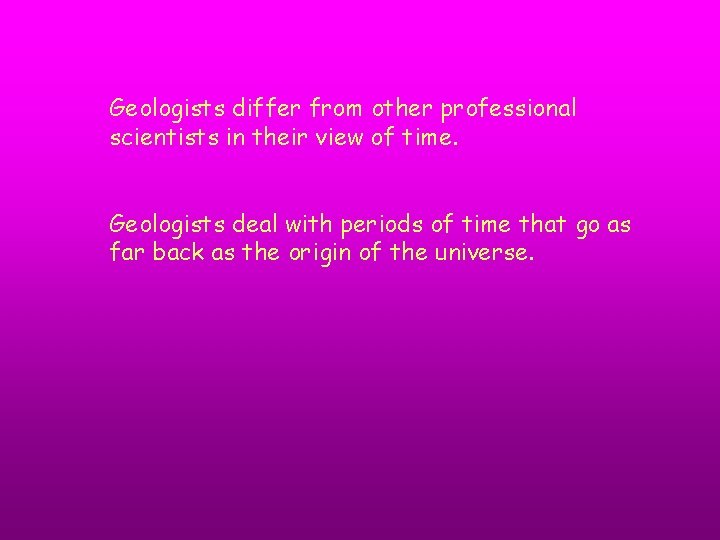

Geologists differ from other professional scientists in their view of time. Geologists deal with periods of time that go as far back as the origin of the universe.

Before we had the ability to read the “atomic clocks” of nature, geologists used the concept of relative ages. We can see changes in the landscape over time. We can see one type of organism replace another type of organism through the fossilized remains of these changes over time.

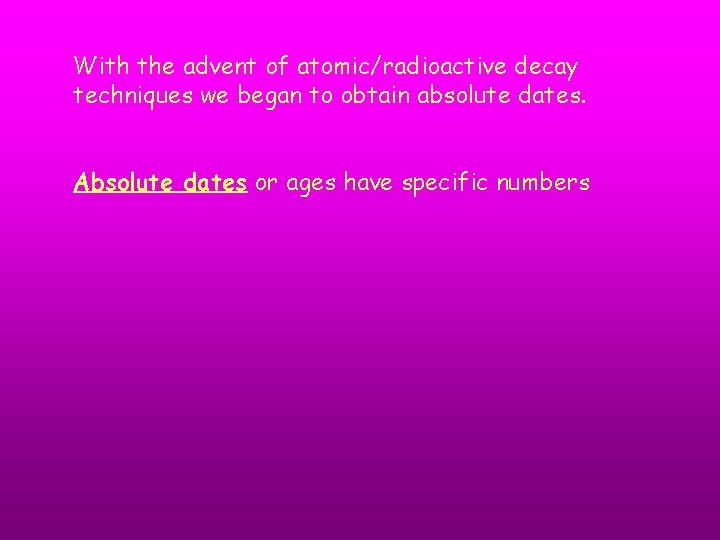

With the advent of atomic/radioactive decay techniques we began to obtain absolute dates. Absolute dates or ages have specific numbers

Relative dating has been done in the past through the study of layers of sedimentary rock (aka “the field of stratigraphy”)

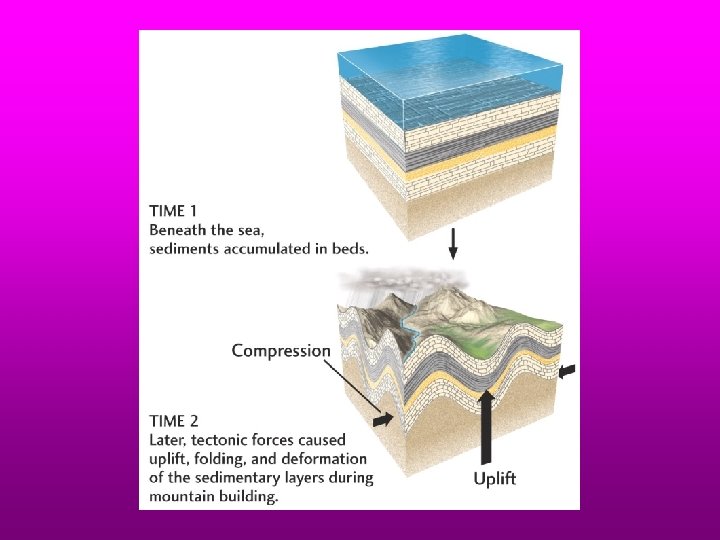

Principle of Original Horizontality sediments deposited innearly flat layers. Crossbedded layers are contained within overall flat beds. If layers are faulted (broken) or folded it means that they were deformed AFTER sediments were deposited.

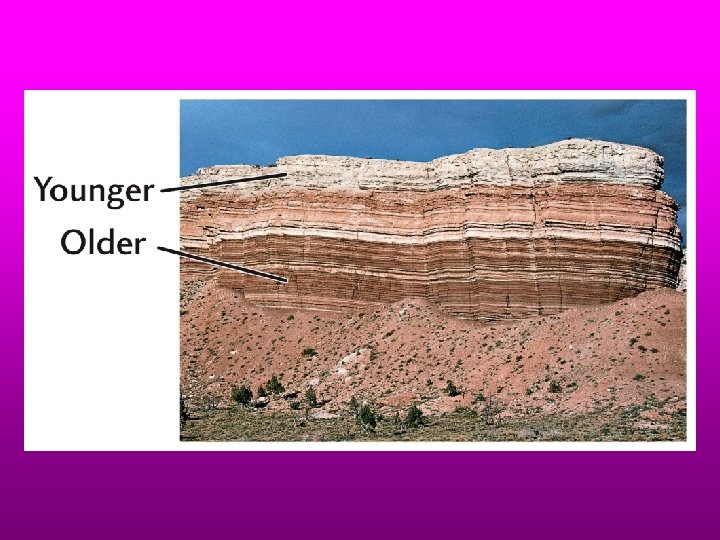

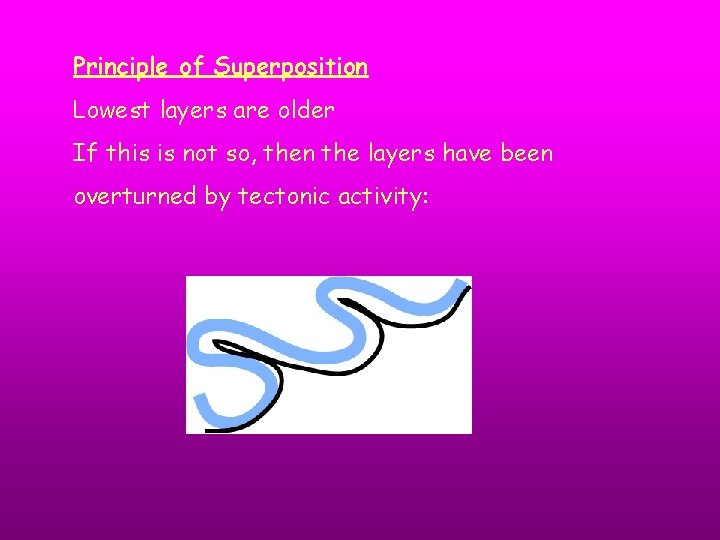

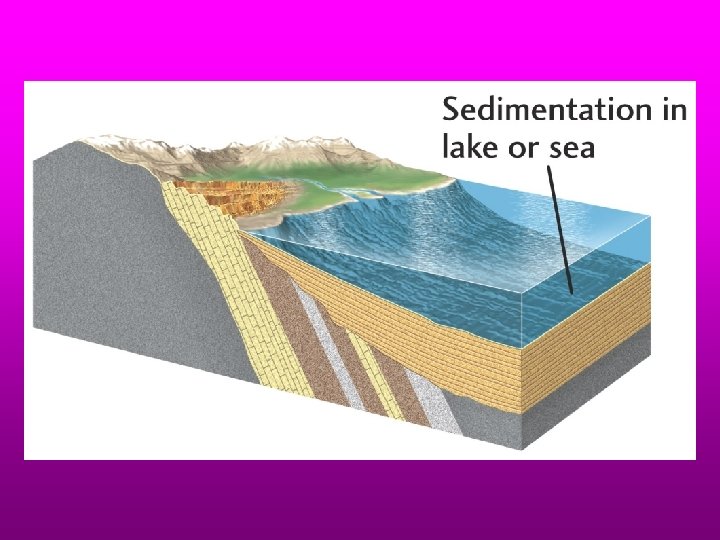

Principle of Superposition Lowest layers are older If this is not so, then the layers have been overturned by tectonic activity:

There are limitations for using stratigraphy to keep time because, (1) sedimentation rates are variable e. g. Mississippi can deposit 1 m of sediment in 1000 y The deep ocean may deposit 1 mm / 1000 years We need to estimate time in another way and be able to recognize when the representation of time via sediments is incomplete. Paleontology is the study of ancient life from fossilized remains.

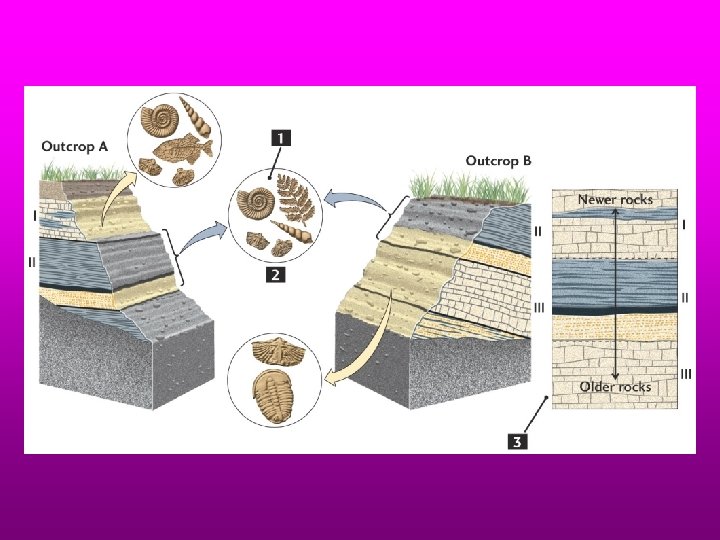

William Smith in the 19 th century was an engineer who noted that similar rocks in different areas had similar fossils and that different rock types had different fossils. He made a composite (ideal, pieced-together) stratigraphic succession as in the following figure

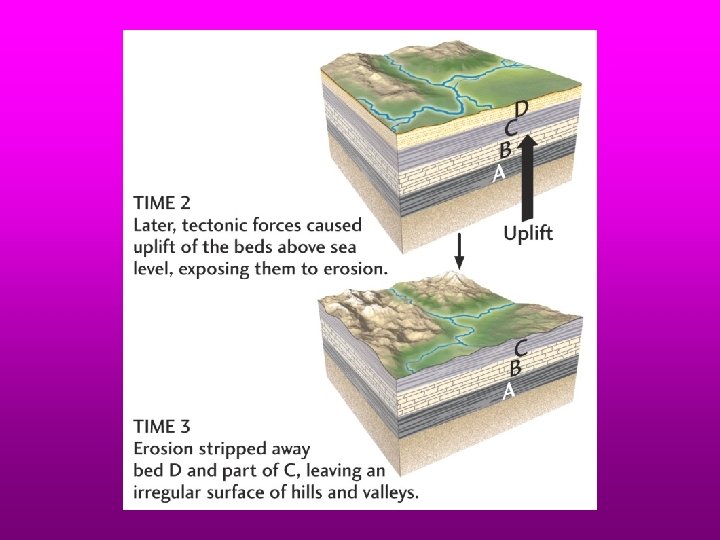

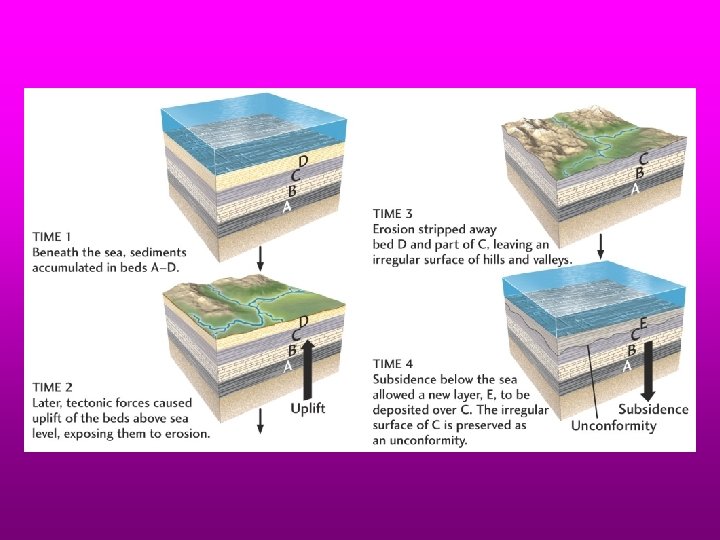

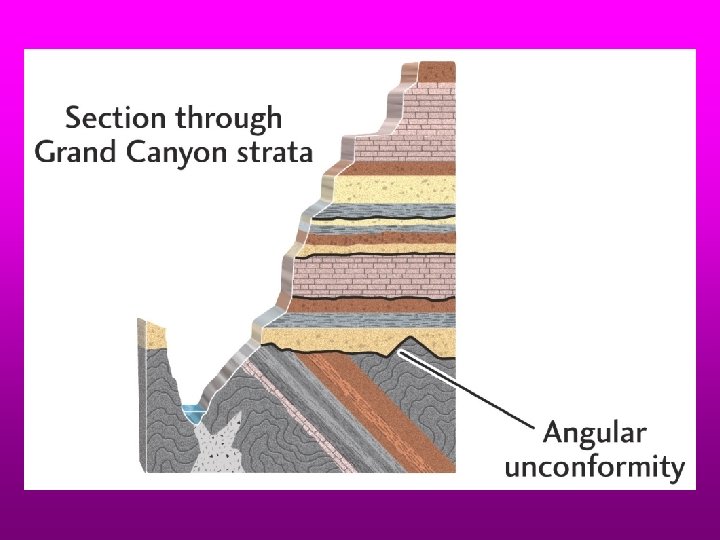

Most of geologic time goes unrecorded Sometimes NO SEDIMENT is DEPOSITED over an interval of time (hiatus) Other times sediment is eroded away. This is happening here: Mississippi Valley is filling whereas the higher ground is being eroded away.

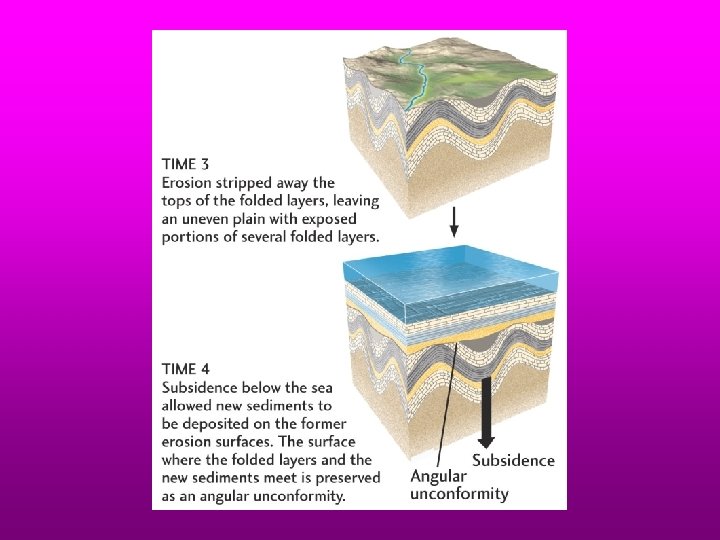

An unconformity in which the layers above an erosional surface are parallel to the layers below is known as a DISCONFORMITY

One way of producing a disconformity is to change global sea-level by glaciation and glacial melting.

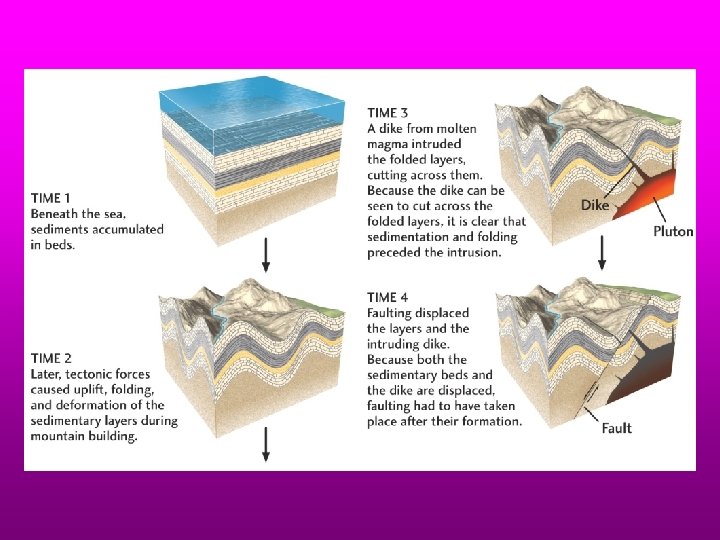

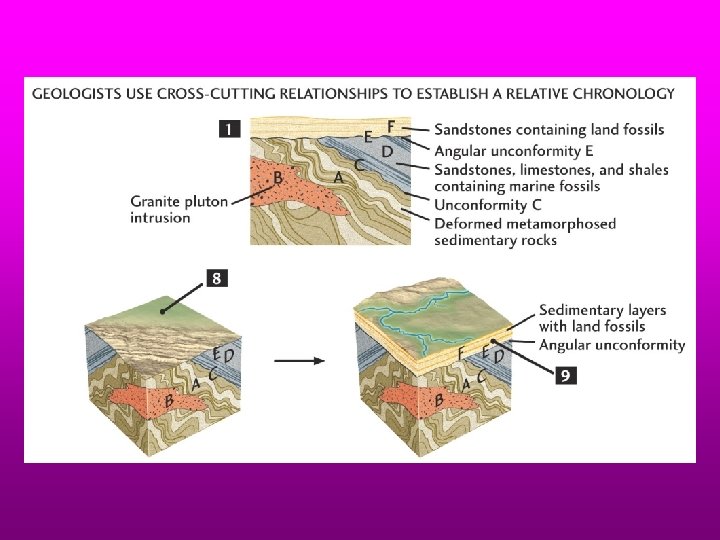

Cross-cutting relationships in sedimentary rocks allow is to date the relative timing of events such as faulting and igneous intrusion

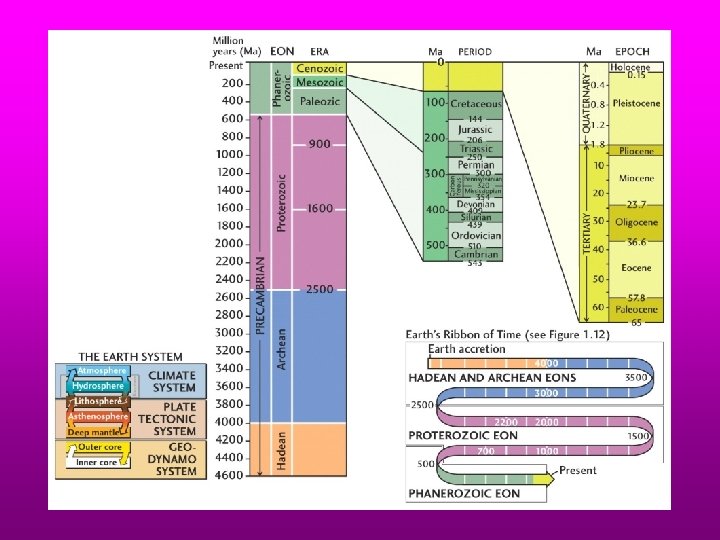

The Geologic Time Scale …. . is still under cosntruction Life began only 2500 Ma

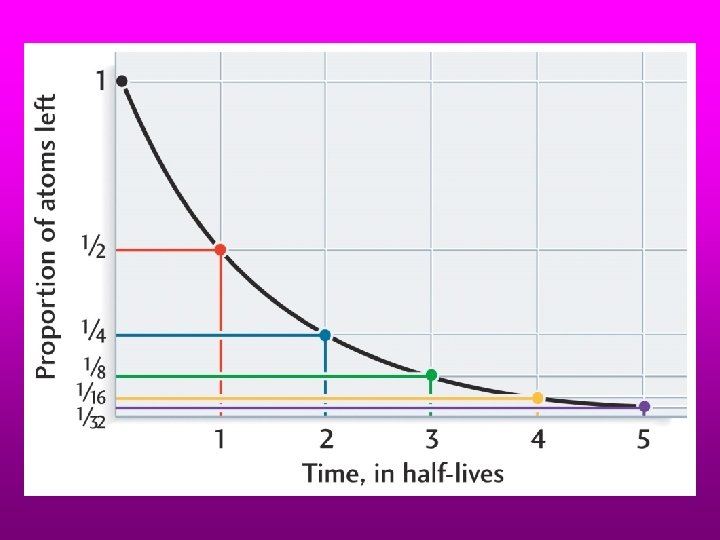

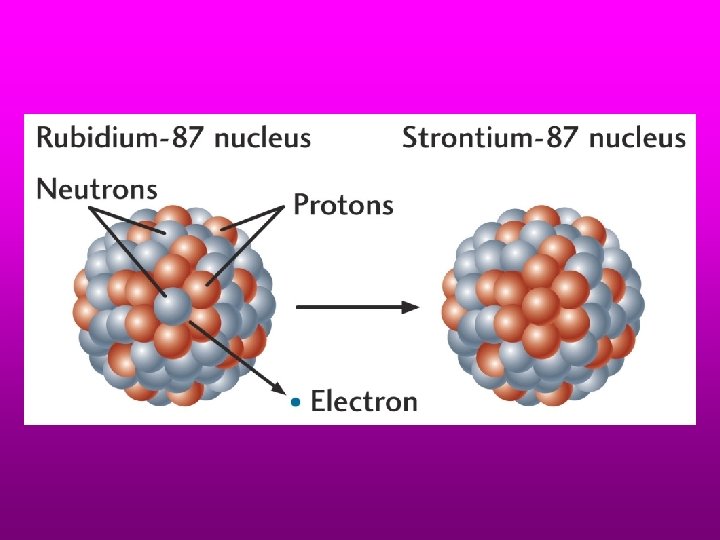

Radioactive Dating Methods

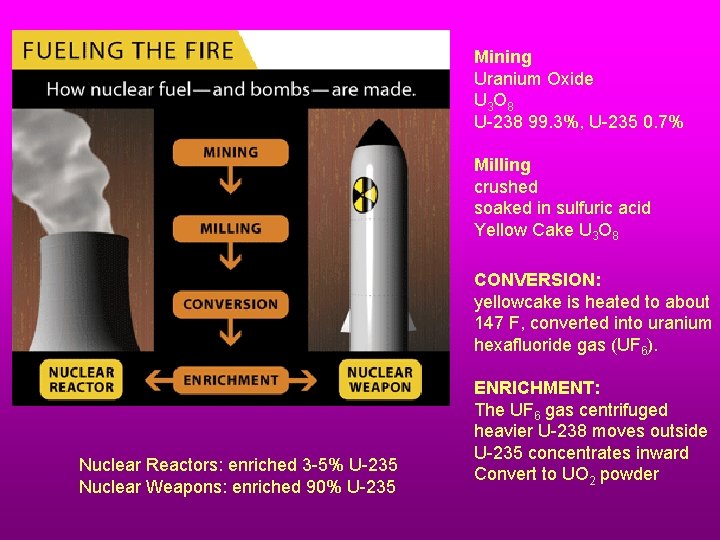

Mining Uranium Oxide U 3 O 8 U-238 99. 3%, U-235 0. 7% Milling crushed soaked in sulfuric acid Yellow Cake U 3 O 8 CONVERSION: yellowcake is heated to about 147 F, converted into uranium hexafluoride gas (UF 6). Nuclear Reactors: enriched 3 -5% U-235 Nuclear Weapons: enriched 90% U-235 ENRICHMENT: The UF 6 gas centrifuged heavier U-238 moves outside U-235 concentrates inward Convert to UO 2 powder

All lead, except 204 Pb (1. 4%), is the end product of a complex radioactive decay. The most common isotope of Lead is: 208 Pb 52. 4% (stable)

The END …. . For now
