Job Reference 468451 Rev 1 Date Dec14 205

Job Reference: 46/8451 Rev: 1 Date: Dec-14 205 HOLLAND PARK ACCESS AND LOGISTICS 1 of 46

INDEX • • • Directions to site & Holding areas. Access for pedestrians and vehicles. Crane radius drawing. Electronic booking in system & Waste Management. Typical temp services. Material distribution. Internal walls to be left down. External Elevation Access Gantry drawing Hoist and Beam Hoist 2 of 46

Directions to site & delivery vehicle holding area’s 3 of 46

BY Rail & Tube Shepherds Bush on Central Line or Over ground Walk From Shepherds Bush station Uxbridge Road Continue along Uxbridge Road for 4 metres Take a slight left on to Holland Park Roundabout, continue for 130 metres Continue along Holland Park Avenue for 50 metres Crossing over at the lights, then turn right back towards shepherds bush green Walking under the gantry, and around the corner onto Holland road The site entrance will then be on your left where there is a turnstile. BY ROAD From A 40 Start out on Western Avenue towards Central London, Shepherds Bush At Savoy Circus continue forward onto Westway Branch left, then at roundabout take the 2 nd exit onto the A 3220 At White City Junction continue forward At Holland Park Roundabout take the 2 nd exit onto the A 3220 Arrive on Holland Road From M 1 End of Motorway (junction 1) At roundabout take the 3 rd exit onto the A 406 towards Harrow/ Kilburn A 5 North Circular West At roundabout take the 2 nd exit onto the A 406 towards Wembley Merge onto the A 406 At Stonebridge Park continue forward onto the A 406 towards Ealing At Hanger Lane roundabout take the 2 nd exit, then merge onto the A 40 towards Central London Park Royal Underground Station At Savoy Circus continue forward onto Westway Branch left, then at roundabout take the 2 nd exit onto the A 3220 At White City Junction continue forward At Holland Park Roundabout take the 2 nd exit onto the A 3220 Arrive on Holland Road PLEASE NOTE: THERE IS NO PARKING ON SITE 4 of 46

HOLDING AREA 1 5 of 46

The parkway A 312 – approx. 10 miles and 45 minutes from site in peak hours traffic. For deliveries coming from the M 25 / M 4 junction there are two lay-bys opposite each other on the A 312 just off junction 3 of the M 4. these are accessed by turning right from the M 4 onto Parkway. The southbound lay-by is approximately 300 m down on the left hand side. On the opposite side of the road accessed via a roundabout junction at the parkway / Bath road (A 4) junction there is a similar sized lay by. HOLDING AREA 2 6 of 46

HOLDING AREA 3 7 of 46

Access for Vehicles & Pedestrians 8 of 46

T Drying Rooms/ Toilets (GF) 9 of 46 Site Office (BAS) OUT DAB OUN M R ESS FRO OU ACCESS VEHICLES W IN AY ACC BAY DING LOA Av en ue Female W/C (GF) Canteen (BAS) ark PE 02 d P llan Site Entrance PE 01 Ho Pedestrian Entrance Hoist Turnstile Pedestrian footpath Tower Crane air lock PE 03 at w r a Cle rrace e T r e Site Accommodation Tower Crane Gate Site Accommodation Hoarding KEY Gate Hoarding Pedestrian access KEY

d 10 of 46 n lla o H oa R d Pedestrian route to site Drying Rooms/ Toilets (GF) Site Office (BAS) llan Ho d P ark Av en ue Female W/C (GF) Canteen (BAS) Turnstile Hoist rw Clea Ter ater Pedestrian Route to site accommodation race Site Accommodation Gate Hoarding KEY

Crane Radius Drawing 11 of 46

CRANE RADIUS DRAWING LOADIN G BAY 12 of 46

Electronic Booking in system & Waste Management (Madigan Gill) 13 of 46

Delivery Booking in System with Madigan Gill - Site office provides a white board with written down visually site deliveries to come. - Website where to book in deliveries http: //deliver. madigangill. co. uk/admin/diary. php 14 of 46

15 of 46

16 of 46

17 of 46

18 of 46

19 of 46

20 of 46

21 of 46

22 of 46

23 of 46

24 of 46

25 of 46

26 of 46

27 of 46

28 of 46

Waste Management Groundwork's/Concrete/Rebar disposal to site, is the responsibility of Modebest. Hard-core/masonry skins wills be produced by SCL. It is then the sub-contractors responsibility to place any debris into these skips. Waste/rubbish collection facilities will be positioned on each level of each block. The bins will be collected from these locations and taken to the compactor/skips and removed from site for recycling, then returned to their respective collection points on each floor. There will be clearly labelled wheelie bins, showing which waste stream should be placed in each bin. Any elements that are returnable will be the responsibility of the relevant subcontractor. It is our Logistics Manager’s responsibility to manage and audit this process to ensure returnable items are returned including all/any liaison with Subcontractors. The site will be patrolled at regular intervals to ensure that: • Waste is being put into the bins provided. • Waste is segregated into the correct bin. • Materials are stored in the correct location and are adequately protected. • Items such as pallets, cable drums, packing crates and stillage's which are deemed to form part of the waste stream are returned to the original supplier, at the responsibility of the subcontractor. Transgressions of the site cleanliness regime will result in the offender being issued with a Non-Compliance Notice. Prior to issuing Non-Compliance Notices we will use our reasonable endeavours to highlight the issue to the subcontractor, unless of a health and safety breach. Non-Compliance Notices will be issued utilising a fixed fee contra charge notification system. The system will include the taking of digital photographic evidence and then electronically issuing to the defaulting subcontractors for non-compliance of their cleaning responsibilities. 29 of 46

Material distribution 30 of 46

Material Distribution • • • • Delivery/Collection vehicles only permitted between 8: 00 & 18: 00 from Mon-Fri, due to the planning constraints and consideration of the neighbours. This is a very restricted site, so all materials need to be off loaded & distributed to the correct level promptly. All deliveries will be booked in by the electronic booking in system, which also allows booking of, beam hoist , hoist or crane. Delivery vehicles must keep to their booked in time slot or they will be turned away. All delivery drivers must be told NOT TO STOP IN THE ROUNDABOUT if they cant pull in to layby they must drive on. Hoist will go from ground to 10 th floor roof with landing on gantry as well. Framework contractor will require half of the 5 th floor slab as his storage area. Floors will have to have walls left down for movement of materials (see following drawings) all bulky materials for the remainder of works in these flats needs to be loaded out before walls are built. Materials for 5 th floor can be landed on 5 th floor roof by crane till crane goes. All roof materials will be off loaded by crane/hoist. All precast concrete Mullions will be off loaded & installed by main crane and spider crane. All vertical transportation is by SCL i. e. hoist drivers and crane driver only – Subcontractors need to provide competent / trained men to sling and move material into and out of hoists. The gantry has been designed so materials can be wheeled from the beam hoist to the hoist, subcontractors must provided the means to wheel these materials. The ground floor will be able to be accessed from the road layby in certain circumstances through the pavement air lock gates, if it is agreed with SCL management that a subcontractor will use this route then the subcontractor must provide sufficient operatives to operate the air locks safely. Small delivery vehicles will be able to access the basement via the ramp at the back of the building rigids will not be able to turn the corner to gain access to this ramp. This though, will only be permitted in the last 6 -8 weeks of the project. No materials are to be stored on the gantry, loading platforms or within the vehicle lay by. 31 of 46

PROPOSED DISTRIBUTION OF MATERIALS Material Method of Distribution Metsec Canti deck / Hoist Underfloorheating insulation/ pipework Hoist Screed Pump in designated area/Insulation Hoist. Stud/ Plasterboard Canti deck/ Hoist Bags of filler/ plaster Hoist Electrical items 1 st fix/ 2 nd fix Hoist Mechanical 1 st fix/ 2 nd fix Hoist Blockwork Crane /forklift Windows Hoist Render/ Insulation Hoist Flooring Hoist Kitchen/ appliances Hoist Roof materials Crane/ Hoist Joinery- doors/ skirting/ wardrobes? Hoist Perimeter boarding Hoist Mirrors Hoist Formwork/ decking/ rebar Crane Vanity units Hoist Concrete mullians Main Tower and Spider Crane Tiles/ Grout 32 of 46 Hoist

Internal walls to be left down 33 of 46

Wall left down WALLS LEFT OUT FOR LOADING 1 ST TO 3 RD FLOOR IN IST HO 34 of 46

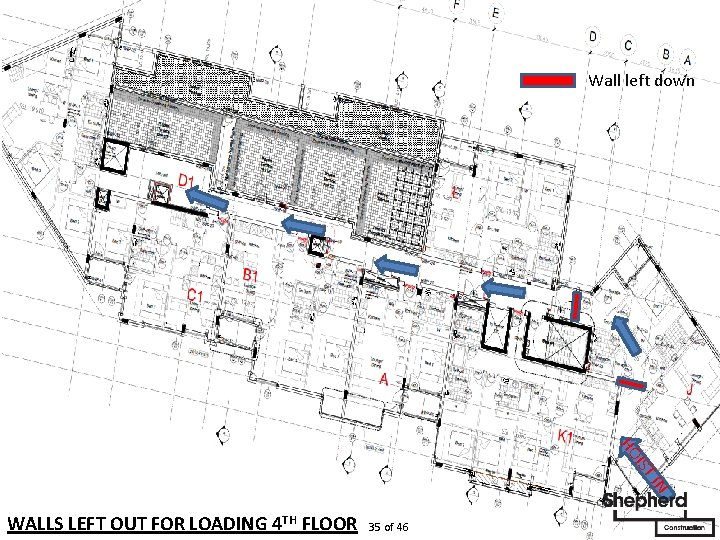

Wall left down IN IST HO WALLS LEFT OUT FOR LOADING 4 TH FLOOR 35 of 46

Wall left down IN IST HO 36 of 46 WALLS LEFT DOWN FOR LOADING 5 TH TO 9 TH FLOOR

External Elevation Access 37 of 46

Approx 6 lin m cantilevered out at 1 st floor level to 5 th Bridge over basement ramp 3 meters clear & 2 meters wide Bridge over at 5 th floor level floor 1 to 4 to have 1 lift per floor for this section of over hand block work This corner to have no legs to ground to allow access to carnet court Projecting bays starts at 1 st & finishes at 5 th bridge over top of bay Projecting bays see other drawing Bridge over at 3 meters clear & wide Scaffold from ground to 8 th floor HO IST Scaffold from Ground to 10 th Scaffold from ground to 5 th Scaffold from ground to 10 th with pedestrian ramp at lower lift GROUND FLOOR Bridge over light well 38 of 46

Scaffold from 3 rd floor to 4 th Scaffold from 4 th floor to 5 th 3 rd – 4 th FLOOR 39 of 46

This section from 3 rd This elevation is shown on another drawing Scaffold from 4 th floor to 5 th 4 TH FLOOR 40 of 46

Scaffold from 4 th floor roof to 10 th Scaffold from 8 th floor roof to 10 th Scaffold from 5 th floor roof to 8 th Projecting bay starts at 2 nd floor & finishes at 6 th floor level beam out Projecting bay starts at 2 nd floor & finishes at 4 th floor level then starts again at 6 th and finishes at 7 th floor level beam out Scaffold from 5 th roof floor to 10 th Scaffold from Ground to 10 th Scaffold from ground to 8 th floor Scaffold from ground to 5 th floor Scaffold from Ground to 4 th Roofs 41 of 46

Gantry Drawing 42 of 46

Hoist Beam Hoist Public Pedestrian Access Under Gantry with external scaffold Built off Gates ue en Av ark d P llan Ho 2 meter long gantry GANTRY 35 meter long gantry with dogleg 43 of 46 Five board wide fan

Beam Hoist & Hoist 44 of 46

BIG E BEAM HOIST 2 ton SWL fixed on Gantry Beam Hoist 45 of 46

Hoist 46 of 46
