JLab 12 Ge V Upgrade Project Upgrade is
JLab 12 Ge. V Upgrade Project Upgrade is designed to build on existing facility: vast majority of accelerator and experimental equipment have continued use Upgrade arc magnets and supplies Add 5 cryomodules 20 cryomodules New Hall CHL upgrade Maintain capability to deliver lower pass beam energies: 2. 2, 4. 4, 6. 6…. Add arc 20 cryomodules Add 5 cryomodules Enhanced capabilities in existing Halls Scope of the project includes: • Doubling the accelerator beam energy • New experimental Hall and beamline • Upgrades to existing Experimental Halls
Solenoid detector for SIDIS at 11 Ge. V Experiment E 12 -10 -006 (JLab 12 Ge. V Upgrade)
So. LID Collaborators From China two spokespersons

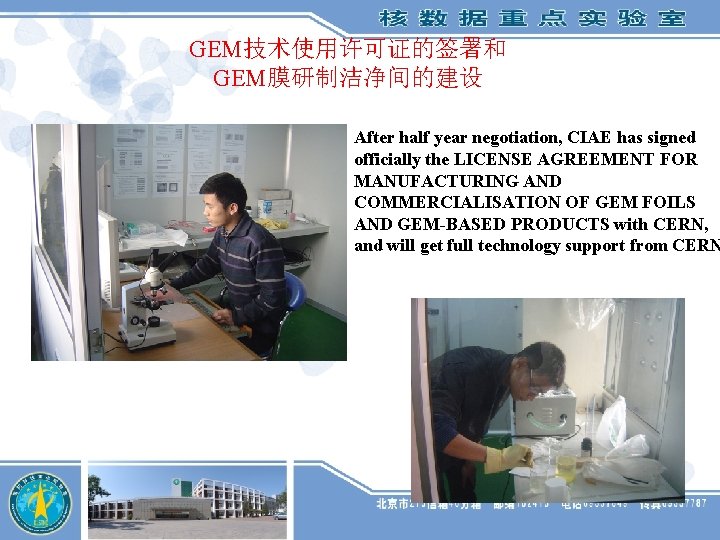

GEM技术使用许可证的签署和 GEM膜研制洁净间的建设 After half year negotiation, CIAE has signed officially the LICENSE AGREEMENT FOR MANUFACTURING AND COMMERCIALISATION OF GEM FOILS AND GEM-BASED PRODUCTS with CERN, and will get full technology support from CERN
Building Collaboration with a PCB Factory Laminator Photoetching machine The PCB factory is located in the south of Beijing. They would like to make the GEM foils for us if we provide the technology support. Etching machine
CIAE GEM Test Lab 2*1024路
CIAE GEM Test Lab Has equipped gas system, electronics and DAQ system.
The installation of RPC (PHENIX Muon Upgrade) 7 batches to BNL
- Slides: 13
