久贸贸易（上海）有限公 Jiu. Mao International (Shanghai) Co. , Ltd. 久贸贸易（上海）有限公司 Jiu. Mao International (Shanghai) Co. , Ltd 联系电话： 021 -51875199 传 真： 021 -34700368 E-mail：maxliu@jiumao. net. cn Website：www. jiumao. net. cn 1

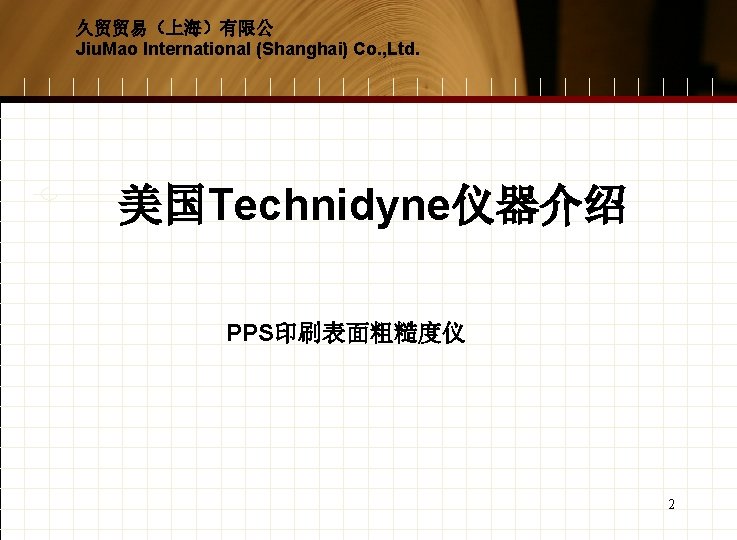

久贸贸易（上海）有限公 Jiu. Mao International (Shanghai) Co. , Ltd. 美国Technidyne仪器介绍 PPS印刷表面粗糙度仪 2

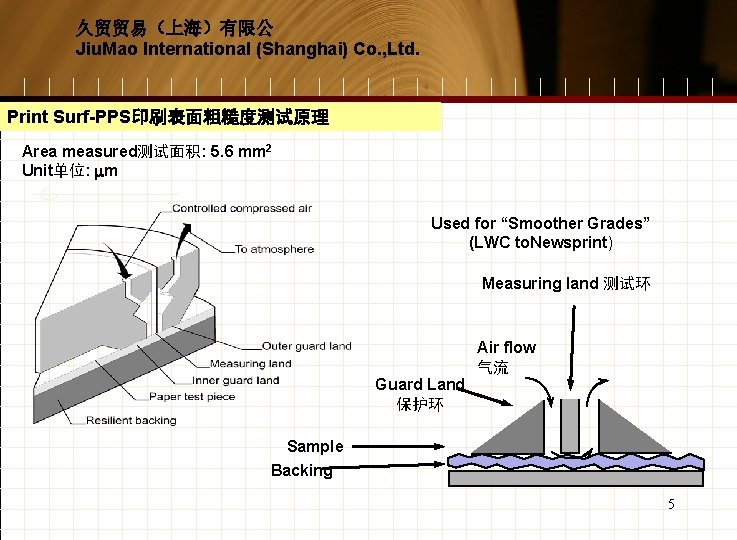

久贸贸易（上海）有限公 Jiu. Mao International (Shanghai) Co. , Ltd. Print Surf-PPS印刷表面粗糙度测试原理 Area measured测试面积: 5. 6 mm 2 Unit单位: mm Used for “Smoother Grades” (LWC to. Newsprint) Measuring land 测试环 Guard Land 保护环 Air flow 气流 Sample Backing 5

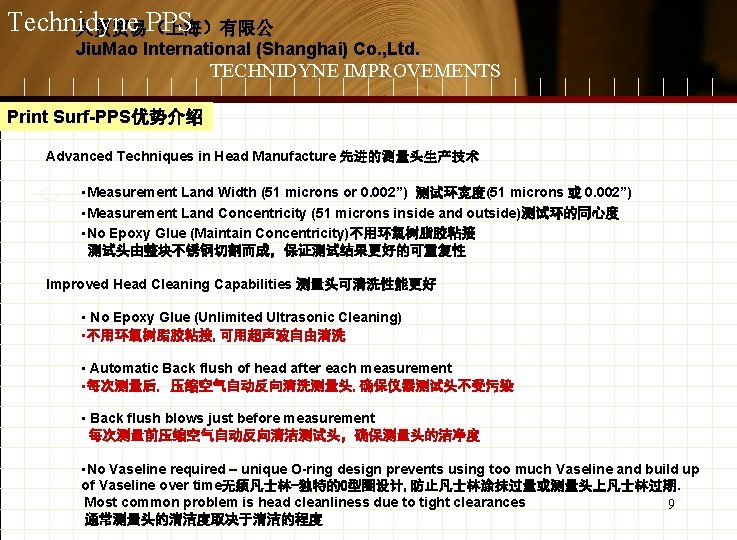

Technidyne PPS 久贸贸易（上海）有限公 Jiu. Mao International (Shanghai) Co. , Ltd. TECHNIDYNE IMPROVEMENTS Print Surf-PPS优势介绍 Advanced Techniques in Head Manufacture 先进的测量头生产技术 • Measurement Land Width (51 microns or 0. 002”) 测试环宽度(51 microns 或 0. 002”) • Measurement Land Concentricity (51 microns inside and outside)测试环的同心度 • No Epoxy Glue (Maintain Concentricity)不用环氧树脂胶粘接 测试头由整块不锈钢切割而成，保证测试结果更好的可重复性 Improved Head Cleaning Capabilities 测量头可清洗性能更好 • No Epoxy Glue (Unlimited Ultrasonic Cleaning) • 不用环氧树脂胶粘接, 可用超声波自由清洗 • Automatic Back flush of head after each measurement • 每次测量后, 压缩空气自动反向清洗测量头, 确保仪器测试头不受污染 • Back flush blows just before measurement 每次测量前压缩空气自动反向清洁测试头，确保测量头的洁净度 • No Vaseline required – unique O-ring design prevents using too much Vaseline and build up of Vaseline over time无须凡士林-独特的O型圈设计, 防止凡士林涂抹过量或测量头上凡士林过期. Most common problem is head cleanliness due to tight clearances 9 通常测量头的清洁度取决于清洁的程度

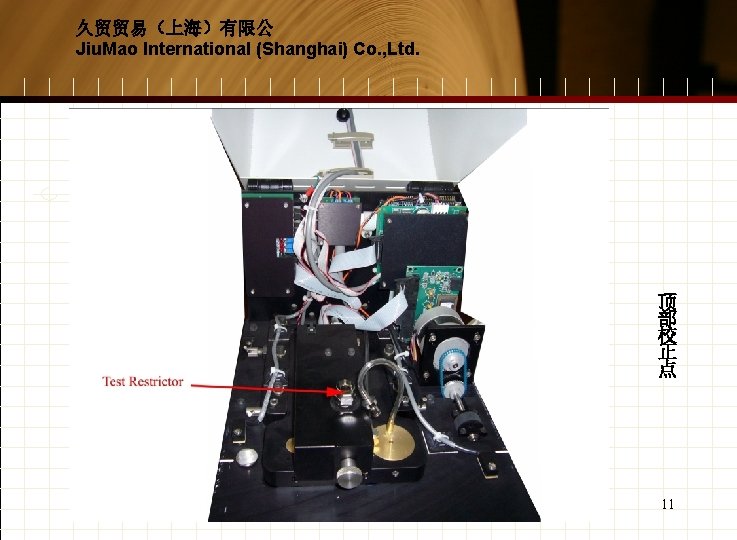

久贸贸易（上海）有限公 Jiu. Mao International (Shanghai) Co. , Ltd. 顶 部 校 正 点 11

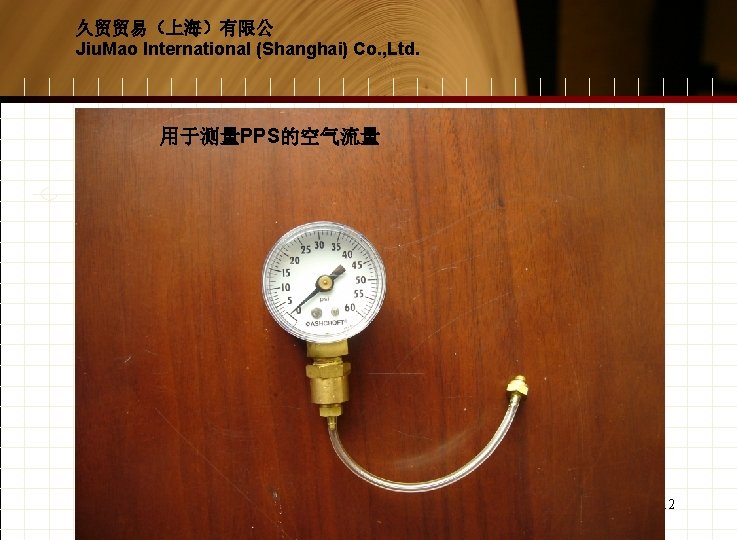

久贸贸易（上海）有限公 Jiu. Mao International (Shanghai) Co. , Ltd. 用于测量PPS的空气流量 12

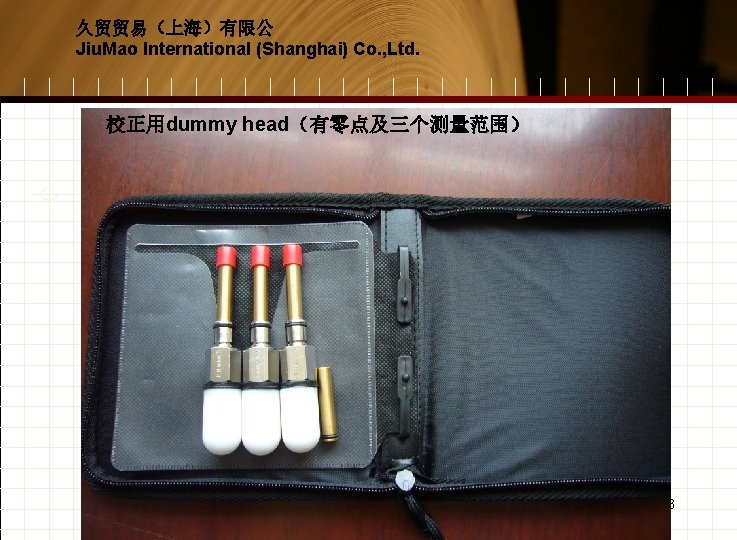

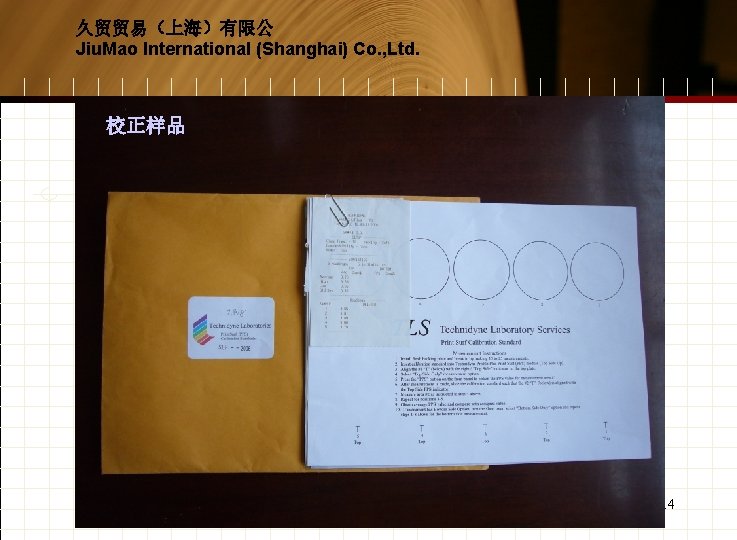

久贸贸易（上海）有限公 Jiu. Mao International (Shanghai) Co. , Ltd. 校正样品 14

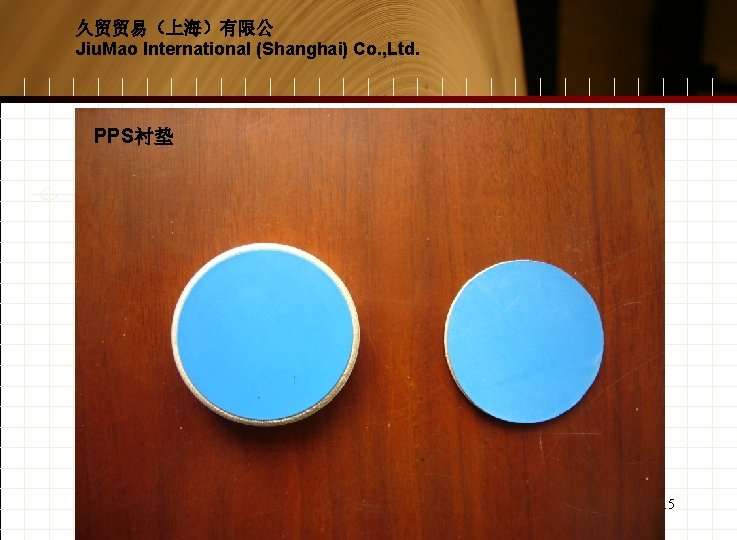

久贸贸易（上海）有限公 Jiu. Mao International (Shanghai) Co. , Ltd. PPS衬垫 15

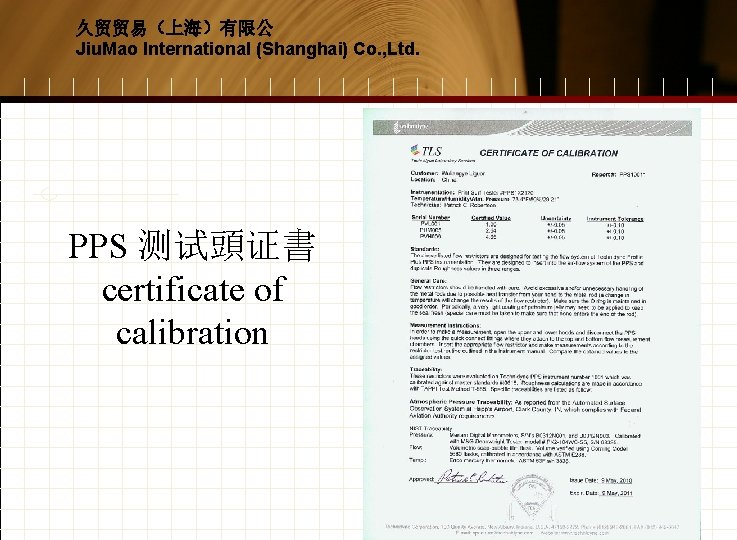

久贸贸易（上海）有限公 Jiu. Mao International (Shanghai) Co. , Ltd. PPS 测试頭证書 certificate of calibration 16
