Jim Nicholson BTL Midwest East Coast Regional Manager
Jim Nicholson BTL Midwest & East Coast Regional Manager STRENGTH – COMMITMENT – GUARANTEED CONTAINMENT
“What's PPL ? ? ” PPL is is a Reinforced Polyethylene (RPE) liner made exclusively for BTL, Inc. 5 layer construction, consisting of 3 layers of LDPE coatings sandwiching 2 layers of HDPE reinforcing scrim. Incredible tear and puncture resistance Available in 24, 30, & 36 mil thicknesses.
“Why use PPL ? ? ” Stronger Lighter weight Excellent UV resistance Less expensive Easy and quick to install
LINER SPEC COMPARISON CHART
Sizes & Availability Panels can be fabricated up to approximately 60, 000 sq. ft. in a single panel. Custom size? No problem. Panels can be ordered any length or width (nearest foot) as long as they are under the maximum size. Maximum 14 business day turnaround time from time of order to arrival on site.
General Pricing

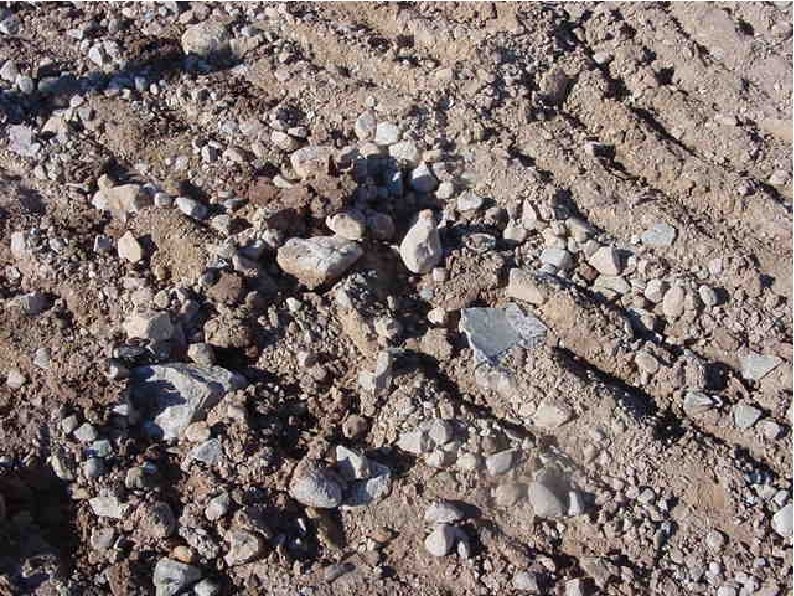

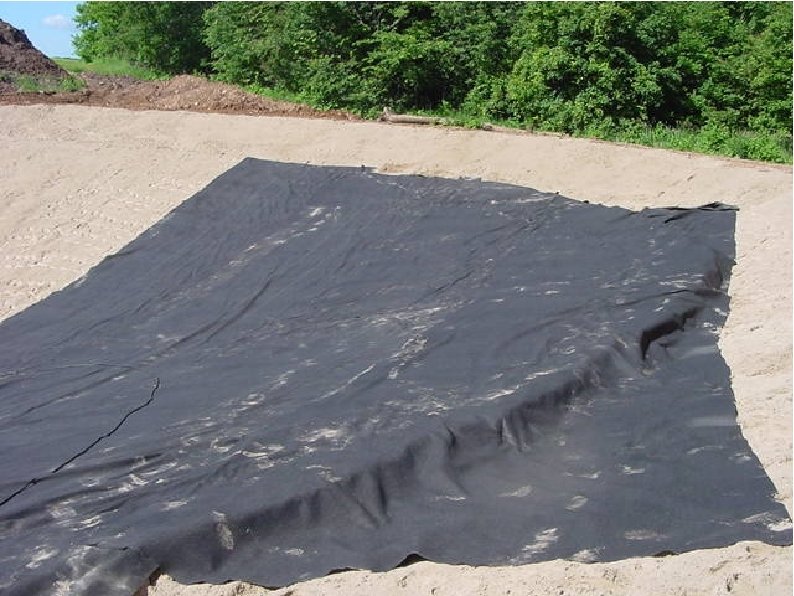

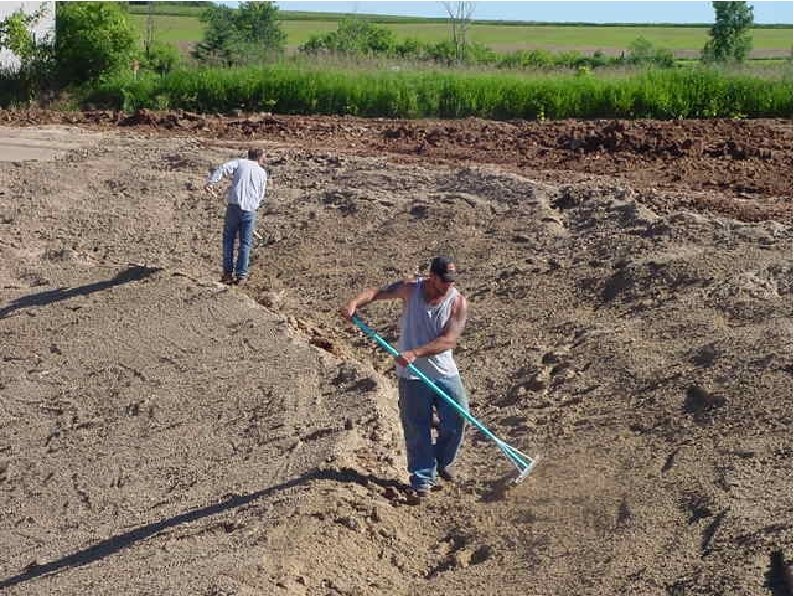

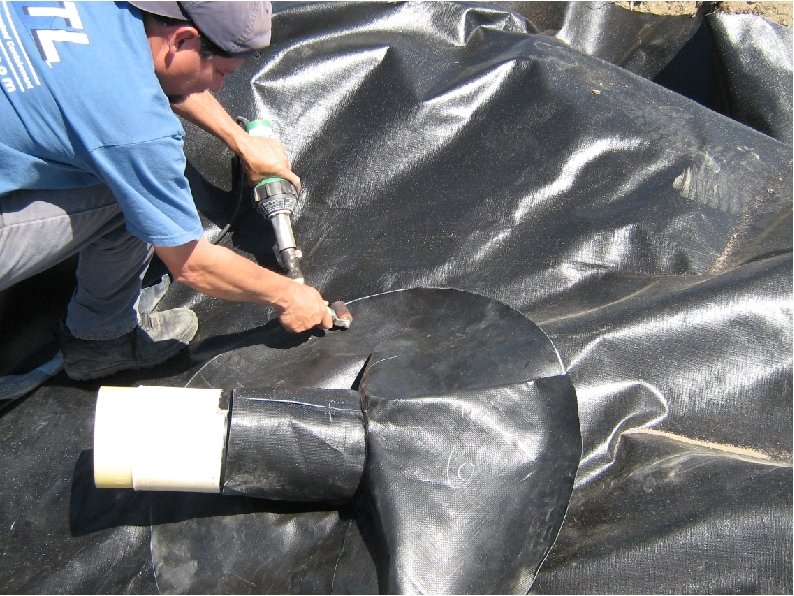

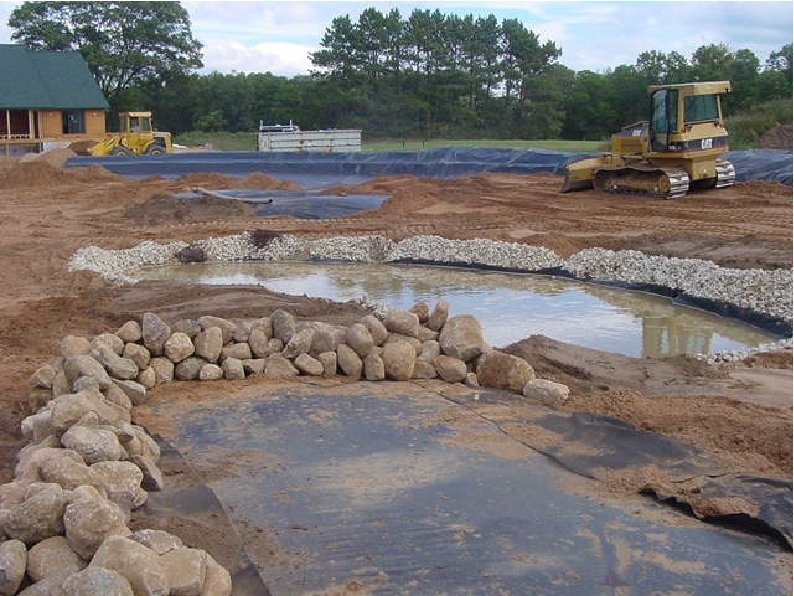

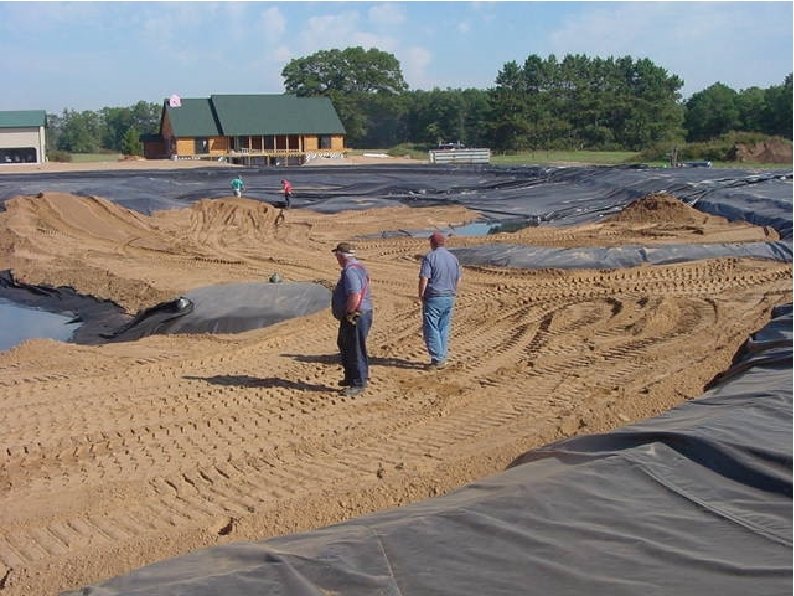

Preparing for the Liner Determine high water mark Hard measurements (NO GPS's !!) Sub-grade Preparation Raked dirt, compacted soil, geotextile No sharp, exposed stones/rocks Anchor trench or shelf “Speed Bump” (rock retention) Concrete/Pipe preparation
Sizing a Liner Measure longest length & longest width
Anchor Trench

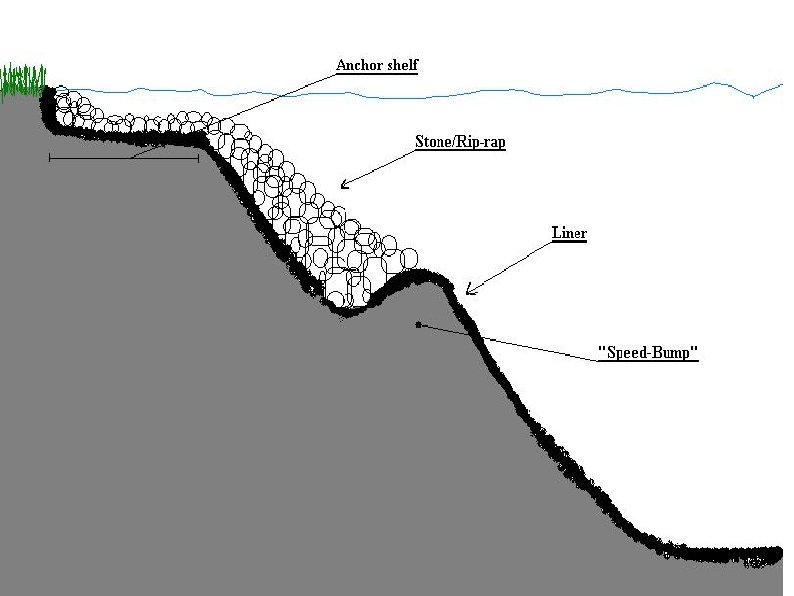

Anchor Shelf

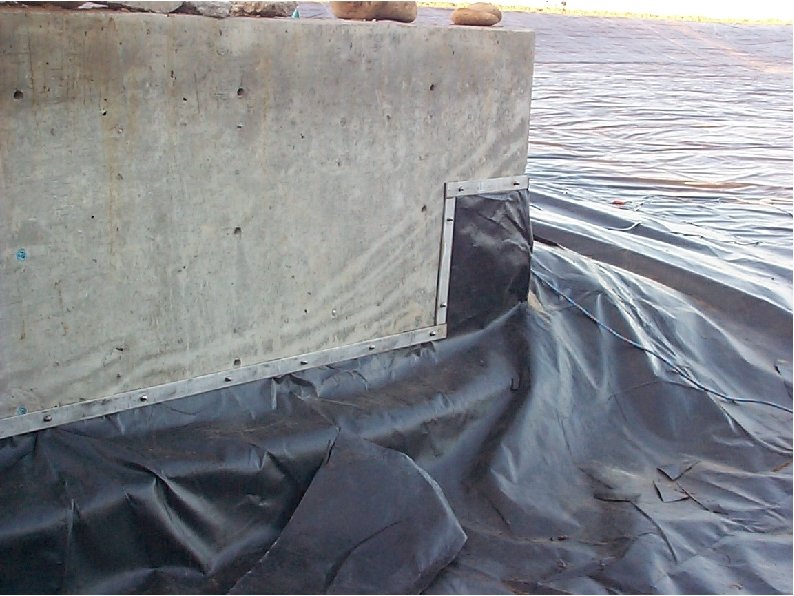

Concrete Battening
Questions?
