Jenkins for Javascript Development Env.
About me 윤지수 aniga 75@gamil. com
지속적인 통합 : continuous integration (CI) 1. 2. 3. 4. Watch code Build Project Run Tests Publish Results
첫째. CI? Jenkins?

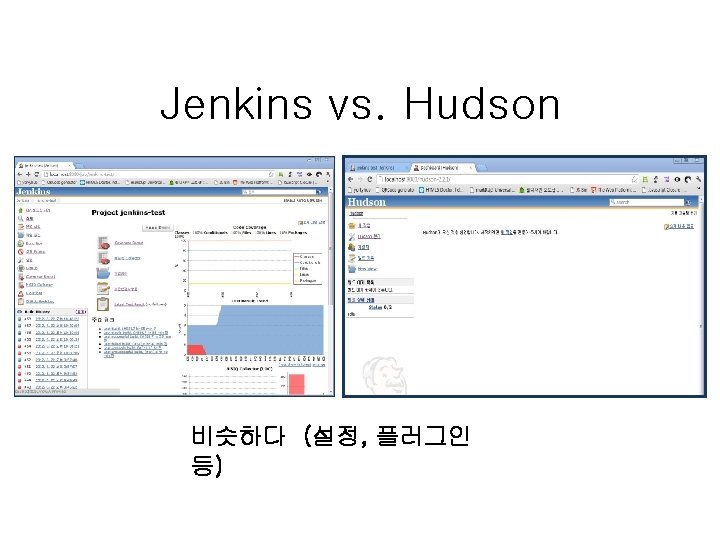

Jenkins vs. Hudson Java. net을 사용하던 Hudson은 SUN이 Oracle에 인수된 이후 Oracle의 ‘Hudson’상표권 주장으로 Jenkins으로 분리
Jenkins 의 실체 : jenkins. war + web server
Jenkins 의 실체
Today’s Goal? : Javascript CI 환경 만들기 Jenkins와 함께 쉽게 !

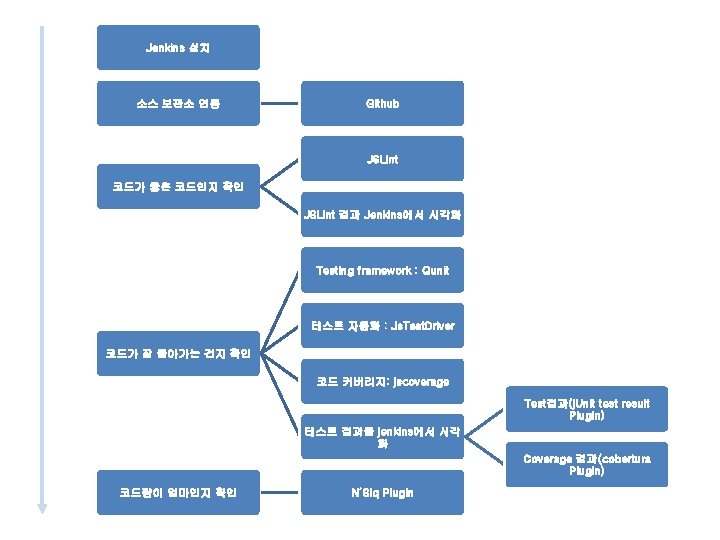

Jenkins 설치 소스 보관소 연동 Github JSLint 코드가 좋은 코드인지 확인 JSLint 결과 Jenkins에서 시각화 Testing framework : Qunit 테스트 자동화 : Js. Test. Driver 코드가 잘 돌아가는 건지 확인 코드 커버리지: jscoverage Test결과(j. Unit test result Plugin) 테스트 결과를 jenkins에서 시각 화 Coverage 결과(cobertura Plugin) 코드량이 얼마인지 확인 N’Siq Plugin

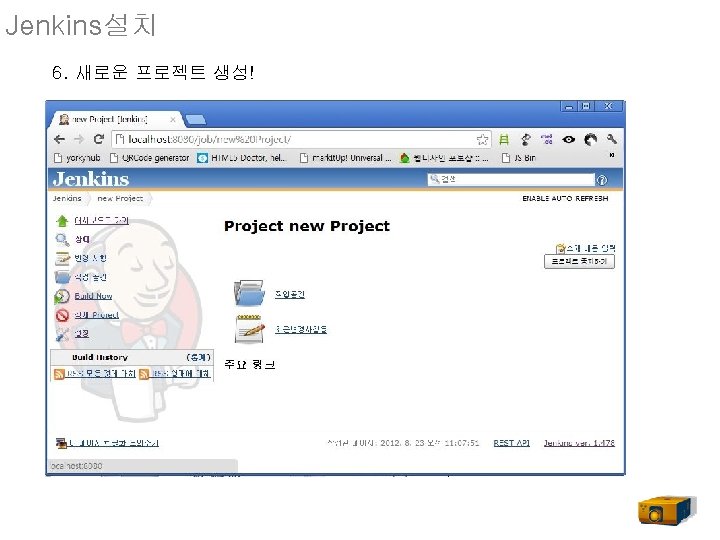

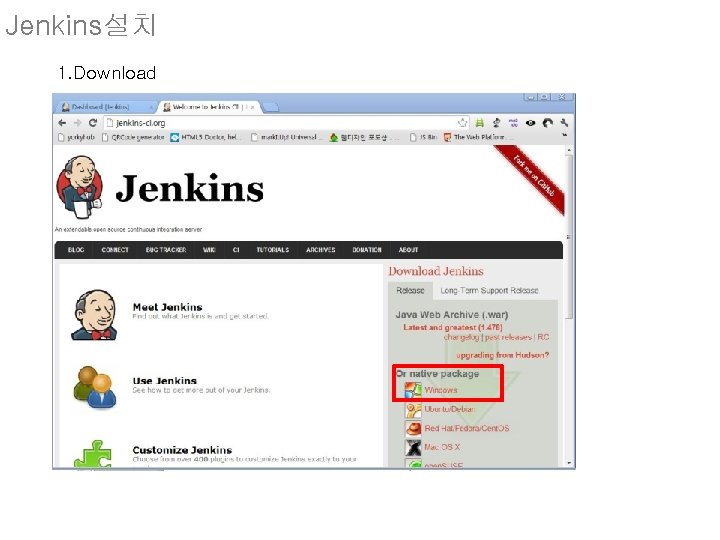

Jenkins설치 1. Download
Jenkins설치 2. install

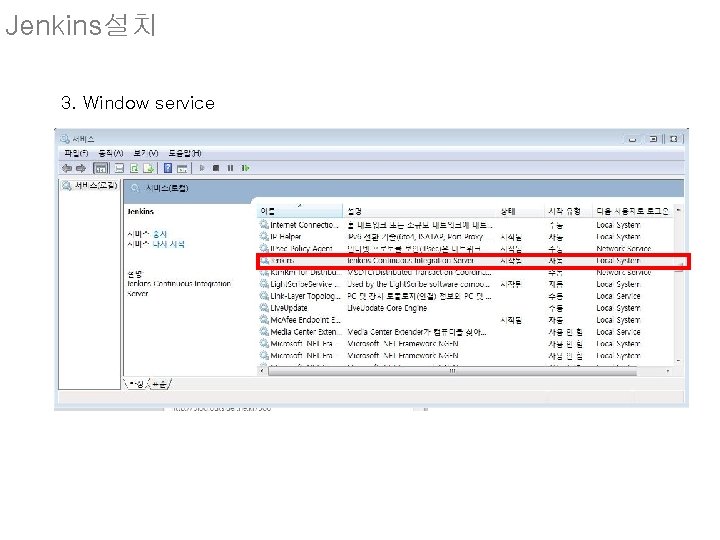

Jenkins설치 3. Window service
Jenkins설치 4. Browser 확인
Jenkins설치 5. Jenkins Plugins 설치 방법

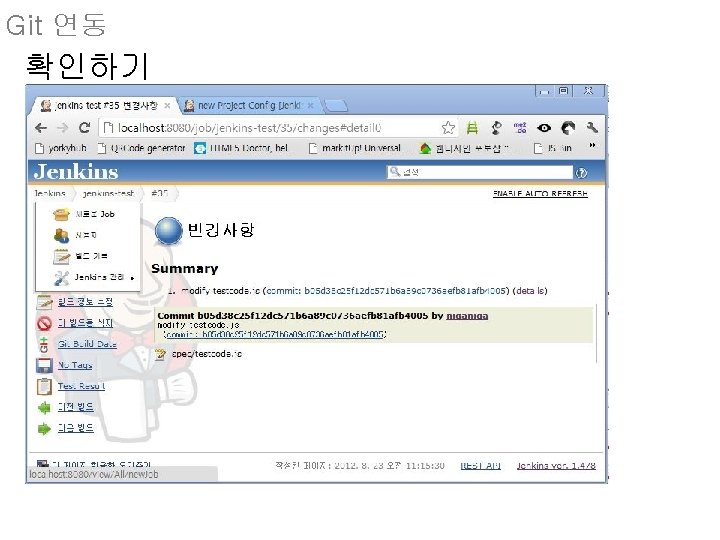

Git 연동 1. Download github plugin 2. local 에 git 설치 http: //git-scm. com/downloads 3. Jenkins 설정 - git

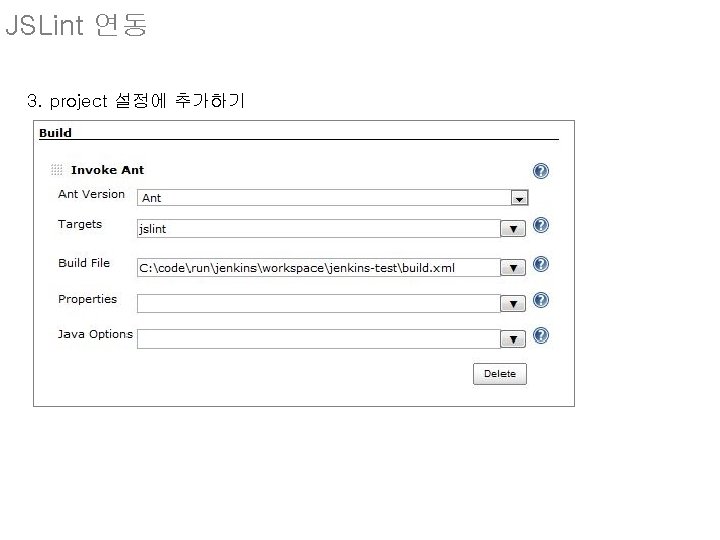

JSLint 연동 1. Download JSLint 4 Java http: //code. google. com/p/jslint 4 java/downloads 2. Ant Build 파일 만들기 Jekins/workspace/{projectname}/build. xml <target name="jslint" description="run the JSLint tool on JS files"> <fileset dir=". " id="jsfiles. raw"> <include name="src/*. js" /> <exclude name="src/*. min. js" /> </fileset> <pathconvert pathsep=" " property="jsfiles. clean" refid="jsfiles. raw" /> <executable="java" output="build/jslint. xml"> <arg line="-jar. . /lib/jslint 4 java. jar --report xml ${jsfiles. clean}" /> </exec> </target>
JSLint 연동 4. 확인 (result. xml)

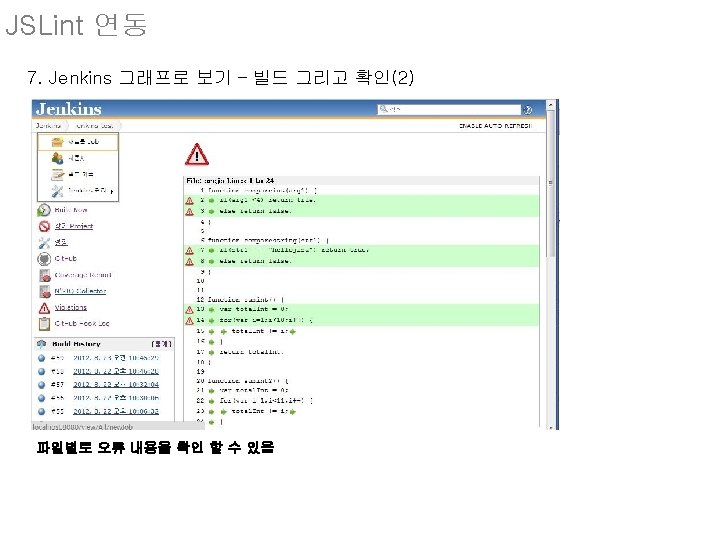

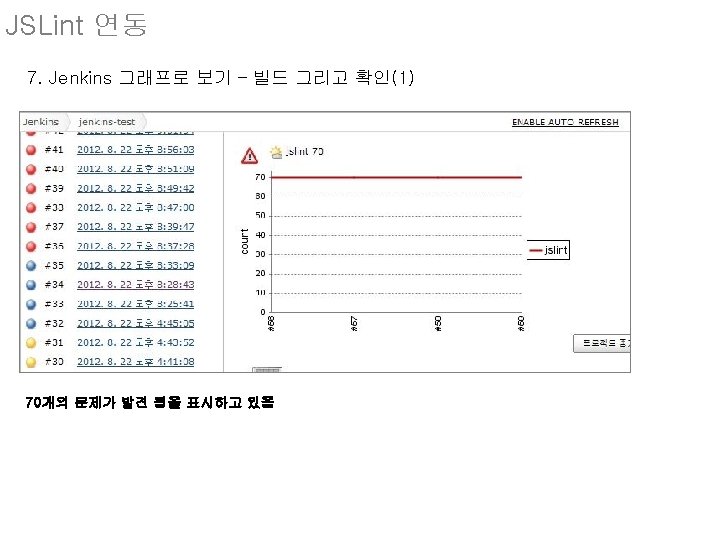

JSLint 연동 5. Jenkins 그래프로 보기 – violations plugin 설치 6. Jenkins 그래프로 보기 – project 설정
Js. Test. Driver 연동 연동 방법 개요 1. Js. Test. Driver. jar , Js. Test. Driver-Qunit adaptor, jscoverage 다운로 드 2. Js. Test. Driver. conf 설정 3. Ant 빌드 스크립트 작성 4. Js. Test. Driver Running 5. 테스트 결과를 그래프로 보기 위한 설정(j. Unit test result report) 6. 커버리지 결과를 그래프로 보기 위한 설정(cobertura Plugin설치) 7. Cobertura Plugin에서 지원되는 xml타입으로 coverage결과를 변환
Js. Test. Driver 연동 1. 다운로드 : Js. Test. Driver , Js. Test. Driver-Qunit adaptor, jscoverage Js. Test. Driver. jar , jscoverage. jar http: //code. google. com/p/js-test-driver/downloads/list Js. Test. Driver-Qunit. jar https: //github. com/exnor/QUnit-to-Js. Test. Driver-adapter/downloads # http: //code. google. com/p/js-test-driver/wiki/QUnit. Adapter 이걸 받으면 안됨(qunit변경 메소드 반영 안됨)
Js. Test. Driver 연동 2. Js. Test. Driver. conf 설정 server: http: //localhost: 4224 load: - lib/qunit. js - lib/qunit_jstestdriver_adaptor/equiv. js - lib/qunit_jstestdriver_adaptor/QUnit. Adapter. js - lib/jindo. desktop. all. js - src/*. js - lib/*. js - spec/testcode. js //qunit adaptor serve: - spec/test. html - lib/qunit. css plugin: - name: "coverage" jar: "lib_etc/coverage. jar" module: "com. google. jstestdriver. coverage. Coverage. Module" # jstestdriver configuration : http: //code. google. com/p/js-test-driver/wiki/Configuration. File
Js. Test. Driver 연동 3. 잠깐! Js. Test. Driver는 CI와 별개로 별도로 달리고 있어야 함 C: coderunjenkinsworkspacejenkins-test> java -jar Js. Test. Driver. jar --port 4224 Jenkins 설치 Git 연동 JSLint 연동 js. Test. Driver 연동 LOC
Js. Test. Driver 연동 4. Ant Build 실행 C: coderunjenkinsworkspacejenkins-test> java -jar Js. Test. Driver. jar --port 4224 <target name="jstestdriver" depends="jslint" description="build jstestdriver"> <echo>build jstestdriver</echo> <executable="java"> <arg line="-jar" /> <arg path=". . /lib/js. Test. Driver. jar" /> <arg value="--server"/> <arg value="http: //localhost: 4224"/> <arg value="--tests"/> <arg value="all"/> <arg value="--test. Output"/> <arg value=". /build"/> <arg value="--reset"/> </exec> </target> # jstestdriver command line flags : http: //code. google. com/p/js-test-driver/wiki/Command. Line. Flags
Js. Test. Driver 연동 5. 지금까지 Ant Build <target name="jslint" description="run the JSLint tool on JS files"> <fileset dir=". " id="jsfiles. raw"> <include name="src/*. js" /> <exclude name="src/*. min. js" /> </fileset> <pathconvert pathsep=" " property="jsfiles. clean" refid="jsfiles. raw" /> <executable="java" output="build/jslint. xml"> <arg line="-jar. . /lib/jslint 4 java. jar --report xml ${jsfiles. clean}" /> </exec> </target> <target name="jstestdriver" depends="jslint" description="build jstestdriver"> <echo>build jstestdriver</echo> <executable="java"> <arg line="-jar" /> <arg path=". . /lib/js. Test. Driver. jar" /> <arg value="--server"/> <arg value="http: //localhost: 4224"/> <arg value="--tests"/> <arg value="all"/> <arg value="--test. Output"/> <arg value=". /build"/> <arg value="--reset"/> </exec> </target>
Js. Test. Driver 연동 6. Build ! 테스트 결과 : TEST-Chrome_210118083_Windows. Defaulta. Module. xml 테스트 커버리지 : js. Test. Driver. conf-coverage. dat
Js. Test. Driver 연동 7. 테스트 결과를 그래프로 보기 위한 projcet 설정(j. Unit test result report) 동작 방식 : ‘TEST-Chrome_210118083_Windows. Defaulta. Module. xml’ 파일을 분석해서 결과를 보여줌.
Js. Test. Driver 연동 8. Build 후 확인
Js. Test. Driver 연동 8. 커버리지 결과를 그래프로 보기 위한 설정(cobertura Plugin설치) 9. Cobertura Plugin에서 지원되는 xml타입으로 coverage결과를 변환 js. Test. Driver. conf-coverage. dat 파일을 Cobertura지원 xml 타입으로 변환하기 위해 python 오픈소스 script를 활용 • 먼저 Local 에 Python 설치: http: //www. python. org/getit/ • Cobertura 변환 Python script 다운로드 : https: //github. com/eriwen/lcov-to-cobertura-xml • 실행 : Jenkins Python Plugin을 통해서 script를 실행 할 수 있지만, 윈도우에서 Python 실행 PATH를 인식하지 못하 는 문제 발견. 대안으로 Ant build로 실행하고 exeutable에 절대경로를 입력 <다음장에서 Ant build 설정>
Js. Test. Driver 연동 9. Cobertura Plugin에서 지원되는 xml타입으로 coverage결과를 변환 Ant build에 python script 실행 추가 <target name="start" depends="jstestdriver" description="build python script"> <echo>build python for making cobertura xml</echo> <executable="C: Python 27python. exe" failonerror="true"> <arg value="lib_etc/lcov-to-cobertura-xml. py" /> <arg value="build/js. Test. Driver. conf-coverage. dat" /> <arg value="-o"/> <arg value="build/coverage. xml"/> </exec> </target>
Js. Test. Driver 연동 10. Project 설정에 corbetura 추가
Js. Test. Driver 연동 1. Build 후 coverage 결과 확인

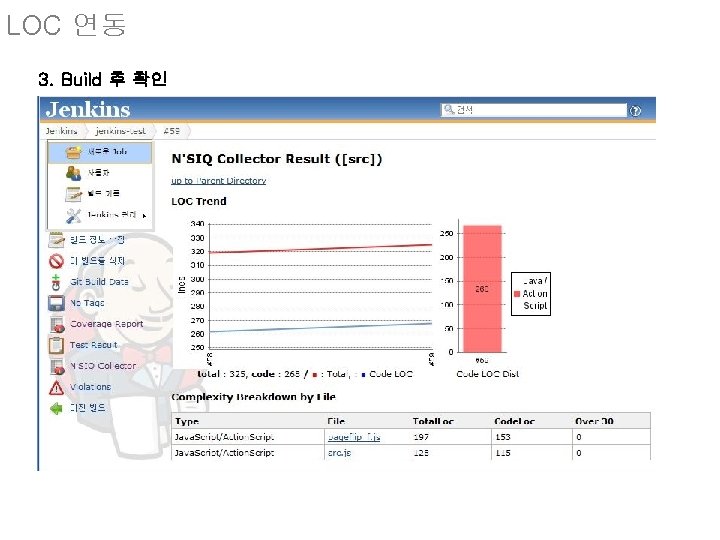

LOC 연동 1. LOC(Line of Code) NHN Opensource 활용 : https: //wiki. jenkins-ci. org/display/JENKINS/NSIQ+Collector+Plugin 복잡도, LOC를 계산해주지만 LOC만을 활용 2. project 설정

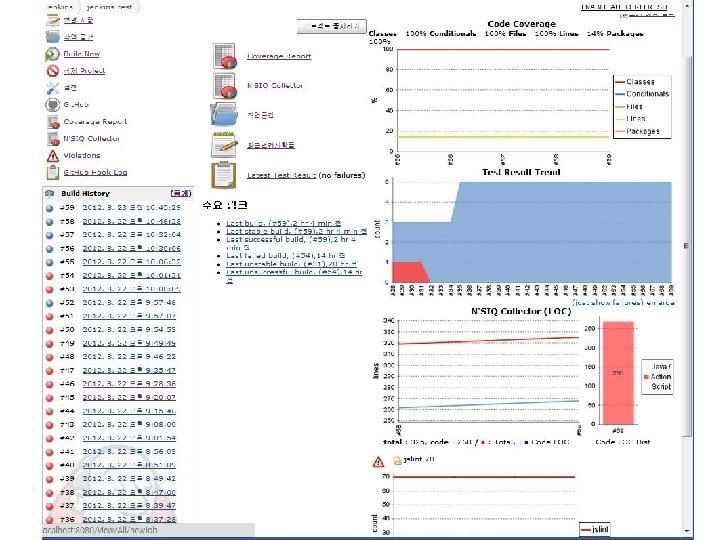

Complete!
좀 더 해야 할 것 Jstestdriver test code에서 외부 라이브러리를 사용하는 경우 에러가 발생. Js파일을 로딩하는데 문제가 있음 (require. js와 같은 것으로 동적로딩 필요) 복잡도, 중복코드 검사 Cyclomatic complexity 나 중복코드 검사 Plugin 연동 Reporting Other Testing Selenium, Web. Driver, or Phantom. JS Mobile 환경 테스트 Other CI (Travis CI) Github 와 찰떡 궁합으로 경량화된 CI http: //blog. outsider. ne. kr/779 http: //tech. qmetric. co. uk/automating-javascript-ci-with-buster-js-and-travisci_205. html

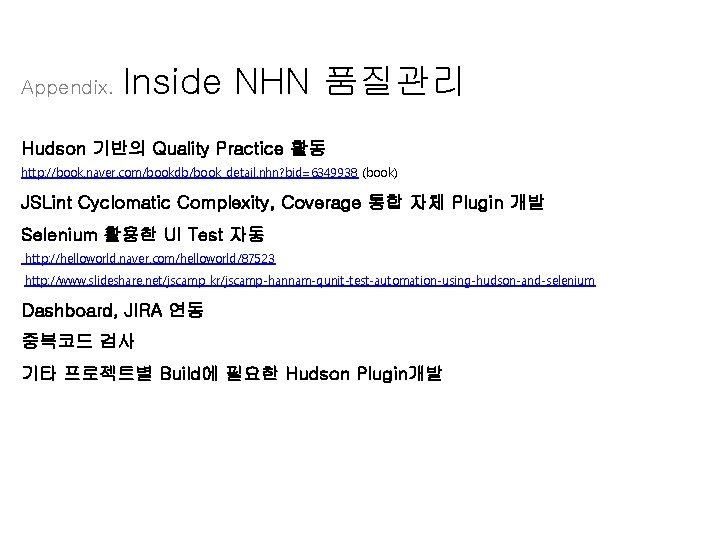

Appendix. Inside NHN 품질관리 Hudson 기반의 Quality Practice 활동 http: //book. naver. com/bookdb/book_detail. nhn? bid=6349938 (book) JSLint Cyclomatic Complexity, Coverage 통합 자체 Plugin 개발 Selenium 활용한 UI Test 자동 http: //helloworld. naver. com/helloworld/87523 http: //www. slideshare. net/jscamp_kr/jscamp-hannam-qunit-test-automation-using-hudson-and-selenium Dashboard, JIRA 연동 중복코드 검사 기타 프로젝트별 Build에 필요한 Hudson Plugin개발
참고 http: //wiki. hudson-ci. org/display/HUDSON/Plugins http: //stephen. rees-carter. net/2011/05/jenkins-ci-jslint-javascript-quality-checking/ http: //eriwen. com/tools/continuous-integration-for-javascript/ http: //hudson-ci. org/download/plugins/ http: //mirrors. jenkins-ci. org/ http: //code. google. com/p/jslint 4 java/downloads http: //meri-stuff. blogspot. kr/2012/01/javascript-testing-with-jstestdriver. html http: //code. google. com/p/js-test-driver/wiki/ http: //pseudobry. com/js-test-driver-qunit-coverage-requirejs/ https: //github. com/youzee/tips-n-tricks/wiki/The-Java. Script-testing-stack http: //www. python. org/getit/ https: //wiki. jenkins-ci. org/display/JENKINS/NSIQ+Collector+Plugin http: //pseudobry. com/js-test-driver-qunit-coverage-requirejs/ https: //github. com/youzee/tips-n-tricks/wiki/The-Java. Script-testing-stack
