JBoss Angela Fogarolli Angela. Fogarolli@dit. unitn. it

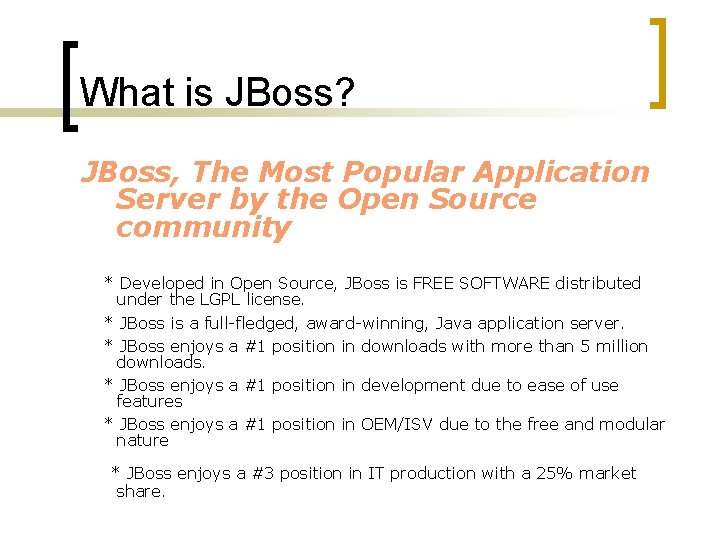

What is JBoss? JBoss, The Most Popular Application Server by the Open Source community * Developed in Open Source, JBoss is FREE SOFTWARE distributed under the LGPL license. * JBoss is a full-fledged, award-winning, Java application server. * JBoss enjoys a #1 position in downloads with more than 5 million downloads. * JBoss enjoys a #1 position in development due to ease of use features * JBoss enjoys a #1 position in OEM/ISV due to the free and modular nature * JBoss enjoys a #3 position in IT production with a 25% market share.

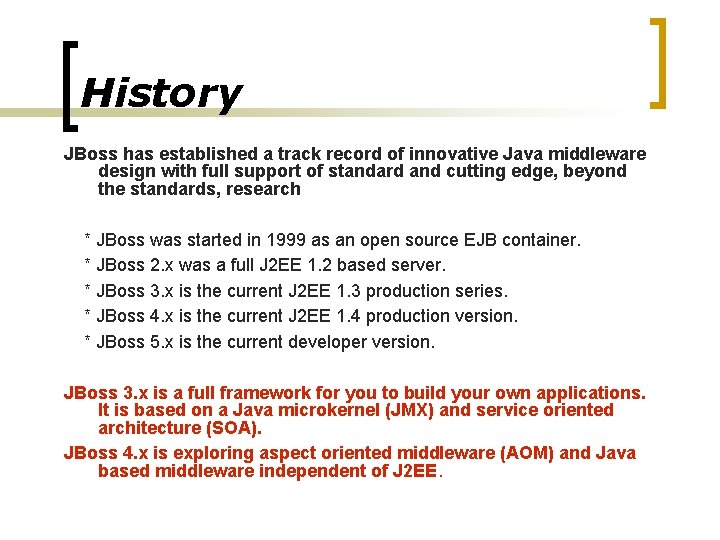

History JBoss has established a track record of innovative Java middleware design with full support of standard and cutting edge, beyond the standards, research * JBoss was started in 1999 as an open source EJB container. * JBoss 2. x was a full J 2 EE 1. 2 based server. * JBoss 3. x is the current J 2 EE 1. 3 production series. * JBoss 4. x is the current J 2 EE 1. 4 production version. * JBoss 5. x is the current developer version. JBoss 3. x is a full framework for you to build your own applications. It is based on a Java microkernel (JMX) and service oriented architecture (SOA). JBoss 4. x is exploring aspect oriented middleware (AOM) and Java based middleware independent of J 2 EE.

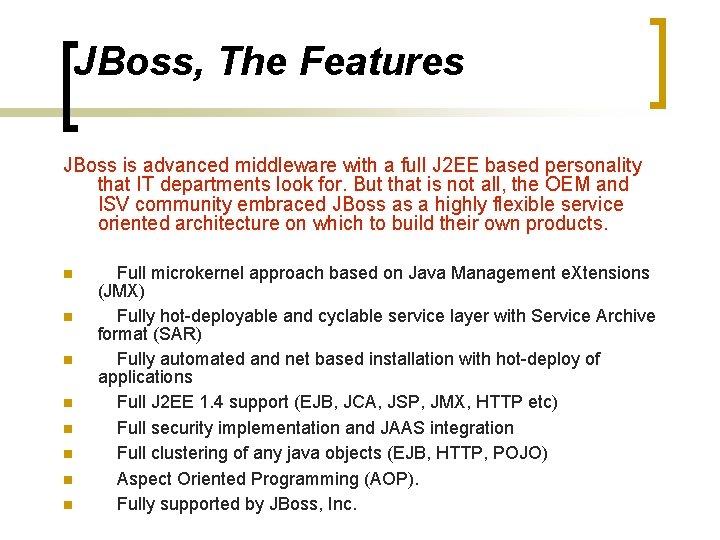

JBoss, The Features JBoss is advanced middleware with a full J 2 EE based personality that IT departments look for. But that is not all, the OEM and ISV community embraced JBoss as a highly flexible service oriented architecture on which to build their own products. Full microkernel approach based on Java Management e. Xtensions (JMX) Fully hot-deployable and cyclable service layer with Service Archive format (SAR) Fully automated and net based installation with hot-deploy of applications Full J 2 EE 1. 4 support (EJB, JCA, JSP, JMX, HTTP etc) Full security implementation and JAAS integration Full clustering of any java objects (EJB, HTTP, POJO) Aspect Oriented Programming (AOP). Fully supported by JBoss, Inc.

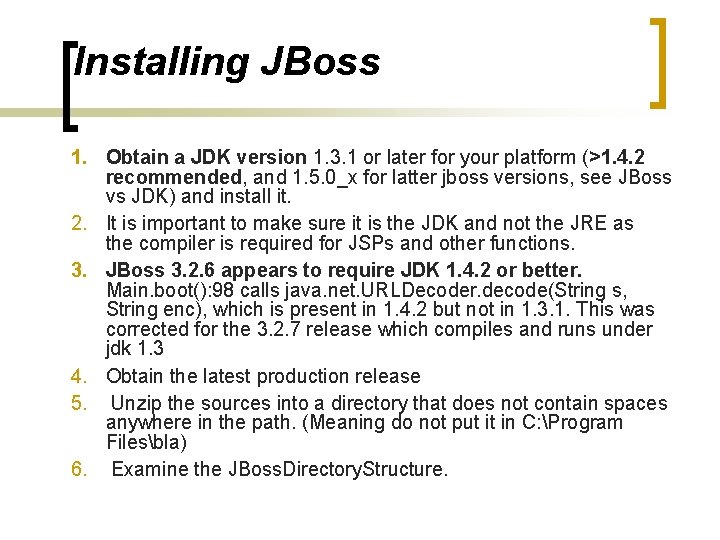

Installing JBoss 1. Obtain a JDK version 1. 3. 1 or later for your platform (>1. 4. 2 recommended, and 1. 5. 0_x for latter jboss versions, see JBoss vs JDK) and install it. 2. It is important to make sure it is the JDK and not the JRE as the compiler is required for JSPs and other functions. 3. JBoss 3. 2. 6 appears to require JDK 1. 4. 2 or better. Main. boot(): 98 calls java. net. URLDecoder. decode(String s, String enc), which is present in 1. 4. 2 but not in 1. 3. 1. This was corrected for the 3. 2. 7 release which compiles and runs under jdk 1. 3 4. Obtain the latest production release 5. Unzip the sources into a directory that does not contain spaces anywhere in the path. (Meaning do not put it in C: Program Filesbla) 6. Examine the JBoss. Directory. Structure.

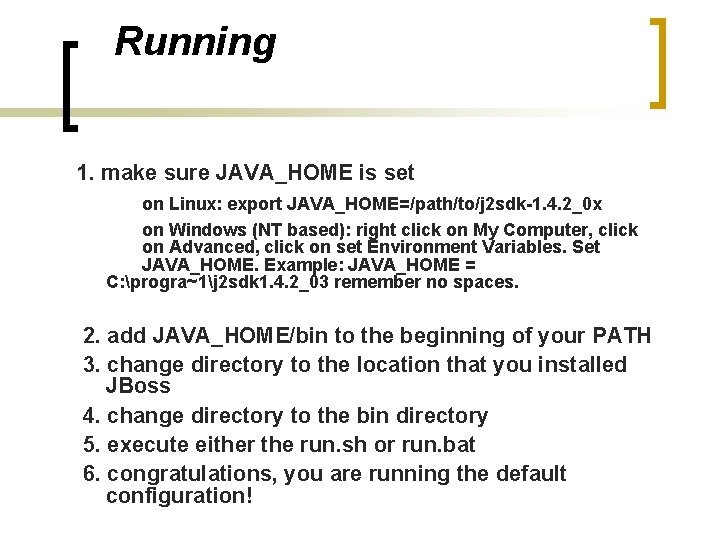

Running 1. make sure JAVA_HOME is set on Linux: export JAVA_HOME=/path/to/j 2 sdk-1. 4. 2_0 x on Windows (NT based): right click on My Computer, click on Advanced, click on set Environment Variables. Set JAVA_HOME. Example: JAVA_HOME = C: progra~1j 2 sdk 1. 4. 2_03 remember no spaces. 2. add JAVA_HOME/bin to the beginning of your PATH 3. change directory to the location that you installed JBoss 4. change directory to the bin directory 5. execute either the run. sh or run. bat 6. congratulations, you are running the default configuration!

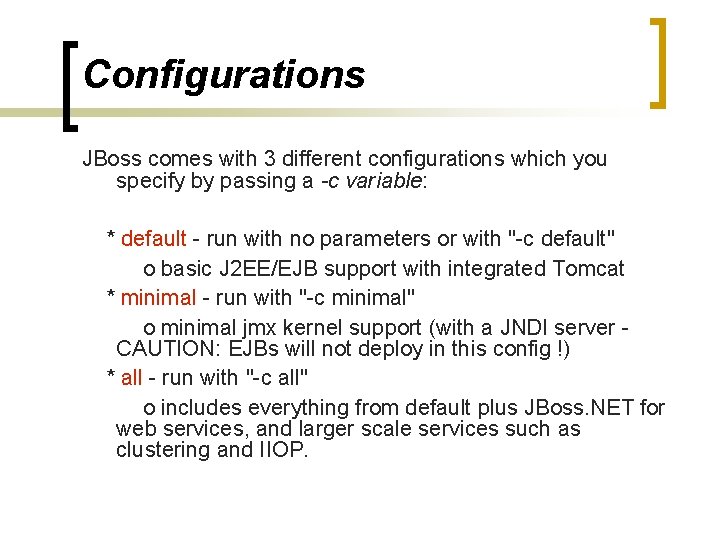

Configurations JBoss comes with 3 different configurations which you specify by passing a -c variable: * default - run with no parameters or with "-c default" o basic J 2 EE/EJB support with integrated Tomcat * minimal - run with "-c minimal" o minimal jmx kernel support (with a JNDI server CAUTION: EJBs will not deploy in this config !) * all - run with "-c all" o includes everything from default plus JBoss. NET for web services, and larger scale services such as clustering and IIOP.

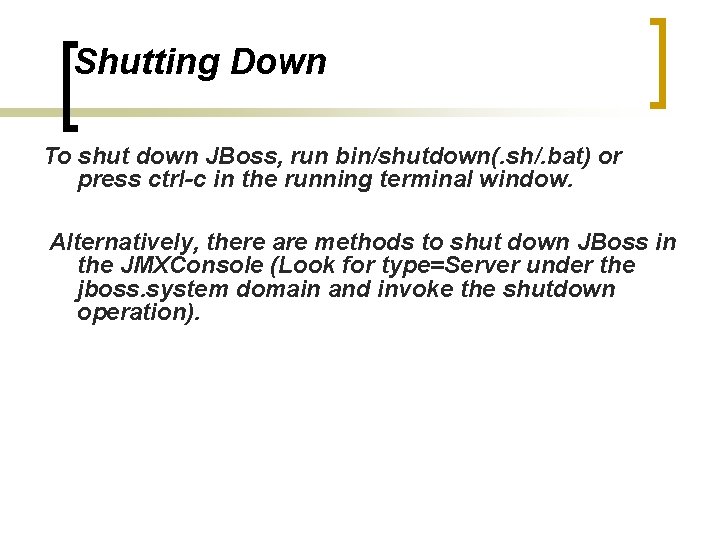

Shutting Down To shut down JBoss, run bin/shutdown(. sh/. bat) or press ctrl-c in the running terminal window. Alternatively, there are methods to shut down JBoss in the JMXConsole (Look for type=Server under the jboss. system domain and invoke the shutdown operation).

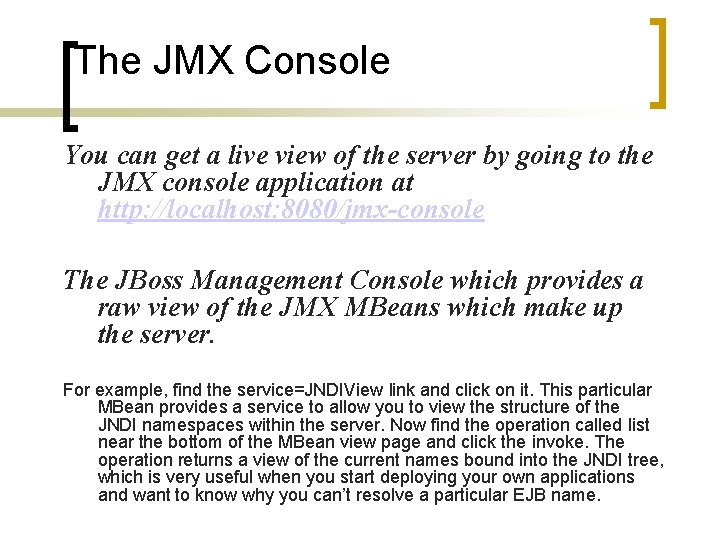

The JMX Console You can get a live view of the server by going to the JMX console application at http: //localhost: 8080/jmx-console The JBoss Management Console which provides a raw view of the JMX MBeans which make up the server. For example, find the service=JNDIView link and click on it. This particular MBean provides a service to allow you to view the structure of the JNDI namespaces within the server. Now find the operation called list near the bottom of the MBean view page and click the invoke. The operation returns a view of the current names bound into the JNDI tree, which is very useful when you start deploying your own applications and want to know why you can’t resolve a particular EJB name.

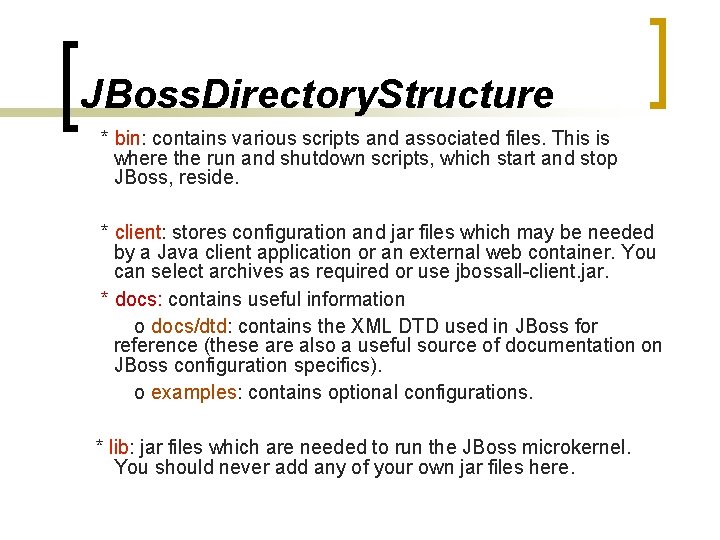

JBoss. Directory. Structure * bin: contains various scripts and associated files. This is where the run and shutdown scripts, which start and stop JBoss, reside. * client: stores configuration and jar files which may be needed by a Java client application or an external web container. You can select archives as required or use jbossall-client. jar. * docs: contains useful information o docs/dtd: contains the XML DTD used in JBoss for reference (these are also a useful source of documentation on JBoss configuration specifics). o examples: contains optional configurations. * lib: jar files which are needed to run the JBoss microkernel. You should never add any of your own jar files here.

. . . JBoss. Directory. Structure * server: each of the subdirectories in here is a different server configuration. o <config-name>: a server configuration started with the -c <config-name> option + conf: configuration files including the bootstrap services in jboss-service. xml # props: default users/roles properties files for the jmx console (from 4. 0. 2) # xmdesc: XMBean descriptors for those MBeans with extended descriptions + lib: static jar files for the services + deploy: services and applications that are hot deployed + data: data files that survive reboot + tmp: temporary files that do not survive reboot + work: work files for Tomcat

. . . JBoss. Directory. Structure o minimal: a minimal jndi and jmx kernel o default: the default configuration (does not include clustering or corba) o all: all services including clustering and corba + farm: deployments in here are hot deployed across the cluster + deploy-hasingleton: deployments in here are only run on one node in the cluster at a time

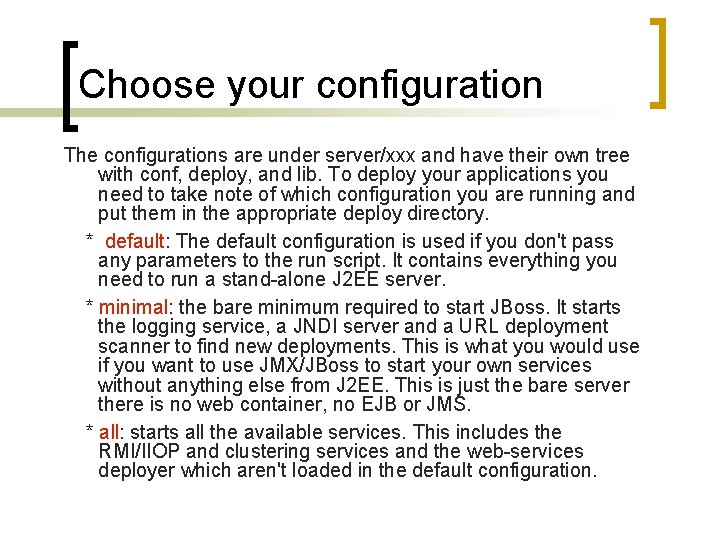

Choose your configuration The configurations are under server/xxx and have their own tree with conf, deploy, and lib. To deploy your applications you need to take note of which configuration you are running and put them in the appropriate deploy directory. * default: The default configuration is used if you don't pass any parameters to the run script. It contains everything you need to run a stand-alone J 2 EE server. * minimal: the bare minimum required to start JBoss. It starts the logging service, a JNDI server and a URL deployment scanner to find new deployments. This is what you would use if you want to use JMX/JBoss to start your own services without anything else from J 2 EE. This is just the bare server there is no web container, no EJB or JMS. * all: starts all the available services. This includes the RMI/IIOP and clustering services and the web-services deployer which aren't loaded in the default configuration.

Which version of the JDK is required for which versions of JBoss AS? JBoss version series compiles with JDK version runs under JDK version 3. 2. x 1. 3/1. 4/5. 0 4. 0. x 1. 4/5. 0 * JBoss AS 3. 2. 6 and 4. 0. 1 are the first to be fully functional under JDK 5. * JBoss AS 3. 2. 6 doesn't run with JDK 1. 3. This issue is fixed in the JBoss AS 3. 2. 7. * JBoss AS 4. 0. 0 runs under JDK 1. 5, but the jconsole utility will not work with it. You need 4. 0. 1+, 3. 2. 7+ to use jconsole. * The current group of 64 bit JVMs have some stability issues. Please do extensive testing on the 64 bit JVM before using it in Production. * 64 bit hardware does provide some performance gains for 32 or 64 bit JVMs. * Since JBoss v 4. 0. 3, compiling the server with JDKv 1. 4 and JDKv 5 produces somewhat different outputs. A JDKv 1. 4 compilation produces the classic jboss distribution. A JDKv 5 compilation includes JDK 5 only features, like EJB 3.

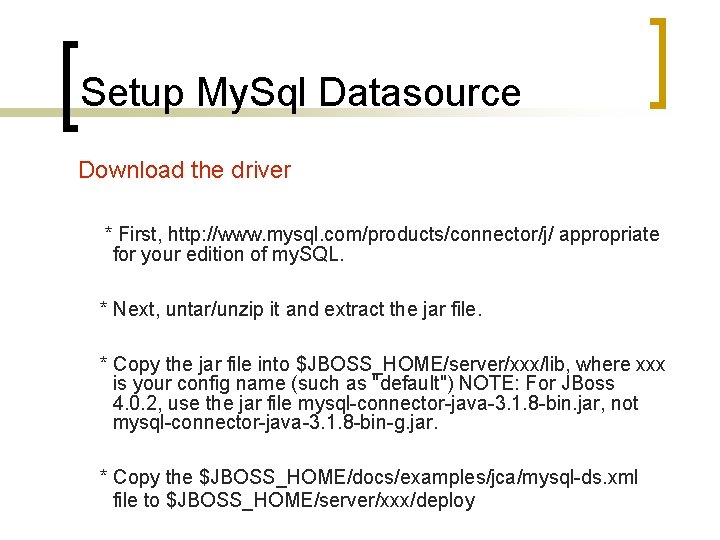

Setup My. Sql Datasource Download the driver * First, http: //www. mysql. com/products/connector/j/ appropriate for your edition of my. SQL. * Next, untar/unzip it and extract the jar file. * Copy the jar file into $JBOSS_HOME/server/xxx/lib, where xxx is your config name (such as "default") NOTE: For JBoss 4. 0. 2, use the jar file mysql-connector-java-3. 1. 8 -bin. jar, not mysql-connector-java-3. 1. 8 -bin-g. jar. * Copy the $JBOSS_HOME/docs/examples/jca/mysql-ds. xml file to $JBOSS_HOME/server/xxx/deploy

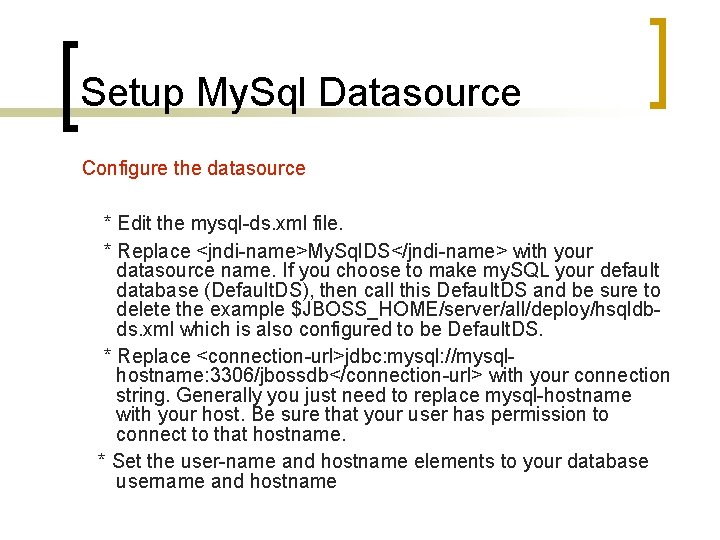

Setup My. Sql Datasource Configure the datasource * Edit the mysql-ds. xml file. * Replace <jndi-name>My. Sql. DS</jndi-name> with your datasource name. If you choose to make my. SQL your default database (Default. DS), then call this Default. DS and be sure to delete the example $JBOSS_HOME/server/all/deploy/hsqldbds. xml which is also configured to be Default. DS. * Replace <connection-url>jdbc: mysql: //mysqlhostname: 3306/jbossdb</connection-url> with your connection string. Generally you just need to replace mysql-hostname with your host. Be sure that your user has permission to connect to that hostname. * Set the user-name and hostname elements to your database username and hostname

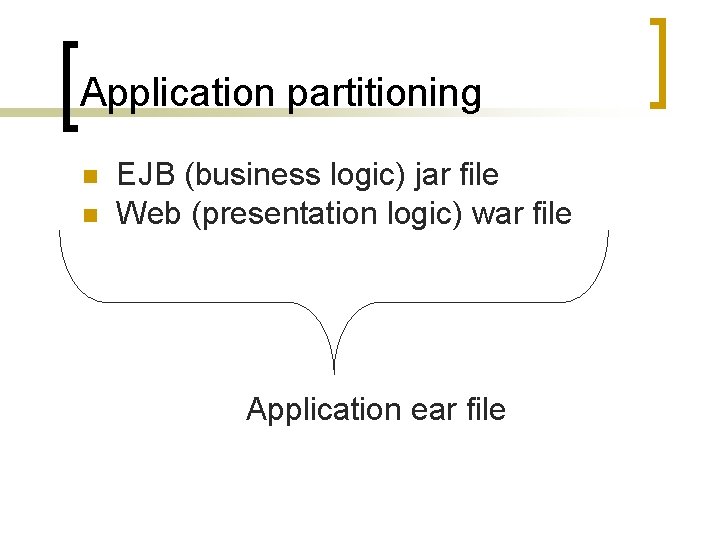

Application partitioning EJB (business logic) jar file Web (presentation logic) war file Application ear file

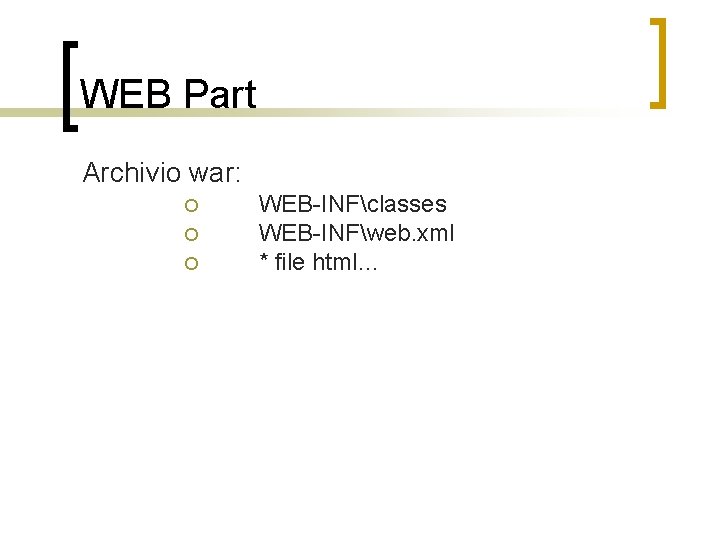

WEB Part Archivio war: WEB-INFclasses WEB-INFweb. xml * file html…

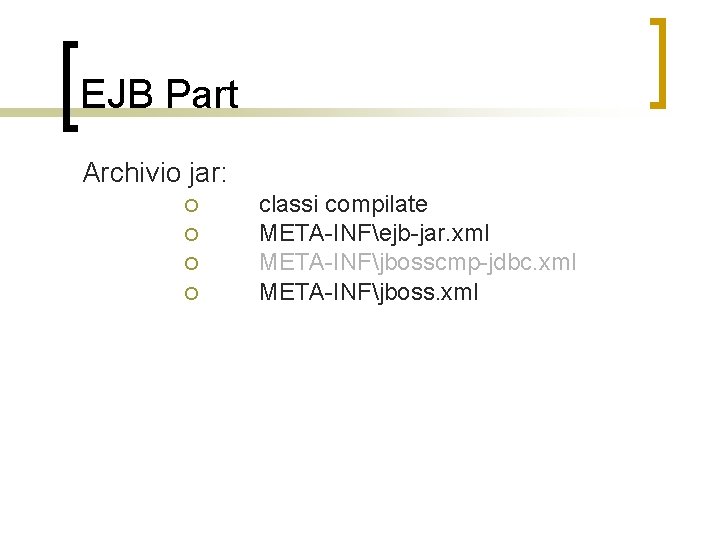

EJB Part Archivio jar: classi compilate META-INFejb-jar. xml META-INFjbosscmp-jdbc. xml META-INFjboss. xml

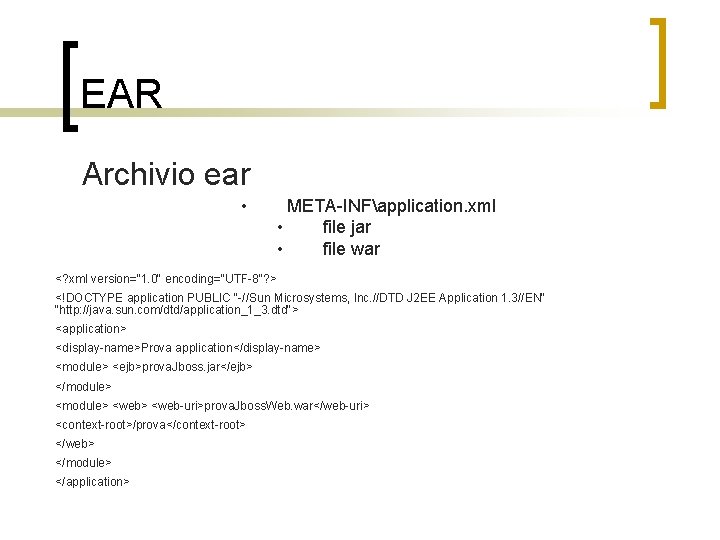

EAR Archivio ear • META-INFapplication. xml • file jar • file war <? xml version="1. 0" encoding="UTF-8"? > <!DOCTYPE application PUBLIC "-//Sun Microsystems, Inc. //DTD J 2 EE Application 1. 3//EN" "http: //java. sun. com/dtd/application_1_3. dtd"> <application> <display-name>Prova application</display-name> <module> <ejb>prova. Jboss. jar</ejb> </module> <web> <web-uri>prova. Jboss. Web. war</web-uri> <context-root>/prova</context-root> </web> </module> </application>

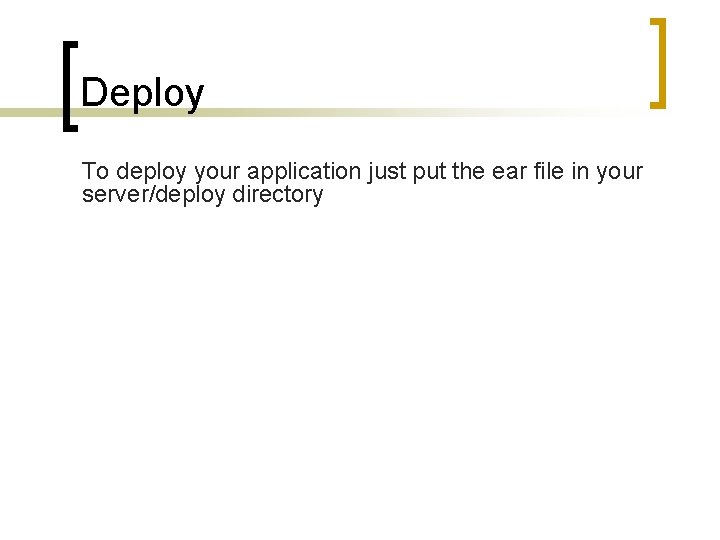

Deploy To deploy your application just put the ear file in your server/deploy directory

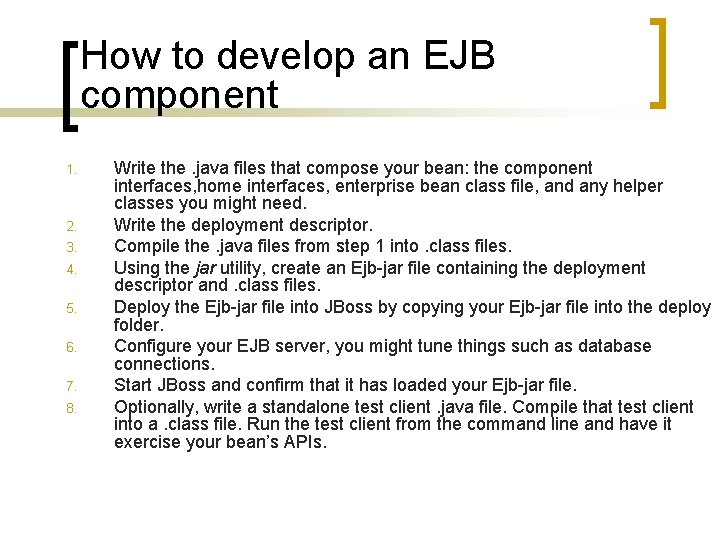

How to develop an EJB component 1. 2. 3. 4. 5. 6. 7. 8. Write the. java files that compose your bean: the component interfaces, home interfaces, enterprise bean class file, and any helper classes you might need. Write the deployment descriptor. Compile the. java files from step 1 into. class files. Using the jar utility, create an Ejb-jar file containing the deployment descriptor and. class files. Deploy the Ejb-jar file into JBoss by copying your Ejb-jar file into the deploy folder. Configure your EJB server, you might tune things such as database connections. Start JBoss and confirm that it has loaded your Ejb-jar file. Optionally, write a standalone test client. java file. Compile that test client into a. class file. Run the test client from the command line and have it exercise your bean’s APIs.

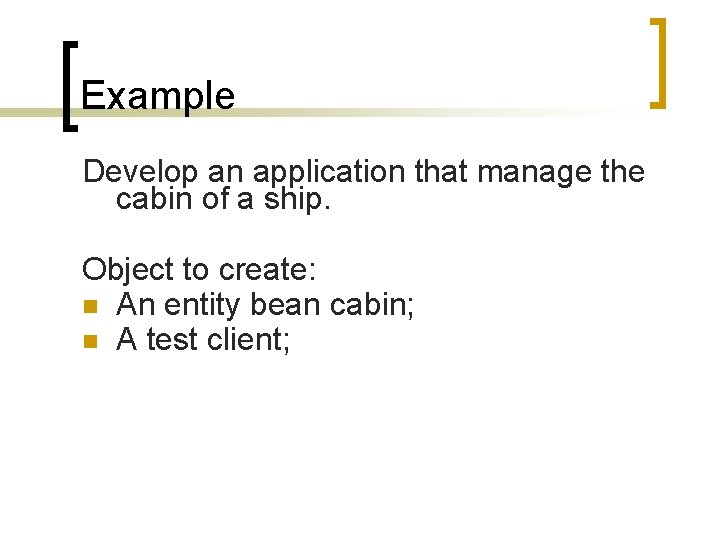

Example Develop an application that manage the cabin of a ship. Object to create: An entity bean cabin; A test client;

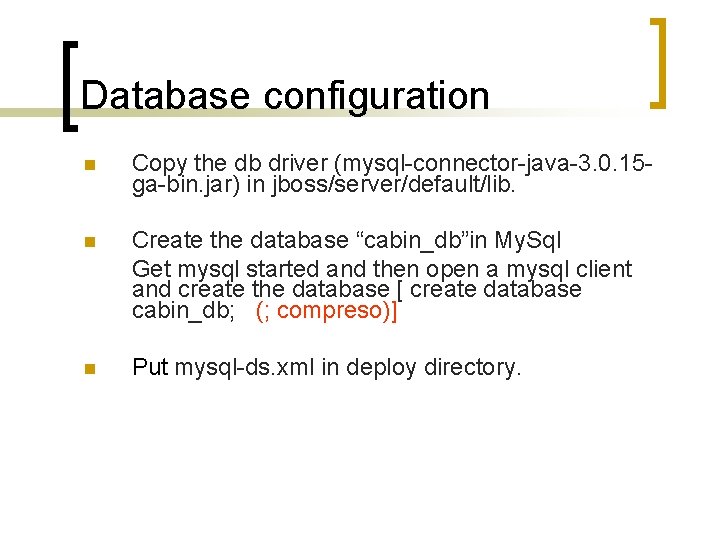

Database configuration Copy the db driver (mysql-connector-java-3. 0. 15 ga-bin. jar) in jboss/server/default/lib. Create the database “cabin_db”in My. Sql Get mysql started and then open a mysql client and create the database [ create database cabin_db; (; compreso)] Put mysql-ds. xml in deploy directory.
