Java Source Anatomy Barb Ericson Georgia Institute of Technology July 2008 Source. Anatomy 1
Learning Goals • Understand at a conceptual and practical level the anatomy of a Java source file – – Optional Comments Optional Package Declaration Import Statements as needed Class Declarations • Attributes • Constructors • Methods Source. Anatomy 2
Structure of a Java Source File Optional Package statement Optional Import statements Comments (like author(s)) Class definition { Attributes - fields Constructors - initializers Methods - behaviors Optional Main method } Source. Anatomy 3
Packages • Packages allow you to organize your classes into a hierarchy. The package hierarchy is also used for the directory structure. – edu. gatech. ice. Class should be in edu/gatech/ice/ • Package names for packages intended for release outside the organization are like the reverse of the internet domain names. – com. sun. java. swing – edu. gatech java. lang • Every class belongs to a package. If none is specified then the unnamed package is used. Source. Anatomy 4
Common Packages • java. lang - Basic classes, including strings and objects • java. util - Utility classes including generic data structures • java. awt - User interface and graphics • javax. swing - Newer user interface classes • java. applet - Support for applets • java. net - Networking support (URLs, TCP, UDP) • java. io - Input and output to files and streams Source. Anatomy 5
Package Statement • The package statement has to be the first line of code in a source file, if it is specified. It can follow a comment. – package. Name; for example /** Copyright notice */ package edu. gatech. ice; Source. Anatomy 6
Import Statements • If you wish to use classes from a different package than the declared package you can import the class using • import java. awt. Color; or • import java. awt. *; // import just Color // all classes in java. awt – doesn’t include the file like in C so there is no penalty to using the wildcard – doesn’t extend to children of that level. For example importing java. awt. * doesn’t import java. awt. event. *; • Or you can use the full name in your code – java. awt. Color Source. Anatomy 7
How do you know what to import? • If you use a class that is part of Java and you get a compiler error – Error: Undefined class • Use the all classes list of the API to find the class and check the documentation for the package it is in Source. Anatomy 8
Import Exercise • Change Simple. Picture. java to specify all the classes that are being imported – Rather than using • import java. awt. *; • Import java. io. *; • Comment out the import statements with a wildcard ‘*” – select lines-> Edit-> Comment Line(s) • Compile and see what classes it says are undefined • Find the classes in the API and add a fully qualified import statement for each – import java. awt. Color; Source. Anatomy 9
Comments • There are three types of comments in Java – A multi-line comment /* here is a multi-line comment it ends here */ – A single line comment // comments out the rest of this line – A javadoc comment /** Method to return the name of the person */ @author name - adds an author entry @version text - adds a version section @param name description - adds a parameter description @return description - describes the return value of a method Source. Anatomy 10
Comment Exercise • Open Simple. Picture. java and read some of the comments – Which are Javadoc comments? – Which are single line comments? – Which are multi-line comments? • Click on Tools and select Preview Javadoc for Current Document – Compare the html documentation to the original Javadoc comments Source. Anatomy 11

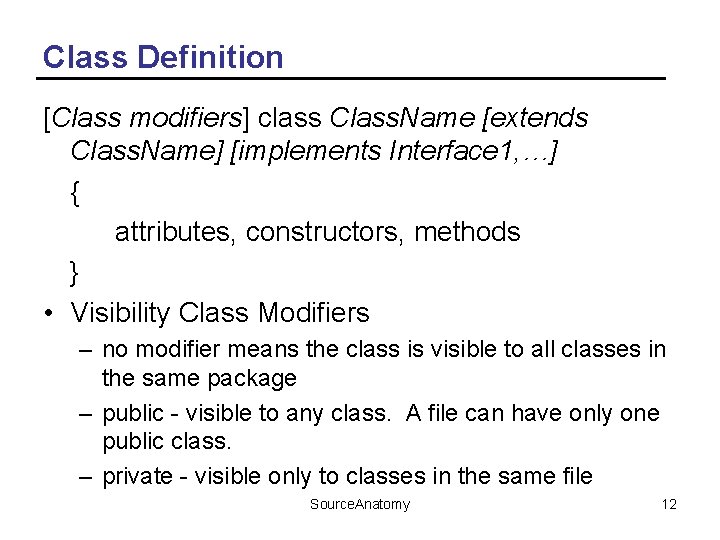

Class Definition [Class modifiers] class Class. Name [extends Class. Name] [implements Interface 1, …] { attributes, constructors, methods } • Visibility Class Modifiers – no modifier means the class is visible to all classes in the same package – public - visible to any class. A file can have only one public class. – private - visible only to classes in the same file Source. Anatomy 12
Class Definition Examples public class Person implements Comparable { attributes, methods, and inner classes } private class Helper extends Object { attributes, methods, and inner classes } Source. Anatomy 13
Optional Extends Clause • The “extends Class” clause tells you which class is the parent class – The one the current class inherits from – The parent, super, or base class • If there is no “extends Class” clause – The class inherits from Object • In the package java. lang Source. Anatomy 14
Inheritance Exercise • What is the parent class of each of these classes? – – Picture. java Simple. Picture. java Sound. java Pixel. java • Where is the show method defined that Picture objects know how to do? • Where is the play method defined that Sound objects know how to do? Source. Anatomy 15
Optional Implements Clause • The “implements interface 1, interface 2” lets the class specify the interfaces that the class promises to implement – Any methods defined in the interfaces must be defined in the class • Or the code will not compile • An interface is like a communications contract – How two classes will communicate – Without worrying what about what classes they are • An interface name can be used as a type – For variable declarations Source. Anatomy 16

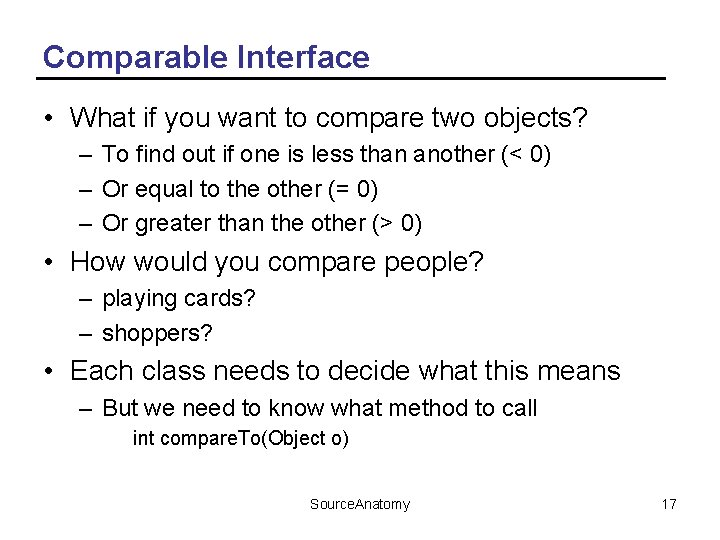

Comparable Interface • What if you want to compare two objects? – To find out if one is less than another (< 0) – Or equal to the other (= 0) – Or greater than the other (> 0) • How would you compare people? – playing cards? – shoppers? • Each class needs to decide what this means – But we need to know what method to call int compare. To(Object o) Source. Anatomy 17
Interface Exercise • What interface does Simple. Picture. java implement? • Find that interface – Defined in a file with the interface Name. java • What methods are declared in the interface? • Find the same methods in Simple. Picture. java Source. Anatomy 18
Attributes/Fields • Attributes are the data that each object knows about itself. – All object methods in the class have access to the object attributes • Can use just the attribute name • Can also use this. attribute name • Can also use get. Attribute() if you follow Java naming conventions – Class and object methods have access to the class attributes • Declared with “static” keyword Source. Anatomy 19
Attribute Exercise • Open Simple. Picture. java • What are the attributes (fields)? – Which are object fields? – Which are class (static) fields? • Change the load method to use – set. File. Name(file. Name) instead of • this. file. Name = file. Name; – Compile – Test by creating a picture and using System. out. println(picture); Source. Anatomy 20
Declaring Attributes • Attributes are declared as [visibility] type name [= value]; Visibility none specified - classes in the same package public - all classes protected - class, subclasses, and other classes in the same package private - only the class itself Type - the type can be one of the following primitive type object type: class, interface, or array Source. Anatomy 21
Visibility Exercise • Open Simple. Picture. java – Which fields have public visibility? • Why are these public? – Which fields have private visibility? • Why are these private? Source. Anatomy 22
Constructors • Constructors are called when the new object is created. They initialize the new object. Person curr. Person = new Person(“Fred Flintstone”); • Constructors don’t have a return type and have the same name as the class. public Person () // no argument constructor • There can be many constructors but their parameter signatures must be different. public Person() {} public Person(String the. Name) { name = the. Name; } } Source. Anatomy 23
Advanced Constructor Information • The compiler will add a no-argument (no parameters) constructor – All fields will have their default values • Objects default to null • Numbers default to zero • Booleans default to false • If you add any constructors – The compiler will no longer add any for you – You will need to write the no-argument constructor • One constructor can invoke another – Use this(parameter List) as first line Source. Anatomy 24
Inheritance and Constructors • If classes have private attributes – Meaning they can’t be directly accessed outside the class – How can you initialize inherited attributes? • Use super(parameters) to call the parent constructor • Must be the first line in a constructor • If not present the compiler will add a super() as the first line in a constructor • Means the parent class must have a no-argument constructor if you aren’t calling super(parameters) in your constructors Source. Anatomy 25
Constructor Exercise • Open Simple. Picture. java – How many constructors does it have? – Why do the constructors call super()? • Open Picture. java – How many constructors does it have? • What is different about the constructors? – How would the complier decide which one to use? Source. Anatomy 26
Methods • Methods are things that object of the class know how to do. • Methods are declared as [visibility] return. Type method. Name (parameter list) { … [return x; ] // if return. Type is not void } • Example public String get. Name() { return name; } Source. Anatomy 27
Method Visibility and Return Type • Visibility – none specified - classes in the same package – public - all classes – protected - class, subclasses, and other classes in the same package – private - only the class itself • Return Type - the return type can be one of the following – primitive type: int, float, double. . . – object type: class, interface, or array – void if no value is returned Source. Anatomy 28
Method Parameter List • Can have no parameters – public String get. Name() • Parameters are listed as type name – public void set. Name(String name) • Separate parameters with commas – public void multiply. Two(int x, int y) • You can have several methods with the same name but different parameter signatures. – public void multiply. Two(float x, float y) – public void multiply. Two(int x, int y) Source. Anatomy 29
Main Method • Each class can have a main method public static void main(String[] argv) {} • You tell Java which class to start with java Class. Name • Execution starts with the main method – There are no objects when you begin so the main method is static (a class method) • In the main method you create object(s) of the class – Then start the simulation Source. Anatomy 30
Add Main Method Exercise • Add a main method to Picture. java to – Create a picture from a specified file – Negate the picture – Show the picture • Execute by Tools->Run Document’s Main Method – Notice that the interactions pane shows java Picture Source. Anatomy 31
Summary • The package statement is the first code in a class file. – package edu. gatech. ice; • Import statements follow the package statement. – import edu. gatech. edu. *; • There are three kinds of comments in Java – // comment or /* comment */ or /** comment */ • The class definition follows the import statement. • Inside a class definition you declare attributes, constructors, and methods. Source. Anatomy 32
