Java Programming Goals Illustrate the basic concepts of

Java Programming Goals: • Illustrate the basic concepts of programming languages and programs. • Gain some experience with a high-level language. • Teach some basic programming concepts.

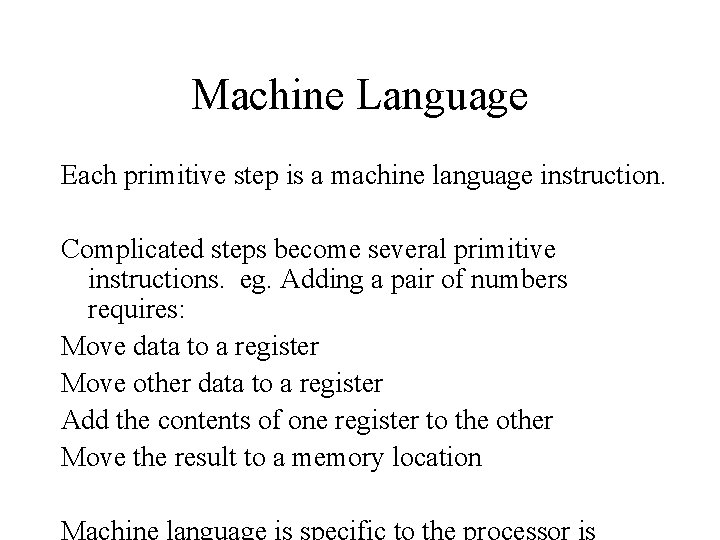

Machine Language Each primitive step is a machine language instruction. Complicated steps become several primitive instructions. eg. Adding a pair of numbers requires: Move data to a register Move other data to a register Add the contents of one register to the other Move the result to a memory location

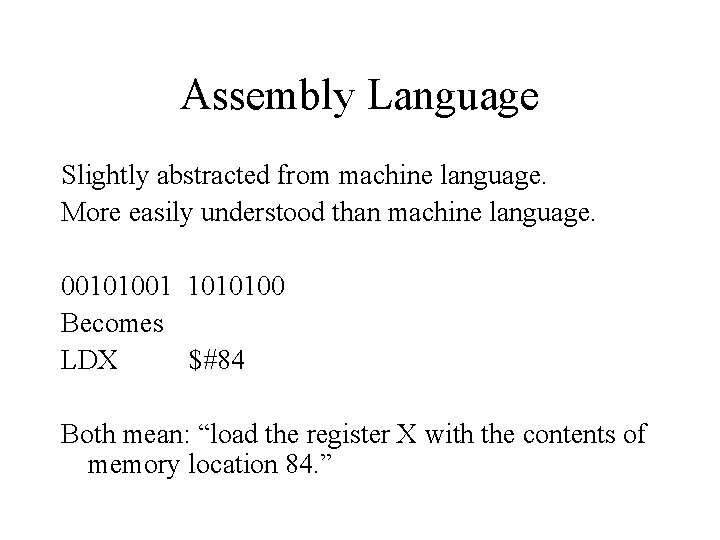

Assembly Language Slightly abstracted from machine language. More easily understood than machine language. 00101001 1010100 Becomes LDX $#84 Both mean: “load the register X with the contents of memory location 84. ”

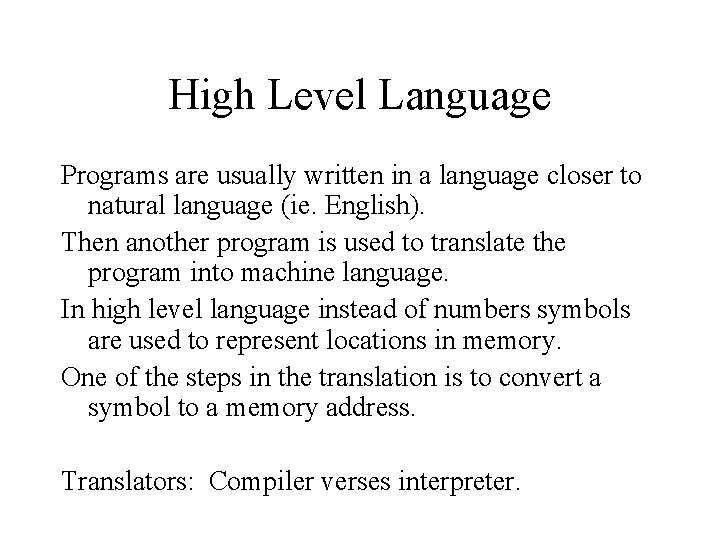

High Level Language Programs are usually written in a language closer to natural language (ie. English). Then another program is used to translate the program into machine language. In high level language instead of numbers symbols are used to represent locations in memory. One of the steps in the translation is to convert a symbol to a memory address. Translators: Compiler verses interpreter.

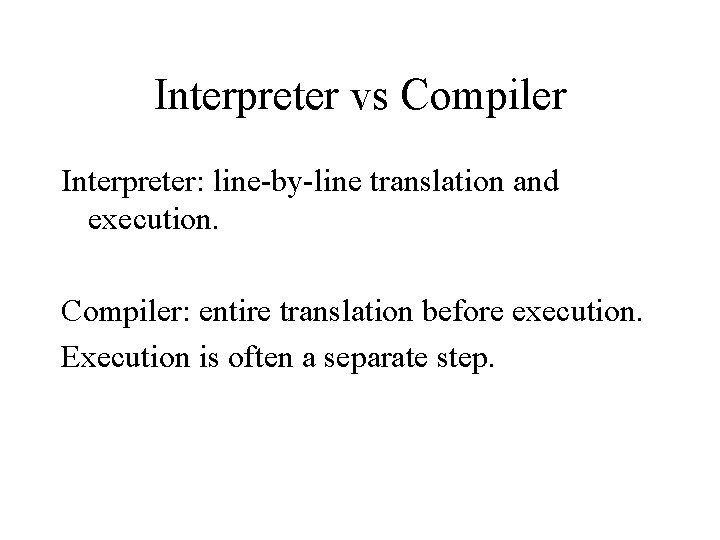

Interpreter vs Compiler Interpreter: line-by-line translation and execution. Compiler: entire translation before execution. Execution is often a separate step.

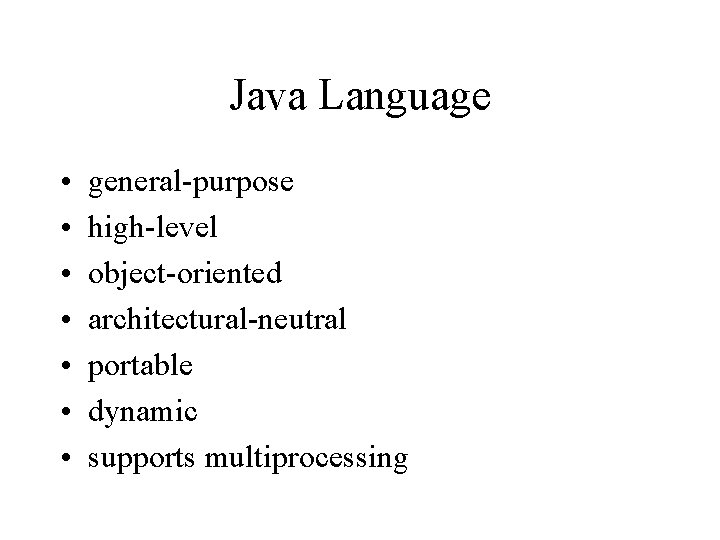

Java Language • • general-purpose high-level object-oriented architectural-neutral portable dynamic supports multiprocessing

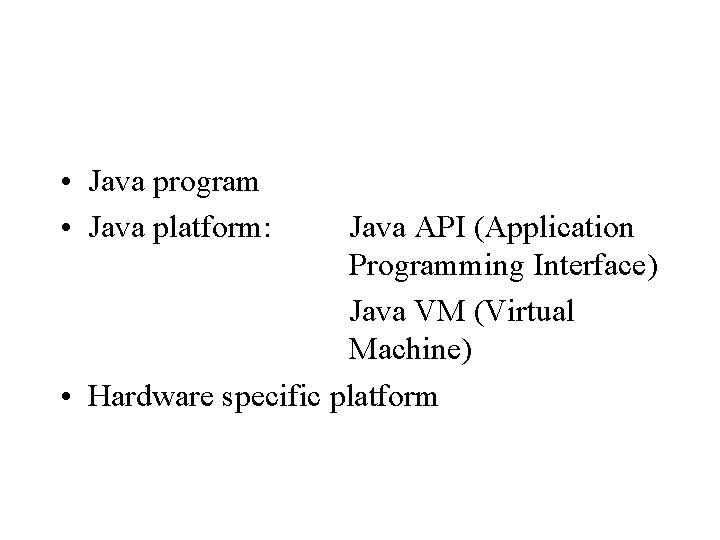

• Java program • Java platform: Java API (Application Programming Interface) Java VM (Virtual Machine) • Hardware specific platform

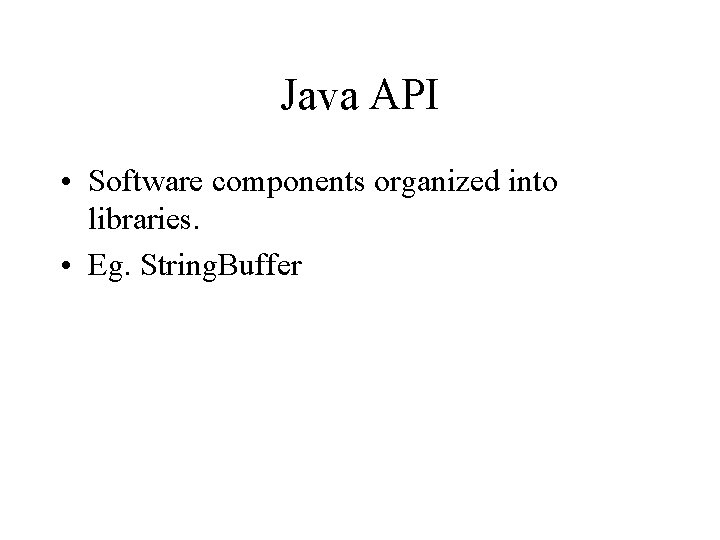

Java API • Software components organized into libraries. • Eg. String. Buffer

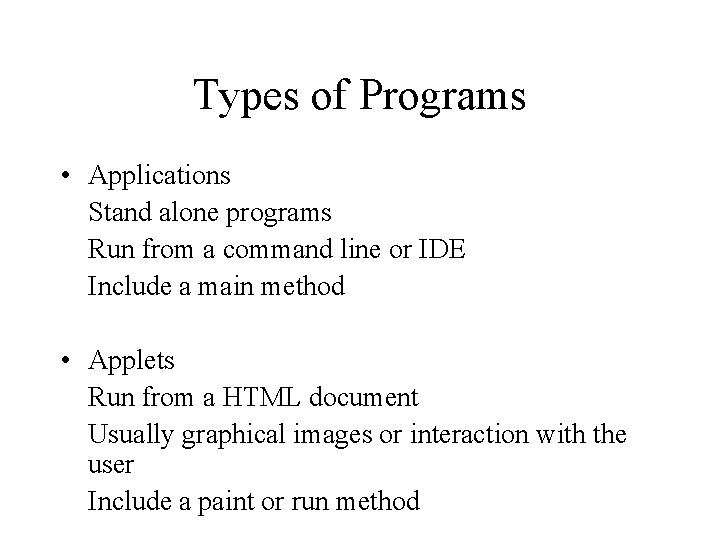

Types of Programs • Applications Stand alone programs Run from a command line or IDE Include a main method • Applets Run from a HTML document Usually graphical images or interaction with the user Include a paint or run method

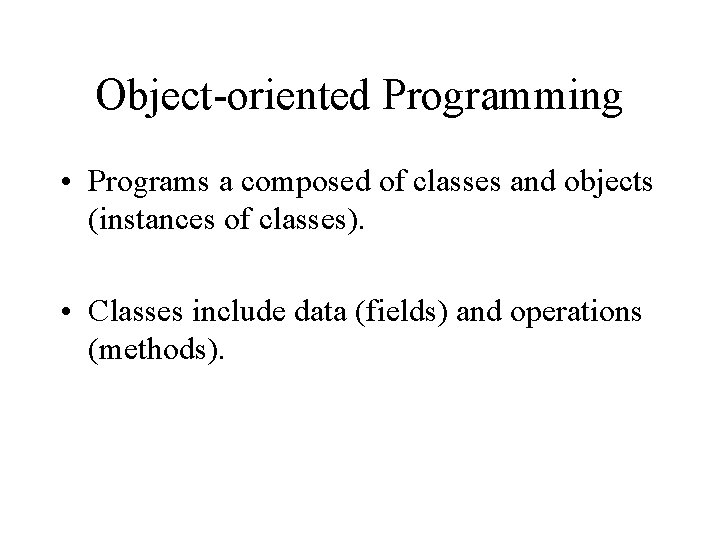

Object-oriented Programming • Programs a composed of classes and objects (instances of classes). • Classes include data (fields) and operations (methods).

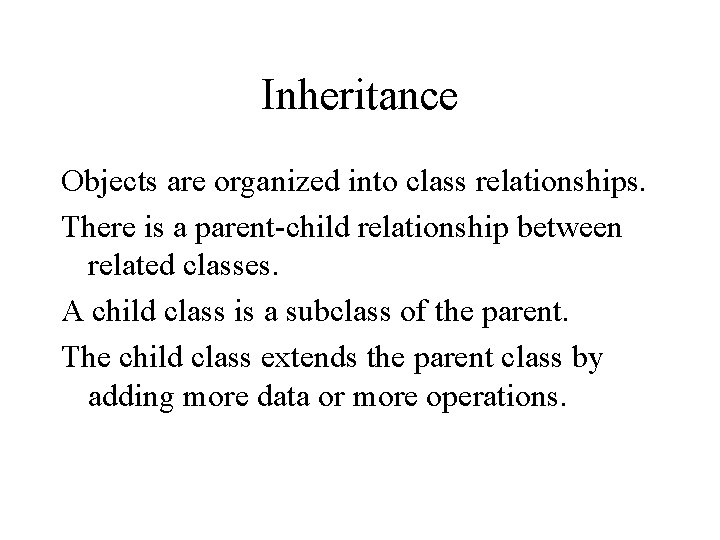

Inheritance Objects are organized into class relationships. There is a parent-child relationship between related classes. A child class is a subclass of the parent. The child class extends the parent class by adding more data or more operations.

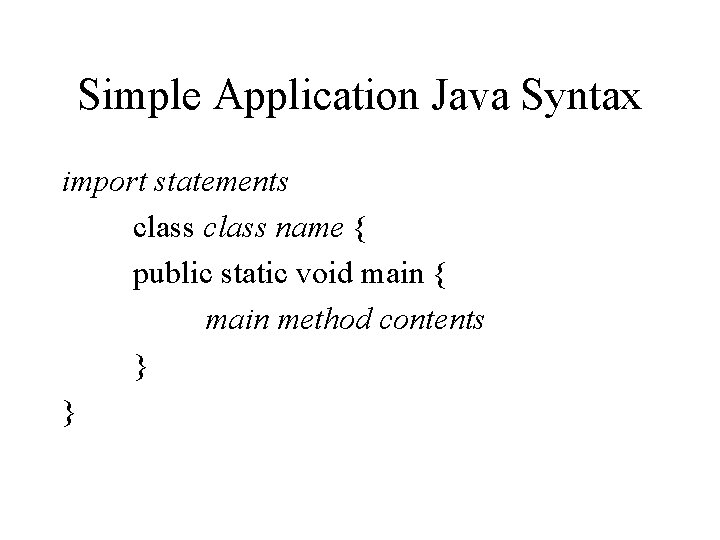

Simple Application Java Syntax import statements class name { public static void main { main method contents } }

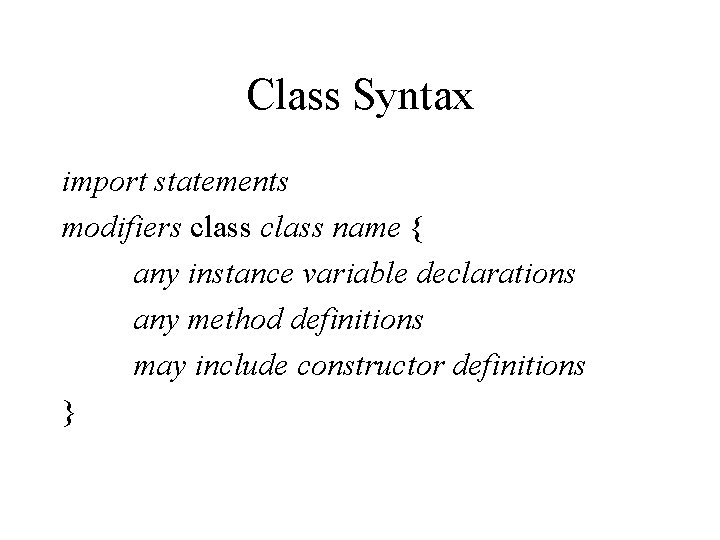

Class Syntax import statements modifiers class name { any instance variable declarations any method definitions may include constructor definitions }

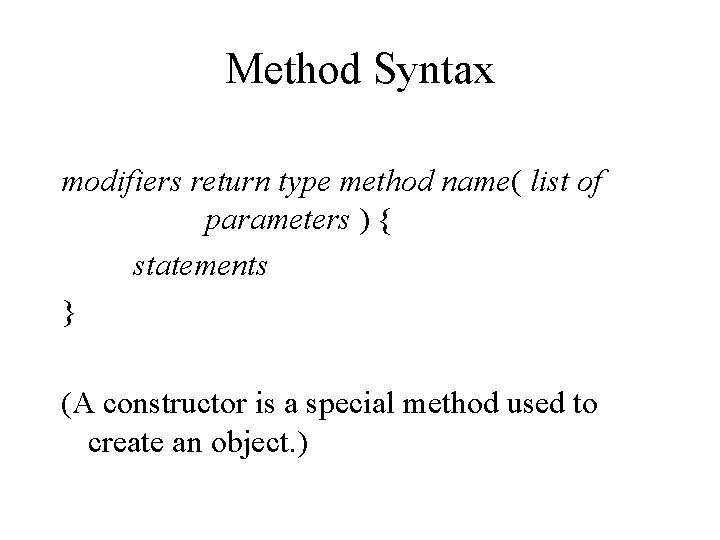

Method Syntax modifiers return type method name( list of parameters ) { statements } (A constructor is a special method used to create an object. )

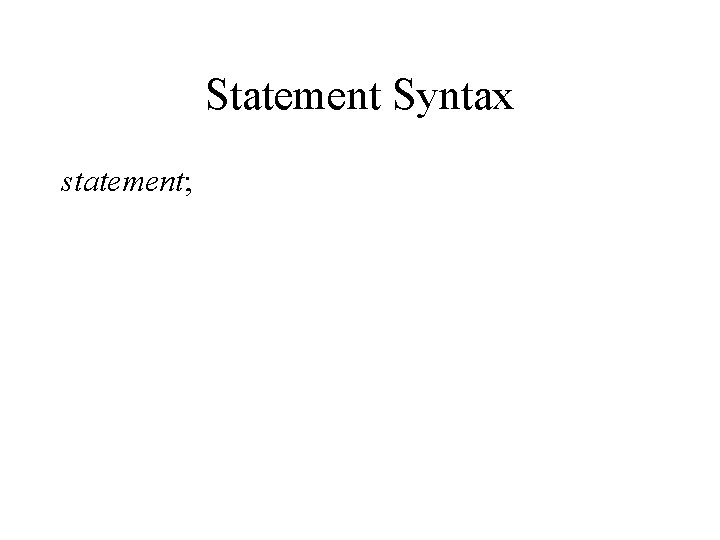

Statement Syntax statement;

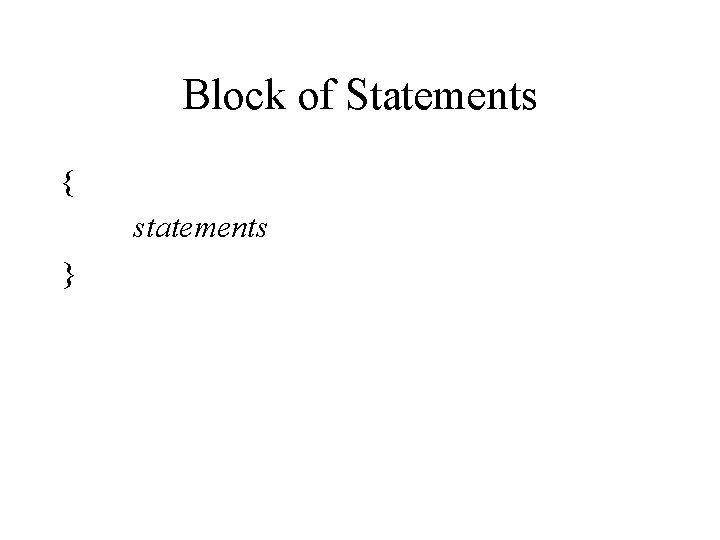

Block of Statements { statements }

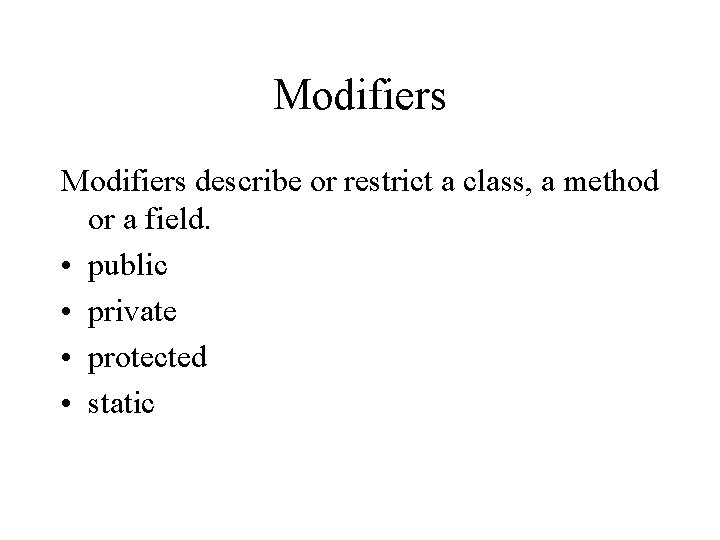

Modifiers describe or restrict a class, a method or a field. • public • private • protected • static

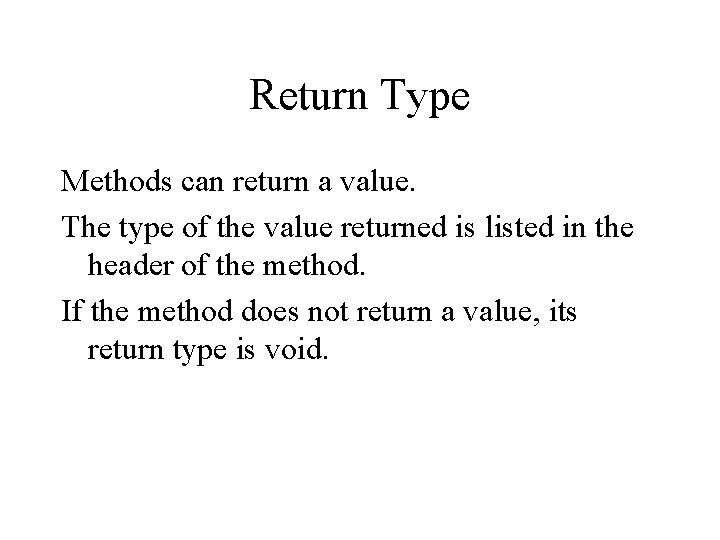

Return Type Methods can return a value. The type of the value returned is listed in the header of the method. If the method does not return a value, its return type is void.

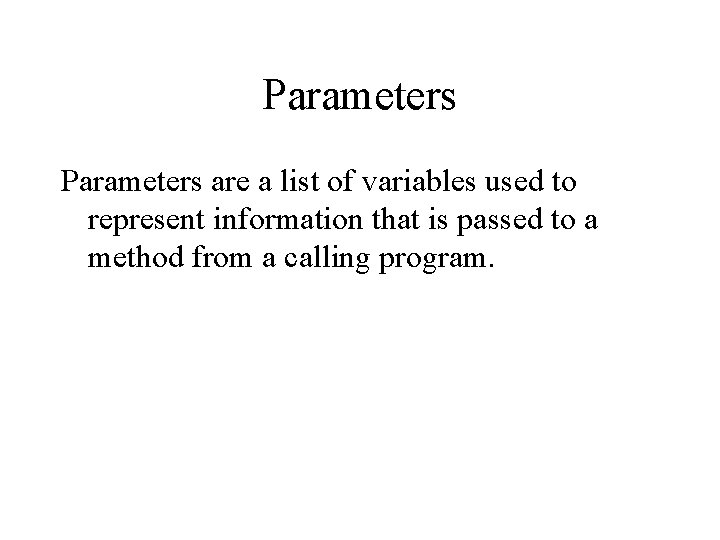

Parameters are a list of variables used to represent information that is passed to a method from a calling program.

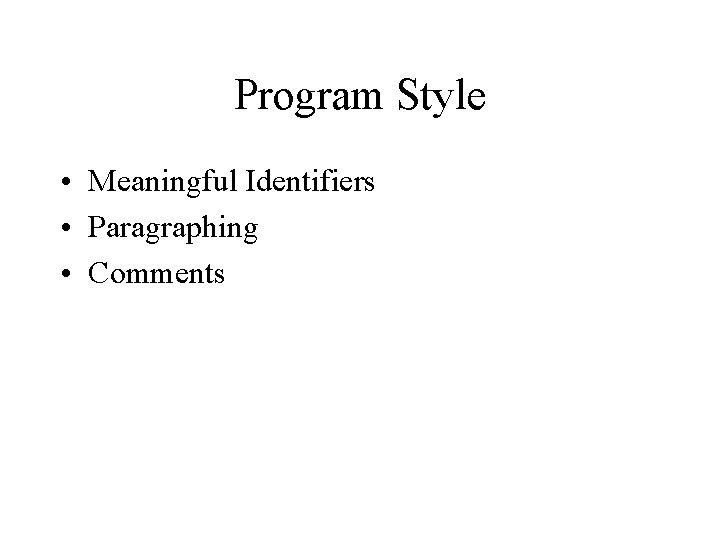

Program Style • Meaningful Identifiers • Paragraphing • Comments

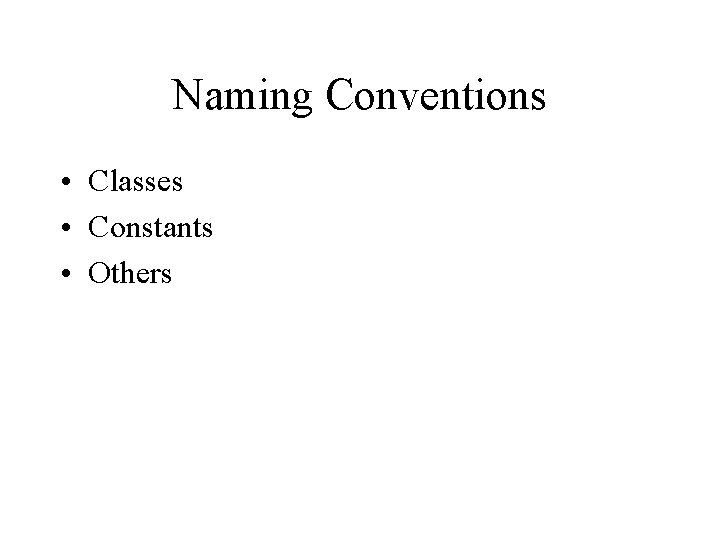

Naming Conventions • Classes • Constants • Others

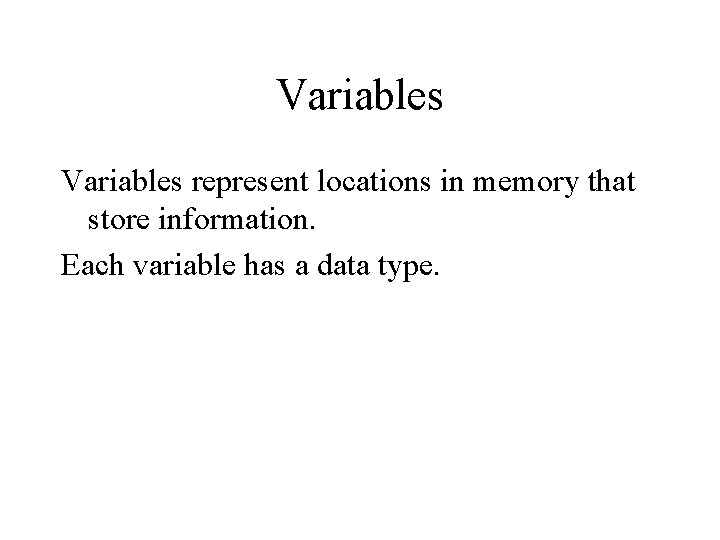

Variables represent locations in memory that store information. Each variable has a data type.

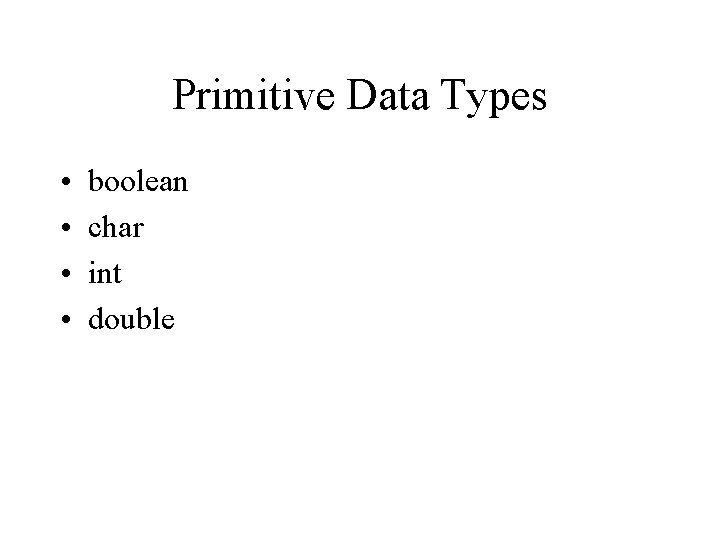

Primitive Data Types • • boolean char int double

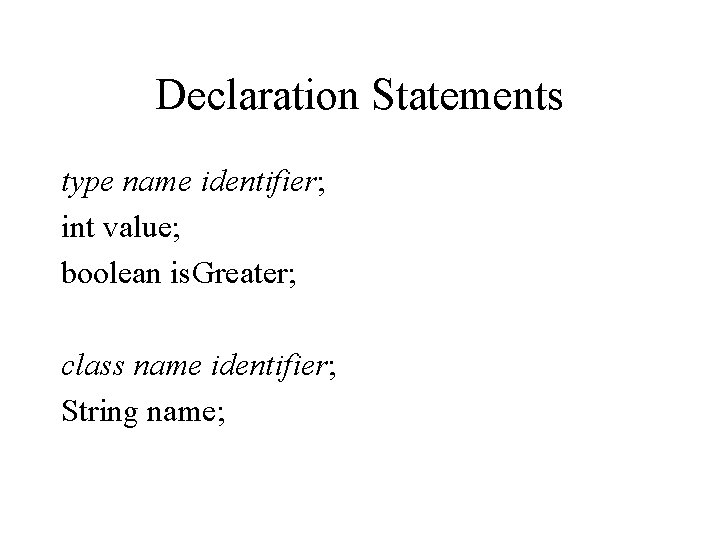

Declaration Statements type name identifier; int value; boolean is. Greater; class name identifier; String name;

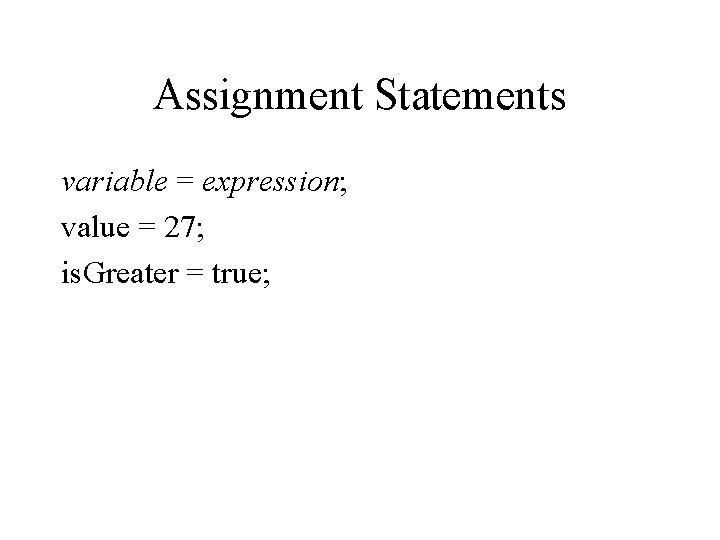

Assignment Statements variable = expression; value = 27; is. Greater = true;

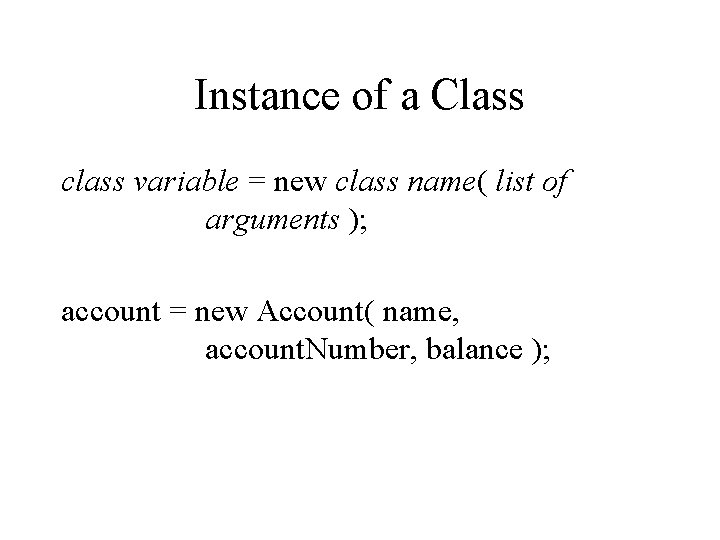

Instance of a Class class variable = new class name( list of arguments ); account = new Account( name, account. Number, balance );

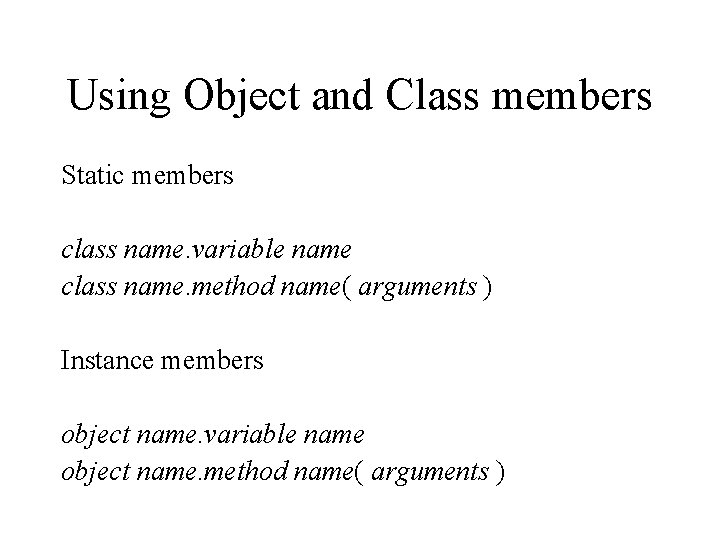

Using Object and Class members Static members class name. variable name class name. method name( arguments ) Instance members object name. variable name object name. method name( arguments )

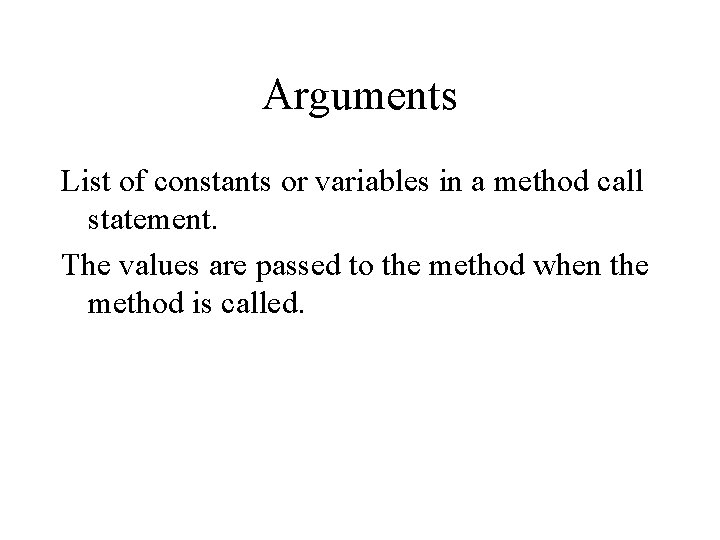

Arguments List of constants or variables in a method call statement. The values are passed to the method when the method is called.

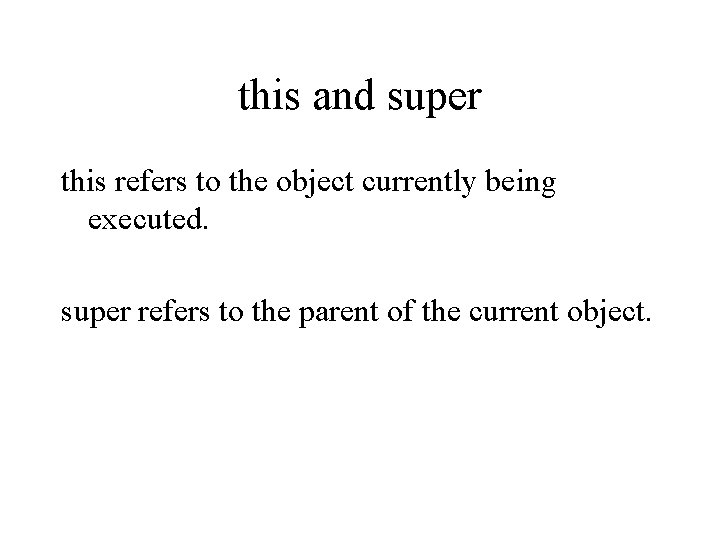

this and super this refers to the object currently being executed. super refers to the parent of the current object.

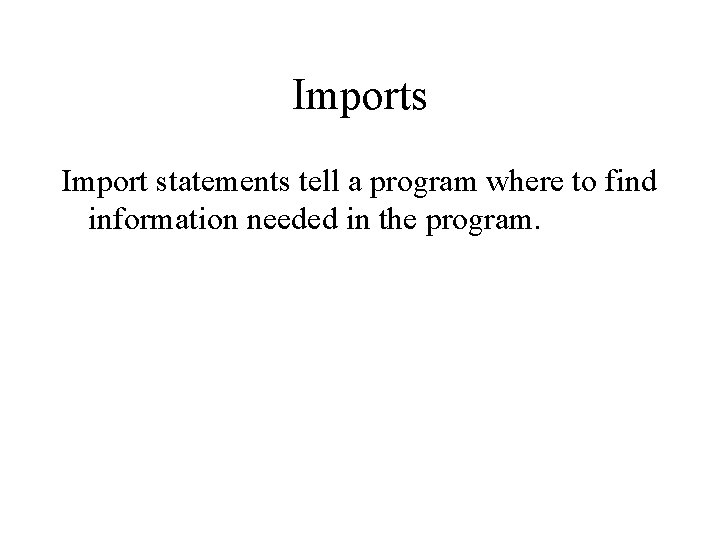

Imports Import statements tell a program where to find information needed in the program.

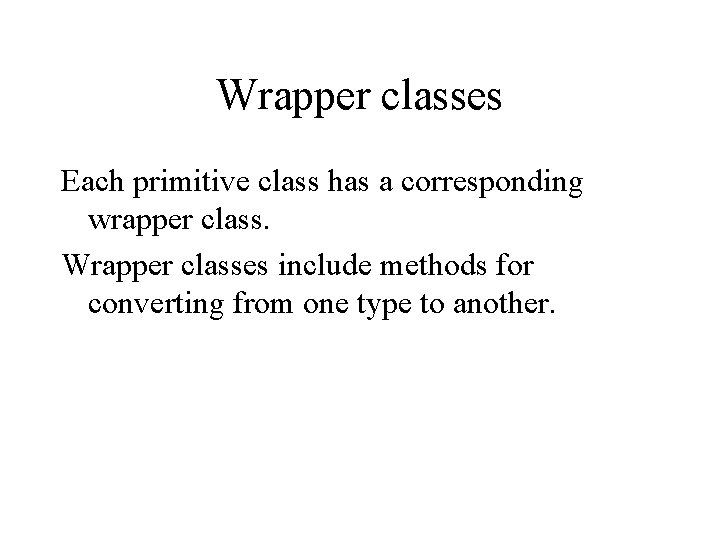

Wrapper classes Each primitive class has a corresponding wrapper class. Wrapper classes include methods for converting from one type to another.

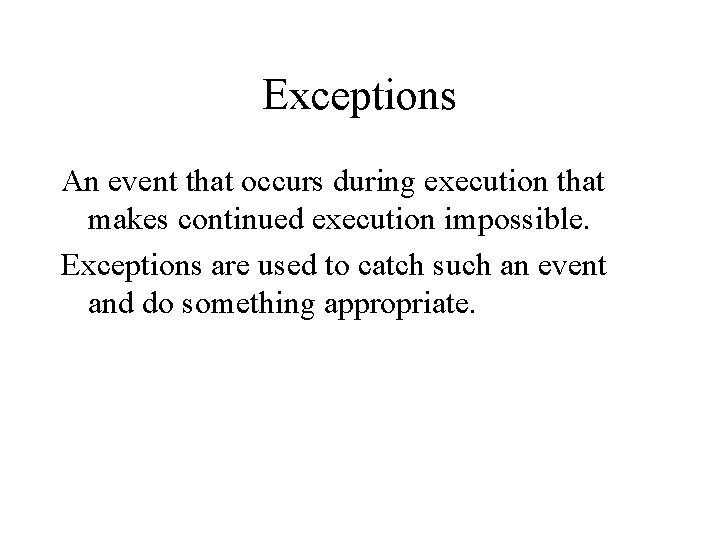

Exceptions An event that occurs during execution that makes continued execution impossible. Exceptions are used to catch such an event and do something appropriate.

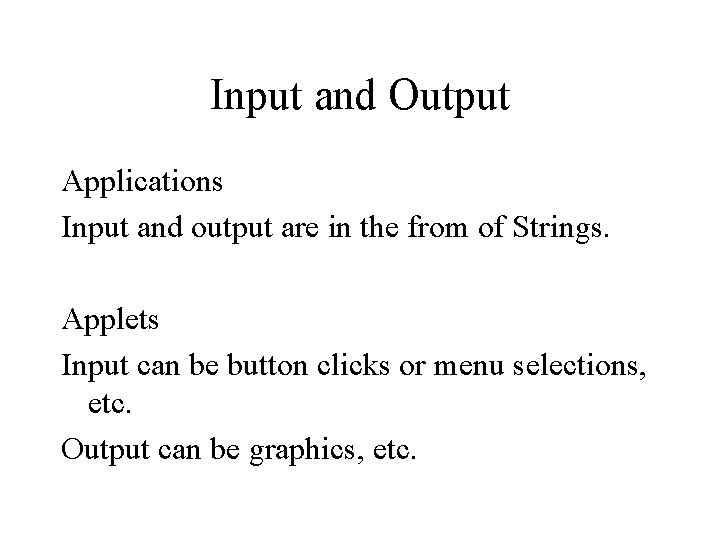

Input and Output Applications Input and output are in the from of Strings. Applets Input can be button clicks or menu selections, etc. Output can be graphics, etc.

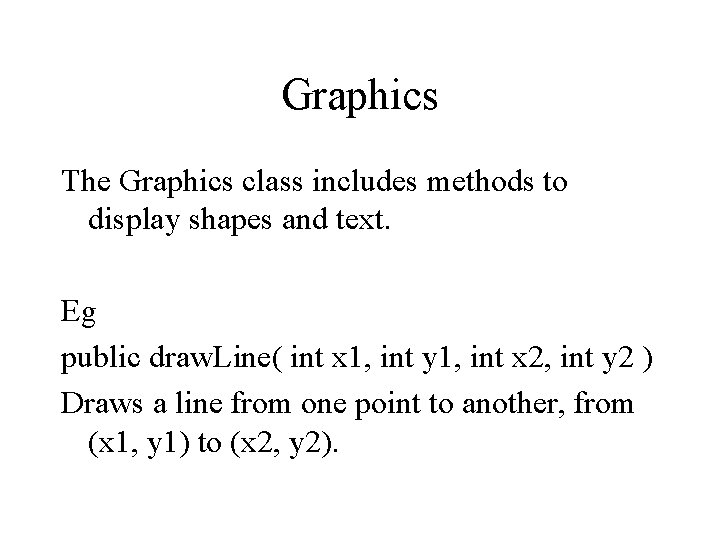

Graphics The Graphics class includes methods to display shapes and text. Eg public draw. Line( int x 1, int y 1, int x 2, int y 2 ) Draws a line from one point to another, from (x 1, y 1) to (x 2, y 2).

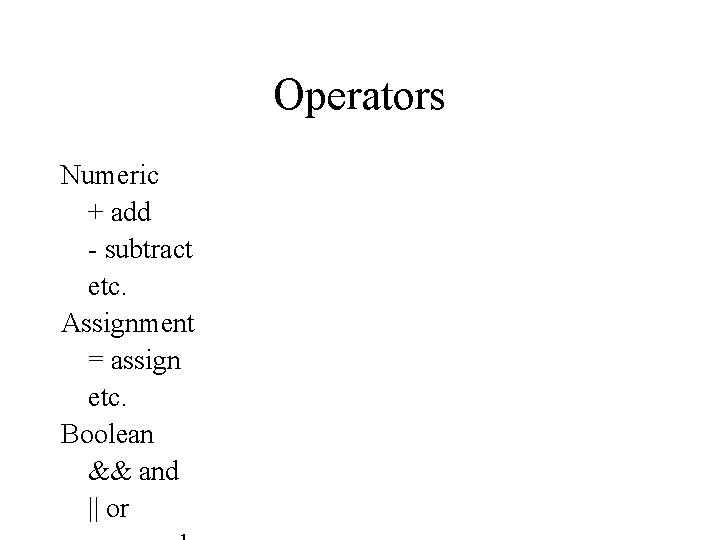

Operators Numeric + add - subtract etc. Assignment = assign etc. Boolean && and || or

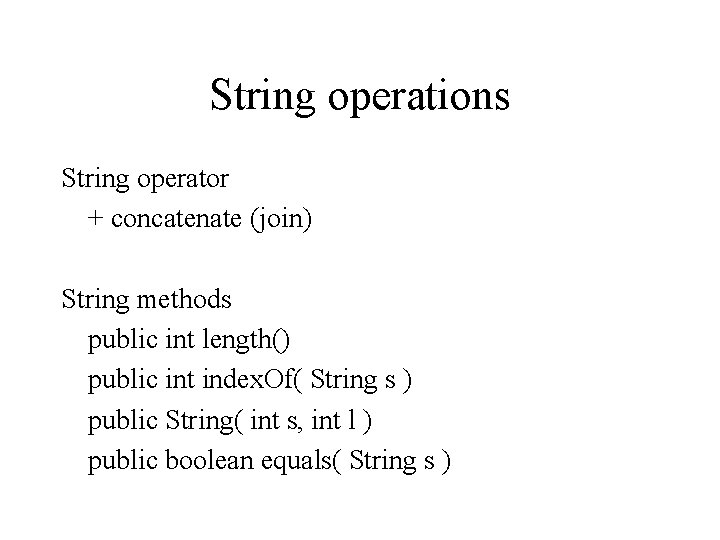

String operations String operator + concatenate (join) String methods public int length() public int index. Of( String s ) public String( int s, int l ) public boolean equals( String s )

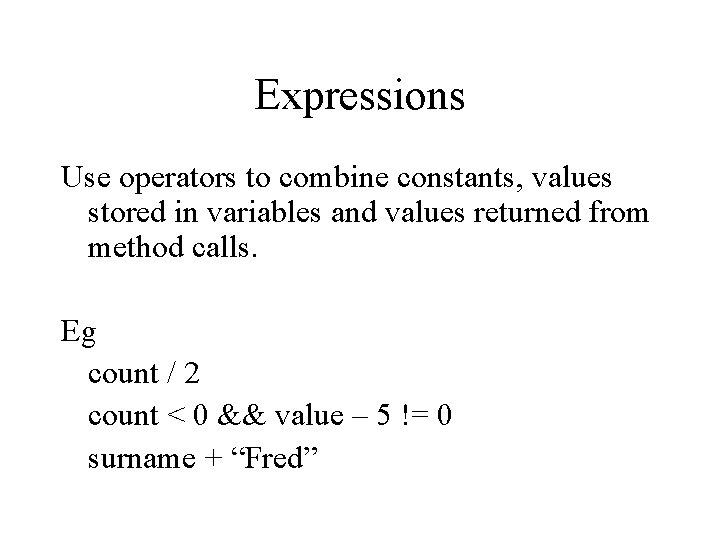

Expressions Use operators to combine constants, values stored in variables and values returned from method calls. Eg count / 2 count < 0 && value – 5 != 0 surname + “Fred”

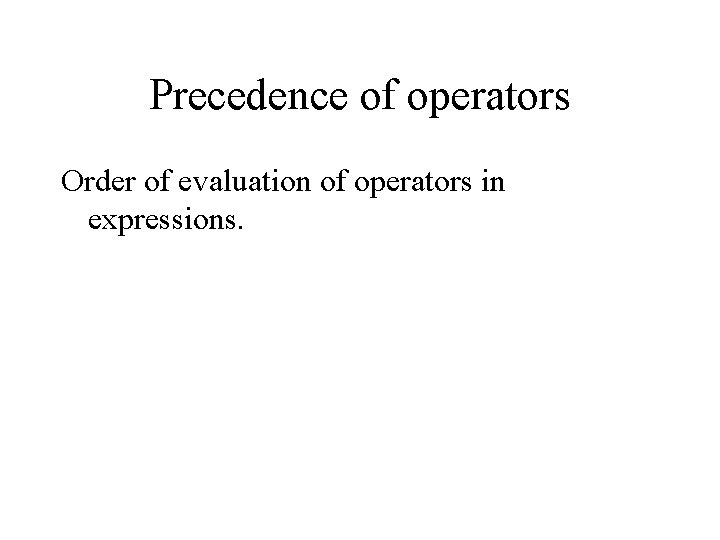

Precedence of operators Order of evaluation of operators in expressions.

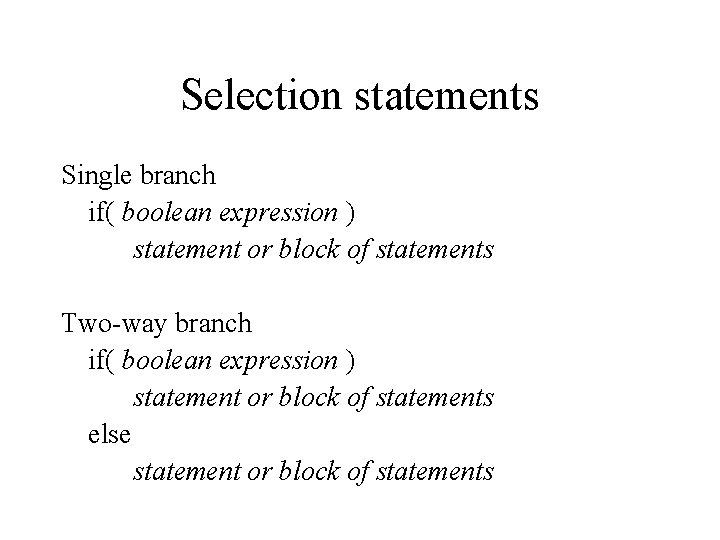

Selection statements Single branch if( boolean expression ) statement or block of statements Two-way branch if( boolean expression ) statement or block of statements else statement or block of statements

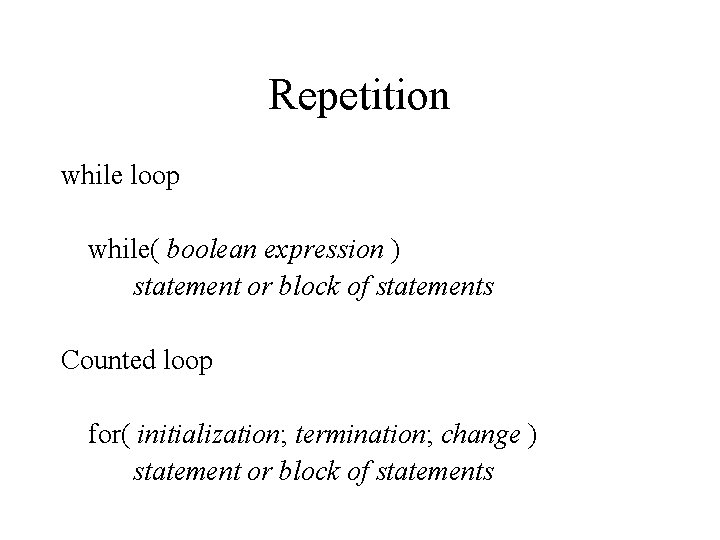

Repetition while loop while( boolean expression ) statement or block of statements Counted loop for( initialization; termination; change ) statement or block of statements

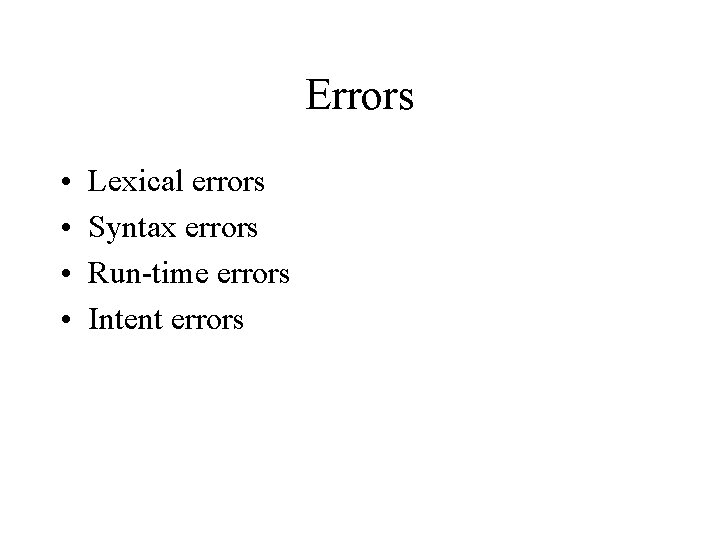

Errors • • Lexical errors Syntax errors Run-time errors Intent errors
