Java Object Oriented Programming 2 D Arrays Objectives

Java Object Oriented Programming 2 D Arrays

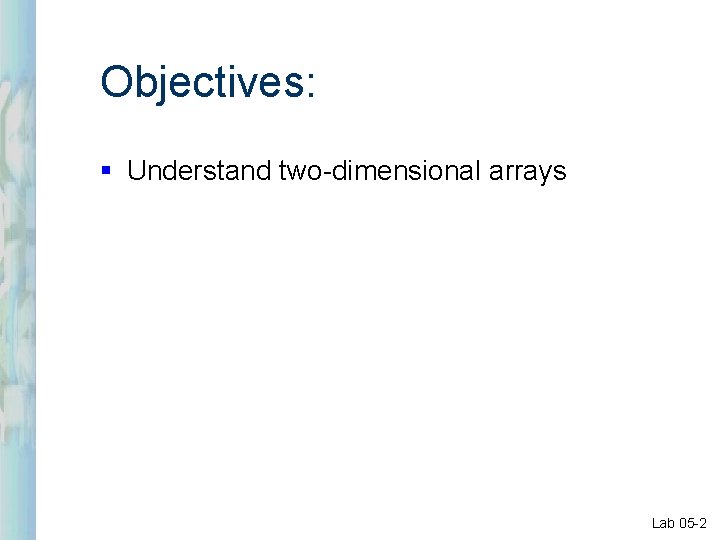

Objectives: § Understand two-dimensional arrays Lab 05 -2

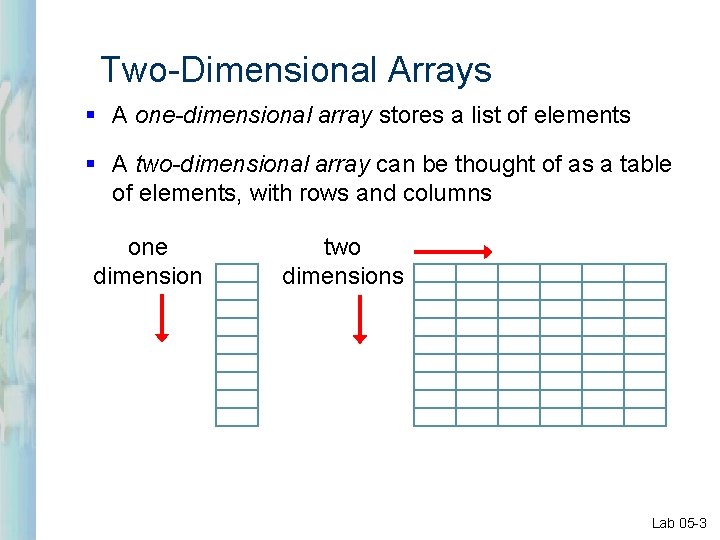

Two-Dimensional Arrays § A one-dimensional array stores a list of elements § A two-dimensional array can be thought of as a table of elements, with rows and columns one dimension two dimensions Lab 05 -3

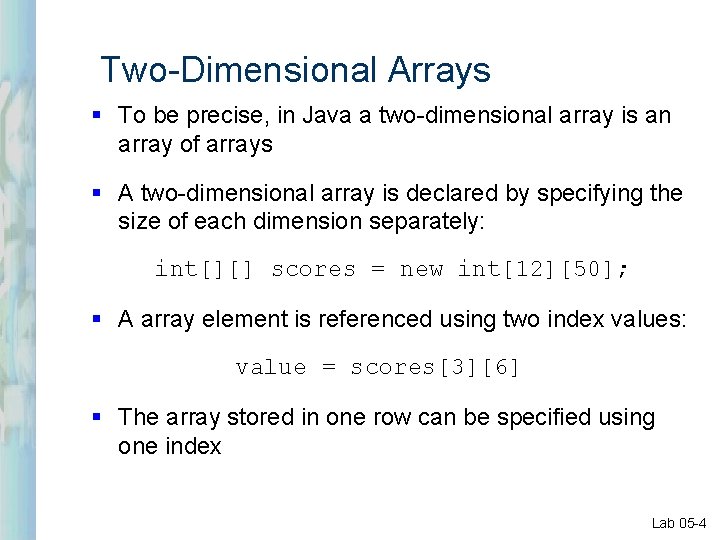

Two-Dimensional Arrays § To be precise, in Java a two-dimensional array is an array of arrays § A two-dimensional array is declared by specifying the size of each dimension separately: int[][] scores = new int[12][50]; § A array element is referenced using two index values: value = scores[3][6] § The array stored in one row can be specified using one index Lab 05 -4

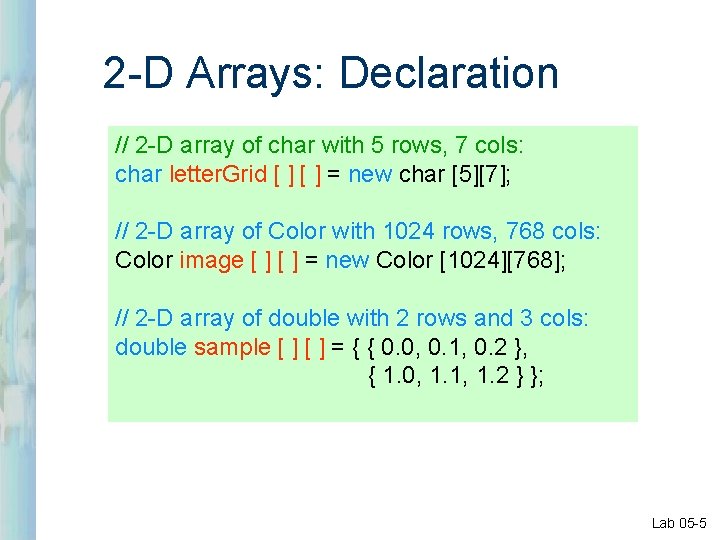

2 -D Arrays: Declaration // 2 -D array of char with 5 rows, 7 cols: char letter. Grid [ ] = new char [5][7]; // 2 -D array of Color with 1024 rows, 768 cols: Color image [ ] = new Color [1024][768]; // 2 -D array of double with 2 rows and 3 cols: double sample [ ] = { { 0. 0, 0. 1, 0. 2 }, { 1. 0, 1. 1, 1. 2 } }; Lab 05 -5

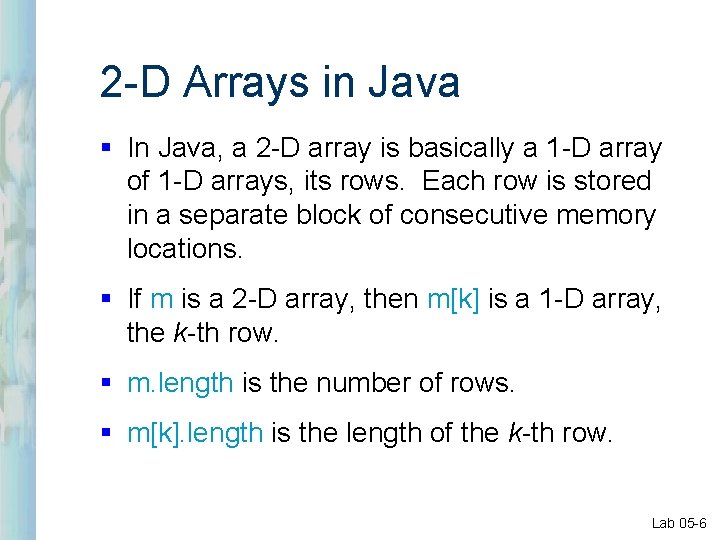

2 -D Arrays in Java § In Java, a 2 -D array is basically a 1 -D array of 1 -D arrays, its rows. Each row is stored in a separate block of consecutive memory locations. § If m is a 2 -D array, then m[k] is a 1 -D array, the k-th row. § m. length is the number of rows. § m[k]. length is the length of the k-th row. Lab 05 -6

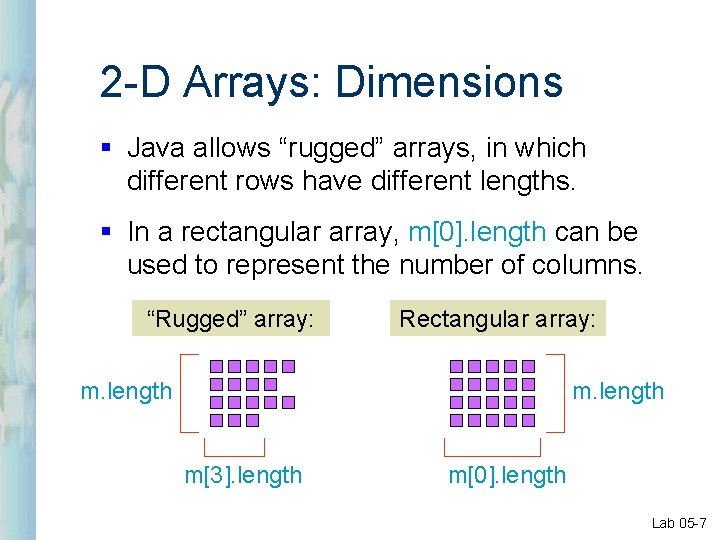

2 -D Arrays: Dimensions § Java allows “rugged” arrays, in which different rows have different lengths. § In a rectangular array, m[0]. length can be used to represent the number of columns. “Rugged” array: Rectangular array: m. length m[3]. length m[0]. length Lab 05 -7

Java Object Oriented Programming Top Down Design

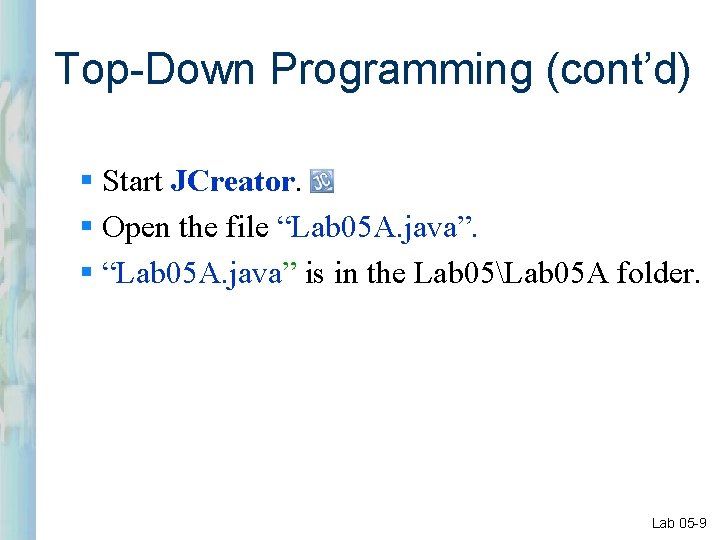

Top-Down Programming (cont’d) § Start JCreator. § Open the file “Lab 05 A. java”. § “Lab 05 A. java” is in the Lab 05Lab 05 A folder. Lab 05 -9

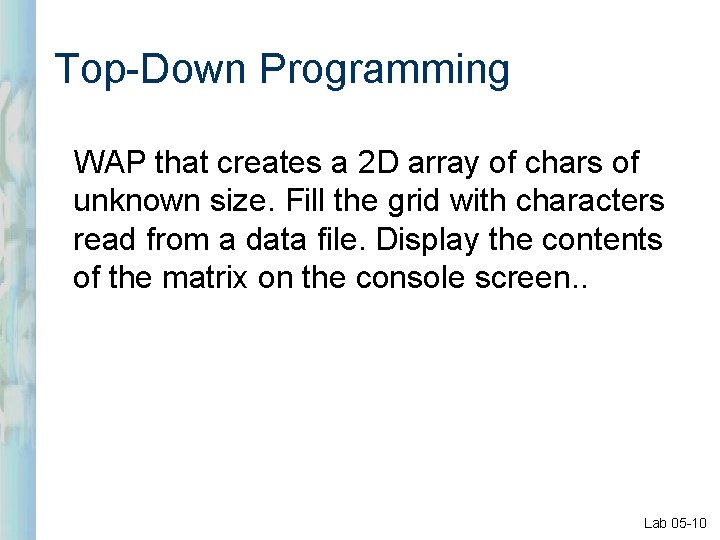

Top-Down Programming WAP that creates a 2 D array of chars of unknown size. Fill the grid with characters read from a data file. Display the contents of the matrix on the console screen. . Lab 05 -10

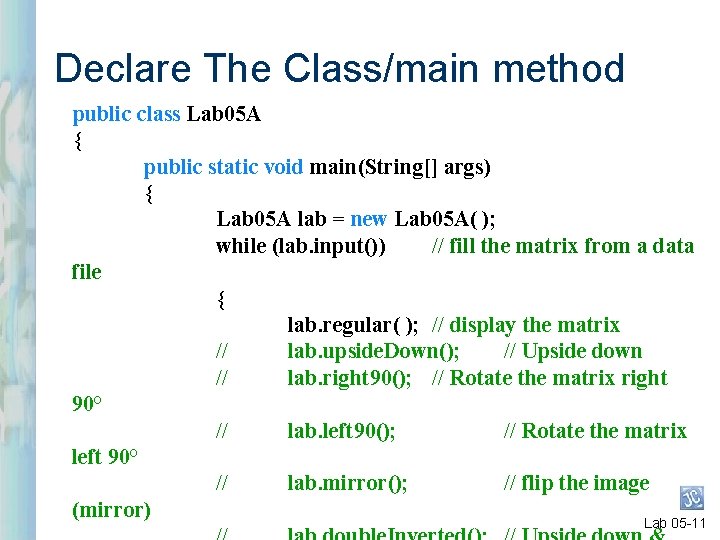

Declare The Class/main method public class Lab 05 A { public static void main(String[] args) { Lab 05 A lab = new Lab 05 A( ); while (lab. input()) // fill the matrix from a data file { lab. regular( ); // display the matrix // lab. upside. Down(); // Upside down // lab. right 90(); // Rotate the matrix right 90° // lab. left 90(); // Rotate the matrix left 90° // lab. mirror(); // flip the image (mirror) Lab 05 -11

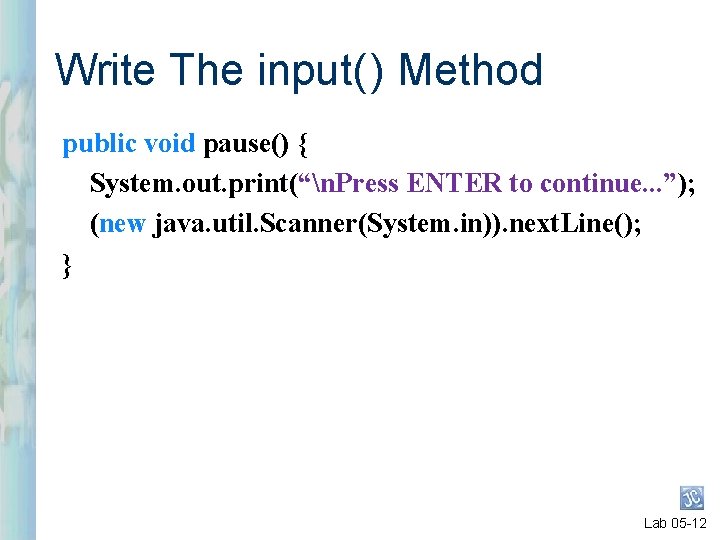

Write The input( ) Method public void pause() { System. out. print(“n. Press ENTER to continue. . . ”); (new java. util. Scanner(System. in)). next. Line(); } Lab 05 -12

Declare The Class/Instance Fields private char[ ][ ] grid; Lab 05 -13

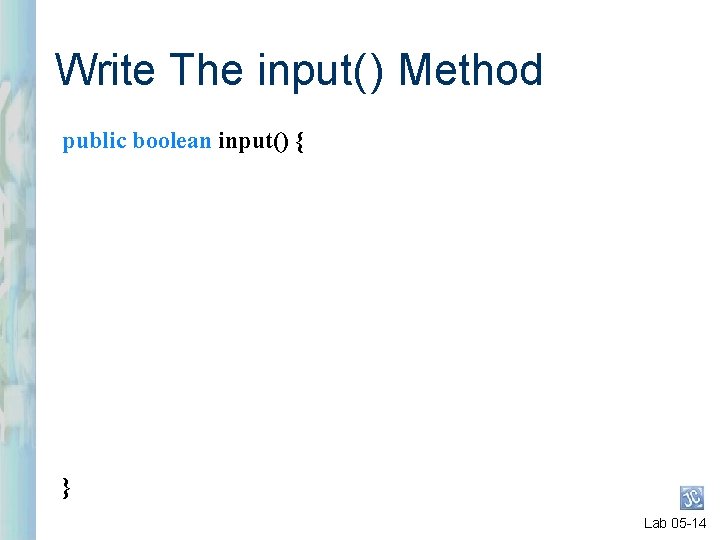

Write The input( ) Method public boolean input() { } Lab 05 -14

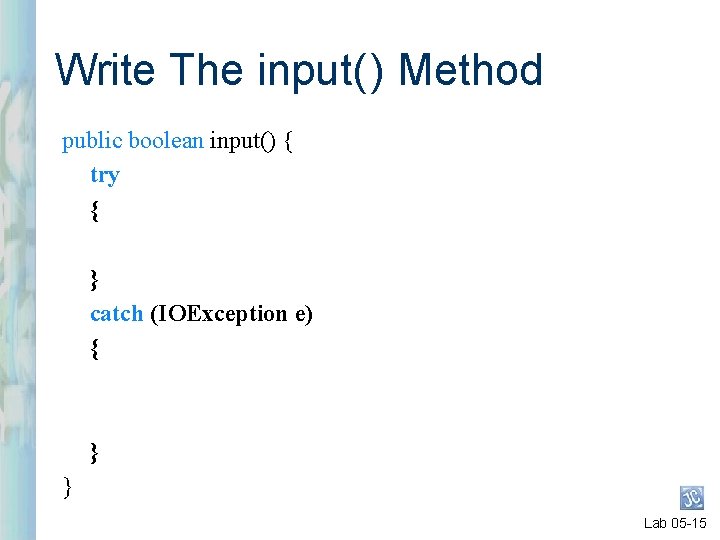

Write The input( ) Method public boolean input() { try { } catch (IOException e) { } } Lab 05 -15

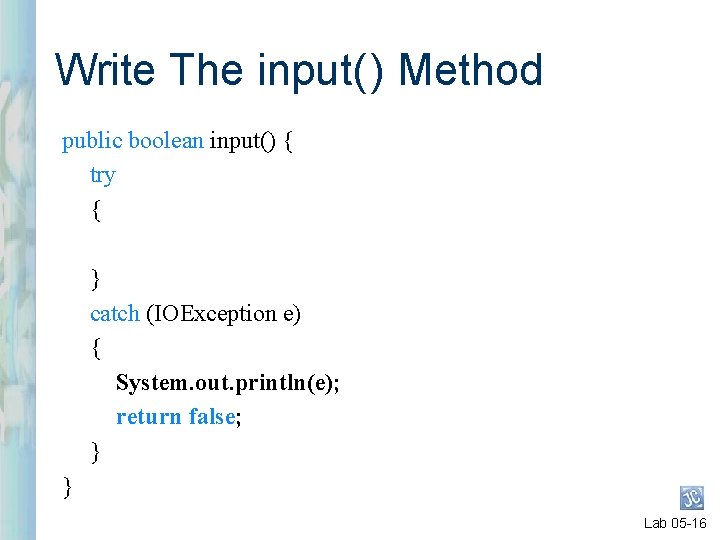

Write The input( ) Method public boolean input() { try { } catch (IOException e) { System. out. println(e); return false; } } Lab 05 -16

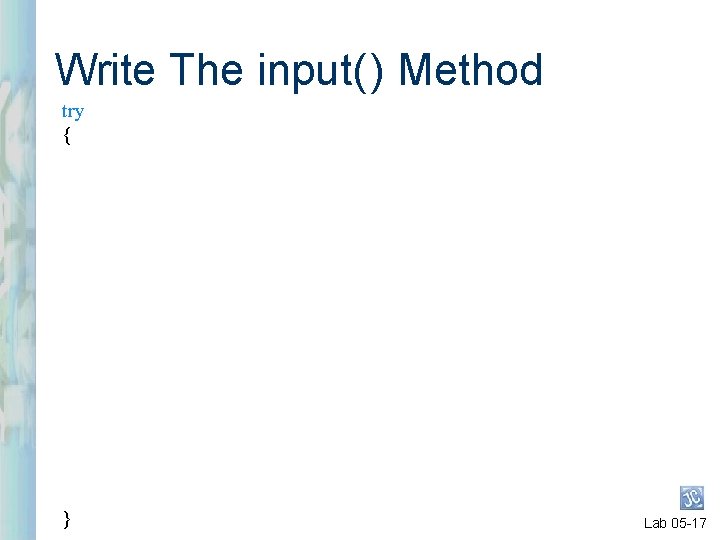

Write The input( ) Method try { } Lab 05 -17

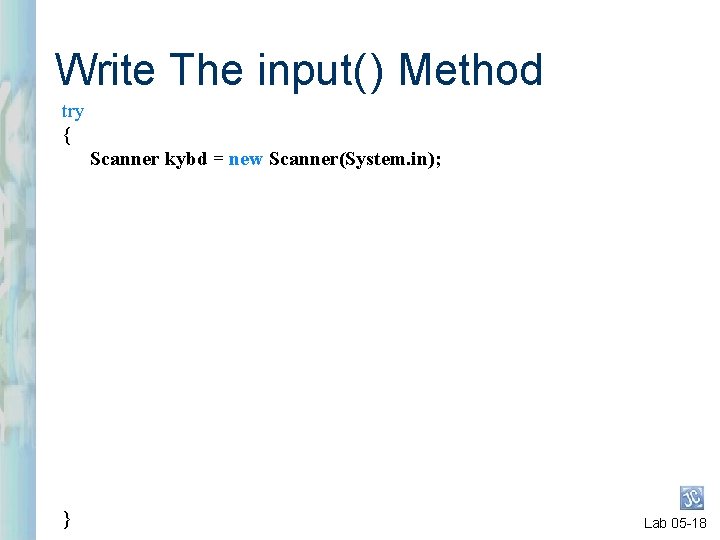

Write The input( ) Method try { Scanner kybd = new Scanner(System. in); } Lab 05 -18

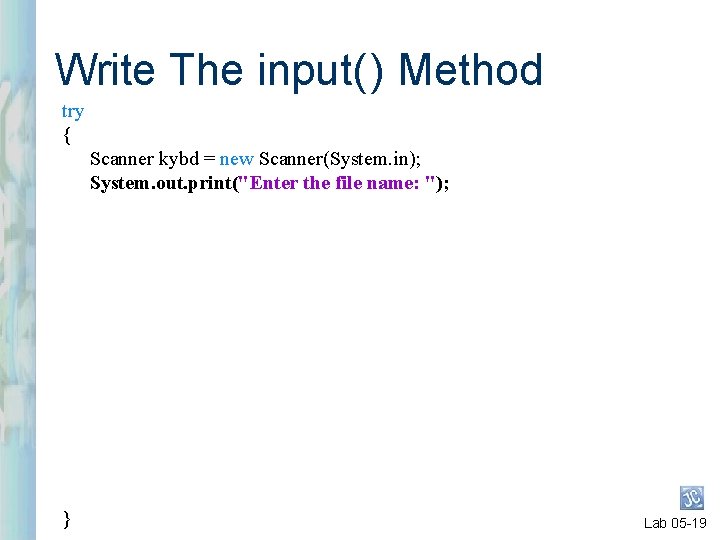

Write The input( ) Method try { Scanner kybd = new Scanner(System. in); System. out. print("Enter the file name: "); } Lab 05 -19

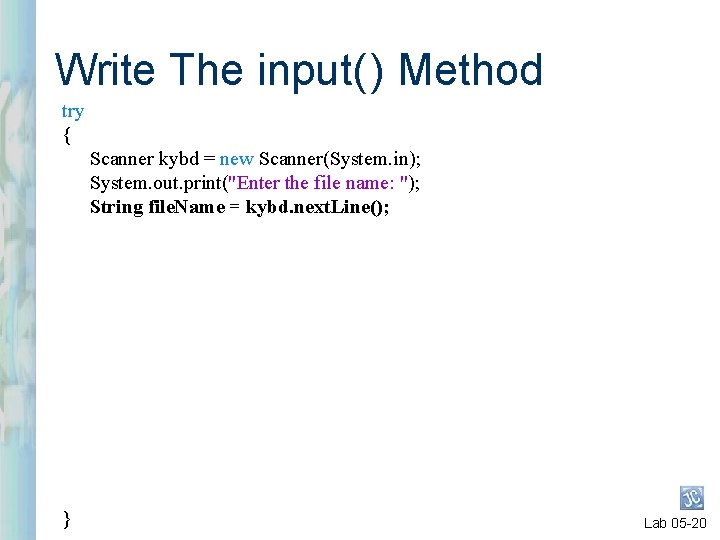

Write The input( ) Method try { Scanner kybd = new Scanner(System. in); System. out. print("Enter the file name: "); String file. Name = kybd. next. Line(); } Lab 05 -20

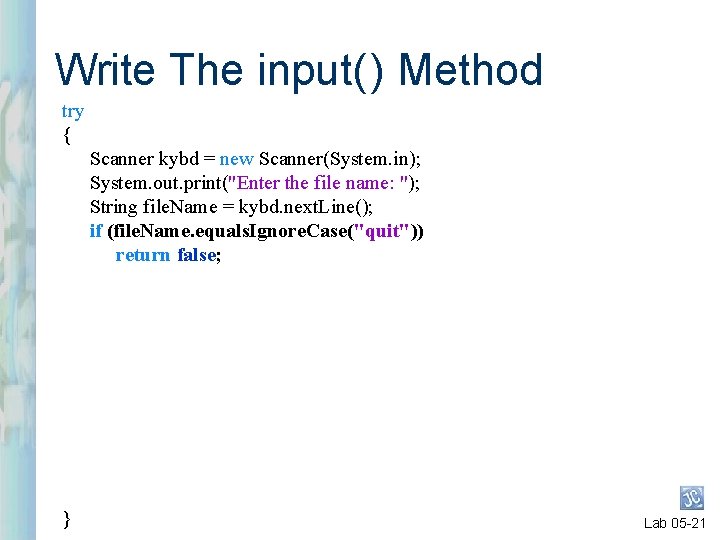

Write The input( ) Method try { Scanner kybd = new Scanner(System. in); System. out. print("Enter the file name: "); String file. Name = kybd. next. Line(); if (file. Name. equals. Ignore. Case("quit")) return false; } Lab 05 -21

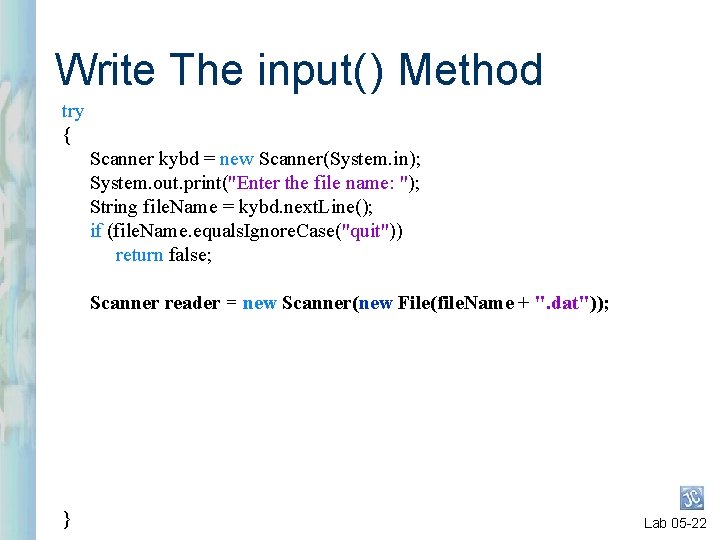

Write The input( ) Method try { Scanner kybd = new Scanner(System. in); System. out. print("Enter the file name: "); String file. Name = kybd. next. Line(); if (file. Name. equals. Ignore. Case("quit")) return false; Scanner reader = new Scanner(new File(file. Name + ". dat")); } Lab 05 -22

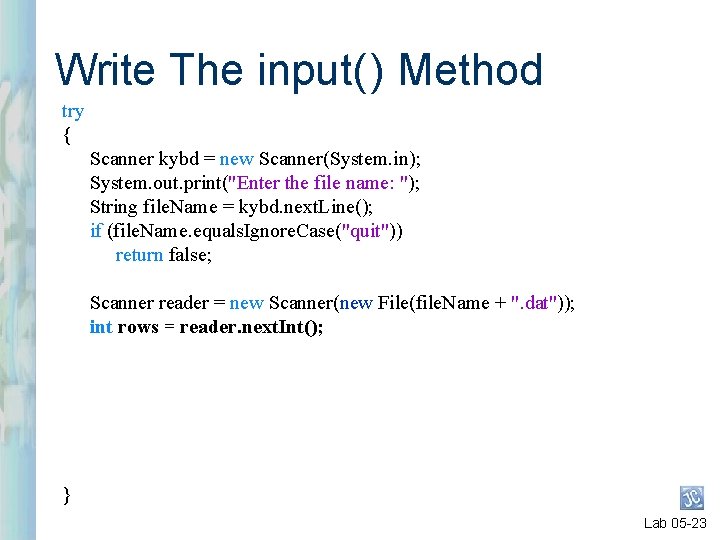

Write The input( ) Method try { Scanner kybd = new Scanner(System. in); System. out. print("Enter the file name: "); String file. Name = kybd. next. Line(); if (file. Name. equals. Ignore. Case("quit")) return false; Scanner reader = new Scanner(new File(file. Name + ". dat")); int rows = reader. next. Int(); } Lab 05 -23

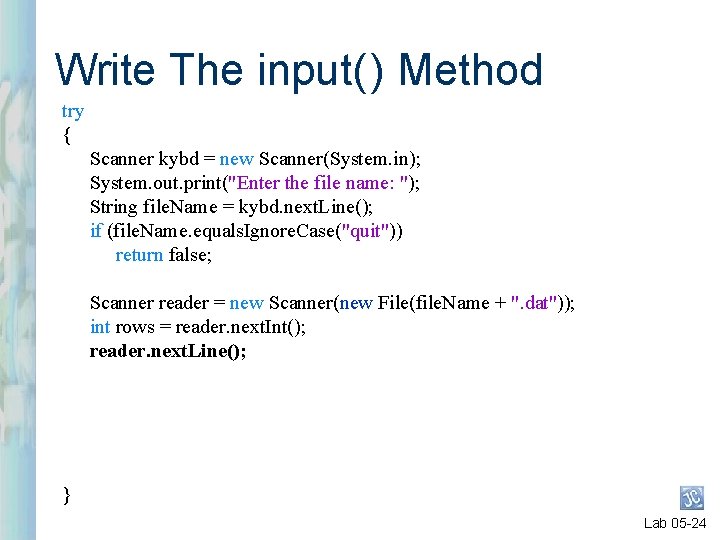

Write The input( ) Method try { Scanner kybd = new Scanner(System. in); System. out. print("Enter the file name: "); String file. Name = kybd. next. Line(); if (file. Name. equals. Ignore. Case("quit")) return false; Scanner reader = new Scanner(new File(file. Name + ". dat")); int rows = reader. next. Int(); reader. next. Line(); } Lab 05 -24

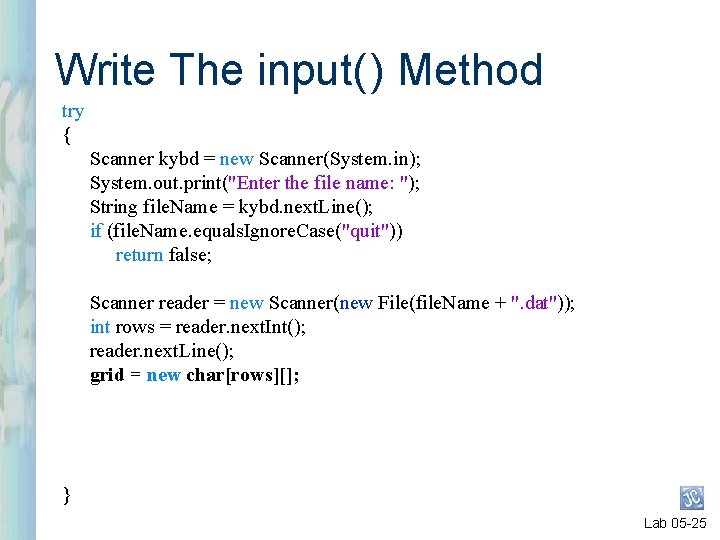

Write The input( ) Method try { Scanner kybd = new Scanner(System. in); System. out. print("Enter the file name: "); String file. Name = kybd. next. Line(); if (file. Name. equals. Ignore. Case("quit")) return false; Scanner reader = new Scanner(new File(file. Name + ". dat")); int rows = reader. next. Int(); reader. next. Line(); grid = new char[rows][]; } Lab 05 -25

Write The input( ) Method try { Scanner kybd = new Scanner(System. in); System. out. print("Enter the file name: "); String file. Name = kybd. next. Line(); if (file. Name. equals. Ignore. Case("quit")) return false; Scanner reader = new Scanner(new File(file. Name + ". dat")); int rows = reader. next. Int(); reader. next. Line(); grid = new char[rows][]; for (int y = 0; y < rows; y++) grid[y] = reader. next. Line(). to. Char. Array(); } Lab 05 -26

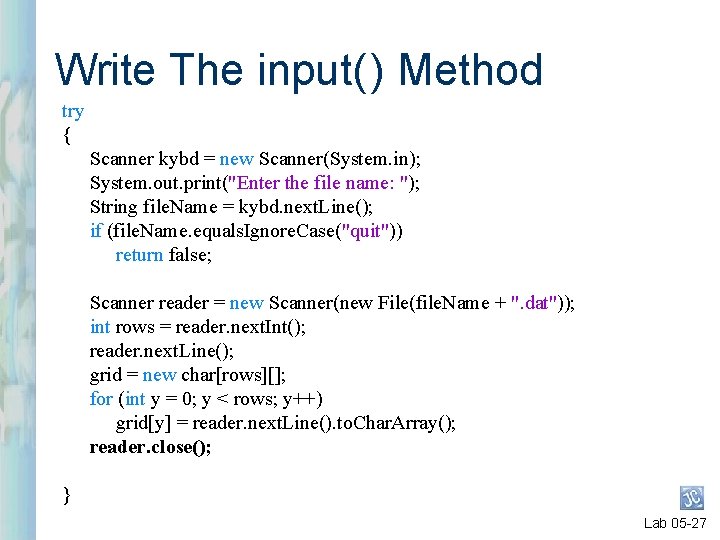

Write The input( ) Method try { Scanner kybd = new Scanner(System. in); System. out. print("Enter the file name: "); String file. Name = kybd. next. Line(); if (file. Name. equals. Ignore. Case("quit")) return false; Scanner reader = new Scanner(new File(file. Name + ". dat")); int rows = reader. next. Int(); reader. next. Line(); grid = new char[rows][]; for (int y = 0; y < rows; y++) grid[y] = reader. next. Line(). to. Char. Array(); reader. close(); } Lab 05 -27

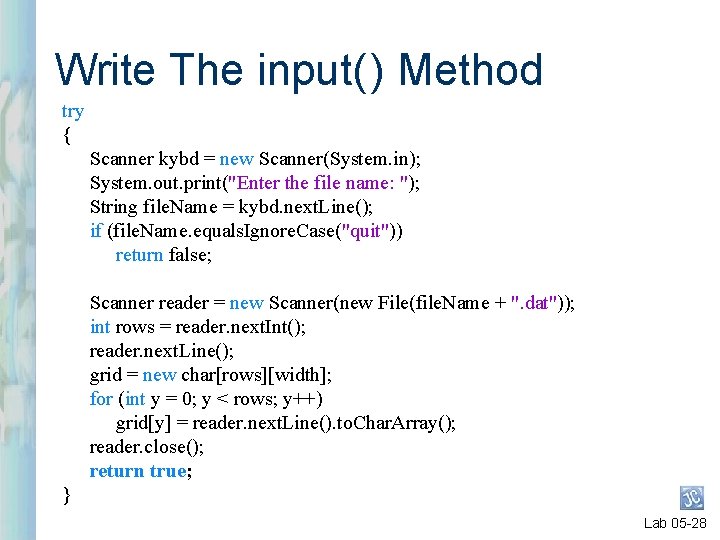

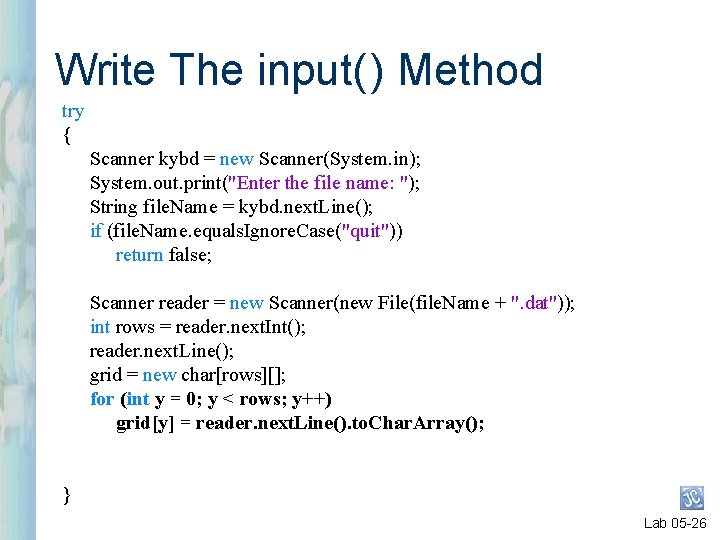

Write The input( ) Method try { Scanner kybd = new Scanner(System. in); System. out. print("Enter the file name: "); String file. Name = kybd. next. Line(); if (file. Name. equals. Ignore. Case("quit")) return false; Scanner reader = new Scanner(new File(file. Name + ". dat")); int rows = reader. next. Int(); reader. next. Line(); grid = new char[rows][width]; for (int y = 0; y < rows; y++) grid[y] = reader. next. Line(). to. Char. Array(); reader. close(); return true; } Lab 05 -28

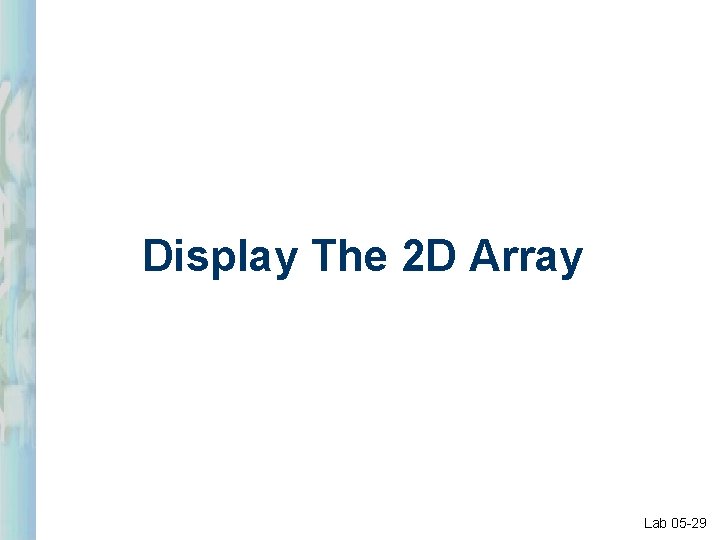

Display The 2 D Array Lab 05 -29

Row First Traversal column (x) 0 1 2 3 row (y) 4 0 X. . . O 1 . . # 2 3 4 5 O. + |. . _. . . X. + |. X. . . O . . @ Lab 05 -30

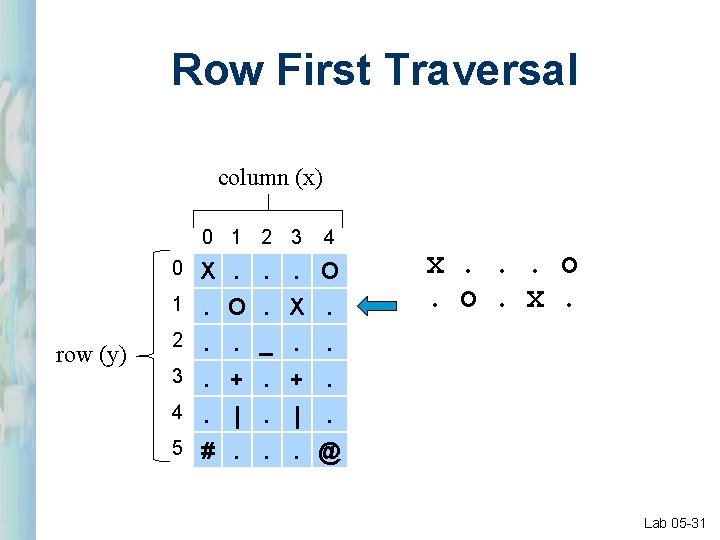

Row First Traversal column (x) 0 1 2 3 row (y) 4 0 X. . . O 1 . . # 2 3 4 5 O. + |. . _. . . X. + |. . . @ X. . . O. O. X. Lab 05 -31

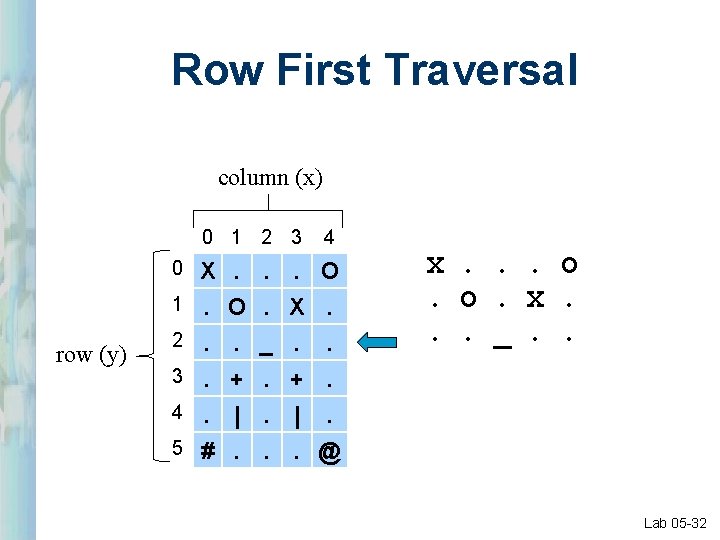

Row First Traversal column (x) 0 1 2 3 row (y) 4 0 X. . . O 1 . . # 2 3 4 5 O. + |. . _. . . X. + |. . . @ X. . . O. O. X. . . _. . Lab 05 -32

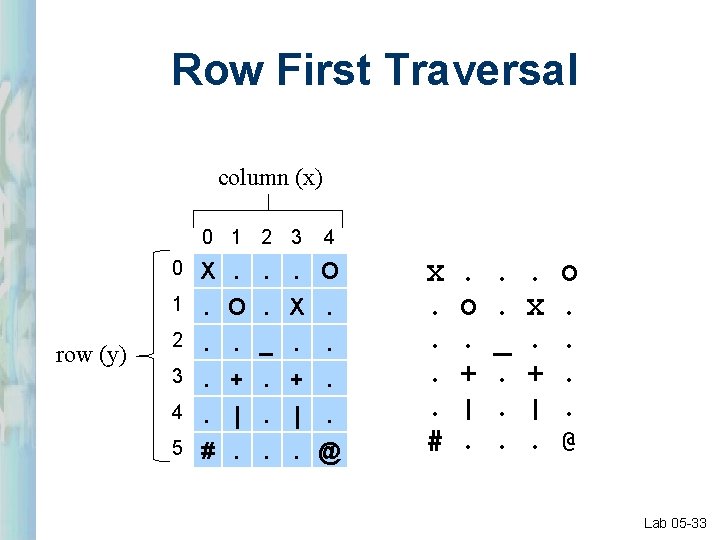

Row First Traversal column (x) 0 1 2 3 row (y) 4 0 X. . . O 1 . . # 2 3 4 5 O. + |. . _. . . X. + |. . . @ X. . # . O. + |. . . _. . X. + |. O. . @ Lab 05 -33

Write The regular( ) Method public void regular() { } Lab 05 -34

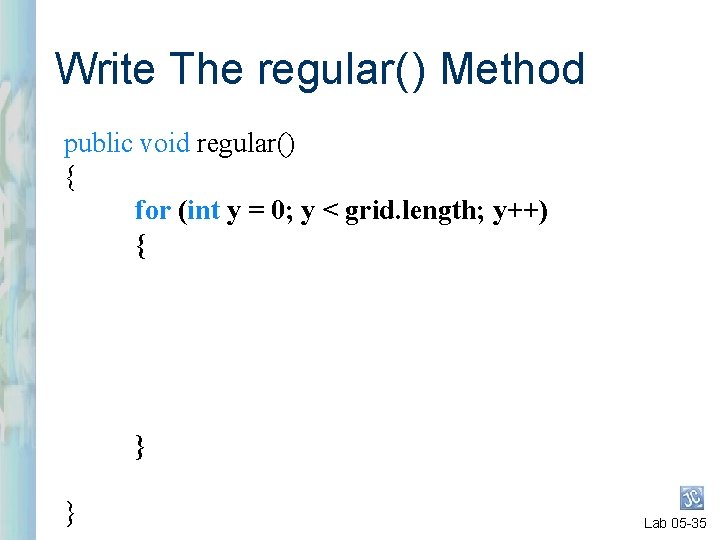

Write The regular( ) Method public void regular() { for (int y = 0; y < grid. length; y++) { } } Lab 05 -35

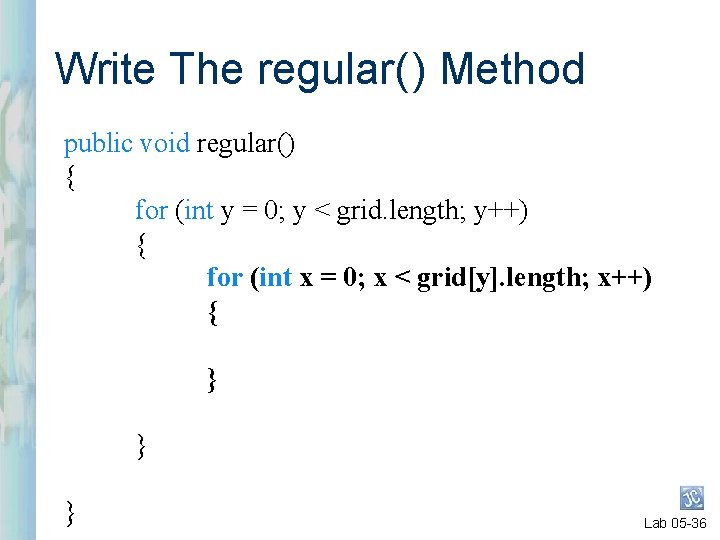

Write The regular( ) Method public void regular() { for (int y = 0; y < grid. length; y++) { for (int x = 0; x < grid[y]. length; x++) { } } } Lab 05 -36

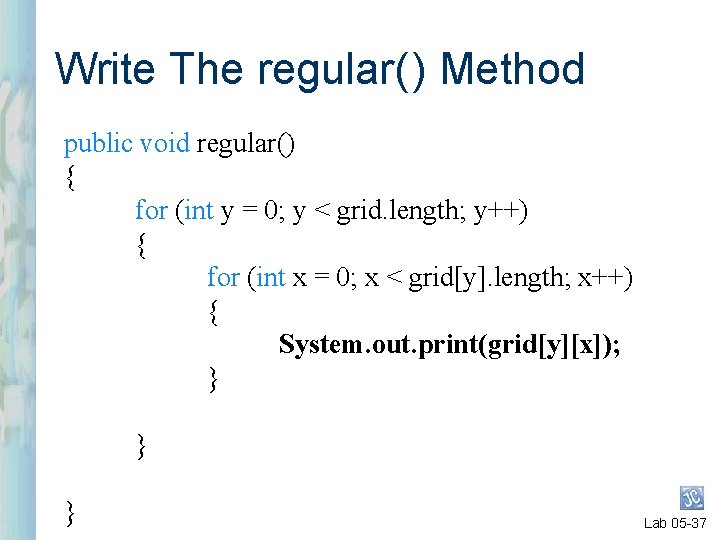

Write The regular( ) Method public void regular() { for (int y = 0; y < grid. length; y++) { for (int x = 0; x < grid[y]. length; x++) { System. out. print(grid[y][x]); } } } Lab 05 -37

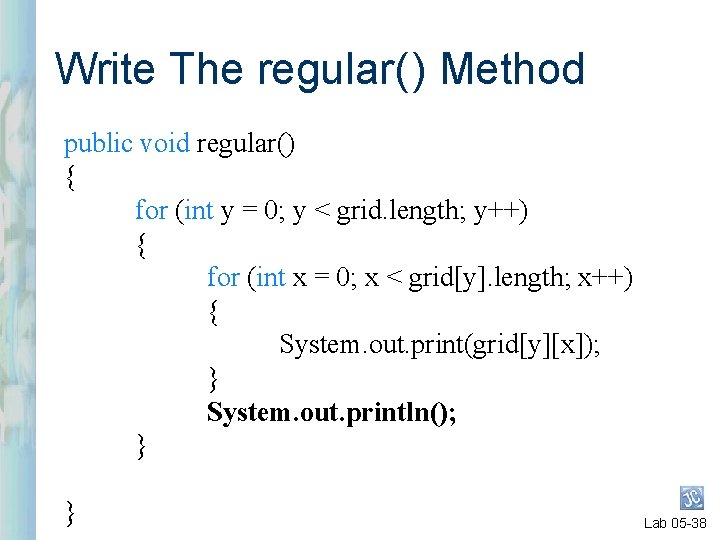

Write The regular( ) Method public void regular() { for (int y = 0; y < grid. length; y++) { for (int x = 0; x < grid[y]. length; x++) { System. out. print(grid[y][x]); } System. out. println(); } } Lab 05 -38

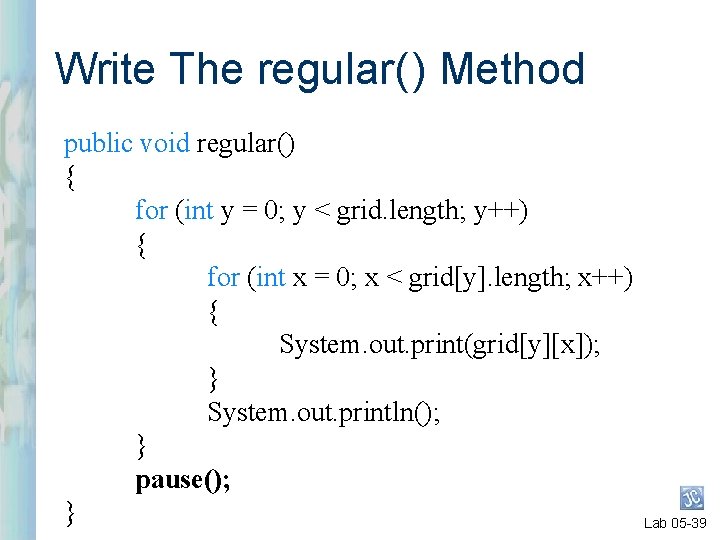

Write The regular( ) Method public void regular() { for (int y = 0; y < grid. length; y++) { for (int x = 0; x < grid[y]. length; x++) { System. out. print(grid[y][x]); } System. out. println(); } pause(); } Lab 05 -39

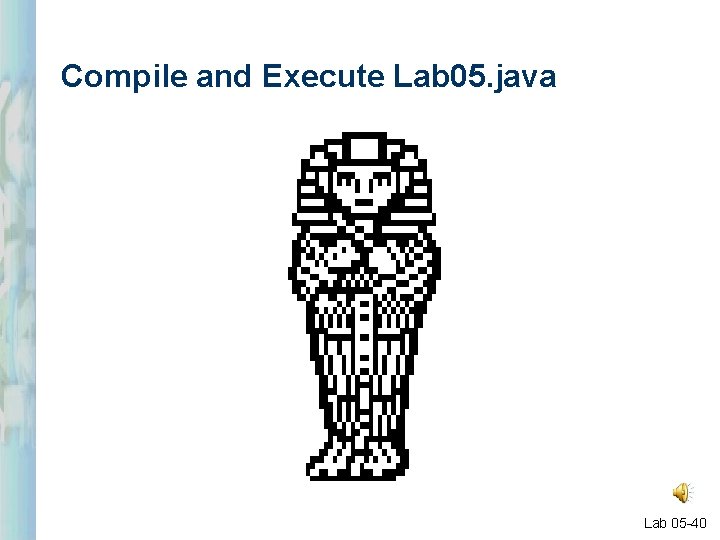

Compile and Execute Lab 05. java Lab 05 -40

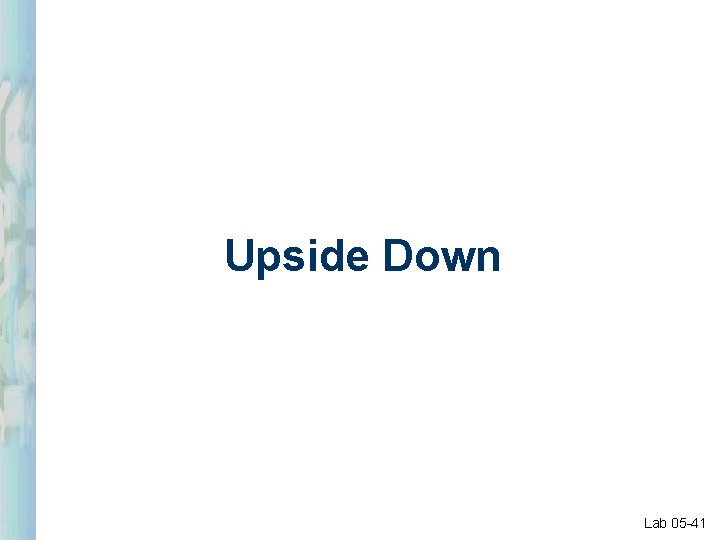

Upside Down Lab 05 -41

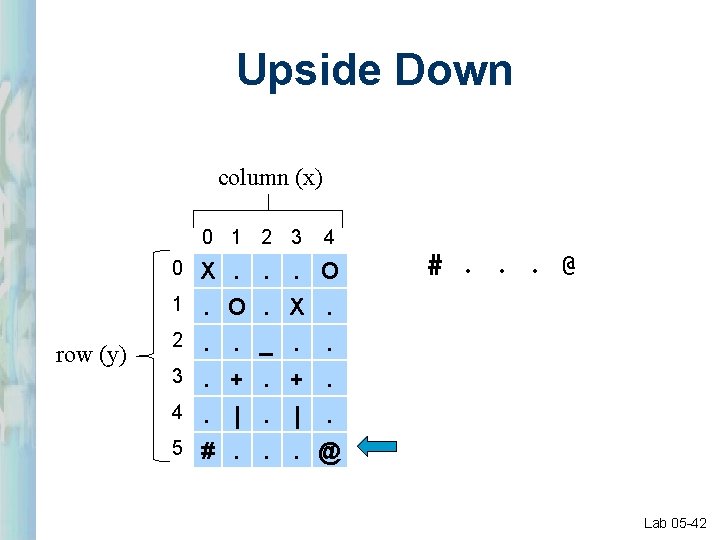

Upside Down column (x) 0 1 2 3 row (y) 4 0 X. . . O 1 . . # 2 3 4 5 O. + |. . _. . . X. + |. #. . . @ Lab 05 -42

Upside Down column (x) 0 1 2 3 row (y) 4 0 X. . . O 1 . . # 2 3 4 5 O. + |. . _. . . X. + |. . . @ #. . . @. |. |. Lab 05 -43

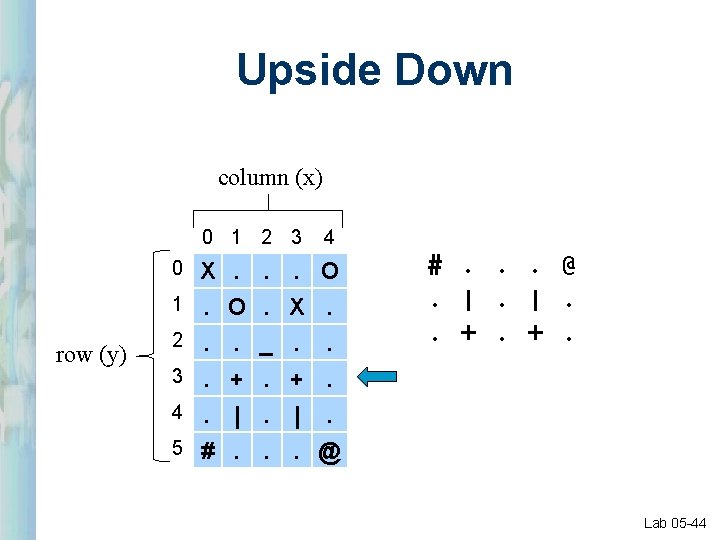

Upside Down column (x) 0 1 2 3 row (y) 4 0 X. . . O 1 . . # 2 3 4 5 O. + |. . _. . . X. + |. . . @ #. . . @. |. |. . +. +. Lab 05 -44

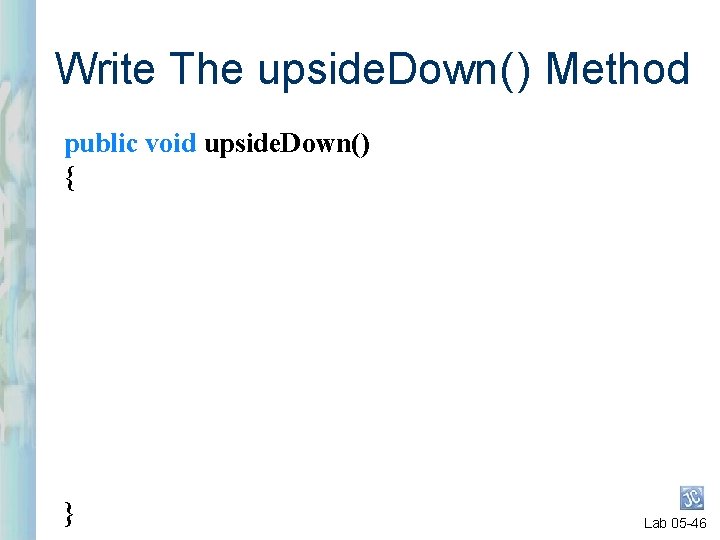

Write The upside. Down( ) Method public void upside. Down() { } Lab 05 -46

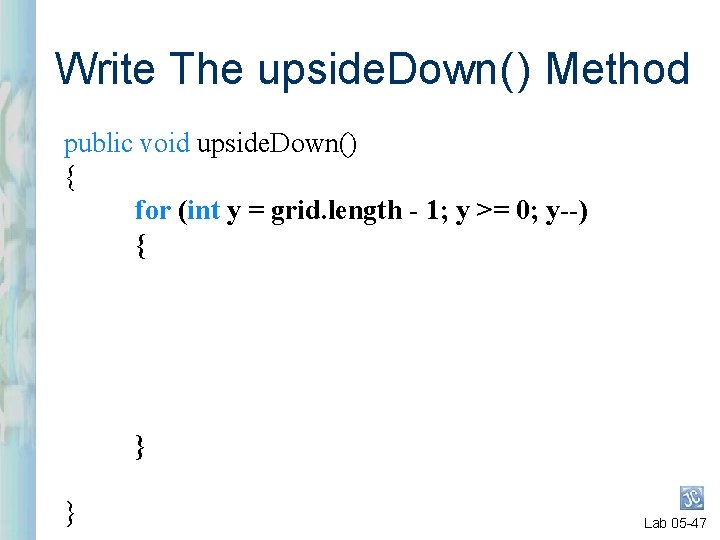

Write The upside. Down( ) Method public void upside. Down() { for (int y = grid. length - 1; y >= 0; y--) { } } Lab 05 -47

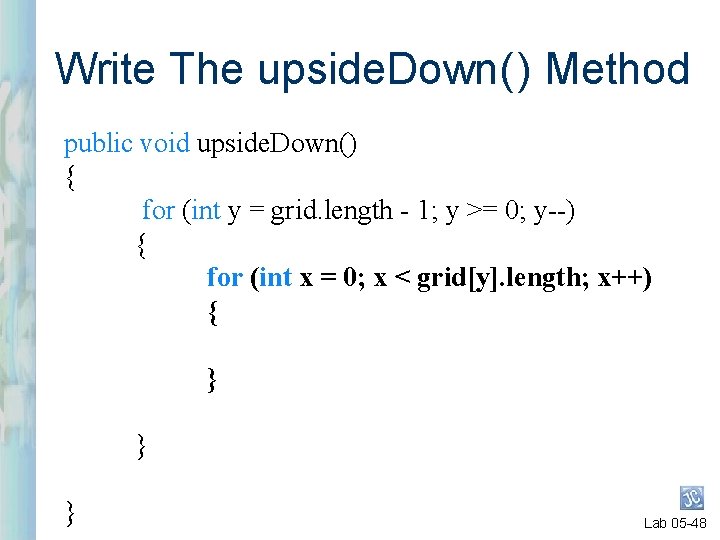

Write The upside. Down( ) Method public void upside. Down() { for (int y = grid. length - 1; y >= 0; y--) { for (int x = 0; x < grid[y]. length; x++) { } } } Lab 05 -48

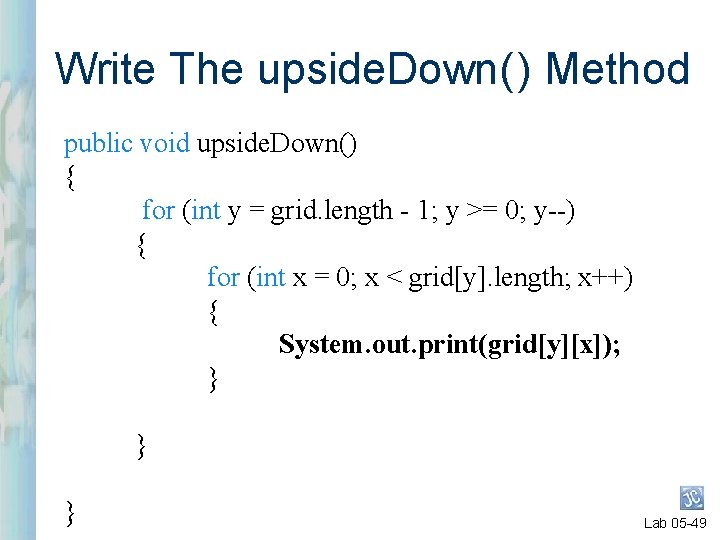

Write The upside. Down( ) Method public void upside. Down() { for (int y = grid. length - 1; y >= 0; y--) { for (int x = 0; x < grid[y]. length; x++) { System. out. print(grid[y][x]); } } } Lab 05 -49

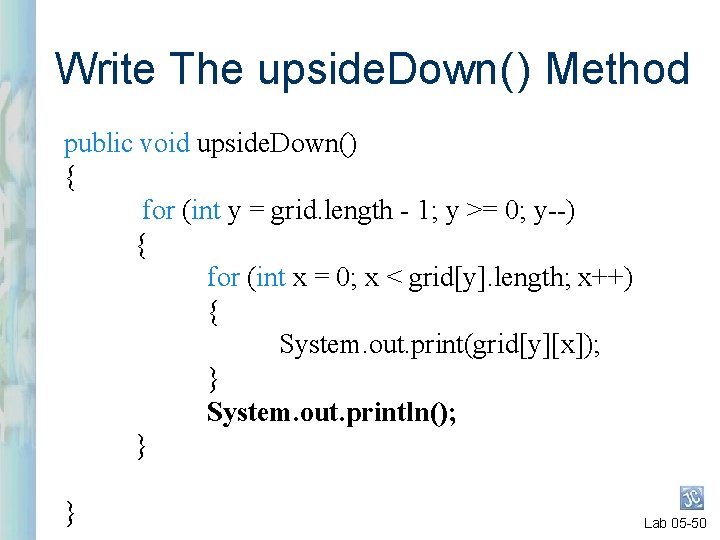

Write The upside. Down( ) Method public void upside. Down() { for (int y = grid. length - 1; y >= 0; y--) { for (int x = 0; x < grid[y]. length; x++) { System. out. print(grid[y][x]); } System. out. println(); } } Lab 05 -50

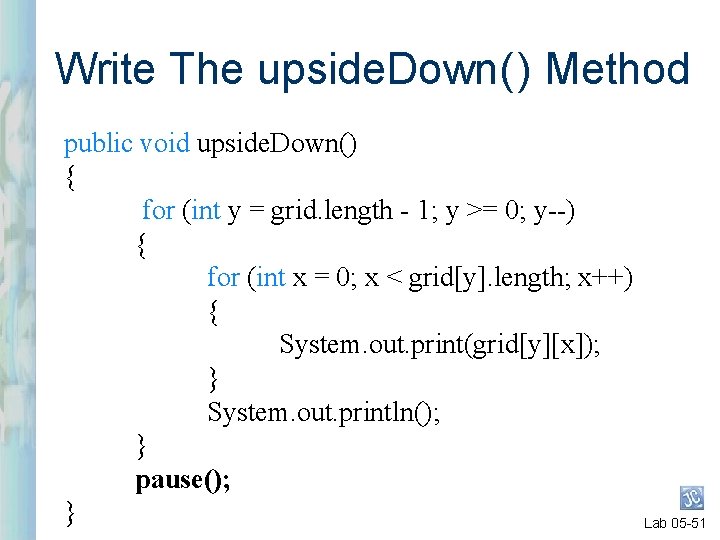

Write The upside. Down( ) Method public void upside. Down() { for (int y = grid. length - 1; y >= 0; y--) { for (int x = 0; x < grid[y]. length; x++) { System. out. print(grid[y][x]); } System. out. println(); } pause(); } Lab 05 -51

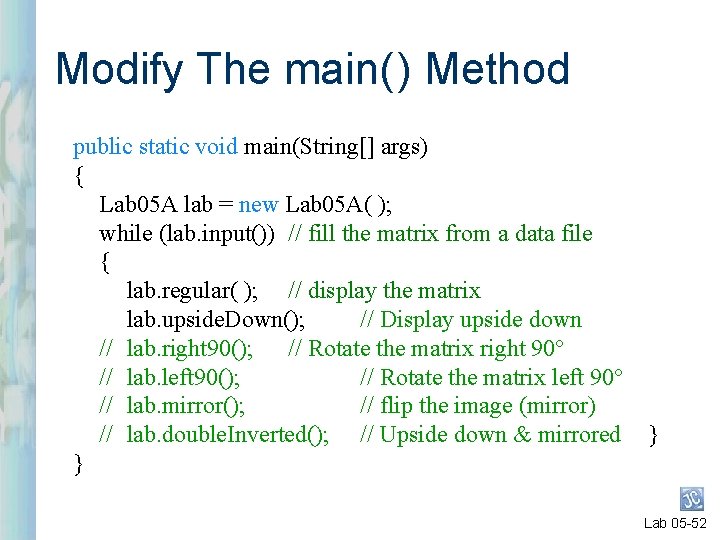

Modify The main( ) Method public static void main(String[] args) { Lab 05 A lab = new Lab 05 A( ); while (lab. input()) // fill the matrix from a data file { lab. regular( ); // display the matrix lab. upside. Down(); // Display upside down // lab. right 90(); // Rotate the matrix right 90° // lab. left 90(); // Rotate the matrix left 90° // lab. mirror(); // flip the image (mirror) // lab. double. Inverted(); // Upside down & mirrored } } Lab 05 -52

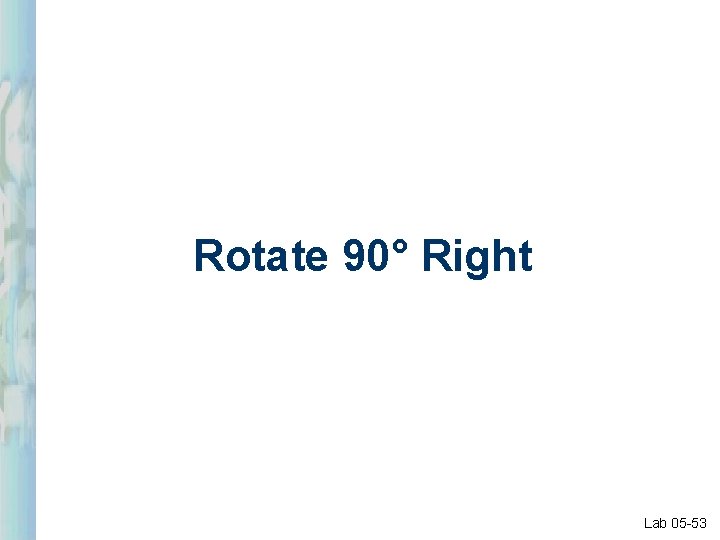

Rotate 90° Right Lab 05 -53

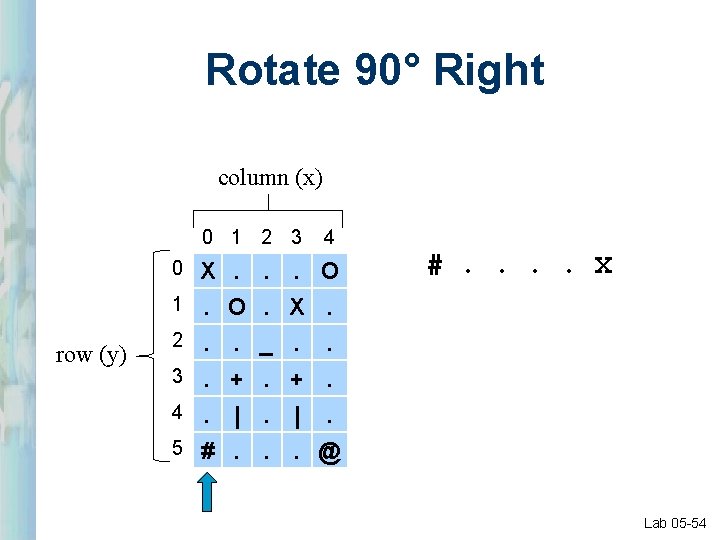

Rotate 90° Right column (x) 0 1 2 3 row (y) 4 0 X. . . O 1 . . # 2 3 4 5 O. + |. . _. . . X. + |. #. . X . . @ Lab 05 -54

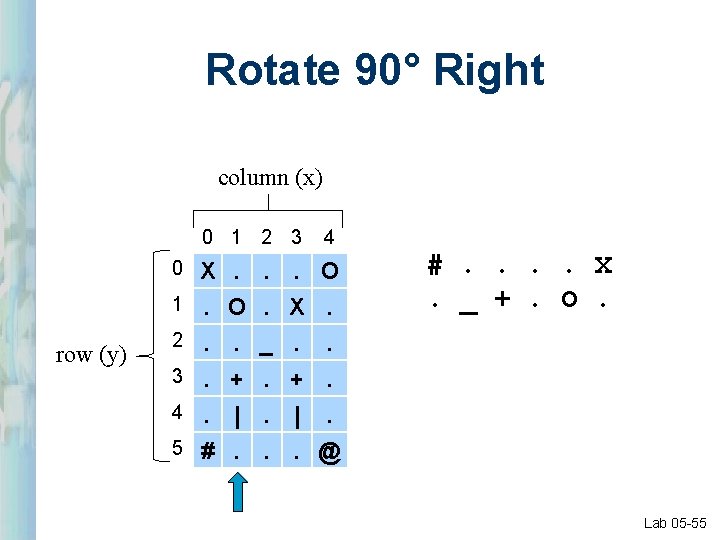

Rotate 90° Right column (x) 0 1 2 3 row (y) 4 0 X. . . O 1 . . # 2 3 4 5 O. + |. . _. . . X. + |. . . @ #. . X. _ +. O. Lab 05 -55

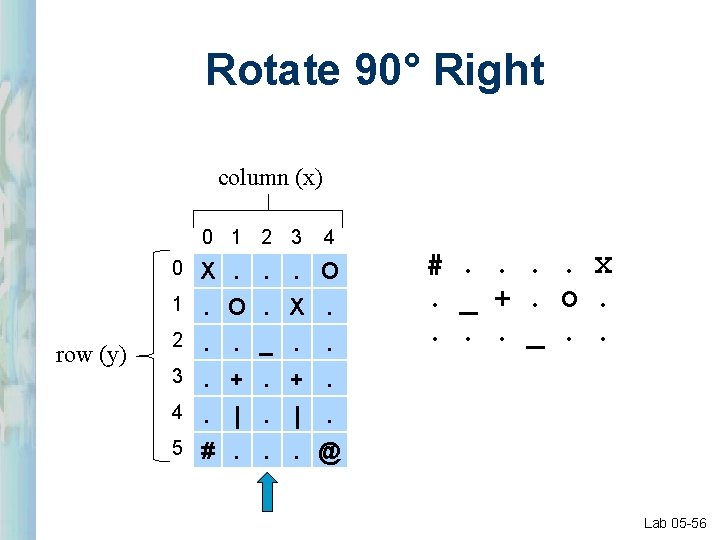

Rotate 90° Right column (x) 0 1 2 3 row (y) 4 0 X. . . O 1 . . # 2 3 4 5 O. + |. . _. . . X. + |. . . @ #. . X. _ +. O. . _. . Lab 05 -56

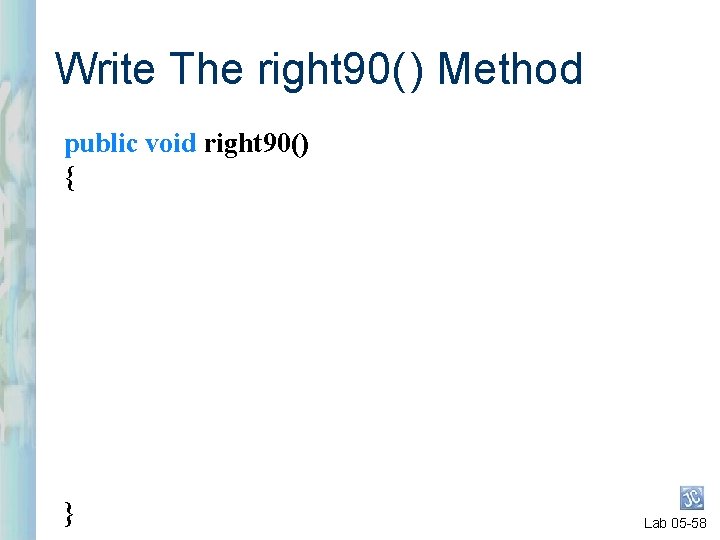

Write The right 90( ) Method public void right 90() { } Lab 05 -58

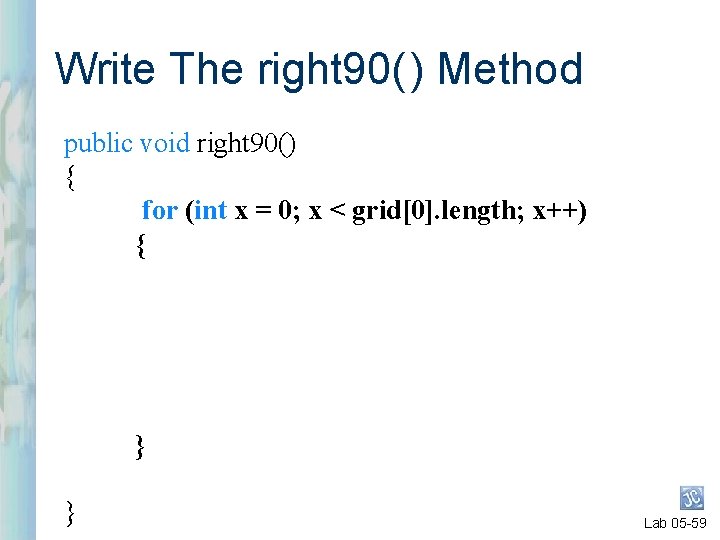

Write The right 90( ) Method public void right 90() { for (int x = 0; x < grid[0]. length; x++) { } } Lab 05 -59

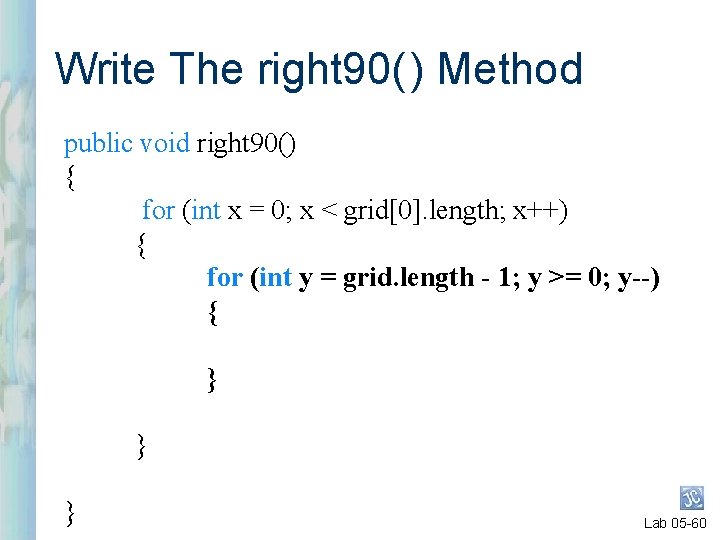

Write The right 90( ) Method public void right 90() { for (int x = 0; x < grid[0]. length; x++) { for (int y = grid. length - 1; y >= 0; y--) { } } } Lab 05 -60

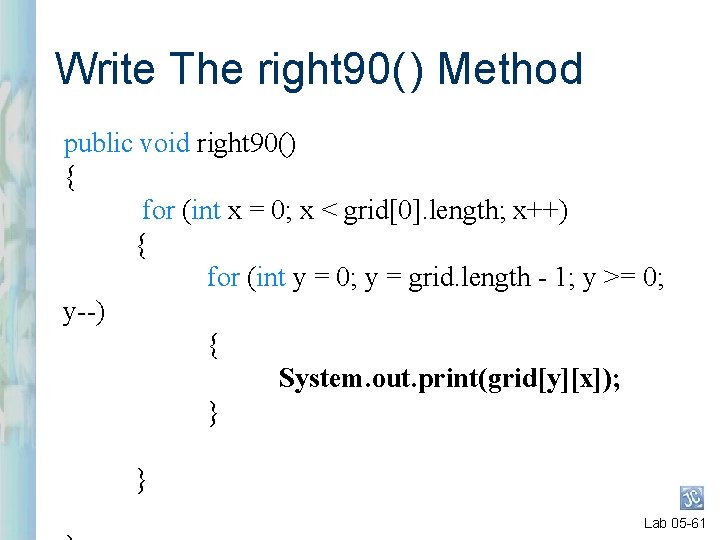

Write The right 90( ) Method public void right 90() { for (int x = 0; x < grid[0]. length; x++) { for (int y = 0; y = grid. length - 1; y >= 0; y--) { System. out. print(grid[y][x]); } } Lab 05 -61

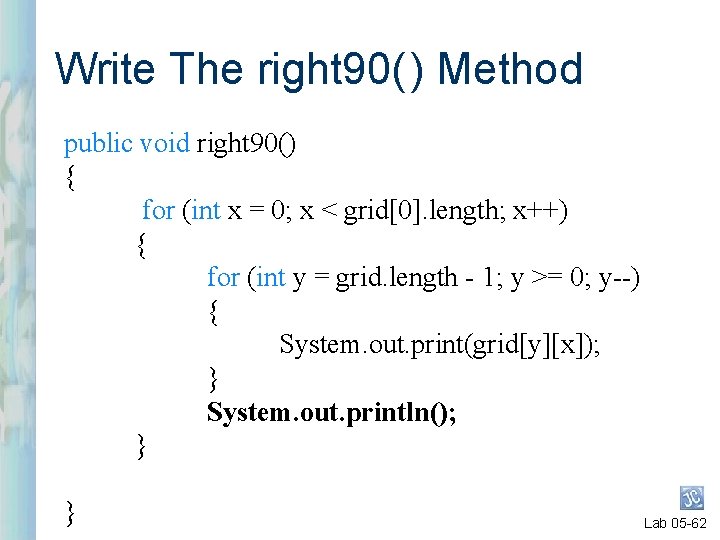

Write The right 90( ) Method public void right 90() { for (int x = 0; x < grid[0]. length; x++) { for (int y = grid. length - 1; y >= 0; y--) { System. out. print(grid[y][x]); } System. out. println(); } } Lab 05 -62

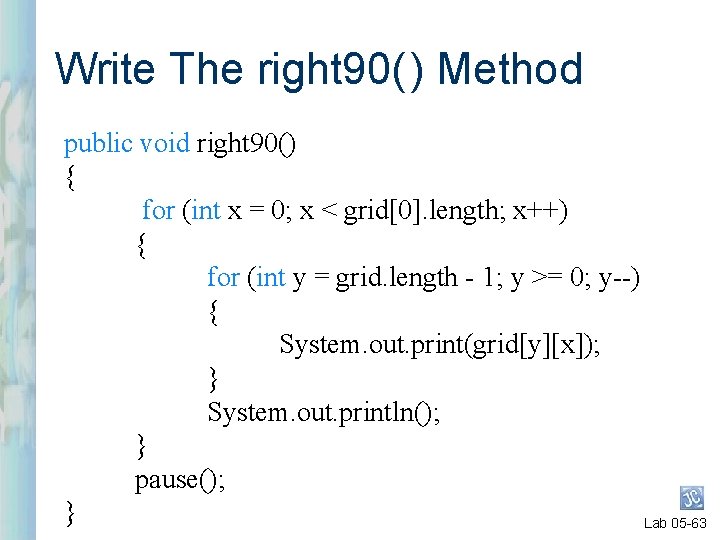

Write The right 90( ) Method public void right 90() { for (int x = 0; x < grid[0]. length; x++) { for (int y = grid. length - 1; y >= 0; y--) { System. out. print(grid[y][x]); } System. out. println(); } pause(); } Lab 05 -63

Modify The main( ) Method public static void main(String[] args) { Lab 05 A lab = new Lab 05 A( ); while (lab. input()) // fill the matrix from a data file { lab. regular( ); // display the matrix lab. upside. Down(); // Display upside down lab. right 90(); // Rotate the matrix right 90° // lab. left 90(); // Rotate the matrix left 90° // lab. mirror(); // flip the image (mirror) // lab. double. Inverted(); // Upside down & mirrored } } Lab 05 -64

Try The Other Data Files “abe. dat” “george. dat” “rip. dat” “werewolf. dat” “zombie. dat” etc… Lab 05 -65

Java Object Oriented Programming Questions?

Java Object Oriented Programming Begin Lab 05
