Java Mail Electronic Mail Concepts Java Mail Classes

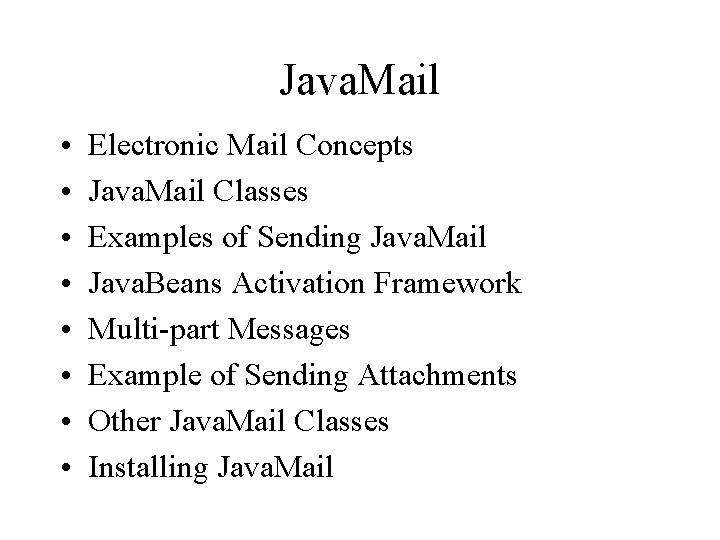

Java. Mail • • Electronic Mail Concepts Java. Mail Classes Examples of Sending Java. Mail Java. Beans Activation Framework Multi-part Messages Example of Sending Attachments Other Java. Mail Classes Installing Java. Mail

Some Key Terms • Protocol: An agreed upon format for transmitting data between two devices, including codes for indicating completion of transmission and acknowledgement of data receipt • User-Agent: E-mail client that allows user to create e-mail to be sent or view e-mail that has been received • Mail Transfer Agent (MTA): Performs exchange of e-mail over TCP

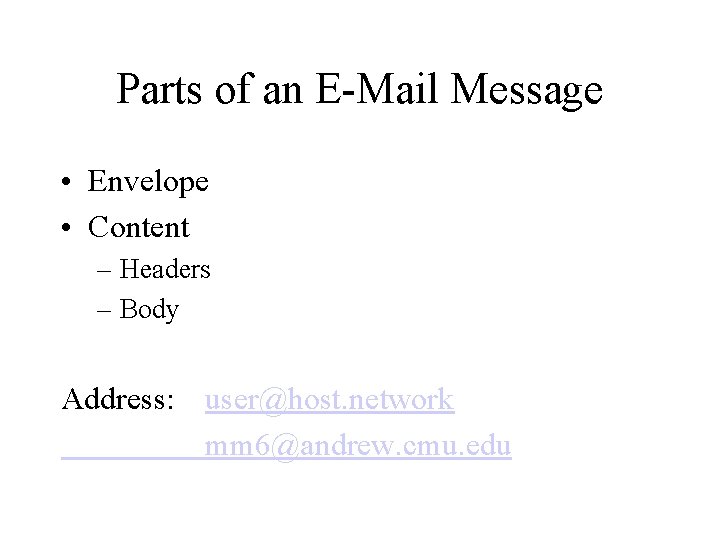

Parts of an E-Mail Message • Envelope • Content – Headers – Body Address: user@host. network mm 6@andrew. cmu. edu

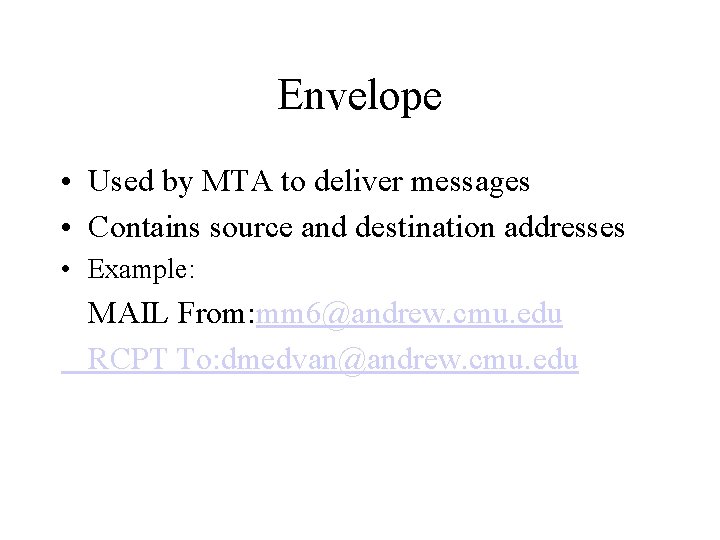

Envelope • Used by MTA to deliver messages • Contains source and destination addresses • Example: MAIL From: mm 6@andrew. cmu. edu RCPT To: dmedvan@andrew. cmu. edu

Headers • Used by user-agent to describe message • Written in ASCII text • Each field contains a name followed by a colon, followed by the field value • Whitespace may only appear at the beginning of a line that continues a field from a prior line • A blank line indicates the end of the headers

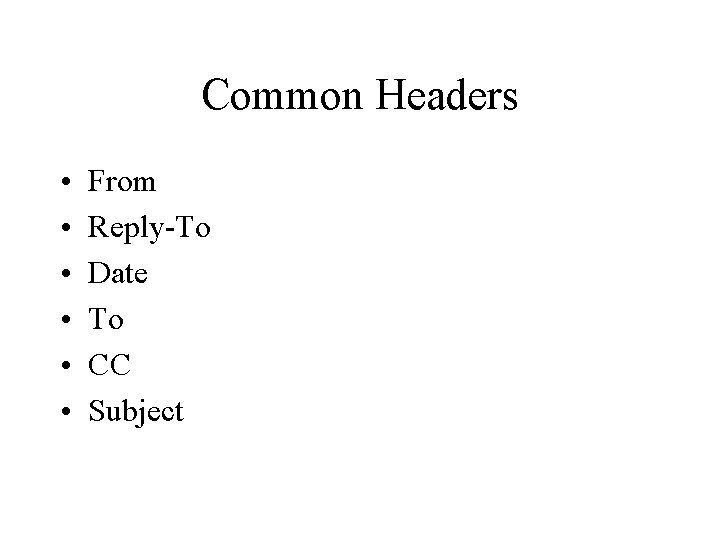

Common Headers • • • From Reply-To Date To CC Subject

Types of Message Bodies • One or more lines of NVT ASCII (7 -bit variant) text representing actual message • Multipurpose Internet Mail Extension (MIME): Common representation for emails sent in binary (attachments, embedded graphics, or non-ASCII characters)

MIME Content-Type Header most used MIME-specific header Examples • Text • Multipart • Message • Application • Image • Audio • Video

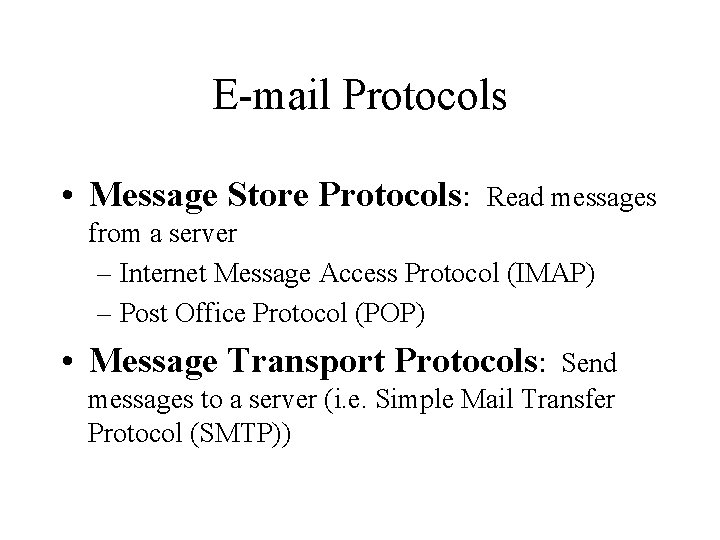

E-mail Protocols • Message Store Protocols: Read messages from a server – Internet Message Access Protocol (IMAP) – Post Office Protocol (POP) • Message Transport Protocols: Send messages to a server (i. e. Simple Mail Transfer Protocol (SMTP))

Disadvantages of POP • Only permits access to a single mail folder • Does not include flags for identifying new and unseen messages • Does not include a “Received Date” • Does not update new messages while inbox is open

SMTP raddist. rad. com/networks/1998/smtp. htm

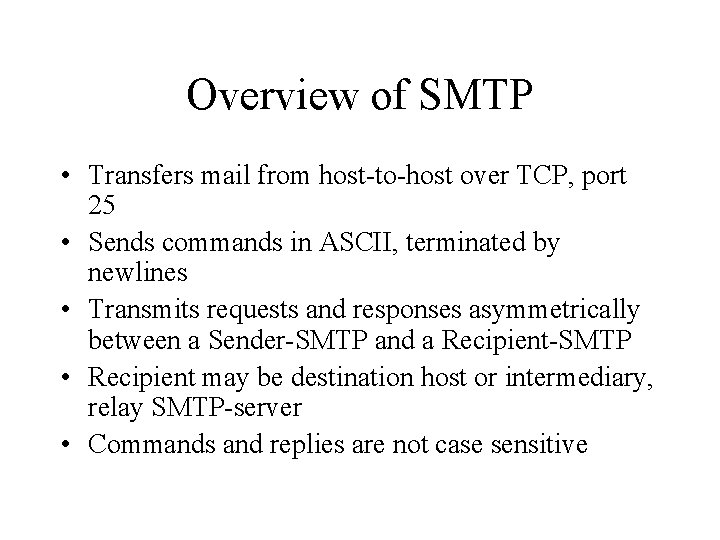

Overview of SMTP • Transfers mail from host-to-host over TCP, port 25 • Sends commands in ASCII, terminated by newlines • Transmits requests and responses asymmetrically between a Sender-SMTP and a Recipient-SMTP • Recipient may be destination host or intermediary, relay SMTP-server • Commands and replies are not case sensitive

Receiver-SMTP Responses • Sender-SMTP awaits reply to each message before progressing • SMTP supports spooling: message is placed on queue and held if there is a delivery problem • Reply Format – – Three ASCII digits Hyphen (space on the last line) Zero or more bytes of text Closing code

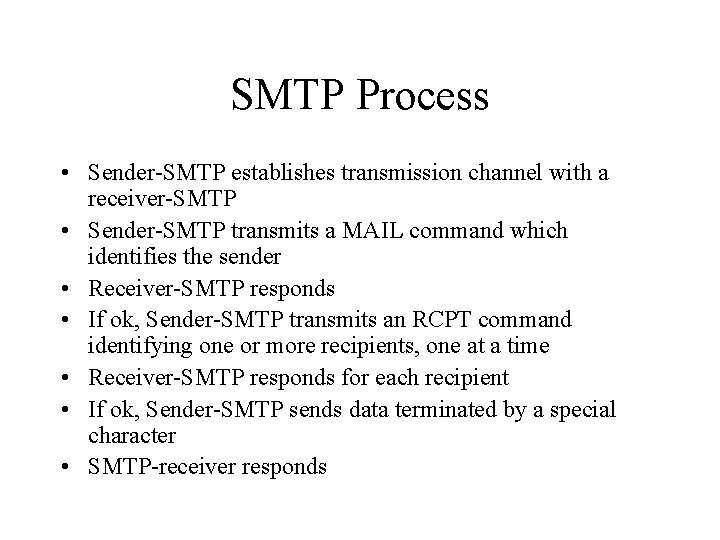

SMTP Process • Sender-SMTP establishes transmission channel with a receiver-SMTP • Sender-SMTP transmits a MAIL command which identifies the sender • Receiver-SMTP responds • If ok, Sender-SMTP transmits an RCPT command identifying one or more recipients, one at a time • Receiver-SMTP responds for each recipient • If ok, Sender-SMTP sends data terminated by a special character • SMTP-receiver responds

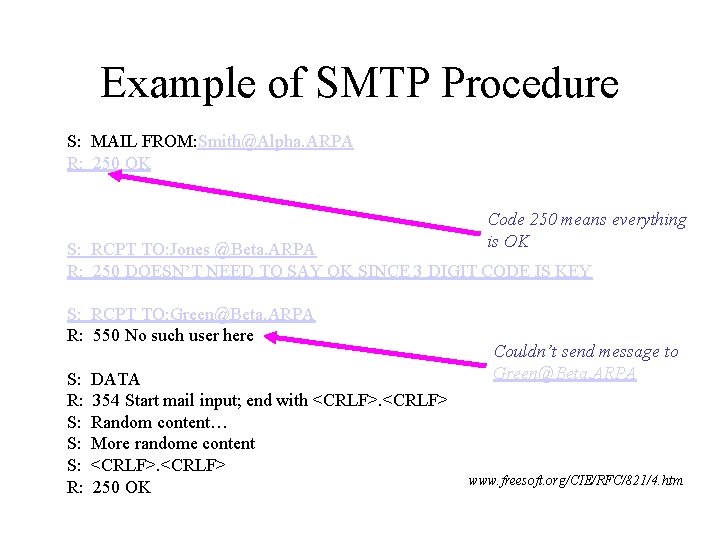

Example of SMTP Procedure S: MAIL FROM: Smith@Alpha. ARPA R: 250 OK Code 250 means everything is OK S: RCPT TO: Jones @Beta. ARPA R: 250 DOESN’T NEED TO SAY OK SINCE 3 DIGIT CODE IS KEY S: RCPT TO: Green@Beta. ARPA R: 550 No such user here S: R: S: S: S: R: DATA 354 Start mail input; end with <CRLF> Random content… More randome content <CRLF> 250 OK Couldn’t send message to Green@Beta. ARPA www. freesoft. org/CIE/RFC/821/4. htm

Java. util. Properties Class • Extends Hash. Map (basically another collection) • Designed to contain a persistent set of properties that may be saved to or loaded from a stream • All keys and values must be Strings • Although it supports Hash. Map methods for handling Objects, use of the following is recommended to ensure that it contains Strings: – public Object set. Property(String key, String value) – public String get. Property(String key)

Classes to Send E-mail • Address: Abstract class representing an address • Message: Abstract class representing a message • Transport: Object representing a transport protocol that allows e-mail messages to be sent, implemented by a specific protocol • Session: Provides an interface between the email client and the network, supporting the creation of and access to Store and Transport objects

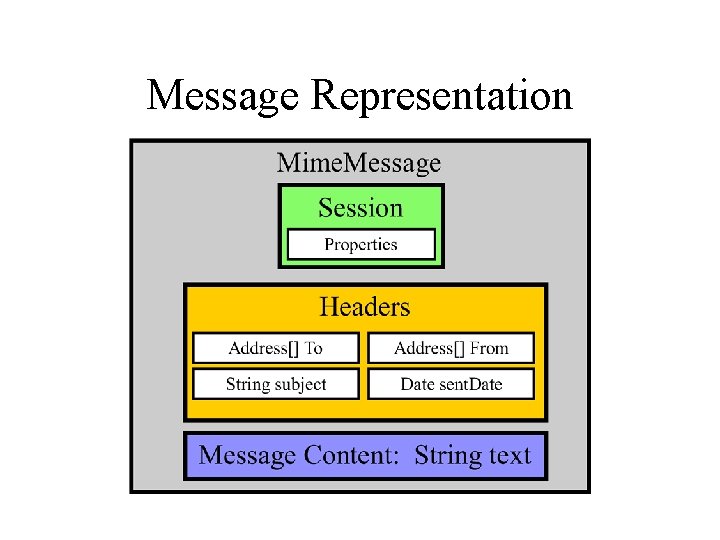

Message Representation

Javax. mail. Session • Class representing an individual mail session • Manages configuration of e-mail system • Handles authentication (usually needed for receiving rather than sending mail) • Acts as a factory for Transport and Store objects • Session has no public constructor • Create a session with: public Session get. Default. Instance(Properties prop)

Session Properties Used to Send Mail at CMU

Javax. Mail. Transport • Abstract class modeling a message Transport • By using Session to create a Transport object or to access static Transport methods, the user is abstracted from identifying the appropriate implementing subclass

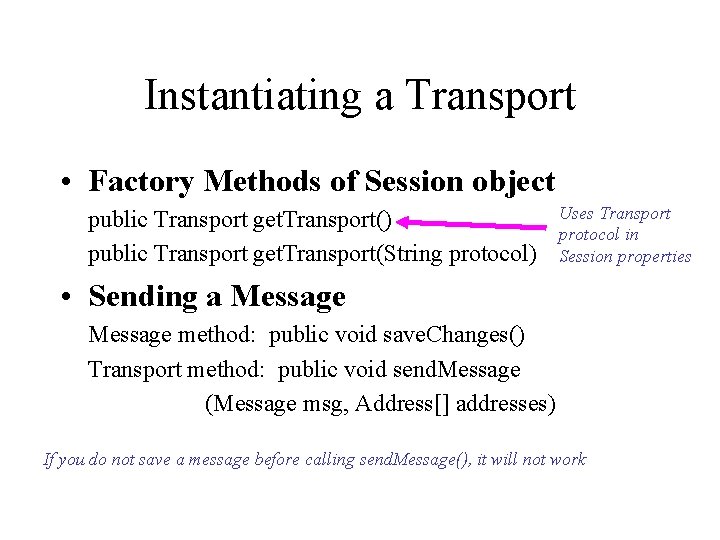

Instantiating a Transport • Factory Methods of Session object public Transport get. Transport() public Transport get. Transport(String protocol) Uses Transport protocol in Session properties • Sending a Message method: public void save. Changes() Transport method: public void send. Message (Message msg, Address[] addresses) If you do not save a message before calling send. Message(), it will not work

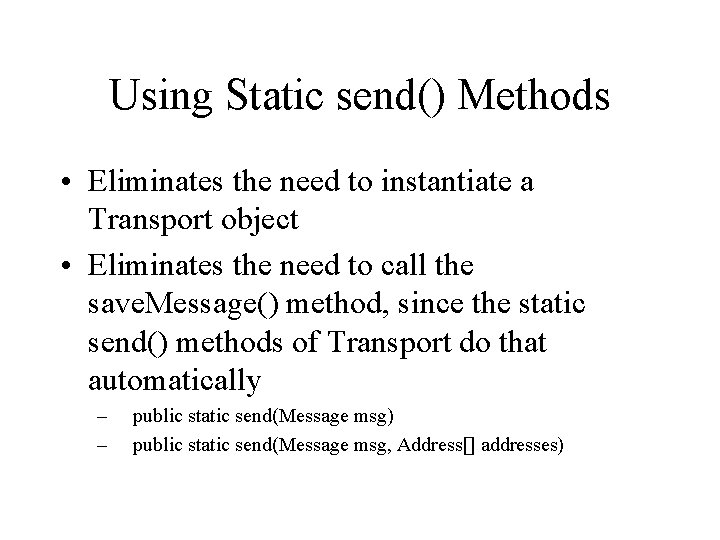

Using Static send() Methods • Eliminates the need to instantiate a Transport object • Eliminates the need to call the save. Message() method, since the static send() methods of Transport do that automatically – – public static send(Message msg) public static send(Message msg, Address[] addresses)

Address • Abstract class representing any electronic address • Most common implementation is for e-mail addresses: javax. mail. internet. Internet. Address

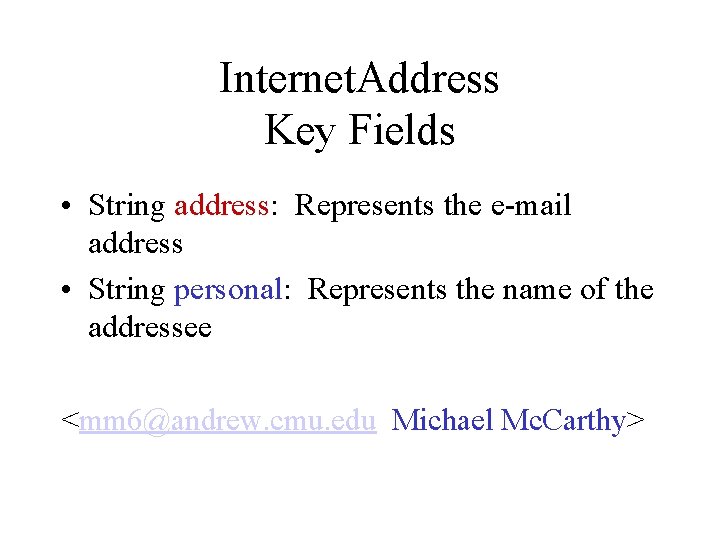

Internet. Address Key Fields • String address: Represents the e-mail address • String personal: Represents the name of the addressee <mm 6@andrew. cmu. edu Michael Mc. Carthy>

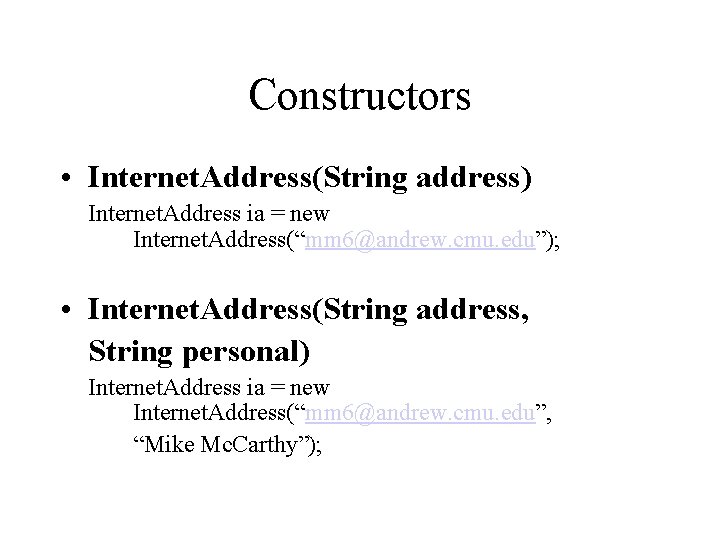

Constructors • Internet. Address(String address) Internet. Address ia = new Internet. Address(“mm 6@andrew. cmu. edu”); • Internet. Address(String address, String personal) Internet. Address ia = new Internet. Address(“mm 6@andrew. cmu. edu”, “Mike Mc. Carthy”);

Additional Factory Method static Internet. Address[] parse(String list. Of. Addresses, boolean strict) throws Address. Exception • • • Static method Returns an array of Internet. Addresses list. Of. Addresses is a comma or space delimited list of e-mail addresses If strict is true, space delimited is prohibited Address. Exception indicates parsing failed Internet. Address. parse(“mm 6@andrew. cmu. edu, dmedvan@andrew. cmu. edu", false));

Standard Accessors and Mutators • • public void set. Address(String) public void set. Personal(String) public String get. Personal() public String get. Address()

E-Mail Message Classes • javax. mail. Message: Abstract class representing an e-mail message • javax. mail. Part: Interface implemented by Message class defining properties and content of mail messages • Javax. mail. internet. Mime. Message: – Extends Message class and provides functionality to produce MIME messages – Most common constructor: Mime. Message(Session session)

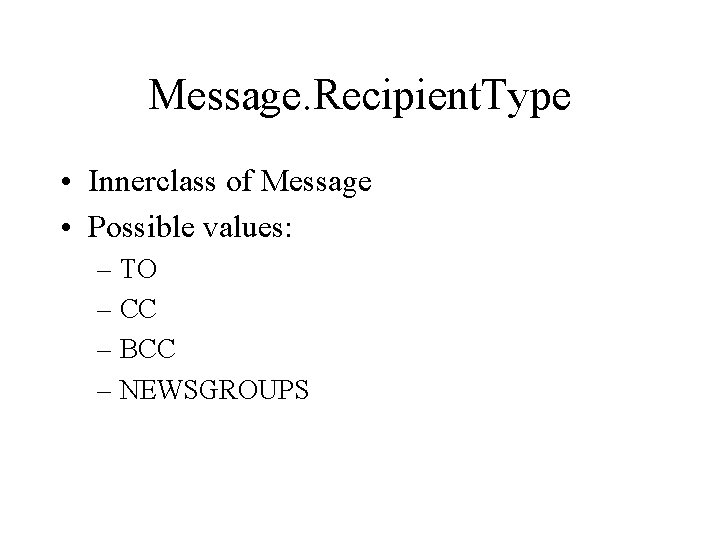

Message. Recipient. Type • Innerclass of Message • Possible values: – TO – CC – BCC – NEWSGROUPS

Mime. Message Header Methods Setting Recipients • public void set. Recipient(Message. Recipient. Type type, Address address) • public void set. Recipients(Message. Recipient. Type type, Address[] addresses) Adding Additional Recipients • public void add. Recipient(Message. Recipient. Type type, Address address) • public void addrecipients(Message. Recipient. Type type, Address[] addresses) Getting Recipients • public Address[] get. Recipients(Message. Recipient. Type type) • public Address[] get. All. Recipients()

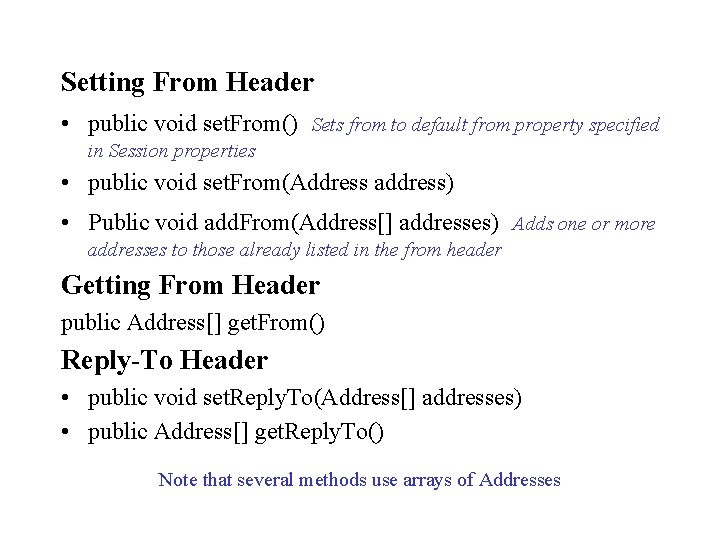

Setting From Header • public void set. From() Sets from to default from property specified in Session properties • public void set. From(Address address) • Public void add. From(Address[] addresses) Adds one or more addresses to those already listed in the from header Getting From Header public Address[] get. From() Reply-To Header • public void set. Reply. To(Address[] addresses) • public Address[] get. Reply. To() Note that several methods use arrays of Addresses

Subject Header • public void set. Subject(String subject) • public String get. Subject() Sent Date Header • public void set. Sent. Date(Date date) • public Date get. Sent. Date()

Content of a Single-Part Message • public void set. Text(String text) Defaults to ASCII • public void set. Text(String text, String charset) Used for non-ASCII messages or to improve performance if there is a lot of text

Example 1: Message. Send. java Sends an e-mail message from one person to another import java. io. *; E-mail address class import java. net. Inet. Address; import java. util. Properties; import java. util. Date; import javax. mail. *; import javax. mail. internet. *; Properties class Directory containing abstract mail classes Internet e-mail classes

create. Session() public Session create. Session() { Gets the default system properties Properties p = System. get. Properties(); Sets the transport protocol to SMTP and sets the appropriate SMTP host for CMU p. set. Property("mail. transport. protocol", "smtp"); p. set. Property("mail. smtp. host", “cyrus. andrew. cmu. edu");

Sets the store protocol to IMAP and sets the appropriate SMTP host for CMU (not really needed unless the application will read e-mail) p. set. Property("mail. store. protocol", "imap"); p. set. Property("mail. imap. host", "cyrus. andrew. cmu. edu"); Session sess = Session. get. Default. Instance(p); return sess; } Instantiates a session using the new properties object

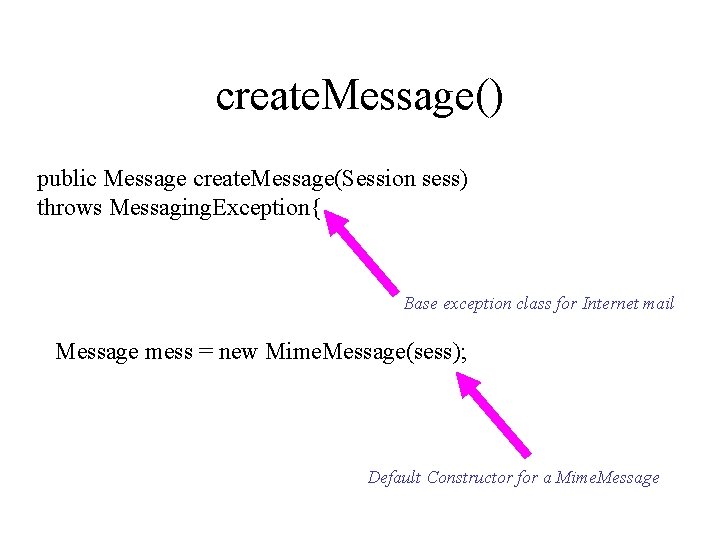

create. Message() public Message create. Message(Session sess) throws Messaging. Exception{ Base exception class for Internet mail Message mess = new Mime. Message(sess); Default Constructor for a Mime. Message

mess. set. From(new Internet. Address("mm 6@andrew. cmu. edu")); set. Recipients(Message. Recipient. Type type, String address) mess. set. Recipients(Message. Recipient. Type. TO, Internet. Address. parse("bob@andrew. cmu. edu", false)); mess. set. Subject("Test"); mess. set. Text("This is a test of Java. Mail's functionality. "); mess. set. Sent. Date(new Date()); return mess; }

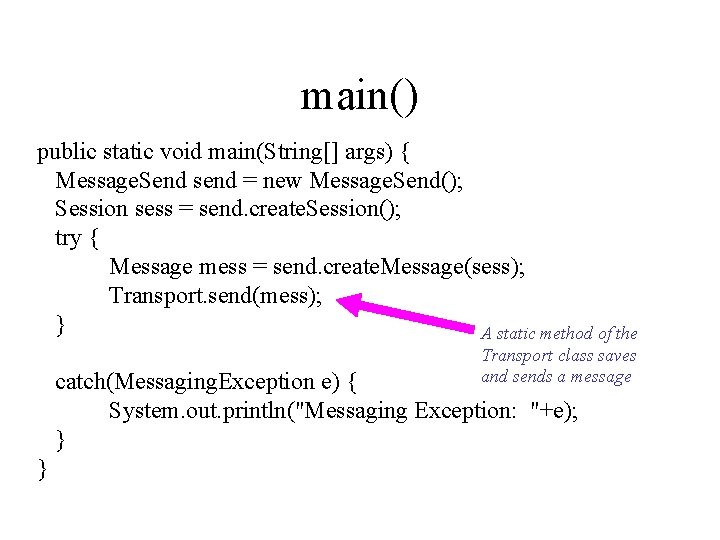

main() public static void main(String[] args) { Message. Send send = new Message. Send(); Session sess = send. create. Session(); try { Message mess = send. create. Message(sess); Transport. send(mess); } A static method of the Transport class saves and sends a message catch(Messaging. Exception e) { System. out. println("Messaging Exception: "+e); } }

Example 2: Message. Send. To. Many Sends a message to a group of addresses import java. io. *; import java. net. Inet. Address; import java. util. Properties; import java. util. Date; import javax. mail. *; import javax. mail. internet. *; Almost everything is the same public class Message. Send. To. Each { public Session create. Session() { Properties p = System. get. Properties(); p. set. Property("mail. transport. protocol", "smtp"); p. set. Property("mail. smtp. host", “cyrus. andrew. cmu. edu"); p. set. Property("mail. store. protocol", "imap"); p. set. Property("mail. imap. host", "cyrus. andrew. cmu. edu"); Session sess = Session. get. Default. Instance(p); return sess; }

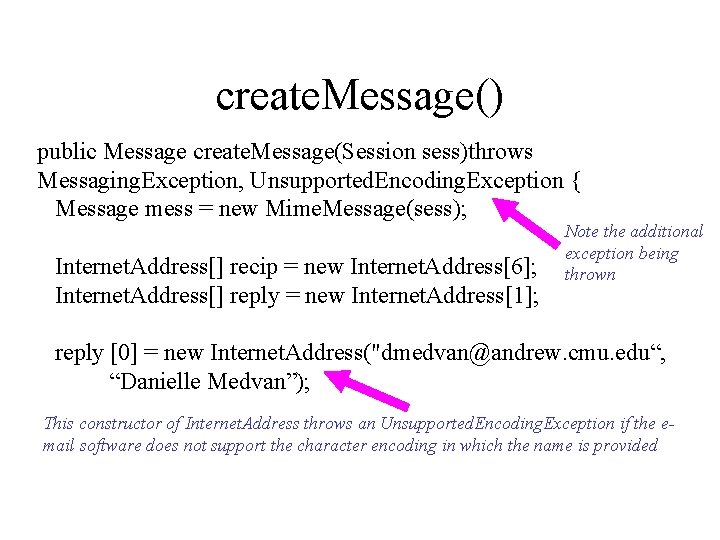

create. Message() public Message create. Message(Session sess)throws Messaging. Exception, Unsupported. Encoding. Exception { Message mess = new Mime. Message(sess); Internet. Address[] recip = new Internet. Address[6]; Internet. Address[] reply = new Internet. Address[1]; Note the additional exception being thrown reply [0] = new Internet. Address("dmedvan@andrew. cmu. edu“, “Danielle Medvan”); This constructor of Internet. Address throws an Unsupported. Encoding. Exception if the email software does not support the character encoding in which the name is provided

recip[0]= new Internet. Address("garya@andrew. cmu. edu", "Gary"); recip[1]= new Internet. Address(“wtzuanta@andrew. cmu. edu”, “Tzuan-Ta"); recip[2]= new Internet. Address(“romoff@andrew. cmu. edu”, “Rebecca"); recip[3]= new Internet. Address(“marks 215@home. com”, “Mark"); recip[4]= new Internet. Address(“ginas@andrew. cmu. edu”, “Gina"); recip[5]= new Internet. Address(“cameronw@andrew. cmu. edu”, “Cameron"); mess. set. From(new Internet. Address("mm 6@andrew. cmu. edu"));

mess. set. Reply. To(reply); The “reply-to” address is set with set. Reply. To(Address[] addresses) mess. set. Recipients(Message. Recipient. Type. TO, recip); We saw the method to set a single recipient. Now we see the method to set multiple recipients mess. set. Subject("Test"); mess. set. Text("This is a test of Java. Mail's functionality. "); mess. set. Sent. Date(new Date()); return mess; }

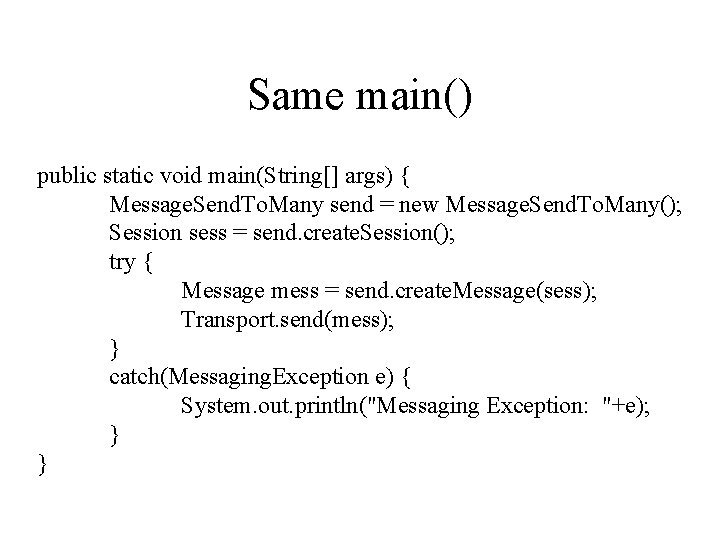

Same main() public static void main(String[] args) { Message. Send. To. Many send = new Message. Send. To. Many(); Session sess = send. create. Session(); try { Message mess = send. create. Message(sess); Transport. send(mess); } catch(Messaging. Exception e) { System. out. println("Messaging Exception: "+e); } }

Java. Bean Activation Framework (JAF) • In multi-part messages, e-mail client needs to handle a variety of file types with a consistent interface • JAF classes initialize appropriate beans • Used by Java. Mail clients to interact with messages – – Determine content type Discover commands supported on that content type Display messages Access data to enable execution of commands

Multi. Part Representation

javax. Activation. Data. Source • Interface that allows access to file type and to streams that can manipulate the file • public String get. Content. Type() returns the name of the MIME file type • Implemented by javax. Activation. File. Data. Source • Used by Java. Mail to create and retrieve e-mail attachments – Constructors • File. Data. Source(File file) • File. Data. Source(String filename)

javax. Activation. Data. Handler • Wrapper for Data. Source objects so that the user does not need to manipulate the bytes for each file • Constructors – Data. Handler(Data. Source ds) – Data. Handler(Object obj, String mime. Type) • Public Object get. Content() Returns the data as the object that represents its content type (ie runing this method on a text message returns a String)

javax. mail. Part Revisited • Allows manipulation of Data. Handlers – public void set. Data. Handler(Data. Handler dh) – Public Data. Handler(get. Data. Handler() • Other methods abstract user away from need to directly manipulate Data. Handler – public void set. Content(Object object, String content. Type) – public Object get. Content()

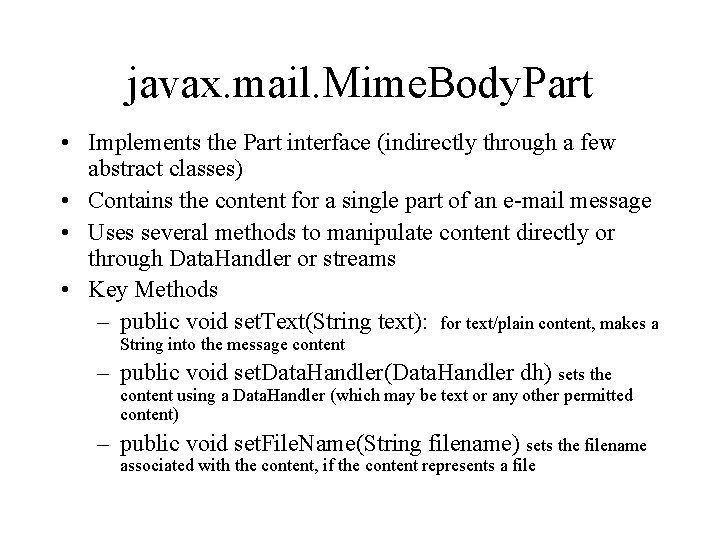

javax. mail. Mime. Body. Part • Implements the Part interface (indirectly through a few abstract classes) • Contains the content for a single part of an e-mail message • Uses several methods to manipulate content directly or through Data. Handler or streams • Key Methods – public void set. Text(String text): for text/plain content, makes a String into the message content – public void set. Data. Handler(Data. Handler dh) sets the content using a Data. Handler (which may be text or any other permitted content) – public void set. File. Name(String filename) sets the filename associated with the content, if the content represents a file

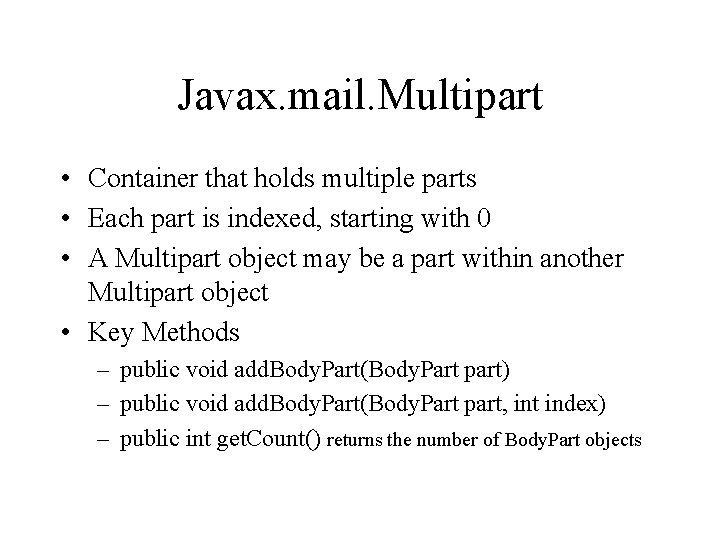

Javax. mail. Multipart • Container that holds multiple parts • Each part is indexed, starting with 0 • A Multipart object may be a part within another Multipart object • Key Methods – public void add. Body. Part(Body. Part part) – public void add. Body. Part(Body. Part part, int index) – public int get. Count() returns the number of Body. Part objects

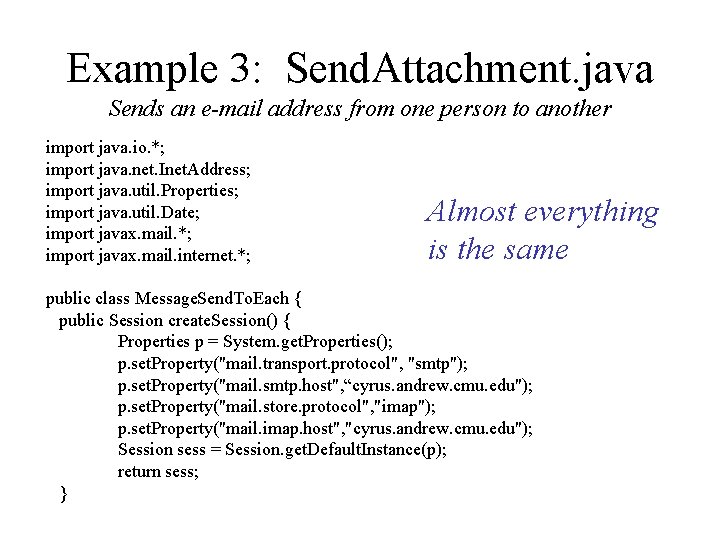

Example 3: Send. Attachment. java Sends an e-mail address from one person to another import java. io. *; import java. net. Inet. Address; import java. util. Properties; import java. util. Date; import javax. mail. *; import javax. mail. internet. *; Almost everything is the same public class Message. Send. To. Each { public Session create. Session() { Properties p = System. get. Properties(); p. set. Property("mail. transport. protocol", "smtp"); p. set. Property("mail. smtp. host", “cyrus. andrew. cmu. edu"); p. set. Property("mail. store. protocol", "imap"); p. set. Property("mail. imap. host", "cyrus. andrew. cmu. edu"); Session sess = Session. get. Default. Instance(p); return sess; }

create. Message() public Message create. Message(Session sess) throws Messaging. Exception{ Message mess = new Mime. Message(sess); mess. set. From(new Internet. Address("mm 6@andrew. cmu. edu")); mess. set. Recipients(Message. Recipient. Type. TO, Internet. Address. parse(“bob@andrew. cmu. edu", false)); mess. set. Subject("Test"); Still the same mess. set. Sent. Date(new Date());

Instantiate a Mime. Body. Part to contain the text of the email message Mime. Body. Part main. Message = new Mime. Body. Part(); main. Message. set. Text("This is a test of Java. Mail's functionality. "); Construct a File. Date. Source with the full path of the file it should contain (This will be the attachment) File. Data. Source source = new File. Data. Source("c: \autoexec. bat"); Mime. Body. Part attach = new Mime. Body. Part(); attach. set. Data. Handler(new Data. Handler(source)); attach. set. File. Name(source. get. Name()); Set the attachment’s file name to equal the name of the File. Data. Source Construct another Mime. Body. Part containing a new Data. Handler that contains the File. Data. Source

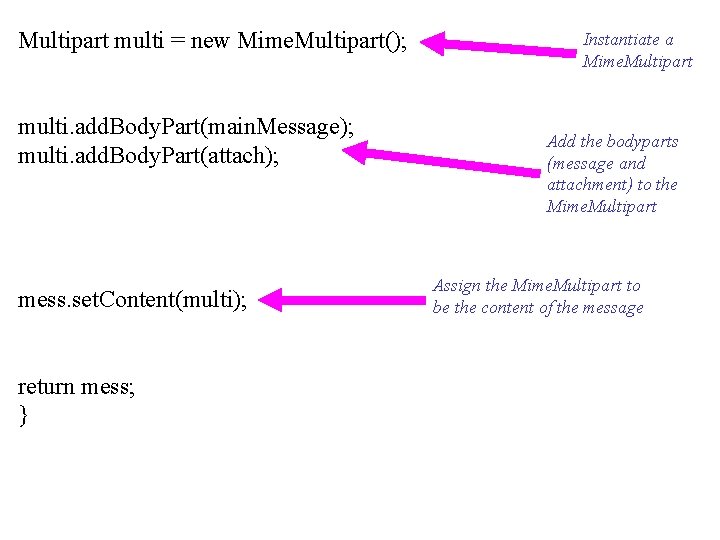

Multipart multi = new Mime. Multipart(); multi. add. Body. Part(main. Message); multi. add. Body. Part(attach); mess. set. Content(multi); return mess; } Instantiate a Mime. Multipart Add the bodyparts (message and attachment) to the Mime. Multipart Assign the Mime. Multipart to be the content of the message

Same main() public static void main(String[] args) { Send. Attachment send = new Send. Attachment(); Session sess = send. create. Session(); try { Message mess = send. create. Message(sess); Transport. send(mess); } catch(Messaging. Exception e) { System. out. println("Messaging Exception: "+e); } }

Other Java. Mail Classes • Store: Object representing database and access protocol for storing and accessing messages and folders, implemented by a specific protocol (IMAP or POP 3) • Folder: Contains e-mail messages and subfolders and supports reading and deleting them • Mail. Event: Can be registered with event listeners to catch events generated by Transport, Store, and Folder objects (i. e. announce arrival of new e-mail) Note: Using Java. Mail in Netscape browsers requires you to download the Java Plug-in because of Netscape’s security restrictions

Installation Instructions Visit http: //java. sun. com/products/javamail 1. Download the Java. Mail API Implementation Version 1. 3 ea 2. Download the Java. Beans Activation Framework 1. 0. 2 ea 3. Unzip both files. 4. Add the following files to your classpath: – mail. jar (Java. Mail) – activation. jar (JAF file)

For More Information • http: //raddist. rad. com/networks/1998/smtp/s mtp. htm • http: //www. freesoft. org/CIE • http: //cr. yp. to/smtp • Java Server Programming: J 2 EE Edition by Allamaraju et. al. , Wrox Publishing, © 2000
