Java Layers Language Support for Layered Refinement Rich Cardone Calvin Lin, Advisor Department of Computer Sciences University of Texas at Austin January 16, 2001 1/16/01 Java Layers Proposal

In a Nutshell n Goal: Application assembly from reusable parts n Our Solution: Java Layers (JL) n n Increase code reuse n Novel language features Results: A practical way to construct applications 1/16/01 n Simple n Effective n Evolutionary Java Layers Proposal 2

Presentation Overview n Motivation n Background n Mixins n Java Layers n Methodology n Related Work 1/16/01 Java Layers Proposal 3

Problem n n Software development and maintenance is expensive n Difficult n Takes a long time Assemble applications from off-the-shelf components n Mix and match features to create applications n Plug and unplug components to change applications 1/16/01 Java Layers Proposal 4

Reusable Components n Separation of concerns n n One application feature per component Flexible composition 1/16/01 Java Layers Proposal 5

Our Solution Provide language support for reuse: n Software components n n Encapsulate feature implementations Stepwise Program Refinement n 1/16/01 Build applications incrementally in layers Java Layers Proposal 6

Contributions 1) Feature identification n 2) Feature implementation n 3) Show features can be integrated into an OO language Language evaluation n 4) Identify essential features for domain-independent, stepwise refinement Demonstrate advantages in building large applications Domain-independence evaluation n Compare to domain-specific implementations of stepwise refinement 1/16/01 Java Layers Proposal 7

Background n Let’s look at a problem in object-oriented programming. 1/16/01 Java Layers Proposal 8

An OO Problem Car Box House Lockable Car Lockable Box Lockable House lock(), unlock() Problem: Lockable code replicated 3 times 1/16/01 Java Layers Proposal 9

An OO Solution n Use same lockable code for all 3 classes n n Encapsulate lockable code in a class Subtype Car, Box, House with new class Mixin Class class Lockable<T> extends T { lock(){…} unlock(){…} } [Bracha 90] 1/16/01 Java Layers Proposal 10

Mixed-In Classes <T> Car Box House Lockable<T> Lockable<Car> Lockable<Box> Lockable<House> Lockable code reused 3 times 1/16/01 Java Layers Proposal 11

Mixins n Types with parameterized supertypes n Depend on type parameters n More precisely: Parametric Polymorphism n An OO mechanism for code reuse n Apply same code to unrelated classes n Work with single inheritance 1/16/01 Java Layers Proposal 12

Example: Music Server n Variation can occur on many axes: n Client interface {get. Song, erase. Copyright, hide. Britney, …} n Server execution strategy {single threaded, thread-spawning, thread pool, …} 1/16/01 n Transport type n Fault tolerance n Server discovery n … Java Layers Proposal 13

Music Application Instances Simple No. Britney Base Get. Song Erase. Copyright Hide. Britney Get. Song leaf-types Thief … Thread. Spawn 1/16/01 Java Layers Proposal 14

Application Assembly is Easy class Simple extends Get. Song<Base> {…} class No. Britney extends Hide. Britney<Get. Song<Base>> {…} class Thief extends Thread. Spawn<Get. Song<Erase. Copyright< Base>>> {…} 1/16/01 Java Layers Proposal 15

Mixins as Reusable Components n n Van. Hilst & Notkin, 1996 n C++ mixins encapsulate changes to individual classes n Composed OO collaborations using multiple mixins n Built applications by combining multiple collaborations Batory & Smaragdakis, 1998 -present n Mixin Layers can encapsulate complete collaborations n Mixin Layers are mixins that contain nested mixins Mixins can encapsulate all features in our example 1/16/01 Java Layers Proposal 16

Stepwise Program Refinement class Thief extends Thread. Spawn<Get. Song<Erase. Copyright<Base>>> {…} Client Server Layers Base Erase. Copyright Get. Song Thread. Spawn [Batory 92] 1/16/01 Java Layers Proposal 17

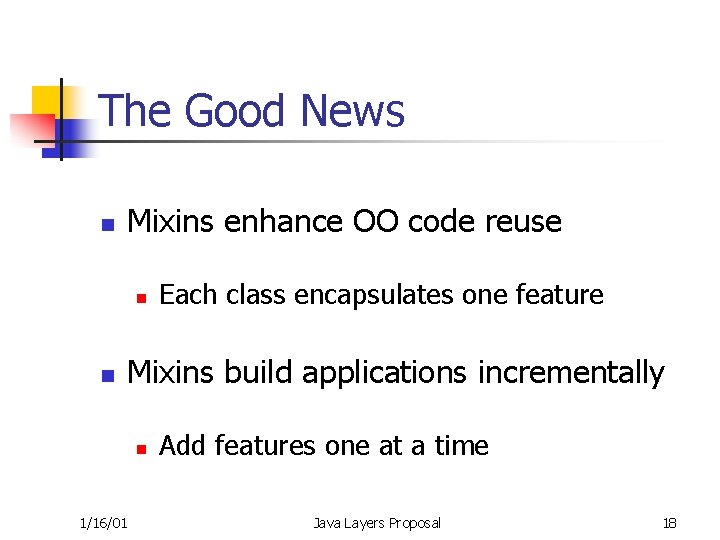

The Good News n Mixins enhance OO code reuse n n Each class encapsulates one feature Mixins build applications incrementally n 1/16/01 Add features one at a time Java Layers Proposal 18

The Bad News Mixins can have usability & efficiency drawbacks That’s why Java Layers exists! n Implements mixins n Addresses mixin drawbacks 1/16/01 Java Layers Proposal 19

Java Layers Overview n Introduce JL’s technology base n Introduce 5 novel JL features n Describe mixin problem n Present JL solution All JL features are designed to support stepwise program refinement 1/16/01 Java Layers Proposal 20

JL’s Foundation n Java + Constrained Parametric Polymorphism (CPP) n There are several proposals for adding CPP to Java [Agesen 97, Bokowski 98, Bracha 98, Cartwright 98, Myers 97, Solorzano 98] n JL’s implementation of CPP n Conventional syntax and semantics n Parametric classes and interfaces n Mixins 1/16/01 Java Layers Proposal 21

P 1: Superclass Initialization n Superclass initialization is tricky with mixins Class Constructor House Car Lockable<House> Lockable<Car> 1/16/01 House(Address) Car(Make, Model) ? ? Java Layers Proposal 22

S 1: Constructor Propagation n n Automatic constructor generation n Generates constructors based on superclass n Adjusts constructor signatures Contribution: Flexible mixin initialization n Mixin constructors generated at instantiation time n Superclasses get their initialization parameters 1/16/01 Java Layers Proposal 23

P 2: Permissive Type Checking interface I { interface Inner {…} } class C implements I {…} n Question: Does C implement nested interface Inner? Answer: Maybe Classes are not required to implement nested interfaces 1/16/01 Java Layers Proposal 24

S 2: Deep Conformance n n Enhances Java’s type checking for nested types n Supertypes can be checked for required nested types n Classes implement interfaces at all nesting depths n Promotes mixin composition Contribution: Client-centric semantics n Users of types decide on deep or shallow type checking n More flexible than producer-centric approaches [Smaragdakis 99] 1/16/01 Java Layers Proposal 25

P 3: Referencing Leaf-Types n No way to express leaf-types within mixins n n Runtime object’s precise type cannot be used Possible in non-parameterized inheritance 1/16/01 Java Layers Proposal 26

S 3: Static Virtual Typing n n The automatic adaptation of types through inheritance n A virtual type in a parent class can change when subclassed n Specialized types automatically replace more general types n Mixins can express leaf-types in generated hierarchies Contribution: Static binding of virtual types n No increase in dynamic type checking n No change in Java’s type system n Dynamic approaches are more expressive [Bruce 98, Thorup 97] 1/16/01 Java Layers Proposal 27

P 4: Composition Correctness n Syntactically correct mixin compositions can yield semantically meaningless results 1/16/01 n Mixins are too flexible! n Ex: Hide. Britney<Base>> ? Java Layers Proposal 28

S 4: Semantic Checking n Restrict inheritance with semantic constraints n Manually disallow syntactically correct but semantically invalid mixin instantiations n Contribution: Use of pattern-matched constraints n Regular expression matching and a count operator n Familiar, simple, limited scope n Sufficient expressive power (so far) [Batory 96, Perry 89] 1/16/01 Java Layers Proposal 29

P 5: Performance n Increased load times n n Deep class hierarchies of many small classes Increased method calls n Feature code executes, then passes control on n Mixin method calls same method in superclass n Less efficient than conventional, unlayered code 1/16/01 Java Layers Proposal 30

S 5: Class Hierarchy Optimization n n Class hierarchy optimization n Inline calls to superclass methods w/same signature n Collapse class hierarchy into a single class Contribution: Generate efficient mixin code n Remove design-time layering from runtime code n Extends existing compiler optimization techniques 1/16/01 Java Layers Proposal 31

Java Layers Anatomy Java Layers = Java + Constrained Parametric Polymorphism + Constructor Propagation + Deep Conformance + Static Virtual Typing + Semantic Checking + Class Hierarchy Optimization 1/16/01 Java Layers Proposal 32

Methodology Design Evaluate Develop n Validate our analyses n Make implementations available to others n 2 design-develop-evaluate cycles planned 1/16/01 Java Layers Proposal 33

Cycle 1 (completed) n Performed initial analysis n Implemented JL prototype n Compared JL to OO Frameworks n Reengineered Schmidt’s ACE n ICSE 2001 paper 1/16/01 Java Layers Proposal 34

ICSE Paper Results JL advantages over frameworks: n Avoids overfeaturing n n Avoids complex interfaces n n Allows precise customization of applications Promotes smaller, faster executables Avoids the Framework Evolution problem 1/16/01 Java Layers Proposal 35

Cycle 2 (in progress) n Refined JL Language n Develop new JL compiler n Apply and evaluate refined language n Build a family of related applications n Compare to Domain-Specific Languages 1/16/01 Java Layers Proposal 36

Related Work n Gen. Voca – Batory 92 -00, Smaragdakis 98 -99 n Parametric Polymorphism – Agesen 97, Bokowski 98, Bracha 90, Bracha 98, Cartwright 98, Myers 97, Solorzano 98 n Virtual Types – Bruce 97 -98, Madsen 89, Thorup 97, Thorup 99, Torgerson 98 n Semantic Checking – Batory 95, Perry 89 -93 n Programming Paradigms – Danforth 98, Gamma 94, Harrison 93, Johnson 91, Kiczales 97, Schmidt 98, Tarr 99 1/16/01 Java Layers Proposal 37

JL and Gen. Voca n JL’s based on the Gen. Voca model n JL refines the Gen. Voca model n n Specifies layer initialization n Integrates semantic checking JL has novel language & compiler support 1/16/01 Java Layers Proposal 38

Summary n JL promotes an alternative programming methodology n Reduce development costs through reuse n Bring mixins into mainstream programming n Contributions: identification, integration and evaluation n Methodology: emphasize the practical 1/16/01 Java Layers Proposal 39

THE END Think Layers 1/16/01 Java Layers Proposal 40

Base Class class Base { static public class Client {…} static public class Server { void dispatch. Loop(){for(; ; ) dispatch(read. Request()); } void dispatch(Req req){error. Unknown. Req(req); } … } } 1/16/01 Java Layers Proposal 41

Get. Song Mixin constraint nested mixins class Get. Song<T extends Base> extends T { static public class Client extends T. Client { void get. Song(…){…} } static public class Server extends T. Server { void dispatch(Req req){ if (req. name. equals(“get. Song”)) process. Get. Song(req); else super. dispatch(req); } … } } 1/16/01 [Smaragdakis 98] Java Layers Proposal 42

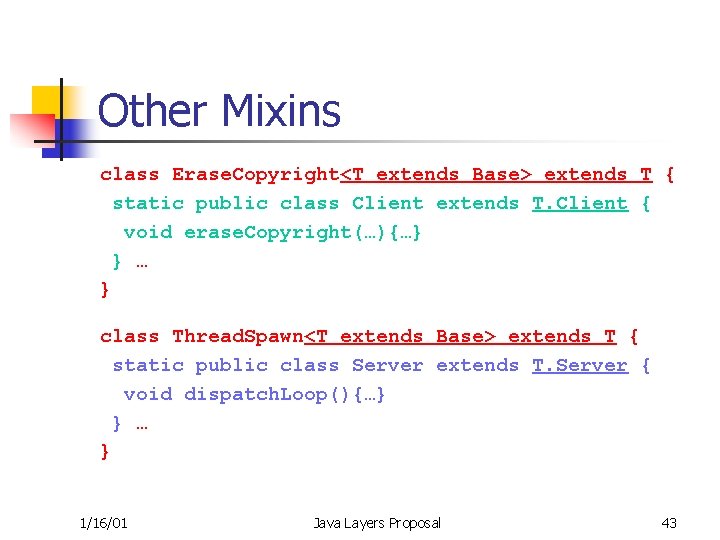

Other Mixins class Erase. Copyright<T extends Base> extends T { static public class Client extends T. Client { void erase. Copyright(…){…} } … } class Thread. Spawn<T extends Base> extends T { static public class Server extends T. Server { void dispatch. Loop(){…} } … } 1/16/01 Java Layers Proposal 43

The Need for Deep Conformance Question: class Parent { class Inner {…} } Does Child contain a nested class named Inner? class Child extends Parent {…} n Java supports shallow type checking n n Answer: Maybe Interfaces and classes JL adds support for deep type checking n 1/16/01 Supertypes are checked for required nested types Java Layers Proposal 44

Deep Conformance n Deep Conformance supports stepwise refinement n Enforces structural conformance at all nesting depths n Subtypes can safely refer to nested types in their supertypes n Feature composition is enhanced by added type precision 1/16/01 Java Layers Proposal 45

Deep Conformance Example class Hide. Britney<T extends Base deeply> extends deeply T { static public class Client extends T. Client {…} static public class Server extends T. Server {…} } n Type parameter T binds to classes that: n n Extend Base Contain a nested Client class that extends Base. Client Contain a nested Server class that extends Base. Server Hide. Britney contains all the public nested types of T n 1/16/01 Compiler generates missing nested types if necessary Java Layers Proposal 46

Deep Conformance Syntax n n Deeply modifier for implements and extends clauses n Different meaning in constraint and inheritance clauses n Operates on public nested types by default Propagate modifier for non-public nested types n n Enables selective deep type checking Use in parameterized and non-parameterized types 1/16/01 Java Layers Proposal 47

A Use of Virtual Types class Node {Node next; } class Node {virtual Node; Node next; } class Double. Node extends Node {Double. Node prev; } class Double. Node extends Node {typedef Node as Double. Node; Double. Node prev; } n In Double. Node: n next is type Node n next is type Double. Node n prev is type Double. Node [Thorup 97] 1/16/01 Java Layers Proposal 48

Virtual Types n n The automatic adaptation of types through inheritance. n Virtual types change through subtyping n A child class can change the type of its parent Benefits of Virtual Typing n Greater type precision n Better type checking n Less manual typecasting n Genericity (Beta) 1/16/01 Java Layers Proposal 49

JL’s This Virtual Type n This pseudo-type is like the “type of this. ” n Static binding n n Used in parametric types only n Bound at instantiation time Enhances JL’s expressiveness n 1/16/01 Allows the instantiated leaf-type to be expressed within the mixins being composed to define that leaf-type. Java Layers Proposal 50

Hypothesis Stepwise program refinement can: 1) be supported by a small number of domain -independent language features, and 2) provide an effective way to build large applications 1/16/01 Java Layers Proposal 51

Flexible Class Hierarchies Replaced class Inserted class Flexible Rigid classhierarchy 1/16/01 Java Layers Proposal 52

Evaluation n n Evaluate JL vs. standard OO development n Build a family of related applications n Compare flexibility, usability and reusability Evaluate domain-independence n Compare to Domain-Specific Languages n Analyze tradeoffs of each approach 1/16/01 Java Layers Proposal 53

Gen. Voca Implementations n n n JL introduces no new type constructs JL enhances mixin usability JL is domain-independent Average Programming Dude GPL Specialist Assembled Applications Domain Expert / Programmer DSL Bring stepwise refinement to mainstream programming 1/16/01 Java Layers Proposal 54
