Java EE Programming Transaction Management Web Tier Java

Java EE Programming Transaction Management Web Tier - Java Server Pages (JSP) 1

Topics n Transaction management concepts n n Basic concepts The Web Tier n n Servlets Java Server Pages (JSP) 2

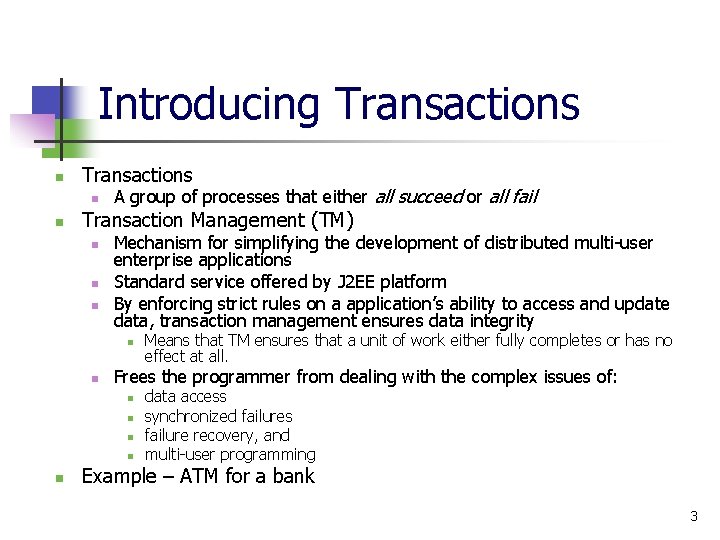

Introducing Transactions n n A group of processes that either all succeed or all fail Transaction Management (TM) n n n Mechanism for simplifying the development of distributed multi-user enterprise applications Standard service offered by J 2 EE platform By enforcing strict rules on a application’s ability to access and update data, transaction management ensures data integrity n n Frees the programmer from dealing with the complex issues of: n n n Means that TM ensures that a unit of work either fully completes or has no effect at all. data access synchronized failures failure recovery, and multi-user programming Example – ATM for a bank 3

If error occurs before – no harm done What happens if network goes down here? 4

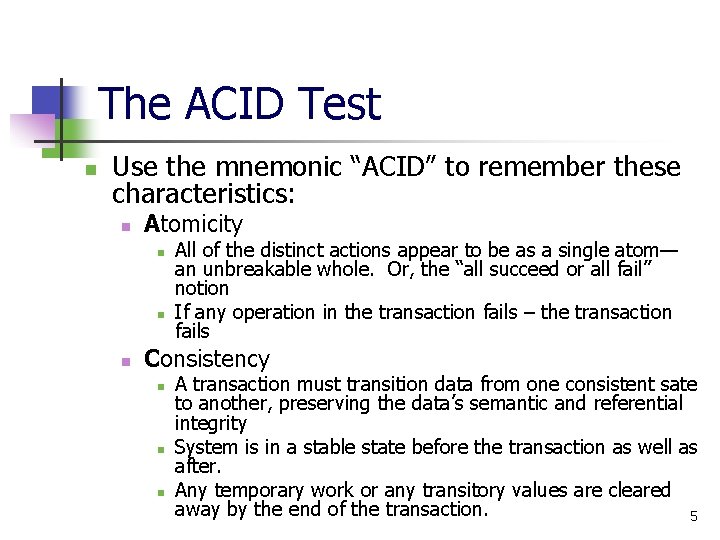

The ACID Test n Use the mnemonic “ACID” to remember these characteristics: n Atomicity n n n All of the distinct actions appear to be as a single atom— an unbreakable whole. Or, the “all succeed or all fail” notion If any operation in the transaction fails – the transaction fails Consistency n n n A transaction must transition data from one consistent sate to another, preserving the data’s semantic and referential integrity System is in a stable state before the transaction as well as after. Any temporary work or any transitory values are cleared away by the end of the transaction. 5

The ACID Test n Isolation n Means that any changes made to data by a transaction are invisible to other concurrent transactions until the transactions commits. Requires that several concurrent transactions must product the same results in the data as those same transactions executed serially In reality, a system (whether it be an application server or a database) will be answering multiple requests in parallel, but they should be able to be serialized, which is to be performed one-at-a-time, as if they had queued up rather than assaulting the server all at once. The theory behind this is that if the same transactions are fed to the server in the same order, it should reach the same ending state. 6

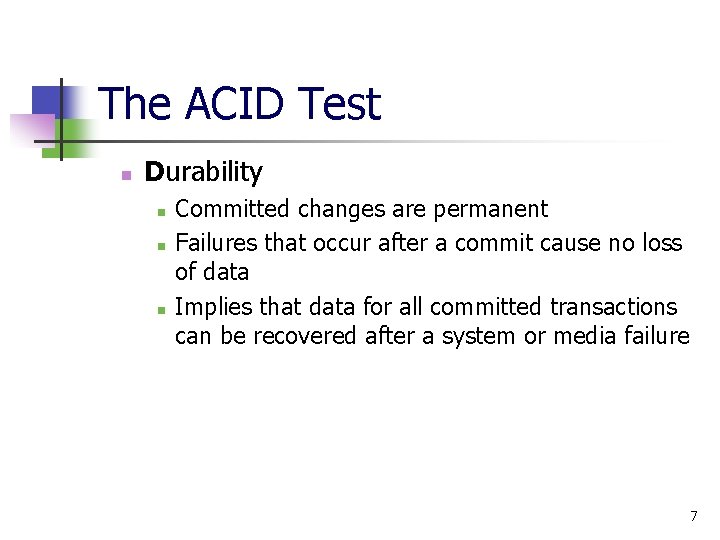

The ACID Test n Durability n n n Committed changes are permanent Failures that occur after a commit cause no loss of data Implies that data for all committed transactions can be recovered after a system or media failure 7

Transaction Participants n n n An application that uses transactions is called a transactional application. In a J 2 EE application, a transactional application may consist of multiple servlets, JSP pages, and enterprise beans. A resource manager is an external system accessed by an application. n n A resource manager provides and enforces the ACID transaction properties for specific data and operations. Examples of resource managers include a n n relational database (which support persistent storage of relational data), an EIS system (managing transactional, external functionality and data), and the Java. Message Service (JMS) provider (which manages transactional message delivery). A transactional application accesses a resource manager through a transactional resource object. n n n For example, a JDBC java. sql. Connection object is used to access a relational database. A resource adapter is a system library that makes the API of a resource manager available to an application server. A Connector is a resource adapter that has an API conforming to the Java Connector architecture, the standard architecture for integrating J 2 EE applications with EISes. 8

Transaction Demarcation n n n n Transactional programs must be able to start and end transactions, and be able to indicate whether data changes are to be made permanent or discarded. Indicating transaction boundaries for a program is called transaction demarcation. A program starts a transaction by executing a begin operation. The program may then read or modify data within the scope of the new active transaction. When the program is ready to make its data changes permanent, it executes a commit operation, causing the transaction to persist any data modified or created during the active state. Successful completion of the commit operation results in a permanent change to the transactional resource. If a commit operation fails (for example, due to inadequate resources or data consistency violations), the resource manager executes a rollback, discarding any changes made since the transaction began. An application may also explicitly request a rollback during an 9 active transaction.

Distributed Transactions n n n Distributed enterprise systems often need to access and update multiple transactional resources in order to accomplish some business goal. Distributed transactions are more complex than non-distributed transactions because of latency, potential failure of one or more resource managers, and interoperability concerns. On a network, a failed transaction can be difficult to distinguish from one that is merely slow. Resource managers that do not “know” about each other cannot coordinate transactions by themselves. A transactional application could itself handle rollbacks and commits for multiple distributed resources, but only at the cost of a great deal of complex, non-reusable logic. A transaction context is the association of a transaction with an application component or a resource manager. The transparent forwarding of a transaction context from one component to another component or from a component to a resource manager is called transaction context propagation. 10

Transaction Manager n n n The most common solution to the problem of coordinating distributed transactions is to introduce a third participant, called a transaction manager, into the design. The transaction manager acts as a mediator between applications and the multiple resources the applications use. At any time during a distributed transaction, the transaction manager maintains an association between each transaction (which has a unique global ID), application threads, and connections to the resource managers. 11

Distributed Transaction Participants 12

Locking and Shadow Pages n n The usual solution to simultaneous access to shared resources is to employ a locking device, called a lock in a database or a mutex in the operating system. A lock is a method of ensuring that only one process has exclusive privileges to change the state of a resource at a time. Should multiple requests require access to the same resource (such as a record of a customer’s bank account), then only one is allowed to access the resource at a time. ATM example from before: n n n When the verification of the account takes place, a lock is placed upon that particular row to ensure that it remains exactly as it is until the transaction is complete. If at this time, the customer account was to be deleted, it would either fail or have to wait as the ATM’s process would have acquired a lock upon the customer’s account. This wait would ensure that when the account is closed, the customer would receive only what is left in her account. 13

Locking n n The basic problem is that a lock is required for both writing and reading any particular resource (Consistency). If a second process were to read a row from a database while it was in use (i. e. being modified), it might not receive an accurate value. For lengthy transactions, any other processes might have to wait just to read a single value. Locking issue – does not scale well. 14

Shadow Pages n n n In effect, the database makes a copy of data that is undergoing change One copy of the data is the pre-transaction copy (i. e. original value). One copy is undergoing change. All read requests are forwarded to the pretransaction copy, ignorant of any changes that are underway. Should a second process decided to make its own changes, it will still be blocked by the lock on that data and have to wait. 15

16

Two Phase Commit Protocol n n Resource managers that do not “know” about one another can’t cooperate directly in distributed transactions So Transaction manager controls the transaction, indicating to each resource manager whether and when to commit or roll back, based on the global state of the transaction. A transaction manager coordinates transactions between resource managers using a two-phase commit protocol. The two-phase commit protocol provides the ACID properties of transactions across multiple resources. 17

Two Phase Commit Protocol n n n In the first phase of two-phase commit, the transaction manager tells each resource to “prepare” to commit - to perform all operations for a commit and be ready either to make the changes permanent or to undo all changes. Each resource manager responds, indicating whether or not the prepare operation succeeded. In the second phase, if all prepare operations succeed, the transaction manager tells all resource managers to commit their changes; otherwise, it tells them all to roll back and indicates transaction failure to the application. 18

J 2 EE Platform Transactions n n n The J 2 EE platform supports a combination of servlets and JSP pages accessing multiple enterprise beans within a single transaction. Each component may acquire multiple connections to multiple resource managers. The J 2 EE platform supports both programmatic and declarative transaction demarcation. 19

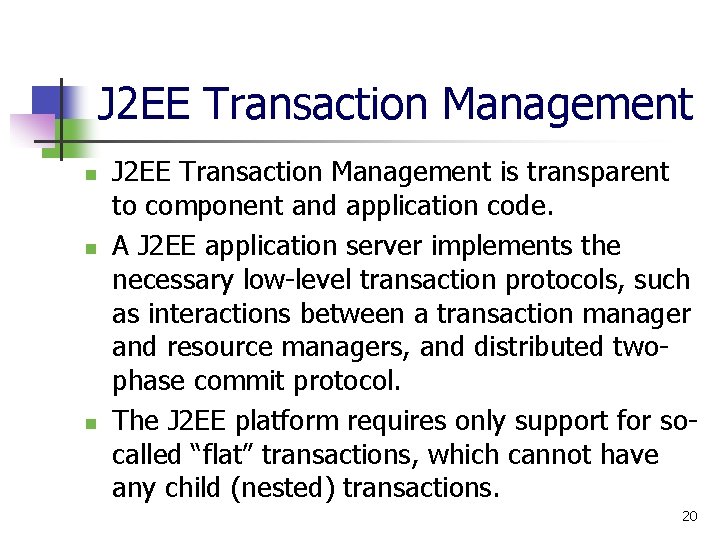

J 2 EE Transaction Management n n n J 2 EE Transaction Management is transparent to component and application code. A J 2 EE application server implements the necessary low-level transaction protocols, such as interactions between a transaction manager and resource managers, and distributed twophase commit protocol. The J 2 EE platform requires only support for socalled “flat” transactions, which cannot have any child (nested) transactions. 20

Example: Transactions across Multiple Resource Managers n The following scenario illustrates a J 2 EE transaction that spans multiple resource managers: Transaction --> 21

Example: Transactions across Multiple Resource Managers n n n Client invokes a method on enterprise bean X. Bean X accesses database A using a JDBC connection. Then enterprise bean X calls a method on another enterprise bean Y, which sends a JMS message to some other system using a JMS provider. Enterprise bean Y then invokes a method on enterprise bean Z, which updates and returns some data from an external EIS system using a resource adapter that implements the J 2 EE Connector architecture. The transaction manager in the J 2 EE server coordinates activities with the three resource managers. The server ensures that the database update by bean X, the message transmission by bean Y, and the EIS operation performed by bean Z are either all committed, or all rolled back. 22

Example: Transactions across J 2 EE Servers n J 2 EE products can distribute transactions across multiple application servers: 23

Example: Transactions across J 2 EE Servers n n n Client invokes enterprise bean X, which updates data in enterprise information system A, and then calls another enterprise bean Y that is hosted by a different J 2 EE server. Enterprise bean Y performs read-write access to enterprise information system B. When X invokes Y, the two J 2 EE servers cooperate to propagate the transaction context from X to Y. n n This transaction context propagation is transparent to the application code. At transaction commit time, the two J 2 EE servers use a distributed two-phase commit protocol to ensure that the two enterprise information systems are updated within a single transaction. 24

J 2 EE Transaction Technologies n n n The Java Transaction API and the J 2 EE platform specifications define the overall transactional behavior in the J 2 EE architecture. The JTA specification defines the contracts between applications, application servers, resource managers, and transaction manager. The J 2 EE platform specification defines the requirements for the J 2 EE transaction management and runtime environment. 25

Java Transaction API (JTA) n JTA specifies standard Java interfaces between a transaction manager and the distributed transaction participants it coordinates: n n applications, application servers, and resource managers. JTA defines interfaces that let applications, application servers, and resource managers participate in transactions regardless of their implementations. 26

Java Transaction API (JTA) n n n A JTA transaction is a transaction managed and coordinated by the J 2 EE platform. A JTA transaction can span multiple components and enterprise information systems. A transaction is propagated automatically between components and to enterprise information systems accessed by components within the transaction. n For example, a JTA transaction may comprise a servlet or JSP page accessing multiple enterprise beans, some of which access one or more resource managers. 27

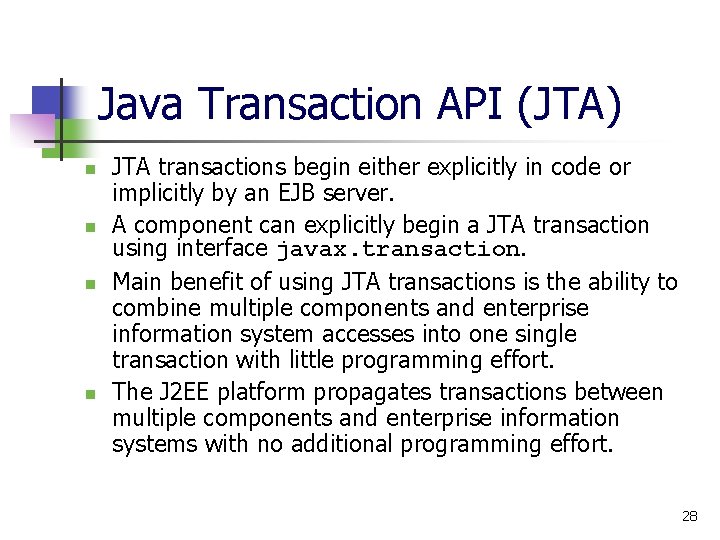

Java Transaction API (JTA) n n JTA transactions begin either explicitly in code or implicitly by an EJB server. A component can explicitly begin a JTA transaction using interface javax. transaction. Main benefit of using JTA transactions is the ability to combine multiple components and enterprise information system accesses into one single transaction with little programming effort. The J 2 EE platform propagates transactions between multiple components and enterprise information systems with no additional programming effort. 28

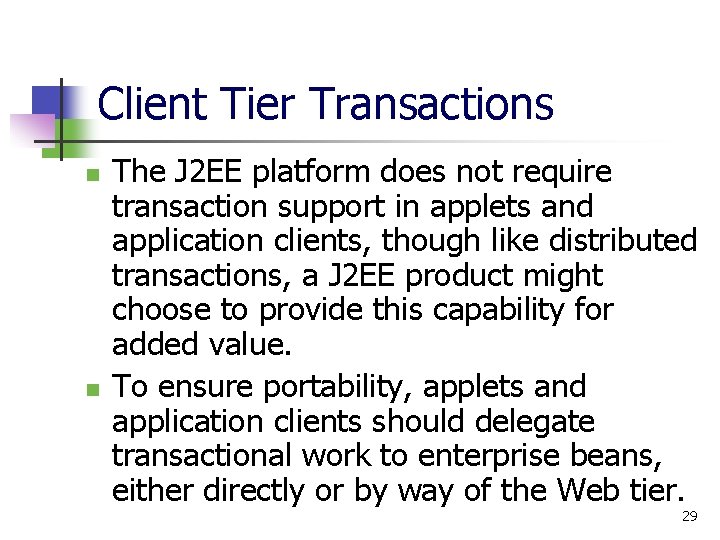

Client Tier Transactions n n The J 2 EE platform does not require transaction support in applets and application clients, though like distributed transactions, a J 2 EE product might choose to provide this capability for added value. To ensure portability, applets and application clients should delegate transactional work to enterprise beans, either directly or by way of the Web tier. 29

Web Tier Transaction Guidelines n n n Servlets and JSP pages in a two-tier application can access enterprise information systems within the scope of a JTA transaction. Servlets and JSP pages support only programmatic transaction demarcation. A servlet or JSP page can use JNDI to look up a User. Transaction object (using the standard defined name java: comp/User. Transaction), and then use the User. Transaction interface to demarcate transactions. 30

Web Tier Transaction Guidelines Example illustrates the use of the JTA User. Transaction interface to demarcate transactions within a Servlet: Context ic = new Initial. Context(); User. Transaction ut = (User. Transaction)ic. lookup("java: comp/User. Transaction"); ut. begin(); // access resources transactionally here ut. commit(); • Calling User. Transaction. begin associates the calling thread with a new transaction context. • Subsequent accesses of transactional resources such as JDBC connections or resource adapter connections implicitly enlist those resources into the transaction. • The call to User. Transaction. commits the transaction, transparently engaging the two-phase commit protocol if necessary. 31

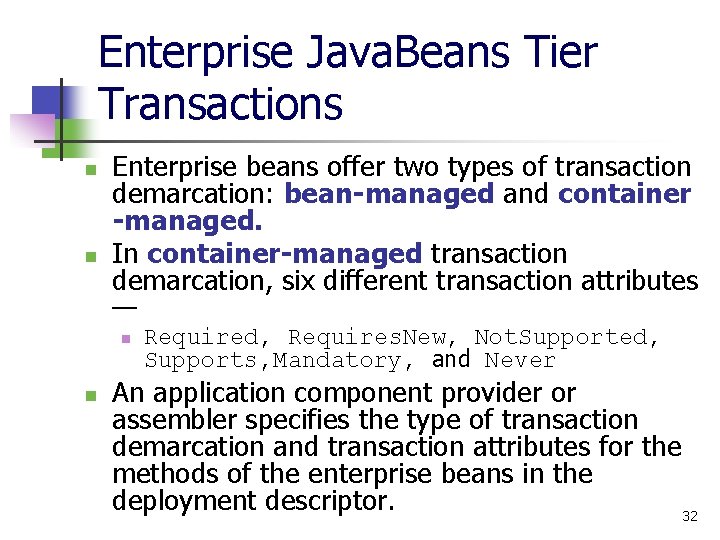

Enterprise Java. Beans Tier Transactions n n Enterprise beans offer two types of transaction demarcation: bean-managed and container -managed. In container-managed transaction demarcation, six different transaction attributes — n n Required, Requires. New, Not. Supported, Supports, Mandatory, and Never An application component provider or assembler specifies the type of transaction demarcation and transaction attributes for the methods of the enterprise beans in the deployment descriptor. 32

Bean-Managed Transaction Demarcation n Enterprise bean uses the javax. transaction. User. Transact ion interface to explicitly demarcate transaction boundaries. Session beans and message-driven beans can choose to use bean-managed demarcation Entity beans must always use containermanaged transaction demarcation. 33

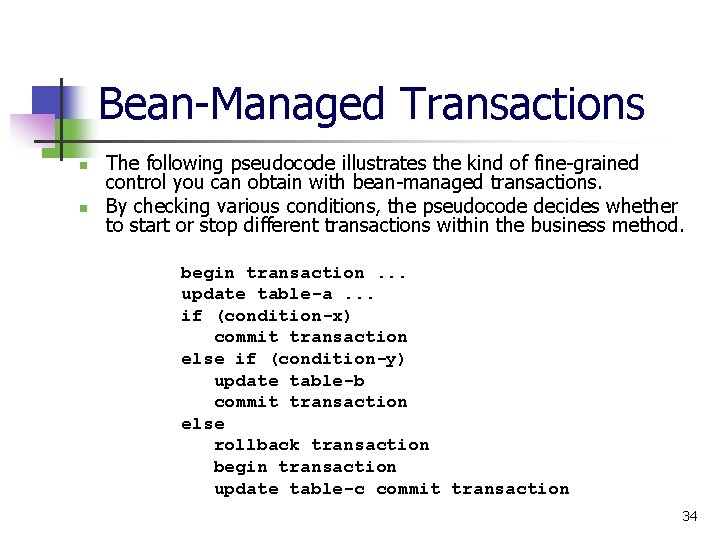

Bean-Managed Transactions n n The following pseudocode illustrates the kind of fine-grained control you can obtain with bean-managed transactions. By checking various conditions, the pseudocode decides whether to start or stop different transactions within the business method. begin transaction. . . update table-a. . . if (condition-x) commit transaction else if (condition-y) update table-b commit transaction else rollback transaction begin transaction update table-c commit transaction 34

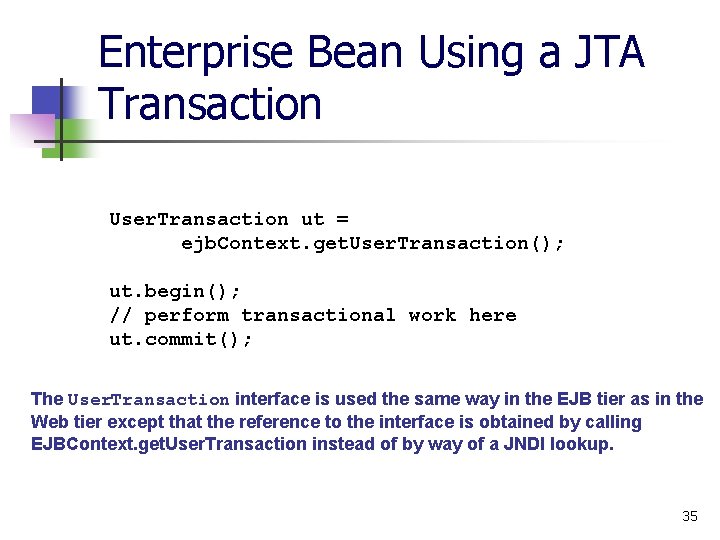

Enterprise Bean Using a JTA Transaction User. Transaction ut = ejb. Context. get. User. Transaction(); ut. begin(); // perform transactional work here ut. commit(); The User. Transaction interface is used the same way in the EJB tier as in the Web tier except that the reference to the interface is obtained by calling EJBContext. get. User. Transaction instead of by way of a JNDI lookup. 35

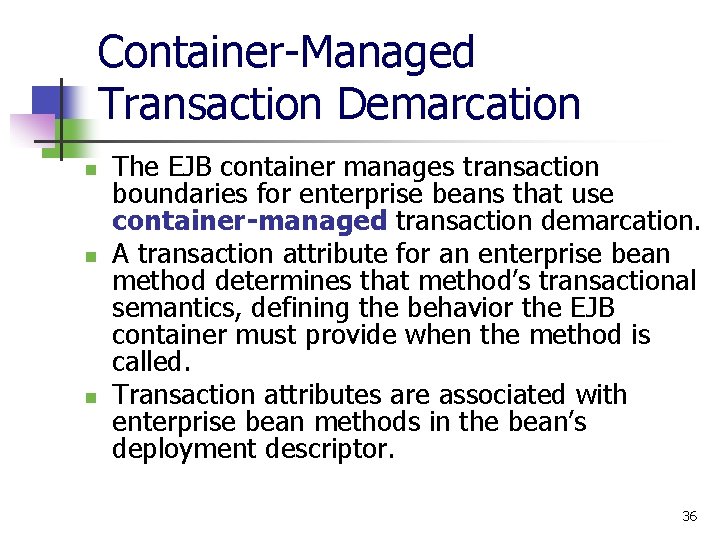

Container-Managed Transaction Demarcation n The EJB container manages transaction boundaries for enterprise beans that use container-managed transaction demarcation. A transaction attribute for an enterprise bean method determines that method’s transactional semantics, defining the behavior the EJB container must provide when the method is called. Transaction attributes are associated with enterprise bean methods in the bean’s deployment descriptor. 36

Container-Managed Transaction Demarcation n For example, if a method has a transaction attribute Requires. New, the EJB container begins a new JTA transaction every time this method is called and attempts to commit the transaction before the method returns. The same transaction attribute can be specified for all the methods of an enterprise bean or different attributes can be specified for each method of a bean. Even in container-managed demarcation, an enterprise bean has some control over the transaction. n For example, an enterprise bean choose to roll back a transaction started by the container using the method set. Rollback. Only on the Session. Context, Entity. Context and Message. Driven. Context object. 37

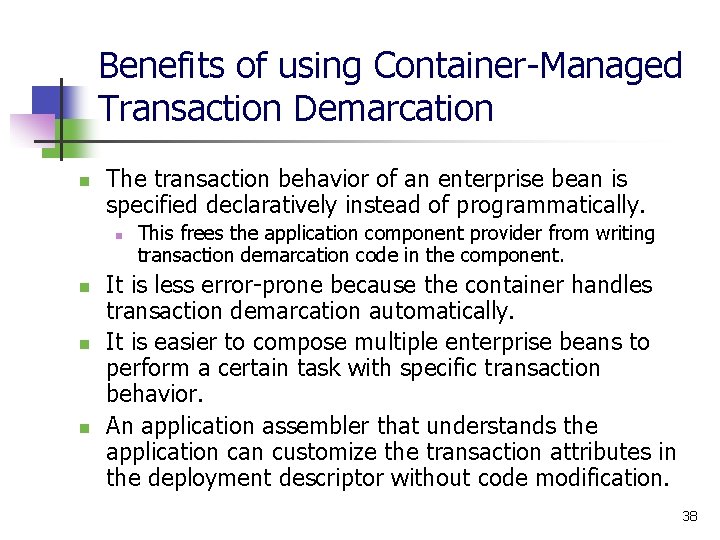

Benefits of using Container-Managed Transaction Demarcation n The transaction behavior of an enterprise bean is specified declaratively instead of programmatically. n n This frees the application component provider from writing transaction demarcation code in the component. It is less error-prone because the container handles transaction demarcation automatically. It is easier to compose multiple enterprise beans to perform a certain task with specific transaction behavior. An application assembler that understands the application can customize the transaction attributes in the deployment descriptor without code modification. 38

Transaction Attributes n n A transaction attribute is a value associated with a method of an enterprise bean that uses container-managed transaction demarcation. A transaction attribute is defined for an enterprise bean method in the bean’s deployment descriptor, usually by an application component provider or application assembler. The transaction attribute controls how the EJB container demarcates transactions of enterprise bean methods. In most cases, all methods of an enterprise bean will have the same transaction attribute. 39

Transaction Attribute Settings n Required n n n Use as the default transaction attribute to ensure that methods are invoked within a JTA transaction Causes the enterprise bean to use existing transactional context if it exists or to create one if not Required. New n n Use when the results of the method must be committed regardless whether the caller’s transaction succeeds. Logging is a good example 40

Transaction Attributes n Supports n n Mandatory n n Use when the method absolutely requires an existing transaction Never n n Use for methods that either do not change the database or update atomically and it does not matter if the updates occur in a transaction Use to ensure that a transactional client does not access methods that are not capable of participating in a transaction Not. Supported n Use when an enterprise bean accesses a resource manager that either does not support external transaction demarcation or not supported by J 2 EE. 41

University Registrar Session Bean Example 42

JTA Resources n Sun’s Resources: n Java Transaction Architecture Spec: http: //java. sun. com/products/jta 43

The Web Tier n n A J 2 EE application’s Web tier makes the application’s business logic available on the World Wide Web (WWW). The Web tier handles all of a J 2 EE application’s communication with Web clients, invoking business logic and transmitting data in response to incoming requests. 44

The Purpose of the Web Tier n n A server in the Web tier processes HTTP requests. In a J 2 EE application, the Web tier usually manages the interaction between Web clients and the application’s business logic. The Web tier typically produces HTML or XML content, though the Web tier can generate and serve any content type. While business logic is often implemented as enterprise beans, it may also be implemented entirely within the Web tier. 45

Web Tier Functions n The Web tier typically performs the following functions in a J 2 EE application: n n n Web-enables business logic—The Web tier manages interaction between Web clients and application business logic. Generates dynamic content—Web-tier components generate content dynamically including HTML, images, sound, and video. Presents data and collects input—Web-tier components translate HTTP PUT and GET actions into a form that the business logic understands and present results as Web content. 46

Web Tier Functions n n Controls screen flow—The logic that determines which “screen” (that is, which page) to display next usually resides in the Web tier, because screen flow tends to be specific to client capabilities. Maintains state—The Web tier has a simple, flexible mechanism for accumulating data for transactions and for interaction context over the lifetime of a user session. Supports multiple and future client types— Extensible MIME types describe Web content, so a Web client can support any current and future type of downloadable content. May implement business logic—While many enterprise applications implement business logic in enterprise beans, Web-only, low- to medium-volume applications with simple transactional behavior can implement business logic entirely within the Web tier. 47

Traditional Web-Tier Technologies n n n The earliest versions of the World Wide Web relied on basic HTTP servers to serve static HTML pages to HTML browsers. Quickly became clear that dynamic content, generated on demand, would make the Web a platform for delivering applications as well as content. Several mechanisms were developed to allow Web servers to generate content on demand, all of which can be thought of as Web server functional extensions. 48

Traditional Web-Tier Technologies - CGI n Common Gateway Interface (CGI) n n The earliest standard server extension mechanism was CGI, which defines a type of stand-alone executable program used by a server to produce dynamic content. While CGI remains a popular option for Web applications, it has some important limitations. n n n CGI has performance limitations - each HTTP request to a CGI program usually results in the creation of a heavyweight process in the host operating system. CGI is also a simple interface that offers no portable support for high-level system services, such as load balancing, scalability, high availability, security, state maintenance, and resource management, making scalable CGI solutions difficult to develop and maintain. CGI’s simplicity is a double-edged sword: It is easy to understand, but it does not offer many portable system services to the developer. 49

Web-Tier Technologies in the J 2 EE Platform n n Web-tier technologies in the J 2 EE platform provide the benefits of server-side scripting, using compiled Java classes in a standardized, secure, and vendor-neutral environment. A Web application is a collection of Web-tier components, content, and configuration information, which operates as a single functional unit. The runtime support environment for a Web application is called a Web container. A Web application archive (. war) file contains all of the class files and resources for the Web application, along with an XML deployment descriptor file that configures the application. 50

Web-Tier Technologies in the J 2 EE Platform n n The platform specification defines a contract between the Web container and each Web component, defining the component’s lifecycle, the behavior the component must implement, and the services that the server must provide to the component. The platform specification also defines two types of Web component technologies: n n Java Servlets (“servlets”) and Java. Server Pages (JSP pages) technology. 51

Servlets and JSP n A servlet is a Java class that extends a J 2 EE server, producing dynamic content in response to requests from the server. n n A JSP page is an HTML page with special markup that provides customizable behavior for generating dynamic content at runtime. n n The server passes service requests to the servlet through the standard interface javax. servlet, which every servlet must implement. A JSP page is usually translated into a servlet when it is deployed. JSP technology provides a document-centric, rather than programmatic, way to specify dynamic content generation. 52

The Web Container n n A J 2 EE Web application runs inside a J 2 EE server’s Web container. The container manages each component’s lifecycle, dispatches service requests to application components, and provides standard interfaces to context data such as session state and information about the current request. The Web container provides a consistent interface to the components it hosts, so Web components are portable across application servers. Packaging and deployment of J 2 EE Web applications are standardized, a Web application can be deployed into any J 2 EE server without recompiling the code or rebuilding the application archive. 53

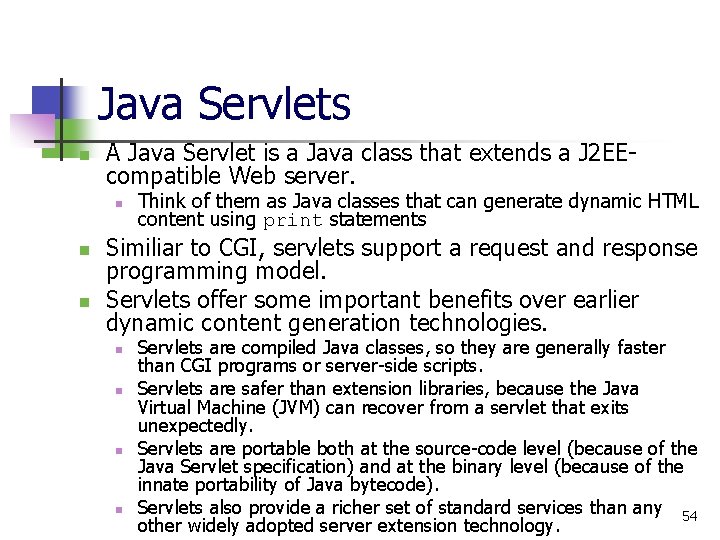

Java Servlets n A Java Servlet is a Java class that extends a J 2 EEcompatible Web server. n n n Think of them as Java classes that can generate dynamic HTML content using print statements Similiar to CGI, servlets support a request and response programming model. Servlets offer some important benefits over earlier dynamic content generation technologies. n n Servlets are compiled Java classes, so they are generally faster than CGI programs or server-side scripts. Servlets are safer than extension libraries, because the Java Virtual Machine (JVM) can recover from a servlet that exits unexpectedly. Servlets are portable both at the source-code level (because of the Java Servlet specification) and at the binary level (because of the innate portability of Java bytecode). Servlets also provide a richer set of standard services than any 54 other widely adopted server extension technology.

Java. Server Pages (JSP) Technology n n n JSP technology abstracts servlets to a higher level Directly competes with Microsoft’s Active Server Pages (ASP) technology A JSP page is a document containing fixed template text, plus special markup for including other text or executing embedded logic. The fixed template text is always served to the requester just as it appears in the page, like traditional HTML. The special markup can take one of three forms: directives, scripting elements, or custom tags Think of JSP as “inside-out” servlets 55

Benefits of JSP n n n JSP pages easily combine static templates, including HTML or XML fragments, with code that generates dynamic content JSP pages are compiled into servlets when requested, so page authors can easily make updates to presentation code. (can be precompiled if desired) JSP tags for invoking Java. Bean components manage these components completely, shielding the page author from the complexity of application logic Developers can offer customized JSP tag libraries JSP pages have all the benefits of Java technology, including robust memory management and security Provides enterprise-class scalability and performance 56

Speed Improvements with JSP n Separating content generation from presentation n Using JSP technology, web page developers use HTML or XML tags to design and format the results page. If the core logic is encapsulated in tags and beans, then other individuals, such as web masters and page designers, can edit the JSP page without affecting the generation of the content. Emphasizing reusable components n n n Most JSP pages rely on reusable, cross-platform components (EJBs) to perform the more complex processing required of the application. Developers can share and exchange components that perform common operations, or make them available to larger user or customer communities. The component-based approach speeds overall development and lets organizations leverage their existing expertise and development efforts for optimal results. 57

Speed Improvements with JSP n Simplifying page development with tags n n Web page developers are not always programmers familiar with scripting languages. JSP technology encapsulates much of the functionality required for dynamic content generation in easy-to-use, JSPspecific XML tags. Standard JSP tags can access and instantiate Java. Beans components, set or retrieve bean attributes, download applets, and perform other functions that are otherwise more difficult and time-consuming to code. JSP technology is extensible through the development of customized tag libraries n n ver time, third-party developers and others will create their own tag libraries for common functions. This lets web page developers work with familiar tools and constructs, such as tags, to perform sophisticated functions. 58

JSP - A Simple Application This model basically replaces the CGI-BIN concept with a JSP page: This method has the following advantages: --It is simple and fast to program --The page author can easily generate dynamic content based on the request and state of the resources. --This architecture works well for many applications, but it does not scale for a large number of simultaneous Web-based clients accessing scarce enterprise resources, since each must establish or share a connection to the content resource in question. --For example, if the JSP page accesses a database, it may generate many 59 connections to the database, which can affect the database performance.

JSP - A Flexible Application with Java Servlets Web-based client may make a request directly to a Java Servlet, which actually generates the dynamic content, wraps the results into a result bean and invokes the JSP page. The JSP page accesses the dynamic content from the bean and sends the results (as HTML) to the browser. This approach creates more reusable components that can be shared between applications, and may be implemented as part of a larger application. It still has scalability issues in terms of handling connections to enterprise resources, such as databases. 60

JSP - Scalable Processing with Enterprise Java. Beans Technology JSP page can also act as a middle tier within an Enterprise Java. Beans (EJB) architecture. In this case, the JSP page interacts with back end resources via an Enterprise Java. Beans component. The EJB component manages access to the back end resources, which provides scalable performance for high numbers of concurrent users. For e-commerce or other applications, the EJB manages transactions and underlying security. This simplifies the JSP page itself. This model will be supported by the Java 2 Enterprise Edition (J 2 EE) platform. 61

Model-View-Controller (MVC) An online store may require an HTML front for Web customers, a WML front for wireless customers, a Java. TM (JFC) / Swing interface for administrators, and an XML-based Web service for suppliers. 62

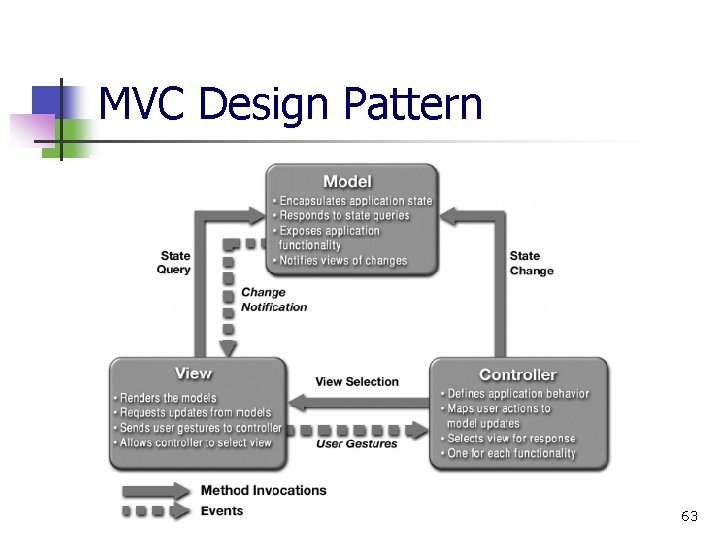

MVC Design Pattern 63

Separating Business Logic from Presentation n Separating business logic from presentation has several important benefits: n n Minimizes impact of change—Business rules can be changed in their own layer, with little or no modification to the presentation layer. Increases maintainability—Business logic expressed in a separate component and accessed referentially can be modified in one place in the source code, producing behavior changes everywhere the component is used. Provides client independence and code reuse— Intermingling data presentation and business logic ties the business logic to a particular type of client. . Separates developer Separating business logic and presentation allows developers to concentrate on their area of expertise. 64

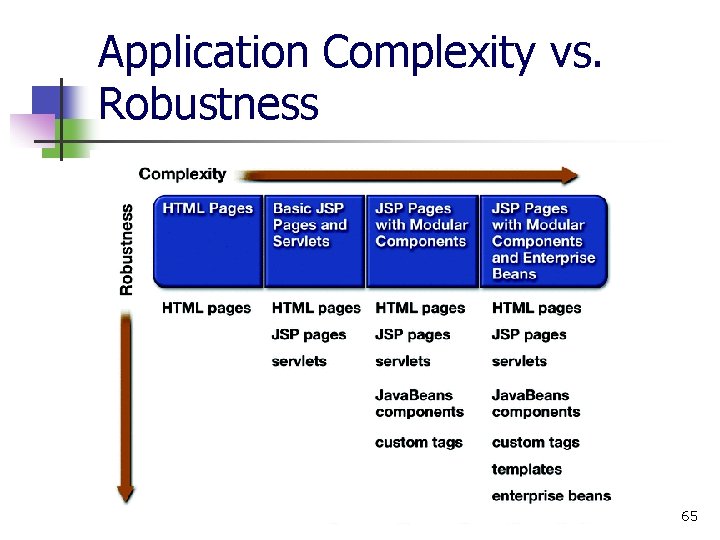

Application Complexity vs. Robustness 65

Model-View-Controller (MVC) Architecture Model 2 - Recommended 66

Model-View-Controller (MVC) Architecture n n n Model 2 architecture integrates the use of both servlets and JSP pages. In this mode, JSP pages are used for the presentation layer, and servlets for processing tasks. The servlet acts as a controller responsible for processing requests and creating any beans needed by the JSP page. The controller is also responsible for deciding to which JSP page to forward the request. The JSP page retrieves objects created by the servlet and extracts dynamic content for insertion within a template. 67

How do JSP Pages Work? n n n n A JSP page is basically a web page with traditional HTML and bits of Java code. The file extension of a JSP page is. jsp rather than. html or. htm, which tells the server that this page requires special handling that will be accomplished by a server extension or a plug-in. When a JSP page is called, it will be compiled (by the JSP engine) into a Java servlet. At this point the servlet is handled by the servlet engine, just like any other servlet. Servlet engine then loads the servlet class (using a class loader) and executes it to create dynamic HTML to be sent to the browser. Servlet creates any necessary object, and writes any object as a string to an output stream to the browser. Next time the page is requested, the JSP engine executes the already-loaded servlet unless the JSP page has changed, in which case it is automatically recompiled into a servlet and executed. 68

How do JSP Pages Work? 69

The Servlet’s Job n n n n Read explicit data sent by client (form data) Read implicit data sent by client (request headers) Generate the results Send the explicit data back to client (HTML) Send the implicit data to client (status codes and response headers) 70

The Need for JSP n With servlets, it is easy to n n n n Read form data Read HTTP request headers Set HTTP status codes and response headers Use cookies and session tracking Share data among servlets Remember data between requests Get fun, high-paying jobs But, it sure is a pain to n n Use those println statements to generate HTML Maintain that HTML 71

The JSP Framework n Idea: n n n Use regular HTML for most of page Mark servlet code with special tags Entire JSP page gets translated into a servlet (once), and servlet is what actually gets invoked (for each request) <DOCTYPE. . . > <HTML> <TITLE>Order Confirmation</TITLE> <LINK REF=STYLESHEET HREF=“JSP-Styles. css” TYPE=“text/css”> </HEAD> <BODY> <H 2>Order Confirmation</H 2> Thanks for ordering <I><%= request. get. Parameter(“title”) %></I>! </BODY> </HTML> 72

Advantages of JSP Over Competing Technologies n Versus ASP or Cold. Fusion n Versus PHP n n n Better language for dynamic part Portable to multiple servers and operating systems Better language for dynamic part Better tool support Versus pure servlets n n More convenient to create HTML Can use standard tools (e. g. , Dream. Weaver) Divide and conquer JSP programmers still need to know servlet programming 73

Advantages of JSP (Continued) n Versus client-side Java. Script (in browser) n n Versus server-side Java. Script (e. g. , Live. Wire, Broad. Vision) n n Capabilities mostly do not overlap with JSP, but You control server, not client Richer language Versus static HTML n n Dynamic features Adding dynamic features no longer "all or nothing" decision 74

Example <!DOCTYPE HTML PUBLIC "-//W 3 C//DTD HTML 4. 0 Transitional//EN"> <HTML> <HEAD> <TITLE>JSP Expressions</TITLE> <META NAME="keywords" CONTENT="JSP, expressions, Java. Server Pages"> <META NAME="description" CONTENT="A quick example of JSP expressions. "> <LINK REL=STYLESHEET HREF="JSP-Styles. css" TYPE="text/css"> </HEAD> 75

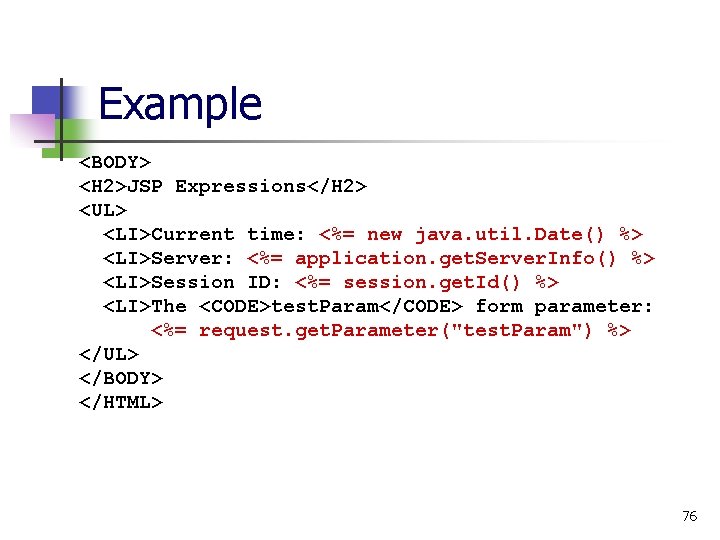

Example <BODY> <H 2>JSP Expressions</H 2> <UL> <LI>Current time: <%= new java. util. Date() %> <LI>Server: <%= application. get. Server. Info() %> <LI>Session ID: <%= session. get. Id() %> <LI>The <CODE>test. Param</CODE> form parameter: <%= request. get. Parameter("test. Param") %> </UL> </BODY> </HTML> 76

Example: Result 77

Most Common Misunderstanding: Forgetting JSP is Server-Side Technology n Very common question n Why doesn’t this question make sense? n n n I can’t do such and such with HTML. Will JSP let me do it? JSP runs entirely on server It doesn’t change content the client (browser) can handle Similar questions n How do I put a normal applet in a JSP page? n n How do I put an image in a JSP page? n n Answer: send an <APPLET…> tag to the client Answer: send an <IMG …> tag to the client How do I use Java. Script/Acrobat/Shockwave/Etc? n Answer: send the appropriate HTML tags 78

2 nd Most Common Misunderstanding: Translation/Request Time Confusion n What happens at page translation time? n n What happens at request time? n n JSP constructs get translated into servlet code. Servlet code gets executed. No interpretation of JSP occurs at request time. The original JSP page is totally ignored at request time; only the servlet that resulted from it is used. When does page translation occur? n n Typically, the first time JSP page is accessed after it is modified. This should never happen to real user (developers should test all JSP pages they install). Page translation does not occur for each request. 79

JSP/Servlets in the Real World: Airlines n n n Delta Airlines United Airlines Air. Tran American Airlines British Airways KLM Air China Saudi Arabian Airlines Iceland Air 80

JSP/Servlets in the Real World: Financial Services n n n American Century Vanguard Fidelity NY Stock Exchange First USA Bank Royal Bank of Scotland Banco Popular de Puerto Rico Bank of America China Construction Bank 81

JSP/Servlets in the Real World: Retail n n n n n Sears. com Walmart. com Sams. Club. com Macys. com llbean. com Kohls. com Ikea. com REI. com Longaberger. com 82

JSP/Servlets in the Real World: Search/Portals n n n Google Half. ebay. com Netscape. com Excite. com Dice. com 83

Summary n n JSP makes it easier to create and maintain HTML, while still providing full access to servlet code JSP pages get translated into servlets n n n You still need to understand servlets n n n It is the servlets that run at request time Client does not see anything JSP-related Understanding how JSP really works Servlet code called from JSP Knowing when servlets are better than JSP Mixing servlets and JSP Other technologies use similar approach, but aren't as portable and don't let you use Java for the "real code" 84

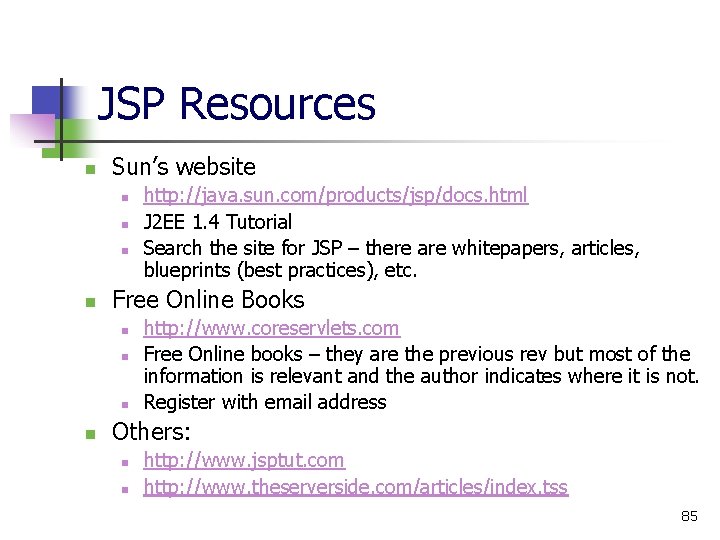

JSP Resources n Sun’s website n n Free Online Books n n http: //java. sun. com/products/jsp/docs. html J 2 EE 1. 4 Tutorial Search the site for JSP – there are whitepapers, articles, blueprints (best practices), etc. http: //www. coreservlets. com Free Online books – they are the previous rev but most of the information is relevant and the author indicates where it is not. Register with email address Others: n n http: //www. jsptut. com http: //www. theserverside. com/articles/index. tss 85
