January 2020 Mo SSEC Update Adrian Murton Airbus

January 2020 Mo. SSEC Update Adrian Murton Airbus Operations Ltd AP 243 - Mo. SSEC An ISO standard for sharing Modelling and Simulation information in a collaborative Systems Engineering Context Presented by Peter Coleman, Airbus For SWSWG#35 @ INCOSE IW 20 27 Jan 2020

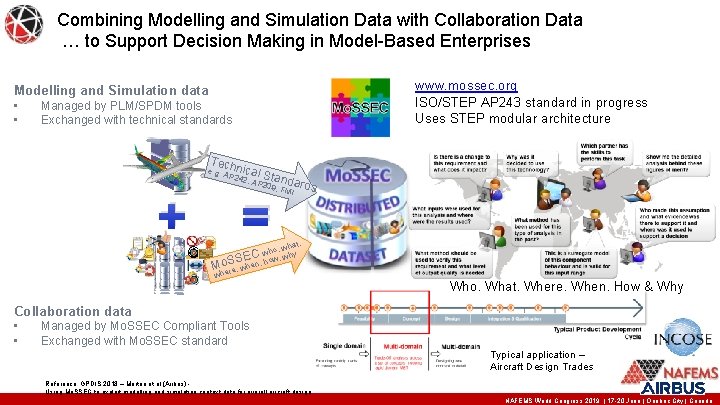

Combining Modelling and Simulation Data with Collaboration Data … to Support Decision Making in Model-Based Enterprises www. mossec. org ISO/STEP AP 243 standard in progress Uses STEP modular architecture Modelling and Simulation data • • Managed by PLM/SPDM tools Exchanged with technical standards Tec + e. g. A hnical P 242 S , AP 2 tanda r 09, F MI ds = t, , wha who y SEC how, wh hen, Moe. S re, w wh Who, What, Where, When, How & Why Collaboration data • • Managed by Mo. SSEC Compliant Tools Exchanged with Mo. SSEC standard Typical application – Aircraft Design Trades Reference: GPDIS 2018 – Murton et al (Airbus) Using Mo. SSEC to exploit modelling and simulation context data for overall aircraft design NAFEMS World Congress 2019 | 17 -20 June | Quebec City | Canada

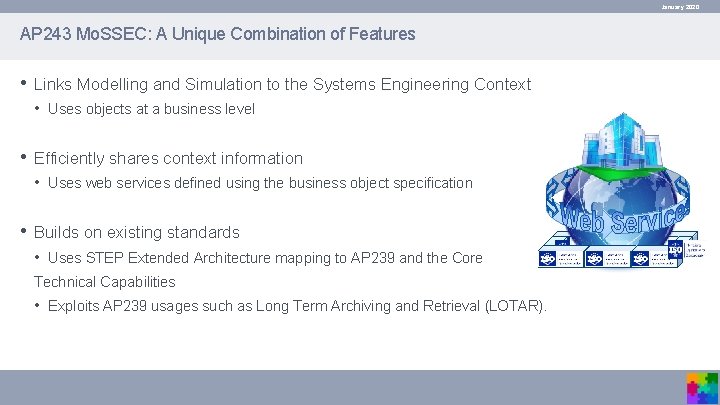

January 2020 AP 243 Mo. SSEC: A Unique Combination of Features • Links Modelling and Simulation to the Systems Engineering Context • Uses objects at a business level • Efficiently shares context information • Uses web services defined using the business object specification • Builds on existing standards • Uses STEP Extended Architecture mapping to AP 239 and the Core Technical Capabilities • Exploits AP 239 usages such as Long Term Archiving and Retrieval (LOTAR).

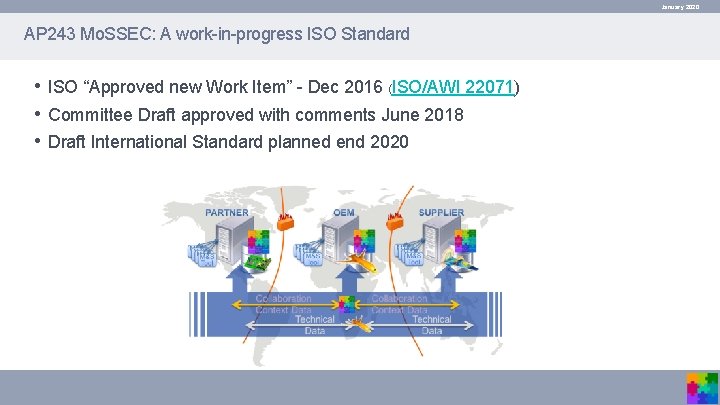

January 2020 AP 243 Mo. SSEC: A work-in-progress ISO Standard • ISO “Approved new Work Item” - Dec 2016 (ISO/AWI 22071) • Committee Draft approved with comments June 2018 • Draft International Standard planned end 2020

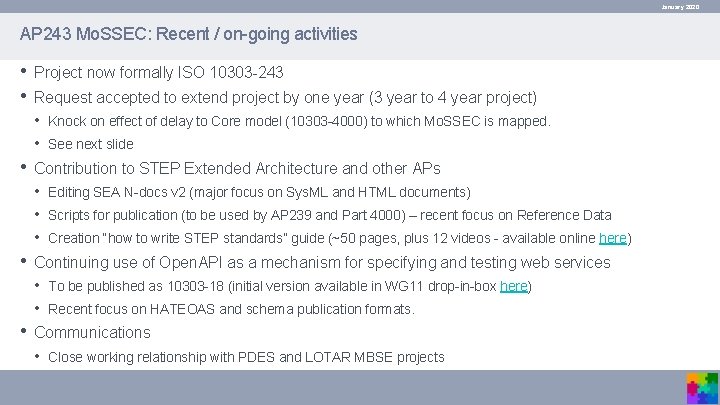

January 2020 AP 243 Mo. SSEC: Recent / on-going activities • Project now formally ISO 10303 -243 • Request accepted to extend project by one year (3 year to 4 year project) • Knock on effect of delay to Core model (10303 -4000) to which Mo. SSEC is mapped. • See next slide • Contribution to STEP Extended Architecture and other APs • Editing SEA N-docs v 2 (major focus on Sys. ML and HTML documents) • Scripts for publication (to be used by AP 239 and Part 4000) – recent focus on Reference Data • Creation “how to write STEP standards” guide (~50 pages, plus 12 videos - available online here) • Continuing use of Open. API as a mechanism for specifying and testing web services • To be published as 10303 -18 (initial version available in WG 11 drop-in-box here) • Recent focus on HATEOAS and schema publication formats. • Communications • Close working relationship with PDES and LOTAR MBSE projects

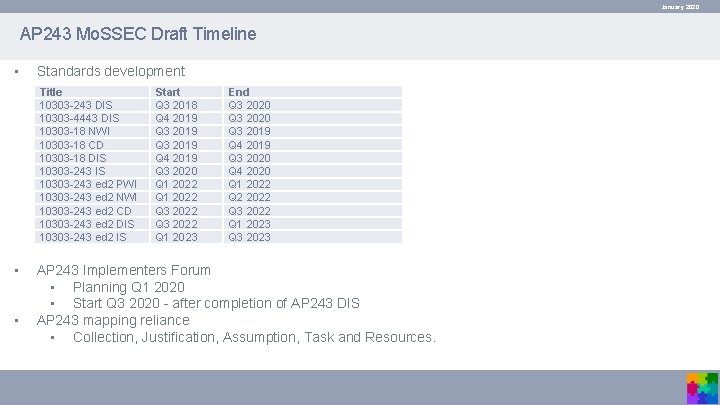

January 2020 AP 243 Mo. SSEC Draft Timeline • Standards development Title 10303 -243 DIS 10303 -4443 DIS 10303 -18 NWI 10303 -18 CD 10303 -18 DIS 10303 -243 ed 2 PWI 10303 -243 ed 2 NWI 10303 -243 ed 2 CD 10303 -243 ed 2 DIS 10303 -243 ed 2 IS • • Start Q 3 2018 Q 4 2019 Q 3 2019 Q 4 2019 Q 3 2020 Q 1 2022 Q 3 2022 Q 1 2023 End Q 3 2020 Q 3 2019 Q 4 2019 Q 3 2020 Q 4 2020 Q 1 2022 Q 2 2022 Q 3 2022 Q 1 2023 Q 3 2023 AP 243 Implementers Forum • Planning Q 1 2020 • Start Q 3 2020 - after completion of AP 243 DIS AP 243 mapping reliance • Collection, Justification, Assumption, Task and Resources.
