January 2007 doc IEEE 802 11 070032 r

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Comments resolutions: Emergency call support in 11 u Authors: Date: 2007 -01 -13 Notice: This document has been prepared to assist IEEE 802. 11. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor grants a free, irrevocable license to the IEEE to incorporate material contained in this contribution, and any modifications thereof, in the creation of an IEEE Standards publication; to copyright in the IEEE’s name any IEEE Standards publication even though it may include portions of this contribution; and at the IEEE’s sole discretion to permit others to reproduce in whole or in part the resulting IEEE Standards publication. The contributor also acknowledges and accepts that this contribution may be made public by IEEE 802. 11. Patent Policy and Procedures: The contributor is familiar with the IEEE 802 Patent Policy and Procedures <http: // ieee 802. org/guides/bylaws/sb-bylaws. pdf>, including the statement "IEEE standards may include the known use of patent(s), including patent applications, provided the IEEE receives assurance from the patent holder or applicant with respect to patents essential for compliance with both mandatory and optional portions of the standard. " Early disclosure to the Working Group of patent information that might be relevant to the standard is essential to reduce the possibility for delays in the development process and increase the likelihood that the draft publication will be approved for publication. Please notify the Chair <stuart@ok-brit. com> as early as possible, in written or electronic form, if patented technology (or technology under patent application) might be incorporated into a draft standard being developed within the IEEE 802. 11 Working Group. If you have questions, contact the IEEE Patent Committee Administrator at <patcom@ieee. org>. Submission 1 Donghee Shim et al, LG Electronics, Inc.

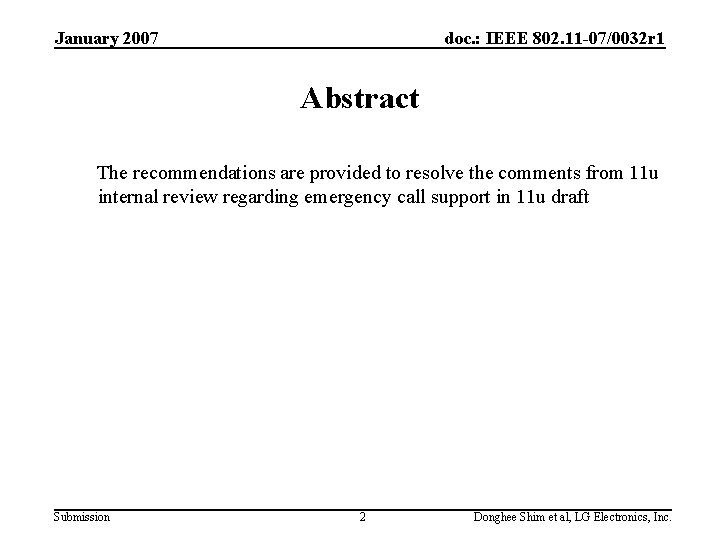

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Abstract The recommendations are provided to resolve the comments from 11 u internal review regarding emergency call support in 11 u draft Submission 2 Donghee Shim et al, LG Electronics, Inc.

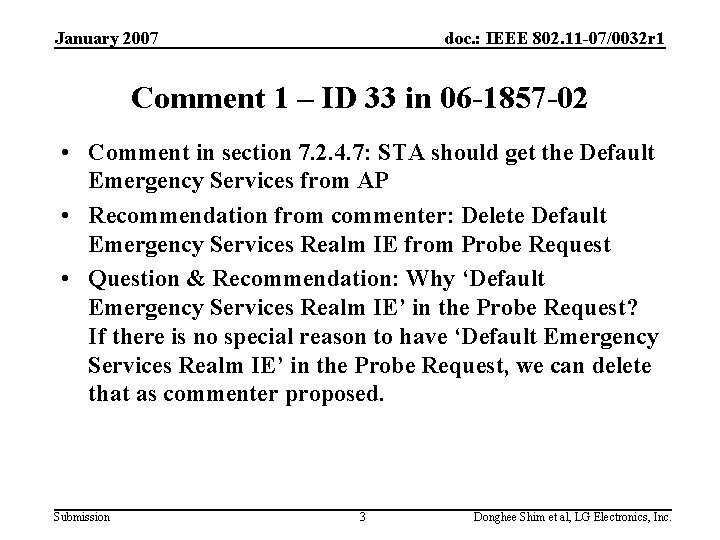

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Comment 1 – ID 33 in 06 -1857 -02 • Comment in section 7. 2. 4. 7: STA should get the Default Emergency Services from AP • Recommendation from commenter: Delete Default Emergency Services Realm IE from Probe Request • Question & Recommendation: Why ‘Default Emergency Services Realm IE’ in the Probe Request? If there is no special reason to have ‘Default Emergency Services Realm IE’ in the Probe Request, we can delete that as commenter proposed. Submission 3 Donghee Shim et al, LG Electronics, Inc.

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Comment 2 - ID 34 in 06 -1857 -02 • Comment 2 in section 7. 2. 4. 8: AP should indicate the Default Emergency Services to the STA • Recommendation from commenter: Add Default Emergency Services Realm IE to Probe Response • Recommendation: Agree. Add Default Emergency Services Realm IE to Probe Response Submission 4 Donghee Shim et al, LG Electronics, Inc.

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Comment 3 - ID 49 in 06 -1857 -02 • Comment 3 in section 7. 3. 2. 36: TGu standard shall not impose guaranteed Qo. S up to the PSAP as this node is outside the. 11 network • Recommendation from commenter: Qo. S shall only be guaranteed within the. 11 network. Outside the. 11 network Qo. S guarantees shall only be recommended. • Thought: Agreed. Follow up commenter’s recommendation. However, it is not clear what is the specific proposal of original commenter. Should we rephrase “DS supports end-to-end Qo. S from STA to all APs in ESS to PSAP” or delete this condition? Submission 5 Donghee Shim et al, LG Electronics, Inc.

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Comment 4 - ID 50 in 06 -1857 -02 • Comment 4 in section 7. 3. 2. 36: If the Expedited Bandwidth Request bit has to be set to 1 there would not be any possibility to have emergency call services without the use of expedited bandwidth request. • Recommendation from commenter: Setting of the Expedited Bandwidth Request bit to one shall not be compulsory, but optional. • Recommendation: Agree. See the resolution slide for comment 8 Submission 6 Donghee Shim et al, LG Electronics, Inc.

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Comment 5 - ID 46 in 06 -1857 -02 • Comment 5 in section 7. 3. 2. 36: Change the "AP" to "STA" • Recommendation from commenter: Make changes as indicated by the comment • Comment and Recommendation: It is not clear which ‘AP’ should be changed to ‘STA’. Let’s go back to the original commenter Submission 7 Donghee Shim et al, LG Electronics, Inc.

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Comment 6 - ID 47 in 06 -1857 -02 • Comment 6 in section 7. 3. 2. 36: Should not refer to other TG in the draft. • Recommendation from commenter: To remove the reference of 802. 11 k & 802. 11 v in the text and place it into a Editorial Note. • Comment and Recommendation: Agree. However, it is not clear what is the exact relationship between TGu and TGv / TGk to get the location of the STA to support emergency call Submission 8 Donghee Shim et al, LG Electronics, Inc.

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Comment 7 - ID 48 in 06 -1857 -02 • Comment 7 in section 7. 3. 2. 36: There is no definition of PSAP • Recommendation from commenter: To define the PSAP in clause 3 & 4 • Resolution: Add following definition in clause 3: Public Safety Answering Point (PSAP): A physical location, where emergency calls from the public are received. • Resolution (cont’): Add following abbreviation in clause 4: Public Safety Answering Point (PSAP) Submission 9 Donghee Shim et al, LG Electronics, Inc.

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Comment 8 - ID 2 in 06 -1857 -02 • Comment 8 (general): In document IEEE 802. 1106/1039 r 0 three new features are presented in order to provide emergency call services. However, only the feature employing expedited bandwidth request seems to be a non-informative part of the actual draft. • Recommendation from commenter: The draft shall include the option of having emergency call services not necessarily using expedited bandwidth request, i. e. by using public security credentials or open authentication SSIDs Submission 10 Donghee Shim et al, LG Electronics, Inc.

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Comment 8 (cont’) • Resolution: Replace current ‘Interworking Capability Information element format’ by the following table and AP should set one of three options for the emergency call support B 0 B 1 Qo. S MAP 1 Submission B 2 B 3 Public Expedited Security Bandwidth Credentials Request 1 1 11 B 4 B 15 ESO Reserved 1 12 Donghee Shim et al, LG Electronics, Inc.

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Feedback? Submission 12 Donghee Shim et al, LG Electronics, Inc.

January 2007 doc. : IEEE 802. 11 -07/0032 r 1 Motion • Moved: • Seconded: Submission 13 Donghee Shim et al, LG Electronics, Inc.
