January 2005 doc. : IEEE 802. 1 -05/xxxr 0 MAC Enhancements for Media Independent RF Management of Wireless 802 Networks A Contribution 1 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Overview • Summary of desired Interface Objects • Listing of what’s currently available in the different MACs – – – – 802. 11 (WLAN/Wi. Fi) 802. 15. 1 (Bluetooth® v 1. 1) 802. 15. 3 (HR-WPAN) 802. 15. 4 (LR-WPAN) 802. 16 (WMAN/BBWA/Wireless. MAN®) 802. 20 (MBWA) 802. 22 (WRAN) • Listing of what to request from various MACs • Conclusions Contribution 2 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 What Objects Desired Other devices you may consider connecting to Contribution Me 3 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 What Objects Desired (going up) • List of “Known Resources” with the following parameters: – – – – Contribution Technology Type Address Operating Channel Link Quality Data Rate Network Name Predilection Load Factor 4 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 What Objects Desired (going down) • • Connect (resource) Set Operating Channel Set Transmit Power Level Set Network Name Contribution 5 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Technology Type • Enumeration identifying technology type (scheme) rather than specific 802 MAC standard • Multiplex Access Scheme: Time Division (TD), Code Division (CD), Frequency Hopper (FH), Frequency Chirp (UWB-Cp), Impulse (UWB-multiple) • Channel Access Scheme: Single Channel Simplex (802. 11 a/g), Dual Channel Duplex (most 802. 16 and all cell phones) • Antenna Access Scheme: Non-polarized (vertical and horizontal, 802. 11 a/g), Polarized (either vertical, horizontal, or circular, some 802. 16), Multi Antenna Array/Multiple Input Multiple Output (MIMO) (802. 11 n, some 802. 16) Contribution 6 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Address • Identifier that specifies the particular instance of wireless node • May not be IEEE Std 802 -2001 48 -bit universal MAC address Contribution 7 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Operating Channel • A data structure that defines the: – Center frequency (in MHz) – Width of band (in MHz) – “Channel Number” (Just a human readable label) • Assumes that a “channel” is contiguous • “Frequency hoppers” hop within a band, the band is the “channel” Contribution 8 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Received Link Quality • Gauge of quality of wireless connection • Should be in m. W or d. Bm • Avoid “levels” or units (e. g. d. B) that aren’t quantified Contribution 9 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Data Rate • • Indication of data throughput capability Probable units of Kbps Could be separated into TX and RX Could be either or both supported vs. actual Contribution 10 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Network Name • Human readable string representing a collection of wireless nodes • May be used to select specific collection for connectivity Contribution 11 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Predilection • Benevolent_Dictator/Willing_Follower • Benevolent_Dictator – offers connectivity to one or more Benevolent_Dictators and Willing Followers • Willing_Follower – may only connect to a Benevolent Dictator • Mesh or ad-hoc nodes may be considered Benevolent Dictators Contribution 12 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Load Factor • Sum of the inverse of the potential data rates of connected resources • Must include some definition of “unsupported” Contribution 13 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Connect (resource) • Initiate connection with desired device • Modeled above MAC-specific handshaking (e. g. authentication, association, etc) Contribution 14 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Transmit Power Level • May be increased for reach or reduced to promote channel re-use • Ideally should be lowest value supporting desired data rate • Should be in m. W or d. Bm • Avoid “levels” or units (e. g. d. B) that aren’t quantified Contribution 15 Larry Stefani, Floyd Backes

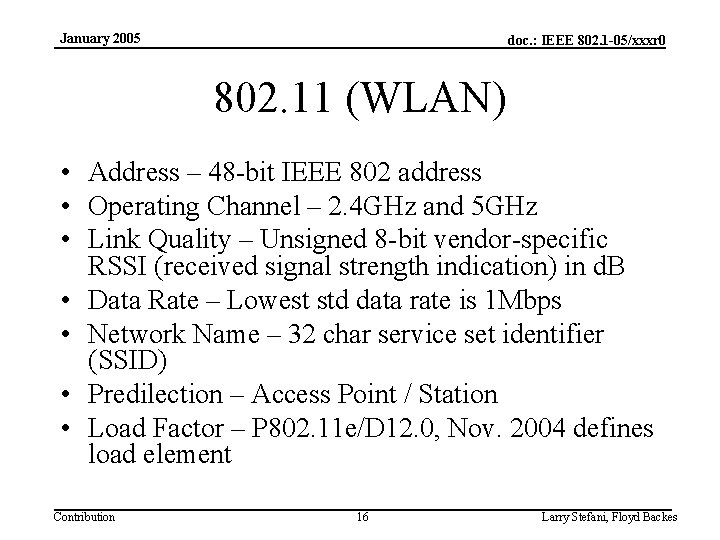

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 802. 11 (WLAN) • Address – 48 -bit IEEE 802 address • Operating Channel – 2. 4 GHz and 5 GHz • Link Quality – Unsigned 8 -bit vendor-specific RSSI (received signal strength indication) in d. B • Data Rate – Lowest std data rate is 1 Mbps • Network Name – 32 char service set identifier (SSID) • Predilection – Access Point / Station • Load Factor – P 802. 11 e/D 12. 0, Nov. 2004 defines load element Contribution 16 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 802. 15. 1 (Bluetooth® v 1. 1) • Address – 48 -bit IEEE 802 address • Operating Channel – Frequency hop in unlicensed 2. 4 GHz ISM band • Link Quality – Signed 8 -bit RSSI in d. B • Data Rate – Unidirectional max of 732. 2 Kbps, bidirectional 64 Kbps channel for voice • Network Name – User-friendly name: max 248 bytes encoded to UTF-8 std • Predilection – Ad-hoc (pico-net), Master / Slave • Load Factor – None Contribution 17 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 802. 15. 3 (HR-WPAN) • Address – 64 -bit IEEE 802 address • Operating Channel – 2. 4 -2. 4835 GHz band • Link Quality – 8 -bit RSSI in 8 steps of 8 d. B with ± 4 d. B step accuracy and link quality indication as 5 -bit SNR estimation from 6 d. B to 21. 5 d. B of SNR • Data Rate – 11 -55 Mbps • Network Name – Beacon Source Identifier (BSID): 6 -32 character text string • Predilection – Piconet Coordinator (PNC)/Device • Load Factor – None Contribution 18 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 802. 15. 4 (LR-WPAN) • Address – 16 -bit short or 64 -bit extended • Operating Channel – 16 channels in 2. 450 GHz band, 10 channels in 915 MHz band, 1 channel in 868 MHz band • Link Quality – 8 -bit link quality indication (LQI), 0 – lowest quality, 255 – highest quality • Data Rate – 250 Kbps, 40 Kbps, 20 Kbps • Network Name – None • Predilection – Full Function Device/Reduced Function Device • Load Factor – None Contribution 19 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 802. 16 (WMAN) • Address – 48 -bit IEEE 802 address • Operating Channel – 10 -66 GHz and licensed/licensed-exempt below 11 GHz • Link Quality – Vendor-specific RSSI in m. W • Data Rate – 10 -66 GHz licensed bands has raw data rate of > 120 Mbps • Network Name – Service Class Name: Nullterminated string of 2 -128 ASCII characters • Predilection – Base station / Subscriber station • Load Factor – None Contribution 20 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 802. 20 (MBWA) • Address – ? • Operating Channel – Licensed frequency bands below 3. 5 GHz • Link Quality – ? • Data Rate – Peak data rates > 1 Mbps • Network Name – ? • Predilection – Base station/Mobile station • Load Factor – ? Contribution 21 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 802. 22 (WRAN) • Address – ? • Operating Channel – Spectrum currently allocated to VHF/UHF TV broadcast service (54 -862 MHz) • Link Quality – ? • Data Rate – ? • Network Name – ? • Predilection – Base station / Subscriber station? • Load Factor – ? Contribution 22 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 What we ask for • Mapping of disparate “link quality” levels to a common unit (like d. Bm) • Mapping of disparate “load factor” values to a common unit Contribution 23 Larry Stefani, Floyd Backes

January 2005 doc. : IEEE 802. 1 -05/xxxr 0 Conclusion • This is doable • Need mapping for some stuff • Need definition of “not supported” for others • See related tutorial at http: //www. ieee 802. org/1/files/public/docs 2004/new-backes-montemurrotutorial-1104. ppt Contribution 24 Larry Stefani, Floyd Backes
