James Bearman AJ Brinker Dean Bryson Brian Gershkoff
James Bearman AJ Brinker Dean Bryson Brian Gershkoff Kuo Guo Joseph Henrich Aaron Smith Daedalus Aviation
Agenda Overview Business Case Customer Needs State of the Market: 2058 Competition Potential Missions Requirement Development Benchmarking Data Conclusion 2
Overview DC-3, Historical Perspective Range Capacity Reliability Success of the DC-3 Business Model Captured a large Market Share Technology expanded borders of flight 3
Daedalus One Provide a versatile aircraft with medium range and capacity to meet the needs of a commercial aircraft market still expanding in the year 2058 Incorporate the latest in technology to provide reliability, efficiency, while fulfilling the need for an environmentally friendly transportation system Possess the ability to operate at nearly any airfield 4
Business Case: Customer Needs Airlines Short Runway Capability ▪ Hub and Spoke System ▪ Evolution of Flight Routes Moderate Passenger Capacity ▪ Lower Cost than Jumbo Jets ▪ Promotes Full Flights Appropriate Range ▪ Versatility in Flight Routes ▪ Cross-Continental not Required 5
Business Case: Customer Needs Charters Small Airport Capability ▪ Demand to avoid hubs ▪ Increase speed of travel Generous amount of Passengers and Cargo ▪ Enough space to carry an entire travel party in one plane ▪ Extra Space = Extra Cost 6
Fulfilling Customer Needs Passenger Capacity Large enough for medium-medium high demand travel routes Small enough for chartered flights Range Long enough to fulfill most passenger needs Shorter range reduces overall aircraft cost Short Runway Capability allows flexibility in flight routings for all customers 7
State of the Market: (2058) Chart From Embraer 8
State of the Market: 2058 Immediate (2008) demand for medium capacity aircraft 28, 600 aircraft delivered in the next 20 years (Boeing) 56, 000 aircraft delivered in the next 50 years Majority of aircraft will be regional jet or single aisle Our Aircraft Fills gap between Regional and Single-Aisle ESTOL capability Generous Range Expect to capture ~15% of market (8, 500 aircraft) 9
Competition Science Fiction Digital Communication Other Transportation Other Aircraft 10
What Won’t Happen in 2058 The Obvious Transporters Warp Drive Jet Packs Improbabilities Flying Cars Space Planes Mag-Lev Cars 11

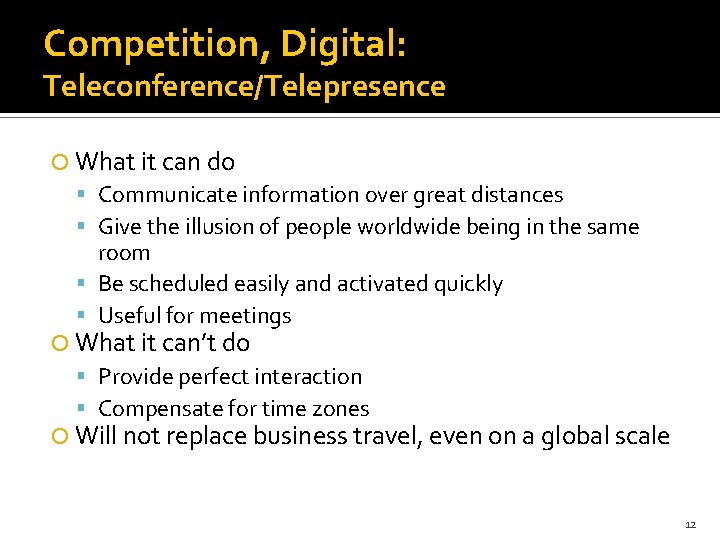

Competition, Digital: Teleconference/Telepresence What it can do Communicate information over great distances Give the illusion of people worldwide being in the same room Be scheduled easily and activated quickly Useful for meetings What it can’t do Provide perfect interaction Compensate for time zones Will not replace business travel, even on a global scale 12
Competition, Land-Based: Personal and Communal Transport Automobiles Alternative Energy Sources Artificial Intelligence Vehicle Control Faster Driving Speeds Cannot achieve Aircraft Speeds, Safety, or Range Rail Higher Speeds Low Environmental Impact Excellent over Short Ranges Cannot cross larger bodies of water Speeds still too low over longer ranges Infrastructure expansion slow and costly 13
Competition, Aerial: Current and Next Generation Bombardier C-Series CRJ Family Embraer Competition to C-Series ERJ Family E-Jet Family Boeing Airbus Cessna, Learjet, Gulfstream 737 Family New Aircraft Family A 320 Family New Aircraft Family 14
Potential Mission 1 Ta Cl keo i m ff b & Step Cruise For Best Range Taxi Descend & Hold iss M b ch il m roa C pp A Cruise Land & Taxi Descend & Hold Land & Taxi Schaumburg to North Las Vegas (1300 nmi) Scheduled Commercial Route Large City (Chicago) to Large City (Las Vegas) Utilize Small/Regional Airport South Bend to Burbank (1580 nmi) Chartered Route (Notre Dame vs USC) Maximize Convenience 15
Descend Land & Taxi Descend & Hold Cl Ap imb pr - M oa is ch s Taxi Cruise Step Cruise For Best Range TO Clim & b TO & Clim b Potential Mission 2 Land & Taxi Cruise Descend & Hold Land & Taxi Purdue University to University of Illinois to Cancun Total Distance: 1200 nmi Spring Break Charter Small Cities to Major Tourist Destination 16
Potential Mission 3 Taxi Cli m Ap b- M pro ach iss Tak Clim eoff & b Step Cruise For Best Range Spiral Descent Land & Taxi Cruise Descend & Hold Land & Taxi Minneapolis to Los Angeles Range: 1330 nmi Hub to Hub Connecting Flight in LAX Landing on half of the runway 17
Requirement Development: Tools House of Quality “What’s”-Needs of the Customer “How’s”-Requirements to meet the needs Benchmarking Historical Database Created Used to develop performance estimates 18
Requirement Development Customer Needs Short Runway Medium Range Fast Cruise Small Airport Capable Comfortable to Passengers Medium Passenger Capacity 19
Engineering Requirements Engineering Requirement Condition Target Threshold Takeoff Distance ≤ 2, 500 ft 3, 500 ft Landing Distance ≤ 2, 500 ft 3, 500 ft Takeoff Weight ≤ 80, 000 lb 100, 000 lb Range ≥ 1800 nm 1500 nm Maximum Cruise Speed ≥ 0. 85 M 0. 8 M Maximum Passenger Capacity ≥ 110 90 20
Benchmarking Data Current aircraft used in benchmarking: (circa 2008) Boeing 737 -family Airbus A 320 -family Embraer ▪ ERJ-family ▪ E-Series Canadair ▪ CRJ-family ▪ C-series All data obtained from manufacturers’ websites and Jane’s All the World’s Aircraft 21
Benchmarks before tech weight savings after tech weight savings 22
Benchmarks before tech weight savings after tech weight savings 23
Benchmarks before tech weight savings after tech weight savings 24
Potential Advanced Technologies Composites Active Aeroelastic Wings Morphing Winglets Energy Harvesting Magnetic Bearings Continuous Mold Line Control Systems Thrust Vectoring Blown Flaps GPS Precision Approaches Unducted Fans Artificial Intelligence Navigation 25
Summary Medium Range, Medium Capacity Aircraft Reasonable Targets for all Engineering Parameters Versatile Mission Profile Realistic Estimation of Future Market Potential to become extremely popular, very widely used aircraft 26
Next Steps Begin Cost Estimations Additional Sizing Analysis Initial Design Choices Fuselage Layout Aerodynamic Variables Engine Choice Continue Advanced Technology Research 27
Questions?
