ITM Power RHA Technology costs and projections Stephen

ITM Power RHA Technology, costs and projections Stephen Jones| Managing Director sj@itm-power. com

PRESENTATION CONTENTS HYDROGEN ENERGY SYSTEMS § § § Introduction Technology Product Standardisation Price Trajectory Examples Sumitomo Corporate visit to ITM Power

WHAT WE DO HYDROGEN ENERGY SYSTEMS Unique selling points: § Rapid response: less than 1 second § Elevated Pressure: 20 -50 bar § High efficiency: 70 -86% (with heat recovery) § Small Footprint: smaller than alkaline § Low cost: approaching large scale alkaline § Reference plant: at MW scale § Experience in the field: in many applications ITM Power manufactures integrated hydrogen energy systems

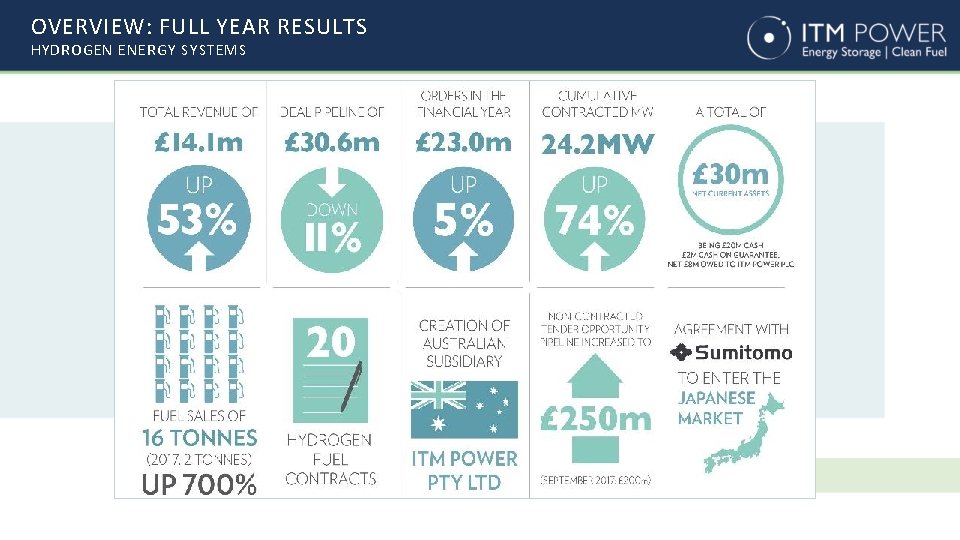

OVERVIEW: FULL YEAR RESULTS HYDROGEN ENERGY SYSTEMS

MARKETS HYDROGEN ENERGY SYSTEMS Strong growth of revenue generating assets: § Currently 16 tonnes | £ 160 k of hydrogen sales § Up 700% Yo. Y § New fleet of 200 FCEVs are not included § 3 tonne/day capacity (40 buses and 800 cars) Potential Hydrogen sales of £ 9. 3 m when the existing portfolio is fully utilised.

PRODUCT EVOLUTION HYDROGEN ENERGY SYSTEMS ITM Power manufactures integrated hydrogen energy systems

§ § Product Standardisation Product Offering Cost Structure Production Capacity 2 MW Standard Module

TECHNOLOGY CONSIDERATIONS HYDROGEN ENERGY SYSTEMS ITM Stack Platform § PEM stack technology § Modular design philosophy § § Flexible system capacity § Scalable & phased deployment options Stack generates hydrogen at pressure § Minimise requirement for compression § High energy efficiency Differential pressure stack § Simplified safety case | High hydrogen purity § Use low cost, light weight & non polluting pipework High Availability § No single point of failure § Rapid stack exchange in field | No down time during maintenance ITM PEM Technology

PRODUCT STANDARDISATION HYDROGEN ENERGY SYSTEMS ITM Stack Platform § Proton Exchange Membrane technology § Differential pressure operation § Oxygen pressure close to ambient § No tie-rods | Rapid assembly | Rapid exchange § Process temperature of circa 55 o. C § Mature PEM technology § Low part count & lean principles § Cell Area: 1, 000 cm 2 § Cells/Stack: 100 § Current density 3 A/cm 2 Existing Stack Platform | Modular Philosophy | Mature Technology

PRODUCT STANDARDISATION HYDROGEN ENERGY SYSTEMS Standardisation | Production | Market Offering § Definition of 2 MW module & 10 MW stack skid § Enables efficiencies in manufacture & test § Well defined cost & trajectory § Modular system provides flexibility of offering § New projects all specified using known modules § Minimises design time & cost for each project § Scalable to 100 MW with balance of plant 2 MW Standard Module

10 MW STACK SKID HYDROGEN ENERGY SYSTEMS Standardisation | Production | Market Offering § Definition of 2 MW module & 10 MW stack skid § Enables efficiencies in manufacture & test § Well defined cost & trajectory § Modular system provides flexibility of offering § New projects all specified using known modules § Minimises design time & cost for each project § Scalable to 100 MW with balance of plant Standard 10 MW Stack Skid of five 2 MW Standard Modules

SHELL 10 MW PROJECT | HYDROGEN ENERGY SYSTEMS 10 MW Stack Skid in Shell Refinery building 10 MW PEM electrolyser system for refinery applications § Flagship 10 MW project with Shell § Largest refinery in Germany § Benefit of Shell engineering & permitting rigor § Excellent reference plant & customer § Strong engagement from refinery hydrogen sector 10 MW Electrolyser System in Shell Refinery building Building Germanys largest PEM electrolysis plant at Rhineland refinery.

100 MW PLANT DESIGNS HYDROGEN ENERGY SYSTEMS 100 MW PEM electrolyser system § Based on 10 MW standard skids § Increasing industrial interest § Shell experience: § Benefit of Shell engineering & permitting rigor § Excellent reference plant § Strong engagement from refinery hydrogen sector Industrial Hydrogen | P 2 G | Refineries | Ammonia | Steel

NEW FACTORY HYDROGEN ENERGY SYSTEMS Capacity | General § Grounds 30, 000 m 2 § Floor Space 11, 610 m 2 § 125 Car parking spaces § 7 MW power supply § Product Assembly § External Product Testing § Stack Production § Technology Centre § Sales, Marketing & Corporate Area § Offices | Canteen

PRODUCTION CAPACITY HYDROGEN ENERGY SYSTEMS Production Capacity § Colocation into new production facility § Manufacturing space increased by 5 x § Adoption of semi-automated stack component preparation § Increase of power on-site to allow testing of larger systems § Heads of terms agreed § Costs in-line with expectations Production capacity in the current S 2 facility Production capacity based on standard 10 MW stack skids and 2 MW standard modules

PRODUCTION CAPACITY HYDROGEN ENERGY SYSTEMS ITM Electrolyser Cost Projections § Expect system sizes to grow over time § Larger scale enable cost reduction § Larger volume enable efficiencies § Continuous technology improvements § Sensitive to scope of supply <€ 1, 000/k. W today @ MW scale | <€ 800/k. W @ 10 MW | <€ 500/k. W by mid 2020’s

ELECTROLYSER SYSTEM COST CONSIDERATIONS HYDROGEN ENERGY SYSTEMS ITM Electrolyser Cost § Op. Ex more important than Cap. Ex § Example TCO for 10 MW system: Capex is 15 -25% of TCO Total Op. Ex is 75 -85% Electricity price is 80 -90% of Op. Ex • Cost of electricity is primary factor for cost of hydrogen ($/kg) Cost reduction will come via volume manufacture BUT more important is Power density of systems to reduce capex and net price of electricity. Factors of total cost of ownership

ITM Power RHA Technology, costs and projections Stephen Jones| Managing Director sj@itm-power. com
