Iterative Methods with Inexact Preconditioners and Applications to
- Slides: 43
Iterative Methods with Inexact Preconditioners and Applications to Saddle-point Systems & Electromagnetic Maxwell Systems Jun Zou Department of Mathematics The Chinese University of Hong Kong http: //www. math. cuhk. edu. hk/~zou Joint work with Qiya Hu (CAS, Beijing) 03/29/2006, City Univ 1
Outline of the Talk 2
Inexact Uzawa Methods for SPPs • Linear saddle-point problem: where A, C : SPD matrices ; B: nxm (n>m) • Applications: Navier-Stokes eqns, Maxwell eqns, optimizations, purely algebraic systems , … … • Well-posedness : see Ciarlet-Huang-Zou, SIMAX 2003 • Much more difficult to solve than SPD systems • Ill-conditioned: need preconditionings, parallel type 3

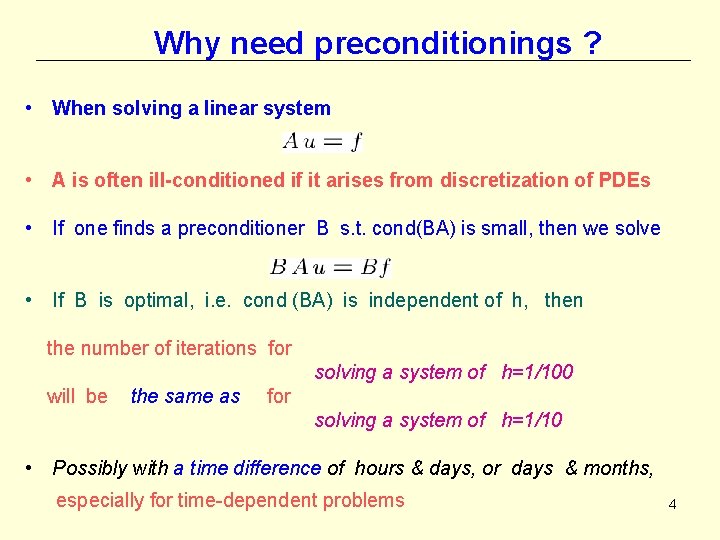

Why need preconditionings ? • When solving a linear system • A is often ill-conditioned if it arises from discretization of PDEs • If one finds a preconditioner B s. t. cond(BA) is small, then we solve • If B is optimal, i. e. cond (BA) is independent of h, then the number of iterations for solving a system of h=1/100 will be the same as for solving a system of h=1/10 • Possibly with a time difference of hours & days, or days & months, especially for time-dependent problems 4

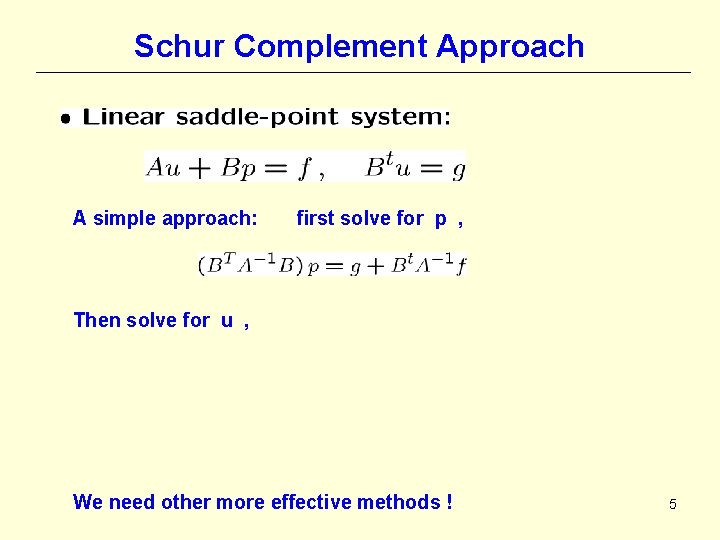

Schur Complement Approach A simple approach: first solve for p , Then solve for u , We need other more effective methods ! 5

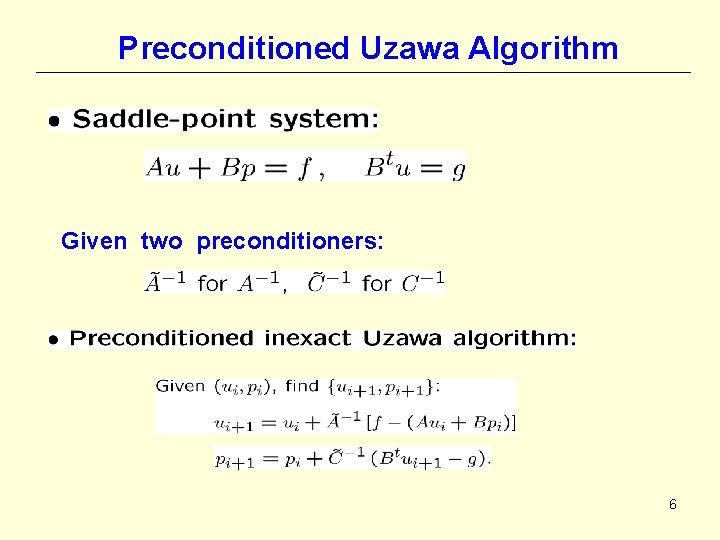

Preconditioned Uzawa Algorithm Given two preconditioners: 6
Preconditioned inexact Uzawa algorithm • Algorithm • Randy Bank, James Bramble, Gene Golub, . . . 7
Preconditioned inexact Uzawa algorithm • Algorithm • Question : 8

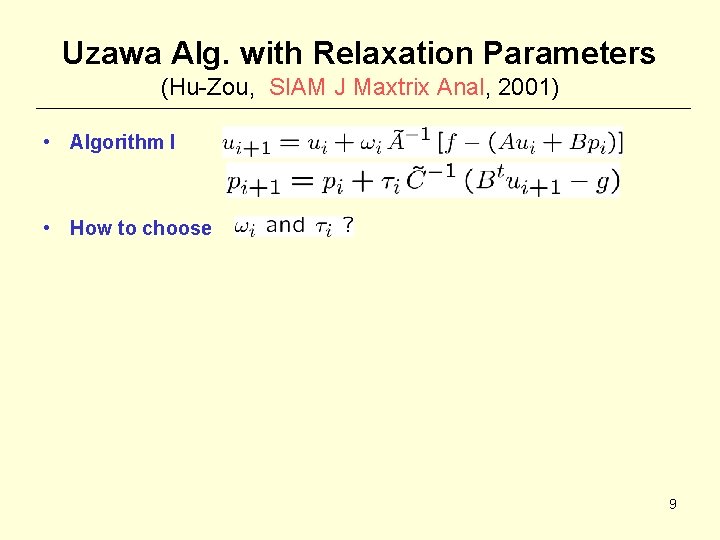

Uzawa Alg. with Relaxation Parameters (Hu-Zou, SIAM J Maxtrix Anal, 2001) • Algorithm I • How to choose 9
Uzawa Alg with Relaxation Parameters • Algorithm with relaxation parameters: • Implementation • Unfortunately, convergence guaranteed under But ensured for any preconditioner for C ; scaling invariant

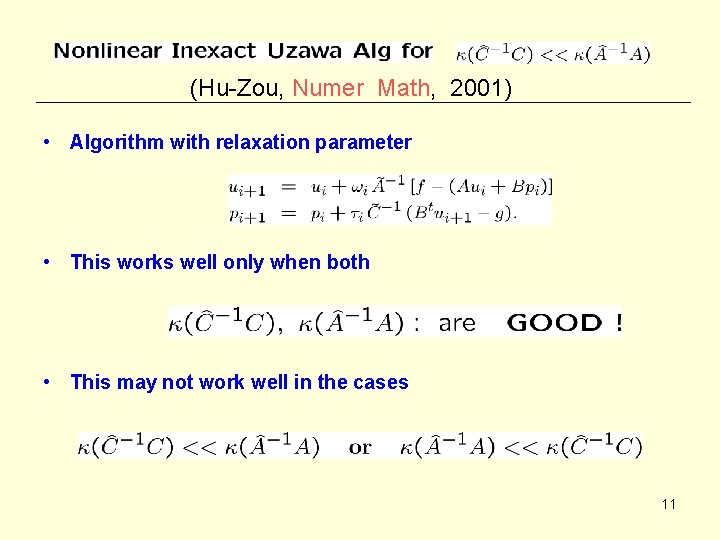

(Hu-Zou, Numer Math, 2001) • Algorithm with relaxation parameter • This works well only when both • This may not work well in the cases 11
(Hu-Zou, Numer Math, 2001) • Algorithm with relaxation parameter • For the case : more efficient algorithm: • Convergence guaranteed if 12
(Hu-Zou, SIAM J Optimization, 2005) 13
Inexact Preconditioned Methods for NL SPPs • Nonlinear saddle-point problem: • Arise from NS eqns, or nonlinear optimiz :

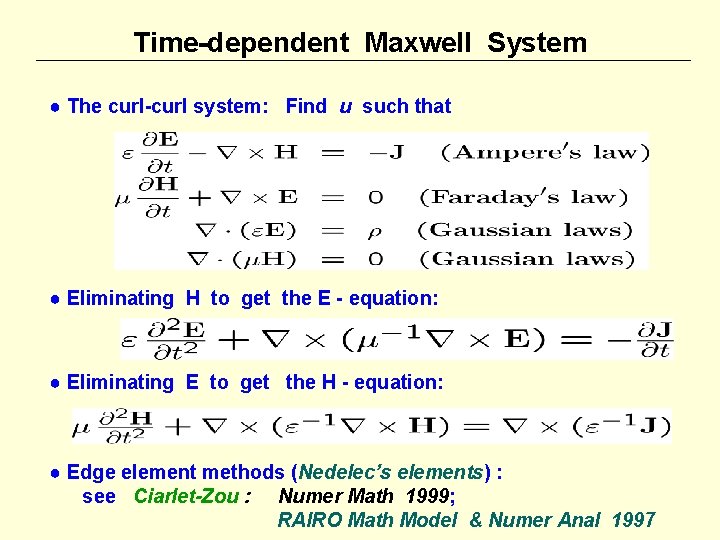

Time-dependent Maxwell System ● The curl-curl system: Find u such that ● Eliminating H to get the E - equation: ● Eliminating E to get the H - equation: ● Edge element methods (Nedelec’s elements) : see Ciarlet-Zou : Numer Math 1999; RAIRO Math Model & Numer Anal 1997
Time-dependent Maxwell System ● The curl-curl system: Find u such that ● At each time step, we have to solve 16
Non-overlapping DD Preconditioner I (Hu-Zou, SIAM J Numer Anal, 2003) ● The curl-curl system: Find u such that ● Weak formulation: Find ● Edge element of lowest order : ● Nodal finite element : 17
Edge Element Method 18
Additive Preconditioner Theory ● Given an SPD S, define an additive Preconditioner M : ● Additive Preconditioner Theory 19
DDMs for Maxwell Equations • 2 D, 3 D overlapping DDMs: Toselli (00), Pasciak-Zhao (02), Gopalakrishnan-Pasciak (03) • 2 D Nonoverlapping DDMs : Toselli-Klawonn (01), Toselli-Widlund-Wohlmuth (01) • 3 D Nonoverlapping DDMs : Hu-Zou (2003), Hu-Zou (2004) • 3 D FETI-DP: Toselli (2005) 20

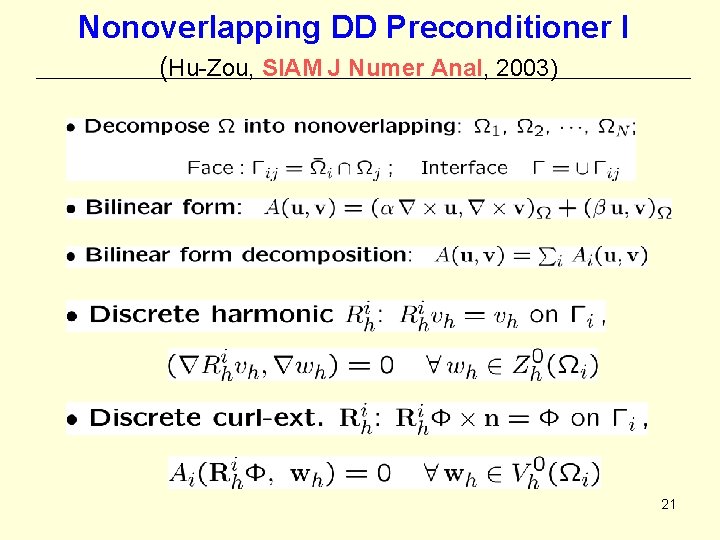

Nonoverlapping DD Preconditioner I (Hu-Zou, SIAM J Numer Anal, 2003) 21
Interface Equation on 22
23
Global Coarse Subspace 24

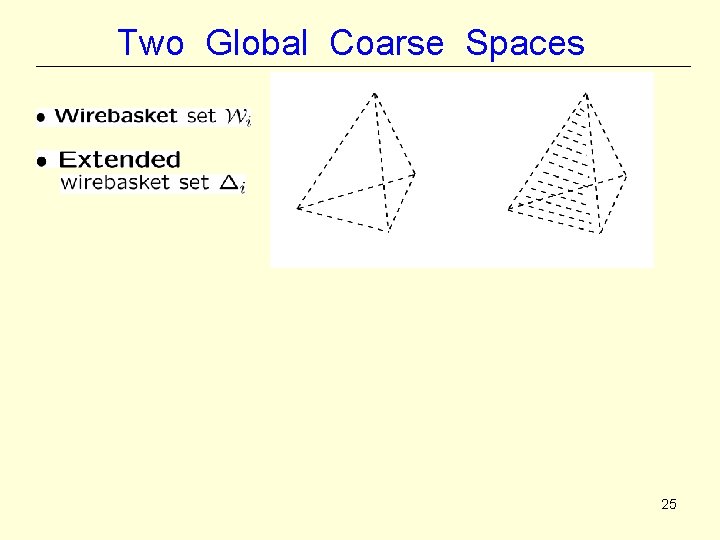

Two Global Coarse Spaces 25

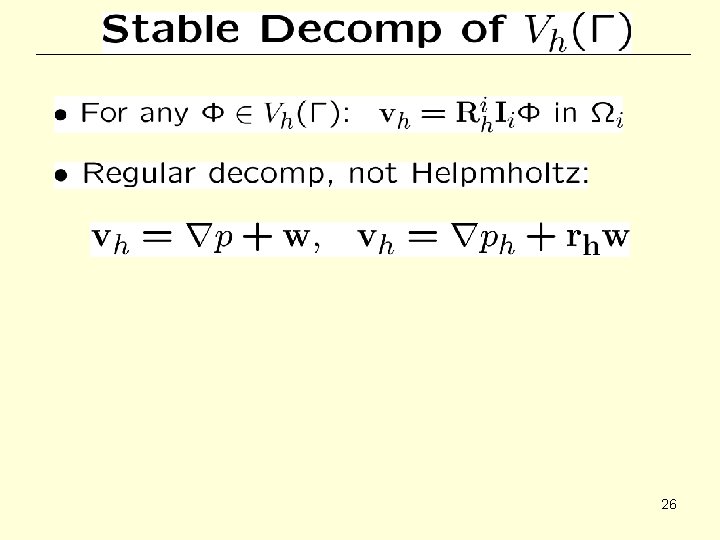

26
Nonoverlapping DD Preconditioner I 27

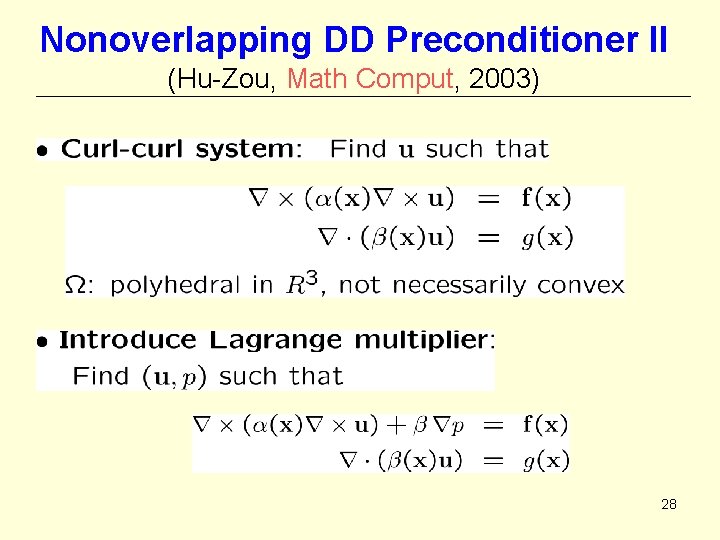

Nonoverlapping DD Preconditioner II (Hu-Zou, Math Comput, 2003) 28

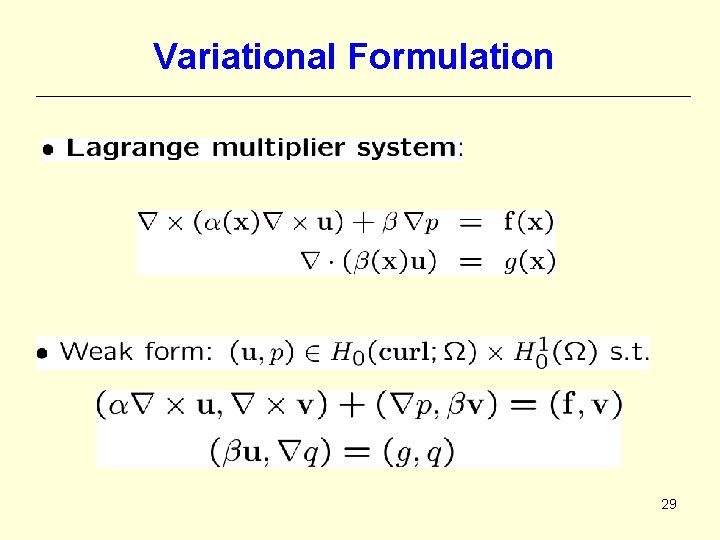

Variational Formulation 29
Equivalent Saddle-point System can not apply Uzawa iteration 30
Equivalent Saddle-point System Write the system into equivalent saddle-point system : Important : needed only once in Uzawa iter. Convergence rate depends on 31
DD Preconditioners Let Theorem 32
DD Preconditioner II 33
Local & Global Coarse Solvers 34
Stable Decomposition of VH 35

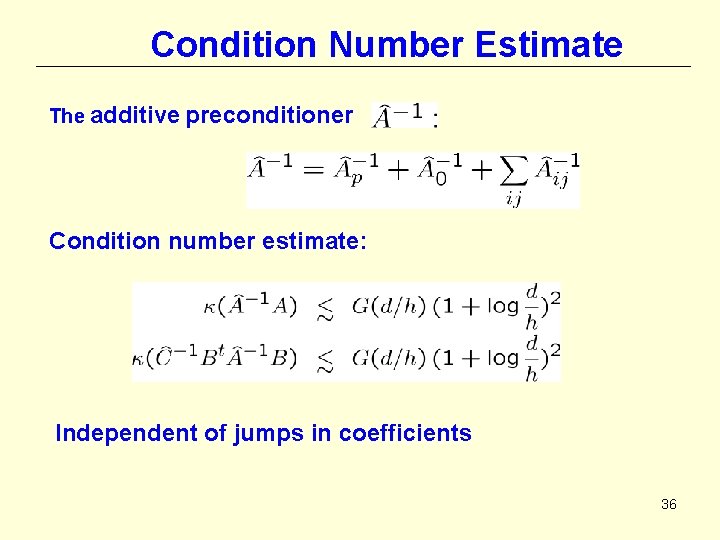

Condition Number Estimate The additive preconditioner Condition number estimate: Independent of jumps in coefficients 36
Mortar Edge Element Methods 37
Mortar Edge Element Methods See Ciarlet-Zou, Numer Math 99: 38
Mortar Edge M with Optim Convergence (nested grids on interfaces) 39
Local Multiplier Spaces: crucial ! 40
Near Optimal Convergence 41

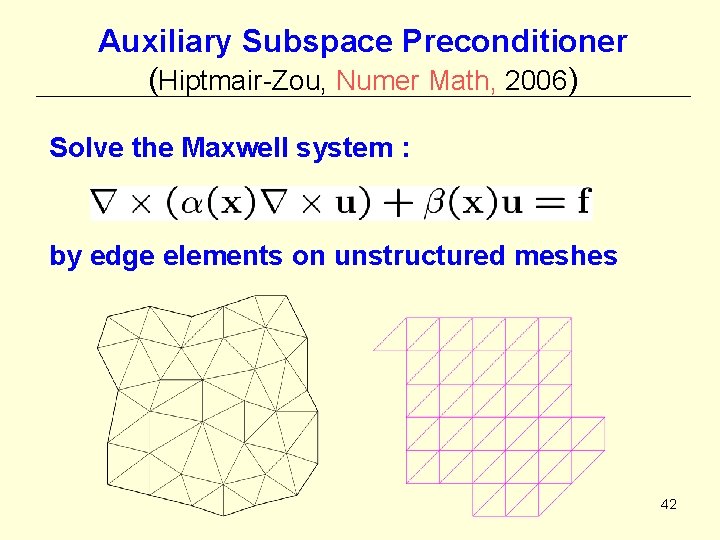

Auxiliary Subspace Preconditioner (Hiptmair-Zou, Numer Math, 2006) Solve the Maxwell system : by edge elements on unstructured meshes 42

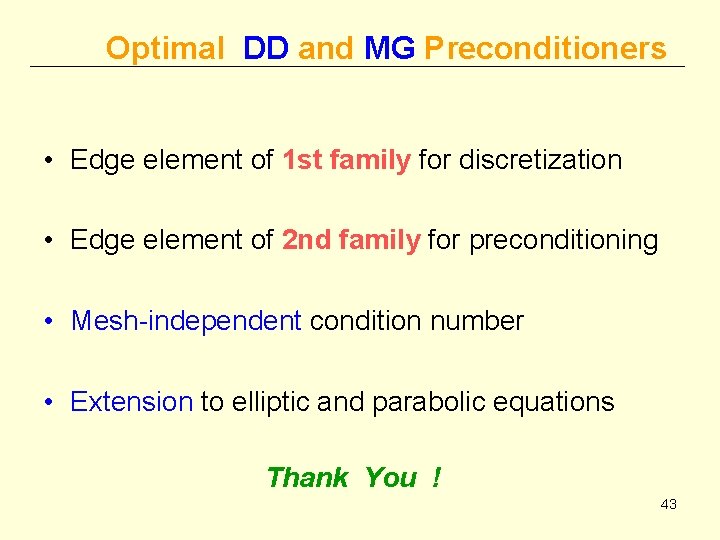

Optimal DD and MG Preconditioners • Edge element of 1 st family for discretization • Edge element of 2 nd family for preconditioning • Mesh-independent condition number • Extension to elliptic and parabolic equations Thank You ! 43
