ITER Central Interlock System: Central Interlock Networks Y. LIU Dec. 2014 PLC Based Interlock systems Workshop 4 -5 December 2014 - ITER Organization Headquarters - St Paul-lez-Durance-France
Table of Topics v. The demand for ITER CIN v. The CIN Characteristics v. The CIN Architecture v. The CIN Infrastructure PLC Based Interlock systems Workshop 4 -5 December 2014 - ITER Organization Headquarters - St Paul-lez-Durance-France
The Demands for ITER CIN The situations: v Large area to cover, large scale to connect in: About 40 PIS from 23 PBS involve in ITER interlock system, The PIS located in 13 different buildings. v Redundant CIS requires redundant networks to enhance the network availability. v Large amount data requires high performance networks. PLC Based Interlock systems Workshop 4 -5 December 2014 - ITER Organization Headquarters - St Paul-lez-Durance-France
CIN Characters v A total redundant ITER Interlock Network covers ITER buildings to connect Plant interlock systems. v Conventional TCP/IP networks is base on Gigabit Ethernet technology: Gigabit switch, fiber optic cables start and end at central/local interlock cubicles. v Network segment: two isolated sub-networks • CIN-A: Connect operator station, engineer station and CIS modules (PLC, Fast controller, servers…) for administrative tasks (monitoring, archiving, engineering configuration…) • CIN-P: Connect CIS modules (PLC, fast controller, supervisor module) and Plant Interlock System for process control, operations, timing propagation, diagnostics PLC Based Interlock systems Workshop 4 -5 December 2014 - ITER Organization Headquarters - St Paul-lez-Durance-France

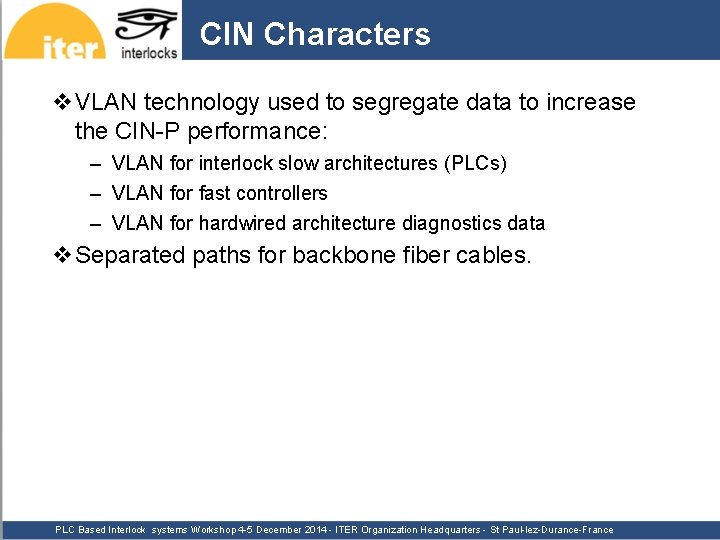

CIN Characters v VLAN technology used to segregate data to increase the CIN-P performance: – VLAN for interlock slow architectures (PLCs) – VLAN for fast controllers – VLAN for hardwired architecture diagnostics data v Separated paths for backbone fiber cables. PLC Based Interlock systems Workshop 4 -5 December 2014 - ITER Organization Headquarters - St Paul-lez-Durance-France
CIN Architecture MCR Operation Station Engineer Station CIN-A VLAN-1 MSR Engineering Server Supervision Module VLAN-4 Archiving Server VLAN-3 VLAN-2 CODAC Interface CIN-P SPM CPM PPM DLIBs Buildings PIS Slow PIS Fast PLC Based Interlock systems Workshop 4 -5 December 2014 - ITER Organization Headquarters - St Paul-lez-Durance-France
3. CIN Infrastructure – Principals MCR BCR CIN Cubicle: Network cubicles have interlock network MSR Synchronization BSR switches installed side and located in rooms called CODAC hutch. CNP - CIN Cubicle In CODAC Hutch - CNP is a passive wall mounted patch panel which is the physical termination point Interlock Networks. Network panels are installed at strategic locations close to the PIS cubicles CNP PIS slow PIS Fast PLC Based Interlock systems Workshop 4 -5 December 2014 - ITER Organization Headquarters - St Paul-lez-Durance-France
3. CIN Infrastructure – The Network coverage CIN-P star point CIN Cubicle 23 Network Panel (CNP) 99 PLC Based Interlock systems Workshop 4 -5 December 2014 - ITER Organization Headquarters - St Paul-lez-Durance-France
Conclusions CIN uses following measures to enhance the Network availability and performance: Ø Network redundancy Ø Gigabit technology Ø All kinds of Segregation measures: • Network Segregation: CIN-A, CIN-P • Cable Segregation • Data Segregation by VLAN technology. PLC Based Interlock systems Workshop 4 -5 December 2014 - ITER Organization Headquarters - St Paul-lez-Durance-France
ITER Central Interlock Networks Thank you. . . PLC Based Interlock systems Workshop 4 -5 December 2014 - ITER Organization Headquarters - St Paul-lez-Durance-France
