IT R&D Global Leader [별첨 5] 100 G 이더넷 CFP 광트랜시버 기술 ETRI Technology Marketing Strategy 김광주 (kjk@etri. re. kr) 광전송연구실 Proprietary 통신인터넷연구부문 ETRI OOO연구소(단, 본부)명 1

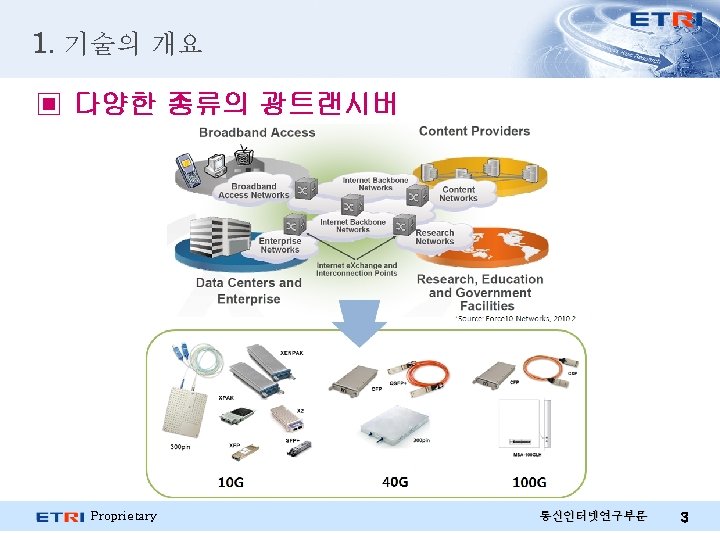

1. 기술의 개요 ▣ 100 G 이더넷 CFP 광트랜시버 v 100 G 이더넷 광신호를 송수신 v 2010년 표준화된 IEEE 802. 3 ba의 100 GBASE-LR 4 표준을 만족: 4 x 25 Gb/s LWDM, SMF 10 km 전송 v CFP MSA 표준의 전기적, 물리적, 운용관리 규격 만족 [100 G 이더넷 CFP 광트랜시버 구성도 및 형상] SMF: Single Mode Fiber, LAN: Local Area Network, WDM: Wavelength Division Multiplexing, MSA: Multi-Source Agreement Proprietary 통신인터넷연구부문 4

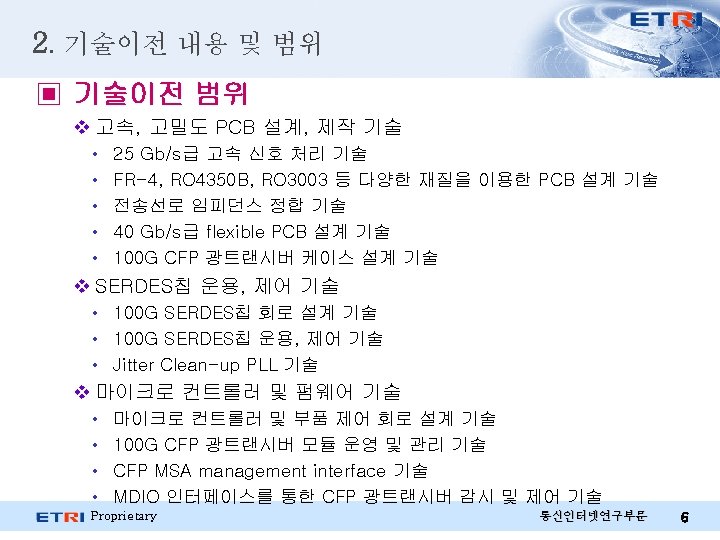

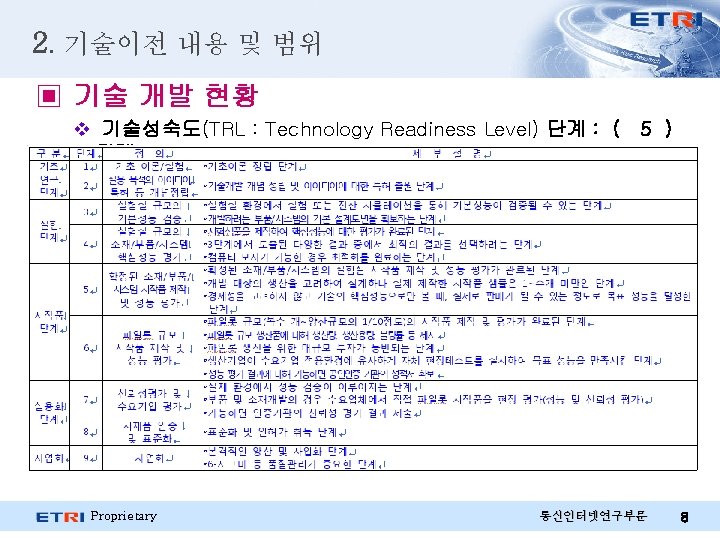

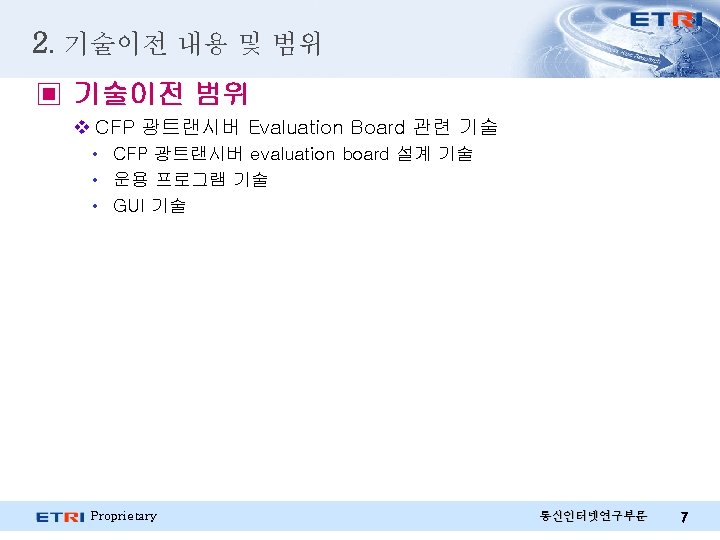

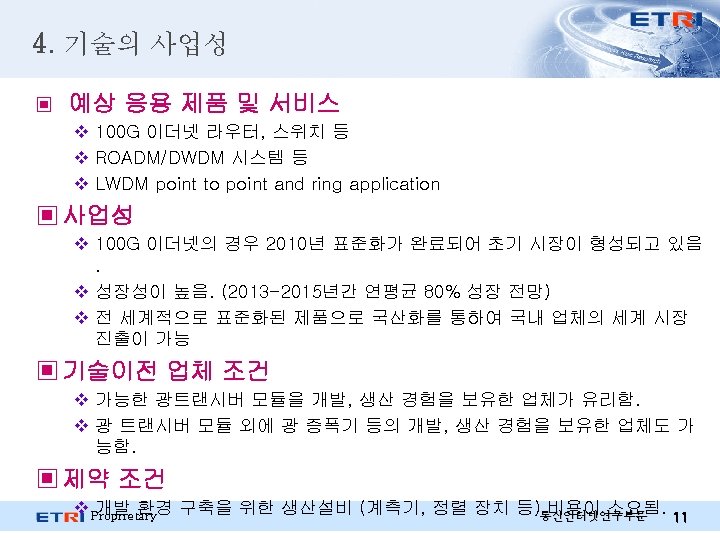

2. 기술이전 내용 및 범위 ▣ 100 G 이더넷 CFP 광트랜시버 상세 규격 § § § Tx Rx Supports 100 G Ethernet & OTU 4 at the rate with 4 x 25. 78 Gb/s & 27. 95 Gb/s Up to 10 km SMF link 4 -lane 25 Gb/s LAN-WDM optical interface § Center wavelength: 1295. 56, 1300. 05, 1304. 58, 1309. 14 nm § Compliant with CFP MSA & IEEE 802. 3 ba § § § § Sensitivity (@ BER = 10 -12, OMA): < -9 d. Bm Output power: - 4. 3 ~ 4. 5 d. Bm Extinction ratio: > 7 d. B Power supply : +3. 3 V ± 5% Power consumption: max. 24 W Operating case temperature: 0 ~ 70 ℃ Dimensions: 144. 8 x 82 x 13. 6 mm 3 OTU 4: Optical Transport Unit for 100 G SMF: Single Mode Fiber, LAN: Local Area Network WDM: Wavelength Division Multiplexing MSA: Multi-Source Agreement Proprietary 통신인터넷연구부문 9
