IT INFRASTRUCTURE OVERVIEW Paul Ashurst Executive Director EIS
- Slides: 10
[IT INFRASTRUCTURE OVERVIEW] Paul Ashurst Executive Director, EIS Global Network Services IT Corporate
IT INFRASTRUCTURE OVERVIEW • Agenda • Overview of key IT Infrastructure components • MC: what we know and don’t know today • Key IT deliverables • Next steps for IT
SPE Global Wide Area Network • 75+ locations • MPLS = any-to-any connectivity • Riverbed WAN acceleration = 60% coverage • Exponential growth in bandwidth usage…. ! Total Volume (TB) per month 300 250 200 Total Volume (TB) per month 150 100 50 0 2002 2003 2005 2007 2009 2011 2012
SPTN Connectivity – Status Update Madrid AXN Budapest CE 100 M Gig. E Singapore SPENA Gig. E *upgraded from 100 Mb Encompass Gig. E *upgraded from 100 Mb Global MPLS WAN 1 x 10 GE 2 x 10 GE 1 x 10 GE *upgraded from 622 Mb *upgraded from 100 Mb *upgraded from 2 x 622 Mb Marina del Rey / Studio Lot London Chandler Datacenter 2 x 10 GE DBB PHX Cap For simplicity, LA and London metro regions shown collapsed; multiple 10 G paths exist within these regional metros.
London connectivity Internet London North Route 2 x Gig. E *currently evaluating 10 GE upgrade options 2 dark fibre pairs lit at 10 GE. Diversely routed London South Route 2 x 10 GE Enterprise IT Systems Docklands Golden Square
EU Data Centre – Global Switch, Docklands • Tier 3 Data Centre. Fully redundant power & cooling • Can sustain 72 hours power outage • Dual 10 Gb connectivity – full resiliency thru entire path • Network Core & Distribution layers – scalable • Future expansion can be geographically separate • Hosts Vision and Provys for SPT EMEA 6

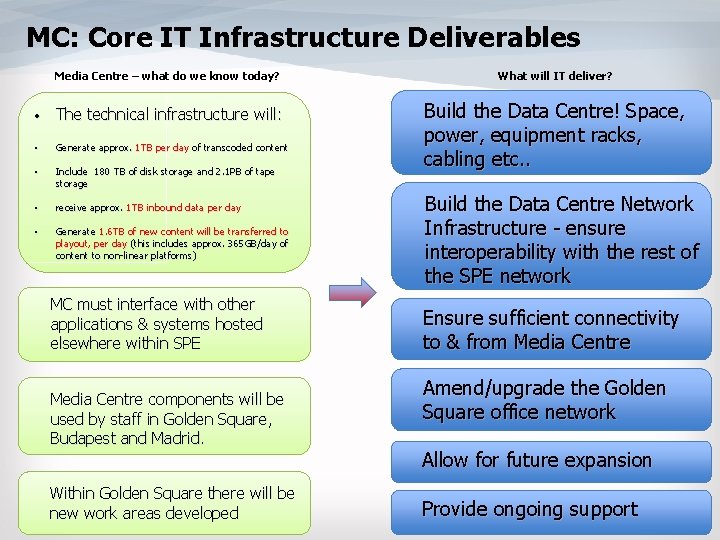

MC: Core IT Infrastructure Deliverables Media Centre – what do we know today? • The technical infrastructure will: • Generate approx. 1 TB per day of transcoded content • Include 180 TB of disk storage and 2. 1 PB of tape storage • receive approx. 1 TB inbound data per day • Generate 1. 6 TB of new content will be transferred to playout, per day (this includes approx. 365 GB/day of content to non-linear platforms) MC must interface with other applications & systems hosted elsewhere within SPE Media Centre components will be used by staff in Golden Square, Budapest and Madrid. Within Golden Square there will be new work areas developed What will IT deliver? Build the Data Centre! Space, power, equipment racks, cabling etc. . Build the Data Centre Network Infrastructure - ensure interoperability with the rest of the SPE network Ensure sufficient connectivity to & from Media Centre Amend/upgrade the Golden Square office network Allow for future expansion Provide ongoing support

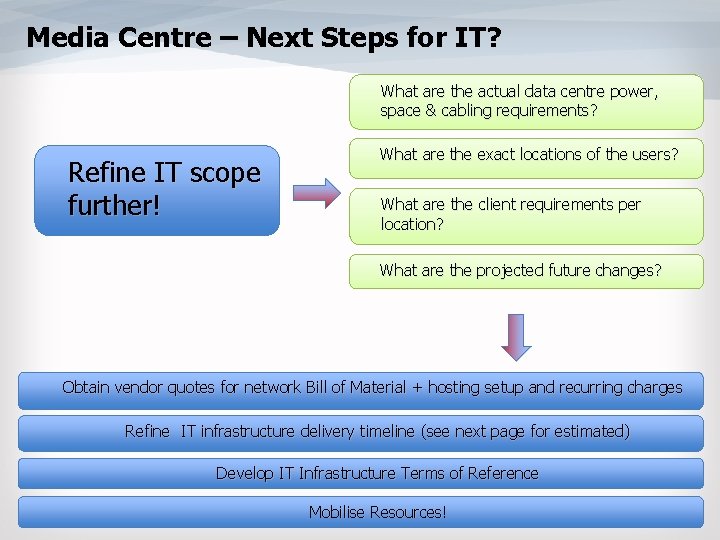

Media Centre – Next Steps for IT? What are the actual data centre power, space & cabling requirements? Refine IT scope further! What are the exact locations of the users? What are the client requirements per location? What are the projected future changes? Obtain vendor quotes for network Bill of Material + hosting setup and recurring charges Refine IT infrastructure delivery timeline (see next page for estimated) Develop IT Infrastructure Terms of Reference Mobilise Resources!
IT Infrastructure – Draft Implementation Timeline MONTH 1 MONTH 2 MONTH 3 MONTH 4 MONTH 5 MONTH 6 MONTH 7 MONTH 8 MONTH 9 MONTH 10 Project Greenlight Place Orders IT Design & Documentation Pre-stage configurations DRAFT DC Facility Ready Equipment Onsite IT Infrastructure Build-out Testing & Sign-off IT Infrastructure Readiness Hypercare

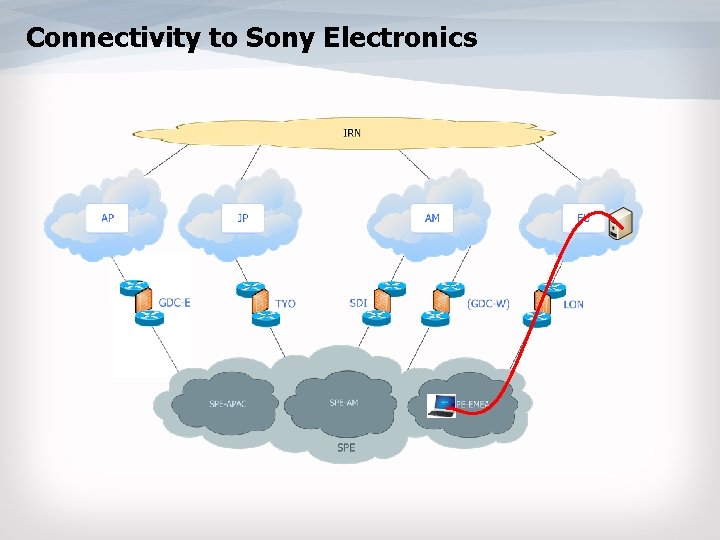

Connectivity to Sony Electronics
