ISSUE ; 2002 -03 -02 Rev. 1 Notice: This material is proprietary to Siegling Belting and its copy or re-distribution without express written consent is strictly prohibited. SIEGLING(JAPAN)LTD.

SIEGLING’s Products ２０００年度　初級セミナー Application Power transmission １． Product group EXTREMULTUS Tobacco oriented basic Material (Cover) Designation (Examples) Polyamide sheet Chrome - leather LT 10 P､LL 20 P 81 Polyester cords Leather/Elastomer/Urethane LT 10 E､LL 20 E 82 Polyester /Aramide fabric Elastomer GG 20 E-26(G) 85 Polyamide sheet Elastomer GT 10 P(BK)､GT 20 P(BK) Conveyor belt 90 Polyester fabric Urethane / PVC / etc. E 3/2 U 0/U 0 FDA(GY/W) Endless belt 91 Polyester fabric Urethane EB 605(G) Toothed belt 93 Steel cords Urethane TB-T 5(G)､TB-H(G) Round belt 95 (Non) Urethane φ3､φ6､φ10 Module belt (Pro Link) 98 (Non) PP / PE / POM PP-LM 50/0 S 1(W) Fluororesin (PTFE) belt 9 F Glass / Aramide fabric PTFE TGP-10 N(BK) TRANSTEX 9 T Polyester fabric PVC / Rubber PHR 2 -160 MRTx. BB FR Tangential belt TRANSILON Core Cord 80 Power transmission flat belt Folder / Carrier, Layboy tape Conveyor belt ISSUE ; 2002 -03 -02 Rev. 1 Fig. 2 SIEGLING(JAPAN)LTD.

1. Construction (1. 1) Raw material　２０００年度　初級セミナー ISSUE ; 2002 -03 -02 Rev. 1 Top surface Conveyor belt “TRANSILON”　　　 TRANSILON Polyurethane PVC　 Silicone　 Polyolefin　 synthetic – leather　 etc. Carcass polyester fabric　 glass fabric aramide fabric　 etc. Underside Polyurethane　 PVC Silicone　 Polyolefin　 synthetic – leather　 etc. Tobacco oriented basic Fig. 2 SIEGLING(JAPAN)LTD.

(1. 2) Details of Raw material for TRANSILON　 ISSUE ; 2002 -03 -02 Rev. 1 ( Resin ) Top face V 90 Fabric ; PVC SB ; Synthetic - leather VH ; Hard - PVC G ; Elastomer U E ; Polyester UH ; Hard - urethane P ; Polyamide S ; Silicone F ; Felt A ; Polyolefin Z ; Polyester pile E ; Polyester (Warp / Weft ) ; Urethane Carcass AE ; Aramide / Polyester(Warp / Weft ) P ( Resin ) ; Polyamide ( Sheet ) Underside EC ; Polyester / Cotton (Warp / Weft ) G Fig. 3 ; Glass (Warp / Weft ) SIEGLING(JAPAN)LTD.

(1. 3) Construction of Carcass ISSUE ; 2002 -03 -02 Rev. 1 Longitudinally flexible　 90 Warp (Multi - filament ) Fabric Carcass Running direction E ; Polyester fabric (Warp / Weft ) Weft ( a. Mono - filament ) Laterally stiff AE ; Aramide / Polyester fabric (Warp / Weft ) P ; Polyamide ( Sheet ) Weft ( b. Multi - filament ) EC ; Polyester / Cotton fabric (Warp / Weft ) G ; Glass fabric (Warp / Weft ) H ; High-tech fabric Fig. 4 Laterally flexible SIEGLING(JAPAN)LTD.

(1. 4) Basic construction ISSUE ; 2002 -03 -02 Rev. 1 Top face (resin) One ply belt　 Fabric Underside (resin) Top face (resin) Two ply belt Fabric Underside (resin) Intermediate layer (resin) Top face (resin) Fabric Three ply belt Fabric Underside (resin) Fig. 5 Intermediate layer (resin) SIEGLING(JAPAN)LTD.

(1. 5) Type code of TRANSILON ISSUE ; 2002 -03 -02 Rev. 1 Note E 3 / 1 U 0 / U 2 MT E 8 / 2 V 5 / V 5 STR / GL - C FDA (W) U 0＝ Urethane “ 0 mm Coat. ” 　　　　　↓　　　　　　　 Urethane – impregnated (G) U 0 Surface color Food suitability Top face　 Underside　 Properties Surface finish Coating thickness in 1 / 10 mm Coating / Thickness Fig. 6 Underside SD - value The SD-value indicates the dynamic load-extension properties in long-term use at 1% extension. Fabric material E ; Polyester　Ｅ Number of plies Unit ； [N/mm] Top face SIEGLING(JAPAN)LTD.

(1. 6) Surface structure (1) ISSUE ; 2002 -03 -02 Rev. 1 1. Smooth surface　 GL Glossy surface　 E 4/1 V 5/V 5 STR/GL (G) MT Matt surface　 E 3/1 U 0/U 2 MT (G) LF Low friction surface　 E 4/2 U 0/U 2 LF (G) 2. Textured surface　 STR Struktur (Normal textured surface) E 8/2 U 0/V 5 STR (G) GSTR G. Struktur (Coarsely textured surface) E 8/2 U 0/U 4 GSTR (G) FSTR F. Struktur (Fine textured surface) E 4/2 S 0/S 3 FSTR (W) Fig. 7 SIEGLING(JAPAN)LTD.

(1. 7) Surface structure (2)　 ISSUE ; 2002 -03 -02 Rev. 1 3. Patterned surface　 AR Anti-Rutsch struktur (Rough-top surface) E 8/2 U 0/V 20 AR (G) SG Gitter Strutur (Lattice texture)　 E 8/2 U 0/V 10 SG (W) LG Longitudinal Grooves　 E 8/2 U 0/U 10 LG (G) KN Kreuz Noppen (Cross-stud pattern) E 8/2 U 0/V 20 KN (G) NP Negative Pyramiden (Inverted pyramid) E 8/2 U 0/V 5 NP FDA (W) FG Fisch-Grat (Herringbone pattern) E 12/2 U 0/V 20 FG -NA FDA (W) R Rhomben struktur (Rhomboid texture) E 12/2 U 0/V 40 R (G) RF Rhomben Fein struktur (Rhomboid fine tex. ) E 2/1 U 0/U 2 RF FDA (BR) VN (Staggered stud) E 8/2 E 0/E 10 VN -TT (FT) Fig. 8 SIEGLING(JAPAN)LTD.

(1. 8) Surface structure (3) ISSUE ; 2002 -03 -02 Rev. 1 VN 3. Patterned surface　 STR GSTR AR SG LG KN NP FG R RF Fig. 9 SIEGLING(JAPAN)LTD.

(1. 9) Properties ISSUE ; 2002 -03 -02 Rev. 1 Properties -C Curved belt E 3/1 U 0/U 2 MT- C FDA (W) - HC Highly-Conductive E 8/2 U 0/U 2 MT- HC (BK) - NA Non-Antistatic E 3/2 U 0/U 2 - NA FDA (W) - HW Hot-Wate resistant E 3/2 U 0/U 2 AM - HW (W) - AM Antimicrobial E 3/2 U 0/U 2 AM - HW (W) - SE Schwer-Entflammber (Flame retardant) E 12/2 U 0/V 5 GSTR -SE - C (BK) FDA U. S. Food and Drug Administration　　　　　 E 3/2 U 0/U 2 FDA (W) Fig. 10 SIEGLING(JAPAN)LTD.

2. Conveying system (2. 1) Basic design ISSUE ; 2002 -03 -02 Rev. 1 Standard conveyor Curved conveyer Knife-edge conveyer Bucket elevator Trough conveyer Fig. 11 SIEGLING(JAPAN)LTD.

(2. 2) Name of conveyor part　 Ta il d ru Co nv ey in g go od s ISSUE ; 2002 -03 -02 Rev. 1 m (p ull e y) Sk id pla te Drive drum (pulley) Lo (T en sio n dr um ) we Fig. 12 r su pp ort Sn ub rol ler (Head drum) rol ler (p ull ey) SIEGLING(JAPAN)LTD.

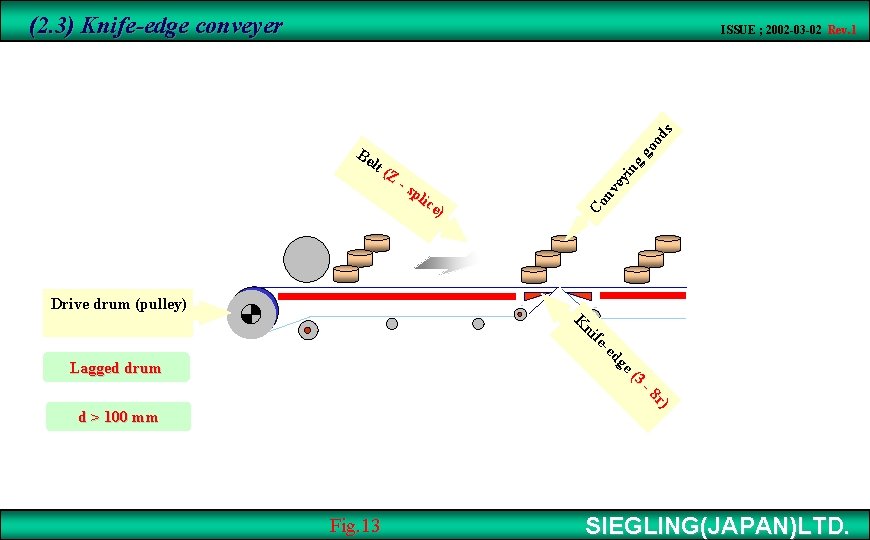

(2. 3) Knife-edge conveyer　 go g -s pli ce ) ey in (Z nv lt Co Be od s ISSUE ; 2002 -03 -02 Rev. 1 Drive drum (pulley) e( dg -e fe ni K Lagged drum 3 r) -8 d > 100 mm Fig. 13 SIEGLING(JAPAN)LTD.

(2. 4) Trough conveyer　 ISSUE ; 2002 -03 -02 Rev. 1 Drive drum (pulley) h g ou Tr Ls e gl an Ls ; Transition lengths = belt width bo ･ C 7 constant Troughing angle 15 20 30 40 C 7 0. 9 1. 5 2. 0 Fig. 14 SIEGLING(JAPAN)LTD.

3. Tracking (3. 1) Crown ISSUE ; 2002 -03 -02 Rev. 1 Curved Trapezoidal crown ｈｈｄｒｄｂ/４ｂ/２ｂ/４ｂｂ For EXTREMULTUS TRANSILON (bo < 200 mm) Fig. 15 SIEGLING(JAPAN)LTD.

(3. 2) Crowned pulley　 ISSUE ; 2002 -03 -02 Rev. 1 Theoretically head-drum should be trapezoidal. With conveyor lengths > 5000 mm both drums should be trapezoidal (or curved). Conveyor length Head-drum Running direction （Crown） Tail-drum Deflection-roller　 Sunb-roller Conveyor lengths > 5000 mm. or reversible (Cylindrical) 　　　　 (Cylindrical) Tension-roller　 Crown　 (Cylindrical) 　　　　　 Fig. 16 SIEGLING(JAPAN)LTD.

(3. 3) Profiles ISSUE ; 2002 -03 -02 Rev. 1 Longitudinal profiles Lateral profiles The example of use…. Inclined conveying Belt tracking prevent Note ; Examination of minimum pulley diameter is required. Fig. 17 SIEGLING(JAPAN)LTD.

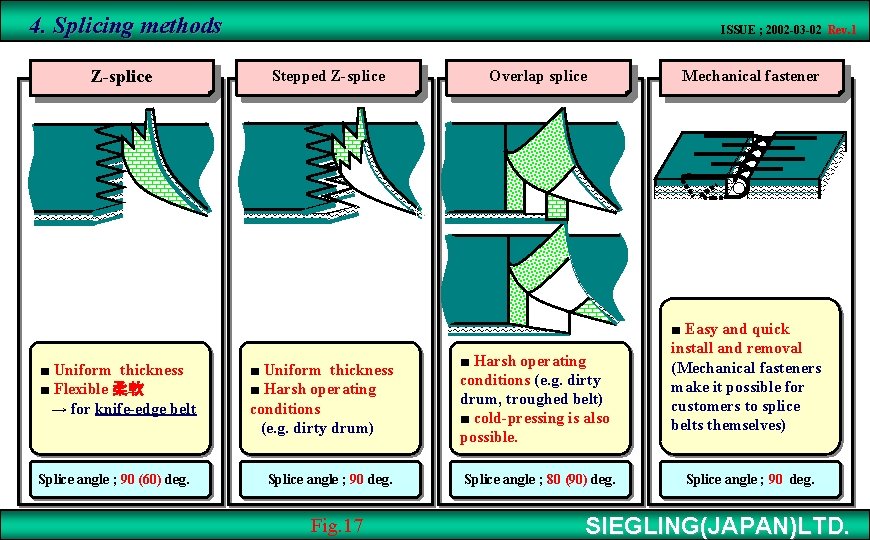

4. Splicing methods　 Z-splice ■ Uniform thickness ■ Flexible 柔軟　→ for knife-edge belt Splice angle ; 90 (60) deg. ISSUE ; 2002 -03 -02 Rev. 1 Stepped Z-splice ■ Uniform thickness ■ Harsh operating conditions 　(e. g. dirty drum) Splice angle ; 90 deg. Fig. 17 Overlap splice ■ Harsh operating conditions (e. g. dirty drum, troughed belt) ■ cold-pressing is also possible. Splice angle ; 80 (90) deg. Mechanical fastener ■ Easy and quick install and removal (Mechanical fasteners make it possible for customers to splice belts themselves) Splice angle ; 90 deg. SIEGLING(JAPAN)LTD.
