ISOLDE HIE ISOLDE Status and Plans Richard Catherall
- Slides: 46
ISOLDE & HIE ISOLDE Status and Plans Richard Catherall EN-STI ISOLDE Technical Coordinator IEFC Workshop 7 th – 9 th March 2012
Outline • Status and plans for 2012 experiments • Shifts and schedule • RILIS and REX operation • New experiments for post accelerated beams 2012 • HIE-ISOLDE status and plans • Reports and recommendations from the IAP • Cavity design and tests • Civil engineering and installation work LS 1 • Foreseen activities for LS 1 • Target area activities • Modifications in the experimental hall • Other plans
Injector schedule 2012 35 weeks of physics (vs 29 in 2010, 2011) Guaranteed protons (46% requested): (Possible increase at next research board) Protons for ISOLDE restart in spring 2014
ISOLDE schedule 2012 Status today: 9 IS experiments and 2 LOIs CLOSED this month 79 IS experiments and 9 LOIs OPEN (711 + 30 requested shifts) + 14 IS experiments and 5 LOIs SUBMITTED to this INTC (193 + 17 requested shifts) 1059 remaining shifts for proposals and LOIs 904 + 47 (LOIs) shifts requested so far (66 more might be still requested) Reasonable number of shifts that can be scheduled in 2012: 590
RILIS operation Ion beams of 15 elements were produced 5 Laser ON time in 2011: Ø 2756 h – Total Ø 2527 h – On-line • > 50 % of the Total running time of ISOLDE facility 197 (250) shifts in 2011 ~ 250 (300) planned for 2012 Beam Sm Ga Mg At Pb Dy Nd Pr Ag Tl Cd Mn Ni Yb Zn Planned 80 104 256 160 184 64 136 - 112 208 288 120 272 - 376 Real 89 101 146 269 221 35 110 4 92 231 242 390 348 73 407
REX Operation • Delivered shifts for experiments and LOIs in 2011: – REX – 147 shifts (160 shifts scheduled) • Similar plans for 2012: ~200 shifts to be scheduled – Enable 2 ms RF pulse length on all amplifiers for slow extraction tests to be done in 2012 – A few “difficult” light beams will require testing and further tuning
Rare decays of 6 He with an optical chamber incoming 6 He ions New experimental setups using postaccelerated beams gas at atmospheric pressure d ionization electrons a HV electrodes e gating electrode charge amplification zone GEM foils light REX Recording system Trigger CCD PMT
New experimental setups using postaccelerated beams Scattering chamber for studies of nuclosynthesis (rapid proton-capture) Nuclear structure of very light nuclei with an active target p ΔE-E Ec. m.
Offline experiment: Measure 44 Ti(a, p) reaction at supernova energy Ejected 44 Ti becomes gamma emitter => Sensitive diagnostic of explosion mechanism Core collapse supernovae Material: Extraction and acceleration: Source of 44 Ti: PSI Exotic radionuclides from accelerator waste for science and technology ~1018 atoms available Experiment:
Outline • Status and plans for 2012 experiments • Shifts and schedule • RILIS and REX operation • New experiments for post accelerated beams 2012 • HIE-ISOLDE status and plans • Reports and recommendations from the IAP • Cavity design and tests • Civil engineering and installation work LS 1 • Foreseen activities for LS 1 • Target area activities • Modifications in the experimental hall • Other plans
Highlights from the IAP report: Cryomodule Design • The top loading design is a good choice with examples in ISAC-II, LNL, MSU and ANL. • For the cryogenic safety the IAP has the impression that the numbers presented for the burst disk size to mitigate overpressure in the case of a venting accident are over conservative • Concerns about the use of MLI => consider nickel plating of thermal shield and electro-polishing large surfaces (mirror-like) helium reservoir • The cryomodule assembly sequence should be optimized to give adequate access to the cavities in case they have to be rinsed in the future • The capability to helium condition the cavities by adding a leak system to the cryomodule should be analyzed at the cavity testing stage • A 1400 W cryogenic plant should have sufficient margin.

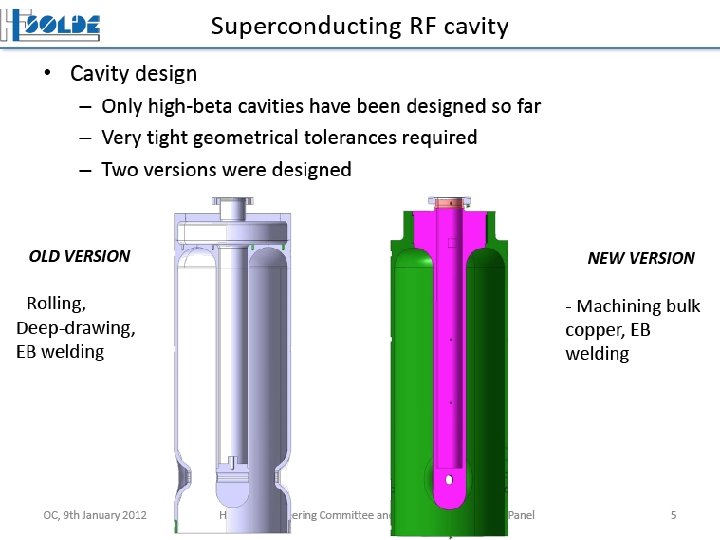

Highlights from the IAP report RF Cavities • Work on the cavity has made good progress and is on the right path although many cold tests are still necessary to get things settled • It is almost certain that the very stringent specification on the inner conductor beam port is too tight by probably a factor of ten at least. It is suggested that cavity development should proceed with this as a fact while beam simulations are done in parallel to confirm. • It is noted that one of the RF performance curves reaches the high field value 6 MV/m and has a very low Q-slope for a sputtered cavity but a Qo which is a factor of ten from the goal. – evaluate influence of tuner plate
Highlights from the IAP report: General • Possible concerns are related to realities of funding which may cause complicated procurement strategies • Synergies between ESS and HIE-ISOLDE should be explored with regard to the training of people • The goal of having the 5. 5 Me. V/u linac commissioned in 2014 is tight but still possible => risk analysis by Sep. 2012 • Diagnostics look well thought out and conceptually well advanced for this stage of the project. • Compare safety protocols with other operating facilities • A finalization of the experimental layout is required • The IAP suggests that attention must be given on the production of xrays • The IAP strongly support the addition of the storage ring to the ISOLDE infrastructure
RF Measurements @ 4. 5 K (2011) 1 E+10 Q 1 Mag Dec 2010 -1 st (150ºC) Q 1 Mag Feb 2011 -2 nd (150ºC) Q 1 Diode Jul 2011 (150ºC) Q 2 Mag Sept 2011 (150ºC) Q 1 Mag Nov 2011 (370 ºC) Q 2 Diode Dec 2011 ( 470ºC) HIE-ISOLDE specification Quality Factor 1 E+09 1 E+08 1 E+07 1 E+06 0 1 2 3 4 Eacc(MV/m) 5 6 7
RF Measurements (2012) 1 E+09 Quality factor ~ 35 W @ 6 MV/m 1 E+08 Q 2_6 January 2012 ~ 70 W @ 6 MV/m Q 1_9 cal 1 Q 1_9 cal 2 1 E+07 0 1 2 3 4 Eacc (MV/m) 5 6 7 8
Outlook for 2012 Ø Completion of Civil Engineering Works by Q 3 2012 Ø Installation of Main Services (EL, CV, Transport) Ø Launch procurement of Cryogenic Plant (FC Mar. 2012) Ø Launch procurement of first batch of 5 (+5 option) high-beta cavities + ancillaries by Q 1 2012. Ø Review Cryomodule Design (26 -27 Apr. 2012) and launch procurement of CM 1 by Q 2 2012. Ø Review HEBT Layout (25 Apr. 2012) and launch procurement Ø Validate LLRF system and tuner plate design
Hie-Isolde Planning A simplified presentation of the different stages: 2011 Q 2 Q 3 2012 Q 4 Q 1 Q 2 Q 3 2013 Q 4 Q 1 Q 2 Q 3 2014 Q 1 Q 2 Q 3 2015 Q 4 Q 1 Q 2 Q 3 2016 Q 4 Q 1 Q 2 Q 3 Q 4 Beam Transfer Lines Civil Cryo Main services Ventilation Demi water Electrical syst. s CM 1&2 CM 5&6 CM 3&4 5. 5 Me. V/u 10 Me. V/u Timeline: sd CM 1&2 LS 1 -What issdthe impact on operations? Dec 2012 shutdown 18 - Isolde & REX Ops sd sd Apr 2014 (Isolde normal operations) Cryo Mod 1 & 2 install (REX perturbations)
Civil Engineering New SAS January 2012
Main Services Electrical systems, Cooling & Ventilation Start installation main services July 2012
Electrical systems: July 2012 – June 2013

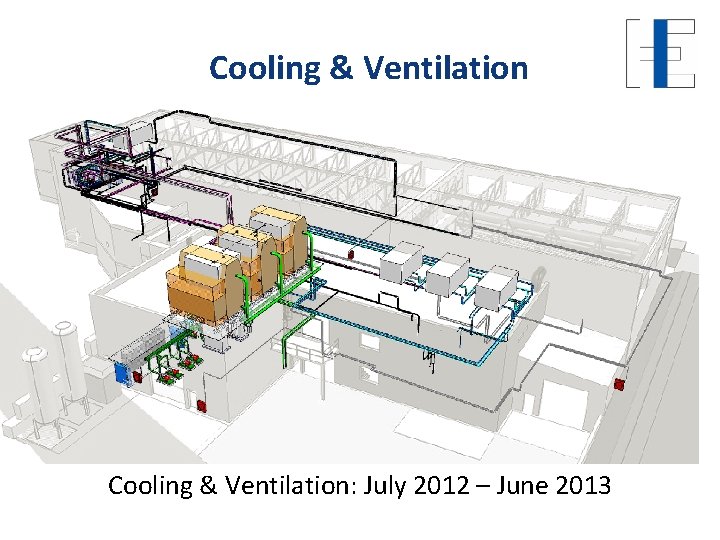

Cooling & Ventilation: July 2012 – June 2013
Cryogenics Compressors: July 2013 – December 2013 Cold Box: Jan 2014 – June 2014 23
Tunnel and Cryo Line Cutting walls & install tunnel: Sep 2013 LS 1 Cryo Cold Line: January 2014 – June 2014
Hie-Isolde SC Linac: 5. 5 Me. V/u by the autumn of 2014 First 10 Me. V/u by March 2016 Bunched beam by 2017 ?
Outline • Status and plans for 2012 experiments • Shifts and schedule • RILIS and REX operation • New experiments for post accelerated beams 2012 • HIE-ISOLDE status and plans • Reports and recommendations from the IAP • Cavity design and tests • Civil engineering and installation work LS 1 • Foreseen activities for LS 1 • Target area activities • Modifications in the experimental hall • Other plans
LS 1 Activities for ISOLDE • Robot replacement • Hot Cell Installation • Medicis • Target storage area • Miniball move • ISOLTRAP platform • RFQ Cooler alignment • HIE-ISOLDE • PAD-MAD installation – Building 115 move/installation – Building 507 (light building) Target Area Experimental Area
Target Area: Robot replacement • The current ISOLDE robots: – are coming to the end of their lifetime. • No compatible spare parts – Are prone to faults – Have no back-up redundancy – Are limited in flexibility • No further programming possible • Part of the long term improvements in operation is to replace the existing robots.
Target Area: Replacement robot • New robot system based on “known” system. Installation in target area – Q 4 2013
Target Area: ISOLDE Hot Cell • For the dismantling and oxidation of used ISOLDE targets • Pre-conditioning prior to shipment to PSI for waste treatment Location of new Hot Cell Building 179 with target area Installation scheduled for long shutdown 2013
Target Area: Medicis Medical Isotopes Collected from ISOLDE • At present 1. 4 Ge. V, 2μA p. May have 2 Ge. V, 4 -8μA protons in 2018, of which 90% can be recuperated at the dump position. • Samples can be transferred to Class A labs via a pneumatic transport system • "Presentation at ICTR-PHE 2012 conference“ by Thierry STORA
Target Area: Medicis • - Ta(p, X)149 Tb is one of the most efficient production method. G. Beyer et al. , Radiochim. Acta 90, 247 (2002) • Can use CERN specific technologies for isotope production (i. e. nano-structured target, patent WO 2010/034364, CERN) • Large variety of isotopes accessible
Exp. Hall: MINIBALL Move Miniball Exp. station Actar / Helios Miniball Beam diagnostics • Beam transfer line – – • MINIBALL move – • 1 straight section with 2 branches Oct 2013 – Sept 2014 Oct 2013 – April 2014 Planning to be discussed in upcoming MINIBALL Collaboration meeting in 2 weeks

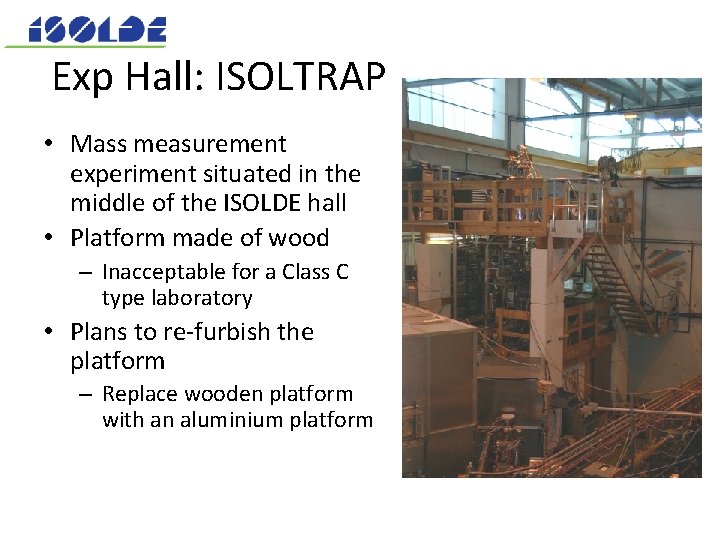

Exp Hall: ISOLTRAP • Mass measurement experiment situated in the middle of the ISOLDE hall • Platform made of wood – Inacceptable for a Class C type laboratory • Plans to re-furbish the platform – Replace wooden platform with an aluminium platform
Exp Hall: RFQ Cooler • RFQ Cooler Alignment check • Laser at limit of transmission for optical cooling experiments • External alignment checks done at the end of 2011 – But to no avail • Internal alignment checks need to be done
PAD & MAD Installation

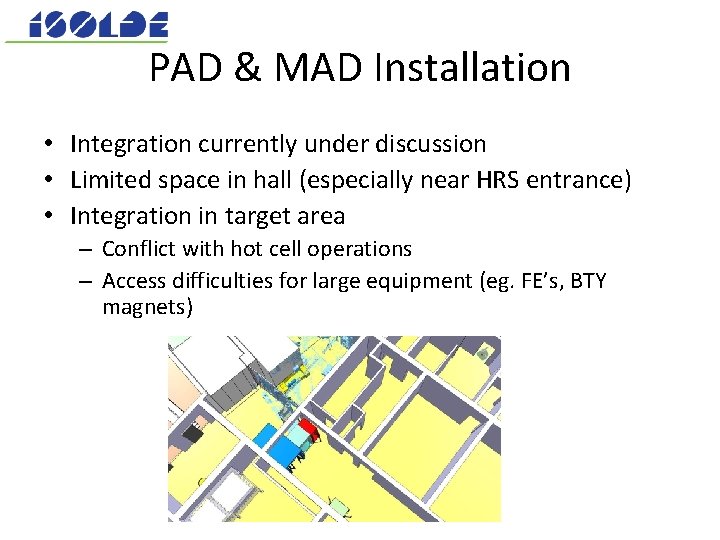

PAD & MAD Installation • Integration currently under discussion • Limited space in hall (especially near HRS entrance) • Integration in target area – Conflict with hot cell operations – Access difficulties for large equipment (eg. FE’s, BTY magnets)
Buildings 115 & 507 Present situation (ground floor Jura side): Control room 38
Solid State Lab 115 1. Increasing the surface of the Solid State Lab in B. 115: Control room 39
Replace building 507 2. Replacing the existing building 507 by a new building - Ground floor (only accessible from within the surveyed area): Control room 40
Replace building 507 2. Replacing the existing building 507 by a new building - First floor (accessible from outside the surveyed area): Control room 41
Building status • Building 115 (extended solid state laboratory) – Plans completed – Costs • 407 k. CHF (to be secured) – Make building 275 available for other users – Implies all handling of radioactive sources to within the confines of the ISOLDE perimeter • Building 507 (light building) – Under discussion – HIE-ISOLDE data acquisition rooms outside hall – Visitor’s room – access to visitors will be denied in future when the hall will be defined as a controlled area. – A new version being considered based on partly metallic structure and partly “portacabin” type modules

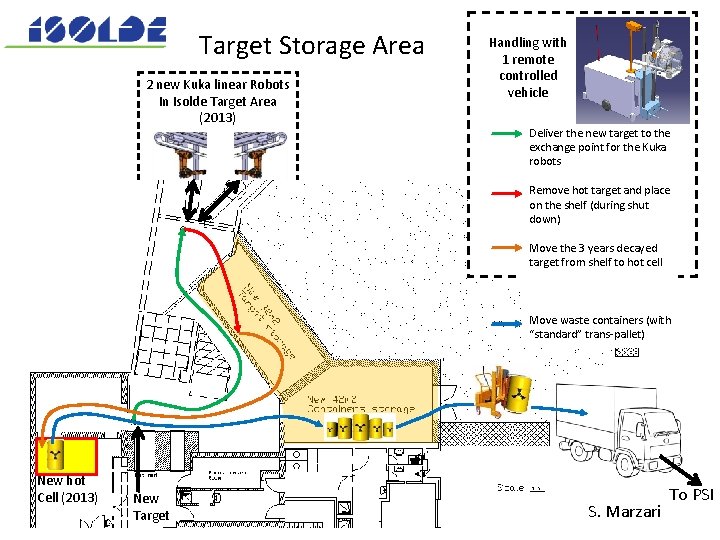

Target Storage Area 2 new Kuka linear Robots In Isolde Target Area (2013) Handling with 1 remote controlled vehicle Deliver the new target to the exchange point for the Kuka robots Remove hot target and place on the shelf (during shut down) Move the 3 years decayed target from shelf to hot cell Move waste containers (with “standard” trans-pallet) New hot Cell (2013) New Target S. Marzari To PSI
Isolde LS 1 Planning 2012 Q 1 Q 2 Q 3 2013 Q 4 Q 1 Q 2 2014 Q 3 Q 4 Q 1 Q 2 Q 3 Q 4 Robots Hot Cell Medicis Target area Target storage? PAD/MAD? ISOLTRAP RFQ Cooler Miniball move HIE-ISOLDE installation ISOLDE operation Building 507? 44 Building 115 Exp. hall
Summary • Operations 2012 – A busy year ahead with a little more planned due to the extended operation time. – The shift backlog clearly indicates the growing demand for physics at ISOLDE • HIE-ISOLDE – Moving out of the R&D phase and into the procurement phase. – Important milestones to attain in 2012 to maintain the current schedule • ISOLDE LS 1 planning – A few tasks remain to be confirmed – A clear overlap of activities in the target area in Q 4 2013 – A potential conflict between HIE-ISOLDE installation and ISOLDE operation in April 2014.
Thank you for your attention Acknowledgements • • • GS/SE EN/MEF BE/ABP BE/OP PH/SME EN/HDO BE/RF EN/CV EN/EL TE/CRG EN/STI • GS/DI • TE/MSC • EN/HE : DANIEL PARCHET, ELISEO PEREZ-DUENAS : STEPHANE MARIDOR : FREDRIK WENANDER : DIDIER VOULOT, ERWIN SIESLING : MAGDA KOWALSKA, SUZANNE KREIM : YACINE KADI : MATTEO PASINI, MATTHEW FRASER : PAUL PEPINSTER, BENOIT LACARELLE : RENE NECCA : NICOLAS DELRUELLE, JOS METSELAAR : THIERRY STORA, ANA-PAULA BERNARDES, VALETINE FEDOSSEEV, BRUCE MARSH, STEFANO MARZARI : CYRILLE BEDEL : JEAN-PHILIPE TOCK, YANN LECLERCQ, LLOYD WILLIAMS, ARNAUD BOUZOUD : BRUNO FERAL, JEAN LOUIS GRENARD, KEITH KERSHAW
