ISO TC 215 / HL 7 Dev SIG /11073 Mtg Lower Layer Transport Status

ISO TC 215 / HL 7 Dev SIG /11073 Mtg Lower Layer Transport Status Orlando January, 2009 Rick Cnossen (Intel) Mark Schnell (Cisco) 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 1

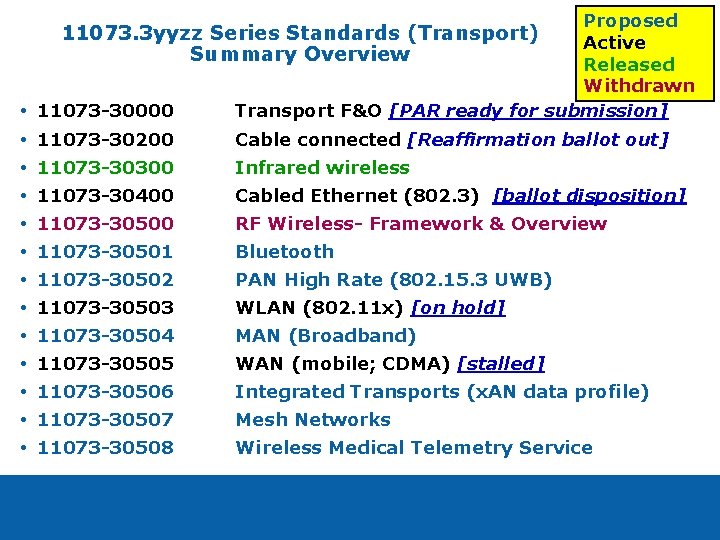

 11073 -30000 Proposed Active Released Withdrawn Transport F&O [PAR ready for submission] 11073

11073 -30000 Proposed Active Released Withdrawn Transport F&O [PAR ready for submission] 11073 -30200 Cable connected [Reaffirmation ballot out] 11073 -30300 Infrared wireless 11073 -30400 Cabled Ethernet (802. 3) [ballot disposition] 11073 -30500 RF Wireless- Framework & Overview 11073 -30501 Bluetooth 11073 -30502 PAN High Rate (802. 15. 3 UWB) 11073 -30503 WLAN (802. 11 x) [on hold] 11073 -30504 MAN (Broadband) 11073 -30505 WAN (mobile; CDMA) [stalled] 11073 -30506 Integrated Transports (x. AN data profile) 11073 -30507 Mesh Networks 11073 -30508 Wireless Medical Telemetry Service 11073. 3 yyzz Series Standards (Transport) Summary Overview

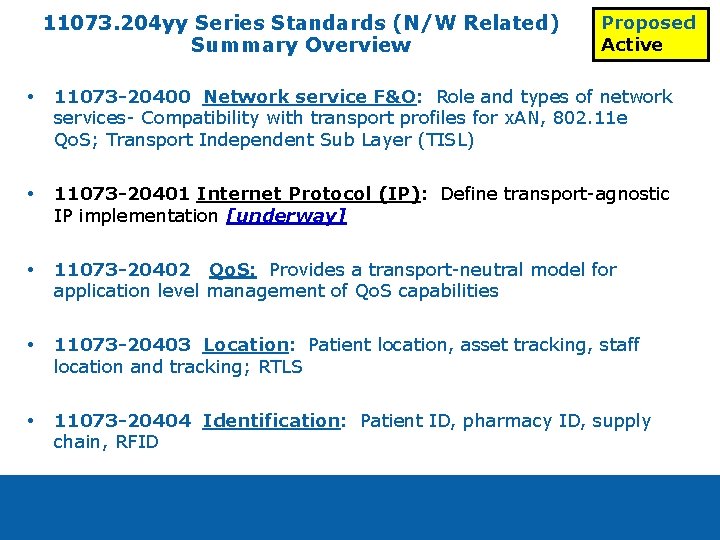

11073. 204 yy Series Standards (N/W Related) Summary Overview Proposed Active 11073 -20400 Network

11073. 204 yy Series Standards (N/W Related) Summary Overview Proposed Active 11073 -20400 Network service F&O: Role and types of network services- Compatibility with transport profiles for x. AN, 802. 11 e Qo. S; Transport Independent Sub Layer (TISL) 11073 -20401 Internet Protocol (IP): Define transport-agnostic IP implementation [underway] 11073 -20402 Qo. S: Provides a transport-neutral model for application level management of Qo. S capabilities 11073 -20403 Location: Patient location, asset tracking, staff location and tracking; RTLS 11073 -20404 Identification: Patient ID, pharmacy ID, supply chain, RFID

30400 (Cabled Ethernet) Specifics • Balloting logistics • • Current Status • • Disposition

30400 (Cabled Ethernet) Specifics • Balloting logistics • • Current Status • • Disposition comments Finish ballot process Ballot closed with appropriate voting mix 114 comments received 100 comments dispositioned Of the remaining 14 comments • 5 in various states of drafting or analysis • 6 "document logistics" type comments to be worked with IEEE staff • 3 dups from the 11 comments above Rick’s recommend next step: • Identify someone to team with Mark on remaining handful of comments and drive it through the ballot process. 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 4

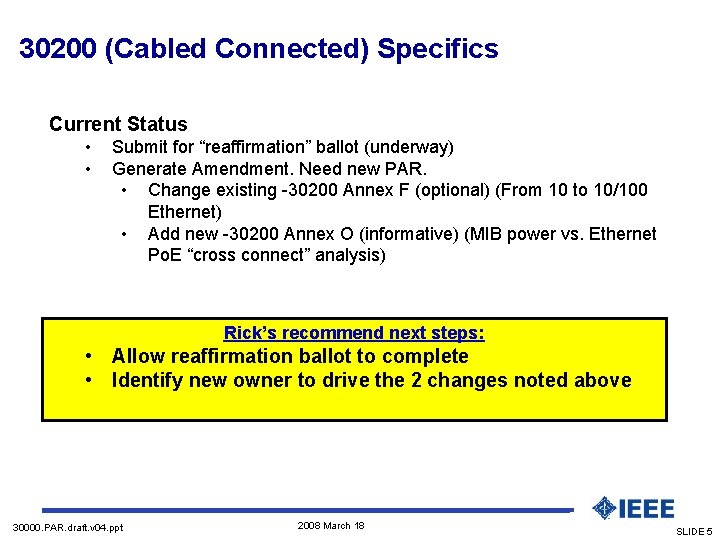

30200 (Cabled Connected) Specifics Current Status • • Submit for “reaffirmation” ballot (underway) Generate

30200 (Cabled Connected) Specifics Current Status • • Submit for “reaffirmation” ballot (underway) Generate Amendment. Need new PAR. • Change existing -30200 Annex F (optional) (From 10 to 10/100 Ethernet) • Add new -30200 Annex O (informative) (MIB power vs. Ethernet Po. E “cross connect” analysis) Rick’s recommend next steps: • Allow reaffirmation ballot to complete • Identify new owner to drive the 2 changes noted above 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 5

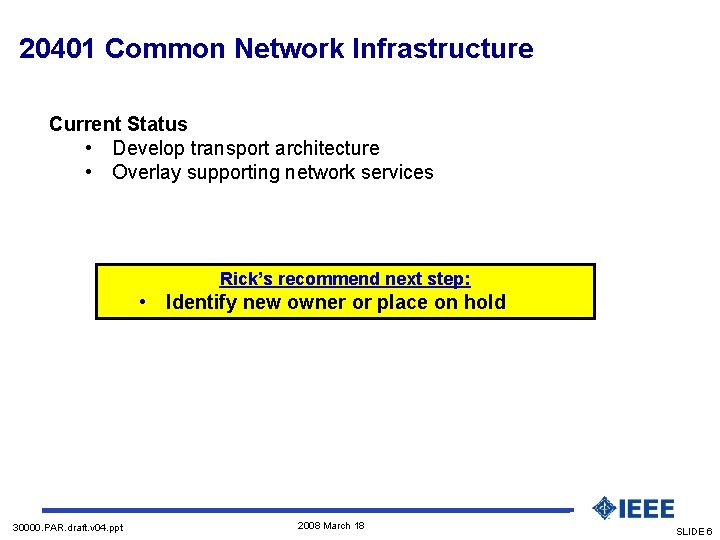

20401 Common Network Infrastructure Current Status • Develop transport architecture • Overlay supporting network

20401 Common Network Infrastructure Current Status • Develop transport architecture • Overlay supporting network services Rick’s recommend next step: • Identify new owner or place on hold 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 6

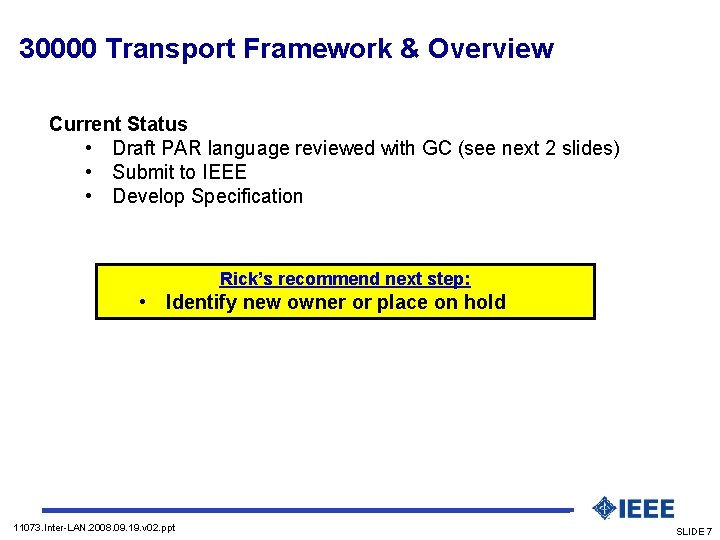

30000 Transport Framework & Overview Current Status • Draft PAR language reviewed with GC

30000 Transport Framework & Overview Current Status • Draft PAR language reviewed with GC (see next 2 slides) • Submit to IEEE • Develop Specification Rick’s recommend next step: • Identify new owner or place on hold 11073. Inter-LAN. 2008. 09. 19. v 02. ppt SLIDE 7

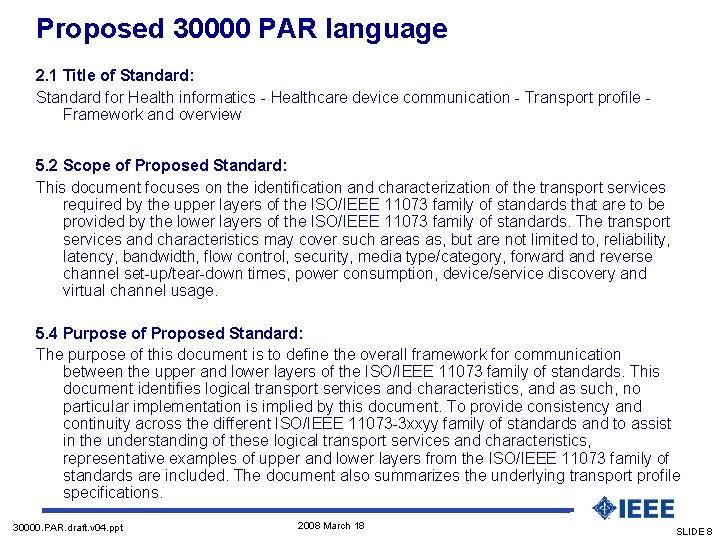

Proposed 30000 PAR language 2. 1 Title of Standard: Standard for Health informatics -

Proposed 30000 PAR language 2. 1 Title of Standard: Standard for Health informatics - Healthcare device communication - Transport profile Framework and overview 5. 2 Scope of Proposed Standard: This document focuses on the identification and characterization of the transport services required by the upper layers of the ISO/IEEE 11073 family of standards that are to be provided by the lower layers of the ISO/IEEE 11073 family of standards. The transport services and characteristics may cover such areas as, but are not limited to, reliability, latency, bandwidth, flow control, security, media type/category, forward and reverse channel set-up/tear-down times, power consumption, device/service discovery and virtual channel usage. 5. 4 Purpose of Proposed Standard: The purpose of this document is to define the overall framework for communication between the upper and lower layers of the ISO/IEEE 11073 family of standards. This document identifies logical transport services and characteristics, and as such, no particular implementation is implied by this document. To provide consistency and continuity across the different ISO/IEEE 11073 -3 xxyy family of standards and to assist in the understanding of these logical transport services and characteristics, representative examples of upper and lower layers from the ISO/IEEE 11073 family of standards are included. The document also summarizes the underlying transport profile specifications. 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 8

Proposed 30000 PAR language 5. 5 Need for the Project: Healthcare devices use communications

Proposed 30000 PAR language 5. 5 Need for the Project: Healthcare devices use communications technologies in a wide range of environments including: enterprises, departments, care units, embedded point of care topologies, home and personal situations. However, efficient integration is limited by insufficient standardization at the transport layer in time-critical medical data communication contexts. 5. 6 Stakeholders for the Standard: Key stakeholders include healthcare device and system developers who are incorporating communications technologies, those who sell, deploy and/or manage these systems and those organizations that regulate this environment. 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 9

Backup slides 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 10

Backup slides 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 10

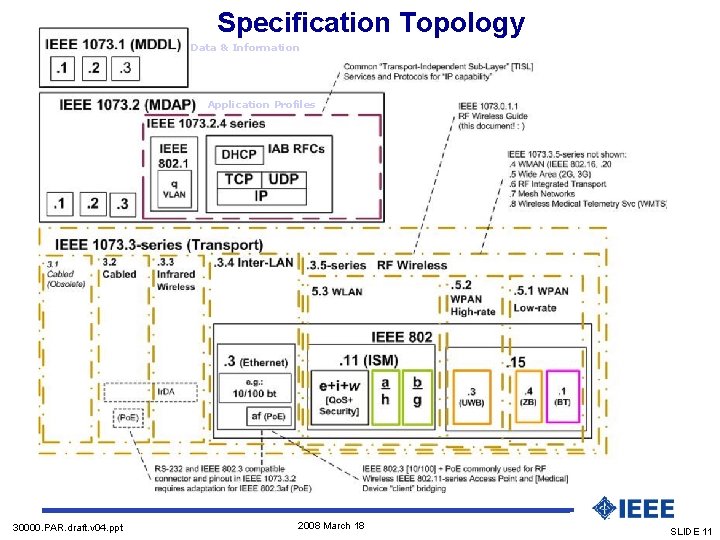

Specification Topology Data & Information Application Profiles 30000. PAR. draft. v 04. ppt 2008

Specification Topology Data & Information Application Profiles 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 11

Transport Philosophy l l The following slides are from the draft ISO / IEEE

Transport Philosophy l l The following slides are from the draft ISO / IEEE 11073 -30000 Framework & Overview document and provide an approach or philosophy for Transports. The intent is to establish a consistent approach for items such as establishing requirements and referencing outside specifications. The general approach is to define requirements and then utilize application-driven profiling to accomplish, leveraging commercial technologies as much as possible. 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 12

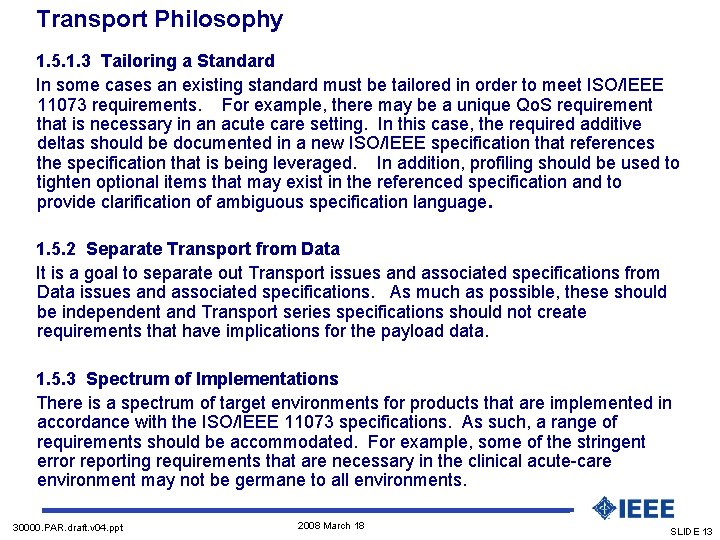

Transport Philosophy 1. 5. 1. 3 Tailoring a Standard In some cases an existing

Transport Philosophy 1. 5. 1. 3 Tailoring a Standard In some cases an existing standard must be tailored in order to meet ISO/IEEE 11073 requirements. For example, there may be a unique Qo. S requirement that is necessary in an acute care setting. In this case, the required additive deltas should be documented in a new ISO/IEEE specification that references the specification that is being leveraged. In addition, profiling should be used to tighten optional items that may exist in the referenced specification and to provide clarification of ambiguous specification language. 1. 5. 2 Separate Transport from Data It is a goal to separate out Transport issues and associated specifications from Data issues and associated specifications. As much as possible, these should be independent and Transport series specifications should not create requirements that have implications for the payload data. 1. 5. 3 Spectrum of Implementations There is a spectrum of target environments for products that are implemented in accordance with the ISO/IEEE 11073 specifications. As such, a range of requirements should be accommodated. For example, some of the stringent error reporting requirements that are necessary in the clinical acute-care environment may not be germane to all environments. 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 13

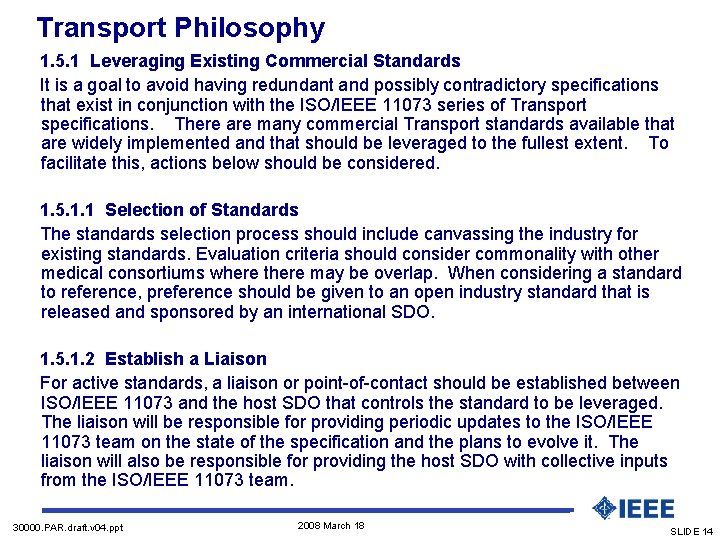

Transport Philosophy 1. 5. 1 Leveraging Existing Commercial Standards It is a goal to

Transport Philosophy 1. 5. 1 Leveraging Existing Commercial Standards It is a goal to avoid having redundant and possibly contradictory specifications that exist in conjunction with the ISO/IEEE 11073 series of Transport specifications. There are many commercial Transport standards available that are widely implemented and that should be leveraged to the fullest extent. To facilitate this, actions below should be considered. 1. 5. 1. 1 Selection of Standards The standards selection process should include canvassing the industry for existing standards. Evaluation criteria should consider commonality with other medical consortiums where there may be overlap. When considering a standard to reference, preference should be given to an open industry standard that is released and sponsored by an international SDO. 1. 5. 1. 2 Establish a Liaison For active standards, a liaison or point-of-contact should be established between ISO/IEEE 11073 and the host SDO that controls the standard to be leveraged. The liaison will be responsible for providing periodic updates to the ISO/IEEE 11073 team on the state of the specification and the plans to evolve it. The liaison will also be responsible for providing the host SDO with collective inputs from the ISO/IEEE 11073 team. 30000. PAR. draft. v 04. ppt 2008 March 18 SLIDE 14
