IS-GNSS Oct. 2014 - Slide Jeju, South Korea Oct. 22, 2014 MSAS Status Takeyasu Sakai Electronic Navigation Research Institute, Japan

IS-GNSS Oct. 2014 - Slide 1 Contents Current Status MSAS User Segment & PBN LPV Approach Trial R&D for Performance Improvement

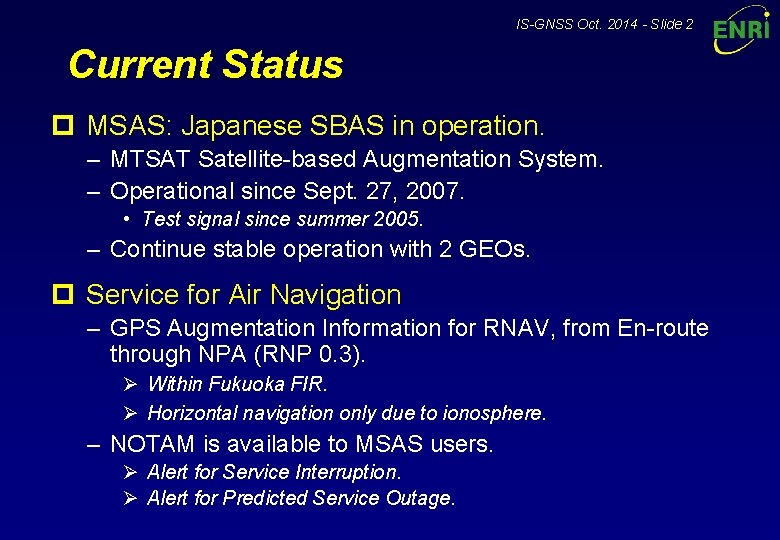

IS-GNSS Oct. 2014 - Slide 2 Current Status p MSAS: Japanese SBAS in operation. – MTSAT Satellite-based Augmentation System. – Operational since Sept. 27, 2007. • Test signal since summer 2005. – Continue stable operation with 2 GEOs. p Service for Air Navigation – GPS Augmentation Information for RNAV, from En-route through NPA (RNP 0. 3). Ø Within Fukuoka FIR. Ø Horizontal navigation only due to ionosphere. – NOTAM is available to MSAS users. Ø Alert for Service Interruption. Ø Alert for Predicted Service Outage.

IS-GNSS Oct. 2014 - Slide 3 Configuration MTSAT-1 R GPS Satellites Ranging Signals Users Augmentation Signals Kobe MCS (and GMS) Sapporo GMS Fukuoka GMS Ground Network Naha GMS • • • MTSAT-2 Tokyo GMS Hitachi-Ota MCS (and GMS) Hawaii MRS Australia MRS 6 GMS in Japan Hawaii MRS Canberra MRS MSAS Monitor Stations 2 GEO, 2 MCS (Master Control Station), 4 GMS (Ground Monitor Station), and 2 MRS; MCS also has GMS function; MSAS has 6 domestic monitor stations. 2 MRS (Monitor and Ranging Station) for GEO positioning for GEO ranging function.

IS-GNSS Oct. 2014 - Slide 4 MSAS GEO (MTSAT) MTSAT-1 R Spacecraft • 3 -axis stabilized spacecraft with the standard bus system. • Solar panel at the single side. – Due to installation of equipment for the weather mission. • L-band transponder with the bandwidth of 2. 2 MHz. – Uplink: Ku-band (13 GHz) due to results of frequency coordination. • Also has downlink channel in Ku-band. – For power control of uplink signal because of rain attenuation in Ku-band.

IS-GNSS Oct. 2014 - Slide 5 MCS Facilities • Western part of Japan • MCS nominal for MTSAT-1 R (PRN 129) HASC KASC • (Hitachi-Ota Backup (Kobefor MTSAT-2 (PRN 137) • Aeronautical Dishes for 2 GEO and emergency Satellite • • Eastern part of Japan MCS nominal for MTSAT-2 (PRN 137) Backup for MTSAT-1 R (PRN 129) Dishes for 2 GEO

IS-GNSS Oct. 2014 - Slide 6 MTSAT Coverage (Fukuoka FIR) MTSAT-1 R @140 E MTSAT-2 @145 E FIR: Flight Information Region

IS-GNSS Oct. 2014 - Slide 7 Performance of MSAS GPS only w/ MSAS Horizontal 0. 425 m RMS GPS only w/ MSAS Vertical 0. 607 m RMS N-S U-D E-W GEONET 940058 (Takayama) 08/1/17 -19 PRN 129 (MTSAT-1 R) Broadcast Signal

IS-GNSS Oct. 2014 - Slide 8 Horizontal Protection Level (HPL), m Integrity Performance From 2013/7/17 To 2013/8/16 (1 month) Loss of Availability HAL=556 m Normal Operation Loss of Availability & Integrity Loss of Integrity Actual Error, m MSAS PRN 137 Evaluated at: HASC GME-A • Enroute to NPA • Extremely safe operation

IS-GNSS Oct. 2014 - Slide 9 MSAS Users in Aviation Regional Air carriers Government Fire Fighters Medical

IS-GNSS Oct. 2014 - Slide 10 New Japanese Aircraft w/SBAS • Mitsubishi Regional Jet (MRJ) – 70 -90 seat • Schedule: ü Now Assembly Work. – First flight is scheduled for 3 Q 2015. – First delivery of MRJ is slated for 3 Q 2017. • Rockwell Collins ‘Pro Line Fusion’ has a LPV capability. • Purchase Agreement with ANA 25 aircraft, JAL 32 aircraft, Trans States Holdings 100 aircraft, and Sky. West 200 aircraft. Mitsubishi Regional Jet MRJ

IS-GNSS Oct. 2014 - Slide 11 Implementation of RNP/RNAV Southwestern Islands Asahikawa Tokunoshima ◆● Amami Okierabu ● ● ● Ishigaki ●● ●◆ New Chitose ● Miyako ◆● ● ●◆ Hakodate Yoron Naha Oodate-noshiro Tarama ● Akita ●● Toyama Shonai Niigata ● ● ● ◆● ● Oki Izumo Sendai ● Komatsu Hiroshima Miho ● ● Tottori Yamaguchi-Ube Iwakuni ● ◆ ● ● Fukui Kita Kyushu As of August 2014 Okayama Narita Osaka Nagoya Chofu ● ●◆ ◆ Fukuoka ● (RNAV / RNP Approach ●● ◆ ◆ ●◆ ● ◆ ●● ●◆ ◆ ● Chubu Haneda Nagasaki ◆ ◆● ◆ ●◆ ● ● ◆Oita Kobe ● Niijima Kumamoto Kochi Kozushima ● ◆ Matsuyama ◆● ● Kansai Kagoshima Miyazaki Tokushima Takamatsu Yakushima Tanegashima ● ●◆ 50 airports)

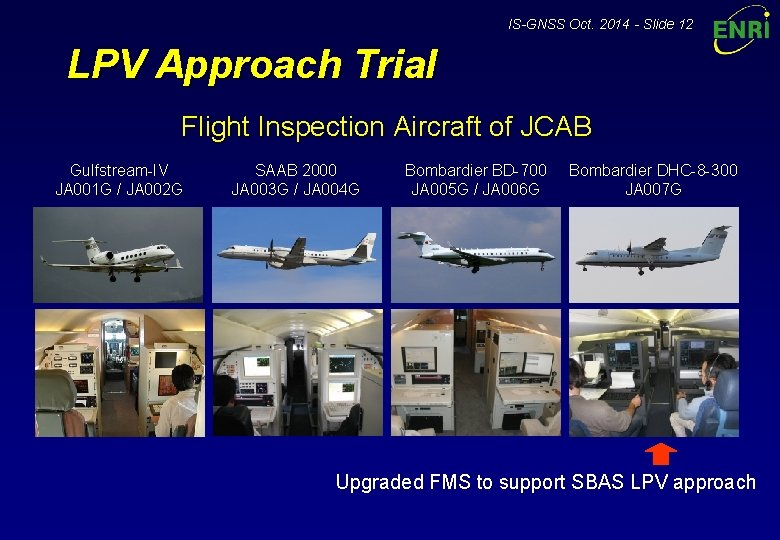

IS-GNSS Oct. 2014 - Slide 12 LPV Approach Trial Flight Inspection Aircraft of JCAB Gulfstream-IV JA 001 G / JA 002 G SAAB 2000 JA 003 G / JA 004 G Bombardier BD-700 JA 005 G / JA 006 G Bombardier DHC-8 -300 JA 007 G Upgraded FMS to support SBAS LPV approach

IS-GNSS Oct. 2014 - Slide 13 DHC-8 Upgraded for LPV Announciator EADI EHSI MLS= MSAS Landing System? (They used I/F for MLS, micro-wave landing system)

IS-GNSS Oct. 2014 - Slide 14 Trial at Fukushima AP Database for LPV App = ILS Overlay at Fukushima, Niigata, Kouchi, Miho. On 16 July, 2010 Test Flight at Fukushima LPV Announciator ON Start Approach Captain Side: LPV Co-Pilot Side: ILS EADI/EHSI indicate same as ILS Indicate ‘ 0. 0 NM’ over the runway threshold HPL: 17. 4 m < HAL: 40 m VPL: 31. 3 m < VAL: 50 m GPS: 11 SV Completed LPV Approach with MSAS !! LPV Approach Chart for Test Flight （Fukushima Airport）

IS-GNSS Oct. 2014 - Slide 15 Performance Improvement Motivation • Provide Vertical Guidance – APV-I (LPV) or hopefully CAT-I (LPV 200) performance. • Hardware and Software Upgrade – Addition of up to 10 Ground Monitor Stations. – Installation of new algorithm developed by the ENRI. ü The current system uses the algorithm same as IOC WAAS. ü The algorithm should be improved to adapt to the Japanese ionosphere conditions which are more severe than U. S. and mitigate ionosphere effect.

IS-GNSS Oct. 2014 - Slide 16 Performance Improvement Current MSAS 08/1/17 APV-I Availability 6 GMS Planar Fit Enhanced MSAS 08/1/17 LPV-200 Availability 16 GMS + New Ionospheric Algorithm • The simulation result showing possibilities to improve the performance of MSAS.

IS-GNSS Oct. 2014 - Slide 17 Near-Term Outlook: Current Plan FY FY FY FY FY 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 Decision Making Year MTSAT-1 R Operation Future Satellite Systems Single satellite operation term MTSAT-2 Operation MSAS Commission 4 -year life extension • Eo. L of MTSAT-1 R is forecasted as the end of 2014. • Expect the extension of Eo. L of MTSAT-2 for 4 years. • After Eo. L of MTSAT-1 R, MSAS will be operated with 1 GEO. – Both KASC and HASC will operate with MTSAT-2. • Discussion on a successor to MSAS is ongoing: Other GEO project…

IS-GNSS Oct. 2014 - Slide 18 Conclusion • MSAS has been operational since Sept. 2007. – – – An operational SBAS in accordance with ICAO standards. Stable operation with two GEOs and two MCSs. Continue to serve with Enroute to NPA performance. • MSAS GEO: – Currently operating with MTSAT-1 R/MTSAT-2 GEOs. – End of life of the 2 nd GEO is extended, but in 2020. – Currently discussing the plan beyond 2020. • Contact: sakai@enri. go. jp
