IRRInet ICC Company Presentation 2010 System Concept Presentation

IRRInet & ICC Company Presentation 2010 System Concept

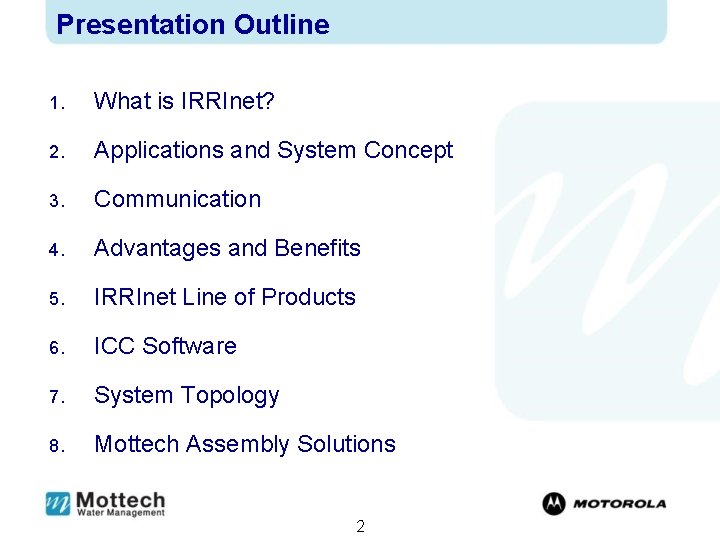

Presentation Outline 1. What is IRRInet? 2. Applications and System Concept 3. Communication 4. Advantages and Benefits 5. IRRInet Line of Products 6. ICC Software 7. System Topology 8. Mottech Assembly Solutions 2

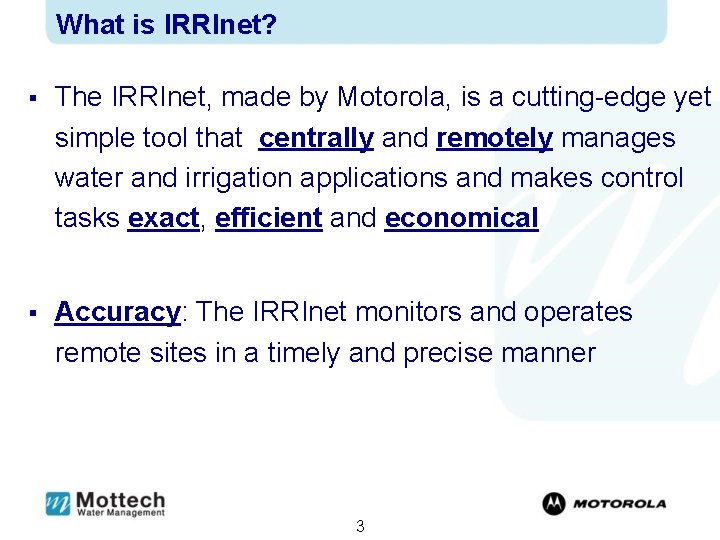

What is IRRInet? § The IRRInet, made by Motorola, is a cutting-edge yet simple tool that centrally and remotely manages water and irrigation applications and makes control tasks exact, efficient and economical § Accuracy: The IRRInet monitors and operates remote sites in a timely and precise manner 3

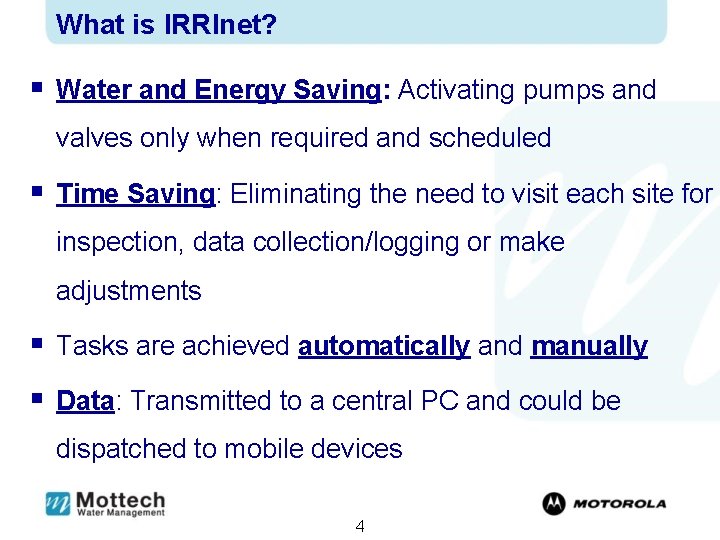

What is IRRInet? § Water and Energy Saving: Activating pumps and valves only when required and scheduled § Time Saving: Eliminating the need to visit each site for inspection, data collection/logging or make adjustments § Tasks are achieved automatically and manually § Data: Transmitted to a central PC and could be dispatched to mobile devices 4

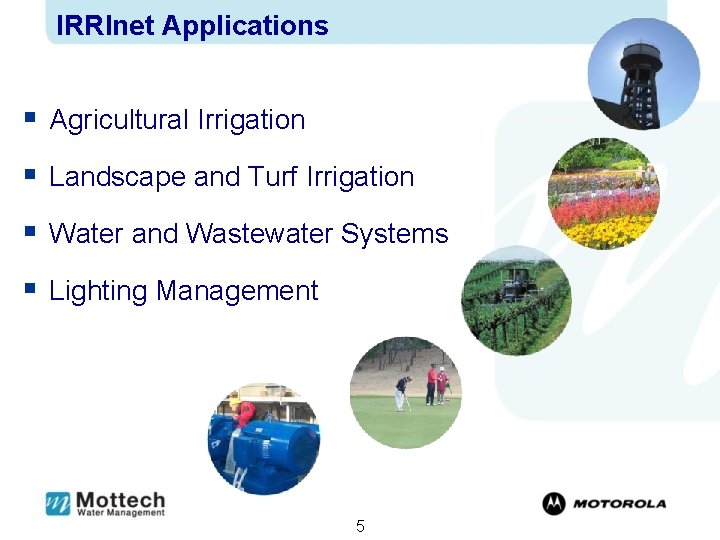

IRRInet Applications § Agricultural Irrigation § Landscape and Turf Irrigation § Water and Wastewater Systems § Lighting Management 5

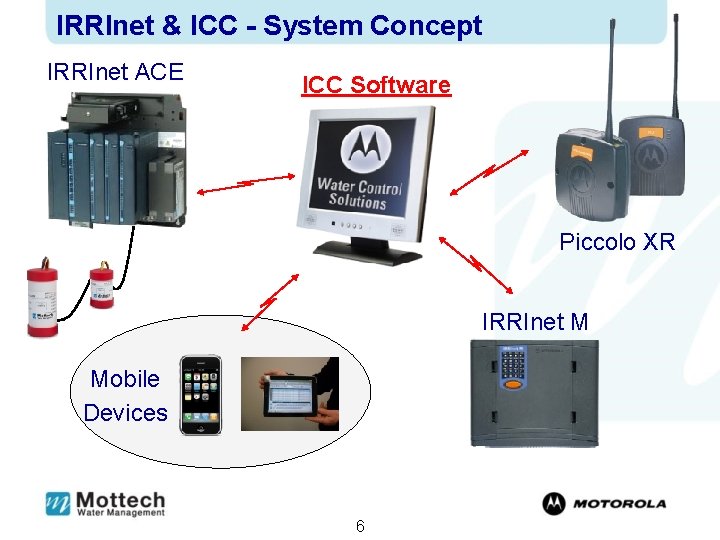

IRRInet & ICC - System Concept IRRInet ACE ICC Software Piccolo XR IRRInet M Mobile Devices 6

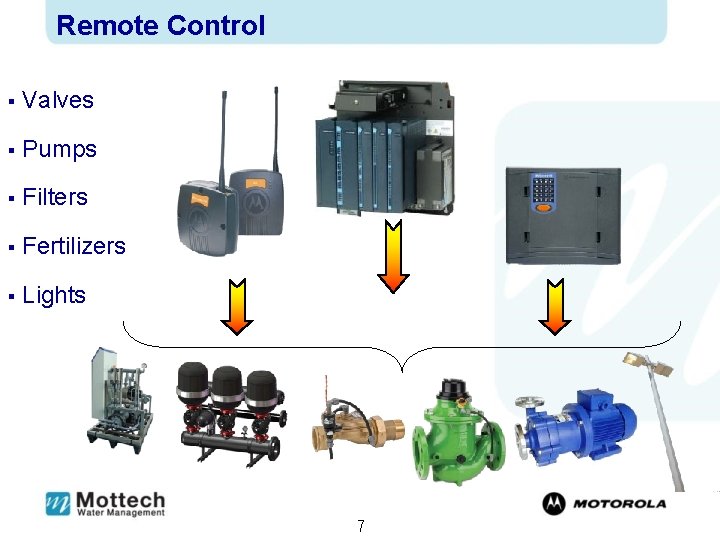

Remote Control § Valves § Pumps § Filters § Fertilizers § Lights 7

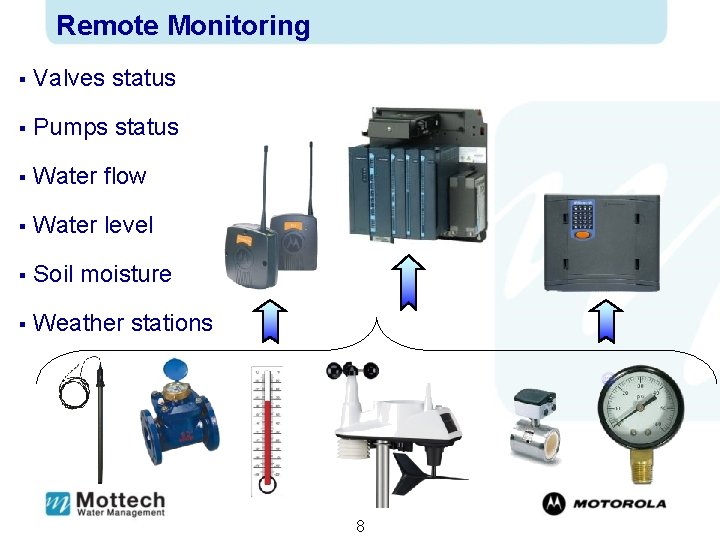

Remote Monitoring § Valves status § Pumps status § Water flow § Water level § Soil moisture § Weather stations 8

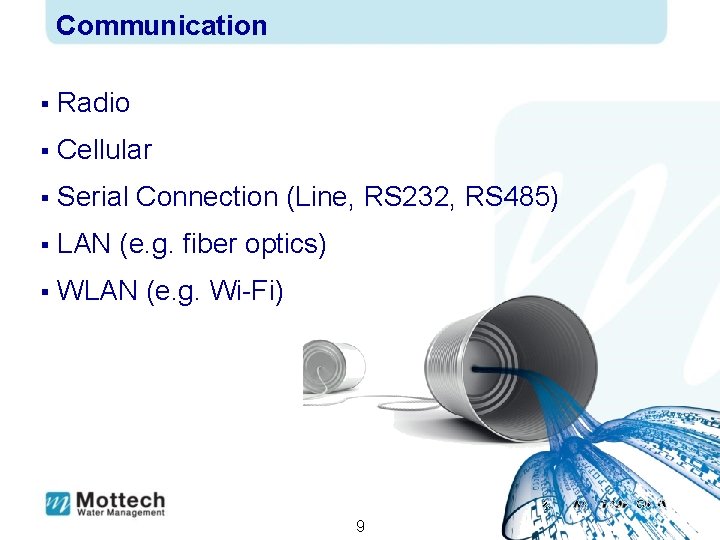

Communication § Radio § Cellular § Serial Connection (Line, RS 232, RS 485) § LAN (e. g. fiber optics) § WLAN (e. g. Wi-Fi) 9

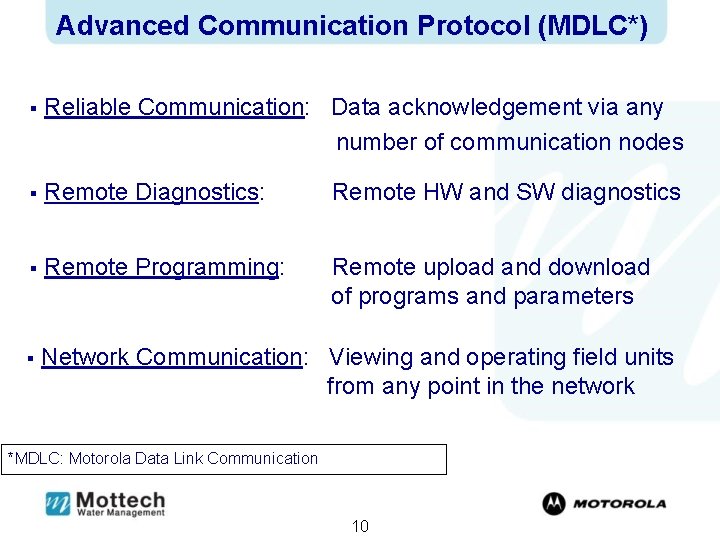

Advanced Communication Protocol (MDLC*) § Reliable Communication: Data acknowledgement via any number of communication nodes § Remote Diagnostics: Remote HW and SW diagnostics § Remote Programming: Remote upload and download of programs and parameters § Network Communication: Viewing and operating field units from any point in the network *MDLC: Motorola Data Link Communication 10

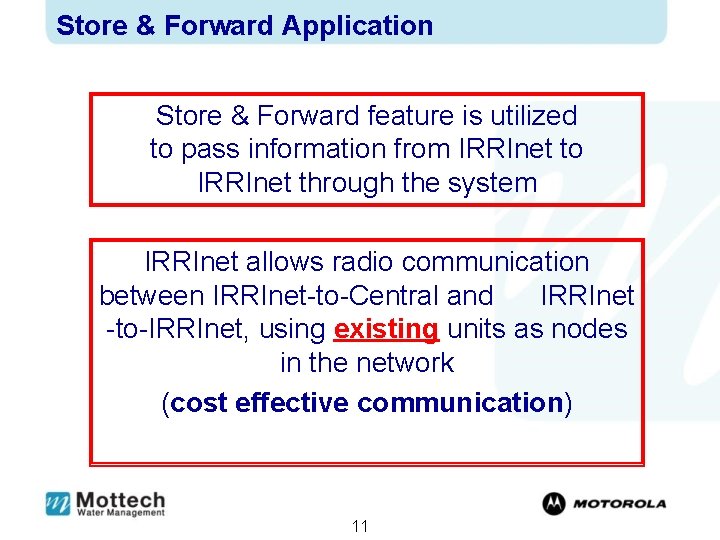

Store & Forward Application Store & Forward feature is utilized to pass information from IRRInet to IRRInet through the system IRRInet allows radio communication between IRRInet-to-Central and IRRInet -to-IRRInet, using existing units as nodes in the network (cost effective communication) 11

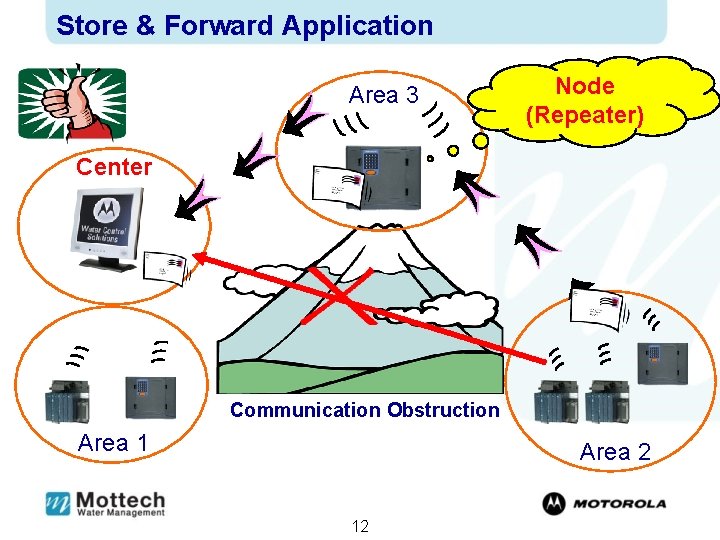

Store & Forward Application Area 3 Node (Repeater) Center Communication Obstruction Area 1 Area 2 12

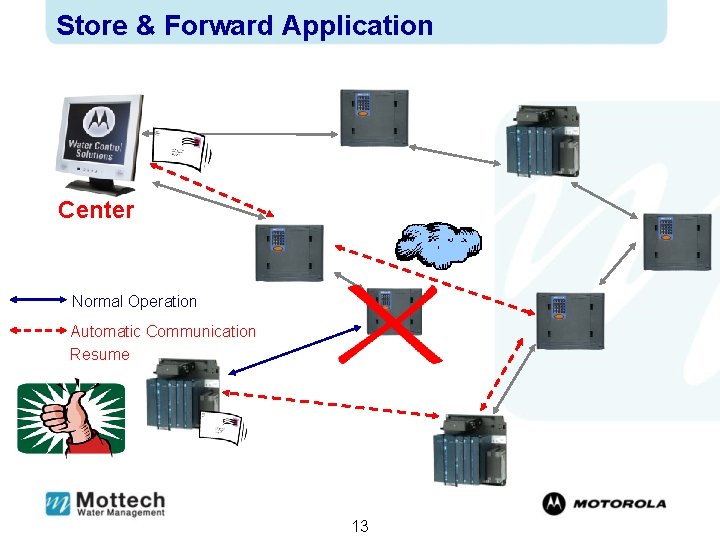

Store & Forward Application Center Normal Operation Automatic Communication Resume 13

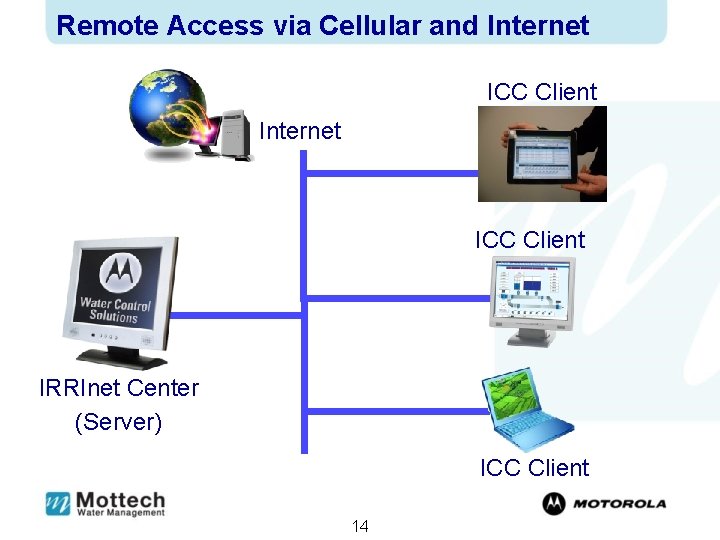

Remote Access via Cellular and Internet ICC Client IRRInet Center (Server) ICC Client 14

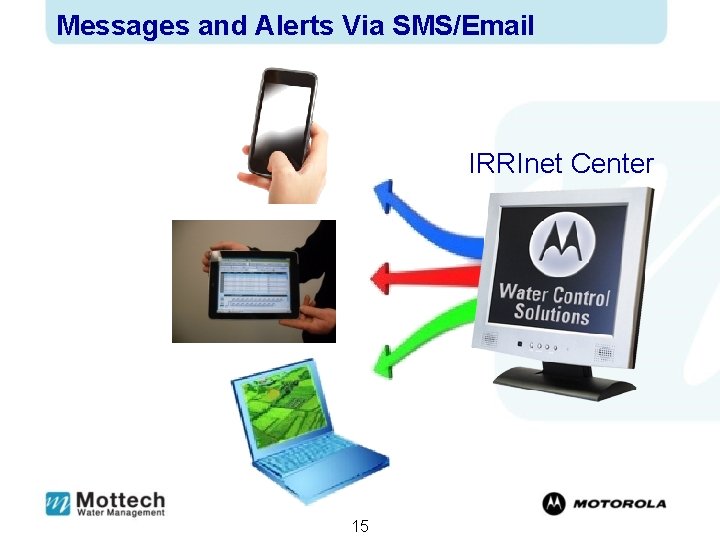

Messages and Alerts Via SMS/Email IRRInet Center 15

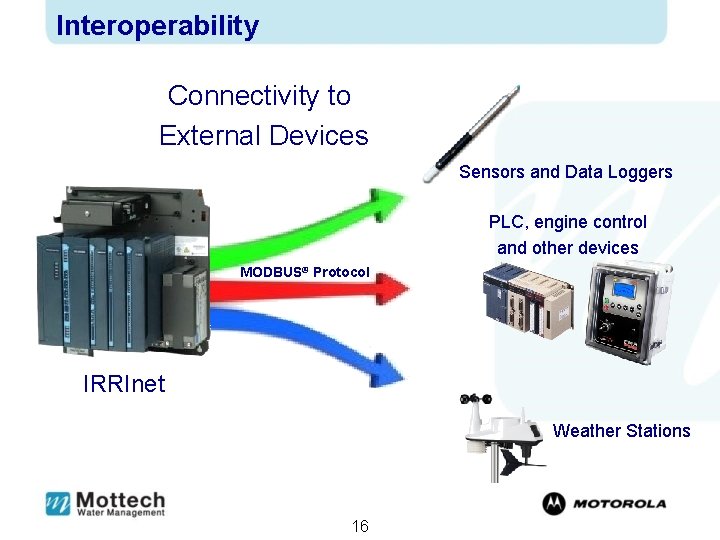

Interoperability Connectivity to External Devices Sensors and Data Loggers PLC, engine control and other devices MODBUS® Protocol IRRInet Weather Stations 16

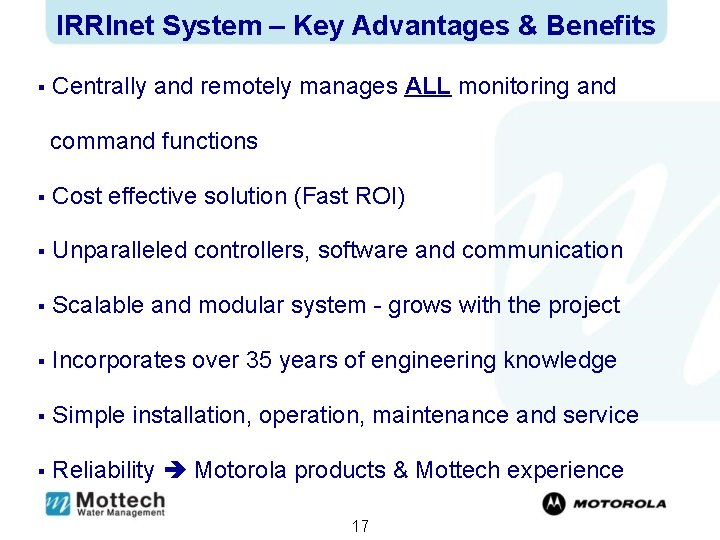

IRRInet System – Key Advantages & Benefits § Centrally and remotely manages ALL monitoring and command functions § Cost effective solution (Fast ROI) § Unparalleled controllers, software and communication § Scalable and modular system - grows with the project § Incorporates over 35 years of engineering knowledge § Simple installation, operation, maintenance and service § Reliability Motorola products & Mottech experience 17

IRRInet Products Company Presentation 2010

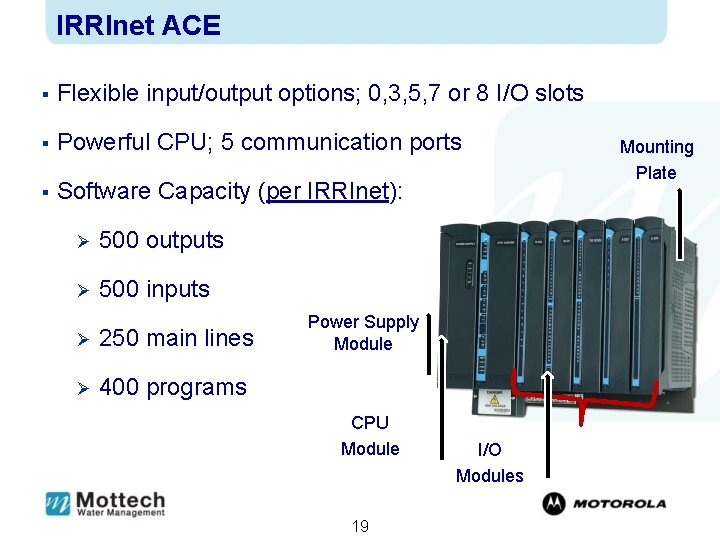

IRRInet ACE § Flexible input/output options; 0, 3, 5, 7 or 8 I/O slots § Powerful CPU; 5 communication ports § Software Capacity (per IRRInet): Ø 500 outputs Ø 500 inputs Ø 250 main lines Ø 400 programs Power Supply Module CPU Module 19 I/O Modules Mounting Plate

IRRInet ACE I/O Modules 16 DI § 32 DI § 8 DO § 16 DO § 8 AI § 16 DI/DO (software configuration) § 32 DI/DO (software configuration) § 16 DI + 4 DO + 4 AI § 20

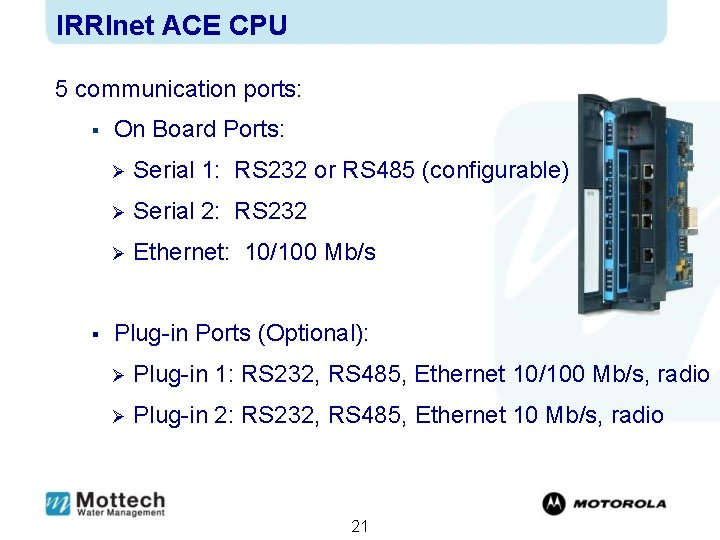

IRRInet ACE CPU 5 communication ports: § § On Board Ports: Ø Serial 1: RS 232 or RS 485 (configurable) Ø Serial 2: RS 232 Ø Ethernet: 10/100 Mb/s Plug-in Ports (Optional): Ø Plug-in 1: RS 232, RS 485, Ethernet 10/100 Mb/s, radio Ø Plug-in 2: RS 232, RS 485, Ethernet 10 Mb/s, radio 21

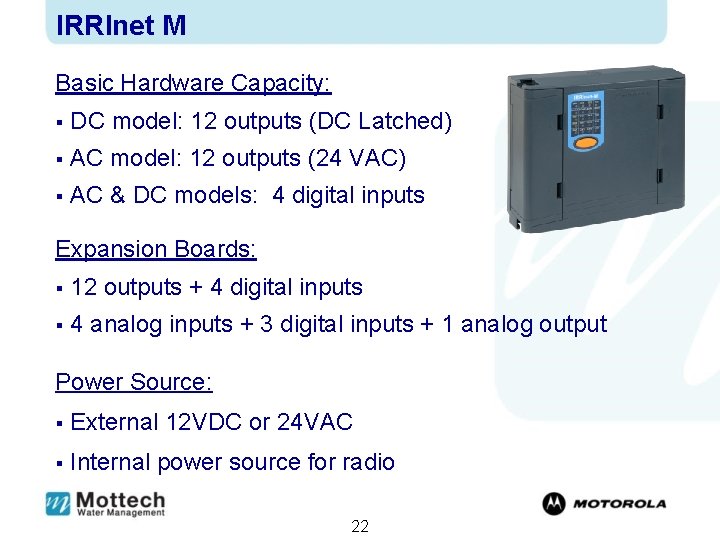

IRRInet M Basic Hardware Capacity: § DC model: 12 outputs (DC Latched) § AC model: 12 outputs (24 VAC) § AC & DC models: 4 digital inputs Expansion Boards: § 12 outputs + 4 digital inputs § 4 analog inputs + 3 digital inputs + 1 analog output Power Source: § External 12 VDC or 24 VAC § Internal power source for radio 22

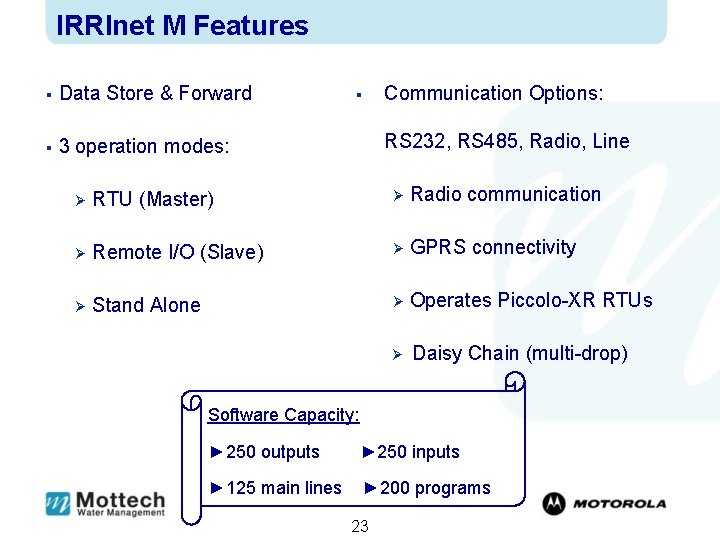

IRRInet M Features § Data Store & Forward § 3 operation modes: § Communication Options: RS 232, RS 485, Radio, Line Ø RTU (Master) Ø Radio communication Ø Remote I/O (Slave) Ø GPRS connectivity Ø Stand Alone Ø Operates Piccolo-XR RTUs Ø Daisy Chain (multi-drop) Software Capacity: ► 250 outputs ► 250 inputs ► 125 main lines ► 200 programs 23

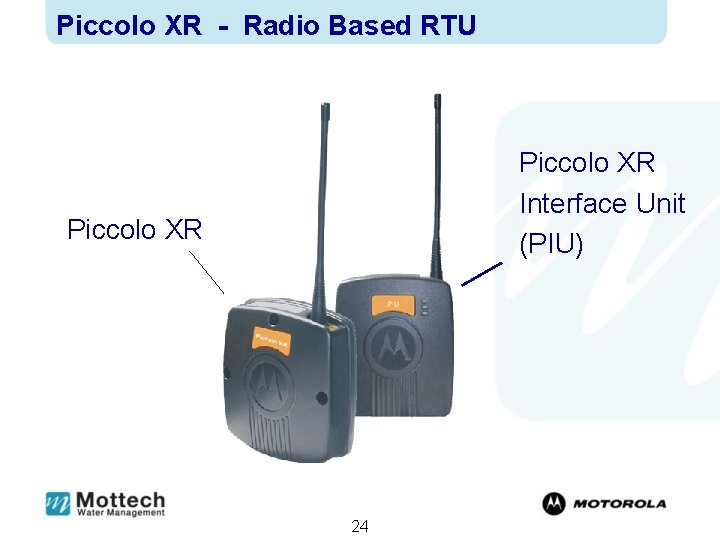

Piccolo XR - Radio Based RTU Piccolo XR Interface Unit (PIU) Piccolo XR 24

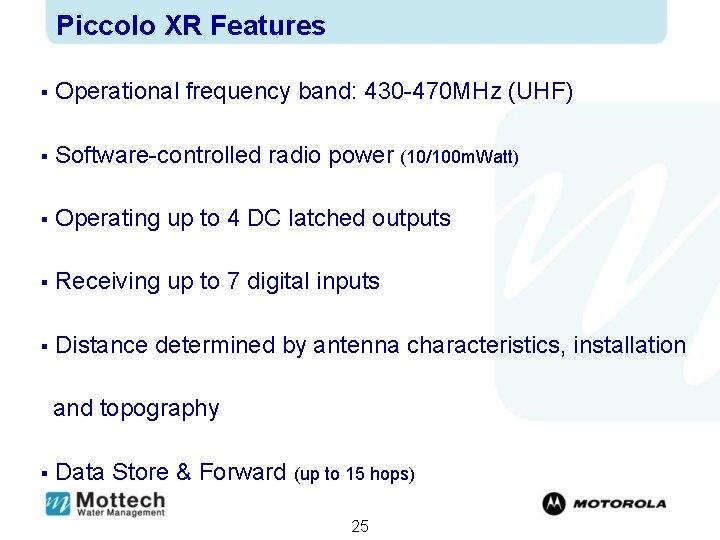

Piccolo XR Features § Operational frequency band: 430 -470 MHz (UHF) § Software-controlled radio power (10/100 m. Watt) § Operating up to 4 DC latched outputs § Receiving up to 7 digital inputs § Distance determined by antenna characteristics, installation and topography § Data Store & Forward (up to 15 hops) 25

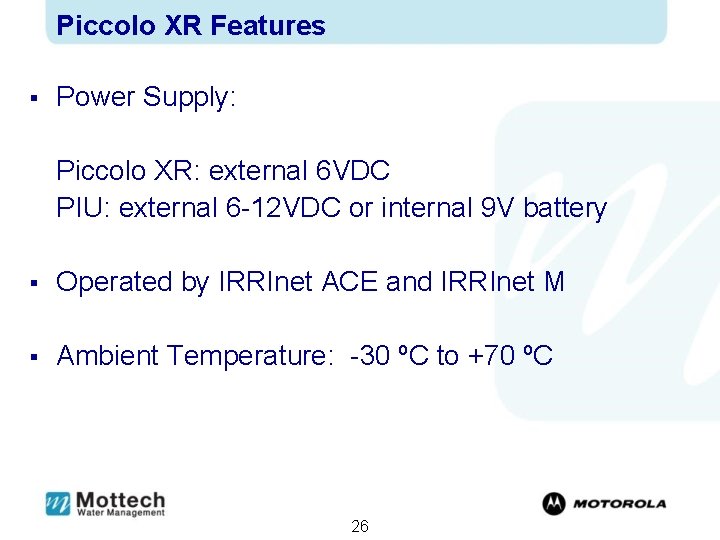

Piccolo XR Features § Power Supply: Piccolo XR: external 6 VDC PIU: external 6 -12 VDC or internal 9 V battery § Operated by IRRInet ACE and IRRInet M § Ambient Temperature: -30 ºC to +70 ºC 26

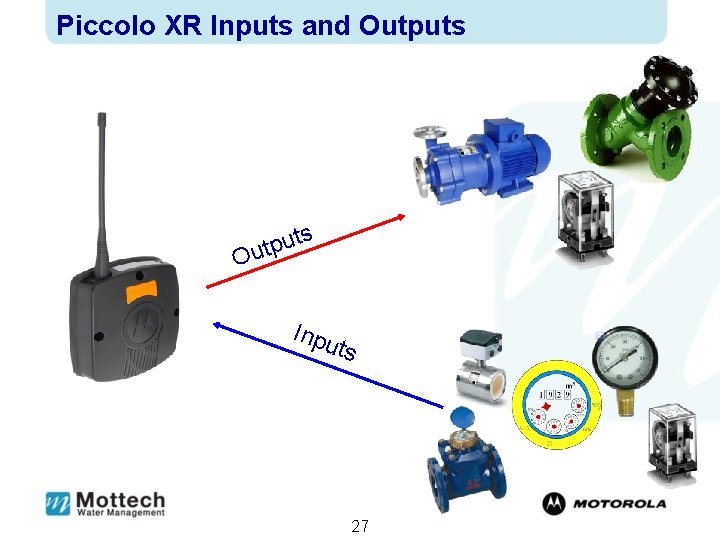

Piccolo XR Inputs and Outputs s t u p ut O Inpu ts 27

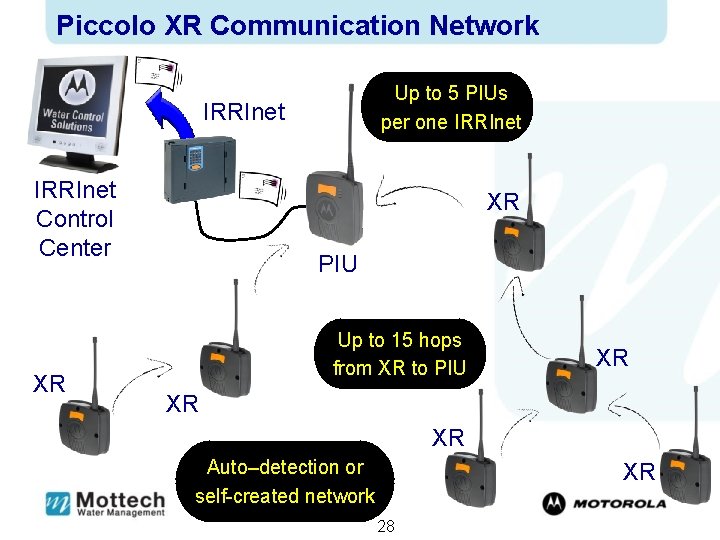

Piccolo XR Communication Network l. Up to 5 PIUs lper one IRRInet Control Center XR XR PIU Up to 15 hops from XR to PIU XR XR XR Auto–detection or self-created network XR 28

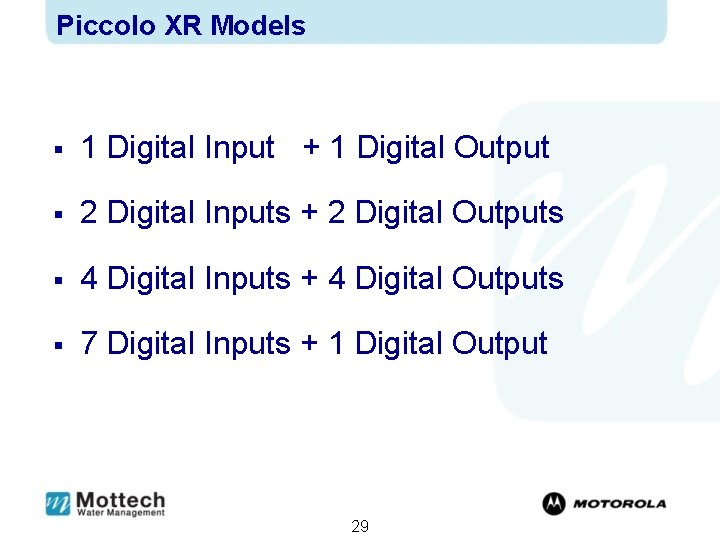

Piccolo XR Models § 1 Digital Input + 1 Digital Output § 2 Digital Inputs + 2 Digital Outputs § 4 Digital Inputs + 4 Digital Outputs § 7 Digital Inputs + 1 Digital Output 29

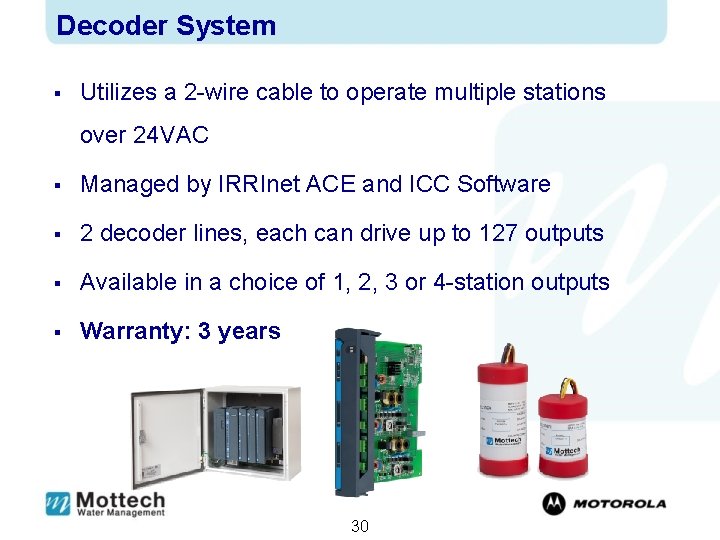

Decoder System § Utilizes a 2 -wire cable to operate multiple stations over 24 VAC § Managed by IRRInet ACE and ICC Software § 2 decoder lines, each can drive up to 127 outputs § Available in a choice of 1, 2, 3 or 4 -station outputs § Warranty: 3 years 30

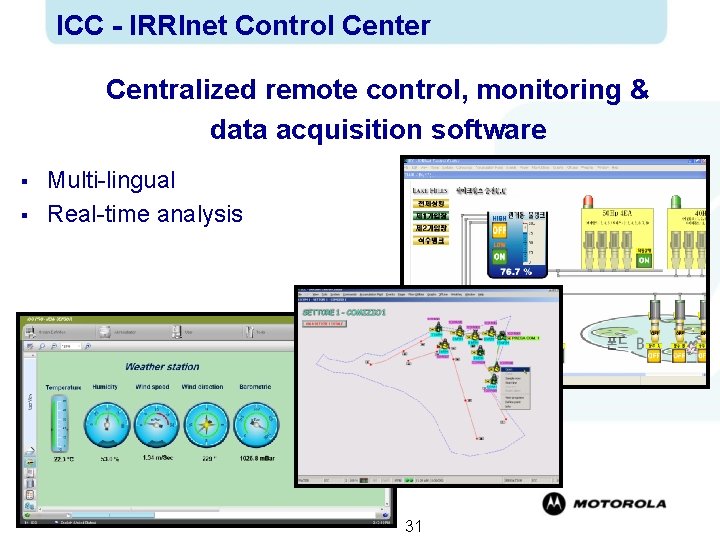

ICC - IRRInet Control Center Centralized remote control, monitoring & data acquisition software § § Multi-lingual Real-time analysis 31

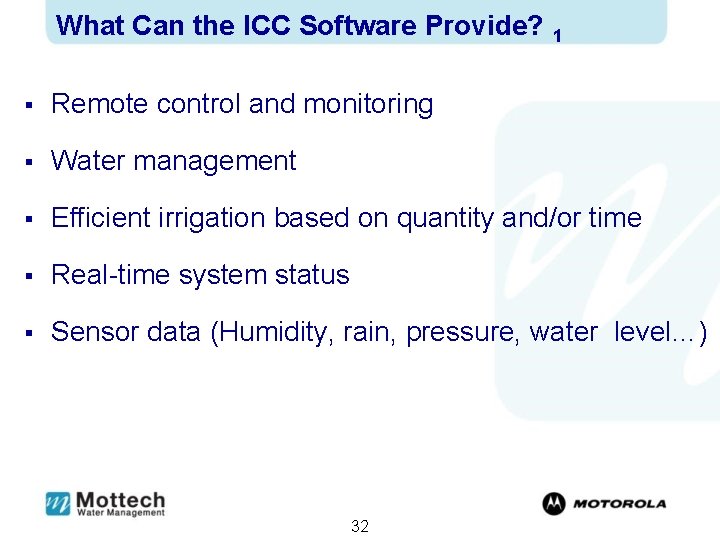

What Can the ICC Software Provide? 1 § Remote control and monitoring § Water management § Efficient irrigation based on quantity and/or time § Real-time system status § Sensor data (Humidity, rain, pressure, water level…) 32

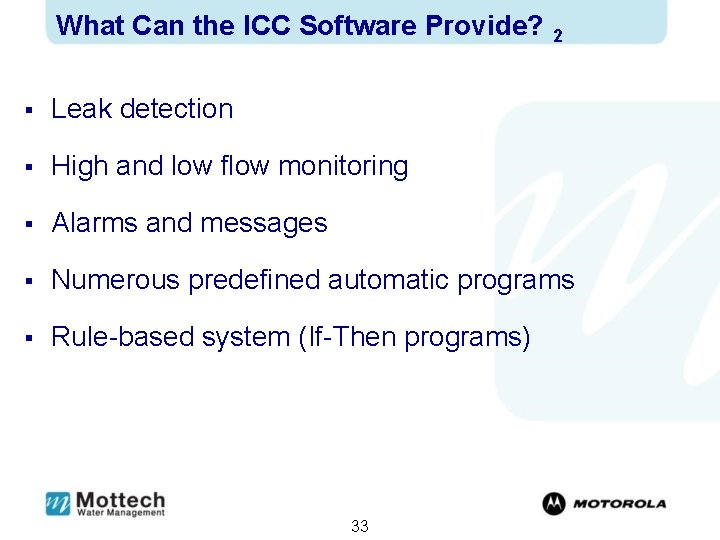

What Can the ICC Software Provide? 2 § Leak detection § High and low flow monitoring § Alarms and messages § Numerous predefined automatic programs § Rule-based system (If-Then programs) 33

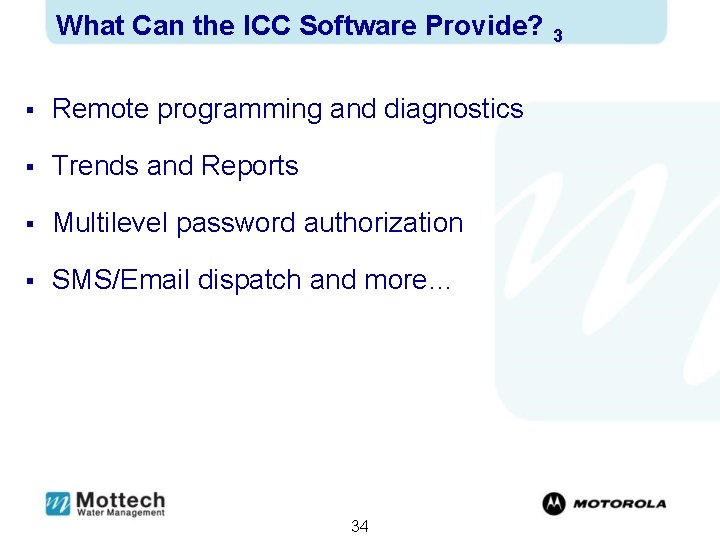

What Can the ICC Software Provide? 3 § Remote programming and diagnostics § Trends and Reports § Multilevel password authorization § SMS/Email dispatch and more… 34

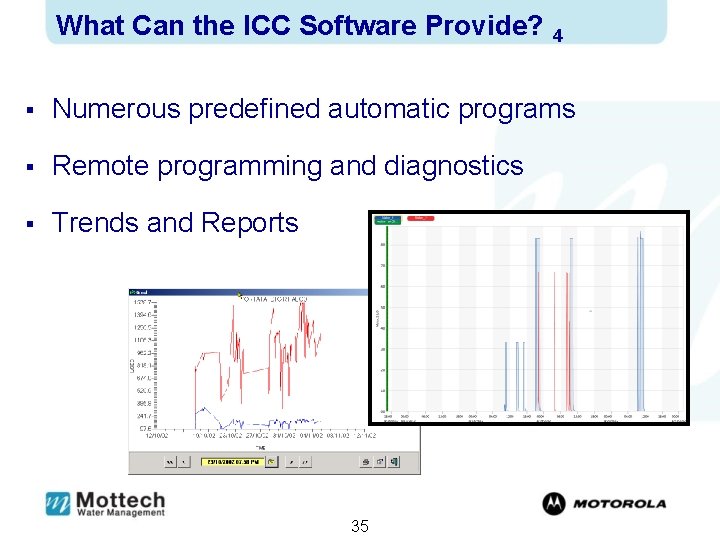

What Can the ICC Software Provide? 4 § Numerous predefined automatic programs § Remote programming and diagnostics § Trends and Reports 35

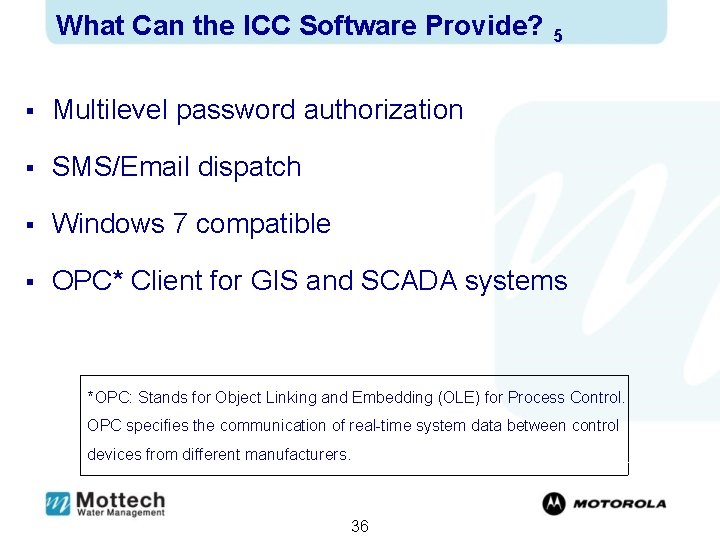

What Can the ICC Software Provide? 5 § Multilevel password authorization § SMS/Email dispatch § Windows 7 compatible § OPC* Client for GIS and SCADA systems *OPC: Stands for Object Linking and Embedding (OLE) for Process Control. OPC specifies the communication of real-time system data between control devices from different manufacturers. 36

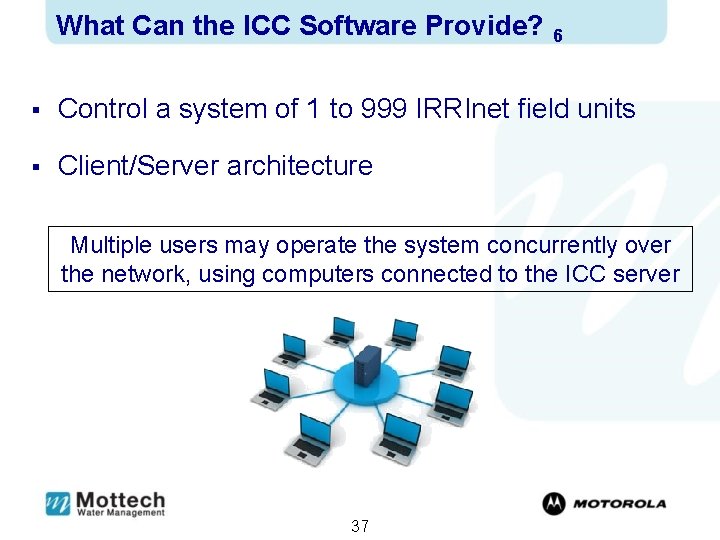

What Can the ICC Software Provide? 6 § Control a system of 1 to 999 IRRInet field units § Client/Server architecture Multiple users may operate the system concurrently over the network, using computers connected to the ICC server 37

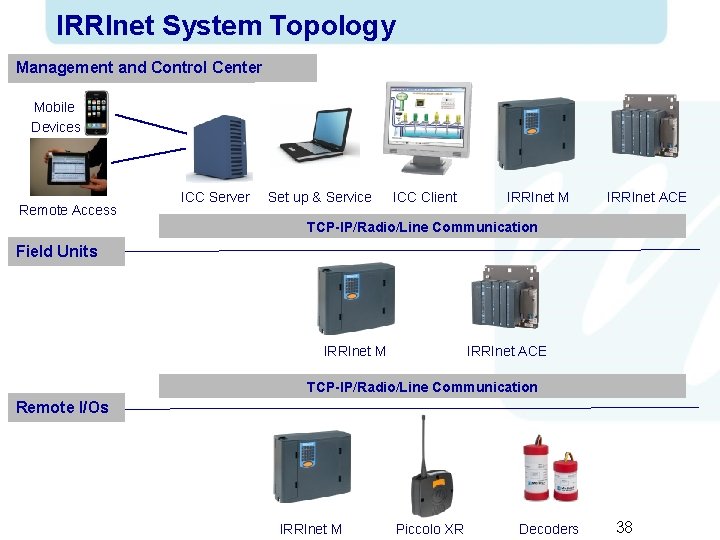

IRRInet System Topology Management and Control Center Mobile Devices Remote Access ICC Server Set up & Service ICC Client IRRInet M IRRInet ACE TCP-IP/Radio/Line Communication Field Units IRRInet M IRRInet ACE TCP-IP/Radio/Line Communication Remote I/Os IRRInet M Piccolo XR Decoders 38

Mottech Assembly Solutions Company Presentation 2010

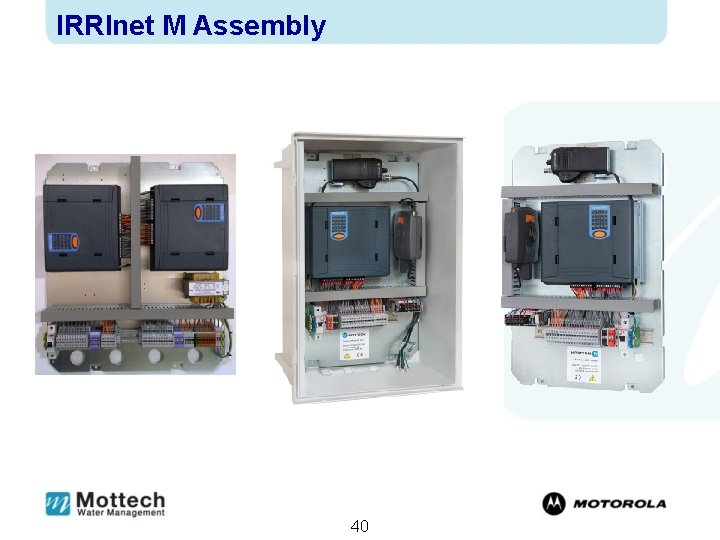

IRRInet M Assembly 40

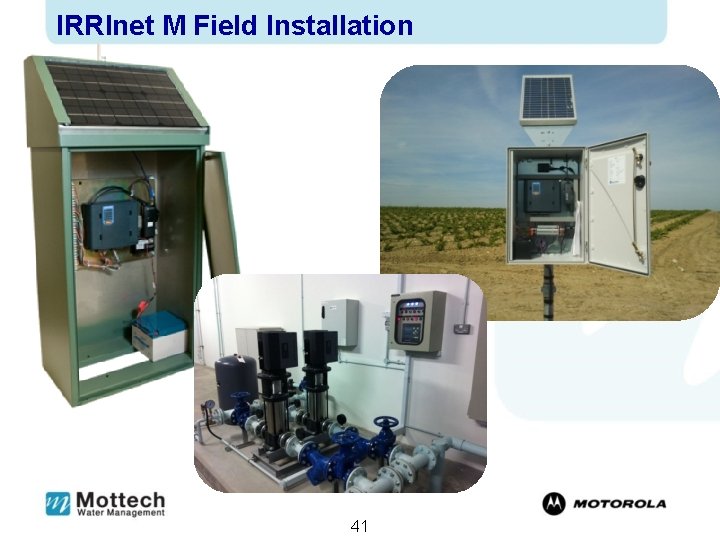

IRRInet M Field Installation 41

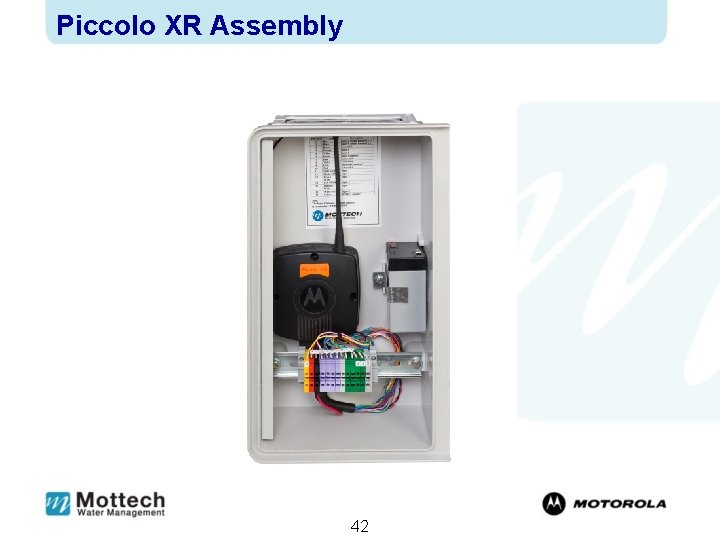

Piccolo XR Assembly 42

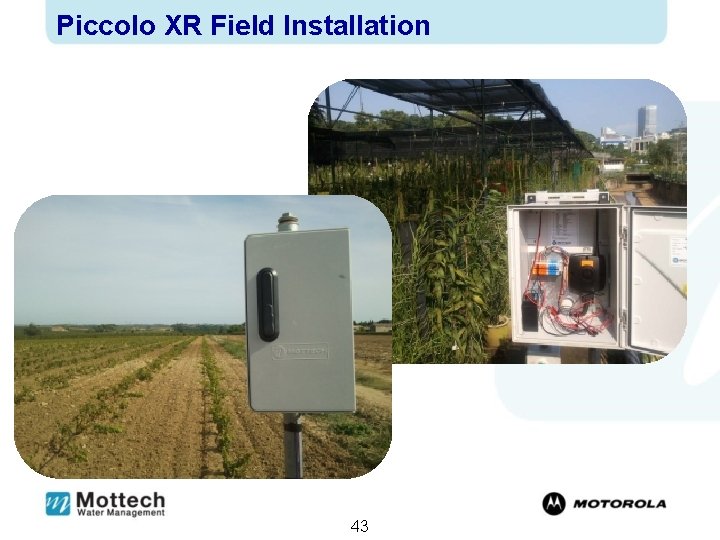

Piccolo XR Field Installation 43

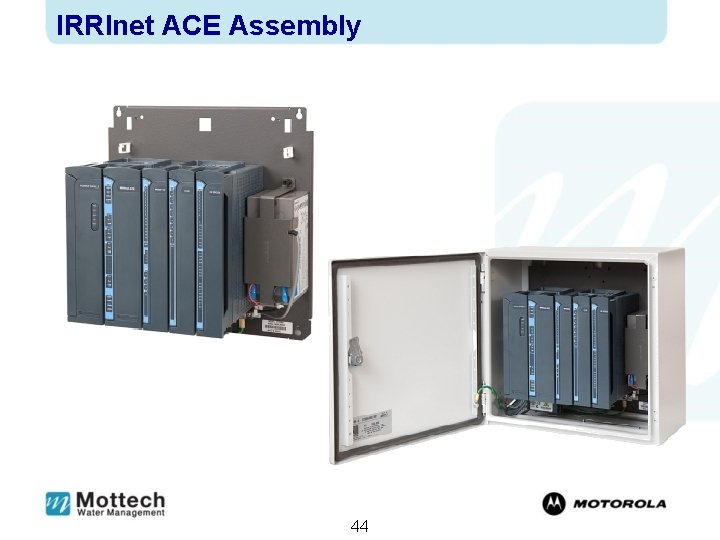

IRRInet ACE Assembly 44

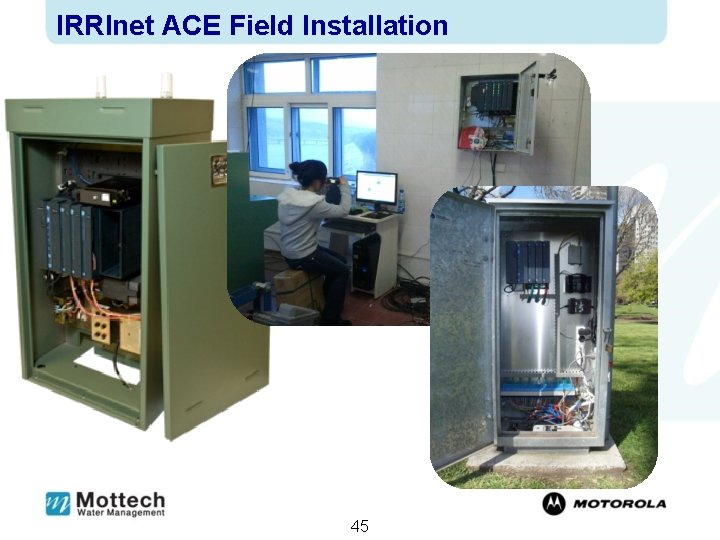

IRRInet ACE Field Installation 45

“What you cannot measure, you. Company cannot manage” Presentation 2010
