Irrigation Overview By John Pryor www hydrogold com
관수 총괄 Irrigation Overview By John Pryor www. hydrogold. com
관수 시스템의 기능 Function of An Irrigation System • 최적의 식물 생육을 위한 충분한 물을 효 율적으로 공급 Efficiently provide sufficient water for optimum growth of the plants • 강우와 증발산작용의 차이로 발생하는 부족 부분을 관수로 채워줌 Irrigation makes up the shortfall between rainfall and Evapo. Transpiration (ET) • 증발산작용은 증발과 증산을 통해 물이 손실되는 것을 포함한다 ET is the combined water loss of Evaporation and Transpiration • • 증발 : 물이 증발하는 현상 증산 : 식물체에서 물이 증발하는 현상

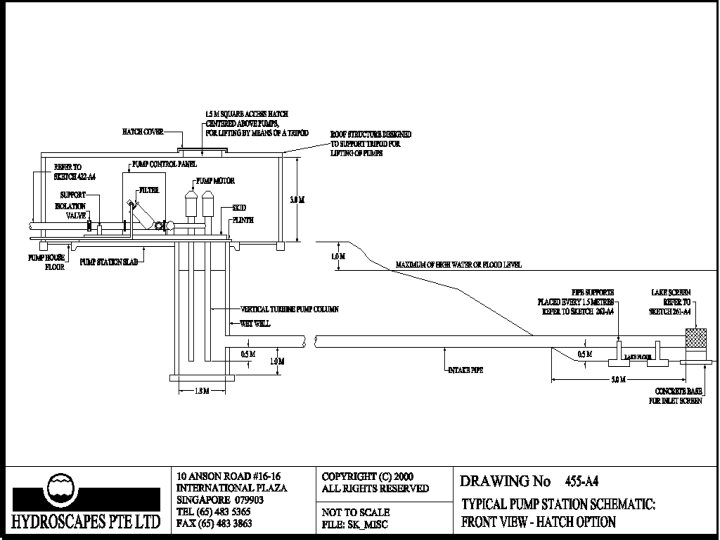

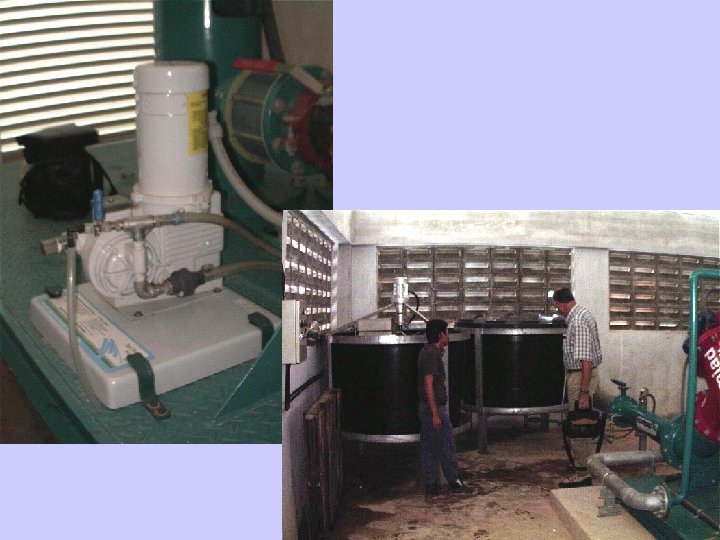

펌프 시설 & 부속품 Pump Station & Ancillaries • • • 관수용 호수 & 유입 라인Wet Well & Intake Line 펌프 Pumps 펌프 통제 시스템 Pump Control System 필터 Filters 퍼티게이션 시스템 Fertigation System
관수시설 구성 Irrigation Components • 가압 펌프 Booster Pumps • 감압 밸브 Pressure Reducing Valves • 주관 파이프 - u. PVC & HDPE Mainline Pipe - u. PVC & HDPE • 주관 필터 - 주철, PVC 아님 Mainline Fittings - Cast Iron, not PVC • 에어 밸브 Air Valves • 주관 분리 밸브 Mainline Isolation Valves • 지관 분리 밸브 Lateral Isolation Valves

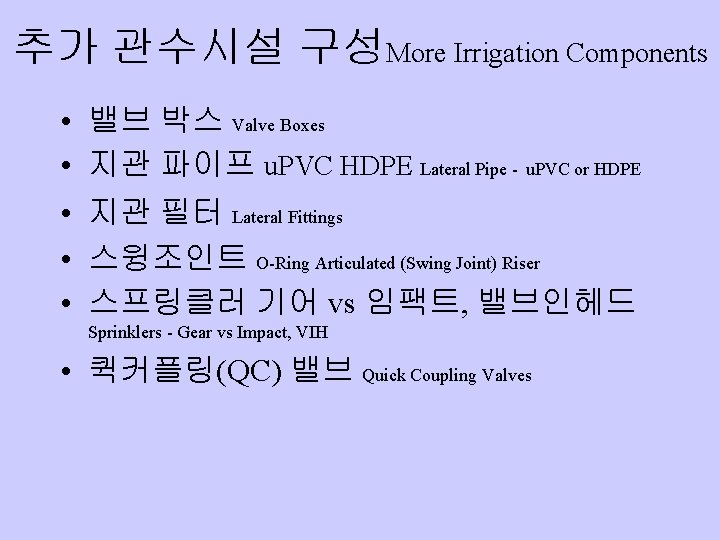

추가 관수시설 구성More Irrigation Components • • • 밸브 박스 Valve Boxes 지관 파이프 u. PVC HDPE Lateral Pipe - u. PVC or HDPE 지관 필터 Lateral Fittings 스윙조인트 O-Ring Articulated (Swing Joint) Riser 스프링클러 기어 vs 임팩트, 밸브인헤드 Sprinklers - Gear vs Impact, VIH • 퀵커플링(QC) 밸브 Quick Coupling Valves

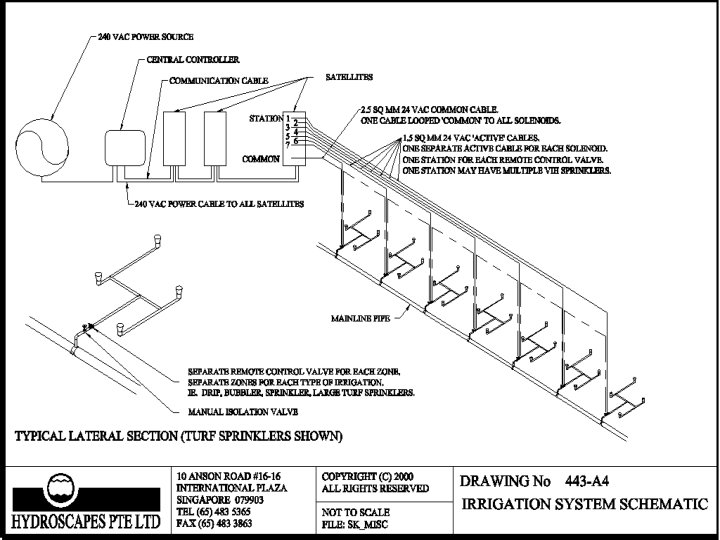

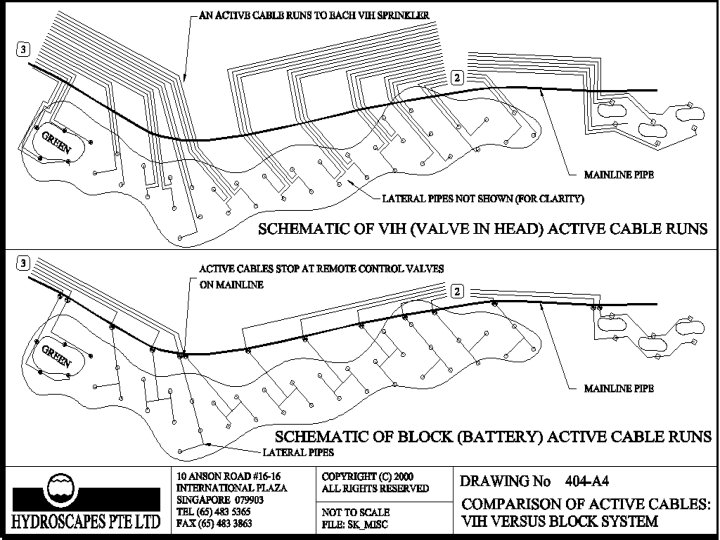

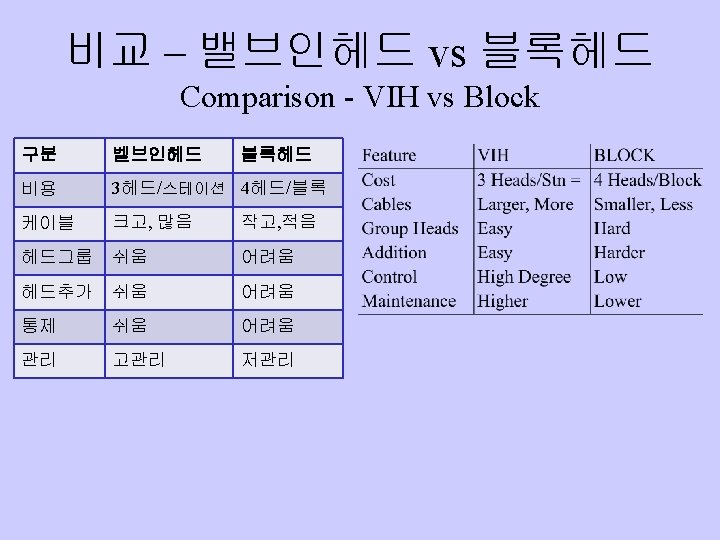

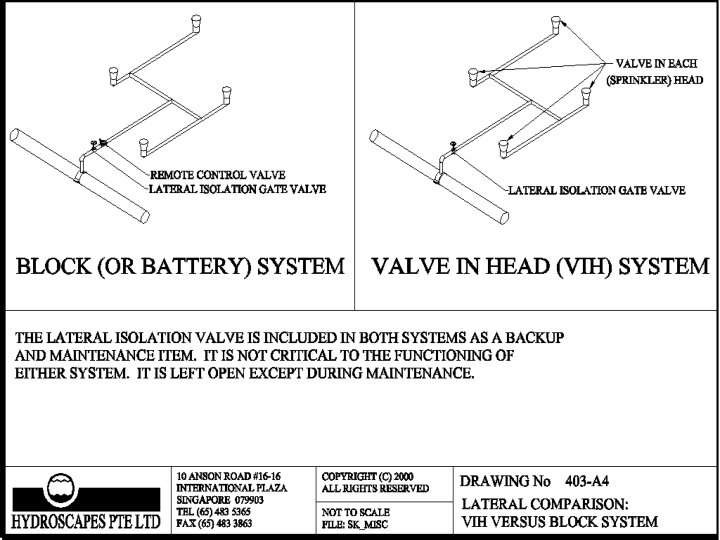

자동제어Automation • 밸브 인 헤드 스프링클러 Valve in Head Sprinklers • 원격통제 밸브 (솔레노이드 밸브)Remote Control Valves (Solenoid Valves) • • 현장 통제기 Field Controllers (Satellites) 중앙 통제기 Central Controller 배선- 고압&전압 -통신Wiring - High & Low Voltage - Communication 디코더 시스템 Decoder Systems
자동화 시스템 구축 Making Automatic Systems Work • 자동화 시스템에 대한 신뢰 Belief that it will work • 위임-현장직원의 관리를 대체 Commitment - from Management to Field Staff • 관리-자동화가 ‘비관리’를 의미하는 것은 아님 Maintenance - Automatic does not mean “no maintenance”

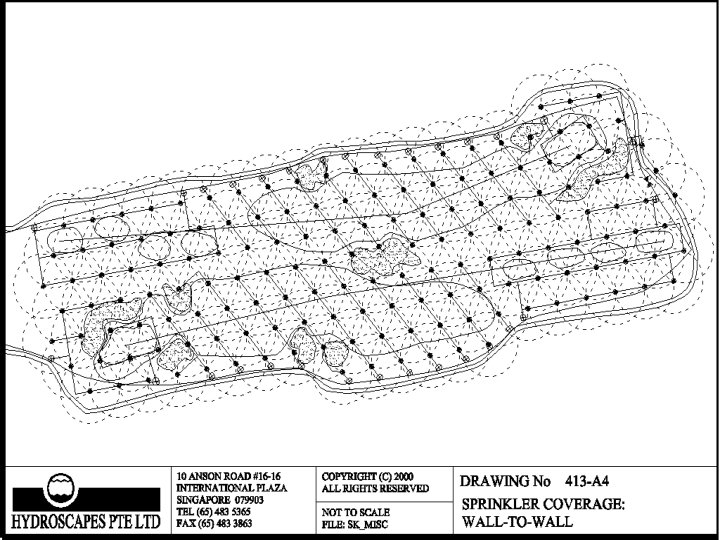

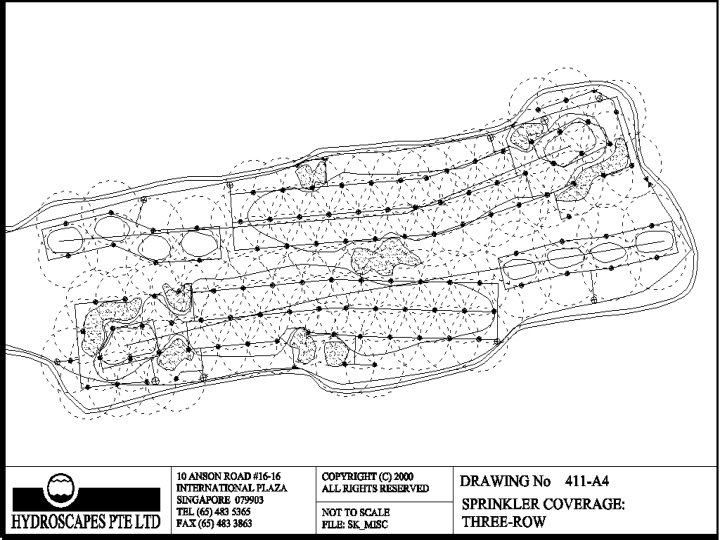

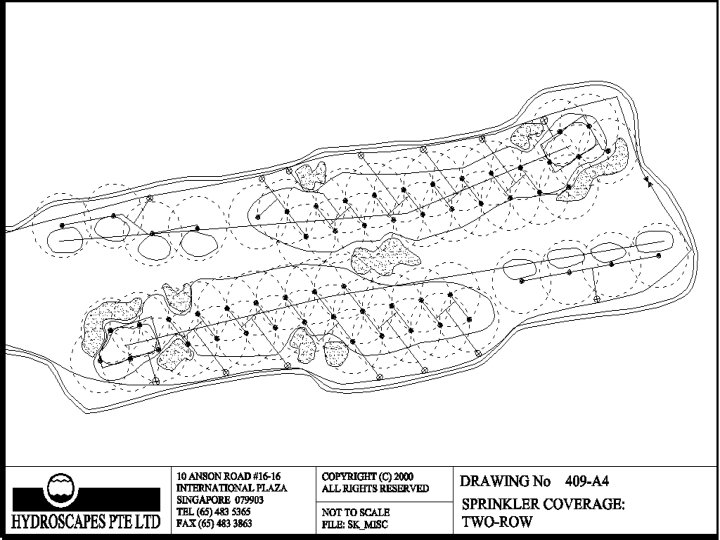

기본 관수 조건 Basic Irrigation Parameters • 관수범위 Area of Coverage • 관수용량 Application • 관수시간 Watering Window 범위 AREA 용량 APPLICATION 펌프압Pumping rate = 범위Area * 용량Application 관수시간 Watering Window

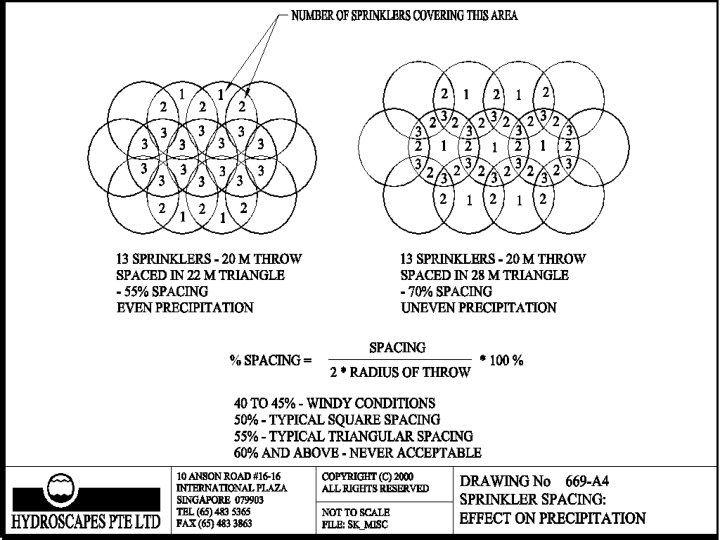

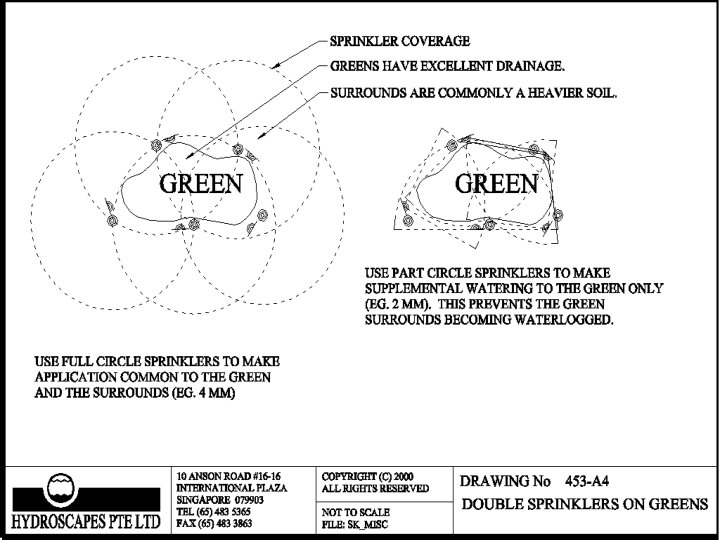

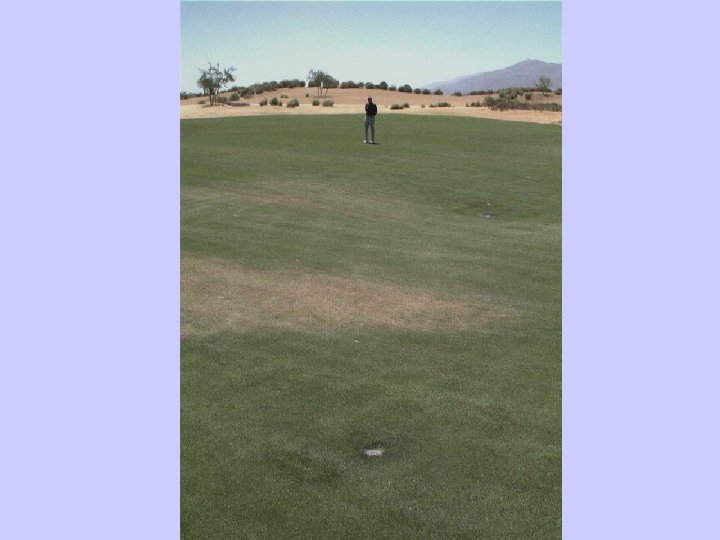

스프링클러 선택 Sprinkler Selection • 바람-가장 주요한 요인 Wind - Most Significant Factor • 기어식 vs 충격식 – 기어 로터리 방식이 보다 적은 비용으로 장기적인 사용이 가능함Gear Rotor vs Impact - Gear Rotor is Lower Cost and Better Long Term Performance • 살수간격 Spacing • 살수반경 Throw • 공간(점유)비율 Percentage Spacing

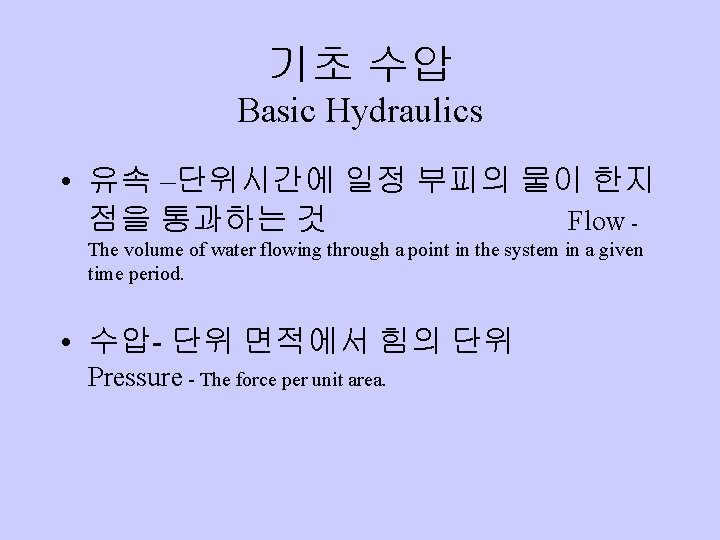

기초 수압 Basic Hydraulics • 유속 –단위시간에 일정 부피의 물이 한지 점을 통과하는 것 Flow The volume of water flowing through a point in the system in a given time period. • 수압- 단위 면적에서 힘의 단위 Pressure - The force per unit area.
유속 계산 – 파이프 사이즈 Flow Calculations - Pipe Sizing • 대형 파이프 Large Pipe • 수압 효율 Hydraulically Efficient • 비싼가격 Expensive • • 작은 파이프 Small Pipe 높은 유속 Higher Fluid Velocity 높은 마찰 손실 Higher Friction Losses 높은 서지 압력 Larger Pressure Surges 지 압력 : 특정구간에서 갑작스러운 압력 증가 • 시스템 작동 오류 Incorrect Operation of System 서
압력 계산 Pressure Calculations • • • 필터 Filter 주관 및 설치 Mainline and Fittings 말단 및 설치 Lateral Lines and Fittings 연결 수직면 Articulated Riser 스프링클러 작동 압력Sprinkler Operating Pressure 마모, 훼손 & 추가를 위한 고려 Allowance for Wear, Tear & Additions
자동화의 이점 Benefits of Automation • 골퍼를 위해 – 더 나은 잔디관리를 위해 낮 동안 관수가 필요하지 않음 Attracts Golfers - No Daytime Watering and Better Turf • 통제력 증대 Increased Control • 인건비 감소 Lowers Labour Costs • 전력과 용수 비용 감소 Lowers Electricity and Water Costs • 용탈과 침식 방지 Prevent Run-Off and Erosion
