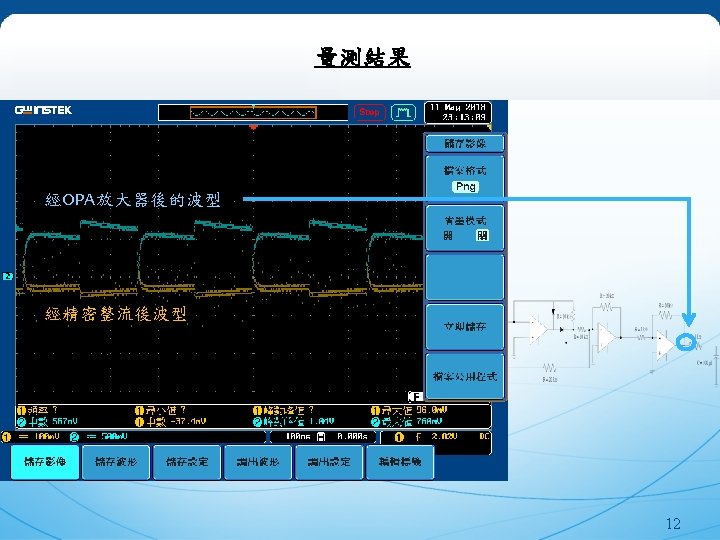

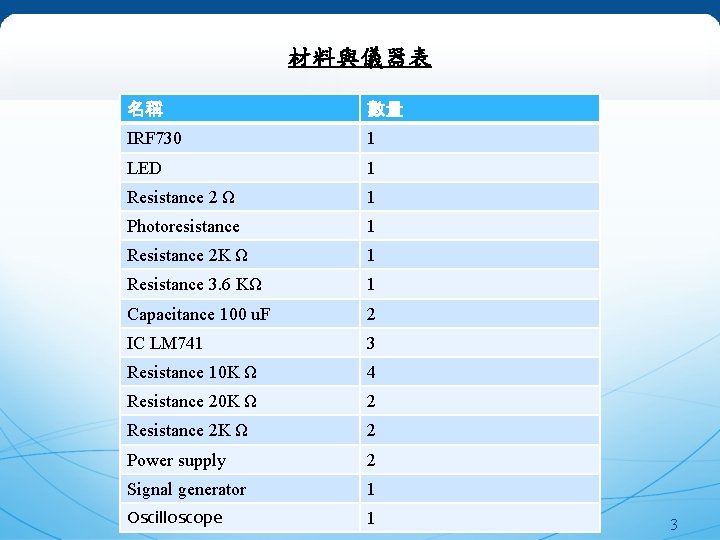

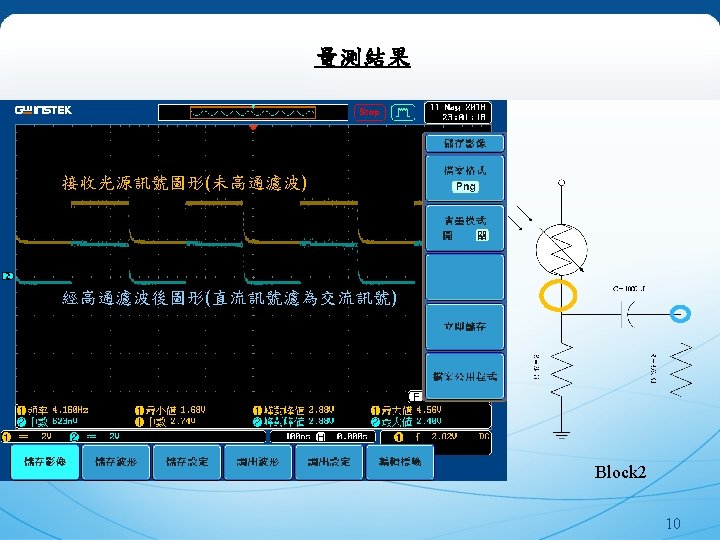

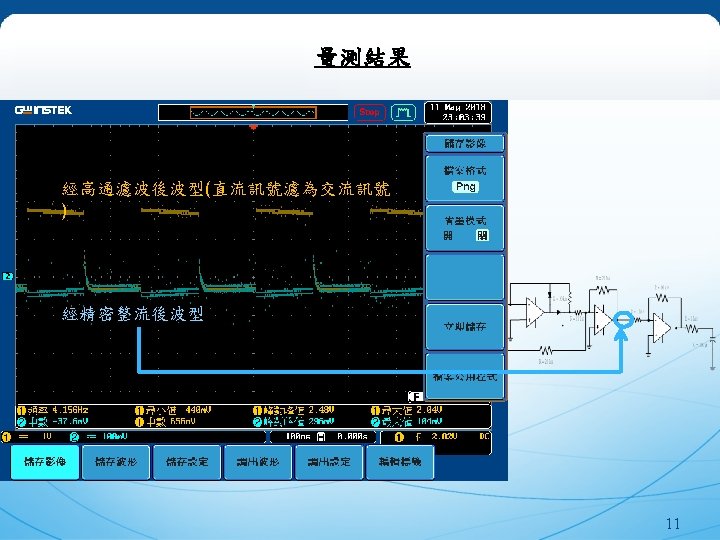

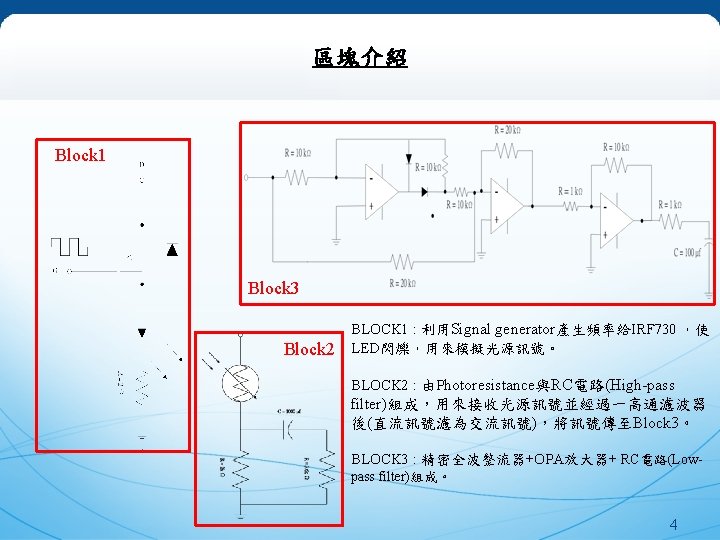

IRF 730 1 LED 1 Resistance 2 1 Slides: 14 Download presentation 研究背景 材料與儀器表 名稱 數量 IRF 730 1 LED 1 Resistance 2 Ω 1 Photoresistance 1 Resistance 2 K Ω 1 Resistance 3. 6 KΩ 1 Capacitance 100 u. F 2 IC LM 741 3 Resistance 10 K Ω 4 Resistance 20 K Ω 2 Resistance 2 K Ω 2 Power supply 2 Signal generator 1 Oscilloscope 1 3 電路介紹 Block 1 +5 V D Signal generator 4 Hz G S LED R= 2 Ω IRF 730接腳圖 5 電路介紹 Block 2 +5 V C= 100 u. F R= 2 KΩ R= 3. 6 KΩ 6 電路介紹 Block 3 LM 741接腳 7 電路介紹 Block 3 2 3 12 V 7 4 -12 V 12 V 6 -12 V 全波整流器 -12 V OPA放大器&RC電路 8 研究背景 量測架構 +5 V D 接收模擬光源訊號 Signal generator 4 Hz G +5 V S 12 V 2 3 12 V 7 4 6 -12 V 12 V -12 V 發送模擬光源訊號 GND Oscilloscope 9 THE END 14 SuchekIrf magnetometerArs 28-730Ieee 730730-170Trimble sps 930Arlon 25fr800 en yakın onluğa yuvarlamaConstant rate filtration exampleAir resistanceWhat is a ledEpi ledHp 서버 전면 ledConclusion of ledWhat indians were led by tomochichi? *
