IQ Analyzer 6400/6600 Series Cutler-Hammer Power Management Products High End Metering Capabilities

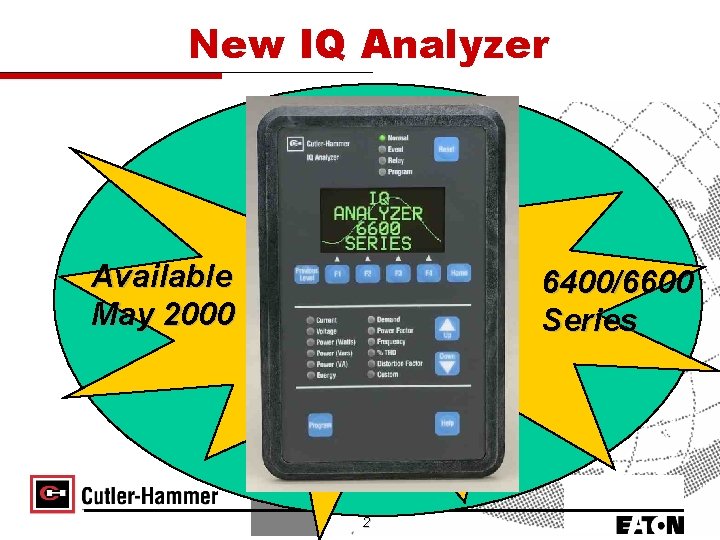

New IQ Analyzer Available May 2000 6400/6600 Series 2

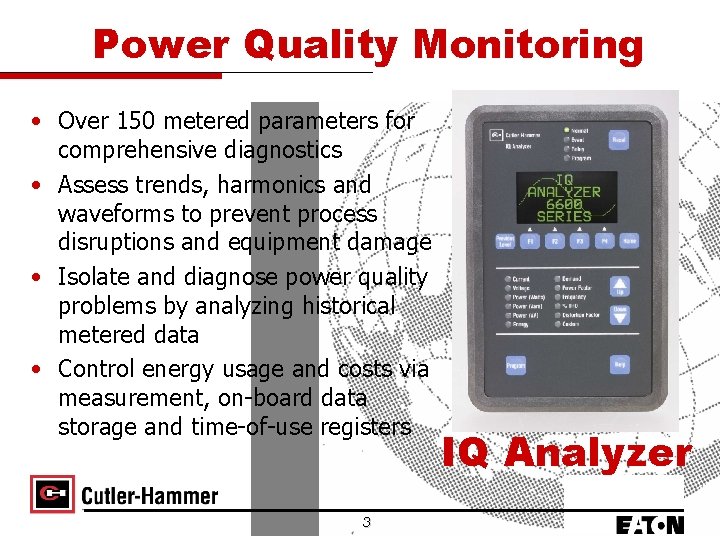

Power Quality Monitoring • Over 150 metered parameters for comprehensive diagnostics • Assess trends, harmonics and waveforms to prevent process disruptions and equipment damage • Isolate and diagnose power quality problems by analyzing historical metered data • Control energy usage and costs via measurement, on-board data storage and time-of-use registers 3 IQ Analyzer

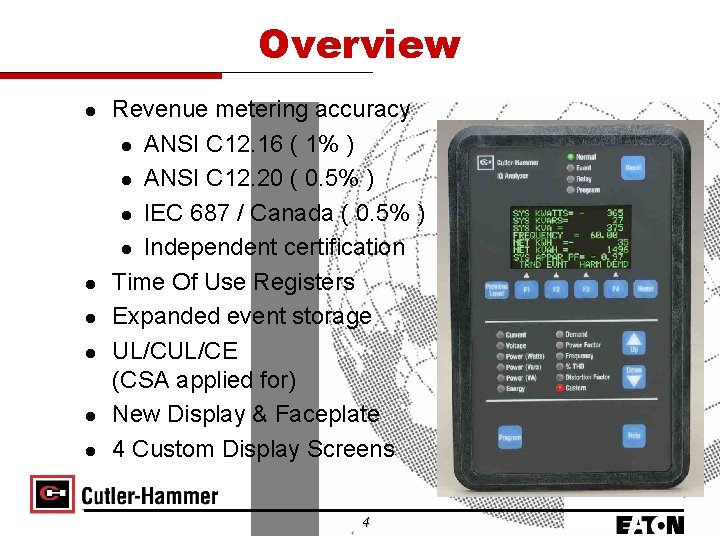

Overview l l l Revenue metering accuracy l ANSI C 12. 16 ( 1% ) l ANSI C 12. 20 ( 0. 5% ) l IEC 687 / Canada ( 0. 5% ) l Independent certification Time Of Use Registers Expanded event storage UL/CE (CSA applied for) New Display & Faceplate 4 Custom Display Screens 4

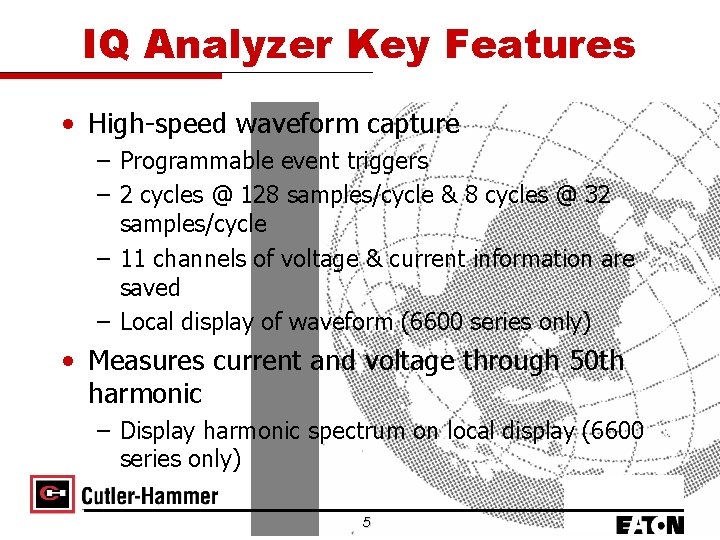

IQ Analyzer Key Features • High-speed waveform capture – Programmable event triggers – 2 cycles @ 128 samples/cycle & 8 cycles @ 32 samples/cycle – 11 channels of voltage & current information are saved – Local display of waveform (6600 series only) • Measures current and voltage through 50 th harmonic – Display harmonic spectrum on local display (6600 series only) 5

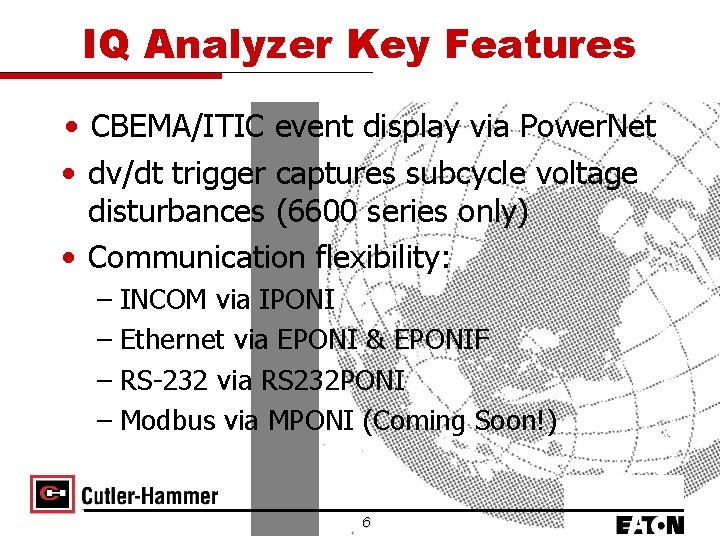

IQ Analyzer Key Features • CBEMA/ITIC event display via Power. Net • dv/dt trigger captures subcycle voltage disturbances (6600 series only) • Communication flexibility: – INCOM via IPONI – Ethernet via EPONI & EPONIF – RS-232 via RS 232 PONI – Modbus via MPONI (Coming Soon!) 6

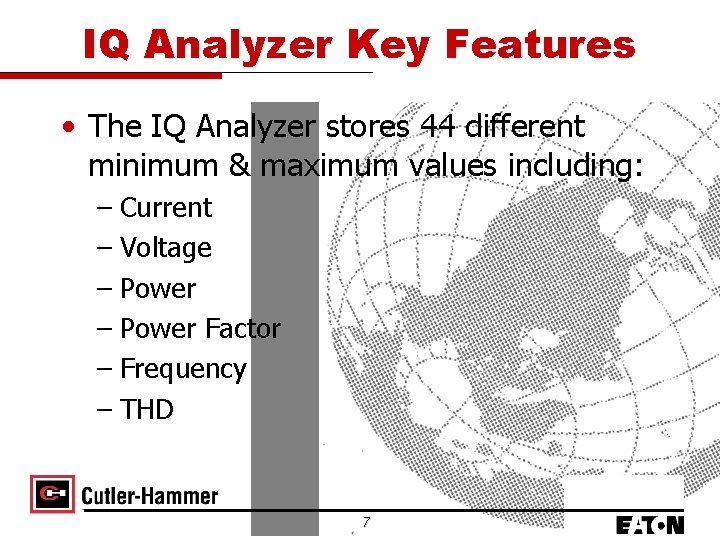

IQ Analyzer Key Features • The IQ Analyzer stores 44 different minimum & maximum values including: – Current – Voltage – Power Factor – Frequency – THD 7

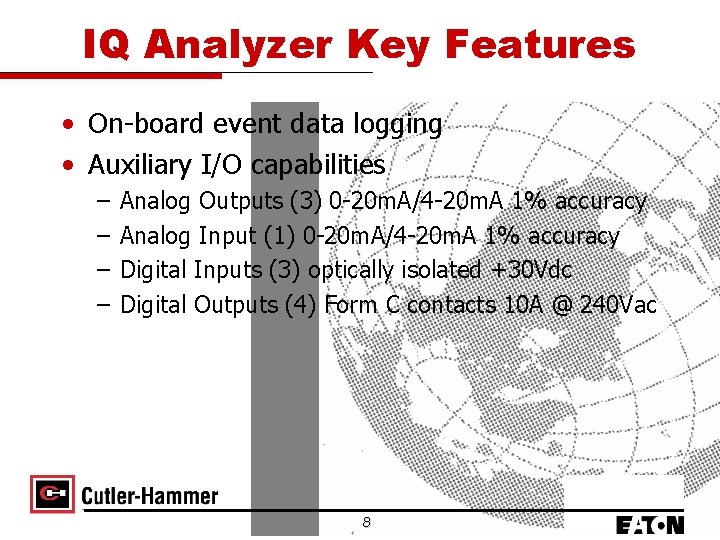

IQ Analyzer Key Features • On-board event data logging • Auxiliary I/O capabilities – – Analog Outputs (3) 0 -20 m. A/4 -20 m. A 1% accuracy Analog Input (1) 0 -20 m. A/4 -20 m. A 1% accuracy Digital Inputs (3) optically isolated +30 Vdc Digital Outputs (4) Form C contacts 10 A @ 240 Vac 8

IQ Analyzer Key Features • Monitors L-L, L-N, L-G and N-G voltage – PT ratios from 1: 1 to 5, 000: 1 • Monitors phase, neutral and ground current – CT ratios from 5: 5 to 10, 000: 5 – Up to 40 A continuous, 300 A for 1 second • Measures % Total Harmonic Distortion (THD) for current and voltage 9

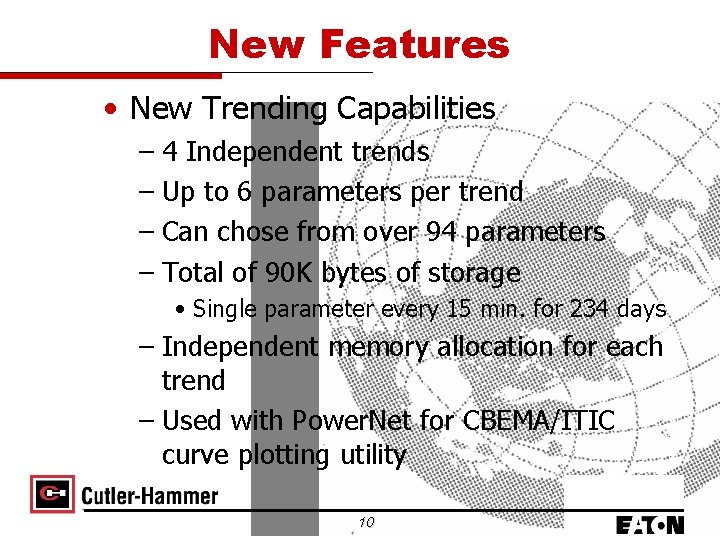

New Features • New Trending Capabilities – 4 Independent trends – Up to 6 parameters per trend – Can chose from over 94 parameters – Total of 90 K bytes of storage • Single parameter every 15 min. for 234 days – Independent memory allocation for each trend – Used with Power. Net for CBEMA/ITIC curve plotting utility 10

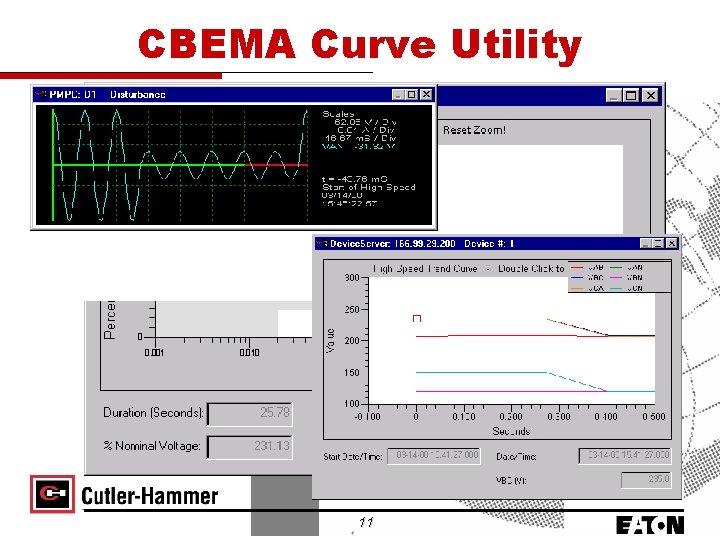

CBEMA Curve Utility 11

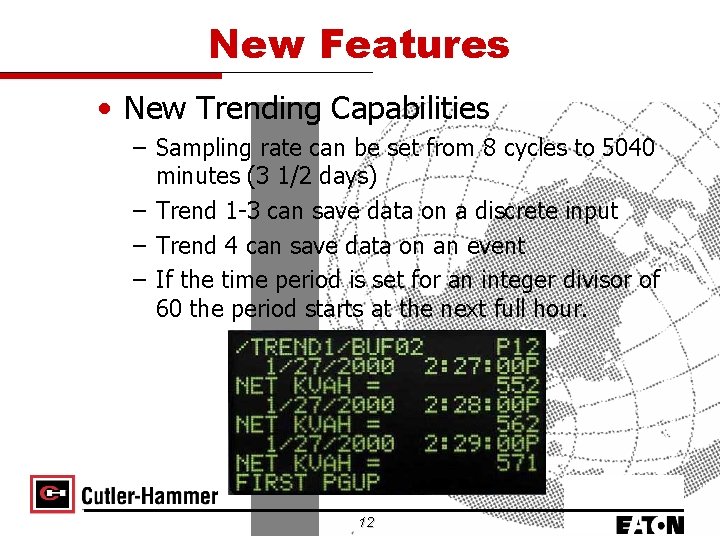

New Features • New Trending Capabilities – Sampling rate can be set from 8 cycles to 5040 minutes (3 1/2 days) – Trend 1 -3 can save data on a discrete input – Trend 4 can save data on an event – If the time period is set for an integer divisor of 60 the period starts at the next full hour. 12

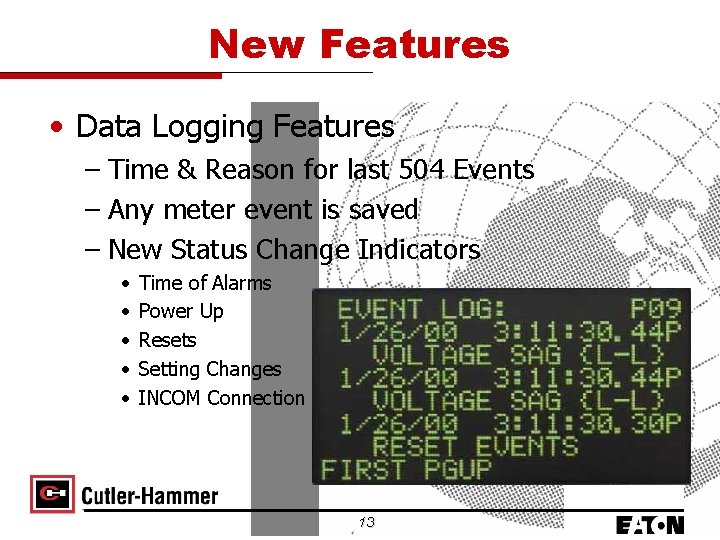

New Features • Data Logging Features – Time & Reason for last 504 Events – Any meter event is saved – New Status Change Indicators • • • Time of Alarms Power Up Resets Setting Changes INCOM Connection 13

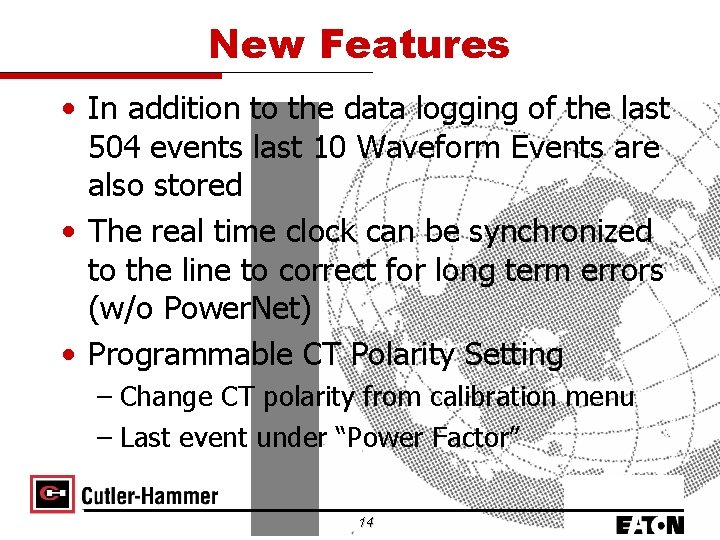

New Features • In addition to the data logging of the last 504 events last 10 Waveform Events are also stored • The real time clock can be synchronized to the line to correct for long term errors (w/o Power. Net) • Programmable CT Polarity Setting – Change CT polarity from calibration menu – Last event under “Power Factor” 14

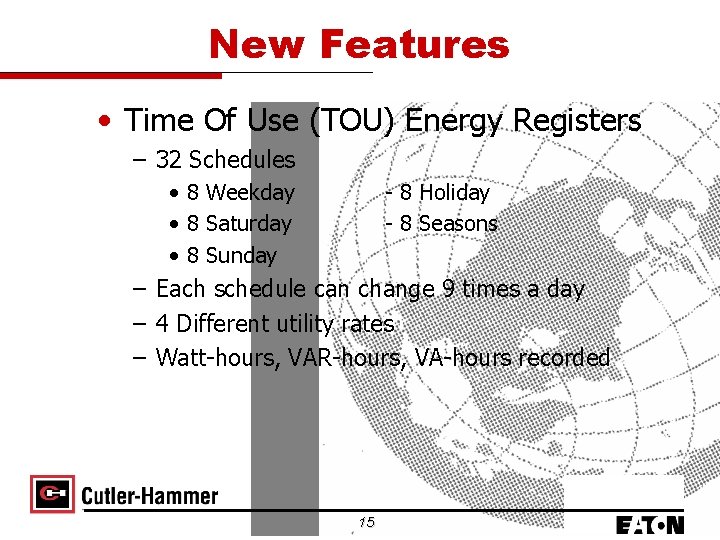

New Features • Time Of Use (TOU) Energy Registers – 32 Schedules • 8 Weekday • 8 Saturday • 8 Sunday - 8 Holiday - 8 Seasons – Each schedule can change 9 times a day – 4 Different utility rates – Watt-hours, VAR-hours, VA-hours recorded 15

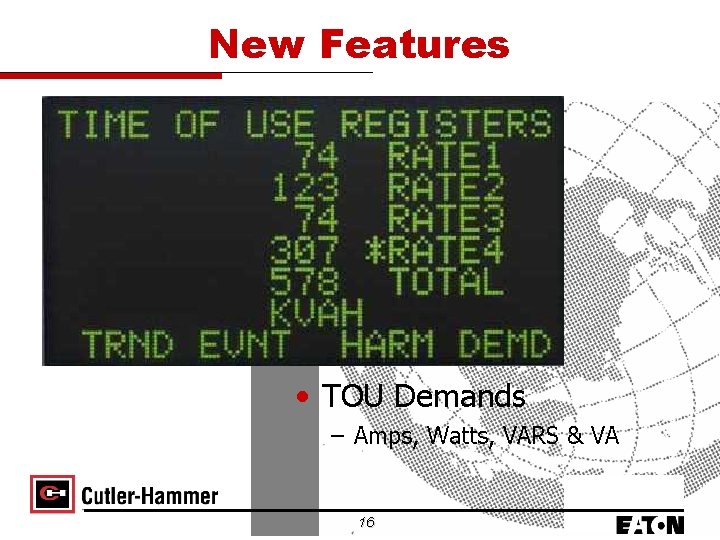

New Features • TOU Demands – Amps, Watts, VARS & VA 16

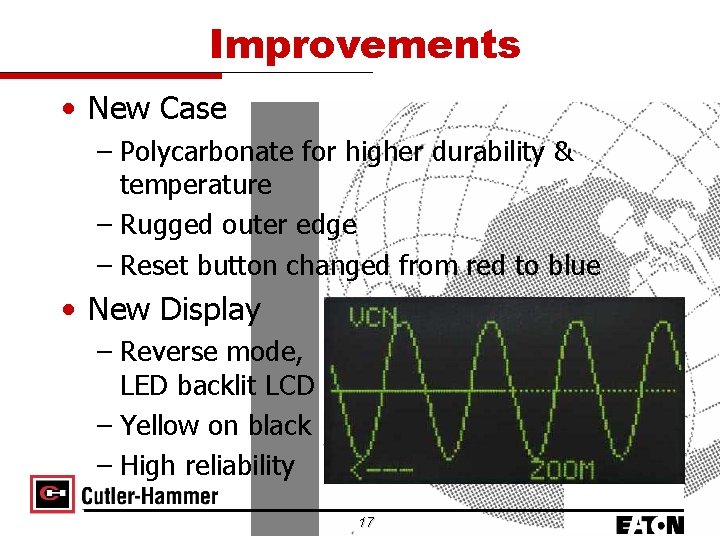

Improvements • New Case – Polycarbonate for higher durability & temperature – Rugged outer edge – Reset button changed from red to blue • New Display – Reverse mode, LED backlit LCD – Yellow on black – High reliability 17

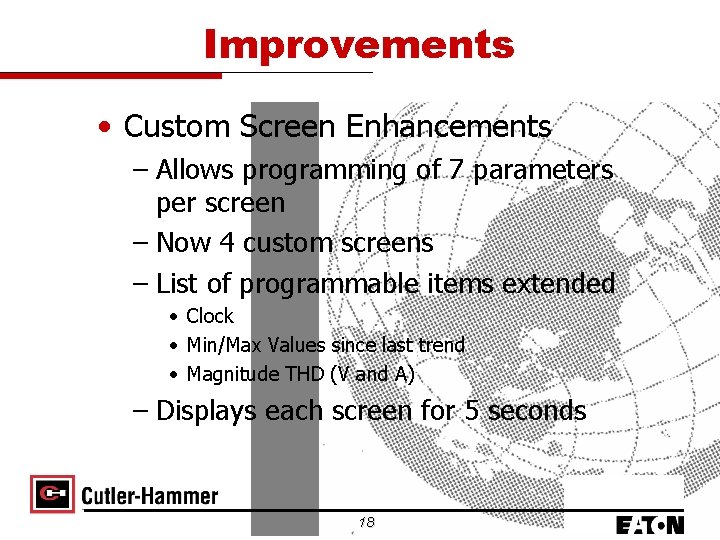

Improvements • Custom Screen Enhancements – Allows programming of 7 parameters per screen – Now 4 custom screens – List of programmable items extended • Clock • Min/Max Values since last trend • Magnitude THD (V and A) – Displays each screen for 5 seconds 18

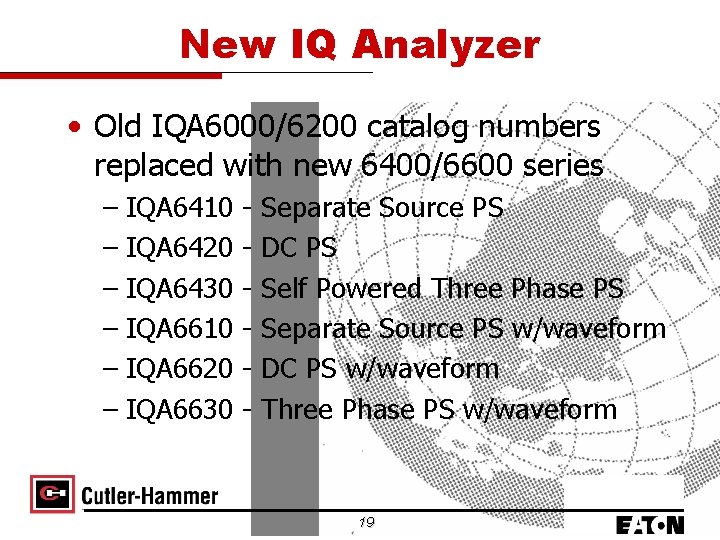

New IQ Analyzer • Old IQA 6000/6200 catalog numbers replaced with new 6400/6600 series – IQA 6410 – IQA 6420 – IQA 6430 – IQA 6610 – IQA 6620 – IQA 6630 - Separate Source PS DC PS Self Powered Three Phase PS Separate Source PS w/waveform DC PS w/waveform Three Phase PS w/waveform 19

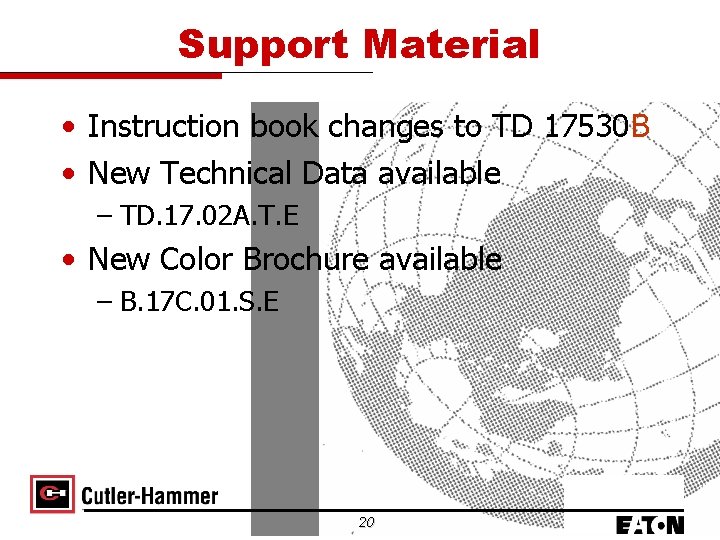

Support Material • Instruction book changes to TD 17530 B • New Technical Data available – TD. 17. 02 A. T. E • New Color Brochure available – B. 17 C. 01. S. E 20

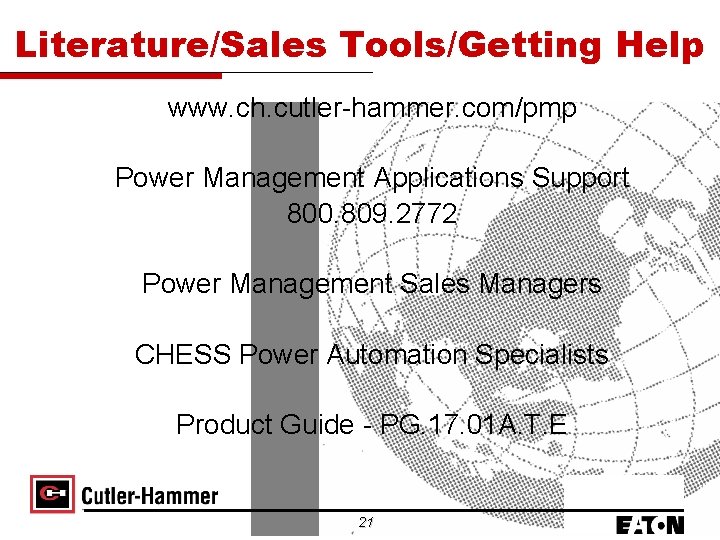

Literature/Sales Tools/Getting Help www. ch. cutler-hammer. com/pmp Power Management Applications Support 800. 809. 2772 Power Management Sales Managers CHESS Power Automation Specialists Product Guide - PG. 17. 01 A. T. E 21

Wrap UP • Product Feedback • PMPC Support • Questions & Answers • Thank You! 22
