Presentation Outline IP in UMTS Addressing Migration IPv 6 over the air Mobility Support IPv 6 in UMTS

3 GPP UMTS Standard Network IPv 6 in UMTS

Growth of the Mobile Internet IPv 4 addresses: 4 B theoretical China: 9 Million Europe: 80 Million US gov. 168 Million 1980: 200 user on 1 mainframe 2000: 1 mobile + 1 PC per user 2020: 200 Embedded, wireless devices per user @ 2 B humans is 400 B 1, 000 Fixed 150 Million new users by 2003 -2004 implies 500. 000/day (Millions) 800 600 Internet In 1999: Mobile 100 M PC’s 275 Mobiles 400 Mobile Internet 200 0 1996 1998 8 year (1992 -2000) GSM IPv 6 in UMTS 2000 2002 4 year 2004

Benefits of IPv 6 • • • Almost unlimited number of addresses Built in security support (IPsec) Built in mobility support (MIPv 6) Efficient routing Features for simplified Network management Same level of Qo. S support as in IPv 4 with potential improvement IPv 6 in UMTS

Addressing of a 3 GPP Network IPv 6 in UMTS

User level addressing in a 3 GPP Network • Possible scenarios – – Stateless Address Autoconfiguration* Stateful Adress Autoconfiguration (DHCP client in the UE) Stateful Address autoconfiguration (DHCP client in the GGSN) Static Addresses in the HLR IPv 6 in UMTS

End to end incompatibility vs connectivity layer incompatibility V 6 UE End to end V 4 host IPv 6 domain IPv 4 domain Edge router Translator V 4 edge router / GGSN V 4 backbone IPv 6 in UMTS

Translation Service Network IPv 4 Domain Translator IPv 6 Domain SGSN Core Network RNS RBS GGSN RBS RNC RBS RBS GERAN IPv 6 in UMTS UTRAN

6 -to-4 tunnelling 3 13 8 001 TLA 24 NLA RESV 4_Addr Public Topology 16 SLA Site Topology 64 bits Interface ID Interface Identifier 6 to 4 relay router IPv 6 domain 6 to 4 edge router V 6 edge router V 4 backbone IPv 6 in UMTS

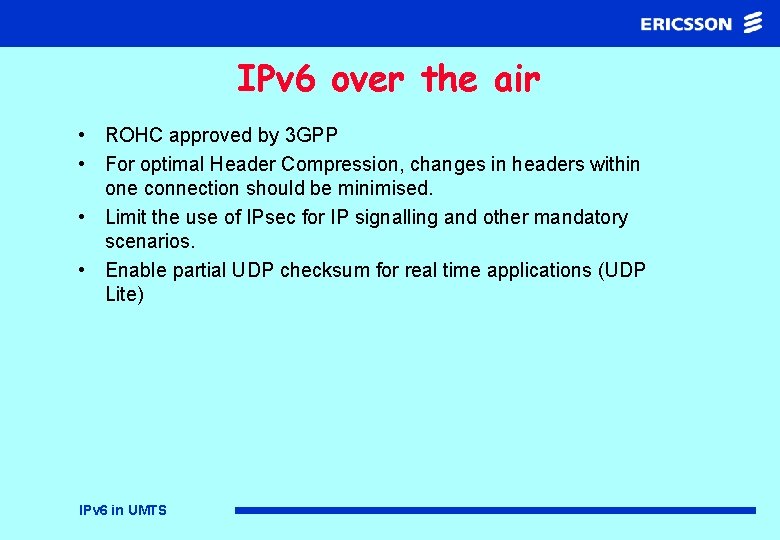

IPv 6 over the air • ROHC approved by 3 GPP • For optimal Header Compression, changes in headers within one connection should be minimised. • Limit the use of IPsec for IP signalling and other mandatory scenarios. • Enable partial UDP checksum for real time applications (UDP Lite) IPv 6 in UMTS

IPv 6 mobility support (MIPv 6) Home Network Home Agent Correspondent Node (CN) HA/MAP GGSN Access Router System A (UMTS Foreign Network) Mobile Node (MN) IPv 6 in UMTS System B (BT/WLAN Foreign Network)

MIPv 6 …cont IP Network Mobile IP Core Network GPRS CN (GTP) RAN IPv 6 in UMTS GSM UTRAN Other
